PoolEye PE12 User manual

PE12MA -REV 01.052419
®
MODEL NO. PE12
OWNER’S MANUAL

2PE12MA -REV 01.052419
IMPORTANT: READ THOROUGHLY PRIOR TO INSTALLING AND OPERATING
THE POOLEYE ALARM.
TABLE OF CONTENTS
Important afety Information ..........................................................................................2
List of Components ..........................................................................................................3
Installation......................................................................................................................4
Winterization...................................................................................................................7
Troubleshooting...............................................................................................................7
Warranty.........................................................................................................................8
Read all instructions prior to installing or operating this device.
Failure to follow the instructions may result in injury or death.
This product does not replace the need for adult supervision of all persons in the pool area.
This product is not a life saving device but an aid to a multi-level program of pool safety including
adult supervision, knowledge of CPR and swimming instruction for all persons using the pool.
This product is intended for use on residential pools only, and the manufacturer assumes no respon-
sibility for injuries or consequential property damage while this product is in use on a swimming pool.
Proper installation and maintenance are the sole responsibility of the pool owner.
Do not permit children to use this product unless closely supervised by an adult at all times.
Do not operate this product unless it is submerged in water.
Do not use this product if it is damaged in any way.
ever leave children unattended near or in the pool.
It is imperative to react quickly once the alarm has sounded.
Swimming instruction is recommended for those who cannot swim.
Participation in a safety instructional course such as CPR (especially for children) is recommended.
For children or persons that cannot swim, a Personal Floatation Device (PFD) is recommended
when entering the pool area.
Test the alarm weekly to ensure it is working properly.
Do not leave toys or objects floating in an unattended pool as this may invite children to enter the pool.
Keep the pool water clear so all objects on the bottom of the pool are visible.
Layers of protection add to the security of the pool. A barrier fence should always be used around a
pool in conjunction with a gate or door alarm, such as SPQ Brands’s YardGard to alert the
responsible
party that an unwanted intrusion to the pool area has occurred.
!
IMPORTANT SAFETY INFORMATION
WARNING:
!
WARNING:
!
WARNING:
!
WARNING:
!
WARNING:
!
WARNING:
!
WARNING:
!
WARNING:
!
WARNING:
!
WARNING:
!
WARNING:
!
CAUTION:
!
CAUTION:
!
CAUTION:
!
CAUTION:
!
CAUTION:
!
CAUTION:
!
IMPORTANT:

3 PE12MA -REV 01.052419

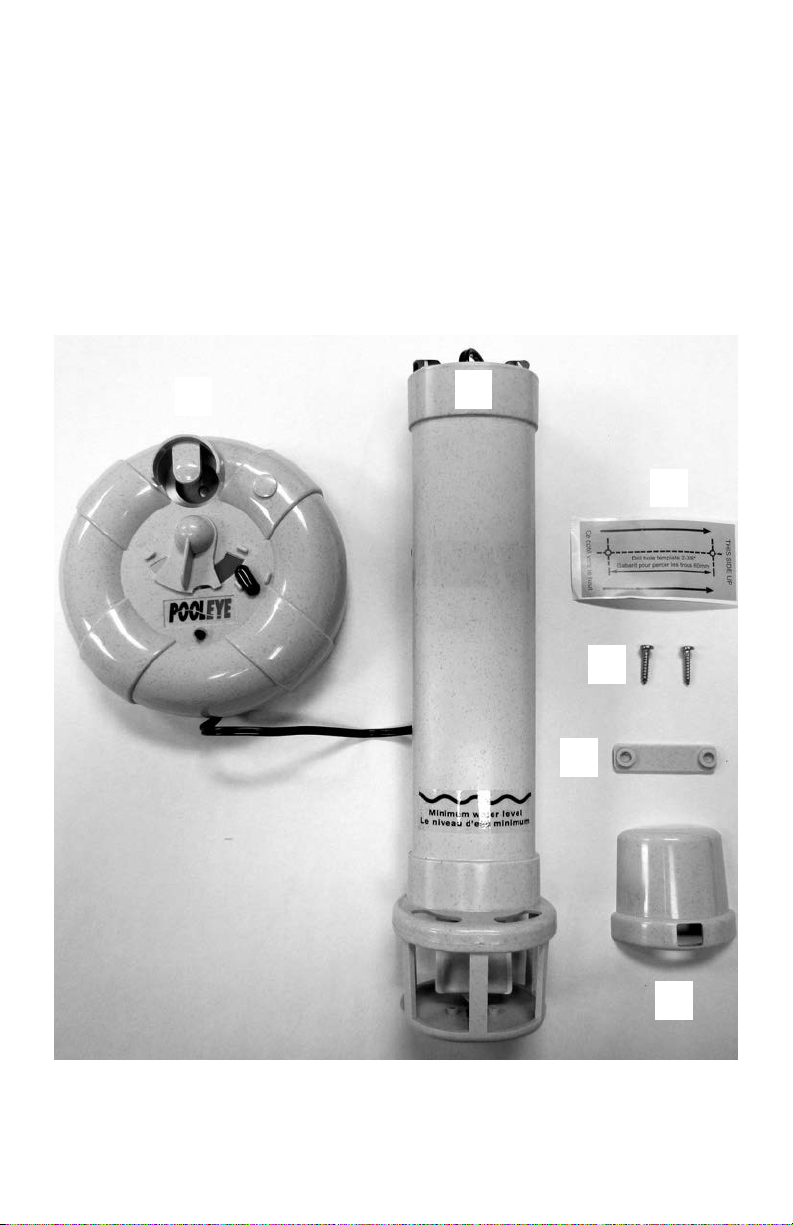

LIST OF COMPONENTS
AB
C
D
E
F
A. Siren
B. Sensor Tube
C. Siren Mounting Template
D. Siren Mounting Screws
E. Mounting Bracket Spacer
F. Deflector Shield

4PE12MA -REV 01.052419
REQUIRED TOOL
• Phillips head screwdriver
• Battery powered drill (optional)
• 3/32 drill bit (optional)
• Double-sided tape (optional)
INSTALLATION
PO ITIONING OF THE ALARM
Key factors for proper alarm positioning:
1) Direction of the return line water flow.
2) Distance of the alarm from all points of the pool.
• The eyeball of the return line must be facing a downward direction as to not disturb the
surface of the water.
CORRECT INCORRECT
• Ensure that the eyeball of the return is not facing the center of pool but is either creating
a clockwise or counterclockwise water flow.
RETURN RETURN
ALARM
ALARM
Round haped Pools
• Ensure the alarm is centrally located for the shortest distance to all points of the pool.

5 PE12MA -REV 01.052419
ALARM
ALARM

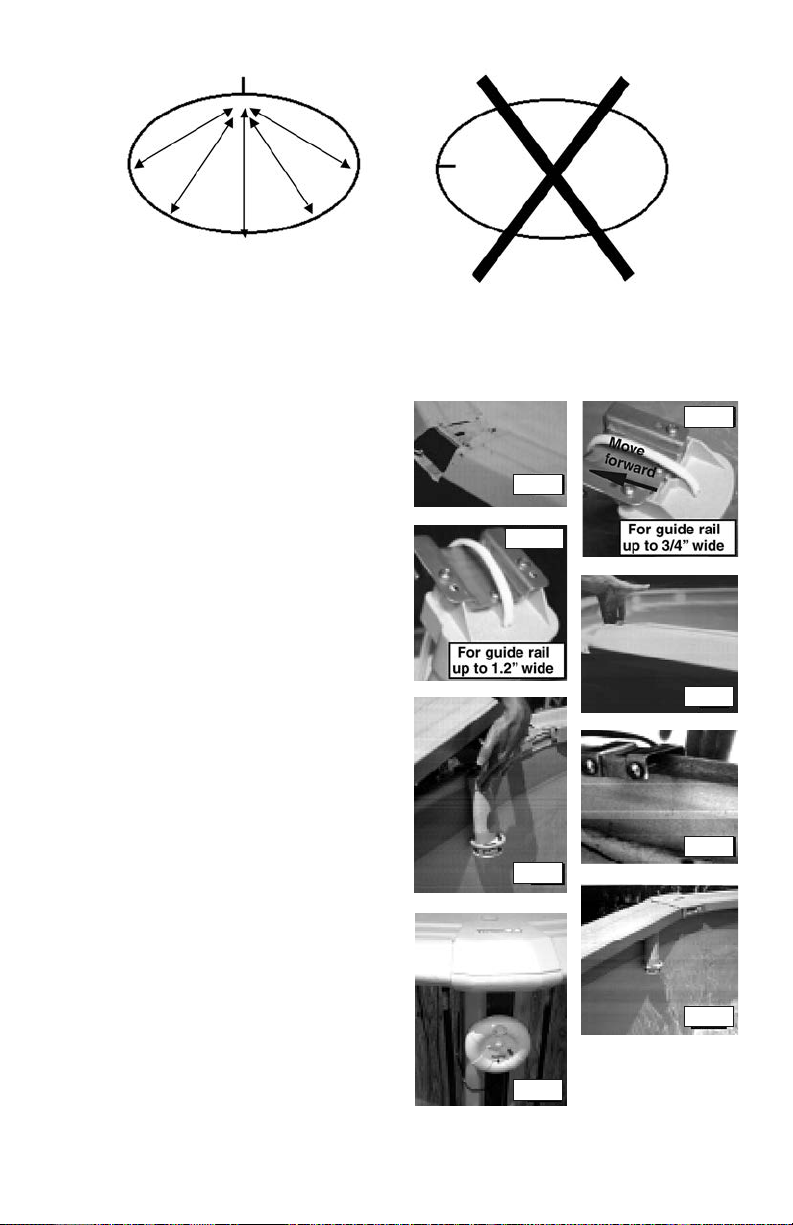

Oval haped Pools
WARNING: Every pool is different. The alarm must be tested immediately upon installation to ensure the positioning
of the alarm fits its specific environment. Improper positioning of the alarm or return fitting may result in false alarms.
MOUNTING THE ALARM
1) Locate the section of the pool where the alarm
will be installed.
2) Remove one of the top seat caps from the
identified pool section as in Figure 1.
NOTE: The mounting bracket can be adjusted if the top
rail of the wall is wider than the defaulted setting.
Remove the support screws to make this adjustment as
shown in Figures 2 and 2A.
3) Remove the screws from the top seat and lift
that end of the top seat as in Figure 3.
4) Loosen the mounting bracket screws and slide
the alarm onto the top rail and position it in the
center of that wall section as in Figure 4.
5) Install the mounting bracket spacer and tighten the
mounting bracket screws until the alarm is secure
against the pool wall as in Figure 5.
IMPORTANT: The alarm must be installed in a vertical
position to perform properly.
6) Using the siren mounting template and screws
(double-sided tape can also be used), mount the
siren to the outside of the nearest upright as in
Figure 6 (a pilot hole may need to drilled for the
screws).
WARNING: Do not drill into the pool wall. The siren is to
be mounted to the outside of the pool’s upright support.
7) Position the wire leading to the alarm siren in the
channel provided in mounting bracket, and reinstall
the top seat and cap as in Figure 7.
Figure 1
Figure 4
Figure 6
Figure 2
Figure 3
Figure 5
Figure 7
Figure 2A

6PE12MA -REV 01.052419
OPERATING THE ALARM
1) Install 4 AA batteries into the siren of the alarm as
in Figure 8.
2) Turn the grey switch to the right until it clicks into
position. The green label will appear and the siren
will beep once as in Figure 9.
3) Press the black button on the front of the siren to
test the alarm as in Figure 10.
The Alarm is now Activated
4) To deactivate the alarm, push the locking tab to the
right and turn the grey switch to the left. A red label
will appear as in Figure 11.
TE TING THE ALARM
1) Ensure the surface of the pool water is calm.
2) Turn the alarm to the O position (green label).
3) Fill a 5 gallon bucket 1/3 of the way with water.
4) Drop the bucket into the pool from a height of 6
inches as in Figure 12.
NOTE: The wave created from the bucket will travel at
4ft per second to reach the alarm.
5) Once the alarm sounds, turn the siren to the OFF
position (red label) and wait for the water to settle.
6) Repeat the test from various points of the pool to
ensure the alarm is operating correctly.
IMPORTANT: If the siren does not sound when the
wave created by the bucket reaches the alarm, please
see the troubleshooting guide for assistance. If the siren
sounds prior to dropping the bucket into the water,
please refer to following section entitled ADJUSTI G THE
ALARM SE SITIVITY.
Figure 8
Figure 10
Figure 12
Figure 11
Figure 9
IMPORTANT: Press the TEST button on the front of the
alarm siren everytime the alarm is turned to the O
position to ensure the batteries are operational.
IMPORTANT: Test the full alarm function once every week.
IMPORTANT: Change the batteries of the alarm at least
once every swim season and immediately if siren is not
sounding during testing or if siren seems to be operating at
a lower volume.

7 PE12MA -REV 01.052419

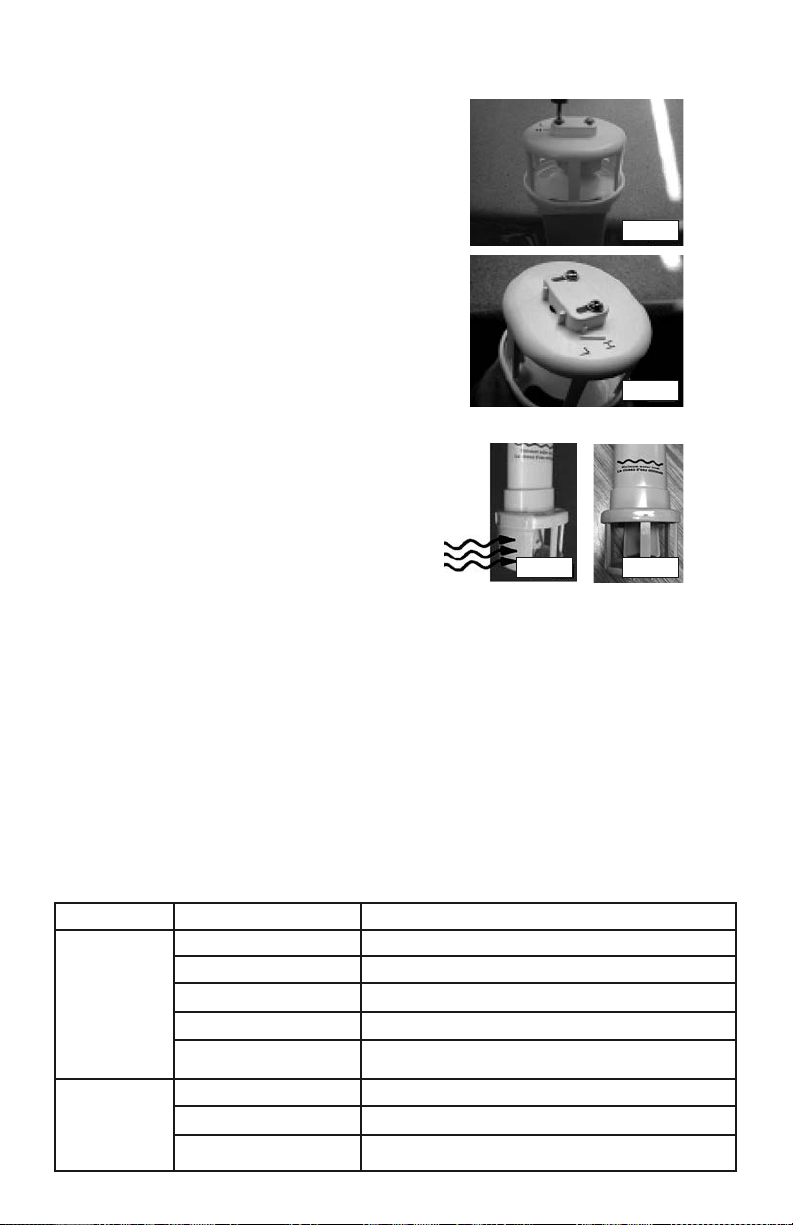

ADJU TING THE ALARM EN ITIVITY
OTE: Alarm is factory-set to the highest sensitivity level.
1) Loosen the screws on the bottom of the sensor tube
as in Figure 13.
2) Slide the adjustment switch from the high
sensitivity position (H) to the low sensitivity
position (L) as in Figure 14.
3) Tighten the screws on the bottom of the sensor
tube to complete the adjustment.
4) Test the alarm to ensure it is performing properly.
ADJUSTMENT SWITCH
DEFLECTOR SHIELD
The deflector shield can be used to lower the sensitivity
of the alarm in cases where the water flow from the
return is setting off the alarm.
1) Snap the shield onto the sensor cage facing the
direction of water flow as in Figure 15.
2) Retest the alarm to ensure it is performing properly.
WINTERIZATION
It is recommended to remove the alarm from the pool when
the water temperature can fall below the freezing point.
1) Remove one of the top seat caps from the pool
section of where the alarm is installed.
2) Remove the screws from the top seat and lift that
end of the top seat.
3) Loosen the mounting bracket screws and slide the
alarm off the top rail of the pool wall.
4) Remove the siren from the upright of the pool.
5) Reinstall the top seat and cap.
6) Store the alarm and its components in a location
that will remain above the freezing point.
Figure 13
Figure 14
Figure 15 Figure 16
SYMPTOM REASON SOLUTION
Alarm not sounding
Low battery Install new batteries
Alarm not activated Ensure the main switch is turned to the O position
Sensitivity is set on L or Low Ensure the sensitivity is set to H or High
Water level too high Lower water level closer to minimum water level requirement (Fig 16)
Sensor shield blocking wave Remove sensor shield from sensor cage
Alarm constantly
sounding
Water level low Raise water level to minimum water level requirement (Fig 16)
Sensitivity set on H or High Adjust the sensativity to L or Low
Return water flow setting off alarm Adjust the return eyeball to face down and away from the alarm
TROUBLE HOOTING

PE12MA -REV 01.052419
SIX MONTH LIMITED WARRANTY
ix month limited warranty from date of original purchase for manufacturing defects under normal and reasonable use, and
subject to the maintenance requirements and installation guidelines set forth in the product instruction manual.
Warranty valid only within the continental U .
THIS WARRANTY IS SUBJECT TO THE TERMS, LIMITATIONS AND EXCLUSIONS DESCRIBED
BELOW, AND THERE ARE NO OTHER WARRANTIES OR REPRESENTATIONS, EITHER
EXPRESS OR IMPLIED, WHETHER OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR OTHER, MADE BY THE MANUFACTURER, OTHER THAN THOSE SPECIFICALLY
SET FORTH IN THIS WRITTEN WARRANTY
What is Covered: SPQ Brands warrants its electronic prod ct to be free from defects in material and
workmanship when leaving the factory.
What is not Covered: Any type of damage to the prod ct d e to improper installation, maintenance, or fail re
to provide necessary and reasonable maintenance; any damage or inj ry ca sed by mis se and/or nreasonable
se of the prod ct; batteries (if applicable); damage d e to or related to improper draining, winterizing, storage
or Acts of God; SPQ Brands will not honor any claims for damage to any prod cts in transit nless damage to
the shipping container is noted at the time of delivery on the transfer company’s delivery bill.
THE WARRANTY OBLIGATIONS OF SPQ BRANDS ARE LIMITED TO REPAIR OR REPLACEMENT OF THE
PRODUCT OR OF ANY DEFECTIVE COMPONENT, AT THE OPTION OF SPQ BRANDS. UNDER NO
CIRCUMSTANCES WILL SPQ BRANDS BE LIABLE OR RESPONSIBLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES, AND/OR CHARGES FOR LABOR. SPQ BRANDS SHALL NOT BE LIABLE OR
RESPONSIBLE UNDER ANY CIRCUMSTANCES OR ANY AMOUNT FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES, OR FOR ANY INJURIES OR DAMAGES TO PERSON OR PROPERTY USING OR USED IN
CONNECTION WITH THE PRODUCT, OR FOR ANY OTHER LOSS OF PROFITS OR OTHER COSTS OR
EXPENSES OF ANY KIND OR CHARACTER. IF SPQ BRANDS DETERMINES THAT EITHER REPAIR OR
REPLACEMENT OF THE PRODUCT IS NECESSARY, SPQ BRANDS MAY EITHER REPAIR THE PRODUCT AT A
NOMINAL CHARGE TO THE OWNER OR REPLACE THE PRODUCT. THE OWNER BEARS THE SOLE
RESPONSIBILITY FOR PRE-PAID RETURN OF THE PRODUCT TO SPQ BRANDS, AND ALL REPAIRED OR
REPLACED PRODUCTS WILL BE RETURNED AT THE OWNER’S EXPENSE.
NO PERSON, FIRM, OR CORPORATION IS AUTHORIZED TO MAKE REPRESENTATIONS OR INCUR ANY
OBLIGATIONS IN THE NAME OF OR ON BEHALF OF SPQ BRANDS EXCEPT AS STATED HEREIN. THE
REMEDIES SET FORTH IN THIS WARRANTY ARE EXPRESSLY UNDERSTOOD TO BE THE EXCLUSIVE
REMEDIES AVAILABLE TO THE OWNER, AND THIS WARRANTY CONTAINS THE FULL AND COMPLETE
AGREEMENT BETWEEN SPQ BRANDS AND THE OWNER. THIS WARRANTY SETS FORTH THE ONLY
OBLIGATIONS OF SPQ BRANDS, WITH REGARD TO THIS PRODUCT, AND THERE ARE NO WARRANTIES
WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF.
The representations set forth herein are the only representations made by PQ Brands, with respect to the product, and this warranty does not
constitute either a performance or satisfaction guarantee. It is the responsibility of the product owner to regularly test and check the product for
proper function and safety.
This warranty gives the original owner specific legal rights. You may have other rights depending on where you live.
What you must do to file a laim: Contact Technical upport at 609-212-0221, M-F, 9am-5pm E T.
