Pope 101HPW1800 User manual

T RBO POWER WASH
High Pressure Cleaner 1800W
Model No. 101HPW1800
Operator’s Manual
To reduce the risk of injury, the user must read and understand the
Operator’s Manual. Save this manual.
WARNING

Introduction
Thank you for purchasing a Pope product.
We would like you to be completely satisfied with your new product, so feel free to contact
Pope for help with any information you require.
Pope's Customer Service centre number is 1300 134 880.
Please read this manual carefully to learn how to operate and maintain your product correctly.
It is important to consult these instructions in order to acquaint yourself with the tool, its proper
use and safety precautions.
Please observe the general maximum operating times as well as local regulations for tool
operation.
Should this product require repair under the conditions of the warranty, please return it to the
place of purchase. You will need to provide proof of purchase to obtain a free of charge repair,
or a replacement.
Keep these instructions in a safe place.
For your records, attach your receipt here.
2

SAFETY R LES
•Physical Condition of the Operator. Do not operate this product when tired, ill or under the
influence of alcohol, drugs or medication.
•Clothing Requirements: Do not wear loose clothing, jewellery, short pants, sandals or go
barefoot. Secure hair so that it is above shoulder level to avoid entanglement in moving parts.
•Warning: Do not use the appliance within range of persons unless they wear
protective clothing.
•Protective Accessories Requirements. Wear safety eye protection when operating this
product.
•Condition of Product Before se. Inspect condition of the product before use. Only operate
the tool when it is in good working order and is not damaged in any way. Damaged parts
have to be replaced immediately by a qualified electrician. Never use the tool if a supply cord
or important parts of the appliance are damaged or missing e.g. safety devices, high pressure
hose, trigger gun.
•Proper Stance. Keep firm footings and balance. Do not overreach.
•Exercise Caution to Avoid Slipping or Falling.
•Work Area. Before starting any cleaning operation clear the area to be cleaned before each
use. Remove all objects such as rocks, broken glass, nails, wire, debris, toys, or anything that
may be a hazard. Clear the area of bystanders, pets and children. If you are approached while
operating the product, stop the motor.
•Never direct a Water Stream towards people, pets or any electrical device including
the pressure washer itself. Do not direct the jet at yourself or others to attempt to
clean clothes or footwear.
•Warning: High Pressure jets can be dangerous if subject to mis-use.
•Condition of Pressure Washer before use. The High Pressure Washer shall be assembled
according to the manufacturer's instructions. Failure to use the proper parts may cause
product failure or increase the risk of injury to the user.
•se the Right Product. This Pressure Washer should only be used for cleaning outdoors.
Ensure doors and windows are closed before operation. This pressure washer can be used on
machines, vehicles, outdoor areas garden equipment and outdoor products such as outdoor
furniture etc.
•Visually inspect the area / surface to be cleaned. The machine should not be used to
clean surfaces that are already damaged or worn e.g. flaking or scratched paint, crumbling
brickwork or masonry or products that have rust etc.
•se of Product. Never allow children to use the tool. Never allow other persons who are not
familiar with the operating instructions to use the tool. Never use the tool when there are
people, particularly children or pets nearby.
Read and understand all instructions. Failure to follow all instructions
may result in serious personal injury as well as damage to the product.
WARNING
3

SAFETY R LES – continued
4
•Responsibility. The user is responsible for any accidents or hazards suffered by third parties
or their property.
•se only hoses, fittings and couplings recommended by the manufacturer.
•Do not jam the trigger in the operational position.
•Do not move the Pressure Washer by pulling the electrical cable.
•COMPLY WITH REQ IREMENTS AND RESTRICTIONS IN PLACE BY YO R LOCAL
WATER A THORITY.
•Discharge residual pressure before disconnecting the hose.
•Maintenance. Switch off the tool and pull plug from the socket before carrying out any
cleaning or maintenance work.
•Outdoor se. When working outdoors, use only extension cables which are approved for
outdoor use.
•Plugs. Plug connections must have earthing contacts and be protected from water.
•If an extension cord is used the plug and socket must be of watertight construction.
Warning: Inadequate extension cords can be dangerous.
•The electric supply connection shall be made by a qualified electrician and comply
with IEC 60364-1.
It is recommended that the electric supply to this appliance should include either a
residual current device that will interrupt the supply if the leakage current to earth exceeds
30mA for 30ms or a device that will prove the earth circuit.

5
Applications
Only use this product outdoors. Ensure that windows and doors and fully closed.
This product can be used – but is not limited to – the following applications:
•Cleaning outdoor surfaces including pavers and concrete, cars, boats, machinery and garden
equipment.
•Outdoor furniture, barbecues and general cleaning around the home.
•When removing stubborn dirt and grime with detergent, use only highly biodegradable types.
•Only clean vehicle engines or other items containing oil, grease etc. in areas where suitable oil
traps are installed.
The Pope TURBO POWER WASH is designed to be used in domestic applications and should
only be operated within its design limitations. Tools of this category which are designed for home
and garden use should only be operated in such settings. Tools of this category are not suitable
for use in public facilities, parks and sports centres, vehicle cleaning services or for any
commercial type application.
npacking
•Carefully remove the product from the box.
•Inspect the product carefully to make sure no breakage or damage occurred during shipping.
•Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
•Please dispose of this packaging by recycling rather than in the normal household waste.
•If any parts are damaged or missing please call the Pope Customer Service Centre on
1300 134 880 for assistance.
Packing List
Pressure Washer (1)
Trigger Gun with 5 m of high pressure hose (1)
Adjustable Spray ance (1)
Turbo ance (1)
Accessory Bracket (1)
Screws (3)
Nozzle Cleaning Pin (1)
Operator's Manual (1)

Product Layout and Descriptions
1. Water outlet 5. Integrated detergent bottle 9. Spray ance
2. Water inlet 6. Trigger Gun 10. Turbo ance
3. Accessory brackets 7. Safety trigger lock 11. Hose and Power cord hooks
4. Wheels 8. High pressure hose
SPECIFICATIONS
Name Pope TURBO POWER WASH
Model Number 101HPW1800
Rated Power 1800W
AC motor 220-240V~50Hz
Operating Pressure 10 Mpa (100 bar)
Maximum Pressure 15 Mpa (150 bar)
Flow Rate 5 litres per minute
High Pressure Hose ength 5 metres
Min Operating Temperature 0°C
Max Operating Temperature 40°C
Pump Aluminium
Inlet Water Pressure 0.15-0.6 Mpa
Sound Power evel wa 94.2 dB (A)
Vibration evel 6.7m/s2
Moisture Protection IPX5
Protection Class of Electrical Shock Class
ASSEMBLY
6
1
2
3
4
5
6
7
8
9
10
11
Fig 1
Fig 1

ASSEMBLY – continued
7
Assembling the Accessory Bracket
to the Pressure Washer
See Fig 2
Follow these steps to attach the accessory bracket.
1. Position the accessory bracket on the back of the
pressure washer as shown.
2. Firmly attach either side using screws as supplied.
It should be positioned at about 90 degrees to the
correct position.
Assembling the Spray Lance and
Hose to the High Pressure Washer
See Fig 3, Fig 4 and Fig 5
Follow these steps to attach the Spray ance.
1. Fit the spray lance into the trigger gun by rotating it
until the two parts are aligned with each other.
Firm inward pressure is then applied until the two
parts are fully “home". Rotate to lock the trigger
unit to the spray lance (Fig 3).
2. Ensure that all connections are secure and aligned.
3. Connect the trigger gun to the high pressure
hose by screwing firmly in place.
Do not overtighten (Fig 4).
4. Firmly connect the hose to the pressure washer,
ensuring that the threads are correctly aligned and
tighten. Do not overtighten (Fig 5).
Fig 2
Fig 3
Fig 4
Fig 5

OPERATION
8
Starting the Pressure Washer – sing a Garden Tap
Follow these steps to operate the High Pressure Washer.
1. Ensure that the switch is in the off position.
2. Connect garden hose from the tap to the inlet of the pressure washer. The water inlet is
located on the opposite side to the on / off switch. Ensure all connections are secure.
3. Insert the electrical plug into a suitable outlet and turn on the power.
4. Turn the water on at the tap. Water pressure should not exceed 500kPa (5 bar). Ensure that
the unit is receiving water correctly. Operating the High Pressure Washer without water could
damage the pump seals.
5. Before switching the unit on, depress the trigger for a few seconds so that air can escape and
to discharge any residual pressure in the pipes.
6. Keep the trigger depressed and turn the switch on to start the motor.
WARNING: Always handle the spray lance with two hands,
especially when engaging the trigger, to reduce the risk of the
lance moving suddenly with high pressure.
Note: When restarting the motor always keep the trigger
pressed.
CA TION: The Pressure Washer must only be used with clean
water; use of unfiltered water or corrosive chemicals will
damage the cleaner.
Note: The water intake temperature must not exceed 40°C.
A TO STOP SYSTEM
Note: This Pressure Washer has an A TO STOP SYSTEM. This means
that when the trigger is released during use, the pump will automatically
stop, thereby promoting longer pump life and saving water and energy. The
pump will restart when the trigger is depressed again for use.
SAFETY SH T-OFF
Note: This unit is equipped with an automatic safety valve. When the water
pressure is enough, the safety valve will open automatically. As this occurs
automatically the safety valve is not adjustable.

Working with the Pressure Washer
1. Always ensure the unit is standing upright and that ventilation grills are not obstructed during
use.
2. Do not move the pressure washer by pulling on the electrical cord or the high pressure hose.
Use the handle provided.
3. Position the cleaner as near as possible to the water supply.
4. The cleaner must be used standing on a secure, stable surface.
5. To avoid any risk of damage to the surface being cleaned a minimum distance of 300 mm
(30 cm) should be maintained between the surface of the object being cleaned and the
spray nozzle.
6. Never clean surfaces that are already damaged e.g. flaking or scratched paint work, eroded
stone or brickwork or other masonry, or rusted fences, sheds etc.
7. Take care when cleaning pavers in which the cracks and joins have been filled with paving
sand or similar. This may be dislodged if the spray is directed at this area.
Adjusting the spray on the lance
See Fig 6
Follow these instructions to adjust the lance from a stream to a fan
1. Twist to reduce the water flow.
2. Open to increase the water flow.
SPRAY LANCE SAFETY LOCK
Whenever you need to stop the machine it is advisable to use the built-in safety lock on the spray
handle. Pressing this button ensures that the trigger cannot be inadvertently operated.
OPERATION – continued
9
Fig 6

sing Detergent
See Fig 7
Follow these instructions to apply detergent.
Note: Use only liquid detergent recommended for the purpose. The use of other cleaning agents
or chemicals may adversely affect the safety of the appliance. Use sparingly to help conserve
the environment.
When using detergent be aware of where the detergent will run off.
1. Only use the spray lance when using detergent. The turbo lance should not be used.
2. Pour the appropriate amount of detergent into the tank.

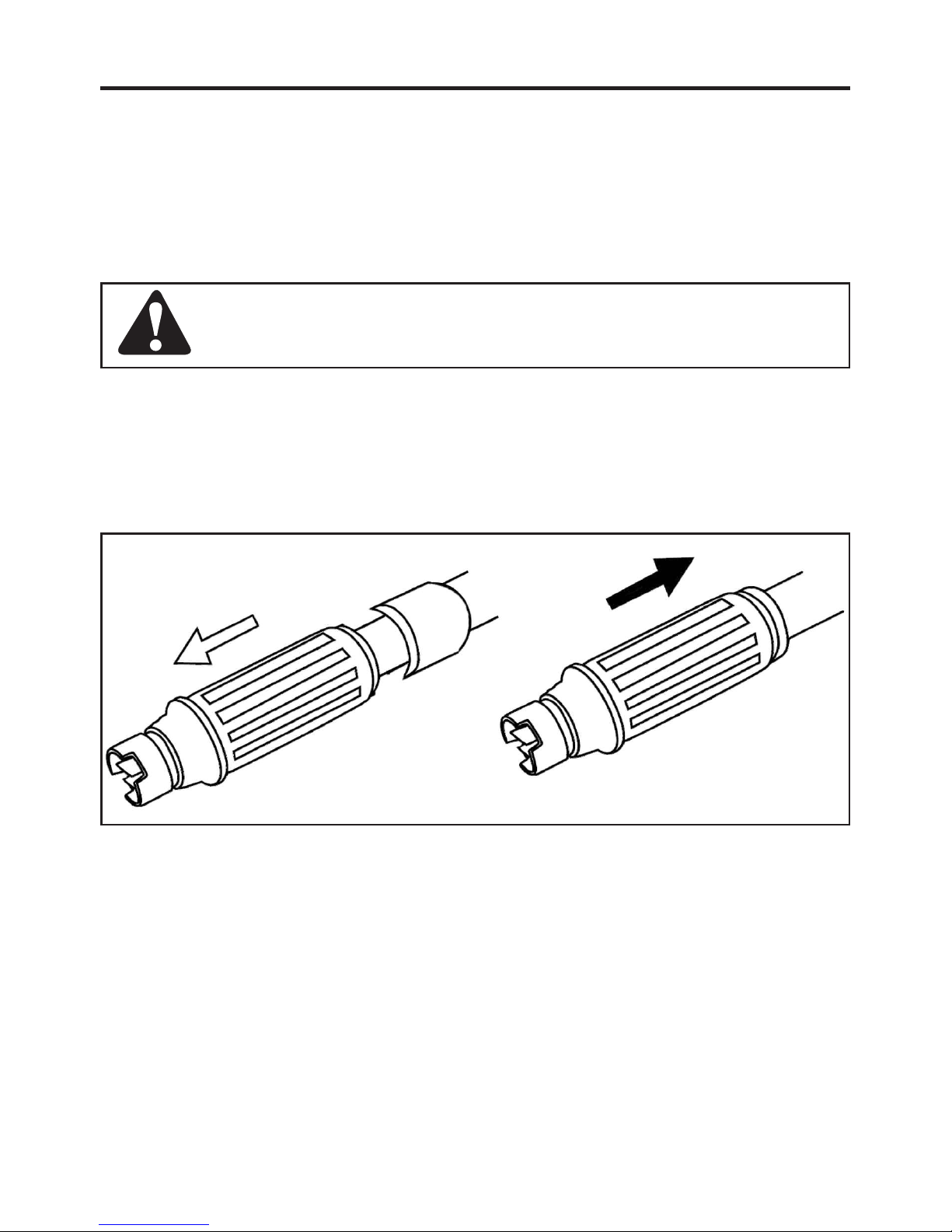

3. Pull the nozzle at the end of the spray lance outward (Fig 7). This will change the spray to low
pressure and will allow the detergent to be drawn from the detergent tank.
4. Dissolve dirt by applying detergent onto the surface of the object being cleaned. On vertical
surfaces work from the bottom upwards.
5. eave the detergent to act for a few minutes but do not allow it to dry out.
6. To rinse, push the nozzle inwards to return to high pressure. This will mean that detergent will
not be drawn from the detergent tank.
7. Keep the nozzle at least 30 cm away from the surface being rinsed, working from the bottom
upwards.
AFTER SE
Discharge all residual pressure before disconnecting the cleaner hose.
ow Pressure Operation High Pressure Operation
OPERATION – continued
10
Fig 7
CA TION iquid detergent must always be sprayed at low pressure.

STORAGE AND MAINTENANCE
11
Storage
When cleaning is finished:
•Switch off the High Pressure Washer at the on/off switch on the unit.
•Turn off the water supply at the tap.
•Discharge residual pressure by pressing the trigger until no more water comes out of the
nozzle.
•Engage the safety gun lock.
•Remove the plug from the socket.
•In areas prone to frost or freezing temperatures always ensure that the Pressure Washer has
been completely emptied of water and is stored in a frost – free area.
Clean the nozzle with the tool provided.
Remove dirt from the nozzle hole with the
needle supplied and rinse it with water.
The High Pressure washer should be cleaned each time after
detergent has been used.
MAINTENANCE

12
TRO BLE SHOOTING – continued
TROUBLESHOOTING
PROBLEM 7KHSXPSGRHVQRWRSHUDWHDWWKHSUHVFULEHGSUHVVXUH6XGGHQFKDQJHVLQSXPSSUHVVXUH7KHPRWRUEX]]HVEXWIDLOVWRVWDUW0RWRUGRHVQRWVWDUW:DWHUOHDNDJHV([FHVVQRLVH2LOOHDNV3RZHUFDEOHGDPDJHG5HSODFHQR]]OHFOHDQÀOWHU7XUQRQWKHZDWHUVXSSO\WDSIXOO\&KHFNWKDWKRVHÀWWLQJVDUHWLJKW6ZLWFKRIIWKHFOHDQHUDQGRSHUDWHWKHJXQXQWLODVWHDG\ÁRZRIZDWHULVREWDLQHG7KHQVZLWFKFOHDQHUEDFNRQ3XOODGMXVWDEOHQR]]OHEDFN&RQQHFWFOHDQHUWRPDLQZDWHUVXSSO\5HGXFHWHPSHUDWXUH'LVFRQQHFWSRZHUVXSSO\GLVFKDUJHSUHVVXUHDQGFOHDQZLWKWRROSURYLGHG+DYHVHDOVUHSODFHGE\DQDXWKRUL]HGVHUYLFHFHQWUH&KHFNWKDWWKHSOXJLVÀUPO\LQWKHVRFNHWDQGWKDWPDLQVSRZHULVSUHVHQW6HHDOVR&KHFNWKHYROWDJHRIWKHPDLQVVXSSO\OLQH&RQVXOWLQVWUXFWLRQVUHJDUGLQJH[WHQVLRQFDEOHV&RQWDFWQHDUHVWVHUYLFHFHQWUH1R]]OHZRUQ:DWHUÀOWHUIRXOHG:DWHUVXSSO\SUHVVXUHORZ$LUEHLQJVXFNHGLQWRWKHV\VWHP$LULQSXPS$GMXVWDEOHQR]]OHLQFRUUHFWO\SRVLWLRQHGZURQJO\:DWHUVXFWLRQIURPH[WHUQDOWDQN:DWHUWHPSHUWXUHWRRKLJK1R]]OHFORJJHG:RUQVHDOV1RHOHFWULFDOSRZHU6XSSO\YROWDJHEHORZUHTXLUHGPLQLPXP9ROWDJHORVVGXHWRXVHRIH[WHQVLRQFDEOHRILQDGHTXDWHFURVVVHFWLRQRUH[FHVVLYHOHQJWK+LJKSUHVVXUHFOHDQHULQGLVXVHIRUORQJWLPH
POSSIBLE CAUSES
¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥¥
REMEDIES
,IWKHPRWRUVWRSVDQGIDLOVWRUHVWDUWZDLWPLQXWHVEHIRUHUHVWDUWLQJ7+(50$/&8728775,33(',IWKLVIDXOWRFFXUVPRUHWKDQRQFHFRQWDFW\RXUVHUYLFHFHQWUH&RQWDFWQHDUHVWVHUYLFHFHQWUH

13
WARRANTY
You must keep your receipt as proof of purchase for return of the product under the
terms of this warranty.
Your Pope product is guaranteed to be free from defects in materials or workmanship for a period
of 24 months from the date of purchase provided the product has been used in accordance with
the manufacturer's recommendations.
If the product becomes defective within the warranty period we guarantee to either replace or
repair the product at our option, provided that:
•The product is returned to the place of purchase with evidence of purchase i.e. the receipt.
•The product is used for general household use only, where household use means use of the
product on the same lot as your home. Use at more than one location is considered
commercial use and no warranty applies for commercial use.
•The product has not been used for hire purposes.
•Repairs, alterations or modifications have not been attempted to the product.
•The failure is not as a result of normal wear and tear.
Failures due to the following are not covered:
•Replacing worn or damaged hoses, lances, wheels, detergent tanks, adaptors or cables etc.
damaged in storage or during use.
•Failures as a result of sudden impact or obvious abuse.
•Failures due to usage not in accordance with instructions and recommendations contained in
this manual.
To the fullest extent permitted by law Toro Australia Pty td is not liable for any indirect, incidental,
or consequential loss or damage in connection with the use of the Pope product covered by this
warranty or for any cost or expense of providing substitute equipment or service during any period
of malfunction or non-use pending completion of repairs under this warranty.
The above warranty does not exclude any condition or warranty implied by the Trade Practices
Act 1974 or any other relevant legislation which implies any condition which cannot be excluded.

14
NOTES

15
NOTES

Pope®is a Registered Trademark of Toro Australia Pty td
53 Howards Rd Beverley South Australia 5009
Made in China to Pope's Specifications
