Popp Ei600ZW User manual

!
Ei600ZW!–!Z-Wave!Module!for!10!Year!Smoke!Sensor!with!Siren!
Quick Start
This device is a combination of a Z-Wave sensor (smoke sensor) and a Z-Wave actuator.
Pressing the button 'Inclusion Button' for one second adds (includes) and removes (excludes)
the device from/to the Z-Wave network.
Please refer to the chapters below for detailed information about all aspects of the product.
Product!description!
This product combines a certified '10 year' stand-alone smoke detector with a plug-in Z-Wave module
to form a wirelessly reporting smoke sensor plus wirelessly controllable indoor siren. The smoke
detector is certified by the VdS for Q quality and DIN EN 14604 and satisfies all contemporary legal
requirements.
The High-End 10 year smoke detector offers a test button conveniently accessible even with a broom
stick when mounted on the sealing. The smoke chamber is monitored electronically to avoid any
malfunction and wrong alerts. The device will also report its End of life to make sure it is getting
replaced on time.
The device is a secure Z-Wave Plus device and can be used in one wireless Z-Wave network with
other certified devices regardless of origin and brand. It supports secure communication if the central
controller supports secure communication as well. Even if included securely the device is able to
communicate unsecured with devices included unsecure using the association groups 2 and 3.
Installation!Guidelines!
Please refer to the installation guide of the smoke sensor for
information about how and where the smoke sensor should be
installed. The installation guide complies with the norm DIN EN
14676.

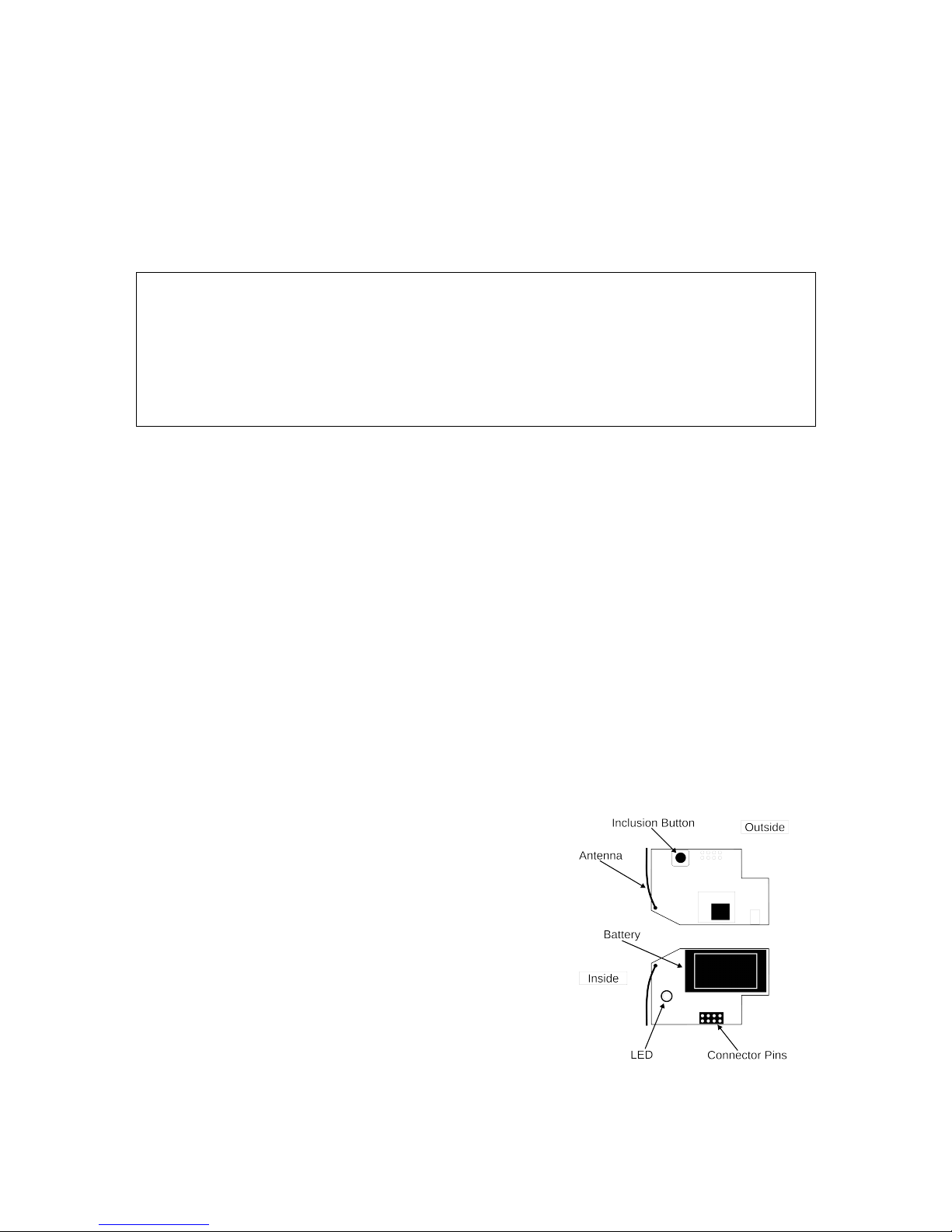

•The first step is to mount the mounting base on the desired
place in the home using screws.
•Remove the battery isolation strip from the wireless module.
The red LED will start blinking.
•Include the Smoke Sensor into your existing Z-Wave based
Smart Home Network using the 'Inclusion button'.
•Place the Smoke Detector on the mounting base and turn
clockwise. Now the Smoke detector is armed.
•Battery Change: The battery of the wireless module will be empty much earlier than the 10
years soldered in battery of the Smoke Sensor. To replace the battery, remove the Smoke
detector, pull off the wireless module from the smoke sensor. Then you can replace the 1/2 AA
battery and re-plug the wireless module.

Behavior!within!the!Z-Wave!network!
On factory default the device does not belong to any Z-Wave network. The device needs to join an
existing wireless network to communicate with the devices of this network. This process is
called Inclusion. Devices can also leave a network. This process is called Exclusion. The primary
controller of the Z-Wave network initiates both processes. This controller will be turned into exclusion
respective inclusion mode. Please refer to your primary controllers manual on how to turn your
controller into inclusion or exclusion mode. Only if the primary controller is in inclusion or exclusion
mode, this device can join or leave the network. Leaving the network - i.e. being excluded - sets the
device back to factory default.
If the device already belongs to a network, follow the exclusion process before including it in your
network. Otherwise inclusion of this device will fail. If the controller being included was a primary
controller, it has to be reset first.
Pressing the button 'Inclusion Button' for one second includes the device. If the button is pressed for at
least 2 seconds the inclusion will be done without the (Security Command Class). A single click on the
button will exclude the device.
Operating!the!device!
In case smoke is detected by the smoke detector the device will sound and the wireless module will
issue a Z-Wave alarm command to the main controller and other associated devices. The wireless
module will also report a low (wireless module) battery warning and a tamper alarm on and off when
the mains device is place on or removed from the mounting base. Please note that the battery level of
the main detector is not reported since this battery can’t be replaced anyway. The end-of-life indicator
serves the same purpose.
Note: All communication of the wireless module is performed with application level security if the
device was included securely and all communication partners support secure communication as well.
In case a non-secure device is associated for switching on smoke alarm, the smoke detector will
detect this and change its communication style with this very device to non-secure. This process
happens one time and will take about 20 seconds. This delay will happen on first communication only.
The siren can be used for other alarm indication. For this reason the device will be shown at graphical
user interface as a simple on/off switch. Turning on this switch start the siren, turning it off will stop the
noise. The generic siren alarm has a different acoustic pattern than the permanent sound caused by
smoke. The configuration parameters 1 and 2 define the sequence of the sound.
Factory reset
To do a factory reset press the button on the bottom of the device for at least 10 seconds. This
procedure should only be used when the primary controller is inoperable.
Firmware Update
Once the firmware update process has started double click the Z-Wave button to confirm firmware
update process.
Alarm Messages
The device will issue the following (unsolicited) alarm messages:
- Smoke Detected (this message will also be issued when the Test button is pressed
- Low Battery Alarm (when the battery of the wireless modules goes low)
- Tamper Detected (on, when the smoke detector head is removed from the base; off, when
the detector head is mounted to the base)
- End of Life (issued, when the Detector Main Head has reached its end of life after 10+ years.)

Node!Information!Frame!
The Node Information Frame is the business card of a Z-Wave device. It contains information about
the device type and the technical capabilities. The inclusion and exclusion of the device is confirmed
by sending out a Node Information Frame. Beside this it may be needed for certain network operations
to send out a Node Information Frame.
A simple click on the 'Inclusion Button' sends a NIF.
Associations!
Z-Wave devices control other Z-Wave devices. The relationship between one device controlling
another device is called association. In order to control a different device, the controlling device needs
to maintain a list of devices that will receive controlling commands. These lists are called association
groups and they are always related to certain events (e.g. button pressed, sensor triggers, ...). In
case the event happens all devices stored in the respective association group will receive a common
wireless command.
Association Groups:
1
Lifeline (max. nodes in group: 10)
2
Alarm Reports (max. nodes in group: 10)
3
Switching Command when Alarm (max. nodes in group: 10)
Configuration!Parameters!
Z-Wave products are supposed to work out of the box after inclusion, however certain configuration
can adapt the function better to user needs or unlock further enhanced features.
IMPORTANT: Controllers may only allow configuring signed values. In order to set values in the range
128 …255 the value sent in the application shall be the desired value minus 256. For example: to set
a parameter to 200 it may be needed to set a value of 200 minus 256 = minus 56. In case of a two
byte value the same logic applies: Values greater than 32768 may needed to be given as negative
values too.
Siren alarm sequence interval (Parameter Number 1, Parameter Size 1)The additional siren is
creating a different acoustic signal differentiate from the smoke alarm. This sound is partly on and
partly off. This parameter defines the total length of the interval in seconds.
Value
Description
6 — 129
seconds (Default 10)
Siren alarm tone length (Parameter Number 2, Parameter Size 1)The additional siren is creating a
different acoustic signal differentiate from the smoke alarm. This sound is partly on and partly off. This
parameter defines the total length of the sound versus silence within this interval. Please make sure
this value is always smaller (shorter time) than parameter 1 that defines the whole sequence.
Value
Description
1 — 99
seconds (Default 8)

Value of On-Command (Parameter Number 3, Parameter Size 1)
Value
Description
0 — 99
(Default 99)
Value of Off-Command (Parameter Number 4, Parameter Size 1)
Value
Description
0 — 99
(Default 0)
Command!Classes!
Supported Command Classes
•Basic (version 1)
•Binary Switch (version 1)
•Binary Sensor (version 2)
•Association Group Information (version 1)
•Device Reset Locally (version 1)
•Z-Wave Plus Information (version 2)
•Configuration (version 1)
•Alarm (version 5)
•Manufacturer Specific (version 2)
•Powerlevel (version 1)
•Firmware Update Meta Data (version 3)
•Battery (version 1)
•Association (version 2)
•Version (version 2)
Controlled Command Classes
•Basic (version 1)
Z-Wave!Technical!Data!
!
Battery Type
1 / 2 AA
Frequency
868/869 MHz (SRD Frequency Band according EN300220)
Wireless Range
up to 100 m outdoor, 40 m in buildings
Explorer Frame Support
Yes
SDK
6.51.6
Device Network Role
Reachable Sleeping Slave (RSS)
Device Type
Sensor
Routing
No
Firmware Version
1.0
