Porsche PCM5.0 THC3 User manual

PORSCHE PCM5.0 THC3
- Porsche 2019 Cayenne 12”
- Volkswagen 2019 Touareg 15”
- MODEL : PCM-50-190219
- DATE : 2019.04.03
1

Index
1. Main Spec
2. Block Diagram
3. Dimension
4. External Appearance
5. Connector Pin Assignment
6. Product Composition
7. DIP S/W Setting
8. Mode Change
9. Touch Control
10. OSD(On Screen Display) Control
11. Install Manual
12. Q & A
2

1. Main Spec.
1. Input Spec. (MULTI VIDEO INTERFACE)
- 1 x HDMI Input
- 1 x Analog RGB Input (Navigation System output)
- 2 x A/V Input (External video source)
- 1 x CVBS(REAR CAMERA) Input. (Rear camera source)
- 1 x CVBS(FRONT CAMERA) Input. (Front camera source)
- 1 x LVDS Input. (Car Command System)
2. Output Spec.
- 1 x LCD Output (LCD Operation)
- 1 x Vertual Analog Touch (Navigation System source)
- 1 x Uart Digital Touch (Navigation System source)
3. Power Spec.
- Input Power : 8VDC ~ 24VDC
- Consumption Power : 12Watt, Max
4. Switch Input mode
- Possible to select CAR model while switching mode by DIP S/W
- By button on the Commander in the car via CAN
3

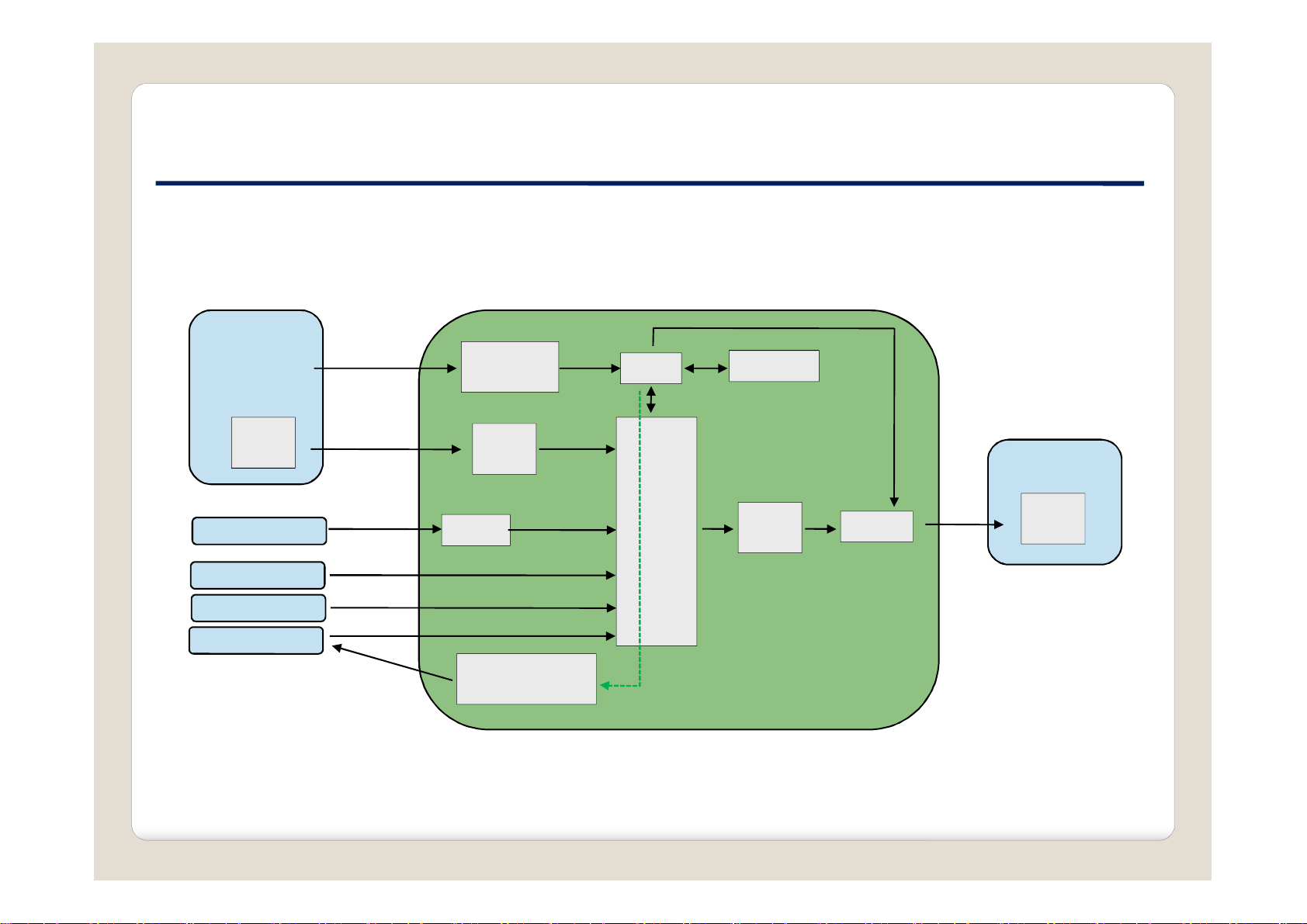

2. Block Diagram
Scaler
(PIP)
MCU
LVDS
TX
INTERFACE
CAR
COMMAND
SYSTEM CAN
EEPROM
CAN
RECEIVER
LVDS
TX
CAR
TFT-LCD
LVDS
RX
RELAY
REAR CAMERA
POWER
REAR CAMERA
RGB+Sync
HDMI HDMI
FRONT CAMERA
LVDS
RX
4

156mm * 93mm * 22mm
3. Dimension
156mm
93mm
22mm
* This can change under manufacturer’s circumstance
5

4. External Appearance
LCD-IN LCD-OUT
LED IMAGE DIP S/W
A/V
PROGRAM
NAVIR-TOUCH
HDMIPOWER/CAN 6

4. External Appearance
LED
DIP S/W
PROGRAM IMAGE
A/V
NAVIR-TOUCH
HDMIPOWER/CAN
7
LCD-IN
LCD-OUT

5. Connector Pin Assignment
*POWER Connect
1. ACC (Red)
2. N.C
3. Rear-DET (Brown)
4. Front-DET (Blue)
5. CAN-L (White)
6. CAN-H (Purple)
7. CAN-L (Blue)
8. CAN-H (Red)
1 15
2 16
9. CAN-L (Green)
10. CAN-H (Orange)
11. N.C
12. Rear-VCC (Red)
13. Front-VCC (Red)
14. N.C
15. GND (Black)
16. N.C
*Touch Connect
① Y-
② X-
③ Y+
④ X+
① ② ③ ④
*NAVI Connect
① R DATA (Red)
② G DATA (Green)
③ B DATA (Blue)
④ SYNC (White)
⑤ GND (Black)
⑥ DVB-T-IR
⑦ DVD-IR
①②③④⑤⑥⑦
8

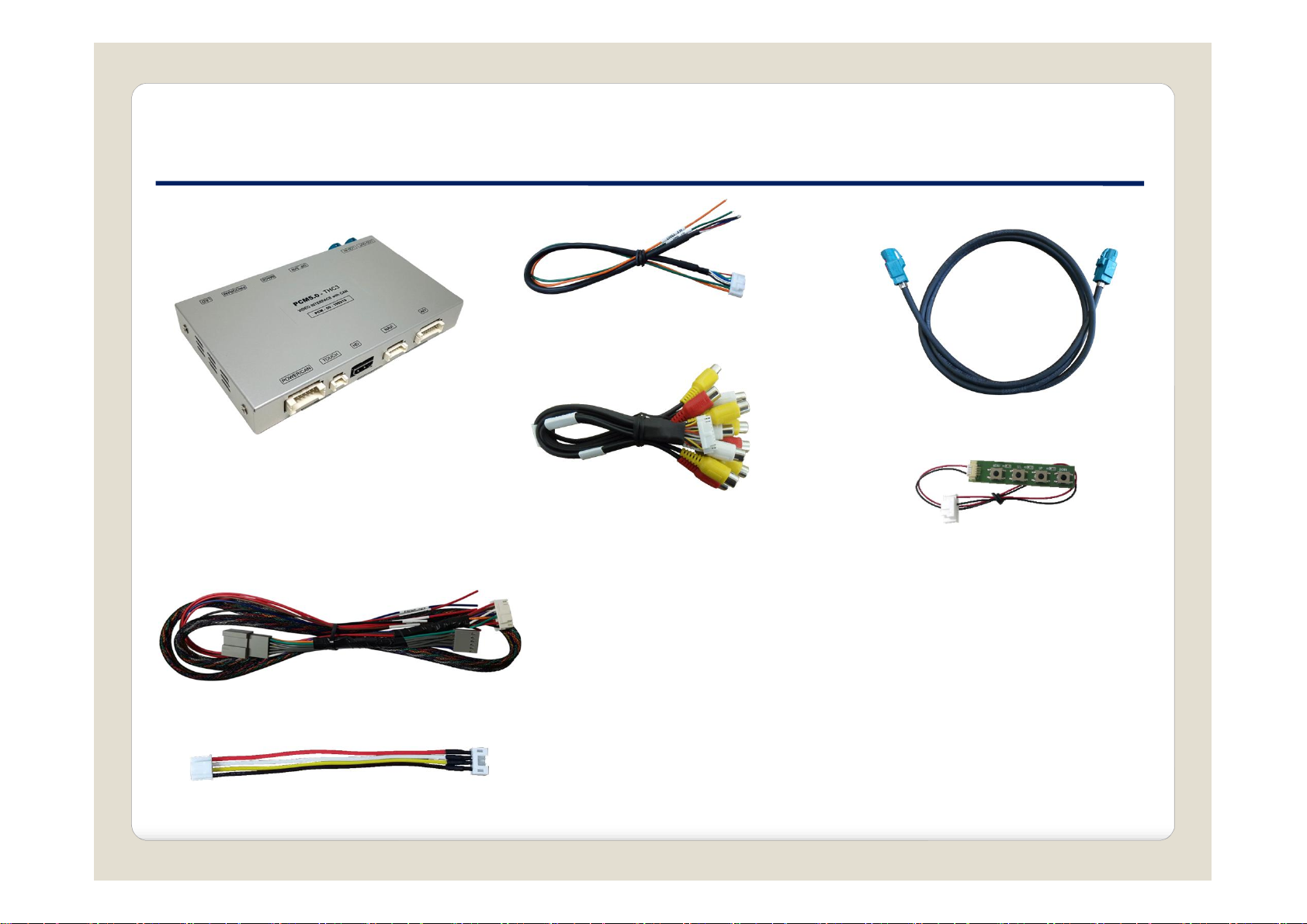

6. Product Composition
Power Cable(7pin) 1 EA
Interface 1 EA
RGB Navi Cable(7pin) 1 EA
Touch Cable(KD-900) 1 EA
OSD Board 1 EA
9
A/V Cable(20-pin) 1 EA
LVDS Cable 1 EA

7. DIP S/W Setting
* ON : DOWN , OFF : UP
PIN FUNCTION DIP S/W Selection
1 NAVI ON : Not Used
OFF : Used
2 DVB-T(AV1) ON : Not Used
OFF : Used
3 DVD(AV2) ON : Not Used
OFF : Used
4 HDMI ON : Not Used
OFF : Used
5 N.C
6
CAR type SEL Right Picture7
8
* DIP S/W Example
Porsche 2019 Cayenne 12”
10
Volkswagen 2019 Touareg 15”

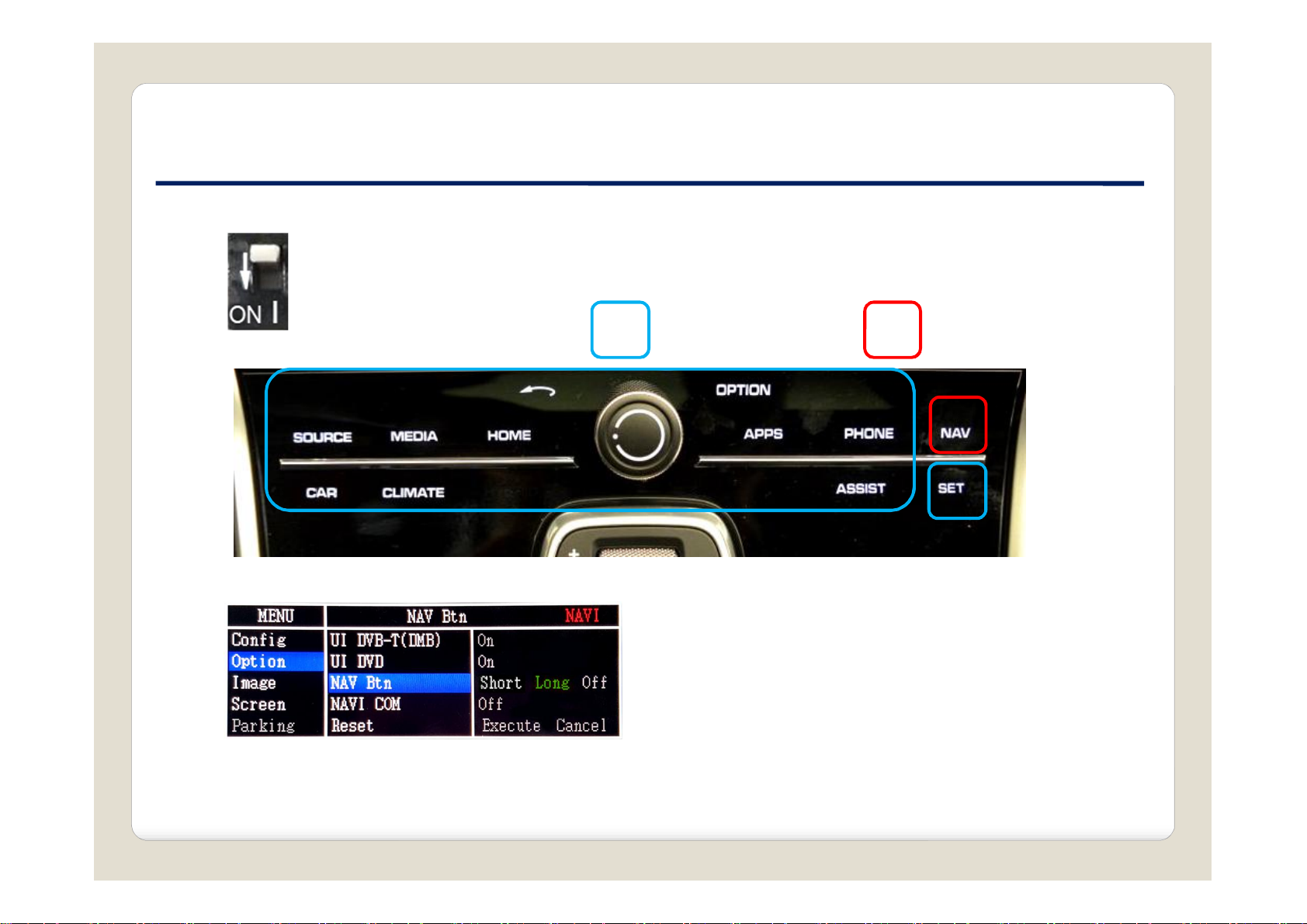

8. Mode Change Control
•Short press the NAV button to switch screens.
•Long press(1 second) the NAV button to switch
screens.
•Select "OFF" when not in use.
•DIP-SW 1 must be OFF in order to install Navigation
Return OEM dispaly mode change
Porsche 2019 Cayenne 12”
11

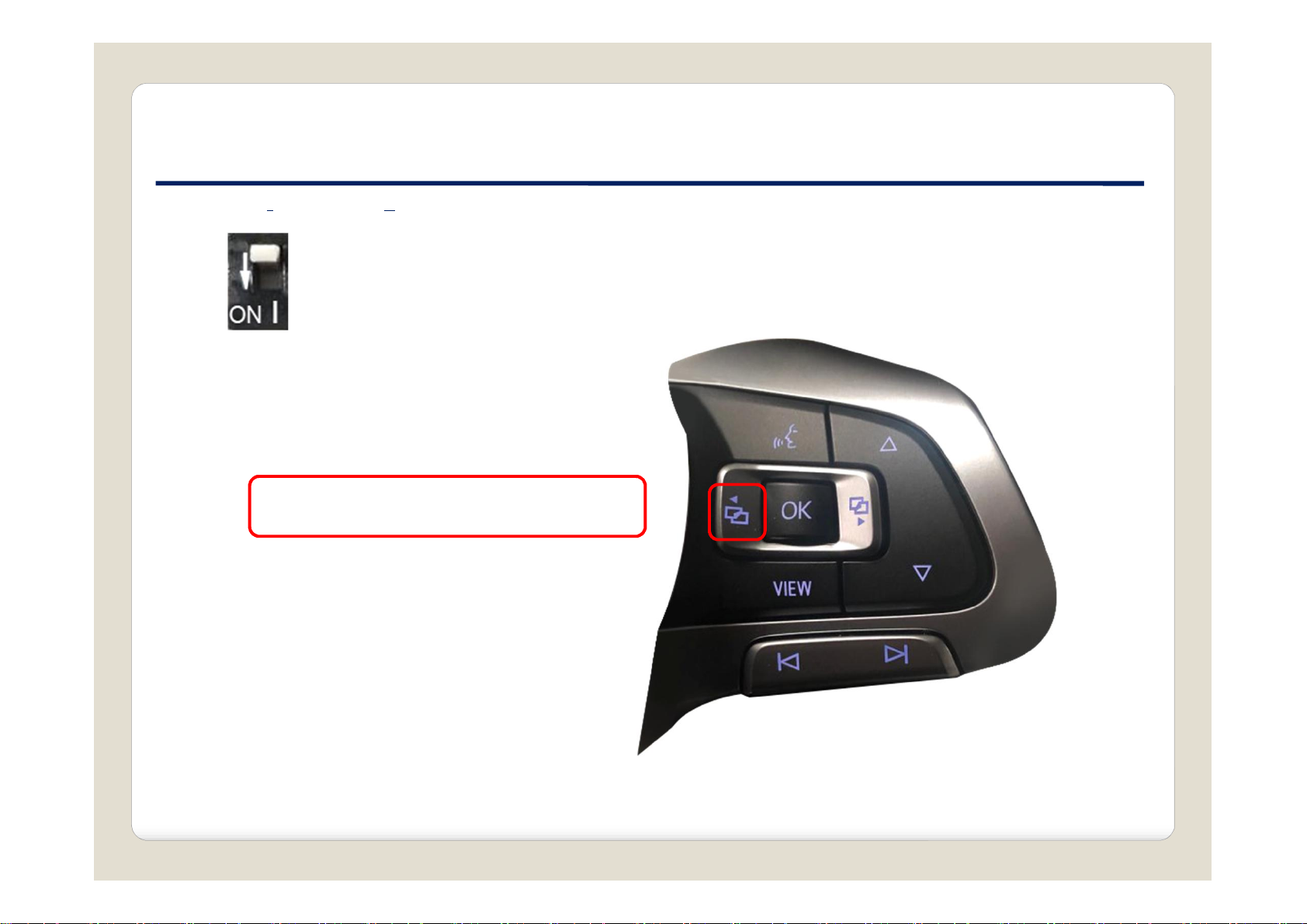

8. Mode Change Control
•DIP-SW 1 must be OFF in order to install Navigation
Volkswagen 2019 Touareg 12”
12
- Switch mode by pressing for 1 seconds
- Short press to switch OEM

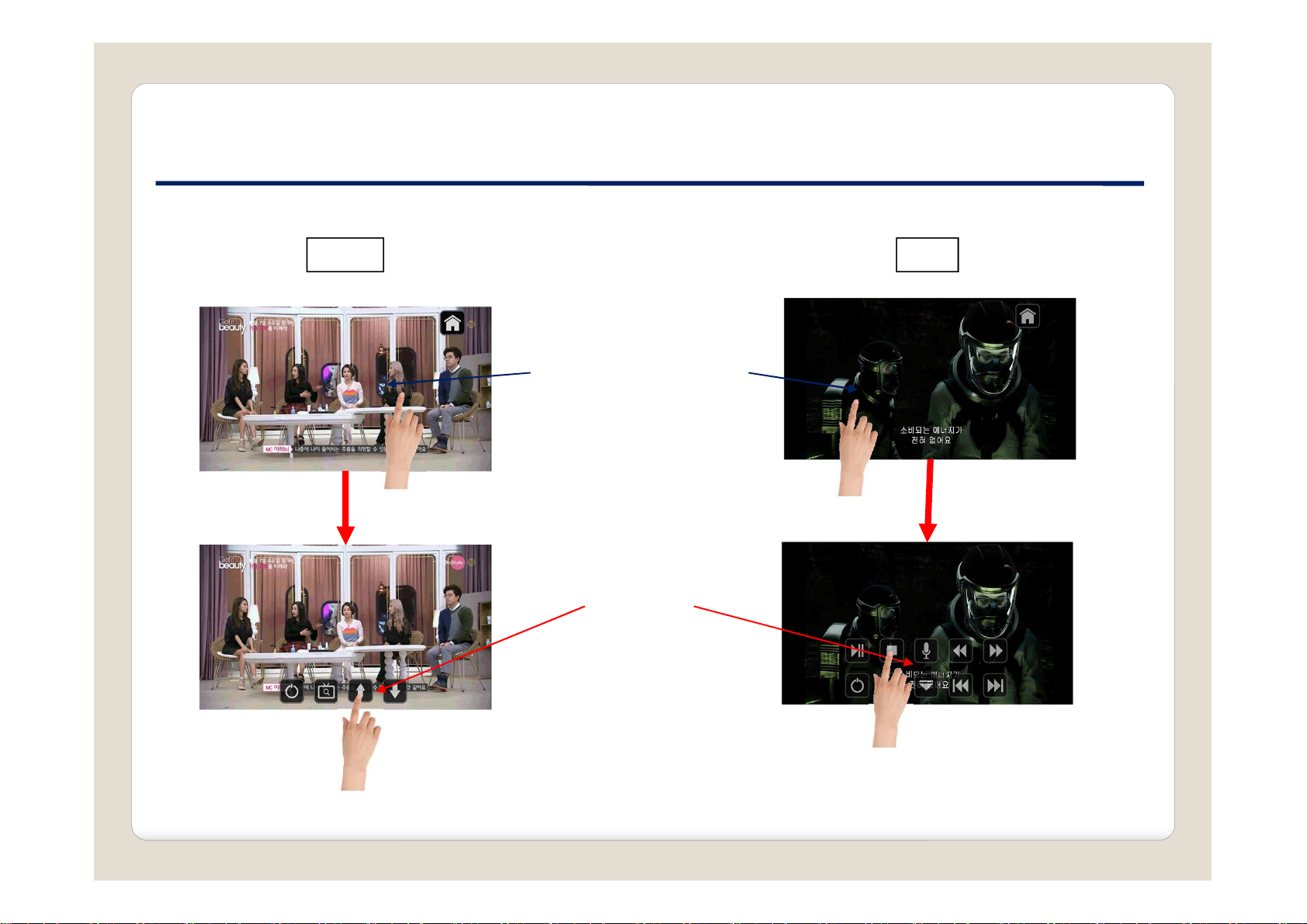

9. Touch Control
Press Touch(Anywhere)
Press Icon
DVB-T DVD
DVB-T/DVD Control
13

10. OSD(On Screen Display) Control
Mode State
First Menu Second Menu Third Menu
OSD Control Board
14
MENU When there is no OSD screen, pressing OSD ON
When OSD screen is displayed, press OSD EXITT
SEL Item Selection, Value Selection
UP Item up
Increase selected value
DOWN Item down
Decrease selected value
MENU SEL UP DOWN

10. OSD(On Screen Display) Control
15

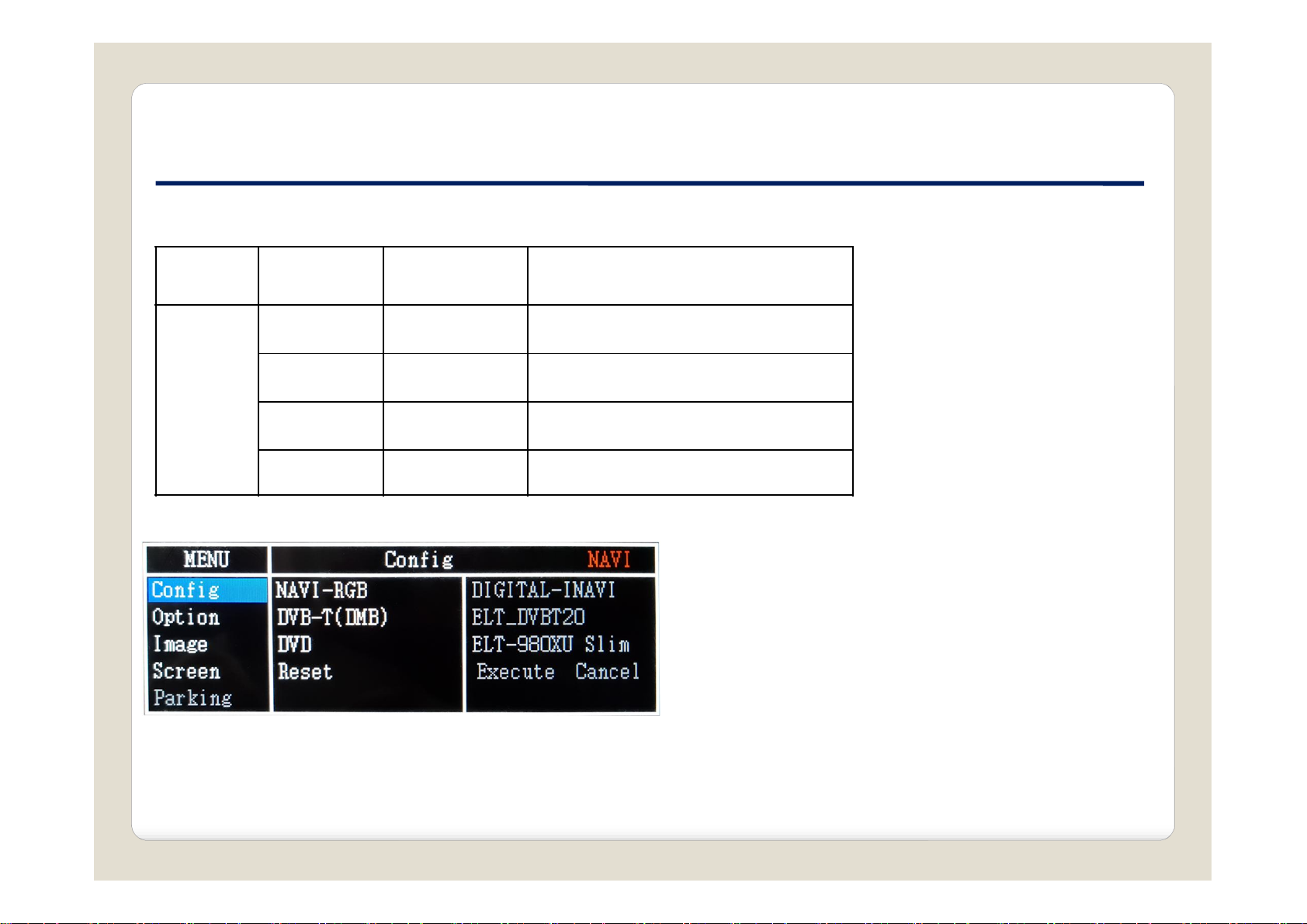

First Menu Second Menu Third Menu Description
Config
NAVI-RGB DIGTAL-INAVI
:Setting the Connected NAVI Model
DVB-T(DMB) ELT_DVBT20
:Setting the Connected DVB-T Model
DVD ELT_980XU Slim
: Setting the Connected DVD Model
Reset Execute Reset to default value of Config menu
OSD Config

10. OSD(On Screen Display) Control
16

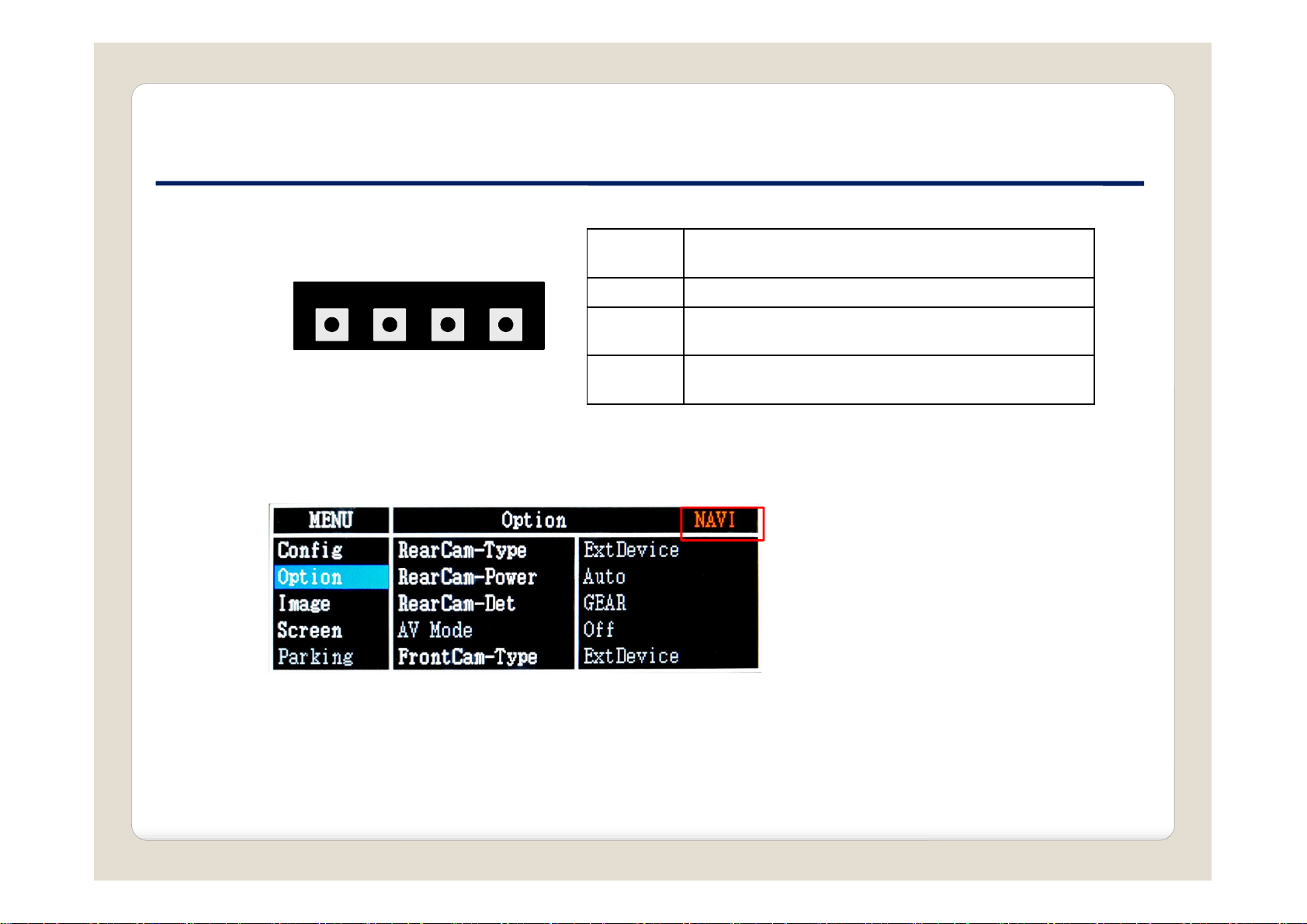

OSD Option

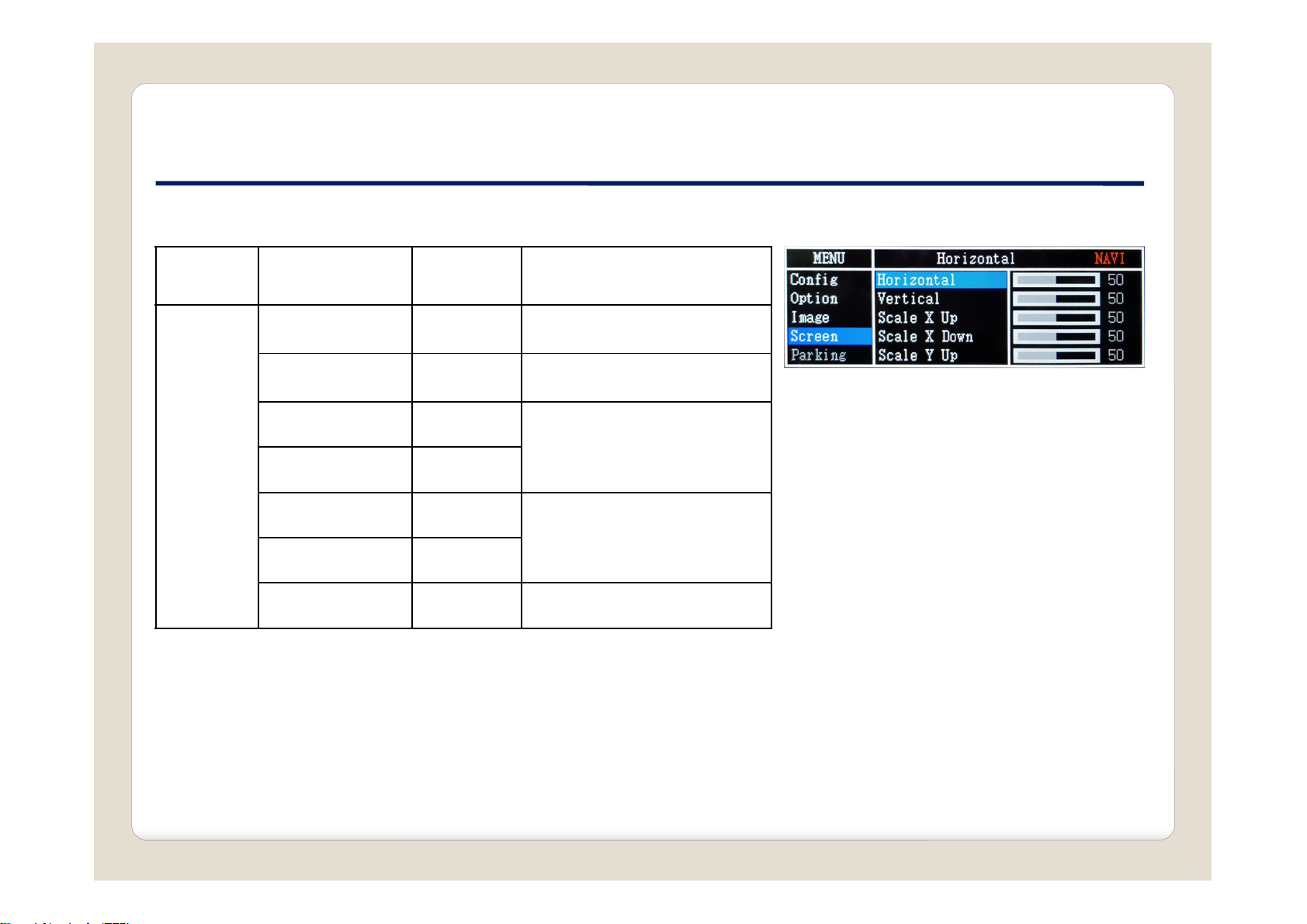

First
Menu Second Menu Third Menu Description
Option
NAVI COM
OFF Disable feature
GU
NV17
:
Set up manufacturer of
woodworking device for
UART Touch use
RearCam-Type
OEM Original Camera
ExtDevice Equipped with external
camera
RearCam-Power
ON + 12V continuous supply
AUTO + 12V supply only in Rear
camera mode
OFF + 12V off
RearCam-Det
CAN Detected by CAN
WIRE Detected by Rear-Det Wire
OFF Disable feature
AV Mode On Video(CVBS) Input
(If RearCam-Type is OEM)
Off Disable feature
FrontCam-Type
OEM Original Camera
ExtDevice Equipped with external
camera

10. OSD(On Screen Display) Control
17
First
Menu Second Menu Third Menu Description
Option
FrontCam-Det CAN Detected by CAN
WIRE Detected by Front-Det Wire
FrontCam-RcvOpt ON
After RearCam shows
FrontCam and returns to
previous state
OFF Disable feature
UI DVB-T (DMB) ON DVB-T device control UI
output function
OFF Disable feature
UI DVD ON DVD device control UI
output function
OFF Disable feature
NAV Btn
(PCM5.0 display)
Short Short press the NAV button
to switch screens.
Long
Long press(1 second) the
NAV button to switch
screens.
OFF Disable feature
Reset Execute Option Menu all Reset
OSD Option

10. OSD(On Screen Display) Control
18
OSD Option -> FrontCam-RcvOpt
0 second = FrontCam-RcvOpt menu OFF
1~30 second = FrontCam-RcvOpt menu ON & time control
Front Camera Auto Mode
OEM
NAVI
AV1(DVB-T)
AV2(DVD)
REAR FRONT
OEM
NAVI
AV1(DVB-T)
AV2(DVD)
Select time of display
1~30 second

10. OSD(On Screen Display) Control
19
OSD Image
First Menu Second Menu Third Menu Action
Brightness Adjust the value of brightness
Contrast Adjust the value of contrast
Color-RED Adjust the value of RED
Color-GREEN Adjust the value of GREEN
Color-BLUE Adjust the value of BLUE
Reset Execute Image Menu all Reset
First Menu Second Menu Third Menu Action
Brightness Adjust the value of brightness
Contrast Adjust the value of contrast
Saturation Adjust the value of Saturation
Hue Adjust the value of Hue
Sharpness Adjust the value of Sharpness
Reset Execute Image Menu all Reset
NAVI-RGB menu DVD,DVB-T(DMB),NAVI-AV,REAR,FRONT menu
<< Brightness >>
<< Contrast >>
<< Saturation >>

10. OSD(On Screen Display) Control
20
First
Menu Second Menu Third Menu Description
Screen
Horizontal Output screen horizontal
movement
Vertical Output screen vertical
movement
Scale X Up Reduce / increase output
screen width
Scale X Down
Scale Y Up Reduce / Increase Output
Screen Height
Scale Y Down
Reset Screen menu all reset
OSD – Screen Menu
