Portfolio P1015B User manual

Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
XXXXXX Lowes.com/portfolio
Español p. 17
Français p. 9
WALL LANTERN
ITEM #0398490
#0398492
MODEL #P1015B/P1015W
Portfolio® is a registered trademark
of LF, LLC. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday,
8 a.m. - 5 p.m., EST, Friday.
1

2
Lowes.com/portfolio
PACKAGE CONTENTS
A
BC
D
3/4 in. Screw
x 2
Wire Connector
x 2
Thumb Nut
x 2
1-3/16 in. Screw
x 2
AA BB CC DD
HARDWARE CONTENTS (shown actual size)
PART DESCRIPTION QUANTITY
A Mounting Plate 1
B Fixture 1
C Diffused Shade 1
D Fixture Cage 1

3
Lowes.com/portfolio
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
This product must be installed in accordance with all applicable installation codes.
WARNING
• Be sure power is off at main power panel/fuse box before installing or replacing xture. This product
must be installed in accordance with the applicable installation codes by a person familiar with the
construction and operation of the product and the hazards involved.
• If you are not familiar with electrical wiring, it is recommended that you secure the services of a
well-qualied electrician who can assure this installation meets local, state, and national codes.
• Before installing this xture, be sure to check with local ordinances regarding approved outdoor
lighting. This xture style may not be allowed in some areas.
• This xture is for outdoor use only.
• This xture should be mounted to a grounded junction box marked for use in wet locations.
• The electrical system and the method of connecting this unit to the system must be in accordance
with local, state and national electric codes.
• This product is to be connected to an AC 120-volt, 60H-z power source. Connecting to a different
power source or wired incorrectly may create a hazard, damage the unit, and will void the warranty.
• This xture is suitable for wet locations.
• DO NOT use around ammable/combustible material or liquids.
• When replacing the lamp (bulb), only use a type 75-watt max. type-A medium-base lamp (bulb).
Never use a lamp (bulb) with a higher wattage than the stated maximum allowed on the xture.
Using a higher wattage lamp (bulb) may cause a re hazard and/or damage the unit.
OFF
OFF
20
OFF
20
OFF
20
OFF OFF
100
1
2
123
SAFETY INFORMATION
1. Place wall switch in OFF position. If xture has built-in switch or chain pull, switch or pull chain so
xture is OFF.
2. Next, if the main fuse box has an ON/OFF switch, place main power switch in OFF position.
3. For screw-in type fuses, unscrew fuse or fuses that control the power to the xture or room.

4
Lowes.com/portfolio
CAUTION
• The xture can get hot during use. Turn off the power and allow the xture to cool for at least 10
minutes prior to working on the unit.
• DO NOT attempt to open the product housing. There are no serviceable parts inside.
SAFETY INFORMATION
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 15 minutes
Tools Required for Assembly (not included): Philips screwdriver, acrylic caulk.

5
ASSEMBLY INSTRUCTIONS
Lowes.com/portfolio
Hardware Used
Hardware Used
3/4 in. Screw
Wire Connector
x 2
x 2
AA
BB
3. Connect the green ground wire to the green ground
screw preassembled on mounting plate (A).
2. Connect xture wires to wires from outlet/junction
box (not included) – black to black and white to
white – using wire connectors (BB).
1. Thread two 3/4 in. screws (AA) into the mounting
plate (A) and feed the xture wires through the
hole in the center.
GND
Green
A
3
White
Green
Black
BB
2
1
1
2
AA
A
1
3/4 in. Screw
x 2
Wire Connector
x 2
Thumb Nut
x 2
1-3/16 in. Screw
x 2
AA BB CC DD
3/4 in. Screw
x 2
Wire Connector
x 2
Thumb Nut
x 2
1-3/16 in. Screw
x 2
AA BB CC DD

6
ASSEMBLY INSTRUCTIONS
Lowes.com/portfolio

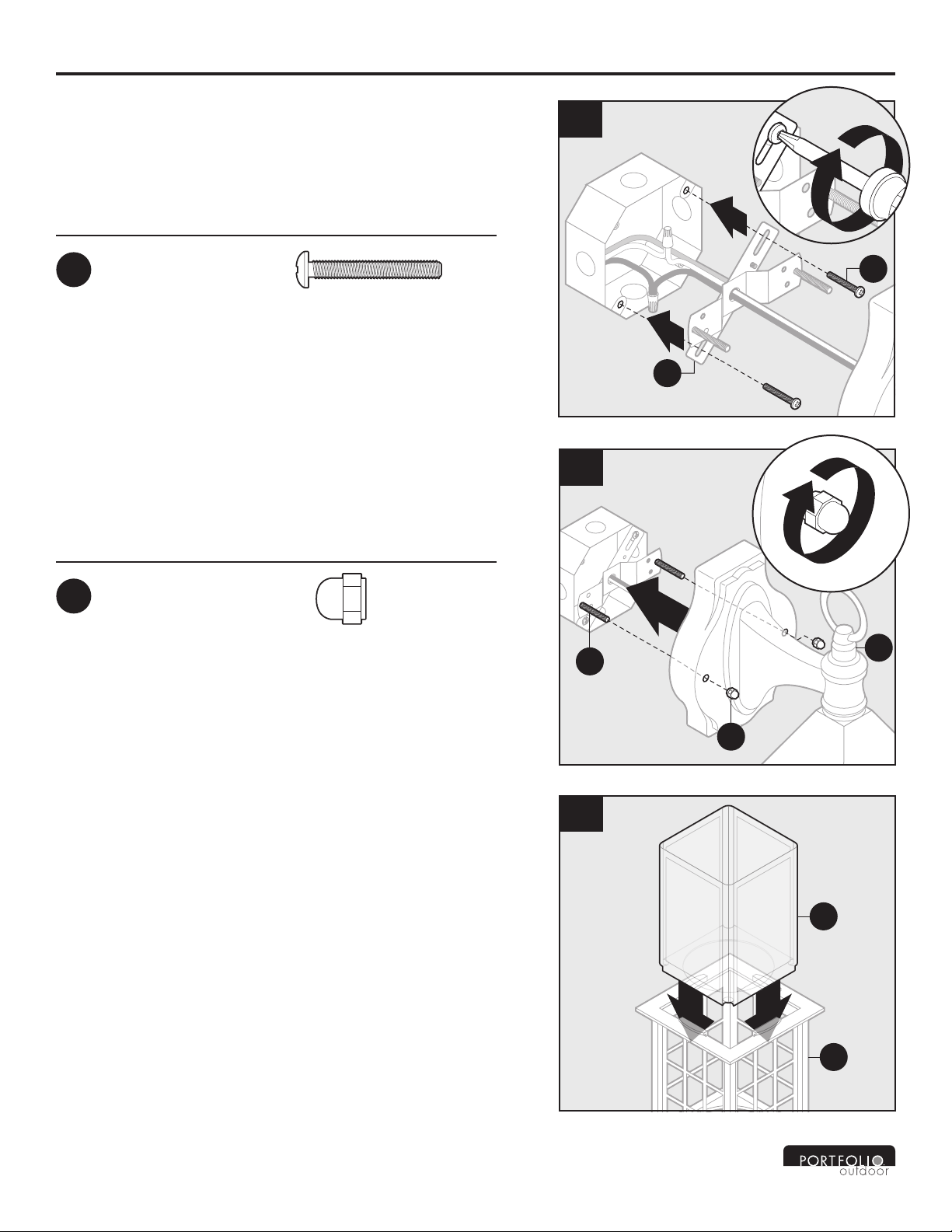

5. Position xture (B) over 3/4 in. screws (AA) and
secure with thumbs nuts (DD).
6. Insert diffused shade (C) into xture cage (D).
4. Insert two 1-3/16 in. screws (CC) through
appropriate opening in mounting plate (A) and
secure to outlet/junction box.
1
2
AA
DD
B
5
C
D
6
1
1
2
A
CC
4
Hardware Used
1-3/16 in. Screw x 2
CC
3/4 in. Screw
x 2
Wire Connector
x 2
Thumb Nut
x 2
1-3/16 in. Screw
x 2
AA BB CC DD
Hardware Used
Thumb Nuts x 2
DD
3/4 in. Screw
x 2
Wire Connector
x 2
Thumb Nut
x 2
1-3/16 in. Screw
x 2
AA BB CC DD

7
ASSEMBLY INSTRUCTIONS
Lowes.com/portfolio
8. IMPORTANT: Use acrylic caulk (not included)
to seal area between xture housing and
mounting surface to provide a water-tight seal.
7. Screw 75-watt light bulb (not included) into
socket. DO NOT use bulb with greater wattage
than specied for this xture. Place xture cage
(D) onto xture (B) and rotate it into place to
secure.
CAULK
8
B
D
7

8
Lowes.com/portfolio
CARE AND MAINTENANCE
• Clean only with mild soap and water. Avoid spraying with cleansers, insecticides, and pesticides.
These will degrade luminaire.
This product is warranted to be free from defects in material and workmanship for life of product. If
a defect occurs, call 1-800-643-0067 for instructions on how to have defective product repaired or
replaced free of charge. LIMITATIONS – This warranty only covers the assembled lighting products and
accessories and is not extended to other components, lamp bulb(s), or equipment used on the product.
Warranty extends to original purchaser of product. Receipt or other approved proof of purchase required
for warranty service. NOT LIABLE FOR INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. This warranty gives you specic legal rights, and you
may also have other rights which vary from state to state. NOT COVERED – Product failure not relating
to faulty material or workmanship, corrosion of brass components, reimbursement for installation or
unauthorized service. DISCLAIMER – Ultraviolet (“UV”) from natural sunlight or any other UV source
ultimately affects resin-based materials over time. Degradation of color or surface condition due to
lengthy UV exposure is a natural condition and is not covered by this warranty.
LIMITED LIFETIME WARRANTY
TROUBLESHOOTING
Printed in China
Portfolio®is a registered trademark
of LF, LLC. All rights reserved.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Does not
function at all.
1. Wall switch is off.
2. Circuit breaker is off.
1. Make sure wall switch (if applicable)
is ON and that the wiring is correct.
2. Check that the circuit breaker, fuse
and main circuit breaker or main
power switch are ON.

Lowes.com/portfolio
Date d’achat
Numéro de série
JOIGNEZ VOTRE REÇU ICI
LANTERNE MURALE
ARTICLE #0398490
#0398492
MODÈLE #P1015B/P1015W
Portfolio® est une marque de commerce
déposée de LF, LLC. Tous droits réservés.
Des questions, des problèmes, des pièces manquantes? Avant de retourner l'article au
détaillant, appelez notre service à la clientèle au 1 800 643-0067, entre 8 h et 18 h (HNE),
du lundi au jeudi, ou entre 8 h et 17 h (HNE) le vendredi.
9
Lowes.com/portfolio

10
Lowes.com/portfolio
CONTENU DE L’EMBALLAGE
A
BC
D
Vis de 3/4 po
x 2 Capuchon de connexion
x 2
Écrou de
serrage
x 2
Vis de 1 3/16 po
x 2
AA BB CC DD
QUINCAILLERIE INCLUSE (grandeur réelle)
PIÈCE DESCRIPTION QUANTITÉ
A Plaque de montage 1
B Luminaire 1
C Diffuseur 1
D Cage de suspension 1
