PortKeys LEYE III User manual

LEYE III
User Manual
Company Address： 1406, 14th Floor, Block D, Building 3,
Cloud Park, Longgang District, Shenzhen,
Guangdong, China
Factory Address： 2nd Floor, Building A, Jingjiang Industrial Park,
NO.101, Shangwei Road, Longhua District,
Shenzhen,Guangdong, China
Customer Service: [e-mail]
Website： www.portkeys.com
SHENZHEN PORTKEYS ELECTRONIC
TECHNOLOGY CO.,LTD

Product Appearance Size
Standard Accessories
LEYE III X1
D-TAP to 4 pin Aviation
Head Power Cord X1
Round Sponge
Eye Mask X2
U Disk X1
HDMI Adapters X1
Warm Prompt Card X1
After Sales Service Card X1
Supported input resolution and frame rate
HDMI Signal
4096×2160p@24Hz
3840×[email protected],24Hz,25Hz,29.97Hz,30Hz
1920×[email protected],24Hz,25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz
1920×[email protected],24Hz,25Hz,29.97Hz,30Hz
1920×1080i@50Hz,59.94Hz,60Hz
1280×720p@50Hz,59.94Hz,60Hz
720×576p&720×576i@50Hz
720×480p&720×480i@50Hz,59.94Hz,60Hz
02
LEYE III
01
LEYE III
www.portkeys.com
Customer Service: [e-mail]
Operating temperature range: 0 ℃ ~ 40 ℃

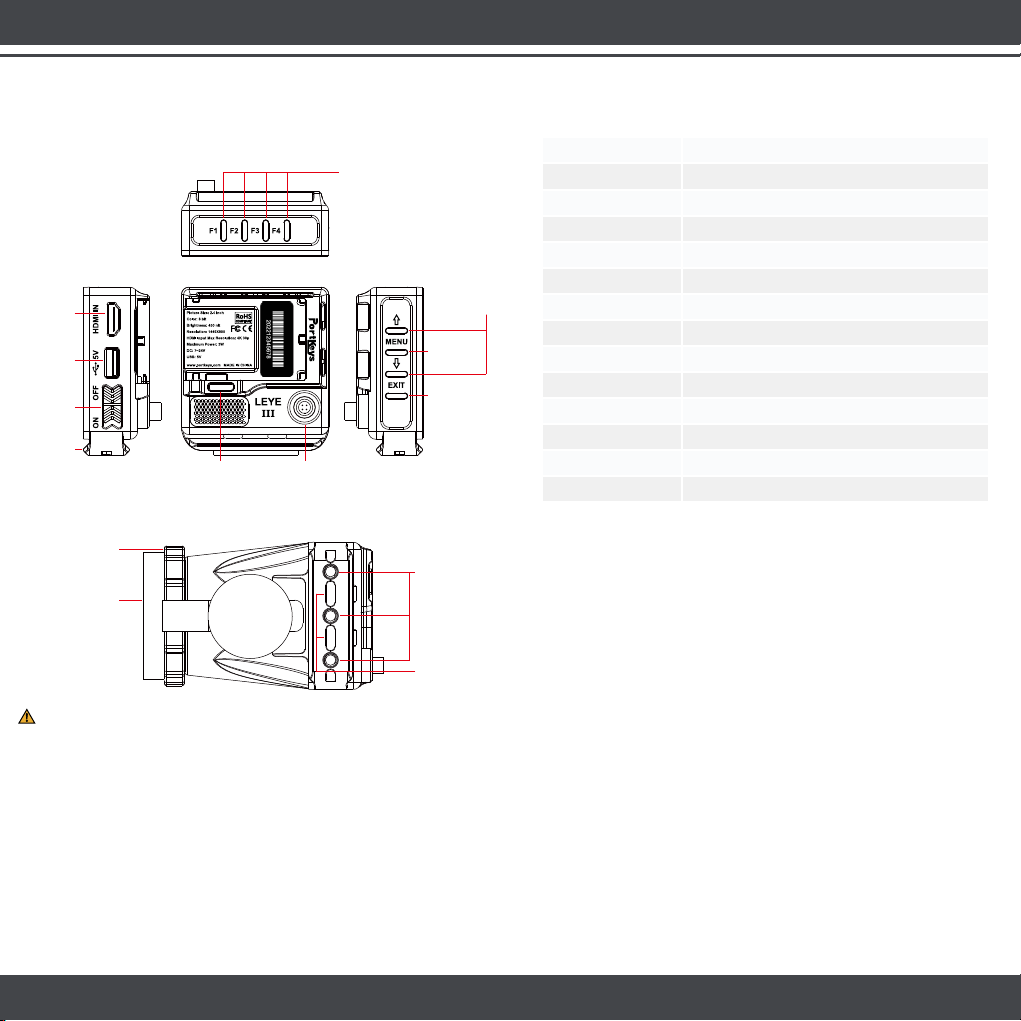

Parameter
Size：
Dimension：
Viewing Angle：
Brightness：
Resolution：
Contrast Ratio：
Weight：
Color：
Material：
Video Signal Input：
Input Voltage：
Maximum Power：
USB-A：
Menu Language：
2.4"
114x70x78mm
160°H/160°V
450nit
1440x900
1100:1
233g
8bit
Aluminum Alloy+ABS Engineering Plastics+Red Oak
4K HDMI、HDMI
DC 7~24V/USB 5V
3W
Upgrade Firmware /Load LUT
简体中文/English
Custom Function Keys
Power
Button
HDMI
Input
USB-A
5V IN
Nato Rail
DC 7~24V
Power
Terminal
Battery Plate
Lock
Red Oak Diopter
Swivel
Round Sponge
Eye Mask
1/4
Threaded
Hole
ARRI
Positioning
Slot
EXIT
MENU
Feature
Selection

【MAIN】
04
LEYE III
03
LEYE III
www.portkeys.com
Customer Service: [e-mail]
MAIN
Exit
Guides
Video Config
System Config
LUT Config
Function Setup
Firmware
>
>
>
>
>
>
Fuction Select“ ”can be adjusted←→Adjust function parameters
（Please be refered with the first page）
Guides
Off/80%/90%/1:1/16:9/9:16/15:9/4:3/
1.5:1/1.85:1/2:1/2.35:1/2.39:1/Custom
1%～100%
On/Off
Guides
1%～100%
On/Off
1/2/3/4/5/6/7/8/9/10/Off
H(Custom)
V（Custom）
Guide Masks
Crosshair
Grids
Back
Flip Control
Display Flip Mode
H Flip
V Flip
Osd Flip Mode
H Flip
V Flip
Back
On
On
On
Off
On
Off
Video Config
0～100
0～100
0/10/20/30/40/50/60/70/80/90/100
Brightness
0～100
0～100
0～100
1X/1.33X/1.42X/1.5X/1.6X/
1.66X/1.85X/2X/2.35X/User
5600K/6500K/7500K/9300K/Manual
Contrast
Chroma
Sharpness
Tint
Color Temperature
Backlight
Anamorphic
Back
Fuction Select“ ”can be adjusted←→Adjust function parameters
（Please be refered with the first page）
Color Temperature adjusts to
Manual Setting(Confirm by MENU)
Aspect adjusts to User
(Confirm by MENU)
Color Temperature Manual
Red
Green
Blue
Back
0～255
0～255
0～255
Anamorphic Setting
Aspect
User
Back
1X/1.33X/1.42X/1.5X/1.6X/
1.66X/1.85X/2X/2.35X/User
1.00X～3.00X
System Config
OSD-Language
OSD-Duration
OSD-Transparancy
Menu Setup
System Reset
Flip Control
Detect Data Source
Battery Voltage Dis..
Back
简体中文/English
5Sec/10Sec/15Sec/20Sec/25Sec/
30Sec/Off
User1/User2/User3/User4/User5
Low/Middle/High/Off
On/Off
After LUT/Before LUT
Are you sure？ Yes/No
Press MENU, Then
>
Fuction Select“ ”can be adjusted←→Adjust function parameters
（Please be refered with the first page）

06
LEYE III
05
LEYE III
www.portkeys.com
Customer Service: [e-mail]
（Press menu key and middle key of direction key）
USB Looks
（Press menu key and middle key of direction key）
（Click MENU as Confirm）
*LUT file could be stored repeatedly,to delete,please enter the user storage
interface and delete it by the above steps.LUT file format Cube，support
16/17/32/33/64/65 precision (LUT_3D_SIZE).
Apply 3D LUT mode and it will be *
saved automatically to "user storage"
Storedfrom USB
XXXXXXXX（Stored LUT configuration）
Back
XXXXXXXX（Stored LUT configuration）
XXXXXXXX（Stored LUT configuration）
（Long press menu key and middle
key of direction key）
Stored LUT Configuration
Delete
Are you sure?
Yes No
LUT File Deletion (Needs to be performed in the state of access signal)
Function Setup
Function 1 Peaking
Luma Waveform
False Color
Check Field
Function 2
Function 3
Function 4
Back
*Image Crop
* Audio Meters
LUT
Brightness*
Contrast*
Chroma*
Sharpness*
Tint*
Anamorphic*
Backlight*
Display Flip
Osd Flip
Check Field *
H/V Delay *
*Guides*
*Cross Hair
*Grids*
*Peaking
*False Color*
*Zebra
*UnderScan
*Histogram
*Luma Waveform
Function 1
LUT Config
LUT On(Null)/Off
Stored from USB
USB Looks
Reset LUT
Back
Fuction Select“ ”can be adjusted←→Adjust function parameters
（Please be refered with the first page）

08
LEYE III
07
LEYE III
www.portkeys.com Customer Service: [e-mail]

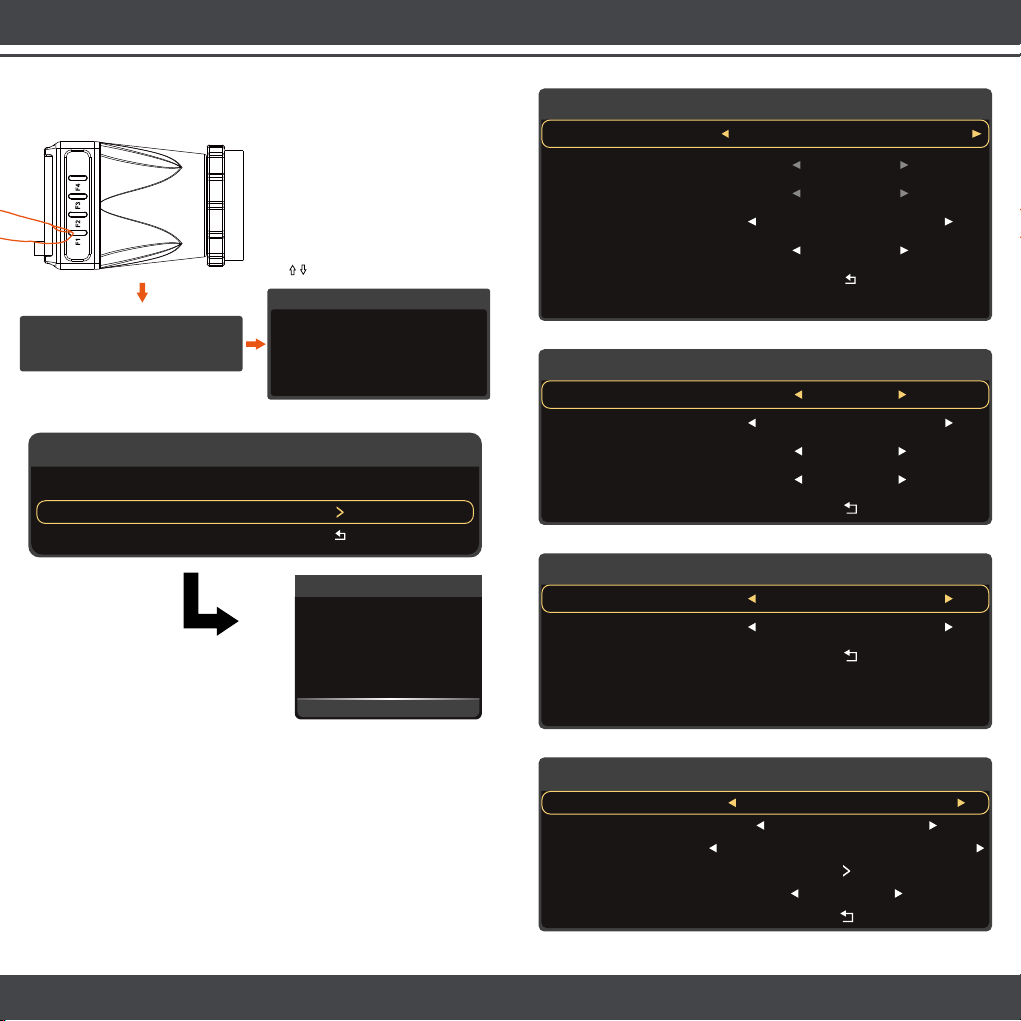

Guides Setting
Guidevs
H（Custom）
V（Custom）
Color
Off/80%/90%/1:1/16:9/9:16/15:9/4:3/
1.5:1/1.85:1/2:1/2.35:1/2.39:1/Custom
1%～100%
1%～100%
White/Red/Green/Blue/Black
Exit
Guide Masks On/Off
CrossHair Setting
Y Offset
Exit
X Offset
Color
Crosshair On/Off
White/Red/Green/Blue/Black
0%～100%
0%～100%
Grids Setting
Exit
Color
Grids Off/1/2/3/4/5/6/7/8/9/10
White/Red/Green/Blue/Black
▲Function 2、function 3（The function setting is same with function 1）
*Attention: Please set the functions
to the customized short key F1-F4.
Long press 3 seconds (F1-F4) will
be showing the setting menu of
this function.
*Continuously click shortcut function
key, which can be switched.
*The parameters can be adjusted in
the button of the function.
False Color Setting
Under Warn.
Over Warn.
Tooltip
Exit
-1
101
On
False Color:On
Long press 3 sec to set function
Firmware
Version Information Firmware Ver LEYE-V3.04.18
Update (USB)
Back
（Press menu key and middle
key of direction key）
软件升级
Are you sure?
Yes No
Update(USB)
（Please check page 11-12 for
firmware update）
Peaking Setting
Mode
Color
Exit
Masks
Frame
Factor
Red/Green/Blue/White
On/Off
Original/Black and white/Grayscale(Low)/
Grayscale(Middle)/Grayscale(High)/Black
1/2/3/4/5/6/7/8/9/10/11/12/13/14/15

10
LEYE III
09
LEYE III
www.portkeys.com Customer Service: [e-mail]
False Color Setting
Exit
Tooltip
Over Warn.
Under Warn. -10～15
85～110
On/Off
UnderScan Setting
Exit
Factor 50～100
Histogram Setting
Exit
Transparent
Size
Position R+B/L+B/L+T/R+T
Small/Large
On/Off
Waveform Setting
Exit
Position
Blending
Waveform On/Off
On/Off
R+B/L+B/L+T/R+T
Audio Meters
Exit
Blending
Position
Audio Meters On/Off
Top/Division/Bottom
On/Off
Image Crop Setting
Image Crop
Exit
Resize
On/Off
Zebra Setting
Color
Factor
Color
Factor
Exit
Low Area
High Area
Red/Green/Blue/White
50~109
-7~50
Red/Green/Blue/White
On/Off
On/Off

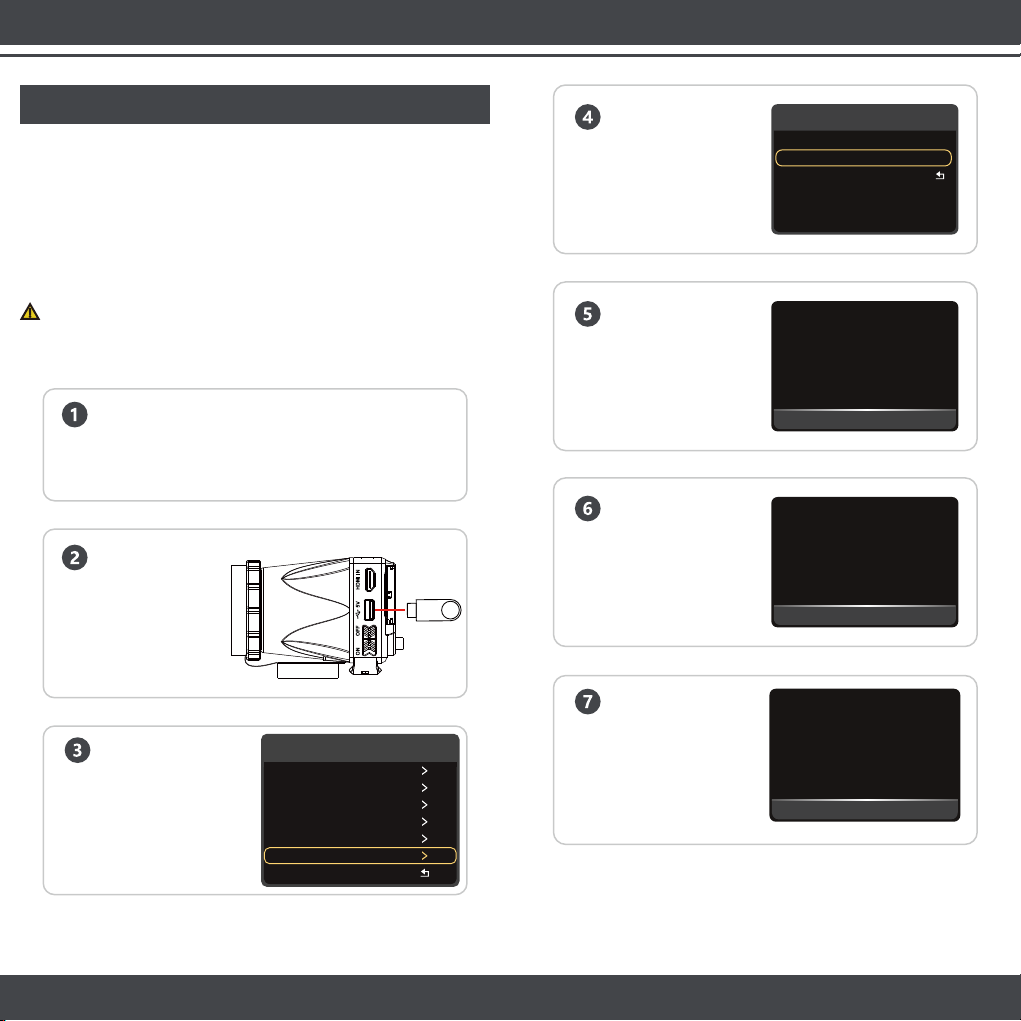

Download the firmware zip, unzip it ,and then send the
upgrade file(LEYE.bin)(LEYE_MIU.bin)to the root
directory of the U disk.
Attention:
1、Place the new firmware in the root directory of the U disk;
2、Keep the device powering on during updating;
3、Supports FAT, FAT32, ExFAT and NTFS U disk. (FAT32 is highly
recommended);
4、Use the U disk with the storage below 16G;
5、If the firmware isn't updated successfully, please follow from
step ③ and update again;
Update method takes LEYE III as an example,for other models,
please download the corresponding model upgrade package in
our official website and follow the steps below.
Universal Software Upgrade Tutorial
Boot up the monitor,click
MENU to open main menu,
select“Firmware”and
click into firmware
interface.
MAIN
Exit
Guides
Video Config
System Config
LUT Config
Function Setup
Firmware
Select Firmware
Upgrade(USB)
Firmware
Version Information
Update(USB)
Back
>
>
Click and confrim
upgrade.
Are You Sure？
Yes No
Upgrading is in progress.
After that,the monitor will
restart in black screen
automatically
(Do not power off during
this process).
Software Upgrade
16%
Firmware Ver
LEYE-V3.04.18
After completing the
upgrade,boot up the
monitor and click Main
Menu → Firmware →
Virsion Information to
confrim whether the software is successfully upgraded.
12
LEYE III
11
LEYE III
www.portkeys.com
Customer Service: [e-mail]
Supply power to the
monitor,insert the U
disk with upgrade file
into the USB interface
of the body.
USB
Upgrade
Port
U
Disk
