Posh 528-810 Series User manual

POSH SPEAKER SYSTEMS, INC., 7865 NE Day Road West, Building C, Bainbridge Island, WA 98110
Phone: [phone] • Fax [phone] • [email protected]
Fig.Fig.
Fig.Fig.
Fig. 11
11
1

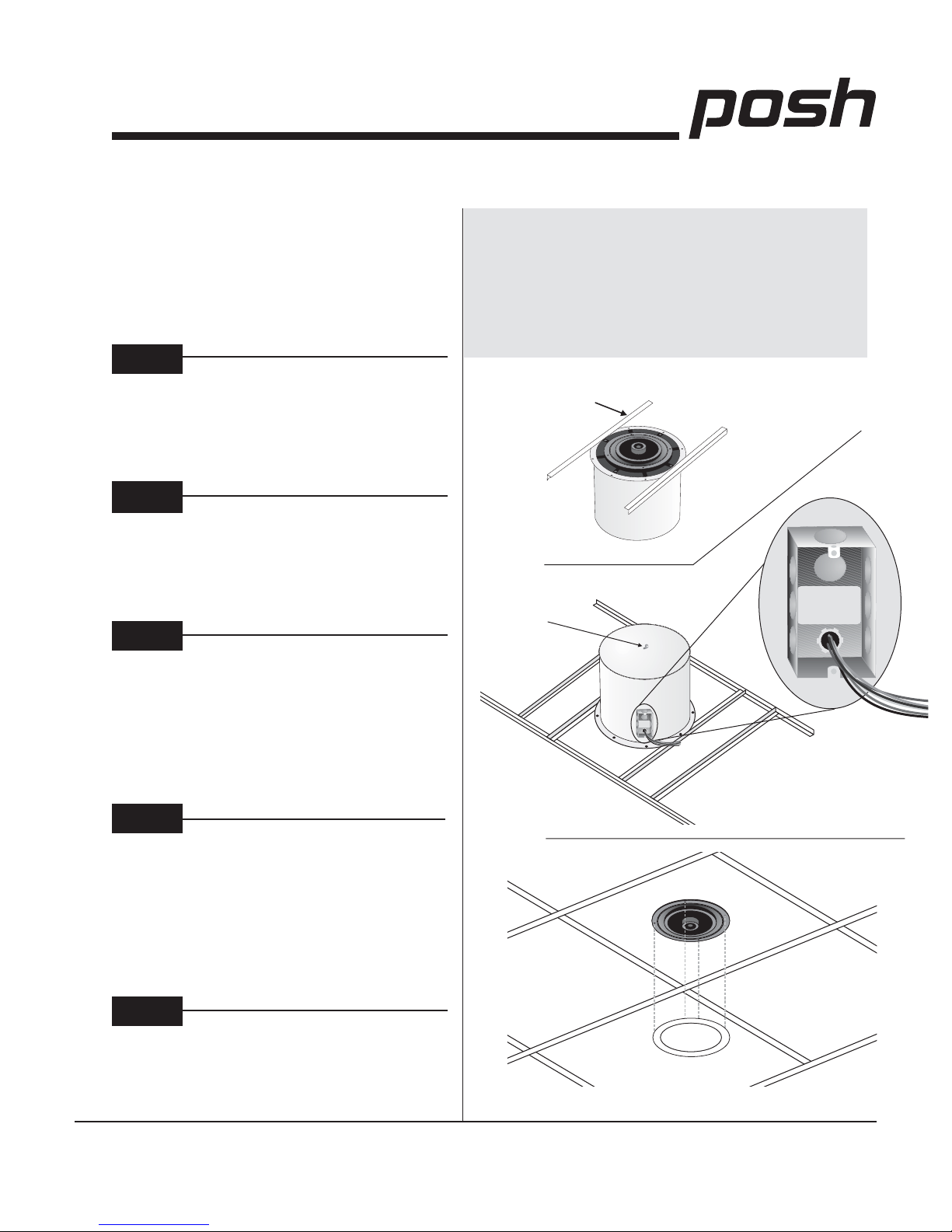

Installation Guide
Posh 810 Series speakers are packed two per
carton. The contents of each carton is shown at
the right. The speakers are fully assembled and
ready for installation. Installation can be easily
accomplished with a few simple steps.
528-810 Series Speakers
Carefully fit and gently tap the grill pins
into the four friction fittings on the mud ring.
(See Figure 3)
Connect the appropriate wattage tap and
common wire (refer to label inside J-box) as
needed for your installation. Wiring connections
must be made in accordance with all applicable
national, regional, or local codes. Clip unused
wires. (See Figure 2)
With the support rails mounted to the can,
center the speaker mud ring over the hole.
Set it in place into the ceiling grid. The
support rails may be safety wired, if required.
(See Figure 2)
Mount the supplied support rails to opposing
sides of the back can using two #10 sheet
metal screws. (See Figure 1)
Using the supplied template, cut a 10.0 inch
(25.4 cm) round hole in the ceiling tile where the
speaker will be installed.
(1) installation guide
(2) speaker assemblies (speaker, baffle, and backcan)
(2) speaker grilles
(4) support rails (2 per speaker assembly)
(1) cardboard template
Contents of carton
Step 4Step 4
Step 4Step 4
Step 4
Step 5Step 5
Step 5Step 5
Step 5
Step 3Step 3
Step 3Step 3
Step 3
Step 2Step 2
Step 2Step 2
Step 2
Step 1Step 1
Step 1Step 1
Step 1
Fig.Fig.
Fig.Fig.
Fig. 22
22
2
Fig.Fig.
Fig.Fig.
Fig. 33
33
3
Support
rails
Tie down
Purple
Red
Gray
Blue
Yellow
Black
70v
1.25w
2.5w
5.0w
7.5w
15.0w
Common
100v
2.5w
5.0w
10.2w
15.0w
Donot use
Common
Purple
Red
Gray
Blue
Yellow
Black
70v
1.25w
2.5w
5.0w
7.5w
15.0w
Common
100v
2.5w
5.0w
10.2w
15.0w
Do not use
Common
5288100702
Speaker Systems, Inc.

0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
HORIZONTAL POLAR
1 kHz
SIDE
10.00"
12.00"
9.62"
13.25"
Features
• Uses the full-range SP5 coaxial speaker
• Acoustic suspension 8" two-way design
• Durable sealed steel enclosure
• Patented interchangeable round or square grilles
• Includes 70/100 volt, 15 watt transformer
• Support rails
Specifications
Frequency Response 50 Hz–20 kHz
Sensitivity 89 dB, 1 watt / 1 meter
70V taps 1.25, 2.5, 5.0, 7.5, 15.0
100V taps 2.5, 5.0, 10.0, 15.0
Nominal Impedance 8 ohms
Crossover Frequency 3.5 kHz first order
LF Driver 8" treated paper cone,
butyl rubber surround,
Kapton voice coil
HF Driver .75" sealed polymer dome
Enclosure Sealed steel can
Dimensions 13.25" outside diameter
12.00" can diameter
10.00" deep
Net Weight 13 lb
UL Rating 1480 / 2043
Technical Drawings
Acoustical Specifications
WARRANTY PERIOD: 5 (five) years.
WHAT IS COVERED. This Warranty covers defects in materials and
workmanship only. This Limited Warranty does not extend to: (1) cosmetic
damage; (2) damage caused by shipment; (3) damage caused by accident,
abuse, misuse, or failure to install the 528-810 Flush-Mount Speaker in a
manner as set forth in this Installation Guide; (4) failure resulting from use
contrary to that set forth in this Installation Guide.
WHAT YOU MUST DO TO OBTAIN WARRANTY SERVICE. In the event
that your speakers require service, call Posh Speaker Systems toll-free at
800-841-8501, Monday through Friday 9am to 5pm Pacific Time, or fax
us at 206-842-0494. You will receive instructions on how to return your
speakers for warranty service. Initial shipping costs may not be paid by
Posh Speaker Systems at our discretion. However, return shipping will be
prepaid if repairs are covered by the scope of this Warranty. Do not send
speakers to Posh for repair unless you have first contacted us via
telephone or fax. Posh Speaker Systems shipping address: 7865 NE
Day Road West, Building C, Bainbridge Island, WA 98110.
LIMITATIONS OF IMPLIED WARRANTIES. All implied warranties for
merchantability and fitness for a particular purpose are limited in duration
to the warranty period unless otherwise provided by state law.
LIMITED WARRANTY — 528-810 Flush-Mount Speaker — LIMITED WARRANTY
EXCLUSION OF CERTAIN DAMAGES. In no event shall posh speaker
systems, inc., be liable for property or any other incidental or consequential
damages which may result from the failure of this product. if your posh
speakers prove defective in material or workmanship, the liability of posh
shall be limited to the repair or replacement, at the option of posh, of any
defective part.
STATE LAWS MAY DIFFER. Some states do not allow limitation on how
long an implied warranty may last, and/or do not allow the exclusion or
limitation of incidental or consequential damages, or do not allow certain
limitations set forth in this warranty, so the above limitations may not apply.
this warranty gives you specific legal rights, and you may have other rights
which vary from state to state.
OTHER IMPORTANT PROVISIONS. Posh Speaker Systems, Inc., reserves
the right to make changes in design and improvements in its products without
the responsibility of installing such changes on products previously sold by
Posh.
© 2000 Posh Speaker Systems Inc. All rights reserved. Printed in USA.
The preceding warranty is exclusive to the United States,
its territories and possessions. Please see your
authorized Posh dealer or distributor for the correct
warranty information in your area or locale.
5288100702
ULLISTED
R
This product Listed to applicable UL Standards and requirements by
Underwriters Laboratories Inc. UL Standard for Safety for Fire Test for
Heat and Visible Smoke Release for Discrete Products and Their
Accessories Installed in Air-Handling Spaces, UL 2043. UL Standard
for Safety for Speakers for Fire Protective Signaling Systems, UL 1480.
Signaling Speaker
