Postium HLB-4K Quick start guide

HLB-4K
High Dynamic Range LUT BOX-4K
HDR Converter
Operational Instructions
User Manual Ver 19.1

1
High Dynamic Range LUT BOX-4K
HLB-4K
Table of Contents
1. Precaution...................................................2
2. Location and Function of Controls.............4
3. Menu Organization......................................8
4. Menu Adjustment........................................9
5. Menu Operations.......................................10
6. Available Signal Formats..........................14
7. Specifications............................................15
8. Dimensions................................................16

2
High Dynamic Range LUT BOX-4K
HLB-4K
1. Precaution
Always use set voltage.
DC 12V
All these instrucons should be read and understood before operang the unit.
If liquid is spilled on or impacts this product, please disconnect the product immediately and seek profession-
al help before connued use.
Unplug the product from the wall outlet if it is not to be used for several days or more.
Keep the product in a well-venlated place to prevent overheang.
Do not install the product near any heat-generang equipment. Also, keep the product out of direct sunlight
or dusty areas.
Protect the power cord from being walked on or pinched parcularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
When using other DC 12V adapters instead of the standard adapter provided by the manufacturer, please
check the proper load capacity or current capacity and use an adapter with stable voltage.
Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

3
High Dynamic Range LUT BOX-4K
HLB-4K
Do not aempt to service the product yourself. Removing covers can expose you to high voltage and other
dangerous condions. Request a qualified service person to perform servicing.
When the product needs replacement parts, make sure that the service person uses replacement parts
specified by the manufacturer, or those with the same characteriscs and performance as the original parts.
Use of unauthorized parts may result in fire, electric shock and/or other danger.
Only clean the product with a noncommercial, mild and neutral detergent.
Do not throw away the carton and packing materials. When transporng the product, make use of its original
packaging for safer carriage.
FCC (Federal Communications Commission)
This equipment has been tested and found to comply with the limits for class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if not installed and used in accordance with the
instrucon manual, may cause harmful interference to radio communicaons. Operaon of this
equipment in a residenal area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Warning!! : Changes or modificaons not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries
with separate collecon systems)
This symbol on the product or on its packing indicates that this product shall not be treated as
household waste. Instead it shall be handed over to the applicable collecon point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potenal negave consequence for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. The recycling of materials will help to
conserve natural resources.
!

4
High Dynamic Range LUT BOX-4K
HLB-4K

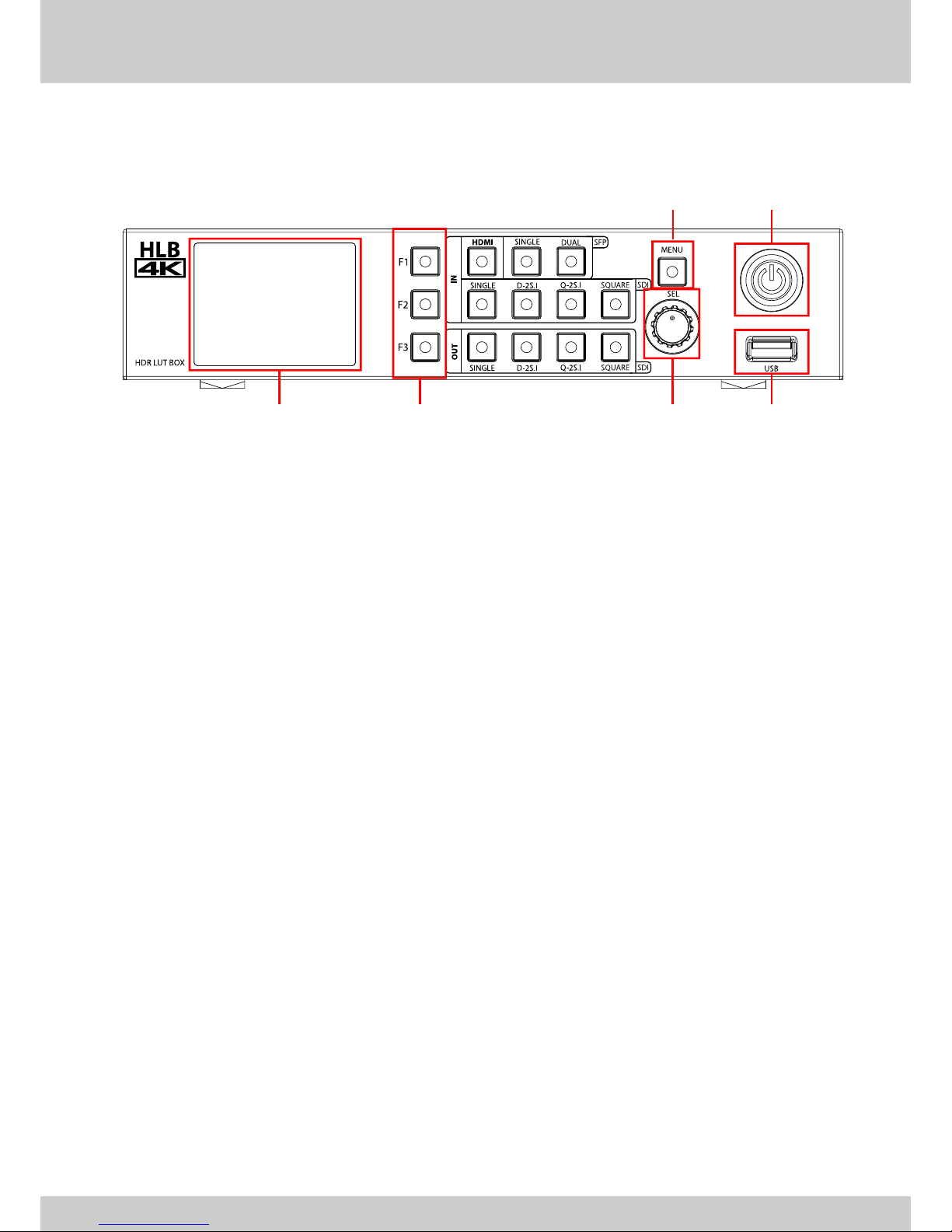

2. Location and Function of Controls
Front Panel
A : Input Selection Buttons
Press the buon to select the signal input.
[HDMI]
- Press the buon to select HDMI input.
[SFP SINGLE]
- Press the buon to select one channel of SFP input. The SFP Module should be connected to the
SFP 1 Connector.
[SFP DUAL]
- Press the buon to select SFP Dual-Link.
[SDI SINGLE]
- Press the buon to select one channel of the SDI input. The mode changes in the order of
SDI 1, SDI 2, SDI 3, SDI 4.
[SDI D-2S.I]
- Press the buon to select the SDI Dual-Link 2-Sample Interleave mode. The input cables should
be connected to the SDI 1 and SDI 2 Connectors.
[SDI Q-2S.I]
- Press the buon to select the SDI Quad-Link 2-Sample Interleave mode.
[SDI SQUARE]
- Press the buon to select the SDI Quad-Link Square Division mode.
B : Output Selection Buttons
[SDI SINGLE]
- Press the buon to select one channel of the SDI. The mode changes in the order of SDI 1, SDI 2,
SDI 3, SDI 4.
[SDI D-2S.I]
- Press the buon to select the SDI Dual-Link 2-Sample Interleave mode. The input cables should
be connected to the SDI 1 and SDI 2 Connectors.
[SDI Q-2S.I]
- Press the buon to select the SDI Quad-Link 2-Sample Interleave mode.
[SDI SQUARE]
- Press the buon to select the SDI Quad-Link Square Division mode.
A
B

5
High Dynamic Range LUT BOX-4K
HLB-4K
C : F1 ~ F3 Button
Press to adjust or turn on/off the assigned funcon.
The following funcons are assigned at the factory.
[F1] : Conversion Mode
[F2] : Input Color
[F3] : User LUT
D : Rotary Encoder
[SEL] knob
When the Menu is displayed, turn this knob le or right to move up or down the menu and press
this knob to confirm the selected seng.
E : Menu Button
[MENU]
Acvates or deacvates the display of the Main Menu.
F : Power Button
[POWER]
Press to turn on or off the power.
G : USB connector
[USB] Connector
- Used to update the firmware.
- If you insert the USB memory sck with the firmware file and turn on the power,
the firmware update is done.
H : LCD Module
[LCD] TFT LCD
- Displays the OSD Menu and the current seng values on the LCD screen.
EF
CHDG

7
High Dynamic Range LUT BOX-4K
HLB-4K
A : SDI IN (SDI Input) connectors (BNC)
Used to input the SDI signal.
B : SDI OUT (SDI Output) connectors (BNC)
Used to output the SDI signal.
C : HDMI input connectors
Used to input the HDMI signal.
- High Speed HDMI Cable with the cable type logo or HDMI 2.0 Cable is recommended.
- When inpung 4K resoluon(3840 x 2160 or 4096 x 2160) signal, use a cable of 3m or less.
D : SFP Input connector
Used to input the SFP module.
E : Monitoring OUT
Will be supported.
F : LAN
Will be supported.
G : Remote
Will be supported.
H : DC 12V IN terminal
Connects the DC power supply.
DC IN Socket
1 : GND
4 : +12V
4
12
3
Rear Panel
EF CG
BADH

8
High Dynamic Range LUT BOX-4K
HLB-4K
3. Menu Organization
The LCD module displays the status informaon as follows.
A : Displays the input signal.
The input port which is currently connected is displayed as an icon.
B : Displays the output signal.
The output port which is currently connected is displayed as an icon.
C : Displays the conversion data which is currently applied.
This unit is equipped with an OSD menu to make various adjustments and sengs.
2
2. Color Conversion
3. Function Key
4. System
5. Information
1. Format
A
B
A : The menu currently selected is highlighted green.
B : Other menu list
A
B
C
NO SIGNAL
NO SIGNAL
B T .709
B T .2020

9
High Dynamic Range LUT BOX-4K
HLB-4K
4. Menu Adjustment
1. Enter the menu
When the MENU buon is pressed,
the OSD menu is displayed.
2
2. Color Conversion
3. Function Key
4. System
5. Information
1. Format
2. Enter the submenu
Turn the SEL knob le or right to choose the menu.
Push the SEL knob to enter the submenu.
The menu presently selected is shown in green.
3G L evel
H D M I Color
F O R MAT
3. Select an item
Turn the SEL knob to select an item, and push the knob to
change the item.
When an item is changed, the check mark is displayed
to the item.
RG B(Full)
RG B(Limit)
YCbCr
√ A uto
H D M I COLOR
4. Previous Menu
Press the MENU buon to return to the previous menu.

10
High Dynamic Range LUT BOX-4K
HLB-4K
5. Menu Operations
1.Format
* HDMI Color
Adjusts the color of the HDMI input.
- Auto : Reads the HDMI color characteriscs and adjusts the
color automacally.
- RGB(Full) : Sets the HDMI color to RGB(Full).
- RGB(Limit) : Sets the HDMI color to RGB(Limit).
- YCbCr : Sets the HDMI color to YCbCr.
* 3G Level
Adjusts the 3G Level type of the SDI input signal.
- Auto : Sets the SDI 3G Level automacally.
- A 444 YUV 10b : Sets the Level A 4:4:4 YCbCr 10bit type.
- A 444 GBR 10b : Sets the Level A 4:4:4 GBR 10bit type.
- A 444 YUV 12b : Sets the Level A 4:4:4 YCbCr 12bit type.
- A 444 GBR 12b : Sets the Level A 4:4:4 GBR 12bit type.
- A 422 YUV 12b : Sets the Level A 4:2:2 YCbCr 12bit type.
- B 444 YUV 10/12b : Sets the Level B 4:4:4 YCbCr 10/12bit type.
- B 444 GBR 10/12b : Sets the Level B 4:4:4 GBR 10/12bit type.
- B 422 YUV 12b : Sets the Level B 4:2:2 YCbCr 12bit type.
- B 422 YUV 10b 60p : Sets the Level B 4:2:2 YCbCr 10bit 60p type.
2. Color Conversion
* Mode
Makes the sengs related to the color conversion.
- OFF
Selects OFF to not convert the color.
- HDR/SDR Conv.
Selects this mode to convert HDR to SDR or SDR to HDR.
- Extern. LUT
Selects this mode to use the external 3D LUT.
- Color
Selects this mode to convert BT.709 to BT.2020 or
BT.2020 to BT.709.
R
RG B(Full)
RG B(Limit)
YCbCr
√ A uto
H D M I COLOR
RG B(Full)
RG B(Limit)
YCbCr
√ A uto
H D M I COLOR
H D R/SDR Conv
Extern. LUT
Color
√ O FF
MO DE
OFF
HDR/SDR
Extern. LUT
Color
Output SignalInput Signal

11
High Dynamic Range LUT BOX-4K
HLB-4K
* Input
In the HDR/SDR Conv. mode, when the input video is the
normal SDR signal, select SDR.
- SDR : SDR(Standard Dynamic Range)
In the HDR/SDR Conv. mode, when the input video is the
HDR signal, select the type.
- ST 2084 : PQ(Perceptual Quanzer) signal
- HLG : Hybrid Log Gamma signal
- S-Log3 : Sony log signal
- C-Log : Cannon log signal
- Log-C : Arri camera log signal
- V-Log : Panasonic log signal
* Output
In the HDR/SDR Conv. mode, selects the output signal’s
SDR or HDR type.
- ST 2084 : PQ(Perceptual Quanzer) signal
- HLG : Hybrid Log Gamma signal
- S-Log3 : Sony log signal
- C-Log : Cannon log signal
- Log-C : Arri camera log signal
- V-Log : Panasonic log signal
* User LUT
Selects this mode to use the external 3D LUT.
- 10 files of 3D LUT can be loaded and used.
*How to load the external 3D LUT:
See the menu [4. System] -> [Load LUT]
* Color
Selects this mode to convert the color space.
- BT.709 to BT.2020 : Change the BT.709 color to the BT.2020 color.
- BT.2020 to BT.709 : Change the BT.2020 color to the BT.709 color.
S
ST2084
H L G
S -Log3
√ S DR
I N P UT
S T2084
H L G
S -Log3
√ S DR
I N P UT
None 2
None 3
None 4
√ N one 1
US ER LUT
BT .2020 to BT.709
√ BT .709 to BT.2020
CO L OR

12
High Dynamic Range LUT BOX-4K
HLB-4K
3. Function Key
* F1 key, F2 key, F3 key
Assigns the funcon for F1 to F3 Key.
The following funcons can be assigned.
[Conv. Mode], [Input Color], [User LUT]
4. System
* Update F/W
Updates the firmware with the USB memory sck.
Insert the USB memory sck which includes the firmware
file, and then select [OK] in the menu shown right.
* Load LUT
Loads the 3D LUT file by using the USB memory sck.
The loaded 3D LUT can be selected and used in [Extern. LUT]
mode. 10 files of 3D LUT can be loaded.
33³, 34³, 64³, 65³ cube file format is supported.
Insert the USB memory sck which includes the
3D LUT file, and then select [OK] in the menu
shown right.
* Network
Adjusts the sengs related to TCP/IP.
DHCP : DHCP allows the unit to receive an IP address from
your network for remote control via various programs.
IP Address : The user can manually configure network sengs
when DHCP is disabled.
F
F2 Key
F 3 Key
F 1 Key
F UN CTION KEY
S YT EM
Rea dy to update
Ins ert thumb mem.
O K _
CA NCEL
S YT EM
Rea dy to update
Ins ert thumb mem.
O K _
CA NCEL
IP Address
D H CP
NE T WORK

13
High Dynamic Range LUT BOX-4K
HLB-4K
S
SYT EM
Ba c klight value
0
* Backlight
Adjusts the brightness of the LCD display.
Selects the value from 0 to 10.
5. Information
Displays the informaon of the unit.
* S/N
Displays the serial number of the unit.
* Running Time
Displays the operaon me of the unit in hours.
* Version
Displays the firmware version of the unit.
S YT EM
S /N 38473859
RunningTime 0005
V ersion 01

14
High Dynamic Range LUT BOX-4K
HLB-4K
6. Available Signal Formats
D-2SI
Transmission
method Signal format Color depth
/ Standards
Transmission
method Signal format Color depth
/ Standards
SINGLE
SDI
SINGLE
SDI
SINGLE
SDI
SINGLE
SDI
Q-2SI
Q-2SI
Q-2SI
SINGLE
SDI
Q-2SI
SINGLE
SDI
Q-2SI
SINGLE
SDI
Q-2SI
SQUARE
HDMI
INPUT OUTPUT
1920x1080
2048x1080
1920x1080
2048x1080
1280x720
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
1920x1080
2048x1080
3840x2160
4096x2160
60, 59.94, 50p
60, 59.94, 50p
23.98, 24, 25,
29.97, 30p/Psf,
50, 59.94, 60i
23.98, 24, 25,
29.97, 30p/Psf
50,59.94,60p
23.98, 24, 25,
29.97, 30p
23.98, 24, 25,
29.97, 30p
50, 59.94, 60p
50, 59.94, 60p
23.98, 24, 25,
29.97, 30p
23.98, 24, 25,
29.97, 30p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
59.94, 60p
59.94, 60p
59.94, 60p
59.94, 60p
59.94, 60p
59.94, 60p
LEVEL A
LEVEL A
LEVEL A/B
LEVEL A/B
LEVEL A
LEVEL A
LEVEL A/B
LEVEL A/B
LEVEL A/B
LEVEL A/B
LEVEL A/B
LEVEL A/B
4:2:2 YCbCr
12bit
4:4:4 YCbCr
8/10/12 bit
4:2:2 YCbCr
12bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:4:4 YCbCr 8bit
4:2:2 YCbCr 12bit
4:4:4 YCbCr 8bit
3G
3G
HD-SDI
6G-SDI
12G-SDI
6G-SDI
12G-SDI
DL-6G
DL-6G
QL-3G
QL-3G
QL-3G
QL-3G
QL-3G SQUARE
3G
3G
HD-SDI
6G-SDI
12G-SDI
QL-HD
QL-3G
12G-SDI
QL-3G
12G-SDI
QL-3G
12G-SDI
QL-3G
QL-3G
QL-3G
1920x1080
2048x1080
1920x1080
2048x1080
1280x720
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
3840x2160
4096x2160
1920x1080
2048x1080
3840x2160
4096x2160
60, 59.94, 50p
60, 59.94, 50p
23.98, 24, 25,
29.97, 30p/Psf,
50, 59.94, 60i
23.98, 24, 25,
29.97, 30p/Psf
50,59.94,60p
23.98, 24, 25,
29.97, 30p
23.98, 24, 25,
29.97, 30p
50, 59.94, 60p
50, 59.94, 60p
23.98, 24, 25,
29.97, 30p
23.98, 24, 25,
29.97, 30p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
50, 59.94, 60p
59.94, 60p
59.94, 60p
59.94, 60p
59.94, 60p
59.94, 60p
59.94, 60p
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
LEVEL A
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit
4:2:2 YCbCr 10bit

15
High Dynamic Range LUT BOX-4K
HLB-4K
7. Specications
ITEM HLB-4K
4 x BNC
1 x HDMI
2 x SFP
4 x BNC
1 x HDMI
SMPTE ST 2082
SMPTE ST 2081
SMPTE ST 425-AB
SMPTE ST 274
SMPTE ST 296
SMPTE ST 260
SMPTE ST 2084
HDMI 2.0
SFP
Size
Resoluon
Pixel Pitch
Color
Display Area (H x V)
1 x Ethernet
1 x GPIO
1 x USB
Power Requirements
Power Consumpon
Operang Temperature
Operang Humidity
Weight
Dimension(WxHxD)
Accessories
Display
General
Input Signal
Format
Output
Input
* Specificaons are subject to change without prior noce for the product quality improvement.
12G/6G/3G/HD/SD-SDI-1/2, 3G/HD/SD-SDI-3/4
HDMI 2.0
Opcal
12G/6G/3G/HD/SD-SDI-1/2/3/4 Loop Output
1080p(Monitering)
2160p(60/59.94/50)
2160p(30/29.97/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
/ 1080i (60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.98sF)
1080i(60/59.94/50)
1920 x 1035i(60/59.94)
2048 x 1080p(24/23.98/24sF/23.98sF)
~ 2160p(60)
12Gbps, 6Gbps, 2.970Gbps, 1.485Gbps, 270Mbps
2.2”
320 X 240
0.315mm
262K
33.84 x 45.12mm
Control RJ-45P In put
GPI-7 Port, RJ-45P Jack
For firmware update
DC 12V / 2A
24W
0°C ~ 40°C(32°F~104°F)
20% ~ 80% RH
1.5kg / 3.3 lbs
210 x 44 x 168 mm / 8.26 x 1.73 x 6.61 inch
Adapter, Power Cable

16
High Dynamic Range LUT BOX-4K
HLB-4K
210
44
168
Dimensions(W x H x D) : 210 x 44 x 168 mm / 8.26 x 1.73 x 6.61 inch
8. Dimensions

208, Building A, Samsong Techno Valley, 140, Tongil-ro,
Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594
Tel : [phone] / Fax : [phone]
E-mail : [email protected]
www.postium.com
