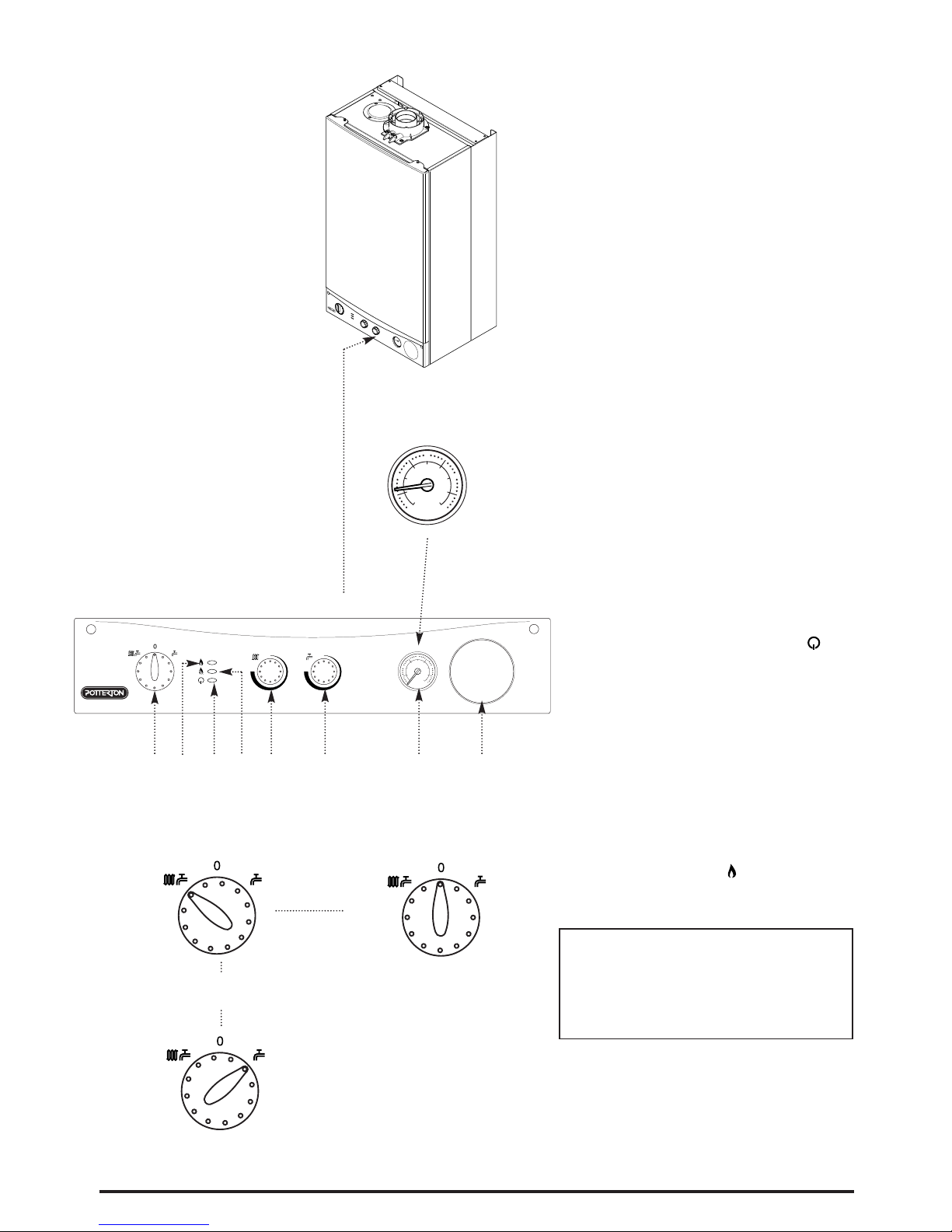

Potterton Performa 24 Eco HE User manual

2
1
0
4
3

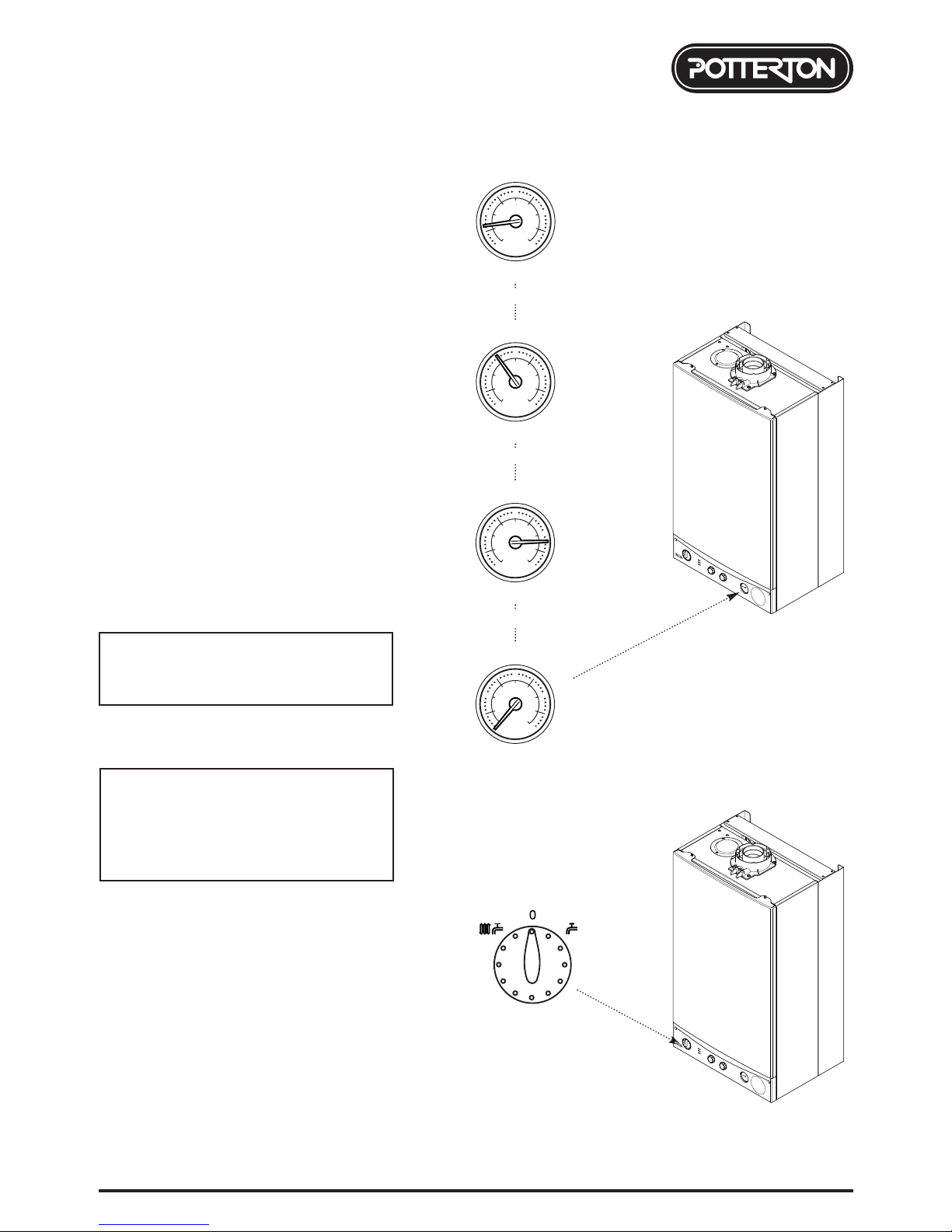

bar

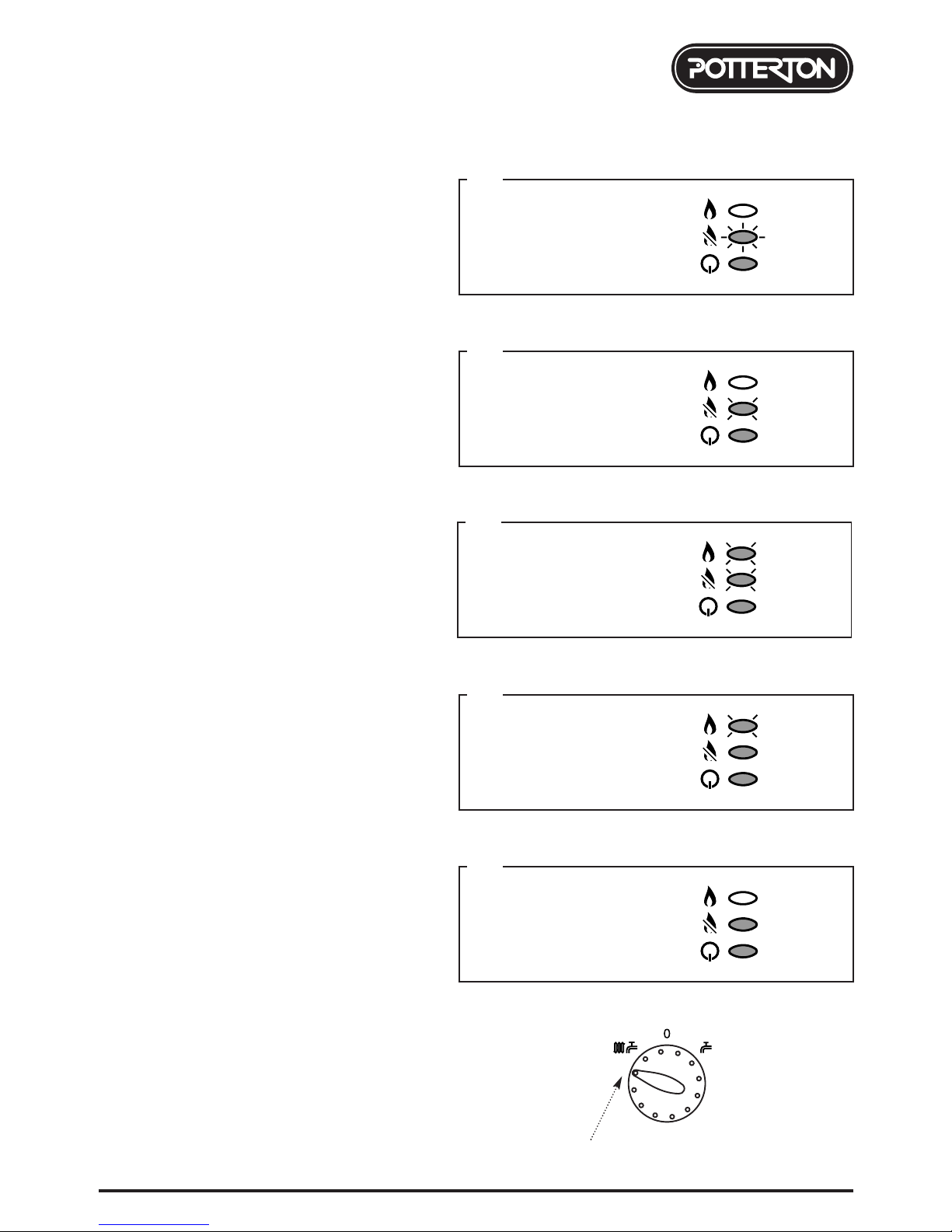

Reset Burner On
Flame Failure
Power On

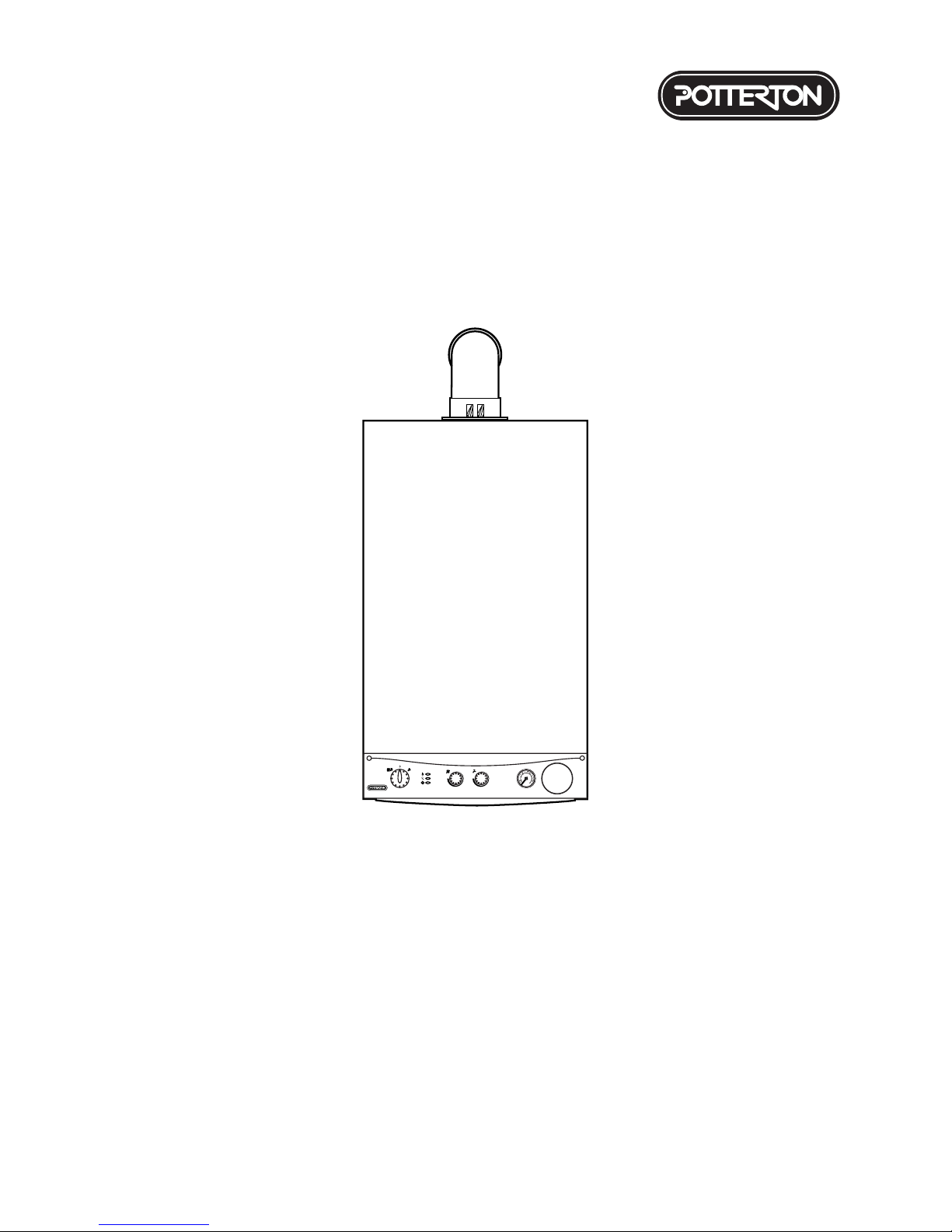

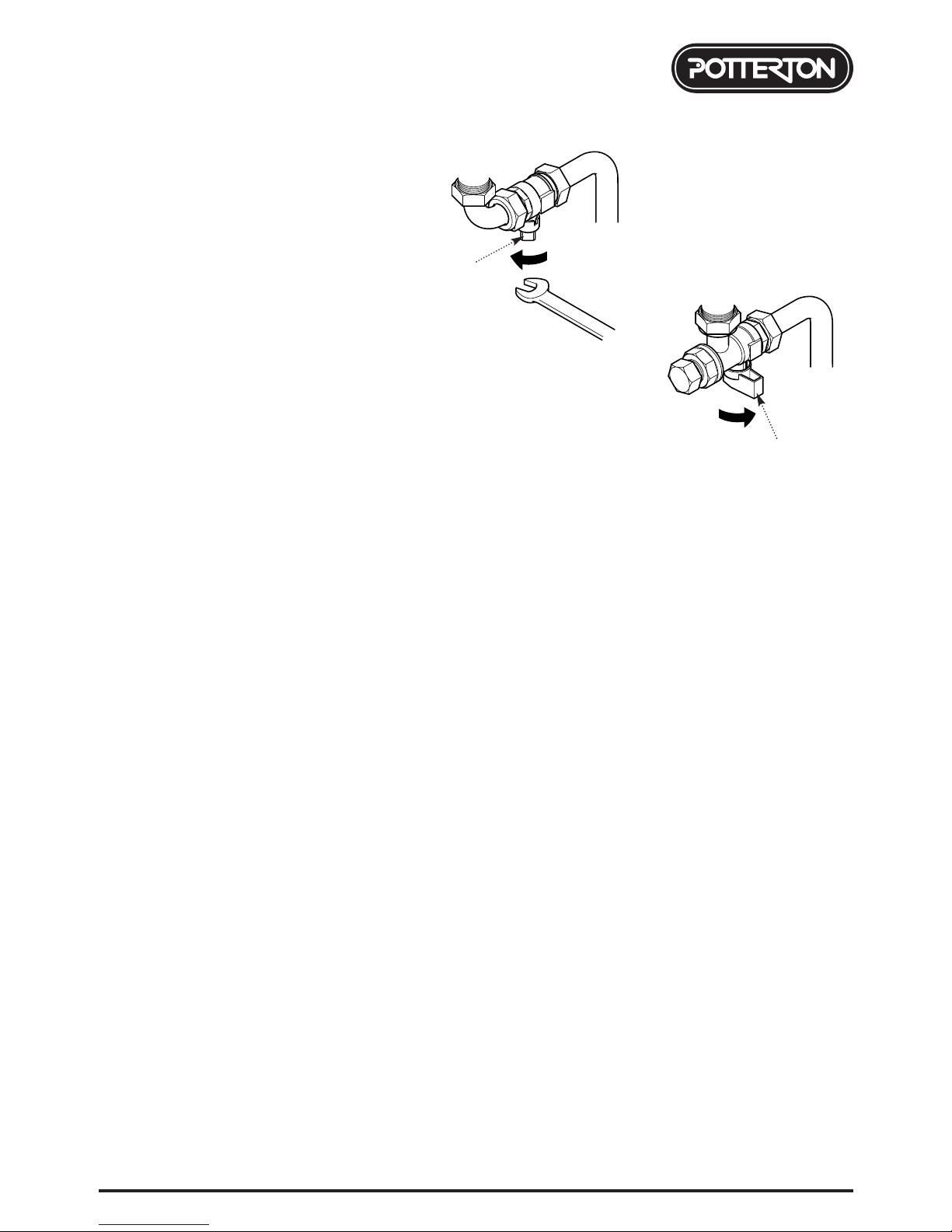

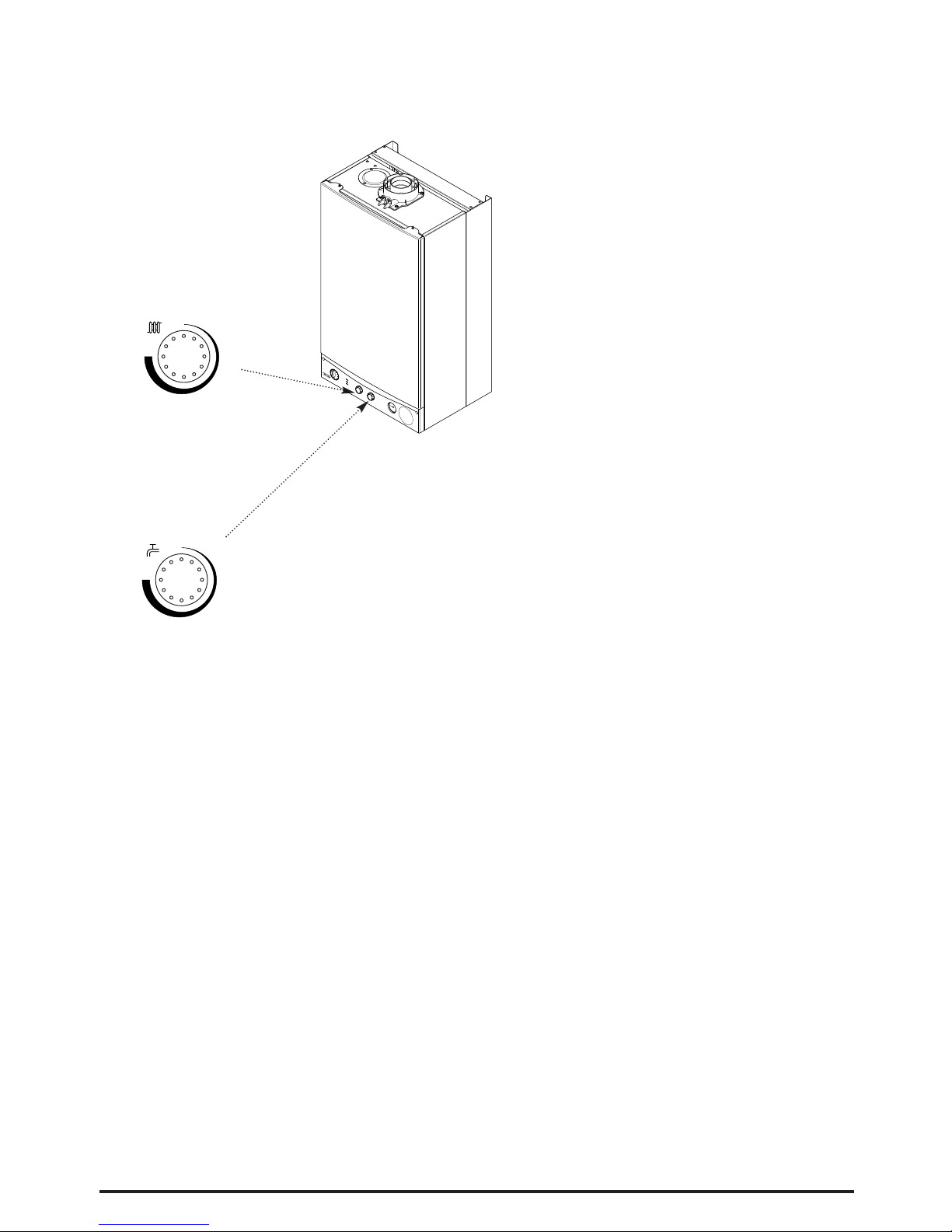

User’s Guide Performa
24 Eco HE

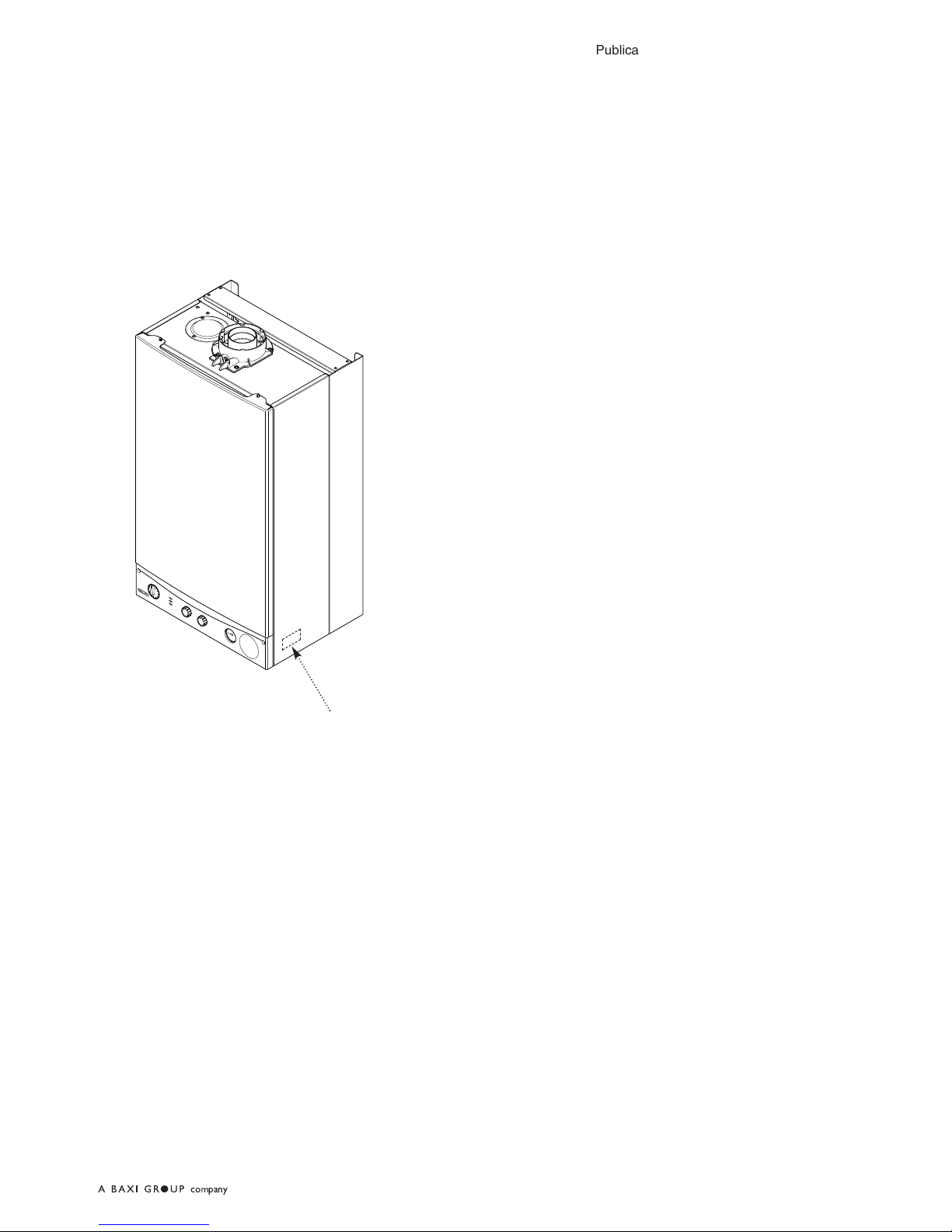

This is a Wall Mounted Powered Flue Condensing Combination Boiler Gas Fired Central Heating Unit.
The boiler meets the requirements of Statutory Instrument “ The Boiler (Efficiency) Regulations 1993 No3083” and is
deemed to meet the requirements of Directive 92/42/EEC on the energy efficiency requirements for new hot water
boilers fired with liquid or gaseous fuels:-
Type test for purpose of Regulation 5 certified by:
Notified Body 0051.
Product/Production certified by:
Notified Body 0051.
For use in GB/IE only.

the nation’s favourite for
PLUMBING & HEATING SUPPLIES
SECURE PAYMENTS
shop online with confidence
FREE SHIPPING
on all orders over £100 to mainland UK
FINANCE AVAILABLE
spread the cost with low interest rates
PRICE MATCH
always get the best deals available
Boilers
Radiators
Heating controls

Cylinders
Fires
Renewable energy
Bathroom suites
Kitchen sinks & taps
Showers
Wet rooms
Towel warmers
Bathroom furniture
& much more
HUGE REDUCTIONS
we have
ON THOUSANDS OF ITEMS
0844 800 3460
CALL US ON
visit our website
plumbnation.co.uk

2Publication No. 5111812
Natural Gas
Potterton Performa 24 Eco HE
G.C.No47 393 11
Where fitted, user label for
optional timer to be applied here.
IMPORTANT - Installation, Commissioning, Service & Repair
This appliance must be installed in accordance with the
manufacturer’s instructions and the regulations in force. Read
the instructions fully before installing or using the appliance.
In GB, this must be carried out by a competent person as
stated in the Gas Safety (Installation & Use) Regulations.
Definition of competence: A person who works for a CORGI
registered company and holding current certificates in the
relevant ACS modules, is deemed competent.
In IE, this must be carried out by a competent person as
stated in I.S. 813 “Domestic Gas Installations”.
Lifting - This product should be lifted and handled by two
people. Stooping should be avoided and protective equipment
worn where necessary. Carrying & lifting equipment should be
used as required, e.g. when installing in a loft space.
The addition of anything that may interfere with the normal
operation of the appliance without express written permission
from the manufacturer or his agent could invalidate the
appliance warranty. In GB this could also infringe the Gas
Safety (Installation and Use) Regulations.
Warning - Check the information on the data plate is
compatible with local supply conditions.
Benchmark Commissioning Checklist
Please ensure that your installer hands you the boiler
Installation & Service Instructions with the Benchmark
Commissioning Checklist sections completed. The details in
the Checklist will be required in the event of any warranty
work. Keep the instructions in a safe place and ensure that the
Service Interval Record at the back is completed at each
service visit.
CORGI
All CORGI registered installers carry a CORGI identification
card and have a registration number. You can check your
installer is registered by telephoning 0870 4012300 or writing
to:-
1 Elmwood,
Chineham Business Park,
Crockford Lane,
Basingstoke. RG24 8WG
or check online at www.corgi-gas-safety.com
This product has an energy rating (B) on a scale of A to G.
For more information see www.boilers.org.uk. This is a certification mark.

3
Publication No. 5111812
In an Emergency
If a water or gas leak occurs or is suspected, the boiler
can be isolated at the inlet valves as follows;
1. Turn off the electrical supply and turn the selector
switch on the facia box to the OFF position.
2. Using a suitable open ended spanner or screwdriver
turn the square on the gas tap to the left to isolate the
gas supply at the boiler (Fig. 1).
3. The isolating valves are positioned under the boiler
and can be closed by turning their taps to the right
towards the wall (Fig. 2).
4. Call your Installer or Service Engineer as soon as
possible.
In case of gas leaks
1. If a gas leak is found or suspected, turn off the gas
supply at the meter immediately and at the isolating
valve on the boiler if possible. Contact your Gas
Supplier immediately.
Servicing your Appliance
1. For reasons of safety and economy your appliance
should be serviced annually. Servicing must be
performed by a competent person. Your Installer or
Service Engineer will be able to advise you.
2. Any purpose provided ventilation should be checked
periodically to ensure that it is free from obstruction.
Electricity Supply
1. THIS APPLIANCE MUST BE EARTHED.
2. A standard 230V ~ 50Hz supply is required. The
appliance must be protected by a 3 amp fuse.
Never Hang Flammable Items Over The Appliance
Gas Tap
Heating Flow, Heating
Return and Mains
Water Inlet
Isolating Valves
Fig. 1
Fig. 2

4Publication No. 5111812
Introduction
1. Your Potterton Performa 24 Eco HE is a gas fired,
room sealed, powered flue condensing combination
boiler, providing central heating for your home and
mains fed domestic hot water to taps and shower. It
is fully automatic and does not have a pilot light.
2. Priority is given to the hot water mode - when a hot
water tap is turned on the supply of heat to the
central heating circuit is interrupted.
3. Due to the high efficiency and resultant low flue
gas temperature when in condensing mode a white
plume of condensate will be emitted from the
terminal. This will be particularly evident during
periods of low outside temperature.
Operating the Boiler
1. Ensure that the electricity and gas supplies are
turned on. Check that the central heating pressure is
between 0.5 and 1.0 bar (Fig. 3).
2. Turn the On/Off/Reset selector switch either anti-
clockwise from the off position (Fig. 5) to both central
heating and domestic hot water or clockwise to
domestic hot water only.
3. In either position the green “power”neon ( ) will
illuminate (Fig. 4).
4. Position (i) In this position the central heating will
operate according to demand or provide domestic hot
water when a tap or shower is turned on (Fig. 6).
Priority is given to domestic hot water.
5. Position (ii) In this position hot water will be
provided when a tap or shower is turned on (Fig. 7).
6. The boiler will light automatically on demand.
7. The orange “burner”neon ( ) will illuminate
when the boiler is operating and the main burner is
on (Fig. 4).
IMPORTANT: When the selector switch is in the
‘0’ (Off) position the electrical supply to the boiler
is isolated. The boiler will not operate and the
integral timer (if fitted) will require resetting once
the selector switch is set to either Position (i) or
Position (ii).
2
1
0
4
3
bar
Reset Burner On
Flame Failure
Power On
Performa 24 Eco HE
Reset
Reset
Position (ii)
(Hot Water)
Fig. 6
Fig. 7
Reset
OFF Position
Fig. 5
Fig. 4
Fig. 3
1. On/Off/Reset Selector Switch
2. Burner On & Fault Indicator Neon
3. Power Neon
4. Flame Failure & Fault Indicator Neon
5. Central Heating Temperature Control
6. Hot Water Temperature Control
7. Central Heating System Pressure Gauge
8. Optional Integral Timer Position
12 34 5 6 7 8
2
1
0
4
3
bar
Position (i)
(Central Heating or Hot Water)

5
Publication No. 5111812
Fault Indication
1. Your Potterton Performa 24 Eco HE has three neon
indicators. The upper two function as boiler on and
fault indicators.
2. Depending on the nature of the fault the upper two
neons will illuminate, go off or flash.
3. There are five possible combinations, each
indicating one or more fault conditions. These are
described below.
A
The flue or flue terminal is blocked or obstructed in
some way, or there is an internal fault.
If there is no external blockage of the flue that can be
easily removed contact your Installer or Service
Engineer.
B
The circulating pump is faulty or the system pressure
has dropped. Check the system pressure (see page 7).
If the pressure is in the normal range a pump fault is
indicated. Contact your Installer or Service Engineer.
C
A fault on the boiler temperature sensor is indicated.
Contact your Installer or Service Engineer.
D
The primary system or the boiler has overheated.
Allow the boiler to cool. Turn the selector switch fully
anti-clockwise against the spring pressure to the
‘Reset’position and hold for at least 2 seconds.
If this occurs repeatedly contact your Installer or
Service Engineer.
If the boiler does not relight after resetting it is possible
that the flue has overheated. Contact your Installer or
Service Engineer.
E
The burner has failed to light, or incomplete lighting of
the burner has occurred. Turn the selector switch fully
anti-clockwise against the spring pressure to the
‘Reset’position and hold for at least 2 seconds.
If this occurs repeatedly contact your Installer or
Service Engineer.
If the boiler does not relight after resetting blockage of
the condensate drain or trap has occurred. Contact
your Installer or Service Engineer.
Burner On
Flame Failure
Power On
Off
Fast Flashing (2 every second)
On
A
Burner On
Flame Failure
Power On
Off
Slow Flashing (1 every 2 seconds)
On
B
Burner On
Flame Failure
Power On
Slow Flashing (1 every 2 seconds)
Slow Flashing (1 every 2 seconds)
On
C
Burner On
Flame Failure
Power On
Slow Flashing (1 every 2 seconds)
On
On
D
Burner On
Flame Failure
Power On
Off
On
On
E
Reset
Reset Position

6Publication No. 5111812
Temperature Control
1. Central Heating: The central heating hot water
flow temperature can be adjusted between 30°C (±
5° C) minimum and 85°C (± 5°C) maximum.
2. Turn the control knob clockwise to increase the
temperature (Fig. 8).
3. In normal winter usage we recommend that the
central heating temperature be set at maximum.
4. Domestic Hot Water: The temperature of the
domestic hot water can be adjusted by turning the
control knob clockwise to increase up to a maximum
of 65°C (Fig. 9).
5. The temperature of the water is also dependent on
the water flow rate and the temperature of the mains
water coming into the house.
6. By slightly reducing the flow from the tap the
temperature will increase up to the maximum if
required.
7. The flow rate can be reduced down to as low as 2.5
litre/min. The boiler will still recognise the need to heat
the water.
Domestic Hot Water
Temperature Control
Fig. 8
Central Heating
Temperature Control
Fig. 9

7
Publication No. 5111812
Central Heating System Pressure
1. The water pressure in the central heating system
is indicated by the pressure gauge.
2. With the system cold and the boiler not operating
the pressure should be between 0.5 and 1.0 bar.
During operation the pressure should not exceed 2.5
bar, and will normally be between 1.0 and 2.0 (Figs.
10 & 11).
3. A pressure of 3 or greater indicates a fault. The
safety pressure relief valve will operate, at a pressure
of 3 (Fig. 12). It is important that your Installer or
Service Engineer is contacted as soon as
possible.
4. The minimum pressure for correct operation is 0.5.
If the pressure falls below 0.5, this may indicate a
leak on the central heating system (Fig. 13).
To Shut Off the Boiler
1. For short periods: Turn the selector switch to the
OFF position (Fig. 14).
2. For long periods: Turn off the selector switch
(Fig. 14), electricity and gas supplies.
If your home is to be left unoccupied for long
periods during cold weather the boiler and whole
system should be drained unless equipped with
frost protection.
3. Your installer will advise you about frost protection
and draining the system.
IMPORTANT: When the selector switch is in
the ‘0’ (Off) position the electrical supply to the
boiler is isolated. The boiler will not operate
and the integral timer (if fitted) will require
resetting once the selector switch is set to
either Position (i) or Position (ii).
2
1
0
4
3
bar
2
1
0
4
3
bar
2
1
0
4
3
bar
2
1
0
4
3
bar
ON/OFF/RESET
Selector Switch
Reset
OFF Position
Fig. 14
Normal Pressure (when cold)
Normal Pressure (operating)
Fig. 10
Fault
Fig. 11
Below Minimum
Fig. 12
Fig. 13
Pressure Gauge

8Publication No. 5111812
Clearances around the Boiler
(Figs. 15 & 16)
1. The minimum clear spaces needed around the boiler
measured from the casing are as follows:
Top - 200mm
Bottom - 200mm
Left side - 5mm
Right Side - 20mm/5mm
Front - 5mm (In Operation)
- 450mm (For Servicing)
* NOTE: The boiler can be operated with a clearance
of 5mm at the right. This is also sufficient for routine
maintenance. However a clearance of 20mm is
required if it is necessary to remove the secondary
heat exchanger. This should be considered when
siting the appliance and in the event of any
subsequent alteration in the area of installation.
2. These areas must not be obstructed in any way.
Blocking the clearance spaces may result in the
boiler overheating and damage may occur.
3. The gas burning compartment of your boiler is
completely sealed from the room in which it is fitted.
Products from the combustion of gas are vented to the
outside through the flue terminal which must be kept
free from obstruction as this would interfere with the
correct operation of the boiler.
4. The boiler may be installed in a cupboard if these
minimum clearances are kept. The compartment should
be large enough to house the boiler and ancillary
equipment only.
5. IT SHOULD NOT BE USED AS A STORAGE
CUPBOARD.
Check List
1. If a fault develops, or is suspected, call your Installer
or Service Engineer as soon as possible.
2. Go through the following check list before you make
contact.
a) Is the electricity supply on ?
b) Is the selector switch on (giving a green “Power ON”
light) and set for both Central Heating and
Domestic Hot Water ?
c) Is the red “Flame Failure”indicator lit ? Turn the
On/Off/Reset selector fully anti-clockwise.
d) Is the gas supply on ?
e) Is the mains water supply turned on ?
f) Is the system pressure correct ?
g) Are the boiler temperature controls set high enough?
h) Is the time clock (if fitted) calling for central heating ?
i) Is the room thermostat (if fitted) set high enough ?
j) Are the radiator valves open ?
2
1
0
4
3
bar
Reset Burner On
Flame Failure
PowerOn
200mm Min
780mm
450mm
200mm Min
20mm/5mm Min
see *NOTE:
5mm Min
8mm Min
450mm Min
For Servicing
Purposes
Fig. 15
Fig. 16
In Operation

9
Publication No. 5111812
Cleaning the Outercase
The painted panels should be wiped with a damp
cloth and then dried completely. Do not use abrasive
cleaning agents.
Spare Parts
IMPORTANT - Only a competent person should be
used to service or repair this boiler.
1. Any repairs to the boiler will usually be the
responsibility of the Installer during the guarantee
period after which spare parts may be obtained
through approved Potterton stockists if required.
2. Quote the appliance name, model number and
where possible the part number when ordering
spares. A parts list is included in the Installation and
Servicing Instructions.
3. The name, model number, and serial number can
be found on a label on the inner face of the lower
right hand case panel (see back page).

10 Publication No. 5111812
Codes of Practice, most recent version should
be used
Legislation
Potterton declare that no substances harmful to
health are contained in the appliance or used during
appliance manufacture.
The appliance is suitable only for installation in GB
and IE and should be installed in accordance with
the rules in force, and only used in a suitably
ventilated location.
In GB, the installation must be carried out by a CORGI
Registered Installer. It must be carried out in accordance
with the relevant requirements of the:
•Gas Safety (Installation & Use) Regulations.
•The appropriate Building Regulations either The
Building Regulations, The Building Regulations
(Scotland), Building Regulations (Northern Ireland).
•The Water Fittings Regulations or Water Byelaws in
Scotland.
•The Current I.E.E. Wiring Regulations.
Where no specific instructions are given, reference
should be made to the relevant British Standard Code of
Practice.
In IE, the installation must be carried out by a competent
Person and installed in accordance with the current
edition of I.S. 813 ‘Domestic Gas Installations’, the
current Building Regulations and reference should be
made to the current ETCI rules for electrical installation.
All systems must be thoroughly flushed and treated
with inhibitor.
In GB the following Codes of Practice apply:
Standard Scope
BS 6891 Gas Installation.
BS 5546 Installation of hot water supplies for
domestic purposes.
BS 5449 Forced circulation hot water systems.
BS 6798 Installation of gas fired hot water boilers.
BS 5440 Part 1 Flues.
BS 5440 Part 2 Ventilation.
BS 7074 Expansion vessels and ancillary equipment
for sealed water systems.
BS 7593 Treatment of water in domestic hot water
central heating systems.
In IE the following Codes of Practice apply:
Standard Scope
I.S. 813 Domestic Gas Installations.
The following BS standards give valuable additional information;
BS 5546 Installation of hot water supplies for
domestic purposes.
BS 5449 Forced circulation hot water systems.
BS 7074 Expansion vessels and ancillary equipment
for sealed water systems.
BS 7593 Treatment of water in domestic hot water
central heating systems.
