Potterton Powermax HE 85 User manual

User’s Instructions Powermax HE
85, 115 & 150 Litre
Condensing Boilers with
Integrated Hot Water Storage
MAX0048A
Domestic
Hot Water
'ON' Indicator
Light (Green)
Mains 'ON'
Indicator
Light (Amber)
Burner 'ON'
Indicator
Light (Green)
Lock Out
Indicator
Light (Red)
Lock Out
Reset
Button

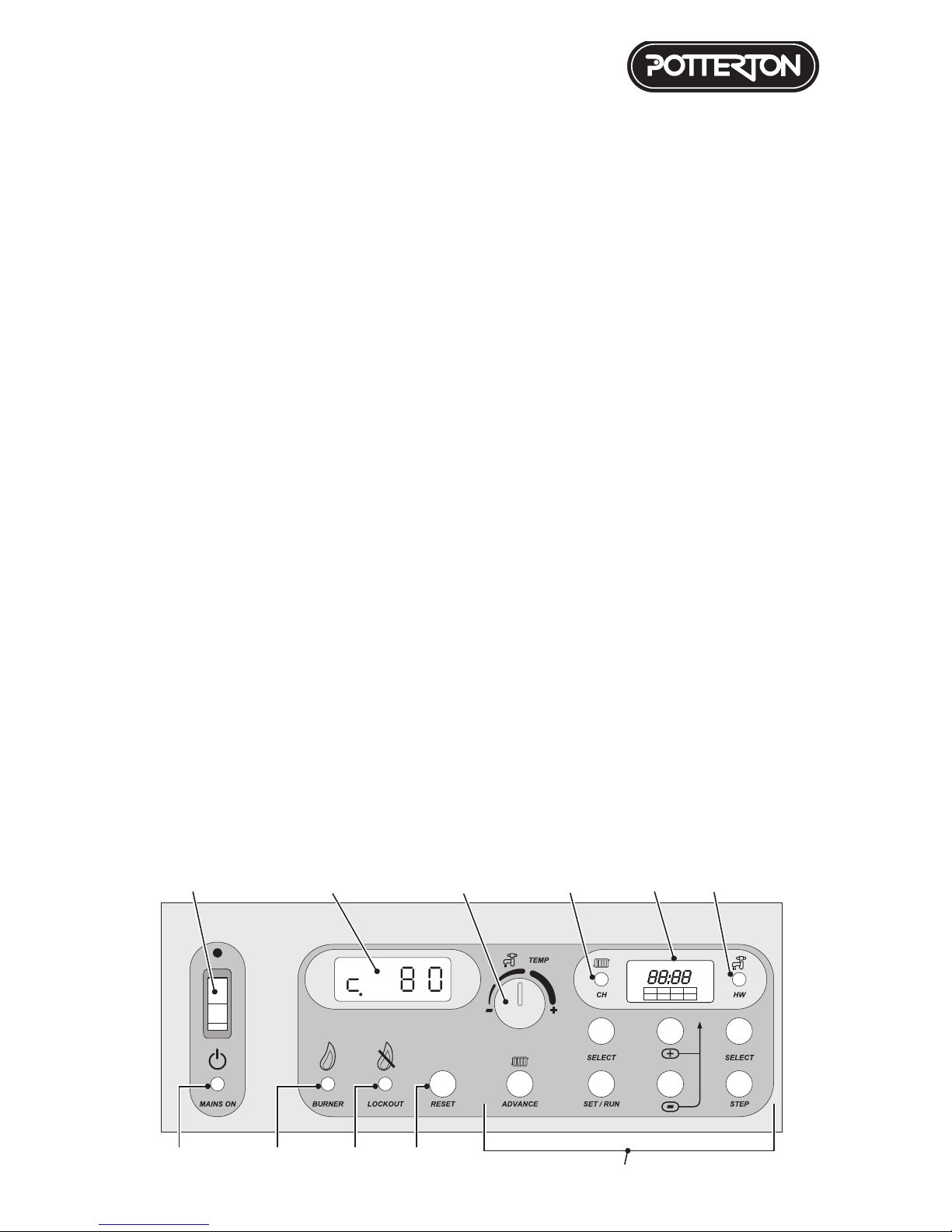

Integral Programmer
Controls
Domestic Hot Water
Temperature Control
Boiler ON- OFF
Switch
Central Heating
'ON' Indicator
Light (Green)
Status/Error Code
Display Window
MON
TIME ON 1 ON 2 ON 3
DAY OFF 3OFF 2OFF 1
TUE WED THU FRI SAT SUN
OFF
TIMED
ONCE
ON
OFF
TIMED
ONCE
ON
A
P.M
Programmer
Display
Window
Quick Guide to the Controls
When the Powermax was installed, the Installer should
have -
left or given you these and other instructions including the
Benchmark Log Book and Potterton Warranty Envelope.
left the programmer showing the current day and time of
day. Note: The programmer has default On/Off time
periods for both Hot Water and Central Heating.
About the Control Panel
Status display
Window used to show either operating status e.g. central
heating or hot water, the selected hot water temperature, or
heating system pressure - see chart on Page 7. Note: The
display defaults to pressure P (in bar).

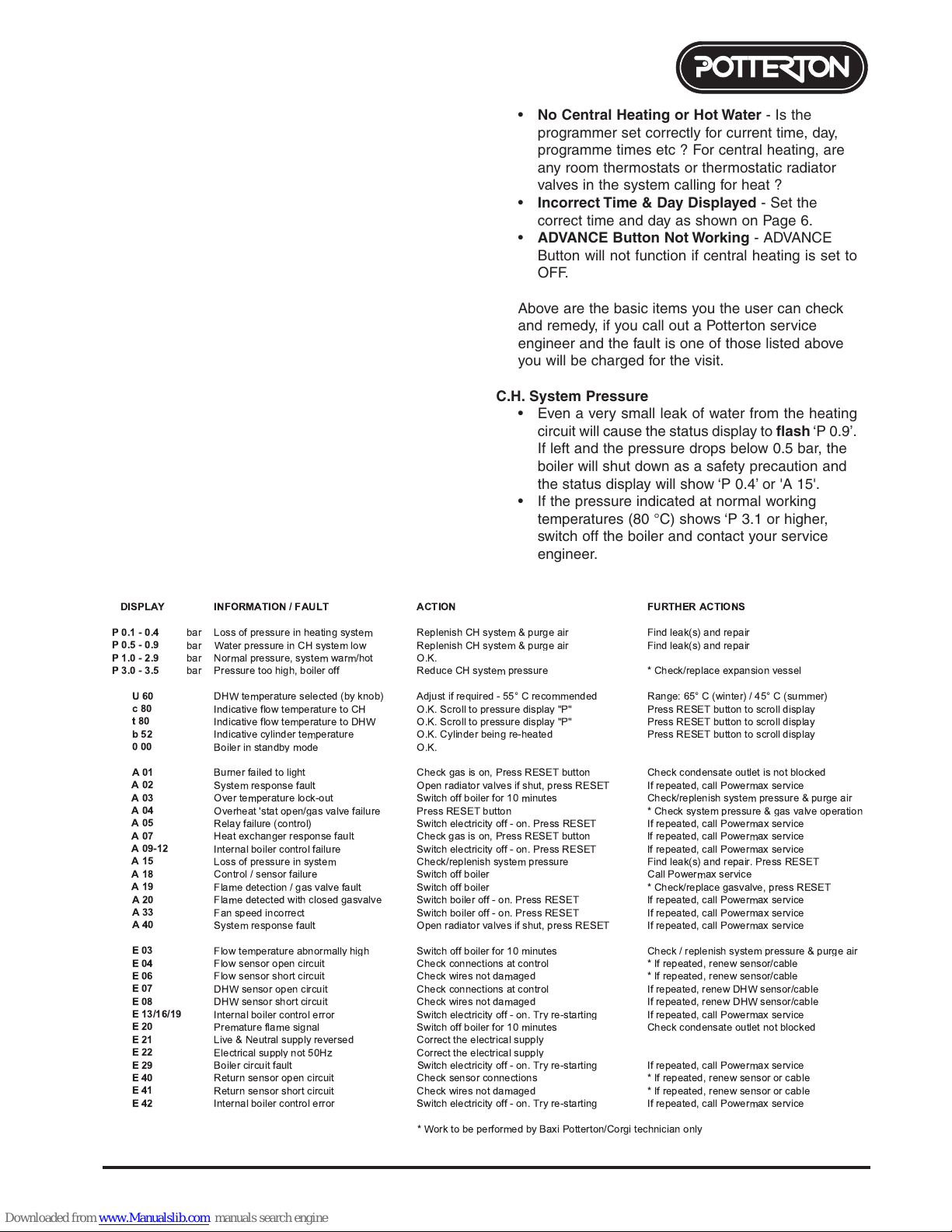

Operating errors or fault lock-out conditions are displayed
as E (number) or A (number) - see chart on Page 7. Note:
Please record the fault code and the boiler Serial No. (see
page 8) when contacting the Service department.
Reset button
Use this button to scroll display when setting the desired
hot water temperature, or checking status or pressure. Use
also to re-start boiler after fault is repaired.
Amber neon - indicates that the mains electricity
supply to the boiler is switched on.
Green neon - indicates that the burner is lit and heating
either the Hot Water or Central Heating.
Red neon - indicates that the boiler has gone to lock out
and needs to be reset by pressing the Lock-Out reset
button.
Hot water - the temperature of the stored hot water can
be adjusted over the approximate range of 45 °C to 65
°C.
About the Programmer
The programmer display window will show the current
day, current time of day (12 hour clock) and control status
of both the Hot Water and Central Heating.
If the Central Heating is in a timed OFF period and you
wish to bring it on manually, just press the 'Advance'
button. Similarly if the system is ON and you wish to
switch it OFF, again, press the 'Advance' button.
The programmer settings can be changed to have
different On/Off times for both Hot Water and Central
Heating for each day of the week.
Other Controls
A room thermostat, if fitted, will further control central
heating operation.

Publication No. 5106228
2 User’s Instructions
TM
About Safety
Benchmark Installation, Commissioning and Service
Record Log Book
Potterton is a member of the Benchmark initiative and fully
supports the aims of the programme. Benchmark has
been introduced to improve the standards of installation
and commissioning of central heating systems in the UK
and to encourage the regular servicing of all central
heating systems to ensure safety and efficiency.
Important –Failure to install and commission this
appliance to manufacturer’s instructions may invalidate
the warranty. This note does not affect your statutory
rights.
CORGI
All CORGI registered installers carry a CORGI
identification card and have a registration number. Both
should be recorded in your boiler Log Book.
You can check your installer is registered by telephoning
[phone] or writing to:-
CORGI. 1 Elmwood, Chineham Business Park, Crockford
Lane, Basingstoke, RG24 8WG.
Important - Installation, Commissioning, Service &
Repair
This appliance must be installed in accordance with the
manufacturer’s instructions and the regulations in force.
Read the instructions fully before installing or using the
appliance.
In GB this must be carried out by a competent person as
stated in the Gas Safety (Installation & Use) Regulations.
Definition of competence: A person who works for a
CORGI registered company and holds current certificates
in the relevant ACS modules, or valid ACoP equivalents, is
deemed competent.
In IE this must be carried out by a competent person as
stated in I.S. 813. "Domestic Gas Installations".
•This appliance must be earthed. Connection shall be
made to a 230 V ~ 50 Hz supply. The appliance must
be protected by a 3 amp fuse.
•Do not interfere with any sealed components on this
appliance
•The appliance must not be operated without the casing
correctly fitted. It is important that the inner casing
panels are not removed for any reason other than for
servicing by a qualified service engineer.
•Regular skilled servicing is required to maintain the safe
and efficient operation of your boiler throughout its
working life. Further information on this subject is given
at a later stage.
•If it is known or suspected that a fault exists on the a
ppliance, it must not be used until the fault has been
corrected by a competent person. If a gas leak is
suspected turn off the appliance and consult your local
gas supplier or service engineer.
•Flammable materials must not be stored in close
proximity to the boiler.
•Do not obstruct any purpose provided ventilation
openings.
•The minimum clearances must be observed at all times
for safety and servicing.
Front - 450 mm (unless behind openable door).
Top - 200 mm twin pipe vertical flue/250 mm concentric
flue though 400 mm is recommended for both instances.
•Do not hang items on the boiler to dry. If a storage
shelf is fitted it should be at least 75 mm above the top
of the case and removable.
•Any warning labels on the appliance must be adhered
to.
•The programmer has a replaceable battery (to provide
memory for the programmer set and default times). The
battery must be disposed of in a safe manner.
About the Guarantee
•Information about your guarantee is detailed separately.
Please note that it only covers the boiler and not your
pipework, radiators, valves, etc. If you call a Potterton
service engineer out during the guarantee period to
anything other than an actual boiler fault- you will be
charged for the visit and any work carried out.
About the Boiler
•This is a Floor Mounted, Fan Assisted Balanced Flue
Gas Boiler. This boiler is for use with Natural Gas (G20)
only at 20 mbar and for use in GB/IE only.
•The information given in these instructions will help you
obtain the maximum comfort from your boiler with the
minimum trouble and cost. Please take time to read
through these instructions as they will help you
understand how to get the best use out of the boiler.
•Powermax HE is a condensing combination boiler in
which the gas burner heats the contents of the built-in
hot water store to provide domestic hot water. A pre-
mixed burner is used to ensure that the gas is burned
cleanly and efficiently.
•To reduce running costs, timed operation of the central
heating is essential and a Powermax programmer is
built-in to provide this function. It enables both hot water
and heating periods to be timed for both comfort and
economy. Your installer may have fitted another make
of programmer remote from the boiler and should have
provided you with instructions on its use.

Publication No. 5106228 3User’s Instructions
Lighting
Check that the mains electricity and gas supply are both
turned ON. The amber neon on the control will light
when electricity is being supplied. Set the boiler On/Off
Switch to 'I' (ON), the boiler is now operational.
If the programmer is set to an ON period for Hot Water
the green 'burner' neon will light to indicate that the
burner has ignited and is heating the water (unless the
pre-set hot water temperature has already been
reached).
If the programmer is set to an ON period for Central
Heating the green 'burner' neon will light to indicate that
the burner has ignited and is heating the radiators
(unless the pre-set hot water store temperature has not
been reached or the system thermostat is not calling for
heat).
If the burner fails to light, the ignition sequence will be
automatically repeated until either the burner lights or a
safety Lock-Out condition is signalled by the red neon.
If the red neon lights note the error display code,see
Page 7. If appropriate, press the reset button on the
control panel and the boiler will re-set itself.
Operating Hints
When the burner is heating the water, the approximate
flow temperature can be indicated in the status display
window by a 't' for Hot Water or 'c' for Central Heating.
The temperature of the Hot Water can be adjusted by
turning the Temperature Control knob on the control
panel. The control temperature of this knob ranges
approximately from 45 °C to 65 °C. We recommend a
setting of 55 °C for normal operation.
During the summer period you can turn the Central
Heating off at the programmer. The life of the Central
Heating pump will be prolonged if you switch the Central
Heating on for a few minutes or so each week during the
summer period. Note: The boiler control will operate the
pump for a few seconds every day.
To turn the boiler off for short periods - set the central
heating and hot water channels to the OFF position at
the programmer. This leaves the boiler's built in frost
protection operational. To turn the boiler off for long
periods - set the boiler On/Off switch to the 'O' (OFF)
position and isolate the gas supply at the boiler. It may
be advisable to contact your Service Engineer if you
wish to do this.
How your boiler Works
Control of the Boiler
The boiler is fitted with a control panel which indicates
basic functions and also contains a programmer. If your
installer has fitted another make of programmer remote
from the boiler, the programmer display on the control
panel will operate as a clock only.
The burner automatically adjusts its heat output to meet
the demand of your central heating or hot water.
Central Heating
Your new Powermax HE works as part of a ‘sealed’;
pressurised hot water system which is why the boiler
has a pressure gauge and a means of re-filling the
central heating circuit.
Constant pressure in the pipework will find old or badly
made joints and allow water to weep or leak through.
Your installer should have advised you of this possibility
and recommended a course of action. It is not a fault of
the boiler.
Hot Water
To ensure a plentiful supply of hot water the Powermax
HE has a built in water store which during timed 'On'
periods is maintained around the selected temperature.
Your hot water taps may also leak due to the pressure
increase.
Hot water always takes priority over central heating
during a timed 'On' period. Where a significant volume
of hot water is drawn off (e.g. a bath) whilst the central
heating is on, the boiler will temporarily shut down the
heating until the required store temperature is restored
(this will typically take only 10 to 15 minutes).
Optional Immersion Heater
The hot water storage cylinder in your Powermax HE
may have been fitted with the optional electric
immersion heater. This is of a special type fitted with a
safety cut-out which switches off the heater in an
overheat situation. It is not interchangeable with
standard immersion heaters. Should it fail, use only a
genuine Powermax or Heatrae 'Mega' replacement
(Part No. P3223/5106143) which must be fitted by a
competent person.
A thermostat setting of around '3' (approx. 55 °C) is
recommended in hard water areas. Should the overheat
cut-out operate, it can be manually reset by pressing the
red button at the side of the thermostat dial. ALWAYS
investigate the cause of overheating before resetting.

Publication No. 5106228
4 User’s Instructions
Things you need to be aware of
Air Locks
The boiler pump is fitted with an automatic air vent and
will bleed air from the boiler when required.
To access the bleed screw for this vent, pull off the top
front cover, remove the small inner panel and the
screw cap is situated just below the opening. Unscrew
by no more than one turn when air in the system is
suspected. e.g. after replacing a radiator. Tighten
screw again after 24 hours.
C.H. System Pressure
The Status Display window shows the actual water
pressure in the central heating system. It will drop
slightly when the central heating starts and will rise by
anything up to 1.5 bar as the central heating reaches
full temperature.
We recommend that the system pressure, when cold
be between 1.0 and 1.5 bar. If the pressure is falling,
the status display will flash ‘P 0.9’or lower and it is
advised to top up at this stage. If the pressure drops
below 0.5 bar the boiler will not light, the status display
will show ‘P 0.4’or 'A 15’and it will be necessary to
top up the pressure.
To top up: Pull bottom panel off front of boiler and
connect filling loop to valve on cold water inlet. Open
both valves slowly and allow pressure to rise. Close
valves, disconnect filling loop and re-fit bottom panel.
If regular topping up is needed get your installer to
check the system for leaks.
Severe loss of system pressure is indicated by 'A 15'
on the display and the red 'Lockout' neon will be on.
Top up as above then press the ‘Reset’button, this will
reset the boiler and it should now light.
Flue
This exits through the roof or outside wall. Ensure it
does not become obstructed, particularly by foliage or
snow. Due to the high efficiency of the boiler and the
resulting low flue gas temperature, a plume of white
condensate may be emitted from the flue outlet
terminal. This will be particularly noticeable during cold
weather and does not indicate a problem with the
boiler.
The flue pipe becomes very hot when the boiler is
operating. If the pipe is visible (such as in a loft space)
it is important that no flammable materials are allowed
to come into contact with the pipe.
Freezing Conditions
If the water temperature within the boiler drops below
5 °C, a sensor operates and runs the burner to keep
the water from freezing. This will only operate if the
electricity supply to the boiler is ON. If you are away
during periods of cold weather we recommend leaving
your boiler on and adjusting your control system (e.g
thermostat) to suit.
Condensate Outlet Pipe
If this has been run externally, it may drip water. This is
perfectly normal. Steps should be taken to prevent the
outlet freezing in very cold weather.
Safety Discharge Pipe
Ask your installer to identify the discharge pipe from
the pressure relief valve. Normally no water is vented
but scalding water and steam may be emitted and
indicate a fault condition. Switch off the boiler and call
your Installer.
Precautions should be taken to prevent the outlet
becoming blocked and to minimise the hazard to
persons (especially children) where the pipe
discharges.
Cleaning
The outer case parts can be wiped down with a damp
cloth to remove any marks. Do not use abrasive
cleaning agents as they may damage the finish on the
case parts.
Other controls
These may be fitted within the system e.g. room
thermostat. Full instructions on their use should have
been supplied with them.
In an Emergency
Gas - In the event of a gas leak turn off the supply at
the isolating cock. If the leak is in the pipe from the gas
meter then turn off the isolating cock at the meter as
well. Call your gas supplier immediately.
Electricity - The boiler can be isolated from the mains
supply by removing the plug from the socket or
switching the fused supply off.
Central Heating system - If a radiator, pipe or the
boiler starts leaking, set the boiler On/Off Switch to
‘Off’as this will stop the pump from working and will
minimise loss of water. Reference can be made to the
Installation & Servicing Instructions on how to remove
the outer casing and close the isolating cocks to the
central heating flow and return.
Hot Water - If a hot water pipe starts to leak, set the
boiler On/Off Switch to ‘Off’, turn off the mains water
supply at the stopcock and collect the water in a
suitable container, take care, it could be Very Hot.
(Remember to switch on any supplies you have closed once the
problem has been corrected).

Publication No. 5106228 5User’s Instructions
How to set the Programmer
This section is relevant only if your programmer has
been enabled. Refer to 'Programmer not working' on
Page 7 if unsure.
Using the Powermax programmer, you can set your
Hot Water and/or Central Heating to come on for three
time periods per day, with different or common times
for Hot Water and Central Heating.
It does take time for the boiler to produce the required
temperatures, so set the programmer to switch on, for
example, 30 minutes earlier than you will require
Central Heating and around 20 minutes earlier than
that to allow the Hot Water store to heat up.
Other controls in your system (such as a room
thermostat) may affect the switching of your boiler. So
although the indicator shows that the central heating is
on, the boiler itself could be off.
(Ask your installer how they work).
Setting the Programmer for Built-in Times
The programmer already has built-in time periods,
which are shown below (represented as a 12 hour
clock).
Central Heating - Monday to Friday
ON1 OFF1 ON2 OFF2 ON3 OFF3
07.00 09.30 12.00 12.00 5.00 11.00
Domestic Hot Water - Monday to Friday
ON1 OFF1 ON2 OFF2 ON3 OFF3
06.30 09.30 12.00 12.30 4.40 11.00
Central Heating - Saturday and Sunday
ON1 OFF1 ON2 OFF2 ON3 OFF3
07.30 10.30 12.00 12.00 4.30 11.30
Domestic Hot Water - Saturday and Sunday
ON1 OFF1 ON2 OFF2 ON3 OFF3
07.00 10.30 12.00 1.00 4.00 11.30
These times can be used, by setting the correct time of
day as described in Section 2.0, Page 6.
To set up your own ON/OFF times, refer to Section 3.0,
Page 6.
If you wish to return to the built in time periods, after
changes have been made to them, firstly ensure the
programmer is in Normal Operation (Section 1.0, Page
6). Then press & hold down the + and - buttons
together, after 2 seconds or so, release the two
buttons and the built in periods will be active.
Using the HW and CH 'SELECT' Button
During normal operation, by pressing these buttons
you can select how you wish your system to work:
OFF When selected, the boiler will stay
turned off.
TIMED Allows the Central Heating and/or Hot
Water to run to the times you have set in
the programmer’s memory.
ONCE Allows your Central Heating and/or Hot
Water to run once a day, from the first
ON time to the last OFF time.
ON Will turn the Central Heating and/or Hot
Water on continuously 24 hours a day.
Using the 'ADVANCE' Button
The ADVANCE button allows you to go forward to the
next ON or OFF time for Central Heating only, when
timed is selected. To advance the programme, simply
press the ADVANCE button and the Central Heating
neon will go OFF (if on) or ON (if off), press again to
return to original setting.
Programmer Memory Backup
If the electricity fails or is switched off, the display will
go blank, but the programmer will maintain the set
times and the clock for 12 hours. When the power
comes back on, you may have to reset the clock and
switch times.
Note: During the time that the electricity is off, any
electrical items, e.g. Boiler, pumps, etc. will not
operate.
If the programmer battery fails, a replacement (Part
No. 5106294) is available. Always dispose of the old
battery in a safe manner.

Publication No. 5106228
6 User’s Instructions
How to set the Programmer
1.0 Normal Operation
1.1 During normal operation the display will show the day, time
and programme option selected e.g. OFF, TIMED, ONCE or ON.
2.0 Setting the Time & Day
2.1 Press SET/RUN. The time will be now be displayed and the
hours will flash.
Adjust using + or - .
Press STEP and minutes will flash.
Adjust using +or - .
Press STEP and the day will flash
Adjust using +or - .
2.2 If you wish to change the ON/OFF times press STEP and
go to 3.2 otherwise press SET/RUN to return to normal
operation.
3.0 Setting the On/Off Times for CH and HW
Note: On/Off times can only be set in intervals of 10
minutes. Also, the programmer will not accept a “midnight”
setting. It is recommended to use a time before midnight e.g.
11:50pm.
3.1 Unless continuing from 2.1, press SET/RUN and use STEP
until ON1 is flashing.
3.2 The CH neon will flash, indicating you are in the CH On/Off
area starting with Monday. If you wish only to change the HW
times, press the SELECT button under the HW neon and it
will start to flash.
Adjust using + or - .
Press STEP and OFF1 will flash.
Adjust using +or -.
3.3 ON2, OFF2, ON3, OFF3 can be set by repeating the
procedure shown for ON1/OFF1.
3.4 Once OFF3 has been set, press STEP and Tuesday will
now flash.
3.5 Repeat the procedure for Tuesday and all other days of the
week.
3.6 Once OFF3 has been set for Sunday press STEP, the CH
neon will go out, the HW neon will flash and ON1 will flash.
3.7 Repeat the procedures shown above to set the On/Off
times for each period and each day.
3.8 Once OFF3 has been set for Sunday, press SET/RUN to
revert back to normal operation.
MAX0049A
MON
OFF
TIMED
ONCE
ON
OFF
TIMED
ONCE
ON
MON TUE WED THU FRI SAT SUN
OFF
TIMED
ONCE
ON
OFF
TIMED
ONCE
ON
MON
TIME ON 1 ON 2 ON 3
DAY OFF 3OFF 2OFF 1
OFF
TIMED
ONCE
ON
OFF
TIMED
ONCE
ON
MON
TIME ON 1 ON 2 ON 3
DAY OFF 3OFF 2OFF 1
OFF
TIMED
ONCE
ON
OFF
TIMED
ONCE
ON
1.0
2.0
3.0
A.M
P.M
P.M
P.M
Reminder.
SET/RUN enters the programming mode and lets you change
the current time and current day, SET/RUN also returns the
programmer to normal operation.

Publication No. 5106228 7User’s Instructions
Basic Troubleshooting
Boiler not working
•Are all the gas and water supplies turned on at
the main supply ?
•Is the electricity supply on and is the amber neon
lit underneath the Boiler On/Off Switch ?
•Is the programmer set to an ‘On’period for central
heating and are any other controls such as room
thermostat and thermostatic radiator valves set
to their maximum on settings ?
Programmer not working
•No Display (boiler switched 'On') - Check the
mains electricity supply to the boiler is ON (the
amber neon underneath the Boiler On/Off Switch
will be lit). If not, check the fuse at the plug or
switched socket.
•Display only shows Clock - Has your installer
fitted a programmer away from the boiler, if so, the
built in programmer will be disabled and only
display the clock. Refer to Page 21 of the
Installation & Servicing Instructions.
MAX0055C
DISPLAY INFORMATION / FAULT ACTION FURTHER ACTIONS
P 0.1 - 0.4
bar Loss of pressure in heating system Replenish CH system & purge air Find leak(s) and repair
P 0.5 - 0.9
bar Water pressure in CH system low Replenish CH system & purge air Find leak(s) and repair
P 1.0 - 2.9
bar Normal pressure, system warm/hot O.K.
P 3.0 - 3.5
bar Pressure too high, boiler off Reduce CH system pressure * Check/replace expansion vessel
U60
DHW temperature selected (by knob)
c80
Indicative flow temperature to CH O.K. Scroll to pressure display "P" Press RESET button to scroll display
t80
Indicative flow temperature to DHW O.K. Scroll to pressure display "P" Press RESET button to scroll display
b52
Indicative cylinder temperature O.K. Cylinder being re-heated Press RESET button to scroll display
000
Boiler in standby mode O.K.
A01
Burner failed to light Check gas is on, Press RESET button Check condensate outlet is not blocked
A02
System response fault Open radiator valves if shut, press RESET If repeated, call Powermax service
A03
Over temperature lock-out Switch off boiler for 10 minutes Check/replenish system pressure & purge air
A04
Overheat 'stat open/gas valve failure Press RESET button * Check system pressure & gas valve operation
A05
Relay failure (control) Switch electricity off - on. Press RESET If repeated, call Powermax service
A07
Heat exchanger response fault Check gas is on, Press RESET button If repeated, call Powermax service
A 09-12
Internal boiler control failure Switch electricity off - on. Press RESET If repeated, call Powermax service
A15
Loss of pressure in system Check/replenish system pressure Find leak(s) and repair. Press RESET
A18
Control / sensor failure Switch off boiler Call Powermax service
A19
Flame detection / gas valve fault Switch off boiler * Check/replace gasvalve, press RESET
A20
Flame detected with closed gasvalve Switch boiler off - on. Press RESET If repeated, call Powermax service
A33
Fan speed incorrect Switch boiler off - on. Press RESET If repeated, call Powermax service
A40
System response fault Open radiator valves if shut, press RESET If repeated, call Powermax service
E03
Flow temperature abnormally high Switch off boiler for 10 minutes Check / replenish system pressure & purge air
E04
Flow sensor open circuit Check connections at control * If repeated, renew sensor/cable
E06
Flow sensor short circuit Check wires not damaged * If repeated, renew sensor/cable
E07
DHW sensor open circuit Check connections at control If repeated, renew DHW sensor/cable
E08
DHW sensor short circuit Check wires not damaged If repeated, renew DHW sensor/cable
E 13/16/19
Internal boiler control error Switch electricity off - on. Try re-starting If repeated, call Powermax service
E20
Premature flame signal Switch off boiler for 10 minutes Check condensate outlet not blocked
E21
Live & Neutral supply reversed Correct the electrical supply
E22
Electrical supply not 50Hz Correct the electrical supply
E29
Boiler circuit fault Switch electricity off - on. Try re-starting If repeated, call Powermax service
E40
Return sensor open circuit Check sensor connections * If repeated, renew sensor or cable
E41
Return sensor short circuit Check wires not damaged * If repeated, renew sensor or cable
E42
Internal boiler control error Switch electricity off - on. Try re-starting If repeated, call Powermax service
* Work to be performed by Baxi Potterton/Corgi technician only
Adjust if required - 55¡ C recommended Range: 65¡ C (winter) / 45¡ C (summer)
•No Central Heating or Hot Water - Is the
programmer set correctly for current time, day,
programme times etc ? For central heating, are
any room thermostats or thermostatic radiator
valves in the system calling for heat ?
•Incorrect Time & Day Displayed - Set the
correct time and day as shown on Page 6.
•ADVANCE Button Not Working - ADVANCE
Button will not function if central heating is set to
OFF.
Above are the basic items you the user can check
and remedy, if you call out a Potterton service
engineer and the fault is one of those listed above
you will be charged for the visit.
C.H. System Pressure
•Even a very small leak of water from the heating
circuit will cause the status display to flash ‘P 0.9’.
If left and the pressure drops below 0.5 bar, the
boiler will shut down as a safety precaution and
the status display will show ‘P 0.4’or 'A 15'.
•If the pressure indicated at normal working
temperatures (80 °C) shows ‘P 3.1 or higher,
switch off the boiler and contact your service
engineer.

All descriptions and illustrations provided in this leaflet have been
carefully prepared but we reserve the right to make changes and
improvements in our products which may affect the accuracy of the
information contained in this leaflet. All goods are sold subject to our
standard Conditions of Sale which are available on request.
General Enquiries (GB)
Tel. [phone]
Sales (GB)
Tel. [phone]
Fax. [phone]
Technical (GB)
Tel. [phone]
Service (GB)
Tel. [phone]
Fax. [phone]
Literature Request (GB)
Tel. [phone]
Spares (GB)
Tel. [phone]
Technical (IE)
Tel. [phone]
Publication No. 5106228 - Iss. 04 (02/2004)
BAXI POTTERTON
A Trading Division of Baxi Heating UK Ltd
Brownedge Road Bam er Bridge Preston Lancashire PR5 6SN
We site www.potterton.co.uk
company
Powermax
-
+
SEL SEL
-+
MAINSON
POWER
CH HW
PROG
PROG
C.H.ADVANCE
H.W.TEMP
RESET
BURNER
LOCKOUT
Cylinder Serial
Number label on outside
of bottom plinth
Heat Engine Serial
Number data badge
behind top front panel
When contacting Baxi Potterton please have the
following information to hand:
Appliance Name
Model Number
Serial Number
The Label (detailing serial and G.C. numbers) is
behind the top front panel. To remove: pull the
bottom edge of the top panel forward and up to
clear fixings.
The serial number labels are located as shown.
