SAFETY RULES
WARNING: When using gardening
appliances, basic safety precautions must al-
ways be followed to reduce the risk of fire and
serious injury. Read and follow all instructions.
This power unit can be dangerous! Operator
is responsible for following instructions and
warnings on unit and in manual. Read entire
instruction manual before using unit! Be thor-
oughly familiar with the controls and the prop-
er use of the unit. Restrict the use of this unit
to persons who have read, understand and
will follow the instructions and warnings on
the unit and in the manual. Never allow chil-
dren to operate this unit.
SAFETY INFORMATION
ON THE UNIT
OPERATOR SAFETY
DANGER: RISK OF CUT. KEEP
HANDS AND FEET AWAY FROM BLADE
AND CUTTING AREA. Do not attempt to
clear away cut material or hold material to be
cut when the blade is in motion. Make sure
powerhead is stopped and spark plug wire is
disconnected (or powerhead is disconnected
from power source) when removing jammed
material from the cutting blade. Do not grab or
hold attachment by the cutting blade.
SDress properly. Always wear safety glasses
or similar eye protection when operating, or
performing maintenance on your unit (safety
glasses are available). Eye protection should
be marked Z87.
SAlways wear face or dust mask if operation is
dusty.
SAlways wear heavy, long pants, long sleeves,
boots, and gloves.
SAlways wear foot protection. Do not go bare-
foot or wear sandals.
SSecure hair above shoulder length. Secure
or remove loose clothing or clothing with
loosely hanging ties, straps, tassels, etc.
They can be caught in moving parts.
SBeing fully covered also helps protect you
from debris and pieces of toxic plants thrown
by spinning blade.
SStay alert. Do not operate when you are tired,
ill, upset, or under the influence of alcohol,
drugs, or medication. Watch what you are do-
ing; use common sense.
SWear hearing protection.
SNever start or run inside a closed room or
building. Breathing exhaust fumes can kill.
SKeep handles free of oil and fuel.
SOnly operate unit with handlebar installed.
SKeep hands and feet away from cutting area.
SNever direct discharge of material toward by-
standers nor allow anyone near the area of
operation. Use care in directing discharge to
avoid glass enclosures, automobiles, and the
like.
FUEL SAFETY (for gas powerheads)
SMix and pour fuel outdoors.
SKeep away from sparks or flames.
SUse a container approved for fuel.
SDo not smoke or allow smoking near fuel or
the powerhead.
SAvoid spilling fuel or oil. Wipe up all fuel spills
before starting the powerhead.
SMove at least 10 feet (3 meters) away from
fueling site before starting powerhead engine.
SStop engine and allow to cool before remov-
ing fuel cap.
SRemove fuel cap slowly.
ELECTRICAL SAFETY (for electric
powerheads)
WARNING: Avoid a dangerous envi-
ronment. To reduce the risk of electrical
shock, do not use in rain, in damp or wet loca-
tions, or around swimming pools, hot tubs,
etc. Do not expose to snow, rain, or water to
avoid the possibility of electrical shock. Do
not handle extension cord plug or unit with wet
hands.
SUse only a voltage supply as shown on the
nameplate of the unit.
SAvoid dangerous situations. Do not use in
presence of flammable liquids or gases to
avoid creating a fire or explosion and/or caus-
ing damage to unit.
SAvoid dangerous environments. Do not use
in unventilated areas or where dust or explo-
sive vapors can build up.
STo reduce the risk of electrical shock, use ex-
tension cords specifically marked as suitable
for outdoor appliances. The electrical rating of
the cord must not be less than the rating of the
unit. The cord must be marked with the suffix
“W-A” (in Canada, “W”). Make sure your ex-
tension cord is in good condition. Inspect ex-
tension cord before use and replace if dam-
aged. An undersized extension cord will
causeadropinlinevoltageresultinginlossof
power and overheating. If in doubt, use the
next heavier gauge. The smaller the gauge
number, the heavier the cord.
SDo not use multiple cords.
SThe powerhead may have a polarized plug
(one blade is wider than the other); if so, it will
require the use of a polarized extension cord.
The appliance plug will fit into a polarized ex-
tension cord only one way. If the plug does
not fit fully into the extension cord, reverse the
plug. If the plug still does not fit, obtain a cor-
rect polarized extension cord. A polarized ex-
tension cord will require the use of a polarized
wall outlet. This plug will fit into the polarized
wall outlet only one way. If plug does not fit
fully into the wall outlet, reverse the plug. If it
still does not fit, contact a qualified electrician
to install the proper wall outlet. Do not change
the equipment plug, extension cord recep-
tacle, or extension cord plug in any way.
SDo not attempt to repair unit. Inspect the insu-
lation and connectors on the powerhead and

3
extension cord before each use. If there is
any damage, do not use until damage is re-
paired by your authorized service dealer.
SDo not pull or carry by cord; do not use cord
as a handle, close a door on cord, or pull cord
around sharp edges or corners. Keep cord
away from heated surfaces. Do not unplug by
pulling on cord. To unplug, grasp the plug, not
the cord.
SDo not use the powerhead if the switch does
not turn the unit on and off properly. Have the
unit repaired by your authorized service deal-
er.
SKeep the extension cord clear of operator and
obstacles at all times. Do not expose cords to
heat, oil, water, or sharp edges.
SAvoid any body contact with any grounded
conductor, such as metal fences, or pipes, to
avoid the possibility of electric shock. Don’t
handle plug or unit with wet hands.
SDo not use with damaged cord or plug. If pow-
erhead is not working as it should, has been
dropped, damaged, left outdoors, or dropped
into water, return it to your authorized service
for repair.
SGround Fault Circuit Interrupter (GFCI)
protection should be provided on the circuit or
outlet to be used for the powerhead. Recep-
tacles are available having built-in GFCI
protection and may be used for this measure
of safety.
Your powerhead should be double insulated
to help protect against electric shock. Double
insulation construction consists of two sepa-
rate “layers” of electrical insulation instead of
grounding. Tools and appliances built with a
double insulation system are not intended to
be grounded. Safety precautions must be ob-
served when operating any electrical tool.
The double insulation system only provides
added protection against injury resulting from
an internal electrical insulation failure.
WARNING: All repairs to an electric
powerhead, including housing, switch, motor,
etc., must be diagnosed and repaired by qual-
ified service personnel. Replacement parts
for a double insulated appliance must be iden-
tical to the parts they replace. A double insu-
lated appliance is marked with the words
“double insulation” or “double insulated”. The
symbol (square within a square) may also
be marked on the appliance. Failure to have
the unit repaired by your authorized service
dealer can cause the double insulation con-
struction to become ineffective and result in
serious injury.
UNIT/MAINTENANCE SAFETY
WARNING: Disconnect powerhead
spark plug (or disconnect powerhead from
power source) before performing mainte-
nance.
SInspect entire unit before each use. Replace
damaged parts. Check for fuel leaks. Make
sure all fasteners are in place and securely
fastened.
SMaintain unit according to recommended pro-
cedures.
SThrow away blades that are bent, warped,
cracked, broken, or damaged in any other
way. Replace parts that are cracked,
chipped, or damaged before using the unit.
SUse only recommended Poulan PRO!
parts and accessories. Never use wire,
wire rope, string, flailing devices, etc.
SBe sure blade stops turning when engine
idles (see CARBURETOR ADJUST-
MENTS section of powerhead manual).
SRemove the blade before making carburetor
adjustments. Hold the unit by hand. Do not
make carburetor adjustments from the blade
side of the unit.
SKeep others away when making carburetor
adjustments.
SNever start the unit with the clutch housing re-
moved. The clutch can fly off and cause seri-
ous injury.
SHave all maintenance and service not ex-
plained in this manual performed by an autho-
rized service dealer.
SIf blade strikes a foreign object, follow these
steps: stop unit and disconnect spark plug
wire (or disconnect from power source), in-
spect for damage, and repair any damage be-
fore resuming operation of the unit.
EDGING SAFETY
WARNING: Inspect the area to be
edged before each use. Remove objects
(rocks, broken glass, nails, wire, string, etc.)
which can be thrown by the blade or can wrap
around the shaft.
SKeep others including children, animals, by-
standers, and helpers at least 50 feet (15 me-
ters) away. Stop the unit immediately if you
are approached.
SHold the unit firmly with both hands.
SKeep firm footing and balance. Do not over-
reach or stand on unstable surfaces.
SAlways keep the wheel in contact with the
ground.
SKeep all parts of your body away from the
blade and muffler.
SAlways push the unit slowly over the ground.
Stay alert for uneven sidewalks, holes in the
terrain, large roots, etc.
SDo not force the unit. Use only for jobs ex-
plained in this manual. Use only for edging.
Do not abuse unit. Do not use in rain or wet
locations.
STo reduce the risk of fire, do not allow exces-
sive grass, leaves, or grease to accumulate
on the attachment.
SObjects struck by the cutting member can
cause serious injuries to persons. The lawn
should always be carefully examined and
cleared of all objects prior to edging.
SNever operate without blade shield in place.

4
Allow blades to stop
before removing them
from the cut.

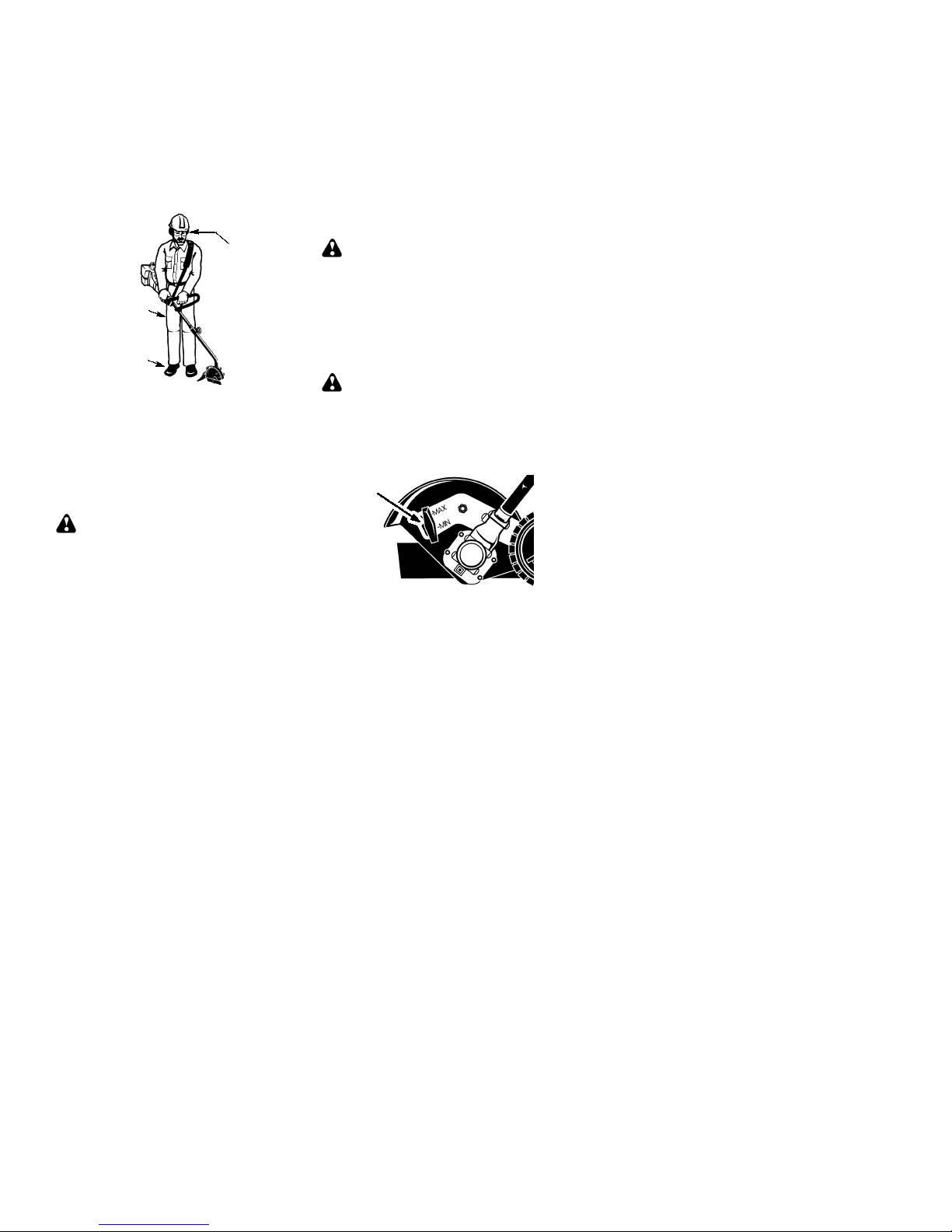

WARNING:
Blades can throw objects violently.
DYou can be blinded or injured.
DWear safety glasses and boots.
WARNING:
Hazard zone for thrown objects.
DBlades can throw objects violently.
DOthers can be blinded or injured.
DKeep people and animals 50 feet
(15 m) away.
Boots
Blades move
momentarily
after the
trigger is
released.
WARNING:
Blades move momentarily after the
trigger is released.
DThe blades can seriously cut you or
others.
DAllow blades to stop before
removing them from the cut.
Safety
Glasses
Thrown
Objects
Instruction
Manual Safety Decals
WARNING:
Read Instruction Manual.
DFollow all warnings and instructions.
DFailure to do so can result in
serious injury.
TRANSPORTING AND STORAGE
SDo not grasp or hold exposed blade.
SStop powerhead before leaving work area.
SAllow powerhead and gearbox to cool before
storing or transporting it in a vehicle.
SStore unit and fuel in area where fuel vapors
cannot reach sparks or open flames from wa-
ter heaters, electric motors or switches, fur-
naces, etc.
SStore attachment so blade cannot accidental-
ly cause injury.
SStore attachment indoors, out of reach of chil-
dren.
If situations occur which are not covered in
this manual, use care and good judgment. If
you need assistance, call 1-800-554-6723.
SPECIAL NOTICE: Exposure to vibra-
tions through prolonged use of gasoline pow-
ered hand tools could cause blood vessel or
nerve damage in the fingers, hands, and
joints of people prone to circulation disorders
or abnormal swellings. Prolonged use in cold
weather has been linked to blood vessel dam-
age in otherwise healthy people. If symptoms
occur such as numbness, pain, loss of
strength, change in skin color or texture, or
loss of feeling in the fingers, hands, or joints,
discontinue the use of this tool and seek med-
ical attention. An anti-vibration system does
not guarantee the avoidance of these prob-
lems. Users who operate power tools on a
continual and regular basis must monitor
closely their physical condition and the condi-
tion of this unit.
SAVE THESE INSTRUCTIONS
STANDARDS: This edger attachment is Listed by Underwriter ’s Laboratories, Inc., in ac-
cordance with UL Standard 1602, “Gasoline--Engine--Powered, Rigid--Cutting--Member ,
Edgers and Edger Trimmers,” only when used with the following models:
31cc Powerhead (with trimmer attachment) PP035............................

5
ASSEMBLY
WARNING: If received assembled,
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Examine parts for damage. Do not use dam-
aged parts.
NOTE: If you need assistance or find parts
missing or damaged, call 1-800-554-6723.
TOOLS REQUIRED
SHex wrench (provided)
HANDLEBAR ASSEMBLY
DANGER: RISK OF C U T. To avoi d
serious injury, the barrier portion of the han-
dlebar must be installed as shown on the up-
per tube of the powerhead to provide a barrier
between operator and the spinning blade. At-
tach tube clamp above arrow on safety warn-
ing decal on the upper tube (powerhead end
of unit). Ensure handlebar is positioned on
handlebar clamp between the arrows on the
handlebar decal.
NOTE: The tube clamp base has four
spacer tabs attached. These tabs are pro-
vided to adapt this attachment for use with
powerheads that have a 1"diameter upper
tube (the tube clamp will not tighten down se-
curely on the 1"diameter upper tube without
using these spacer tabs). The tabs must be
broken off completely before use and placed
over the screw holes on the clamp base.
These tabs are not needed for powerheads
with a 7/8"upper tube.
Spacer Tabs
HANDLEBAR CLAMP BASE
Spacer Tabs
positioned for use
on 1"diameter
upper tube
1. Place the tube clamp over the upper tube
above the arrow on the safety decal.
2. Position the clamp base under the upper
tube and align the tube clamp and clamp
base screw holes (use spacer tabs be-
tween tube clamp and clamp base if nec-
essary to secure clamp, i.e. for 1"diame-
ter upper tube).
POWERHEAD
END
ATTACHMENT
END
Screws
Clamp
Base
Handlebar Clamp
between arrows on
handlebar decal
Clamp
Knob
Tube
Clamp
Handlebar
Arrow on
Safety Decal
3. Insert the four screws into the screw
holes.
4. Secure tube clamp by tightening screws
with the hex wrench.
5. Position the handlebar as shown, ensur-
ing the handlebar is positioned on the han-
dlebar clamp between the arrows on the
handlebar decal.
6. Retighten handlebar by turning clamp
knob clockwise until handlebar is secure
and stationary in clamp (clamp knob can-
not be overtightened).

6
OPERATION
KNOW YOUR EDGER ATTACHMENT
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR EDG-
ER ATTACHMENT. Compare the illustrations with your attachment to familiarize yourself with the
location of the various controls and adjustments. Save this manual for future reference.
Depth Adjustment Knob
Blade Shield
Gearbox
Wheel
Edger Blade
Tube
Hanger
Locking Lever
BLADE
The BLADE is designed to cut sod.
LOCKING LEVER
The LOCKING LEVER is used to prevent the
blade shaft from turning during blade replace-
ment.
DEPTH ADJUSTMENT KNOB
The DEPTH ADJUSTMENT KNOB is used
to adjust the wheel for blade cutting depth.
OPERATING THE COUPLER
Your powerhead is equipped with a coupler
which enables optional attachments to be
installed. The optional attachments are:
MODEL:
Cultivator PP2000T...................
Blower PP3000B......................
Brushcutter PP4000C.................
WARNING: Always disconnect pow-
erhead spark plug (or disconnect powerhead
from power source) before removing or instal-
ling attachments.
REMOVING ATTACHMENT
CAUTION: When removing or installing at-
tachments, place the powerhead and attach-
ment on a flat surface for stability.
1. Loosen the coupler by turning the knob
counterclockwise.
Coupler
Knob
LOOSEN
TIGHTEN
Upper Tube
Lower
Attachment
2. Press and hold the locking/release button.
Locking/Release
Button
Coupler Upper Tube
Lower Attachment
3. While securely holding the upper tube, pull
the attachment straight out of the coupler.
INSTALLING ATTACHMENT
1. Remove the tube cap from the attachment
(if present) and discard.
2. Position locking/release button of attach-
ment into guide recess of upper tube cou-
pler.
Coupler Primary Hole
Upper
Tube
Locking/
Release
Button
Attachment
Guide Recess
3. Push the attachment into the coupler until
the locking/release button snaps into the
primary hole.

7
4. Before using the unit, tighten the knob se-
curely by turning clockwise.
INSTALLING ATTACHMENT
HANGER
An attachment hanger is provided for storage
when attachment is not in use.
To install hanger on attachment:
1. Remove the tube cap from the attachment
(if present) and discard.
2. Press and hold the locking/release button.
3. Push hanger onto the attachment until the
locking/release button snaps into the hole.
OPERATING POSITION
Heavy Shoes
Long Pants
Eye Protection
ALWAYS WEAR:
When operating unit, stand as shown and
check for the following:
SWear eye protection and heavy clothing.
SKeep right arm slightly bent with right hand
holding the trigger handle of powerhead.
SKeep left arm extended with left hand hold-
ing the handlebar.
SKeep unit below waist level.
SAdjust edger wheel for proper cut depth.
WARNING: Never attempt to adjust
the edger wheel when the unit is in operation.
Always stop the powerhead, wait until the
blade stops turning, and disconnect the spark
plug (or disconnect powerhead from power
source) before making adjustments.
EDGING
As you become familiar with use of your edger
attachment, you will be able to determine your
own operating pace. Conditions such as
depth of cut and material being cut will regu-
late the speed and time required for your edg-
ing job.
SAllow the engine to warm up before you begin
edging.
SIncrease the engine speed before placing the
blade in the cut. For best results, run the en-
gine at full throttle while cutting.
SAlways work going away from people and
solid objects such as walls, large stones,
trees, automobiles, etc.
SBe careful when edging near trees or valuable
plants. The high speed metal blade may cut
roots and cause damage to the plants.
SIf the blade stalls, immediately move the unit
back slightly to allow the blade to restart. If the
blade continues to stall, stop the engine, dis-
connect the spark plug, and inspect for block-
age or damage.
WARNING: Keep the blade area
clean. Always release the throttle trigger,
move the powerhead ON/OFF switch to the
OFF position, disconnect the spark plug (or
disconnect powerhead from power source),
and make sure the blade has completely
stopped turning before cleaning.
SETTING THE EDGING DEPTH
WARNING: Never attempt to adjust
the cut depth when the engine is running. Al-
ways release the throttle trigger, wait until the
blade stops turning, move the powerhead
ON/OFF switch to the OFF position, and dis-
connect spark plug (or disconnect from pow-
er source) before making adjustments.
Depth Adjustment
Knob
1. Loosen the depth adjustment knob.
2. Slide the wheel to the desired position.
SRaising the wheel will increase the cut-
ting depth.
SLowering the wheel will decrease the
cutting depth.
3. Tighten the depth adjustment knob se-
curely.

8
MAINTENANCE
WARNING: Always stop unit and dis-
connect spark plug wire (or disconnect pow-
erhead from power source) before performing
maintenance.
CHECK FOR DAMAGED OR
WORN PARTS
Contact an authorized service dealer for re-
placement of damaged or worn parts.
SBlade Shield -- Discontinue use of edger if
blade shield is damaged.
CHECK FOR LOOSE
FASTENERS AND PARTS
SBlade nut
SFasteners
INSPECT AND CLEAN UNIT AND
DECALS
SAfter each use, inspect complete unit for
loose or damaged parts. Clean the unit and
decals using a damp cloth with a mild deter-
gent.
SWipe off unit with a clean dry cloth.
BLADE MAINTENANCE
WARNING: The blade will continue
to spin after the engine stops or after the
throttle trigger has been released. To avoid
serious injury, make sure the blade has
stopped coasting and disconnect the spark
plug (or disconnect powerhead from power
source) before performing work on the blade.
WARNING: Always replace a blade
that is bent, warped, cracked, broken, or
damaged in any other way. Never attempt to
straighten and reuse a damaged blade. Use
only specified replacement blade. Wear pro-
tective gloves when handling or performing
maintenance on the blade to help avoid injury.
SThe blade is reversible. When the cutting
edge on one side becomes worn, turn the
blade over (see BLADE REPLACEMENT
in the SERVICE AND ADJUSTMENTS
section).
SCheck blade for flatness periodically. Lay
the blade on a flat surface to inspect for flat-
ness. Throw away a blade that is not flat.
SERVICE AND ADJUSTMENTS
BLADE REPLACEMENT
WARNING: The blade will continue to
spin after the engine stops or after the throttle
trigger has been released. To avoid serious
injury, make sure the blade has stopped
coasting and disconnect the spark plug (or
disconnect powerhead from power source)
before performing work on the blade.
WARNING: Wear protective gloves
when handling or performing maintenance on
the blade to avoid injury. The blade is sharp and
can cut you even when it is not moving.
Locking Lever
1. To remove the blade, push in locking lever
and hold.
2. Rotate blade nut until the locking lever falls
into one of the grooves in the dust cup.
3. Continue to hold in locking lever. This will
keep the shaft from turning while loosening
the blade nut.
4. Remove the blade nut, both washers, and
the blade from the blade shaft.
Blade shield
Blade
Washers
Blade nut
Blade
Shaft
5. Install new blade onto blade shaft.
6. Reinstall both washers and blade nut.
7. Tighten blade nut firmly with a wrench.
8. Release locking lever.
9. Turn blade by hand. If the blade binds
against the shield, or appears to be un-
even, the blade is not centered, and you
must reinstall.

9
STORAGE
WARNING: Perform the following
steps after each use:
SAllow attachment and gearbox to cool be-
fore storing or transporting.
SStore attachment with blade shield in place.
Position attachment so that any sharp ob-
ject cannot accidentally cause injury.
SStore the attachment in a dry, well venti-
lated area out of the reach of children.
SEASONAL STORAGE
Prepare attachment for storage at end of sea-
son or if it will not be used for 30 days or more.
If your edger attachment is to be stored for a
period of time:
SClean the entire attachment.
SInspect the blade shield area and clean any
dirt, grass, leaves, or debris that has col-
lected. Inspect the blade and blade shield; re-
place a blade that is bent, warped, cracked,
broken or damaged in any other way.
SLightly oil external metal surfaces.
SApply a coating of oil to the entire surface of
the blade; wrap it in heavy paper or cloth.
SCheck entire attachment for loose screws
or nuts. Replace any damaged, worn or
broken parts.
SAt the beginning of the next season, use
only fresh fuel having the proper gasoline to
oil ratio.
LIMITED WARRANTY
ELECTROLUX HOME PRODUCTS
NORTH AMERICA, Division of WCI Out-
door Products, Inc., warrants to the original
purchaser that each new Poulan PRO!
!!
!
brand gasoline tool or attachment is free from
defects in material and workmanship and
agrees to repair or replace under this war-
ranty any defective gasoline product or at-
tachment as follows from the original date of
purchase.
2 YEARS-- Parts and Labor, when used for
household purposes.
90 DAYS -- Parts and Labor, when used for
commercial, professional, or income produc-
ing purposes.
30 DAYS -- Parts and Labor, if used for rental
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance, or the use
of accessories and/or attachments not spe-
cifically recommended by ELECTROLUX
HOME PRODUCTS NORTH AMERICA for
this tool. Additionally, this warranty does not
cover tune-ups, spark plugs, filters, cutting
line, or rotating head parts that will wear and
require replacement with reasonable use dur-
ing the warranty period. This warranty does
not cover predelivery setup or normal adjust-
ments explained in the instruction manual.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.NO CLAIMS FOR CON-
SEQUENTIAL OR OTHER DAMAGES WILL
BE ALLOWED, AND THERE ARE NO
OTHER EXPRESS WARRANTIES EX-
CEPT THOSE EXPRESSLY STIPULATED
HEREIN.
SOME STATES DO NOT ALLOW LIMITA-
TIONS ON HOW LONG AN IMPLIED WAR-
RANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CON-
SEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSION MAY NOT
APPLY TO YOU.
ELECTROLUX HOME PRODUCTS
NORTH AMERICA’S policy is to continu-
ously improve its products. Therefore, ELEC-
TROLUX HOME PRODUCTS NORTH
AMERICA reserves the right to change,
modify, or discontinue models, designs,
specifications, and accessories of all prod-
ucts at any time without notice or obligation to
any purchaser.
