Poulan Pro PP1000E User manual

ENGLISH ESPAÑOL FRANÇAIS
PP1000E
Poulan PRO
7349 Statesville Road
Charlotte, NC 28269
545167664 Rev. 3 6/15/10 BRW
R
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury. Refer
to your original manual for additional Warnings and Operating
Instructions.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones
graves. Refiera a su manual original para las Instrucciones de Fun-
cioniamiento y las Advertencias adicionales.
AVERTISSEMENT:
Lire le manuel d’instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves. Référez--vous à votre
manuel original pour des Avertissements et des Instructions d’Uti-
lisation additionnels.
Please do not return product to retailer.
Por favor, no devuelva el producto al lugar de compra.
Veuillez ne pas retourner le produit au détaillant.
1--800--554--6723
www.poulanpro.com
Register your product online at:
Registre su producto en línea en:
Enregistrez votre produit en ligne à l’adresse :
Instruction Manual
Manual de Instrucciones
Manuel d’Instructions

2
IDENTIFICATION OF SAFETY SYMBOLS
WARNING: This unit can be dangerous! Careless or improper
use can cause serious injury.
Read the operator’s manual before use. Failure to follow instructions could
result in serious injury. Save operator’s manual.
Blade can throw objects violently. You
can be blinded or injured. Always wear
hearing protection and safety glasses
marked Z87. Always wear head protec-
tion, heavy, long pants, long sleeves,
boots and gloves.
Hazard zone for thrown objects.
SBlade can throw objects violently.
SYou and others can be blinded/injured.
SKeep children, bystanders, and animals
50 feet (15 meters) away.
DANGER:
Blade moves momentarily after the trigger switch is
released.
SThe blade can seriously cut your or others.
SAllow blade to stop before removing it from
the cut.
SDo not overreach.
SAFETY RULES
WARNING: When using gardening
appliances, basic safety precautions must al-
ways be followed to reduce the risk of fire and
serious injury. Read and follow all instructions.
This power unit can be dangerous! Operator
is responsible for following instructions and
warnings on unit and in manual. Read entire
instruction manual before using unit! Be thor-
oughly familiar with the controls and the prop-
er use of the unit. Restrict the use of this unit
to persons who have read, understand and
will follow the instructions and warnings on
the unit and in the manual. Never allow chil-
dren to operate this unit.
SAFETY INFORMATION
ON THE UNIT
OPERATOR SAFETY
DANGER: RISK OF CUT. KEEP
HANDS AND FEET AWAY FROM BLADE
AND CUTTING AREA. Do not attempt to
clear away cut material or hold material to be
cut when the blade is in motion. Make sure
powerhead is stopped and spark plug wire is
disconnected (or powerhead is disconnected
from power source) when removing jammed
material from the cutting blade. Do not grab or
hold attachment by the cutting blade.
SDress properly. Always wear safety glasses
or similar eye protection when operating, or
performing maintenance on your unit (safety
glasses are available). Eye protection should
be marked Z87.
SAlways wear face or dust mask if operation is
dusty.

3
SAlways wear heavy, long pants, long sleeves,
boots, and gloves.
SAlways wear foot protection. Do not go bare-
foot or wear sandals.
SSecure hair above shoulder length. Secure
orremovelooseclothingorclothingwith
loosely hanging ties, straps, tassels, etc.
They can be caught in moving parts.
SBeing fully covered also helps protect you
from debris and pieces of toxic plants thrown
by spinning blade.
SStay alert. Do not operate when you are tired,
ill, upset, or under the influence of alcohol,
drugs, or medication. Watch what you are do-
ing; use common sense.
SWear hearing protection.
SNever start or run inside a closed room or
building. Breathing exhaust fumes can kill.
SKeep handles free of oil and fuel.
SKeep hands and feet away from cutting area.
SNever direct discharge of material toward
bystanders nor allow anyone near the area
of operation. Use care in directing dis-
charge to avoid glass enclosures, automo-
biles, and the like.
FUEL SAFETY (for gas powerheads)
SMix and pour fuel outdoors.
SKeep away from sparks or flames.
SUse a container approved for fuel.
SDo not smoke or allow smoking near fuel or
the powerhead.
SAvoid spilling fuel or oil. Wipe up all fuel spills
before starting the powerhead.
SMove at least 10 feet (3 meters) away from
fueling site before starting powerhead engine.
SStop engine and allow to cool before remov-
ing fuel cap.
SRemove fuel cap slowly.
ELECTRICAL SAFETY (for electric
powerheads)
WARNING: Avoid a dangerous envi-
ronment. To reduce the risk of electrical shock,
do not use in rain, in damp or wet locations, or
around swimming pools, hot tubs, etc. Do not
expose to snow, rain, or water to avoid the pos-
sibility of electrical shock. Do not use on wet
surfaces. Do not handle extension cord plug or
unit with wet hands.
SUse only a voltage supply as shown on the
nameplate of the unit.
SAvoid dangerous situations. Do not use in
presence of flammable liquids or gases to
avoid creating a fire or explosion and/or
causing damage to unit.
SAvoid dangerous environments. Do not use
in unventilated areas or where dust or ex-
plosive vapors can build up.
STo reduce the risk of electric shock, the
powerhead may have a polarized plug (one
blade is wider than the other); if so, it will re-
quire the use of a polarized extension cord.
The appliance plug will fit into a polarized
extension cord only one way. If the plug
does not fit fully into the extension cord, re-
verse the plug. If the plug still does not fit,
obtain a correct polarized extension cord.
A polarized extension cord will require the
use of a polarized wall outlet. This plug will
fit into the polarized wall outlet only one
way. If plug does not fit fully into the wall
outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install the
proper wall outlet. Do not change the equip-
ment plug, extension cord receptacle, or
extension cord plug in any way.
STo reduce risk of electrical shock, use ex-
tension cords specifically marked as suit-
able for outdoor appliances having electri-
cal rating not less than the rating of unit.
Cord must be marked with suffix “W--A” (in
Canada “W”). Make sure your extension
cord is in good condition. Inspect extension
cord before use and replace if damaged. Do
not use a damaged cord. Cord insulation
must be intact with no cracks or deteriora-
tion. Plug connectors must be undamaged.
The extension cord used to reach the pow-
er source must be heavy enough to carry
current from the power source the full length
of the extension cord to the unit. An under-
sized extension cord will cause a drop in
line voltage resulting in loss of power and
overheating. If in doubt, use the next heavi-
er gauge. The lower the gauge number, the
heavier the cord.
SDo not use multiple cords.
SDo not abuse cord. Never carry the unit by
the extension cord or yank extension cord
to disconnect unit. To unplug, grasp the
plug, not the cord. Do not use cord as a han-
dle, close a door on cord, or pull cord
around sharp edges or corners. Do not ex-
pose cords to heat, oil, or water.
SKeep the extension cord clear of operator and
obstacles at all times. Tie cord to cord retain-
er and connect to recessed plug as shown
in this manual to prevent damage to unit
and/or extension cord and to reduce the
possibility of the extension cord discon-
necting from the unit during operation.
SDo not attempt to repair unit. Inspect the insu-
lation and connectors on the powerhead and
extension cord before each use. If there is
any damage, do not use until damage is re-
paired by your authorized service dealer.
SDo not use the powerhead if the switch
does not turn the unit on and off properly.
Have the unit repaired by your authorized
service dealer.
SDo not use with damaged cord or plug. If
powerhead is not working as it should, has
been dropped, damaged, left outdoors, or
dropped into water, return it to your autho-
rized service dealer for repair.
SAvoid unintentional starting of the unit. Nev-
er carry unit with your finger on the switch.
Be sure the switch is in the OFF position
and never touch the switch when connect-
ing extension cord.
SUnplug the unit from the power source when
not in use, before servicing, and when chang-
ing accessories and/or attachments.
SAvoid any body contact with any grounded
conductor, such as metal fences, or pipes,
to avoid the possibility of electric shock.

4
SGround Fault Circuit Interrupter (GFCI)
protection should be provided on the circuit
or outlet to be used for the powerhead. Re-
ceptacles are available having built-in
GFCI protection and may be used for this
measure of safety.
UNIT/MAINTENANCE SAFETY
WARNING: Disconnect powerhead
spark plug (or disconnect powerhead from
power source) before performing mainte-
nance.
SInspect entire unit before each use. Replace
damaged parts. Check for fuel leaks. Make
sure all fasteners are in place and securely
fastened.
SMaintain unit according to recommended pro-
cedures.
SThrow away blades that are bent, warped,
cracked, broken, or damaged in any other
way. Replace parts that are cracked,
chipped, or damaged before using the unit.
SUse only recommended Poulan PRO parts
and accessories. Never use wire, wire
rope, string, flailing devices, etc.
SBe sure blade stops turning when engine
idles (see CARBURETOR ADJUST-
MENTS section of powerhead manual).
SRemove the blade before making carburetor
adjustments. Hold the unit by hand. Do not
make carburetor adjustments from the blade
side of the unit.
SKeep others away when making carburetor
adjustments.
SNever start the unit with the clutch housing re-
moved. The clutch can fly off and cause seri-
ous injury.
SHave all maintenance and service not ex-
plained in this manual performed by an autho-
rized service dealer.
SIf blade strikes a foreign object, follow these
steps: stop unit and disconnect spark plug
wire (or disconnect from power source), in-
spect for damage, and repair any damage be-
fore resuming operation of the unit.
EDGING SAFETY
WARNING: Inspect the area to be
edged before each use. Remove objects
(rocks, broken glass, nails, wire, string, etc.)
which can be thrown by the blade or can wrap
around the shaft.
SKeep others including children, animals, by-
standers, and helpers at least 50 feet (15 me-
ters) away. Stop the unit immediately if you
are approached.
SHold the unit firmly with both hands.
SKeep firm footing and balance. Do not over-
reach or stand on unstable surfaces.
SAlways keep the wheel in contact with the
ground.
SKeep all parts of your body away from the
blade and muffler.
SAlways push the unit slowly over the ground.
Stay alert for uneven sidewalks, holes in the
terrain, large roots, etc.
SDo not force the unit. Use only for jobs ex-
plained in this manual. Use only for edging.
Do not abuse unit. Do not use in rain or wet
locations.
STo reduce the risk of fire, do not allow exces-
sive grass, leaves, or grease to accumulate
on the attachment.
SObjects struck by the cutting member can
cause serious injuries to persons. The lawn
should always be carefully examined and
cleared of all objects prior to edging.
SNever operate without blade shield in place
and in good working order.
TRANSPORTING AND STORAGE
SDo not grasp or hold exposed blade.
SStop powerhead before leaving work area.
SAllow powerhead and gearbox to cool before
storingortransportingitinavehicle.
SStore unit and fuel in area where fuel vapors
cannot reach sparks or open flames from wa-
ter heaters, electric motors or switches, fur-
naces, etc.
SStore attachment so blade cannot accidental-
ly cause injury.
SStore attachment indoors, out of reach of
children.
If situations occur which are not covered in
this manual, use care and good judgment. If
you need assistance, call 1-800-554-6723.
SPECIAL NOTICE: Exposure to vibra-
tions through prolonged use of gasoline pow-
ered hand tools could cause blood vessel or
nerve damage in the fingers, hands, and
joints of people prone to circulation disorders
or abnormal swellings. Prolonged use in cold
weather has been linked to blood vessel dam-
age in otherwise healthy people. If symptoms
occur such as numbness, pain, loss of
strength, change in skin color or texture, or
loss of feeling in the fingers, hands, or joints,
discontinue the use of this tool and seek med-
ical attention. An anti-vibration system does
not guarantee the avoidance of these prob-
lems. Users who operate power tools on a
continual and regular basis must monitor
closely their physical condition and the condi-
tion of this unit.
SAVE THESE INSTRUCTIONS

5
OPERATION

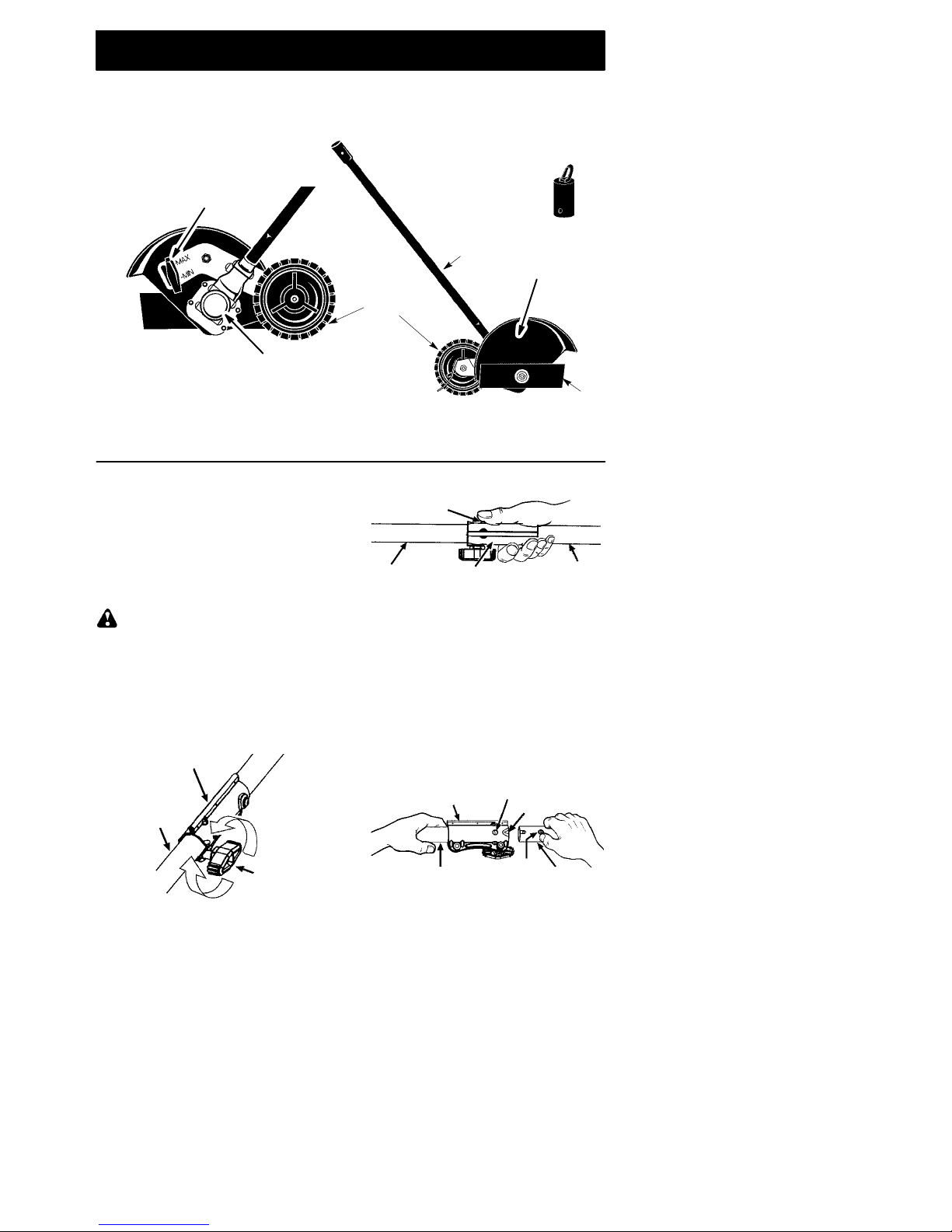

KNOW YOUR EDGER ATTACHMENT
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR EDG-
ER ATTACHMENT. Compare the illustrations with your attachment to familiarize yourself with the
location of the various controls and adjustments. Save this manual for future reference.
Depth Adjustment Knob
Blade Shield
Gearbox
Wheel
Edger Blade
Shaft
Hanger
BLADE
The BLADE is designed to cut sod.
DEPTH ADJUSTMENT KNOB
The DEPTH ADJUSTMENT KNOB is used
to adjust the wheel for blade cutting depth.
OPERATING THE COUPLER
Your powerhead is equipped with a coupler
which enables optional attachments to be
installed. The optional attachments are:
MODEL:
Cultivator PP2000T....................
Blower PP3000B......................
Pruner PP5000P......................
Brushcutter* PP4000C.................
*not designed for use with electric powerheads
WARNING: Always disconnect pow-
erhead spark plug (or disconnect powerhead
from power source) before removing or instal-
ling attachments.
REMOVING ATTACHMENT
CAUTION: When removing or installing at-
tachments, place the powerhead and attach-
ment on a flat surface for stability.
1. Loosen the coupler by turning the knob
counterclockwise.
Attachment
Coupler
Knob
LOOSEN
TIGHTEN
2. Press and hold the locking/release button.
Locking/Release
Button
Coupler Upper Shaft
Attachment
3. While securely holding the upper shaft,
pull the attachment straight out of the cou-
pler.
INSTALLING ATTACHMENT
1. Remove the shaft cap from the attachment
(if present) and discard.
2. Position locking/release button of attach-
ment into guide recess of upper shaft cou-
pler.
3. Push the attachment into the coupler until
the locking/release button snaps into the
primary hole.
4. Before using the unit, tighten the knob se-
curely by turning clockwise.
Coupler Primary Hole
Upper
Shaft
Locking/
Release
Button
Attachment
Guide Recess

6
WARNING: Make sure the locking/
release button is locked in the primary hole
and the knob is securely tightened before op-
erating the unit. Using the wrong hole could
lead to serious injury or damage to the unit.
Locking/Release
Button in Primary Hole
INSTALLING ATTACHMENT
HANGER
An attachment hanger is provided for storage
when attachment is not in use.
To install hanger on attachment:
1. Remove the shaft cap from the attachment
(if present) and discard.
2. Press and hold the locking/release button.
3. Push hanger onto the attachment until the
locking/release button snaps into the hole.
OPERATING POSITION
Heavy Shoes
Long Pants
Eye Protection
A
L
W
A
Y
SWE
A
R:
Hearing
Protection
Head Protection
When operating unit, stand as shown and
check for the following:
SWear eye protection and heavy clothing.
SKeep right arm slightly bent with right hand
holding the trigger handle of powerhead.
SKeep left arm extended with left hand hold-
ing the handle.
SKeep unit below waist level.
SAdjust edger wheel for proper cut depth.
WARNING: Never attempt to adjust
the edger wheel when the unit is in operation.
Always stop the powerhead, wait until the
blade stops turning, and disconnect the spark
plug (or disconnect powerhead from power
source) before making adjustments.
EDGING
As you become familiar with use of your edger
attachment, you will be able to determine your
own operating pace. Conditions such as
depth of cut and material being cut will regu-
late the speed and time required for your edg-
ing job.
SAllow the engine to warm up before you begin
edging.
SIncrease the engine speed before placing the
blade in the cut. For best results, run the en-
gine at full throttle while cutting.
SAlways work going away from people and
solid objects such as walls, large stones,
trees, automobiles, etc.
SBe careful when edging near trees or valuable
plants. The high speed metal blade may cut
roots and cause damage to the plants.
SIf the blade stalls, immediately move the unit
back slightly to allow the blade to restart. If the
blade continues to stall, stop the engine, dis-
connect the spark plug, and inspect for block-
age or damage.
WARNING: Keep the blade area
clean. Always release the throttle trigger,
move the powerhead ON/OFF switch to the
OFF position, disconnect the spark plug (or
disconnect powerhead from power source),
and make sure the blade has completely
stopped turning before cleaning.
SETTING THE EDGING DEPTH
WARNING: Never attempt to adjust
the cut depth when the engine is running. Al-
ways release the throttle trigger, wait until the
blade stops turning, move the powerhead
ON/OFF switch to the OFF position, and dis-
connect spark plug (or disconnect from pow-
er source) before making adjustments.
Depth Adjustment
Knob
1. Loosen the depth adjustment knob.
2. Slide the wheel to the desired position.
SRaising the wheel will increase the cut-
ting depth.
SLowering the wheel will decrease the
cutting depth.
3. Tighten the depth adjustment knob se-
curely.

7
MAINTENANCE
WARNING: Always stop unit and dis-
connect spark plug wire (or disconnect pow-
erhead from power source) before performing
maintenance.
CHECK FOR DAMAGED OR
WORN PARTS
Contact an authorized service dealer for re-
placement of damaged or worn parts.
SBlade Shield -- Discontinue use of edger if
blade shield is damaged.
CHECK FOR LOOSE
FASTENERS AND PARTS
SBlade nut
SFasteners
INSPECT AND CLEAN UNIT AND
DECALS
SAfter each use, inspect complete unit for
loose or damaged parts. Clean the unit and
decals using a damp cloth with a mild deter-
gent.
SWipe off unit with a clean dry cloth.
BLADE MAINTENANCE
WARNING: The blade will continue
to spin after the engine stops or after the
throttle trigger has been released. To avoid
serious injury, make sure the blade has
stopped coasting and disconnect the spark
plug (or disconnect powerhead from power
source) before performing work on the blade.
WARNING: Always replace a blade
that is bent, warped, cracked, broken, or
damaged in any other way. Never attempt to
straighten and reuse a damaged blade. Use
only specified replacement blade. Wear pro-
tective gloves when handling or performing
maintenance on the blade to help avoid injury.
SThe blade is reversible. When the cutting
edge on one side becomes worn, turn the
blade over (see BLADE REPLACEMENT
in the SERVICE AND ADJUSTMENTS
section).
SCheck blade for flatness periodically. Lay
the blade on a flat surface to inspect for flat-
ness. Throw away a blade that is not flat.
SERVICE AND ADJUSTMENTS
BLADE REPLACEMENT
WARNING: The blade will continue to
spin after the engine stops or after the throttle
trigger has been released. To avoid serious
injury, make sure the blade has stopped
coasting and disconnect the spark plug (or
disconnect powerhead from power source)
before performing work on the blade.
WARNING: Wear protective gloves
when handling or performing maintenance on
the blade to avoid injury. The blade is sharp and
can cut you even when it is not moving.
1. To remove the blade, align hole in the dust
cup with the hole in the side of the gearbox
by rotating the blade.
2. Insert a small screwdriver into aligned
holes. This will keep the shaft from turning
while loosening the blade nut.
Screwdriver
3. While holding the screwdriver in position,
remove blade nut by turning clockwise.
4. Remove both washers, and the blade from
the blade shaft.
Blade shield
Blade
Washers
Blade nut
Blade
Shaft
5. Install new blade onto blade shaft.
6. Reinstall both washers and blade nut
(counterclockwise).
7. Tighten blade nut firmly with a wrench
while holding screwdriver in position.
8. Remove the screwdriver.
9. Turn blade by hand. If the blade binds
against the shield, or appears to be un-
even, the blade is not centered, and you
must reinstall.

8
STORAGE
WARNING: Perform the following
steps after each use:
SAllow attachment and gearbox to cool be-
fore storing or transporting.
SStore attachment with blade shield in place.
Position attachment so that any sharp ob-
ject cannot accidentally cause injury.
SStore the attachment in a dry, well venti-
lated area out of the reach of children.
SEASONAL STORAGE
Prepare attachment for storage at end of sea-
son or if it will not be used for 30 days or more.
If your edger attachment is to be stored for a
period of time:
SClean the entire attachment.
SInspect the blade shield area and clean any
dirt, grass, leaves, or debris that has col-
lected. Inspect the blade and blade shield; re-
place a blade that is bent, warped, cracked,
broken or damaged in any other way.
SLightly oil external metal surfaces.
SApply a coating of oil to the entire surface of
the blade; wrap it in heavy paper or cloth.
SCheck entire attachment for loose screws
or nuts. Replace any damaged, worn or
broken parts.
SAt the beginning of the next season, use
only fresh fuel having the proper gasoline to
oil ratio.
LIMITED WARRANTY
Poulan PRO, a division of Husqvarna Consum-
er Outdoor Products N.A., Inc., warrants to the
original consumer purchaser that each new
Poulan PRO brand gasoline tool or attachment
is free from defects in material and workman-
ship and agrees to repair or replace under this
warranty any defective gasoline product or at-
tachment as follows from the original date of
purchase.
2YEARS--Parts and Labor, when used for
household purposes.
90 DAYS -- Parts and Labor, when used for
commercial, professional, or income producing
purposes.
30 DAYS -- Parts and Labor, if used for rental
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance or alteration, or
the use of accessories and/or attachments not
specifically recommended by Poulan PRO for
this tool. This warranty does not cover tune--up,
spark plugs, filters, starter ropes, starter springs,
cutting line, or rotating head parts that will wear
and require replacement with reasonable use
during the warranty period. This warranty does
not cover pre--delivery setup or normal adjust-
ments explained in the instruction manual. This
warranty does not cover transportation costs.
In the event you have a claim under this warran-
ty, you must return the product to an authorized
service dealer.
Should you have any unanswered questions
concerning this warranty, please contact:
Poulan, a division of Husqvarna
Consumer Outdoor Products N.A., Inc.
7349 Statesville Road
Charlotte, NC 28269
1--800--554--6723
In Canada, contact:
Poulan PRO
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
Giving the model number, serial number and
date of purchase of your product and the name
and address of the authorized dealer from
whom it was purchased.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE OTH-
ER RIGHTS WHICH VARY FROM STATE TO
STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED,
AND THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE EX-
PRESSLY STIPULATED HEREIN.
SOME STATES DO NOT ALLOW LIMITA-
TIONS ON HOW LONG AN IMPLIED WAR-
RANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSE-
QUENTIAL DAMAGES, SO THE ABOVE LIM-
ITATIONS OR EXCLUSION MAY NOT APPLY
TO YOU.
This is a limited warranty within the meaning of
that term as defined in the Magnuson--Moss Act
of 1975.
The policy of Poulan PRO is to continuously
improve its products. Therefore, Poulan
PRO reserves the right to change, modify, or
discontinue models, designs, specifications,
and accessories of all products at any time
without notice or obligation to any purchaser.
