PowaCycle PUMA LPX User manual




Owner’sManualfor
PumaLPX
&
LynxLPX
LithiumPolymerPoweredElectricFoldingBikes









ModelShown‐PowaCyclePumaLPX



MainTechnicalSpecificationSummary
Bicycle Motor

Weight:17.8kgPuma
20kgLynx
Type:High‐efficiencyDC
Permanent‐magnetBrushlessMotor
Maximumridingnoise:≤62db
Size:1410x610x1040mm(Puma)
1600x560x1070mm(Lynx)
Ratedpower:180W
Maximummotorspeed:20km/h Ratedspeedofrevolution:235rpm
Distancepercharge:25‐33miles
PowerAssistedCycling
RatedVoltage:24V
ClimbingAbility:≤12degrees Ratedefficiency:78%
OverCurrentprotectionvalue:15±IAPowerconsumptionper100kilometres:
≤l.2kWh
UndervoltageProtectionvalue:21.5V Weight:≤2.5kg

Battery Charger

Type:PolymerLithiumIonBattery InputVoltage:AC110‐220V50Hz
Voltage:24VNormalChargingTime:4‐6hour
Initialchargingtimewillbelonger.
Capacity10Ah


BothPumaLPXandLynxLPXcanbefolded
foreasystorageandcanfitintomostcarboots.




Folding the Electric Bikes
Withthefrontwheelpointingstraightahead,fullyundothe
largeblackwingnutatthebaseofthestemandfoldthe
handlebarsdown.

Holdthebicycleuprightandraisethekickstand.
Releasethequickreleaselevertotheclampinthemiddle
oftheframeandswingtheleverandboltsideways;then,if
youlifttheleversothespring‐loadedboltreleasesthe
hinge,youcanfoldthefronthalfofthebicycleroundto
meettherear.

Ifyouwishtoreducewidthevenfurther,foldthepedalsby
squeezingtheblackpanelinthemiddleoutwardsagainst
theendofthepedalandhingingthepedaldownwards.

Re‐assemblingistheoppositeoffolding,butbecarefulthat
thequickreleaseleverandbolttotheframehingedoesn’t
swingaroundtopointbackwardswhenbringingthehinge
together,otherwisetheboltmaybetrappedpointingthe
wrongwayandpreventcompletionoftheclamping
operation.

Alwaysensureboththewingnuttothestemhingeand
quickreleaselevertotheframehingeareclampedtight
beforeattemptingtoridethebike.




SafetyRequirements
Beforeuse,readthroughthismanual,andensurethatanyridersarefamiliar
withthecontentherein.

Alwaysobeytrafficrules.
Donotcarryapassenger.
Whenadjustingthesaddle,keepadjustmentwithinthemaxsafetylineonthe
seatpost.
Pleasenotethatthetighteningtorqueofsaddle’sgripnutandpost’sclamping
boltis18Nm.

Whenadjustingthehandlebar,donotsethandlebarabovethesafety
line/markeronthehandlebarstem.
Pleasenotethatthetighteningtorqueofscrewrodforthestemhandlebar
clampboltis18Nm.

Regularcheckingofthebrakepadsisnecessarytoensuretopperformance.
Thetorqueofbothfrontandrearhubnuts,aresetto18Nmand30Nm
respectively.





OperationGuideandPrecautions

ElectricCycling

•Insertthebatteryboxintothebicycleframe.
•Insertthekeyintheboxlock,turnthekeyinthebatterycaselock180degreesclockwise,andalwaysremovethekey
afterlocking.
•Topoweron,turntheignitionkeyclockwise,notingtheredindicatorlightonthebatteryboxandthestatuslightson
thethrottle.Theadditionalgreenstatuslightshowswhenthefullcapacityisavailablewiththelightsextinguishing
aspowerdecreases.
•AssistedPowermodeisengagedwhenevertheignitionisturnedon.
•Userscanalsousethecycleinthrottlemodealone.Tousethethrottleturntheswitchonthelefthandlebartothe
onposition.
•Whenmanoeuvringthebikeitisgoodpracticetodeactivatethethrottle.

Note:
Thepowerconsumptionshouldbejudgedbythedisplaystatusoftheindicatorwhilerunningatfullspeed.
•Theridingdistancesafterachargewillvaryduetosuchfactorsasroadsituation,load,andwinddirection.
•Whenridinguphillsorstartingfromjunctionsorridingupwind,itisrecommendedthatpedalsareusedtoavoiddraining
thebatteryofpower.
•Bypedallingriderswillincreasetheirridingdistance,andultimatelyconservethemotorandbattery.
•Afteruse,turnoffthebatterykeyswitch(turnthekeyanticlockwise),andremovethekey.







Cyclingwithoutpowersupport

•Theignitionswitchmustbeturnedoffinordertoenableriderstousetheelectricbicycleinthesamewayasanordinary
bicycle.


Charging

•ThebatteryforthiselectricbicyclemustbechargedbyitsownspecificPumaorLynxLPXcharger.Thecharger’ssupply
voltagemustmatchthelocalvoltage.
•Chargingneedstobecarriedoutinadrycoolenvironment.
•Donotchargeinareaswherethereisariskofexposuretowater,orinareasthatcanbecomeexposedtodirectsunlight.
•Thebatterycanbechargedonoroffthebicycle.
•Whentheredindicatoronthechargerturnsgreen,itmeansthatthebatteryisfullycharged.Accordingtopower
consumption,thechargingcanbecompletedwithin2‐10hours.
•Duringcharging,thechargerandthebatteryboxshouldbelocatedinastablepositiononitssidetopreventittoppling
over.Donotcoverthechargerorbatteryboxwhileinuse.
•Duringcharging,ifthebatterypackoverheats,itindicatesthatthereisfaultwiththebatterypackorcharger.Inthis
case,cutoffthepowersupplyimmediatelyandreturnittoyourvendor’safter‐sales‐servicecentreforrepair.


DirectionsforusingtheBatteryPack

•Onthefirsttimeofuse,thebatterywillneedalongerchargeof8‐10hours.
•Inordertoachievethefullrangefromthebattery,newbatteriesmustbeconditioned.Todothisfullycharge
anddischargethebattery8‐10times.
•OnlyusethededicatedLi‐PolymerbatterychargerforPumaLPXorLynxLPX.
•Whenthepowerisexhausted,thepackshouldn’tbestoredformorethan48hours,butchargedassoonasconvenient.
•Forlonglife,thepackshouldberemovedfromthebicycle,fullycharged,andstoredinashady,coolanddryplace.
•Donotuseorstorethepacknearheatsourcessuchasanelectricfireorheatsource.
•Donotattempttodirectlyconnectthebatterypacktoamainssupplyoutlet.
•Donotallowthebatterypacktobeimmersedinwater
•Neverputthebatteryinfire,evenatendoflife.
•Donotshortthebatterybyconnectingtheelectrodesviametalorwater.
•Takecaretoavoidimpacttothebatterypack.
•Donotusesharptoolsthatcouldpiercethebatterypack.
•Donotdroporshakethebatterypackviolently.
•Keepthebatteryawayfromhightemperatures(indirectsunlightoraheatedcar);overheatingthebatterywillcausea
malfunctionandshortenthebatterylife.
•Donotusethebatterypackinstrongelectrostaticorandmagneticfield,otherwise,thesafetyprotectiondevicecouldbe
damaged,resultinginsafetyproblems.
•Iftheelectrolytegetsintotheeyeswhenleakageofthebatteryhappens,don’trub,washtheeyeswithcleanwaterand
consultamedicaldoctorimmediately.
•Pleaseremovethepackfromthedeviceorcharger,ifitsmellsstrange,orgivesoutheat,orbecomesdiscoloredand
distorted,orthereisanyabnormalityduringusage,storageandcharging.Switchoffbeforedoingso.
•Wipethedirtoffthecharginginterfaceofthepackwithdryclothbeforeusage;otherwiseitwillcausepoorcontactand
malfunction.
•Donottrytouseelectricpowerwhenthebatteryisexhausted.Switchoffthepowerfirstandrideitasan
ordinarybicycle.
•Pleasekeepthebatterypackandchargeroutofthereachofchildren.

Warning:Keepawayfromexplosivegas,flameorsparkduringcharging.




Maintenance

•Beforeusing,pleasecheckthatthebatteryboxislockedinplace,theredbatteryindicatorlightisonwhen
youoperatethekeyswitch,andthethrottlelightdoesnotindicateempty.
•Ensurethecleannessofthebicyclebodyandthebatterycontacts.Immediatelyremovethedirttoavoidthedeclinein
theefficiencyordamagetotheelectricalparts.
•Frequentlychecktyrepressuresarecorrectagainstthefiguresmarkedonthesideofthetyrewall.Under‐inflationof
tyreswillreducetheridingdistanceachieved,andinworstcase,thetyrewillbedamagedbyeitheroveror
under‐inflation.
•Aswithordinarybicyclesessentialmechanicalandsafetychecksarerequired.
•Donotusethebikeinwaterdepthswherewatercanreachthelowestpartofwheelhuborbattery.Otherwise,electrical
damagecanoccurduetowateringress.
•Keepthebicycleawayfrommoist,hightemperaturesandgas‐acridenvironments,toavoidthechemicalcorrosionon
theelectroplatedcoatingsurfacesofthemetalparts.
•Avoidlongexposuretodirectsunlightordrenchingwithwater,topreventdamageormalfunctioningofparts.
•Itisnormalfortheelectricbicycletofeelheavierduringreversemaneuvering,andthewheelhubcanmakeafriction
soundduringforwardmovement.
•Donotoverloadtoavoiddamagetothebatteryormotor.
•Lubricationisanimportantiteminthemaintenanceoftheelectricalbicycle.Accordingtotheusage,scrubandlubricate
therotationalpartssuchasthefront,backandmiddle
axles,flywheelandfrontforkevery6months.Speciallubricatingoilhasbeensmearedontheridingcomponentsinside
electricalwheelhub,soitisunnecessarytoperformthislubricationyourself.Gotoourauthorisedservice/maintenance
centres,ifyouidentifyanyabnormalfunctioningoraserviceneed.



ElectricalCircuitDiagram

Note:Wiringcolourscanvary.
Adjustingmethodforbrakingsystem
Examinethebrakingsystemfrequentlytoensureitsreliability.
Adjustingcanbeperformedasfollows:
‐Checkthatthebrakeleversmakecontactwhenitsmovement
reaches1/2X(seeillustrationbelow).
‐Loosenthescrewonthebrakingcableseatthentighten
orloosenthebrakingcable,enablingtheaveragemovement
betweeneachofthetwobrakeblocksandtherimsof
approximately1.5‐2mm.



ElectricBicycleElectrics&TroubleshootingMethods

Theinformationinthismanualisforthepurposeofexplanation,notasarecommendationforuserstocarryoutrepair.
Anyremedyoutlinedbelowmustbecarriedoutbyacompetentpersonawareofthesafetyissuesandsufficientlyfamiliar
withelectricalmaintenance.PowaCyclereservestherighttowithoutfurthernotice,makemodificationstotheproduct.
ForfurtheradvicecontactyourvendororPowaCycle.

TroubleDescriptionCausesTroubleshootingMethods

Aftertheswitchhasbeenturnedon,the
powerindicatordoesnotcomeonandthe
bicyclecannotstart.


•Poorcontactbetweentheelectrodesof
thebatteryorconnectingplug.

•Checkifthereisanydirtontheelectrodes
ofthebatteryunitorplug,andcleanthe
contacts.

Aftertheswitchhasbeenturnedon.The
powerindicatorison,butthebicyclewill
notstart.

•Checkforpoorcontactwithbattery.
•Checkiftheplugisproperlyinserted.
•Presstheunitstightlytogethertoensure
thatcontactpointsareinplace.
Themotorstartsandcontinuesrunning
aftertheswitchison.(Note:immediately
turnofftheswitchtopreventanaccident.)
•Thethrottlehasnotreset.

•Thecontrollerisdamaged.
•Checkwhetherthethrottleisjammed.
Ifyes,freeit.
•Returnthecontroltoourcompany’s
authorisedservicecentresforrepairor
replacement.

Lowspeed,andtheridingdistanceafter
chargeisshort.

•Thetyresarenotinflatedsufficiently.
•Frequentstop/start.Climbinghillsor
ridingagainstaheadwind.
•Batterycapacityisindecline.

•Inflatethetyres.
•Pedalmorewhenstartingorclimbing. 
•Replacetheoldbatterywithanewone.
Thepowerindicatorisnotonafterthe
chargerisconnectedtoapowersupply
•ACoutlethasnopower.
•Input2Afuseinsidethechargeris
damaged.
•Acompetentpersonshouldtestwhether
theoutlethaspower.
•Replacethefuseinthepowerplug.
•Iftheabovehasnoeffect,contactour
company’sauthorisedmaintenance
centres.

Thepowerindicatoronthechargerison,
butalwaysredandunrelatedtothe
chargingstatus.
•5Aoutputfuseinsidethechargeris
damaged.
•Thechargingplugseatinsidethebattery
boxisinpoorcontact.
•Insertandpulloutthechargingplugto
checkandensuregoodcontact.
•Iftheabovehasnoeffect,contactyour
PowaCycleauthorisedmaintenancecentre.

Thepowerindicatoronthechargerison,
butalwaysgreenandunrelatedtothe
chargingstatus.
•Thefuseofthebatterybox(20A)is
damaged.
•Thereisanelectricabnormality.
•Replacethefuseofthebatterybox.
•Pulloutthechargingplugandreinsert.



OptimisingBatteryLife

PumaLPXandLynxLPXarepoweredbyLithiumPolymerbatteries.Theseareastableandsafebatterytechnology.They
havetheadvantageinthattheywilltolerateshallowcharging.UnlikeNiMHorNiCadbatteriesthereisnopermanent
powerlossintheeventofregularshallowcharging.

Forlongerperiodsofbatterystorage,acoolorcoldtemperatureisbetterforprolongingtheLi‐Polbatterylife.Avoid
keepingthebatteryatfullchargeandhightemperature(25degreesC.plus)forextendedperiods.
Wheninstoragethebatteryprefersapartialchargeideally40%ratherthanafullcharge.Ifstoringthebatteryforafew
months,itisbestnottokeep“toppingupthebattery”,howeverthebatteryshouldnotbestoredinafullydischarged
stateeither.Frequentfulldischargesshouldbeavoidedwhenpossible,andthebatteryrechargedASAP,butideallyno
longerthan48hoursafterafulldischarge.








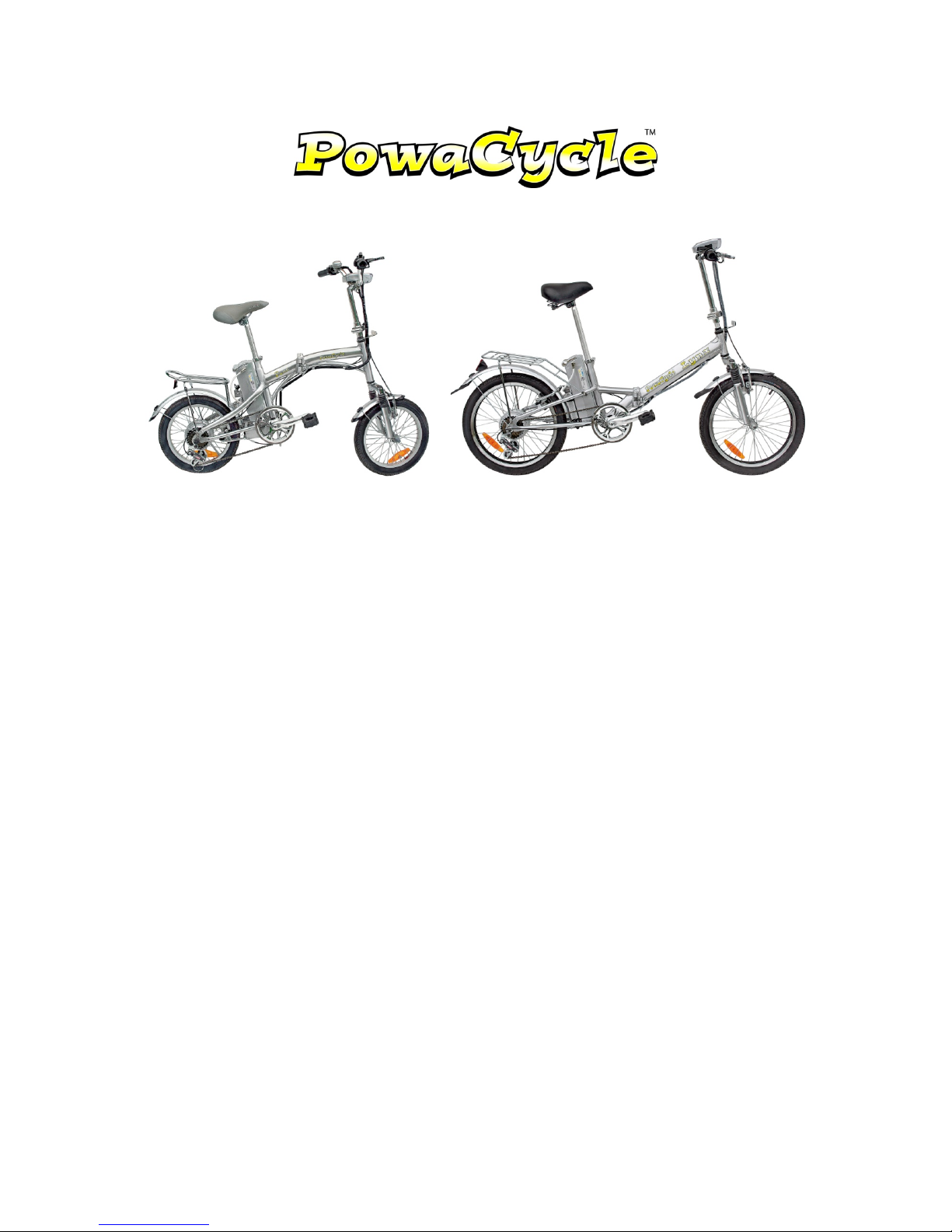

PumaLPXLynxLPX




Owner’sManualfor
PumaLPX
&
LynxLPX
LithiumPolymerPoweredElectricFoldingBikes





 
PowaCycle
UltimaNetworksplc,
AkhterHouse,
PerryRoad,
Harlow,
EssexCM187PN


www.PowaCycle.co.uk





Tel:01279821243
Fax:01279821300
Email:[email protected]
E&OE©UltimaNetworksplc
