Contents
1.0 Introduction 4
2.0 Important notes 5
3.0 Your A2B 8
4.0 Getting to know your A2B 15
5.0 Using, storing and disposing of the battery 24
6.0 Important safety instructions before your first ride 28
7.0 Maintenance 31
8.0 Cleaning the vehicle 37
9.0 Troubleshooting 38
10.0 Technical data 39
11.0 Warranty and safety notes 40
12.0 Disposal 41
13.0 Maintenance schedule 42
14.0 Owners registration 50

4
Owner’s manual
1.0 Introduction
Welcome and congratulations on buying your new A2B Shima*, the electric bike that’s taking transport in a whole new direction. It’s the
revolutionary way to get to work, visit the shops or just get some fresh air. Compared to jumping in the car, an ebike is a lot more fun,
easier to park and will reduce your fuel costs as well as your impact on the environment… as you’ll soon find out!
Feeling energetic?
You can ride your new A2B Shima powered off and then switch the assistance on for hills and headwinds. We dedicated our new bikes
to pioneers that redefined the way we do things in the modern World. As a tribute, the A2B Shima bike was named after Hideo Shima,
a japanese railway engineer and the driving force behind the development and building of the first bullet train (Shinkansen).
Hero Eco
www.wearea2b.com
* A2B Shima electric bike will be referred to as "A2B" for short in the further course of this manual.
A2B Global Head Office
Hero Eco Ltd
80 Coleman Street
London EC2R 5BJ
Germany
Hero Eco Ltd
Reichenberger Strasse 124
10999 Berlin
USA
Hero Eco Inc.
207 9th St.
San Francisco, CA 94103

5
This indicates a potentially hazardous situation, which if not avoided, may result in serious injury, property or equipment
damage or inadvertent system failure.
Provides helpful or other important relevant information.
If you have any questions or are not sure about any instructions in this owners manual ask your A2B dealer.
2.0 Important notes
This owner’s manual contains important safety, performance and service information. Please read it through carefully before your
first ride.
Your A2B should be fully assembled and the battery charged by your A2B dealer. If not contact us immediately as this will void your warranty.
Please ensure that all users of your A2B have read and understood the following important information.
Important symbols
• The A2B is suitable for riding on paved streets and roads.
Therefore, do not ride off the paved roads or across terrain.
Do not use the A2B to cross water, for off-road jumps or for
sporting events.
• When using the A2B we recommend you always wear an
approved helmet and reflective clothing at night.
• Make sure that you know and obey the rules of conduct for safe
and responsible riding. By choosing to ride the A2B you accept
full responsibility.
• Your existing insurance policies may not provide accident cover
for your A2B. Contact your insurance company or agent for
information.

6
Owner’s manual
2.1 Your A2B belongs to European Vehicle Category L1e capability (light two-wheel powered vehicle up to 45 km/h (28 mph).
Ebikes with up to 45 km/h (28 mph) are also called fast pedelecs (S-Pedelec or Speed Pedelec). The A2B has an operating permit with
Type Approval Number e13*2002/24*0639. The applicable existing statutory regulations and legal provisions are explained below.
Registration number requirement
The A2B as a homologated vehicle must be provided with a valid
insurance tag (vehicle insurance). This can be obtained from
any insurance company and must be clearly displayed on the
registration plate bracket.
Driving licence*
L1e category light two-wheel powered vehicles may only be driven
if in possession of at least a Category M (as of 16 years of age)
driving licence.
Where you may ride
Riding in bicycle lanes and in pedestrian areas is not permitted for
light two-wheel powered vehicles, applicable within and outside
city limits. Riding on bicycle streets is only permitted if these streets
are generally approved for motor vehicles or motorcycles. This also
applies if you ride only by pedalling, without motor assistance.
Helmet requirement
At the time this owner's manual was written a standard European
helmet requirement does not yet exist. Therefore, after you have
purchased your A2B, please consult with your A2B specialist
dealer to find out the current legal situation in your country.
However, we recommend you wear an appropriate helmet for
every ride.
Trailers
Please check relevant legislation for your area for a full
understanding of all necessary legal requirements. According to US
law, light two-wheel powered vehicles may only pull cargo trailers.
It is prohibited to attach childrens trailers to a S-Pedelec
(yourA2B in this case) to transport children.
*Not applicable in all markets, please check local legislation.

7
Replacing and modifying components
Specific components may only be used if approved for use with a
S-Pedelec in the approval documents. When changing components
you should only use original parts or attachments which are legally
approved for your A2B (or S-Pedelec).
This regulation applies to the following components:
• Lights (front and rear) and reflectors
• Brake system
• Side stand
• Electrical system (motor, battery, controller and display)
• Wheel rims and tyres
• Frame
• Registration number bracket
• Stem and handlebar
Unfit state to drive
Avoid using your A2B if you feel unwell and not completely fit.
Do not ride your A2B while under the influence of medication,
drugs or alcohol. Local law enforcement may issue a fine or criminal
conviction for riding under the influence of medication, drugs or
alcohol.
The rules and principles described here refer to the use of your
A2B in the European Union. For use outside the EU you should
obtain information beforehand about possible deviations.
As European standards and directives for S-Pedelecs have not
been unified yet, we would ask you to check if the previously stated
information is still current at the time you purchased your A2B.
You will find more information at your A2B specialist dealer and at
www.weareA2B.com.

8
Owner’s manual
1. Seat (saddle)
2. Seat post
3. Seat post clamp
4. Frame
5. Display
6. VIN (Vehicle Identification Number)
7. Front light
8. Splash guard front
9. Front wheel
10. Front rim
11. Quick release front wheel
12. Front disc brake and rotor
13. Name-plate (left side)
14. Pedals, crank arm and chain ring
15. Chain
16. TMM4 Sensor
17. Motor
3.0 Your A2B
3.1 Components
1
2
3
8
9
10
14
13
20
15
19
18
21
17
24
26
16
27
11
4
25
12
7
6
23
22
5

9
18. Rear rim
19. Rear wheel
20. Kickstand
21. Derailleur and free-wheel
22. Bracket for registration number
23. Rear light
24. Splash guard rear
25. Battery connector
26. Battery
27. Rack
28. Right side brake lever (for rear brake)
29. Left side brake lever (for front brake)
30. Gear shifter
31. Right pedal
32. Left pedal
33. Rear view mirror
32
31
30
33
28
29

10
Owner’s manual
3.2 Changing components or attaching accessories
Before you install any components or accessories (including other
tyres), ask your HeroEco specialist dealer whether these are
suitable for your A2B.
Read and comply with the instructions of the respective components
or accessories which you have purchased for your A2B. Follow the
manufacturer's instructions for the components or accessories if
they differ from these instructions.
Just as for all mechanical components, your A2B is also subject to
a certain degree of wear. Especially in cases of high loads, attention
must be paid to wear characteristics. When the useful life of a
component is exceeded it can cause the unexpected functional
loss of this component, resulting in serious injuries or even death.
Therefore, pay attention to wear characteristics such as cracks,
scratches and changes in colour at highly stressed points on the
frame, fork, running wheels and handlebars which would indicate
that the useful life has been reached or exceeded. Have your specialist
dealer immediately replace worn components.
If any components or accessories are not checked for suitability
and if they are not installed, used and maintained properly, this
may result in serious injuries or even death. The use of non original
components or spare parts can jeopardise the safety of your A2B,
and can invalidate your warranty.
A2B maintenance schedule
Your A2B should be professionally maintained by an A2B specialist
dealer at regular intervals. Read the information in chapter 13.0
(pg.42) to that effect.
The replacement of components or installation of accessories is
at your own risk, since these parts have not been checked by
HeroEco for suitability, reliability or safety with your A2B.
3.3 Brake lever adjustment
Can you comfortably operate the brake lever? If not, take your A2B
to your A2B specialist dealer and ask them to adjust the angle of
the brake levers.
Otherwise you can adjust the brake lever angle yourself:
1. Loosen the screw under the brake lever with an appropriate
allen key.
2. Adjust the angle as required.
3. Re-tighten the screw and ensure that the brake lever is securely
fixed in position.
To adjust the brakes you should take your A2B to an A2B
specialist dealer.

11
3.4 Adjustment of the seat height
The seat height may have to be adjusted. Please ask your A2B
specialist dealer to adjust the seat height before your first tour. You
may also adjust the seat height on your own as indicated below:
Determination of the correct driver's seat height
There are several ways of determining the correct seat height; the
method which can be carried out without any further auxiliary means
is described in the following: Sit on the saddle and stretch one leg.
Put your foot's heel on the pedal which is on the lowest point of the
crank turn. Your knee should now be almost straightened.
If you are sitting straight on the saddle while having this position,
the saddle's height is correct.
Of course, you then do not drive with legs stretched. If you put your
foot on the pedal while having the correct driving position (ball of
foot and metatarsophalangeal joint above the pedal axle), the knee
will remain slightly angled also on the lowest point of crank turn if
the saddle height has been adjusted correctly.
A short test ride is recommended to find out if the saddle is too high.
If the pelvis tilts to the right and the left in the rhythm of pedalling, the
saddle is too high. If the saddle is too low, you will usually find it out
only after many kilometres through pain in the knees.

12
Owner’s manual
Height adjustment
1. The seat height can be adjusted by loosening the quick release
for the saddle post.
2. Position the saddle at the desired height. Do NOT position the
saddle higher than the minimum insertion mark located on the
saddle post BY NO MEANS.
3. Push the lever of the quick release towards the frame, until it will
be closed again. The lever must not stick out to avoid danger
of injuries. The lever is safely attached if you must use efforts
to push it into the closed position. The efforts are appropriate if
the lever leaves a mark on the palm of your hand when pressing.
A properly closed quick-release cannot be moved anymore
unless it is reopened as specified above. If you can move the
mechanism slightly, open the lever of the quick release, turn the
adjusting nut by another 180° and try again.
4. After height adjustment, check if the saddle cannot be moved in
any direction.
An improperly attached saddle may lead to severe or even
fatal injuries. Ensure that the saddle clamp screw (saddle post -
saddle) has been tightened using 18.5 Nm.
• This user manual does not express any guarantee as to the safe
use of the A2B under all conditions.

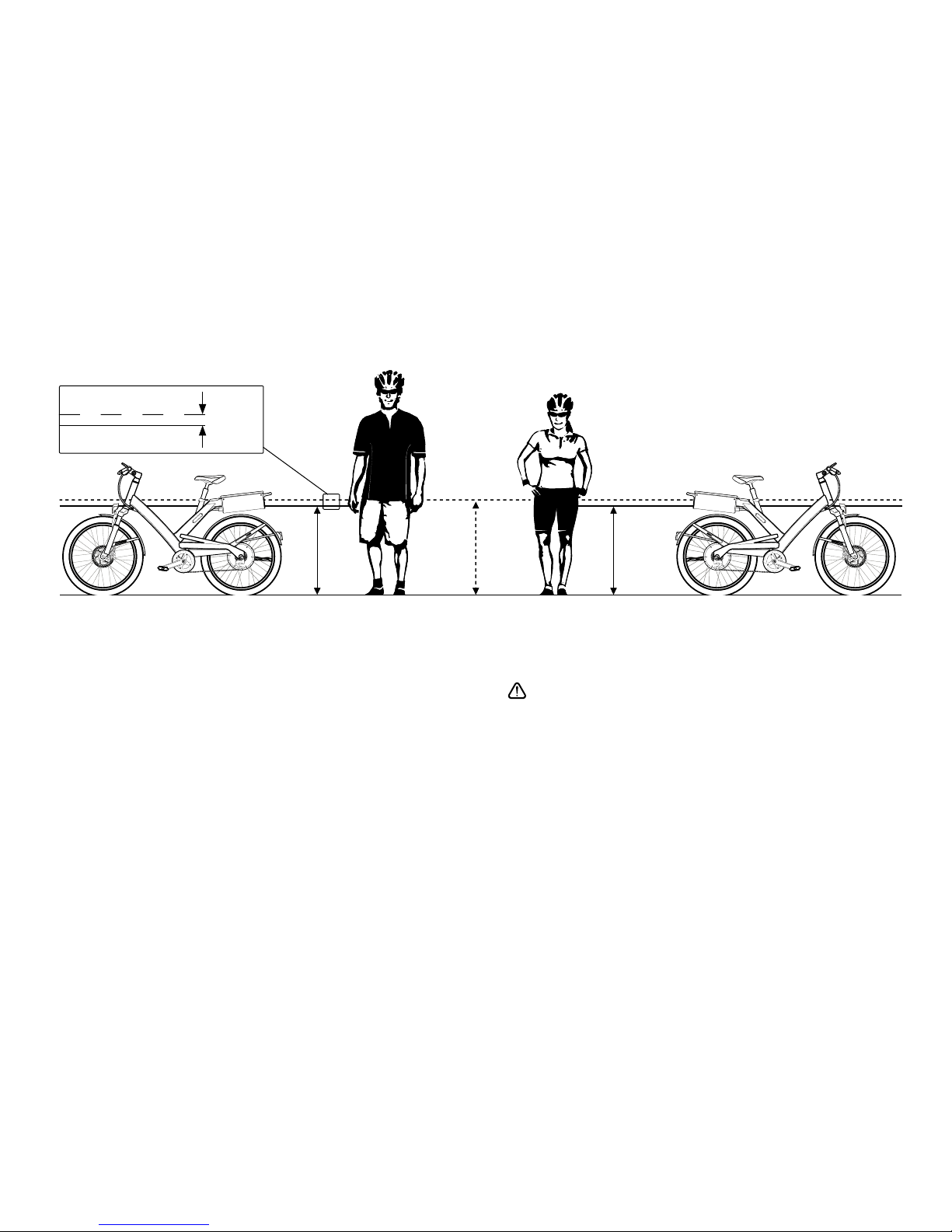

Frame Height
Frame Height
Inside leg length
Inside leg length
2.5 cm
Gap
Frame height

13
A
B
C
D

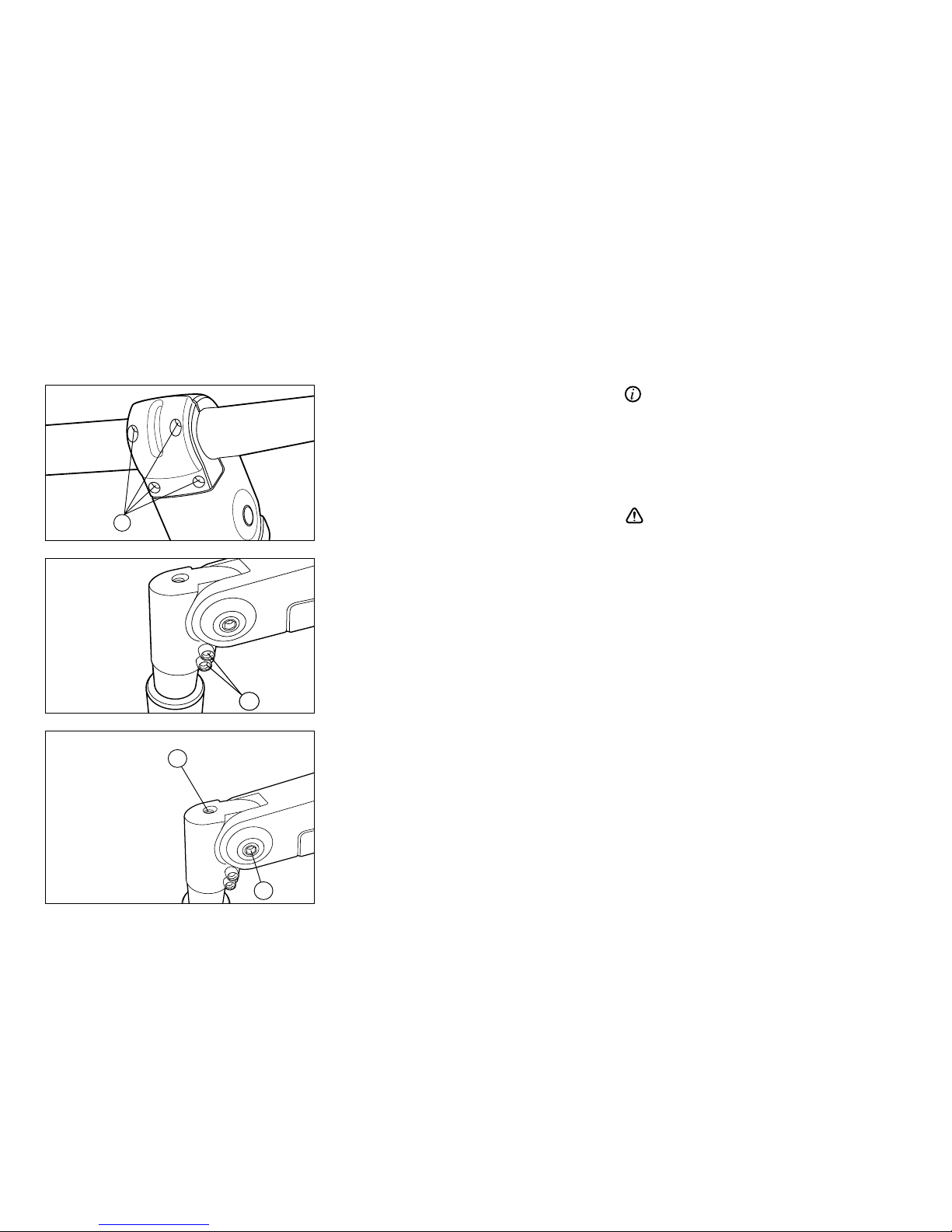

3.5 Adjusting the handlebar
1. Loosen the screws (A) with an
appropriate allen key.
2. Align the centre of the handlebar to the
stem.
3. Rotate the handlebar to the required
angular position.
4. Evenly tighten the screws (A) to 5 Nm.
3.6 Setting the adjustable stem
Alignment of handlebar stem
1. Loosen the screws (B) with an appropriate
allen key.
2. Align the stem with the front wheel.
3. Evenly tighten the screws to 15 Nm.
Angle adjustment of the stem
1. Loosen screw (C) with an appropriate
allen key.
2. Position the stem at the desired angle.
3. Tighten the screw (C) to 17-18.5 Nm
and make certain that the stem is aligned
with the front wheel.
Caution: This is an A headset stem, the
upper screw (D) is a pre-stressed bolt and
does not serve to adjust the stem!
Attempting to tighten screw (D) can
damage the upper head.
An improperly fastened handlebar and
stem can result in serious injuries or even
death.
Make sure that the handlebar is securely
fastened and that it can be easily operated.
Please consult your A2B specialist dealer
if you require further help in adjusting the
handlebar, bearings and stem.

14
Owner’s manual
E
3.7 Adjusting the display
1. Loosen the adjusting screw (E) on
the underside of the display with an
appropriate allen key.
2. Align the angle of the display according
to your requirement.
3. Then evenly tighten the screw to 5 Nm.

15
4.0 Getting to Know your A2B
If after reading this section you still have questions, ask your A2B specialist dealer to explain any functions or characteristics that
are unclear to you before your first ride.
4.1 Overview
The A2B is equipped with a torque sensor.
As soon as you begin to pedal you will
discover that the motor starts up and assists
you, making cycling an effortless pleasure.
In addition to this pedal assistance you will
find a starting aid next to the left grip. This
starting aid will accelerate the motor up
to 20 km/h (12.5 mph), regardless of your
pedaling power.*
*Not available in all markets
4.2 Your first trip
1. Wear your helmet and choose a quiet
location away from cars, obstacles or
other hazards.
2. Ensure that the battery is charged and
connected.
3. Activate the system with the electronic
key (see section 4.3).
4. Do NOT sit down on the A2B while it is
still on its kickstand. You will damage the
kickstand and possibly the frame.
5. Mount your A2B and find a comfortable
sitting position.
6. Step on the pedals to start the motor
assistance.
7. Test the brakes at slow speed. The left
brake lever operates the front brake, the
right brake lever operates the rear brake.
8. Pulling the brake lever too tightly may
lock the wheel, causing you to lose
control of the ebike.
Please remember that a motor cut-out is
integrated in the right brake lever.
The electric power supply to the motor is
cut off the moment you activate the right
brake lever. Therefore, do not keep the right
brake lever operated when you want the
motor to run.
9. Try the handling and response of your
A2B. Familiarise yourself with how the
suspension responds when you operate
the brakes and when you shift your
weight.

16
Owner’s manual
2 3
1
4.3 Display and electronic key
Switching the electronic system on and off at the display
Your A2B is secured by an electronic key (also called E-key). You
must activate the system before you begin riding.
1. Hold the E-Key directly over the screen of your display.
2. The display now lights up. As soon as the A2B lettering appears,
move the E-key away.
3. After the ride: to turn off the system hold your E-Key over the
display until it blanks out. The system is now deactivated.
The E-Key is used to wake up the display, battery and motor
controller from sleep mode. If all of the components do not wake
up (e.g. no motor assistance), deactivate the system and repeat the
process.

17
B
D
C
A
E
4.4 Display - Functions
Overview of functions and menus
A. Rotary knob/button
B. Battery charge indicator
C. Speed indicator
D. Mode indicator - shows the selected power level
E. Unit indicator (km/h or mph)
It is recommended that you regard your E-key like you would
acar or house key. It is best to attach it to your private key ring.

18
Owner’s manual
1
22
4 5

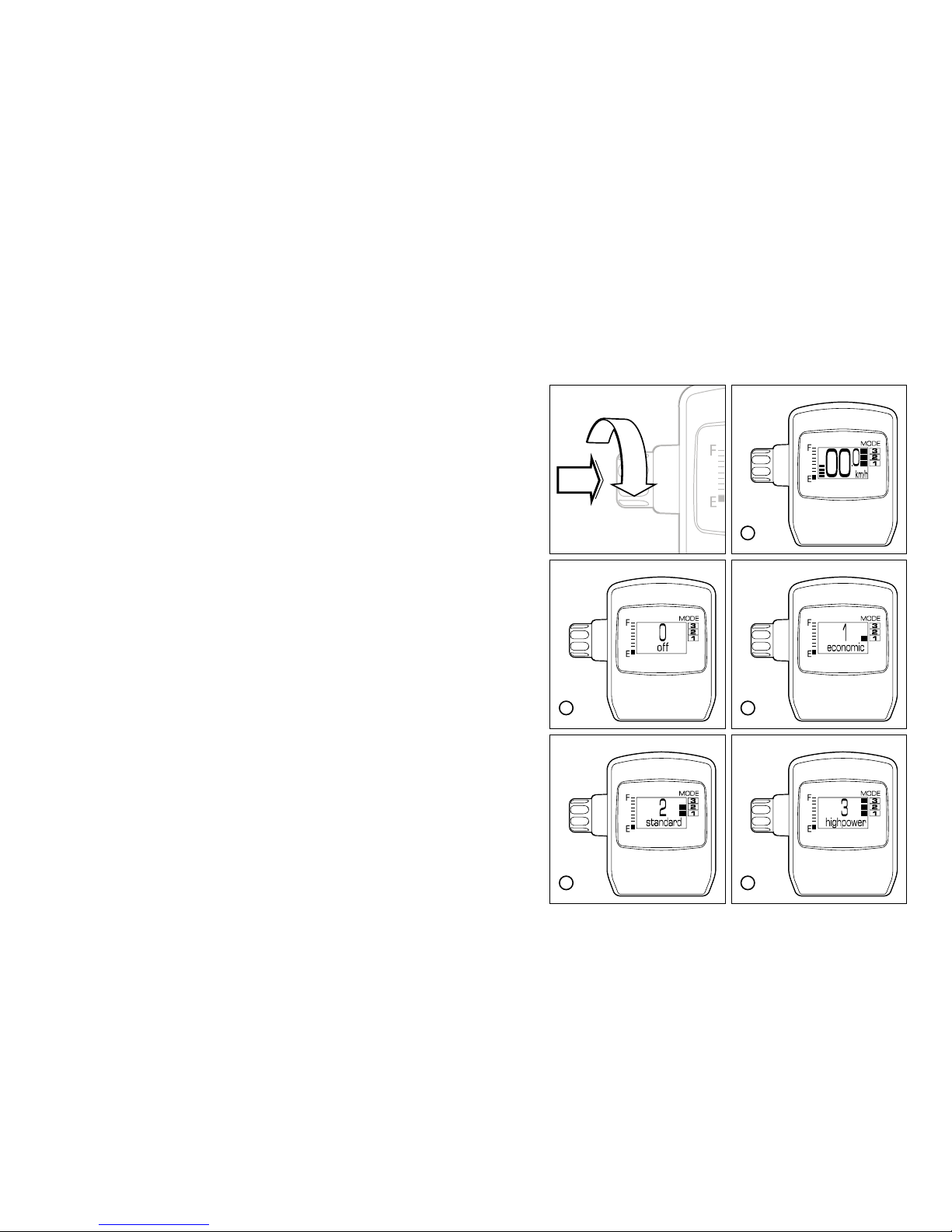

4.5 Adjusting the level of assistance
Your A2B allows you to choose from three power levels (modes).
Attop right of the display you can see your current mode.
Choosing the assistance level:
Turn the knob in order to choose between the different power
levels. As soon as the desired mode is displayed, press the knob
to confirm the selection. The display then returns to the standard
display.
Display overview
1. Standard display
2. 0 – off mode (no assistance).
3. Mode 1 – economic (minimum motor assistance, ideal for
economizing the battery output, maximum range).
4. Mode 2 – standard (normal motor assistance, normal power,
average range per battery charge)
5. Mode 3 – high power (additional motor assistance, maximum
power, shortest range per battery charge).

19
km
7
miles
4.6 Set-up (switching between km and miles)
Turn the knob until the set-up menu (6) appears. Now press the
knob for two seconds in order to access the menu. By pressing
again (within two seconds) you can now choose between
kilometres and miles (7). Then wait to confirm the selection.
If you turn the knob in the menu set-up, you will see «ts-value»
(8) displayed. This sub-menu permits service technicians and
specialist dealers to check for the correct function of the torque
sensor. To exit the set-up menu from here, keep turning the knob
until the display «back» (9) appears and confirm by pressing once.
The standard display (1) will then appear.
4.7 Switching between total kilometres (odo) and distance
counter display (trip)
Turn the knob until odo or trip (10/11) appears. Then wait; the
system automatically accepts the setting.
To reset the distance counter: press the knob for two seconds
while you are in the trip menu (11).
The system of your A2B automatically switches to idle mode
after it has been inactive for 10 minutes (including the light system).
ts-value
8
back
9
odo
231
10
setup
6
11 trip
0.0
trip
5.1
11

20
Owner’s manual
4.9 Error codes
In the event of an error, the
corresponding warning signals
(!) and one of the following
codes will be displayed:
01 HARDWARE_Brake_SET: Excess current hardware.
02 RECUPERATION: Error energy recuperation.
03 FAST_OVER_VOLTAGE: Fast overvoltage.
04 FAST_UNDER_VOLTAGE: Fast undervoltage.
05 SLOW_OVER_VOLTAGE: Slow overvoltage.
06 SLOW_UNDER_VOLTAGE: Slow undervoltage.
07 OVER_TEMP_135: Motor temperature above 135 °C.
08 OVER_TEMP_INT: Over temperature of the controller.
09 CORRUPT_HALL_VALUE: Motor signal fault.
10 WRONG_HALL_ORDER: Fault motor direction of rotation.
11 not set.
12 RECOVER_WHILE_DRIVE: Resetting of fault messages
during the trip.
13 I_OFFSET_OVER_LIMIT: Offset current over limit.
14 I_OFFSET_UNDER_LIMIT: Offset current under limit.
15 TORQUE_OFFSET_OVER_LIMIT: Offset force sensor over limit.
16 TORQUE_OFFSET_UNDER_LIMIT: Offset force sensor under limit.
16
Error messages are reset automatically when the error no longer
exists. In case of a permanent error message, consult your A2B
specialist dealer.
