Power Breezer TITAN+ PB4TITAN User manual

USER
MANUAL
Version 3.0
For use with model:
PB4TITAN

TABLE OF CONTENTS
A. WARNINGS 3
I. KEY COMPONENTS 4
II. SETUP 6
1. Mounting the fan head: 6
2. Using the correct outlet: 10
3. Adding water to the water tank: 10
4. Routing power and water lines and replacing tank lid: 11
III. OPERATION 12
1. Control panel – Buttons: 12
2. Turning on your Power Breezer: 12
3. Adjusting the misting level: 13
IV. DISASSEMBLY 14
1. Dismounting fan head: 15
2. Routing power and water lines and replacing tank lid: 17
V. ELECTRICITY FOR YOUR POWER BREEZER 18
VI. TRANSPORTING YOUR POWER BREEZER 18
VII. MAINTAINING YOUR POWER BREEZER 19
Cleaning Process: 19
Monthly or Quarterly: 20
Semi-Annually: 20
VIII. WARRANTY 21
IX. CONTACT INFORMATION 23
Congratulations on your selection of a Power Breezer® evaporative cooler.
We are proud of our products and have designed your Power Breezer for
years of safe, reliable service. This user manual will instruct you in the proper
operation and maintenance of your Power Breezer. Please read through this
manual before operating your Power Breezer.
SAVE THIS MANUAL
ENGLISH

3
A. WARNINGS
Warnings
• This Power Breezer is intended for use only as specied in this manual.
If you have questions about its use, please contact Power Breezer.
844.233.5673 | [e-mail]
• Use only on a outlet protected by a ground-fault circuit-interrupter (GFCI). (see page 10)
• Avoid using extension cords.
• Do not allow plug to become wet. Do not plug in while hands are wet. Doing so causes risk of
electric shock.
• Do not alter the plug in any way.
• If the power cord is damaged, do not attempt to repair it yourself.
Contact Power Breezer customer service for assistance.
844.233.5673 | [e-mail]
• Turn o and unplug the Power Breezer prior to lling or emptying water reservoir.
• Turn o and unplug the Power Breezer prior to moving.
• Turn o and unplug the Power Breezer prior to cleaning it.
• Always unplug the Power Breezer by pulling on the plug and never on the cord.
• Do not insert ngers or other objects inside the fan head, doing so may cause bodily injury.
• Children can fall into open water reservoir and drown, even in a small amount of water.
Keep children away from reservoir. Keep the water tank lid on at all times.
• Closely supervise nearby children and pets when using this Power Breezer. Do not leave
Power Breezer unattended.
• Children shall not play with the Power Breezer.
• Cleaning and user maintenance shall not be made by children without supervision.
• The Power Breezer is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction.
• This Power Breezer can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the Power Breezer in a safe way
and understand the hazards involved.
• When operating Power Breezer, use common sense. Stay clear of moving parts.
NEVER touch the any portion of the Atomizer while it is spinning, doing so may cause bodily
injury. Only use water that is safe for drinking.
• If the Power Breezer becomes damaged or malfunctions, do not attempt to repair the Power
Breezer. Doing so will void the warranty. Contact Power Breezer customer service for repair
assistance. 844.233.5673 | [e-mail]
• The appliance is not to be used by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction” or equivalent.
• This Power Breezer is suitable for use as a fan for tropical climates.
• This Power Breezer is suitable for use outdoors.
• This Power Breezer is intended for industrial use.
• This Power Breezer is rated IP24.
• Do not throw away this user manual, keep it for reference.
ENGLISH

Atomizer Fan head
Water tank
Fan Head
Handles
(4)
Fan head
power cord
Water inlet hose
Atomizer drain hose
Control panel
Power cord
Rear wheels
with brake
Lid latch
Tank Lid
Tie down
points (4)
Transport
handle
Drain plug
Front casters
Circuit breaker
Electronic Box “E-Box”
4
Front View
Rear View

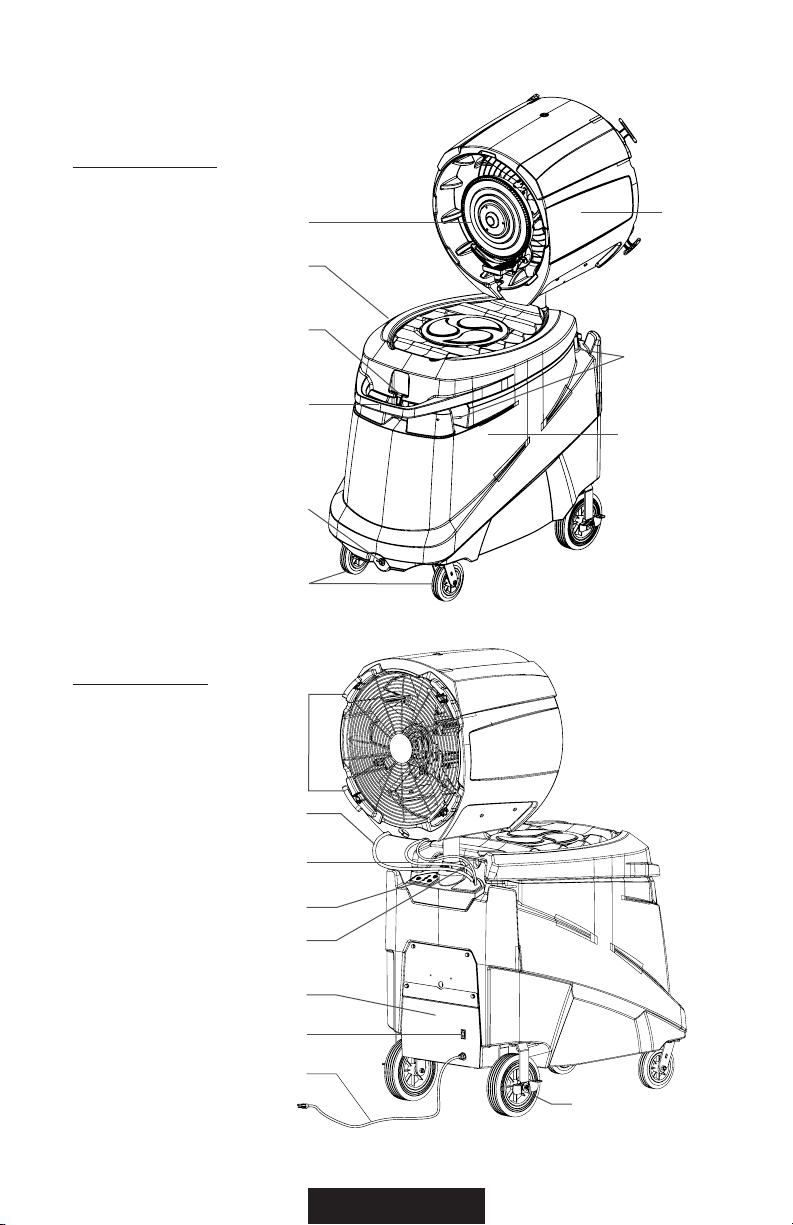

I. KEY COMPONENTS
Key Components
ENGLISH

MAX FILL LINE
MAX FILL LINE
Fan head
support pole
Water valve
Power
on/off
Head Rotation
on/off
Atomizer (Misting)
on/off
Fan Speed
up/down
Power cord
holder

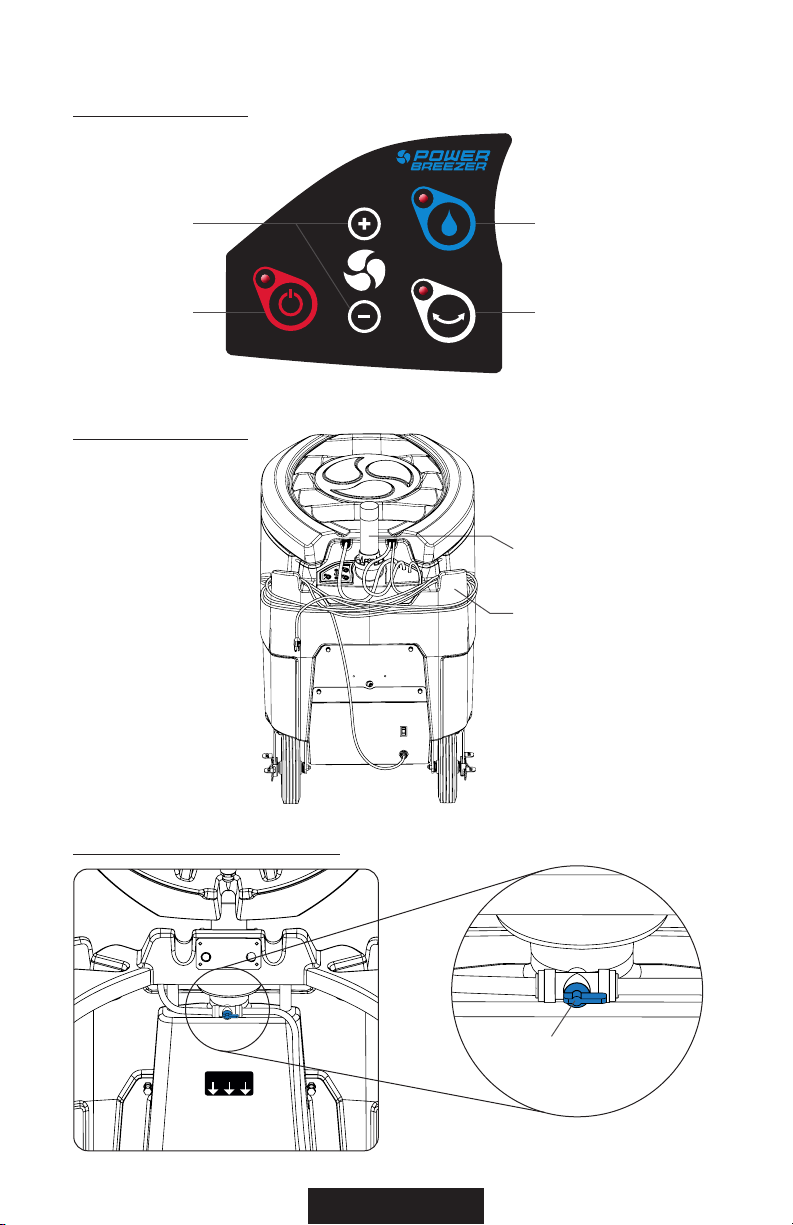

5
Control Panel
Storage View
Inside Water Tank View
Key Components
ENGLISH

6Setup
1a. Before you get started, be sure
to lock both of the rear wheels
by pressing down on the brake
lever to set them to the ON
position.
1
2a
To set up your Power Breezer,
you will need:
• 2 people
• An AC outlet
• Access to water to ll the water
tank
Remember:
• Lift fan head only by the
head handles.
• Never lift from the fan guards.
• The fan head weighs 86 lbs.
2a. Open the lid latch by rst pulling
forward the lower portion of the
latch.
II. SETUP
1. Mounting the fan head:
ENGLISH

7
2b
3
4
2b. Finish opening the lid latch by
pulling the upper portion of the
latch forward and away from the
lid.
3. Remove tank lid by rst lifting up
on the transport handle and then
pulling forward.
4. Tilt up the four fan head handles,
if they are folded down, prior to
lifting the head.
Setup
ENGLISH

8Setup
ENGLISH

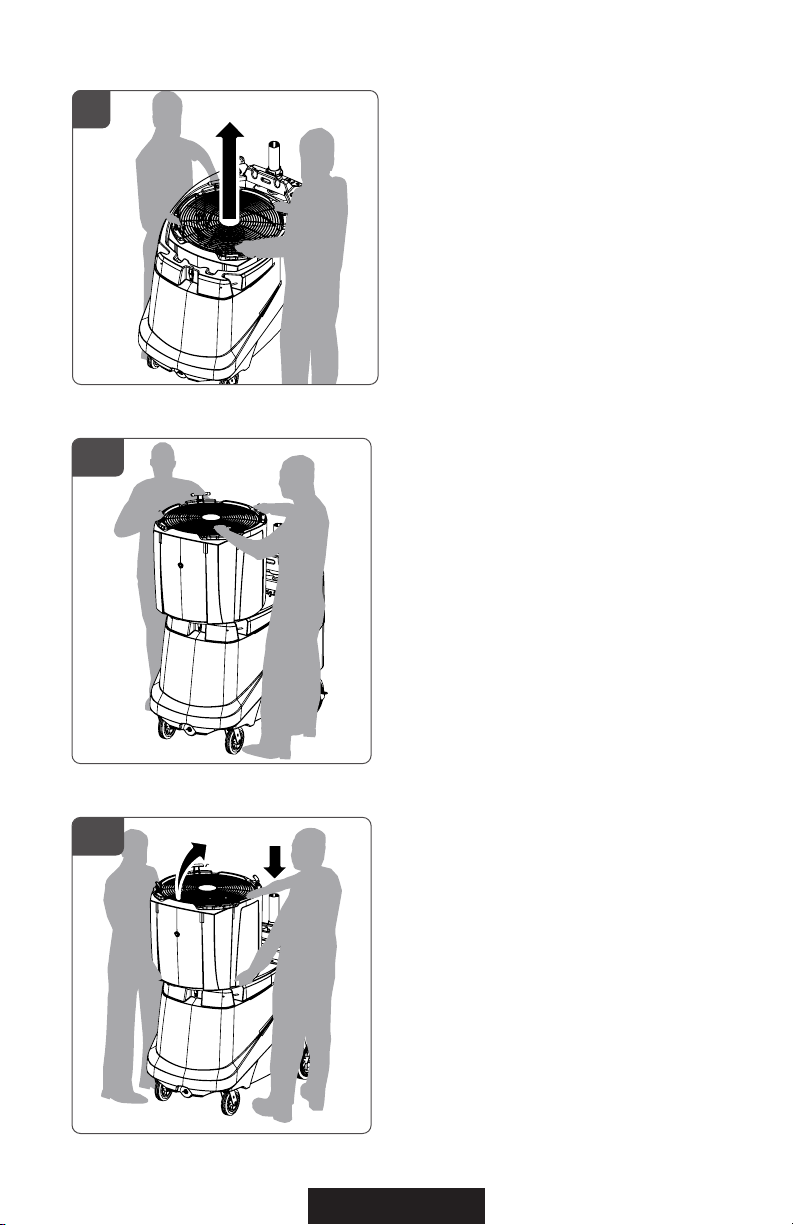

55a. To lift the fan head out of the
water tank, each person should
stand on opposite sides of
Power Breezer.
5b. Both people should grasp the fan
head by the fan head handles,
as shown.
Remember:
• Lift fan head only by the
head handles.
• Never lift from the fan guards.
6a. Lift the fan head straight up
and out of the water tank.
Carefully rest it on the edge of
the water tank.
6b. Both people should re-adjust
their grip so that they have one
hand on a fan head handle or
the black outer housing and one
hand on the front edge of the
fan head, as shown.
6a
6b

9
Setup
ENGLISH
Once installed, the atomizer
(metal disk) will be facing the water
tank, air will be blown over the water
tank when the Power Breezer is turned
on.
7
6c. Once again, lift the fan head
and align it with the fan head
support pole. Once the fan
head is seated on the support
pole, rotate the fan head
horizontally until you feel it
engage with the support pole.
6c

10 Setup
ENGLISH
2. Using the correct outlet:
NOTE: A live power outlet can be veried when the Power Breezer is
plugged in and powered o by pressing the oscillation or atomizer
buttons. The LED lights will dimly illuminate when either of these
buttons are depressed.
Electrical current of 110v or 220v is required. (See page 18 for Electrical Info.)
For safety, only plug your Power Breezer into an outlet equipped with GFCI.
DO NOT plug into standard outlet without a GFCI feature.
GFCI
Equipped
Outlet
3. Adding water to the water tank:
Do not ll the water tank above
the max ll level, as shown. If water
tank is lled past this level, water
may leak out of the water tank
and cause a hazard around the
Power Breezer.
The water valve can be adjusted
for optimal performance according
to your climate. To adjust, please
follow the steps in the Operation -
Adjusting the misting level section
of this manual.
MAX FILL LINE

11
Setup
ENGLISH

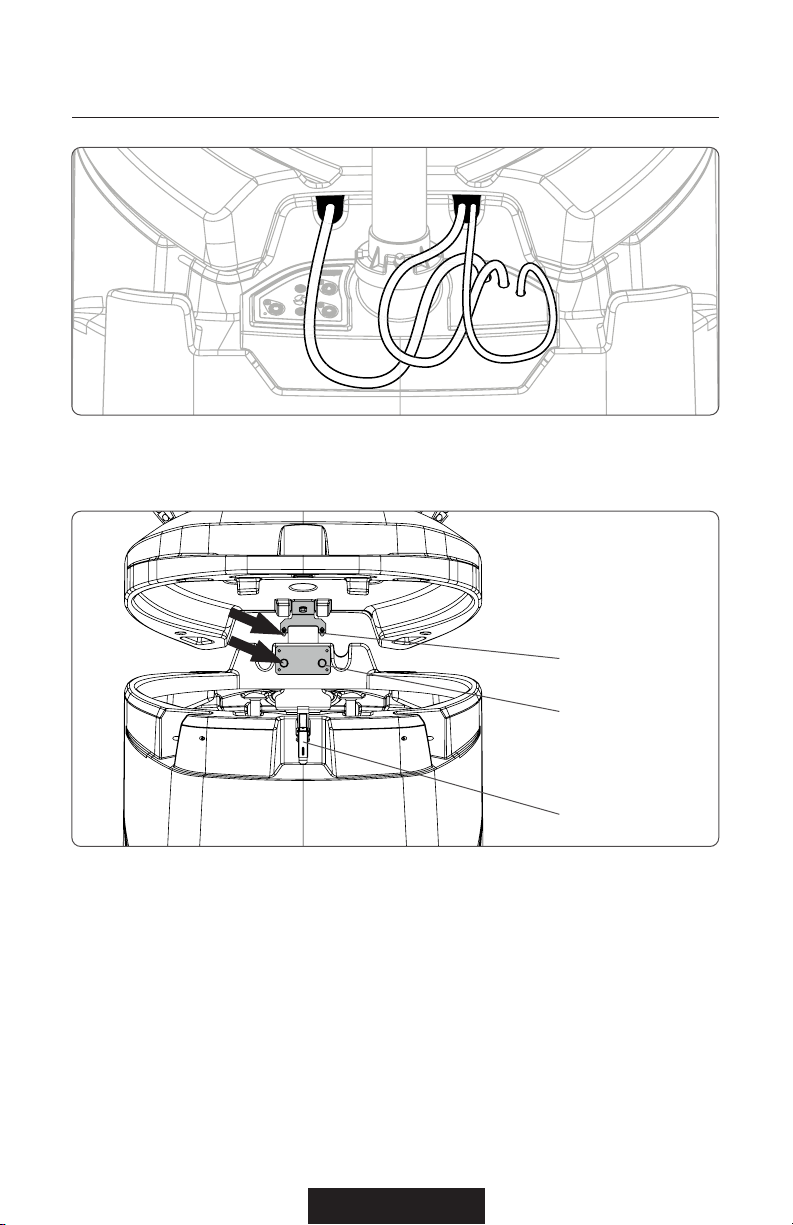

4. Routing power and water lines and replacing tank lid:
Note the tank lid tabs on the back underside of the tank lid.
4b. Slide the lid tabs into the corresponding water tank notches in the
back of the water tank as shown above.
4c. Lower the front of the tank lid onto the water tank and re-lock the lid
latch.
4a.
Route the fan head power cord, atomizer drain hose, and water inlet hose
through the openings in the back of the water tank as shown above.
Tank Lid Tabs
Water Tank
Notches
Lid Latch

12 Operation
ENGLISH
2a. Press the power button and hold for one second.
The LED light for the power button will be lit and the fan blades will
begin to slowly rotate to indicate the Power Breezer is powered on.
2b. Press the fan speed button to increase the fan speed.
Adjust the fan speed by pressing the or buttons.
2c. Press the oscillation button once to activate the oscillation feature.
2d. Press the atomizer button once to activate the misting feature.
2. Turning on your Power Breezer:
Power
Oscillation
Atomizer
Fan Speed
III. OPERATION

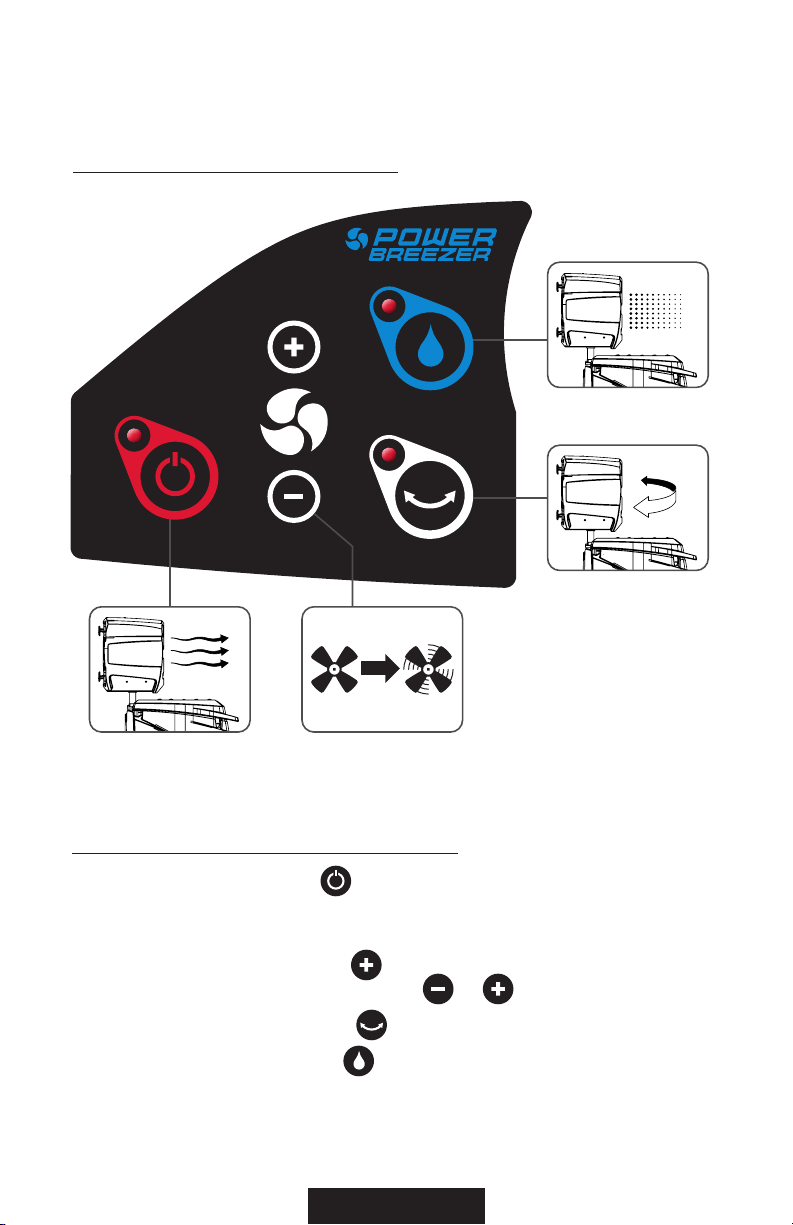

1. Control panel – Buttons:

13
Operation
ENGLISH
1
2
3. Adjusting the misting level:
2a. Open the water valve slightly
by turning the lever counter-
clockwise. There will be a short
delay before misting begins.
Check the distance of the mist.
2b. If there is a strong mist at 6 feet
away, then the moisture setting is
too high for conditions.
To reduce misting, rotate the water
valve lever clockwise back towards
the 6 o’clock position.
Optimal moisture settings can also be
adjusted according to personal preference.
1a. Press the power button and
hold for one second if Power
Breezer is not already on.
1b. Set fan speed to desired level.
1c. Locate the water valve.
The water valve is inside the
water tank towards the rear.
1d. Start with the water valve closed,
at the 6 o’clock position as shown.
1e. Start the atomizer by pressing the
atomizer button once.
WARNING
NEVER touch the any portion of the
Atomizer while it is spinning.
Doing so may cause bodily injury.

14 Disassembly
ENGLISH
IV. DISASSEMBLY
1a. Power o the Power Breezer
by holding down the power
button for one second.
1b. Unplug power cord.
Drain water tank:
Depending on the volume of
water to be drained, you may
want to move your Power Breezer
to a suitable location prior to
draining.
Open the drain plug by turning
counter clockwise and fully drain
the water tank.
1
2
To disassemble your Power Breezer,
you will need:
• 2 people
Remember:
• Lift fan head only by the
black outer shell from the
top and bottom.
• Never lift from the fan guards
or metal disk.
• The Fan Head weighs 86 lbs.

15
Disassembly
ENGLISH
1. Dismounting fan head:
Before you get started, be sure to
lock both of the rear wheels by
pressing down on the brake lever to
set them to the ON position.
1
2a. Unlock lid latch.
2b. Remove the tank lid by rst lifting
up on the transport handle and
then pulling forward.
2
3a. Lift the fan head straight up
and o the head support pole.
3a

16 Disassembly
ENGLISH
3b. Carefully rest the fan head on
the edge of the tank.
Both people should grasp the
fan head by the fan head
handles, as shown.
Remember:
• At this step, lift the fan head
only by the head handles.
• Never lift from the fan guards.
3c. Carefully lower the fan head
into the water tank.
3b
3c

17
Disassembly
ENGLISH
2. Routing power and water lines and replacing tank lid:
Note the lid tabs on the back underside of the lid.
2b. Slide the lid tabs into the corresponding water tank notches in the
back of the water tank as shown above.
2c. Lower the front of the lid onto the water tank and re-lock the lid latch.
2a.
Route the fan head power cord, atomizer drain hose, and water inlet hose
through the openings in the back of the water tank as shown above.
Tank Lid Tabs
Water Tank
Notches
Lid Latch

18
VI. TRANSPORTING YOUR POWER BREEZER
DO NOT reposition or move your Power Breezer by the fan head
(if mounted) or the fan head support pole (if stored). Doing so may
damage your Power Breezer. Only reposition or move your Power Breezer
by the transport handle.
Prior to transporting your Power Breezer over long distances,
disassemble the Power Breezer to prevent damage. Use the tie down
points to limit movement and prevent damage. Also make sure both
rear wheel locks are engaged in the ON position to prevent rolling.
For long-term storage, make sure that the water tank is fully dry. If it is
not dry, you may use the fan to dry it.
• With the fan head in the water tank, and the tank lid removed,
turn on the fan using a medium speed until the water tank is dry.
Electricity for Your Power Breezer | Transporting Your Power Breezer
ENGLISH
V. ELECTRICITY FOR YOUR POWER BREEZER
Your Power Breezer Mach 4+ Universal is designed so that it can be used in
either a 110v or 220v electrical system.
There are two options available to use your Power Breezer in a local
electrical system/voltage that diers from the unit’s original electrical
usage intent.
(For example: 110v, Plug Type G, United States’ standard three prong)
Option 1 – Power Plug Adaptor:
Materials required – one of the following:
• 110v to 220v power plug adaptor
• 220v to 110v power plug adaptor
• Universal power plug adapter
Option 2 – Order a replacement power cord that matches the new
electrical system and outlet*:
• Order online at:
https://www.powerbreezer.com/parts/
• Contact your retail seller or distributor.
*Note: Limited types of power cord types are produced and not every
conguration is available.

19
Maintenance
ENGLISH
• Drain the water tank (unscrew the drain plug at the lower front of the
Water Tank)
• Clean the interior of the water tank with mild soap and water. A plastic (not
metal) dish or toilet style brush will work.
• Rinse thoroughly.
• Let air dry with the water tank lid o or wipe dry with a towel.
• Reseal Drain Plug, add water and operate as needed.
• Clean the outside with mild soap and water. Do not use harsh chemicals or
abrasives.
Cleaning Process:
VII. MAINTAINING YOUR POWER BREEZER
Your Power Breezer is made with LDPE. LDPE has good chemical
resistance, high impact strength, and strong wear absorption. LDPE can
hold food products without leaching any harmful materials or allowing
microorganisms to permeate.
Once/week, let the tank empty, remove the lid, and let the unit completely
dry inside.
Ideally, clean the tank once a week (at very minimum once a month) with
a light dish detergent and water, this will keep the Cooling Unit operating
clean and odor-free.
NOTE: During cooling operations, do not add any additive(s) to the water,
because that additive will be introduced into the air.

20 Maintenance Continued
ENGLISH
NOTE: If you have excessively hard or sandy water, monthly is recommended.
• Drain the water tank (unscrew the drain plug at the lower front of the
Cooling Unit)
• If there is white calcium or sand build upon the interior of the water tank,
scrub with a brush and rinse out
• Let air dry with the water tank lid o or wipe dry with a towel
• Reseal drain plug, add water and operate as needed
• Let air dry with the water tank lid o or wipe dry with a towel
Water Pump Maintenance (MIV and Newer)
• Remove the water pump from the water tank.
• Open the lter cage on the inlet side of the water pump.
• Make sure the lter (black sponge) is clear of debris.
• Replace the cover.
• Place the water pump back in the water tank.
Monthly or Quarterly:
Semi-Annually:
