Gigola ES 200 R/R User manual

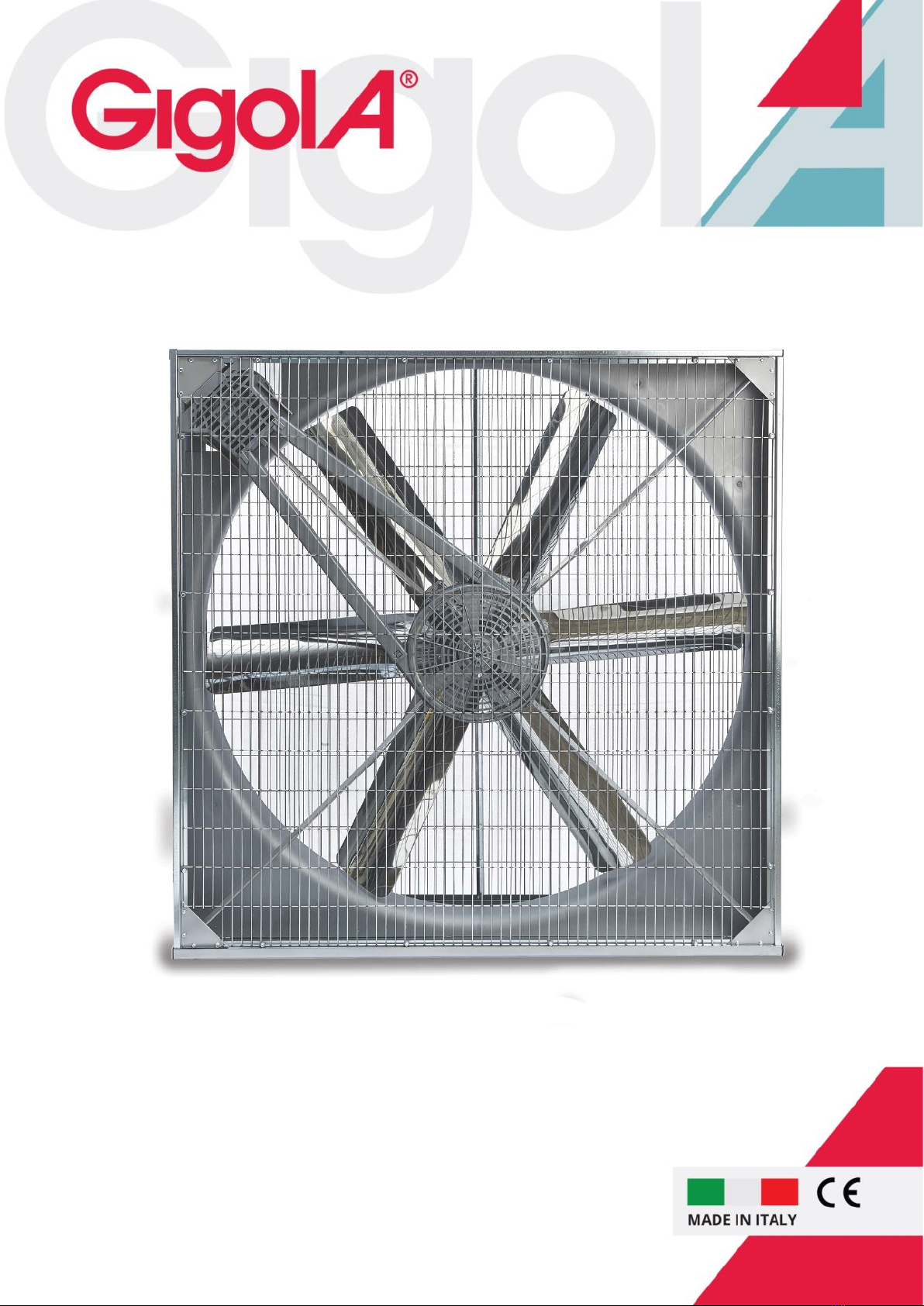

AIR CIRCULATOR FAN
ES 200 R/R – ES 150 R/R - ES 140 R/R - ES 120 R/R - ES 100 R/R - ES 80 R/R
69” 55’’ 51’’ 39’’ 31’’ 26’’
INSTRUCTION MANUAL (TECHNICAL HANDBOOK)

Instruction manual
(technical handbook)
g&r – im th – Air
circulation fan - eng
First edition
01/01/1995
Air circulator fan Rev. No. 04
28/07/2016 Page 2 of 77
Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985
Tel. [phone] | Fax: [phone] | e-mail: [email protected]
The use of high-pressure cleaners is strictly prohibited
either in the motor area or in the vicinity of bearings
The fan is resistant to humidity, heat and cold (as better clarified
in the operation and maintenance manual). It has been designed
specifically to operate in highly corrosive environments or in
environments with abrasive substances. The fan is only to be
used for the purpose for which it is designed and in compliance
with current regulations. The user assumes full responsibility for
any improper use. Please refer to the operation and
maintenance manual for any further clarification.

Instruction manual
(technical handbook)
g&r – im th – Air
circulation fan - eng
First edition
01/01/1995
Air circulator fan Rev. No. 04
28/07/2016 Page 3 of 77
Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985
Tel. [phone] | Fax: [phone] | e-mail: [email protected]
Contents
1. Introduction........................................................................................................................................ 6
1.A. General warnings ....................................................................................................................... 7
1.B. Purposes and intentions of the manual ................................................................................. 7
1.C. Glossary and terminology........................................................................................................ 7
1.D. Typographical conventions and pictograms used in the manual .............................. 13
1.E. Intended users of the manual, safekeeping ..................................................................... 15
1.F. Qualification of maintenance personnel............................................................................ 15
1.G. Work clothing and personal protective equipment ........................................................ 18
1.H. Contents of the manual........................................................................................................... 18
1.I. Standard documentation supplied...................................................................................... 18
1.J. Updates of the manual ............................................................................................................ 19
1.K. Important information ............................................................................................................. 19
1.L. Meaning of the pictograms affixed on the machine........................................................ 20
1.M. Manufacturer’s responsibility............................................................................................... 20
1.N. Guarantee ................................................................................................................................... 21
1.O. Customer service and after-sales support ....................................................................... 21
1.P. Suggestions and feedback from the user ......................................................................... 21
2. General features of the machinery..................................................................................................... 22
2.A. Envisaged conditions of use and features ........................................................................ 22
2.B. Main aspects linked to operation......................................................................................... 22
2.C. Description of the machine.................................................................................................... 22
2.C.I. Protection grid - extraction side.................................................................................. 23
2.C.II. Motor and transmission.................................................................................................. 23
2.C.III. Fan box................................................................................................................................ 24
2.C.IV. Fan........................................................................................................................................ 24
2.C.V. Protection grid (delivery side)...................................................................................... 25
2.D. Identification of the manufacturer....................................................................................... 25
2.E. Declaration of conformity ...................................................................................................... 25
2.F. Identification of the machinery............................................................................................. 26
2.F.I. Position and structure of the ID plate ........................................................................ 26
2.F.II. Intelligibility, maintenance and substitution of the plate ..................................... 26
2.G. Overall dimensions................................................................................................................... 27
2.H. Technical information on fans belonging to the EOLOSTAR family: ......................... 27
2.I. Unpermitted, unenvisaged and/or improper (foreseeable and unforeseeable) use of
the machine ........................................................................................................................................... 27
3. Warnings and general precautions .................................................................................................... 28
3.A. Accident prevention warnings ............................................................................................. 28
3.B. Warnings on the protection devices installed on the machine ................................... 29
3.C. Notes on the residual risks.................................................................................................... 29
3.D. Warnings for use in potentially explosive atmosphere (ATEX) ................................... 30
3.E. Precautions for the installation of parts by the user...................................................... 30
4. Shipping, receipt and acceptance ..................................................................................................... 31
4.A. Shipping and transportation ................................................................................................. 31
4.B. Receipt......................................................................................................................................... 31
4.C. Acceptance ................................................................................................................................ 31
4.C.I. Non-acceptance due to flaws, defects and/or non-conformities....................... 31
5. Packing – Unpacking – Handling – Transportation .............................................................................. 32
5.A. Packaging ................................................................................................................................... 32
5.A.I. Packaging free.................................................................................................................. 32
5.A.II. Cardboard box .................................................................................................................. 32

Instruction manual
(technical handbook)
g&r – im th – Air
circulation fan - eng
First edition
01/01/1995
Air circulator fan Rev. No. 04
28/07/2016 Page 4 of 77
Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985
Tel. [phone] | Fax: [phone] | e-mail: [email protected]
5.A.III. Cardboard box strapped on pallet.............................................................................. 33
5.A.IV.Cardboard boxes strapped on pallet wrapped with plastic stretch film ......... 33
5.B. Unpacking................................................................................................................................... 34
5.B.I. Disposal of the packaging............................................................................................. 34
5.C. Handling ...................................................................................................................................... 35
5.C.I. Loading, unloading and manual handling of the machinery (with or without
packaging) ......................................................................................................................................... 36
5.C.II. Mechanical loading, unloading and handling of the machinery (with or without
packaging) ......................................................................................................................................... 37
6. Storing and stowing .......................................................................................................................... 38
6.A. Short term................................................................................................................................... 38
6.B. Long-term ................................................................................................................................... 38
7. Assembly - Disassembly.................................................................................................................... 39
7.A. Completely disassembled machinery................................................................................. 39
8. Installation and connections.............................................................................................................. 40
8.A. Choosing the unit’s position.................................................................................................. 40
8.B. Ceiling installation with metal supports............................................................................. 41
8.C. Electrical connection .............................................................................................................. 42
8.D. Connection to the aeraulic system...................................................................................... 43
8.E. Minimum distances .................................................................................................................. 43
9. First start-up - Commissioning - Decommissioning ............................................................................. 43
9.A. First start-up .............................................................................................................................. 44
9.A.I. Current input check ........................................................................................................ 44
9.A.II. Check of the bearing temperature.............................................................................. 45
9.A.III. Check of vibrations.......................................................................................................... 46
9.B. Regular operation check........................................................................................................ 47
9.C. Commissioning.......................................................................................................................... 47
9.C.I. Running in........................................................................................................................... 49
9.C.II. Checks during the machine’s life cycle..................................................................... 49
9.D. Putting out of service and decommissioning ................................................................... 50
9.D.I. Decommissioning............................................................................................................. 50
9.D.II.Demolition .......................................................................................................................... 51
9.D.III. Disposal .............................................................................................................................. 51
10. Starting - Operation - Stopping - Emergency stopping ........................................................................ 52
10.A. Starting........................................................................................................................................ 52
10.B. Operation .................................................................................................................................... 52
10.B.I. Noise .................................................................................................................................... 52
10.C. Stopping ...................................................................................................................................... 53
10.D. Emergency stop........................................................................................................................ 53
11. Cleaning ........................................................................................................................................... 54
11.A. Fan support hub and motor support ................................................................................... 54
11.B. Motor ............................................................................................................................................ 55
11.C. Protection cover ....................................................................................................................... 56
11.D. Transmission belts................................................................................................................... 57
11.E. Pulleys.......................................................................................................................................... 58
11.F. Impeller........................................................................................................................................ 59
11.G. Venturi nozzle............................................................................................................................ 60
11.H. Protection grids ........................................................................................................................ 61
12. Inspection - Routine maintenance - Extraordinary maintenance.......................................................... 62
12.A. Intervention timetable............................................................................................................. 62
12.B. Conduct during inspections and maintenance................................................................ 62
12.C. Supervision / Simple Inspection........................................................................................... 63

Instruction manual
(technical handbook)
g&r – im th – Air
circulation fan - eng
First edition
01/01/1995
Air circulator fan Rev. No. 04
28/07/2016 Page 5 of 77
Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985
Tel. [phone] | Fax: [phone] | e-mail: [email protected]
12.D. Thorough Check / Inspection................................................................................................ 63
12.E. Routine maintenance............................................................................................................... 64
12.F. Extraordinary maintenance................................................................................................... 64
12.F.I. Venturi nozzle.................................................................................................................... 65
12.F.II. Impeller ............................................................................................................................... 65
12.F.III. Bearings, impeller shaft and spacer .......................................................................... 65
12.F.IV. Pulleys ................................................................................................................................. 65
12.F.V. Protection cover............................................................................................................... 65
12.F.VI. Transmission belts........................................................................................................... 65
12.F.VII. Motor support arm ................................................................................................... 65
12.F.VIII. Motor............................................................................................................................ 65
12.F.IX. Cross-shaped hub............................................................................................................ 65
12.F.X. Protection grid.................................................................................................................. 65
13. Maintenance logbook ........................................................................................................................ 66
13.A.Logbook structure (Suggestions)........................................................................................ 66
14. Lubrication ....................................................................................................................................... 68
14.A. Impeller transmission shaft bearings................................................................................. 68
15. Spare parts....................................................................................................................................... 68
16. Troubleshooting................................................................................................................................ 69
17. Facsimile of the machine documents accompanying the standard supply ........................................... 72
17.A. Declaration of conformity ...................................................................................................... 72
18. Diary of revisions .............................................................................................................................. 73
19. Notes................................................................................................................................................ 74
20. Annexes ........................................................................................................................................... 75
20.A. ANNEX 1 - Overall dimensions.............................................................................................. 75
20.B. ANNEX 2 – Alignment of the transmission belts .............................................................. 76
20.C. ANNEX 3 – Tensioning the transmission belts ................................................................. 76

Instruction manual
(technical handbook)
g&r – im th – Air
circulation fan - eng
First edition
01/01/1995
Air circulator fan Rev. No. 04
28/07/2016 Page 6 of 77
Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985
Tel. [phone] | Fax: [phone] | e-mail: [email protected]
1. Introduction
Thank you for purchasing a manufactured an air circulator fan by GIGOLA & RICCARDI S.p.A
(from here on simply referred to as “G&R”). In addition to expressing our gratitude to you for
having chosen our product, we are also pleased to inform you that the product you have
purchased has been designed in accordance with the provisions contained in the Machinery
Directive 2006/42/EC and respects all the regulatory and legislative requirements relating to
health and safety (Legislative Decree 9 April 2008, no. 81 – CONSOLIDATED LAW ON HEALTH
AND SAFETY AT THE WORKPLACE coordinated with Leg.Decree 3 August 2009, no. 106). The
components which make up the machinery have not only been exclusively produced using high-
quality materials, but have also been designed, shaped and manufactured in order to guarantee a
long service life. By drawing up an appropriate schedule for periodical checks, and carrying out
all necessary ordinary and extraordinary maintenance operations at set times and in set ways (or
immediately, should any operational issues arise), it will be possible to increase the effectiveness
and efficiency of the machine, as well as extending its general service life.
Considering that axial fans are MACHINES (though they may be simple constructions and their
operation easy to understand) they pose an intrinsic hazard and, therefore, we advise those who
are working and/or positioned in close proximity to the machine or its working range, either when
it has been shut down or (in particular) when it is in operation, to always proceed with caution,
take heed of the safety operating procedures and always use common sense during operation.
Finally, it is to be taken into consideration that the relative elementary nature of the fans does not
lessen the responsibility of those working on the machinery and does not give non-qualified
and/or non-authorised personnel the permission to perform operations on it. Prior to working on
the machine or any of its components, in order to prevent the occurence of dangerous or
potentially harmful situations (for the user, the machinery, those positioned in close proximity and
the installation itself) we categorically advise that this operation and maintenance manual be
read thoroughly.Should you require further or more detailed information about the machinery,
installation operations, startup, maintenance and/or disposal, we advise you to refer to our post-
sales technical assistance service [ Ref. Par. 1.O ], consult “our sales catalogue” or visit our
website: www.gigolariccardi.com
Before moving to another topic, we remind you that:
-the information contained in this document is in line with the technical and safety
specifications of the machine which the manual refers to;
-the instructions, drawings, diagrams, tables, technical data and other details included in
this manual are of a specific technical nature and are therefore subject to confidentiality;
-the drawings, diagrams, tables and technical data are up-to-date as of the publication
date of this document and exclusively refer to the machinery to which they are attached;
-the information contained in this operation and maintenance manual is not to be used for
purposes other than those for which the information has been prepared;
-this publication forms an integral and inseparable part of the documentation supplied with
the air circulator fan produced by G&R (STANDARD SUPPLIED KIT);
-the guarantee of proper functioning and full performance of the machinery is strictly
dependent on the correct implementation of all the instructions contained in this manual;
-the contents of this manual can be altered by G&R without prior notice and without
incurring any penalty.

Instruction manual
(technical handbook)
g&r – im th – Air
circulation fan - eng
First edition
01/01/1995
Air circulator fan Rev. No. 04
28/07/2016 Page 7 of 77
Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985
Tel. [phone] | Fax: [phone] | e-mail: [email protected]
1.A. General warnings
Certain illustrations included in this manual may depict the machinery (or its components) open and/or
dismantled. However, this is solely and exclusively for clarification of explanations. The machine must
NOT be used unless all the components are correctly positioned and secured in place.
We remind users that, whilst the information included in this document aims to highlight the
necessary measures to be taken by those working with the fan or operating on it to ensure they
do so in a safe manner, it is assumed in this manual that, in areas where the machinery is
destined to operate:
-the current regulations relating to occupational safety and hygiene be observed;
-personnel responsible for operating and maintaining the machinery possess a level of
instruction and training which enables them to correctly interpret and apply the
information provided.
1.B. Purposes and intentions of the manual
G&R has produced this document with the specific aim of immediately rendering all the
necessary information simple and accessible, so that those using the air circulator fan can
perform all activities related to the life cycle of the machinery in a safe manner.
Considering that failure to take heed of all the available information is an effective source of risk
and a clear cause of dangerous situations, those who come into contact with the machinery
mentioned in this document during their daily working activities, or even come into contact with it
in exceptional circumstances, are required to refer to this manual or, if necessary/in case of
doubt:
-contact the G&R post-sales technical assistance service [ Ref. Par. 1.O ]);
-consult the “sales catalogue”;
-visit our website: www.gigolariccardi.com.
G&R shall not to be held criminally or civilly responsible or liable for damages caused due to an
incorrect use of this documentation.
1.C. Glossary and terminology
SAFETY COLOUR A colour to which a specific meaning is assigned.
MACHINE
(GENERAL DEFINITION)
A term used in this operation and maintenance manual to refer to
the air circulator fan.
MACHINE
(DEFINITION ACCORDING TO THE
MACHINERY DIRECTIVE
2006/42/EC)
-An assembly consisting of linked parts or components, at
least one of which moves, with the appropriate actuators,
control and power circuits, etc., joined together for a specific
application, in particular for the processing, treatment,
moving or conditioning of materials.
-An assembly of machines and devices which, in order to
achieve the same end, are arranged and controlled so that
they function as an integral whole.
-Interchangeable equipment modifying the function of a
machine, which is placed on the market for the purpose of
being fitted on a machine or a series of different machines or
on a tractor by the operator himself in so far as this equipment
is not a spare part or a tool.
P.P.E. Personal Protective Equipment.
C.P.E. Collective Protective Equipment.
DANGER The properties or intrinsic qualities of a given factor with the
potential to cause harm.
RISK The probability of reaching the potential damage threshold in the
conditions of use and exposure to a given factor or agent or to a
combination of them. The risk (
R
) is a function of the level of
damage (
D
) provoked and of the probability (
P
) or frequency of
occurence of the damage.
RISK IDENTIFICATION The process for recognition of the existence of a risk and definition
of its characteristics.

Instruction manual
(technical handbook)
g&r – im th – Air
circulation fan - eng
First edition
01/01/1995
Air circulator fan Rev. No. 04
28/07/2016 Page 8 of 77
Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985
Tel. [phone] | Fax: [phone] | e-mail: [email protected]
RISK ASSESSMENT Procedure for assessing the possible scale of the damage such as
the consequence of the risk for the health and safety of the worker
when performing their activities, deriving from the occurrence of a
danger in the workplace.
EDUCATION Educational process through which knowledge and procedures of
use for acquiring skills are transferred to workers and other
persons involved in the company’s prevention and protection
system:
-for performing their respective jobs in the company in
safety;
-for the identification, reduction and management of the
risks.
INFORMATION The totality of the activities intended to provide useful knowledge
for the identification, reduction and management of the risks in the
work environment.
TRAINING The totality of the activities aimed at ensuring that workers learn
the correct use of the equipment, machines, plants, substances,
devices (including personal protective equipment) and work
procedures.
ACCIDENT An event that can give rise to an injury or which has the potential
for leading to an injury.
An accident which does not give rise to illnesses, injuries, damage
or other losses is described as a near miss or near accident.
The term accident includes near misses/near accidents.
INJURY An undesired event that can give rise to death, illnesses, wounds,
harm or other losses.
CORROSIVE Can effect a destructive action in contact with living tissues or
inanimate materials.
IRRITANT Though not being corrosive can cause an inflammatory reaction
with direct, prolonged or repeated contact with the skin or mucous
membranes.
EQUIPMENT This is intended as any machine, apparatus, tool or plant intended
to be used during work.
DANGER ZONE Any zone inside or in the vicinity of work equipment in which the
presence of a worker constitutes a risk for the health or safety of
the same.
EXPOSED PERSON Any person wholly or partly found in a danger zone.
USER Any
PERSON
(entrepreneur/enterprise/sole trader) who uses the
machine adequately or who entrusts the use or the operations
associated with use to prepared persons.
OPERATOR Personnel, generally without specific skills, who perform the
operations necessary for running the machine as well as cleaning
the same and the place in which it is installed; if necessary they are
able to perform simple adjustment operations or for restoring
machine operation.

Instruction manual
(technical handbook)
g&r – im th – Air
circulation fan - eng
First edition
01/01/1995
Air circulator fan Rev. No. 04
28/07/2016 Page 9 of 77
Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985
Tel. [phone] | Fax: [phone] | e-mail: [email protected]
PERSONNEL
CHARGED WITH
MECHANICAL
MAINTENANCE
QUALIFIED ENGINEER
[ Def. Ref. Par. 1.F. ] who, in relation to the
assignment levl, can put operations of a mechanical nature in place
in order to make adjustments, repairs and maintenance
operations.
Personnel charged with mechanical maintenance are usually
persons with sufficient experience in the field of aeraulic machines
as well as there control and adjustment technology; they are
generally not qualified to perform work on electrical systems either
off-line or live.
PERSONNEL
CHARGED WITH
ELECTRICAL
MAINTENANCE
QUALIFIED ENGINEER
[ Def. Ref. Par. 1.F. ] with PES-PAV-PEI
(skilled/trained) permits and official assignment by the company
proprietor (letter of appointment) who, in relation to the pay grade,
is responsible for operations of an electrical nature (adjustment,
maintenance and repair) on live and off-line machinery, equipment
and/or entire sites.
PERSONNEL
ASSIGNED TO
HANDLING
QUALIFIED PERSONNEL
[ Def. Ref. Par. 1.F. ] with fork-lift driver’s
licence (if the operation requires the use of motorised lifting
devices) and official appointment from the company proprietor
who, in relation to the assignment level, is charged with handling
loads on site, with managing internal logistics and/or with
positioning loads on means of transport.
MANUFACTURER’S
ENGINEER
QUALIFIED ENGINEER
[ Def. Ref. Par. 1.F. ] made available by G&R
for the performance of operations of a complex nature in particular
situations or, in any case, when agreed with the user.
PACKING PERSONNEL
QUALIFIED PERSONNEL
charged with:
-placing machinery in its packaging;
-closing the packaging in accordance with the internal
procedures;
-unpacking the machinery in accordance with the internal
procedures and instructions indicated on the packaging
itself.
-handling the machinery (packed and unpacked) manually
or, where applicable, using lifting means (in this case they
must also hold forklift drivers’ licences), in full compliance
with internal procedures and the safety conditions for
persons, the product and the environment.
TRANSPORT
PERSONNEL
QUALIFIED PERSONNEL
charged with:
-coordinating the personnel assigned to handling during
the operations for loading, stowing and positioning the
packs on the means of transport;
-transporting the packs to their destination in conditions of
safety for persons, the product and the environment;
-coordinating the personnel charged with handling during
the unloading stages.
DEALERS Person charged with:
-illustrating the features of the machine to potential buyers;
-providing indications for choosing the most appropriate
machinery for specific needs;
-warn potential clients about conditions of use that can be
dangerous for persons, the product and environment;
-provide guidelines for the performance of operations
relating to the product, the installation, use, maintenance,
repair, disassembly and demolition.

Instruction manual
(technical handbook)
g&r – im th – Air
circulation fan - eng
First edition
01/01/1995
Air circulator fan Rev. No. 04
28/07/2016 Page 10 of 77
Gigola e Riccardi S.p.A. Via Alessandro Volta, 7 | 25046 Cazzago San Martino (BS) Italy | VAT No. IT02050120985
Tel. [phone] | Fax: [phone] | e-mail: [email protected]
INSTALLATION
PERSONNEL
QUALIFIED PERSONNEL
, persons expressly or implicitly
deputised by the buyer and with the dealer’s collaboration to :
-position the machinery in a suitable place, following the
correct installation and safety procedures;
-provide the user with the fundamental information on
operation and maintenance in conditions of safety.
REPAIR PERSONNEL
QUALIFIED PERSONNEL
charged with diagnosing faults and
anomalous behavior of the machinery, availing themselves where
applicable of information provided by the user, remedying the
failures, making the necessary repairs, replacements and
adjustments necessary for restoring the product’s ability to work
correctly and in conditions of safety for persons, for the product
itself and for the environment.
DEMOLITION
PERSONNEL
QUALIFIED PERSONNEL
charged with:
-recognising the machinery’s obsolescence and the need
for demolition of the same;
-disassemblying the machine into its constituent parts;
-differentiating the materials by type and nature;
-eliminating the parts that cannot be reused and/or
recycled in a manner that is safe and correct from an
environmental point of view;
-sending recyclable parts to suitable collection centres.
APPARATUS Apparatuses are intended as the machines, materials, fixed or
movable devices, the control components, the instrumentation and
measurement and prevention devices which, on their own or
combined, are intended for the production, transportation,
storage, measurement, adjustment, and energy conversion and/or
the transformation of material and which, because of the potential
ignition or triggering sources specific to them, risk provoking an
explosion.
PLANT The totality of the equipment and conduits necessary for
transporting the “energies” to supply in order to “serve” parts or
entire buildings.
PRODUCTION UNIT Factory or structure intended for the production of goods or
services, provided with financial and technical-functional
autonomy.
SAFETY COMPONENT A component, provided that it is not a piece of interchangeable
equipment, that the manufacturer, or its established representative
in the European Union, markets for the purposes of ensuring a
safety function by means of its use, and the poor operation of
which jeopardises the health or safety of exposed persons.
PERIODICAL CHECK The set of operations to perform at intervals of at least six months,
for checking the complete and correct operation of the equipment
and plants.
EXPLOSION A sudden oxidation or decomposition reaction which creates an
increase in temperature or pressure, or both simultaneously.
EXPLOSIVE
ATMOSPHERE
An explosive atmosphere is intended as a mixture of air, in
atmospheric conditions, with substances that are flammable at the
gas state, vapours, mists or powders in which, following ignition,
combustion propagates to the entire unburnt mixture.
