www.aldes.com
EasyHOME®
Auto CLASSIC et
PureAIR CLASSIC
Notice d’installation et de maintenance
FR
Installation and maintenance instructions
EN
Installations- und Wartungsanleitung
DE
Montage- en onderhoudshandleiding
NL
Instrucción de instalación y de mantenimiento
ES
Manuale di installazione e di manutenzione
IT
2
1. GÉNÉRALITÉS • GENERAL INFORMATION • ALLGEMEINES • ALGEMEEN
• GENERALIDADES • GENERALITÀ

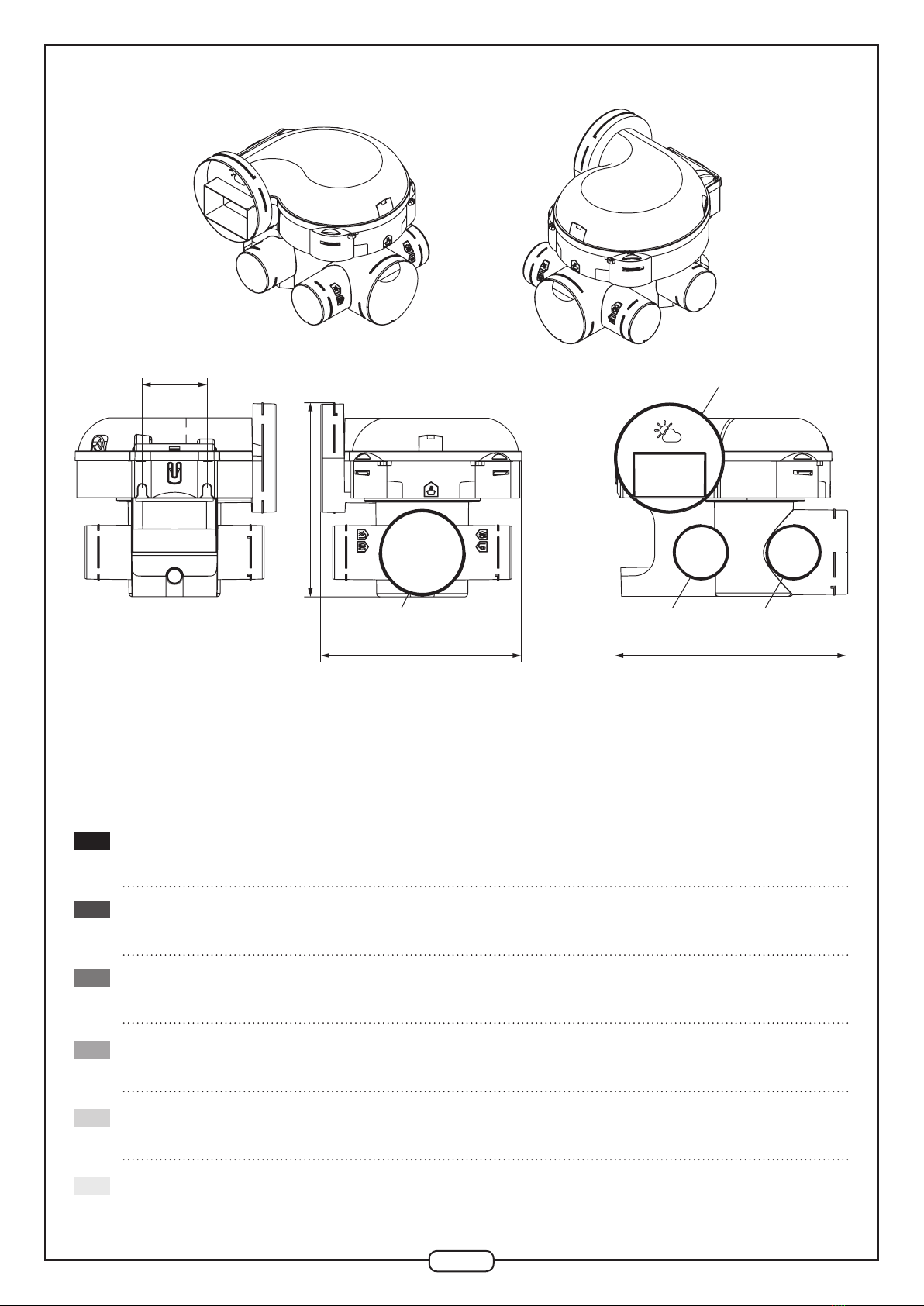

1.1. Description • Description • Beschreibung • Omschrijving • Descripción • Descrizione
6
7
4
5
2
2
2
2
3
1
8
9
11
10
12
13
6
7
4
5
2
2
2
2
3
1
8
9
11
10
12
13
FR EN DE NL ES IT
1Piquage refoulement
extérieur
Outdoor discharge
connection Messanschluss Abluft Aftakking buitenafvoer Orificio de descarga
exterior Presa scarico esterno
2Piquage sdb/wc Bath/WC connection Messanschluss BZ/WC Aftakking badkamer/
toilet
Orificio cuarto de baño/
WC Presa bagno
3Piquage cuisine Kitchen connection Messanschluss Küche Aftakking keuken Orificio cocina Presa cucina

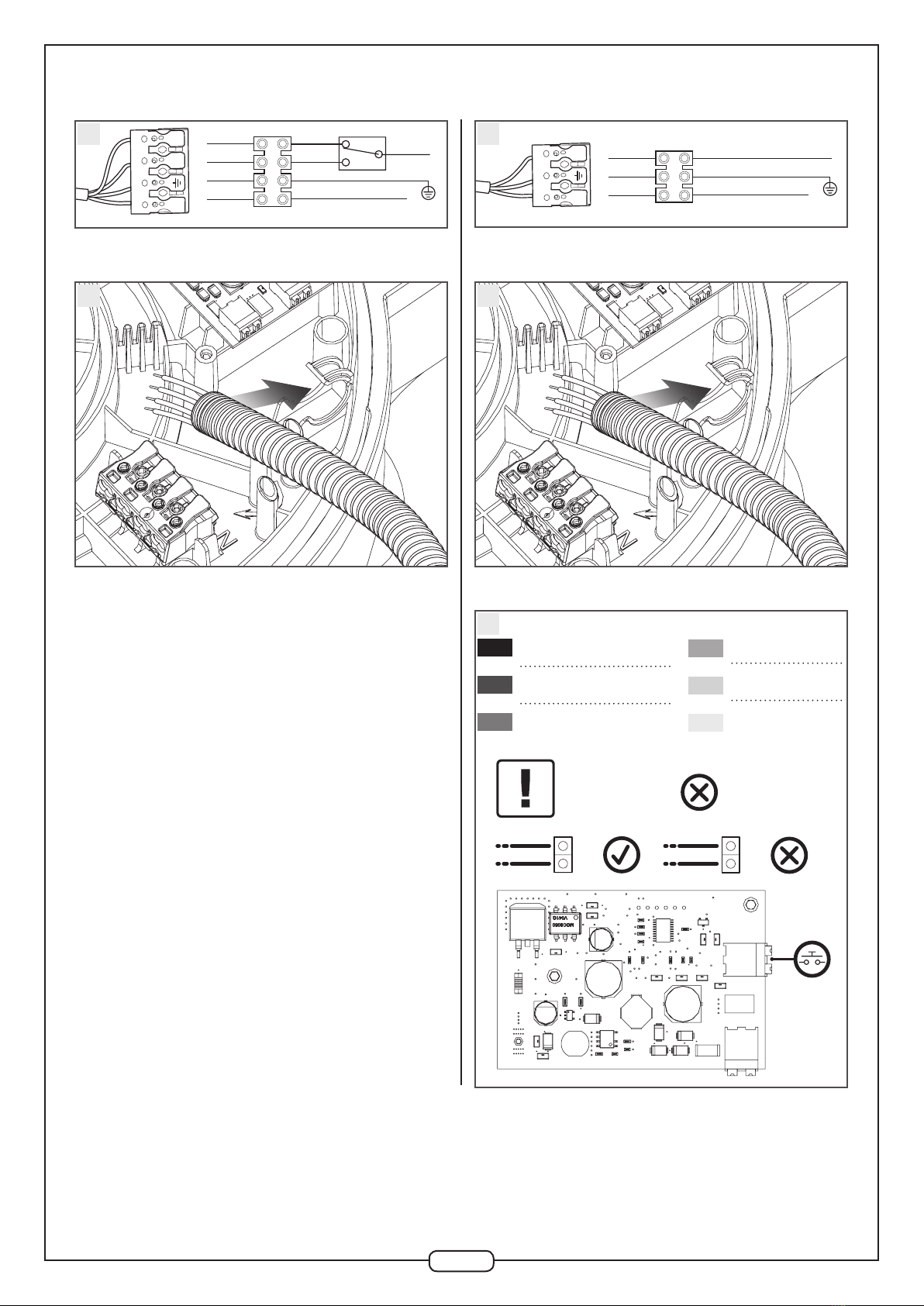

4Bornier électrique Electric terminal block Elektroklemmleiste Aansluitklem Bornes electricidad Morsettiera elettrica
5Motoventilateur Motorised fan unit
Motorgebläse
Motorventilator Motoventilador Motoventilatore
6Carte électronique PCB Elektronikkarte Printplaat Tarjeta electrónica Scheda elettronica
7Zone de fixation paroi Wall attachment area
Wandbefestigungsbereich
Muurbevestigingsgebied Zona de fijación en
pared Zona fissaggio parete
8Autoampli EasyHOME®
cuisine
EasyHOME®kitchen
self-amplifier
EasyHOME®
Selbstverstärker Küche
Autoampli EasyHOME®
keuken
Autoamplificador
EasyHOME®cocina
Autoamplificatore
EasyHOME®cucina
9Autoampli EasyHOME®
sdb
EasyHOME®bath self-
amplifier
EasyHOME®
Selbstverstärker BZ
Autoampli EasyHOME®
badkamer
Autoamplificador
EasyHOME®cuarto de
baño
Autoamplificatore
EasyHOME®bagno
10 Raccord refoulement
Ø160/125
Discharge connector
Ø160/125
Ausblasanschluss
Ø160/125
Uitblaasaansluiting
Ø160/125
Conexión de descarga
Ø160/125
Raccordo scarico
Ø160/125
11 Régulateur sdb Bath controller BZ-Regler Regelaar badkamer Regulador cuarto de
baño Regolatore bagno
12 Régulateur wc WC controller WC-Regler Regelaar toilet Regulador WC Regolatore bagno
13 Bouchon piquage Connection plug Messanschlusskappe Afsluitdop aftakking Tapón de orificio Tappo presa
GPE EasyHOME®Auto Kit EasyHOME®Auto Kit EasyHOME®Auto
+ ColorLINE®
GPE EasyHOME®PureAIR
CLASSIC
Kit EasyHOME®PureAIR
CLASSIC
N° 11026031 11026032 11026033 11033055 11033056
111111
244444
311111
411111
511111
61 1
711111
811111
92 2
10 11111
11 112
12 11222
13 22222
3
1.2. Dimensions • Dimensions • Abmessungen • Afmetingen • Dimensiones • Dimensioni (mm)
343
Ø 160
294
284
Ø 80 Ø 80Ø 125
95
1.3. Recommandations • Recommendations • Empfehlungen • Aanbevelingen •
Recomendacions • Raccomandazioni
Avant installation, mise en route et maintenance, lire attentivement la fiche «Mise en garde et informations réglementaires»,
jointe à ce produit.
Before installing, activating and maintaining this product, please read the «Precautions and regulatory information» data
sheet provided.
Lesen Sie das Produkt-Beilageblatt mit den „Warnhinweisen und verordnungsrechtlichen Informationen“ bitte vor der
Installation, Inbetriebnahme und Instandhaltung sorgfältig durch.
Voor installatie, inbedrijfstelling en onderhoud eerst het document ‘Waarschuwingen en reglementaire informatie’ lezen dat
bij dit product is bijgeleverd.
Antes de la instalación, la puesta en marcha y el mantenimiento, lea detenidamente la ficha «Advertencia e informaciones
reglamentarias» adjunta a este producto.
Prima delle operazioni di installazione, avviamento e manutenzione, leggere attentamente la scheda « Avvertenze e
informazioni regolamentari » allegata al prodotto.
FR
EN
DE
NL
ES
IT
4
2. MONTAGE • ASSEMBLY • EINBAU • MONTAGE • MONTAJE • MONTAGGIO
x1 x2
Pozidriv 6
2.1. Recommandations • Recommendations • Empfehlungen • Aanbevelingen •
Recomendaciones • Raccomandazioni
55°C
5°C
...?
30
MINI
Kg/m
2
30
MINI
Kg/m
2
5
2.2. Plans d’implantation • Installation plans • Einbaupläne • Montageschema’s • Planes de
implantación • Disegni di montaggio
400 mm mini.
400 mm mini.
400 mm mini.
400 mm mini.
300 mm mini.
6

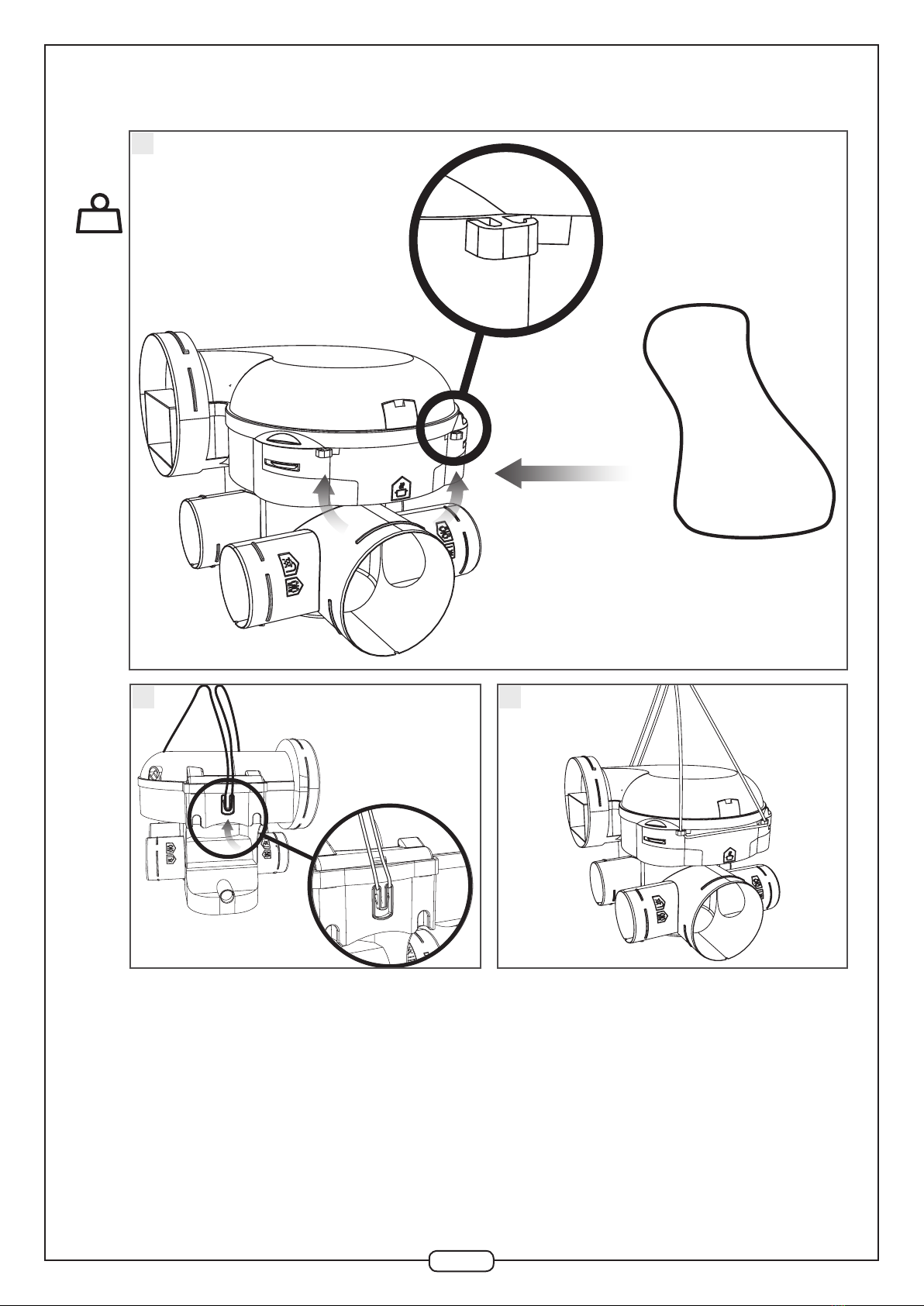

2.3. Montage suspendu • Suspended attachment • Hängende Montage • Hangende montage •
Montaje suspendido • Montaggio a soffitto
30
MINI
Kg/m2
2.
1.
3.
7

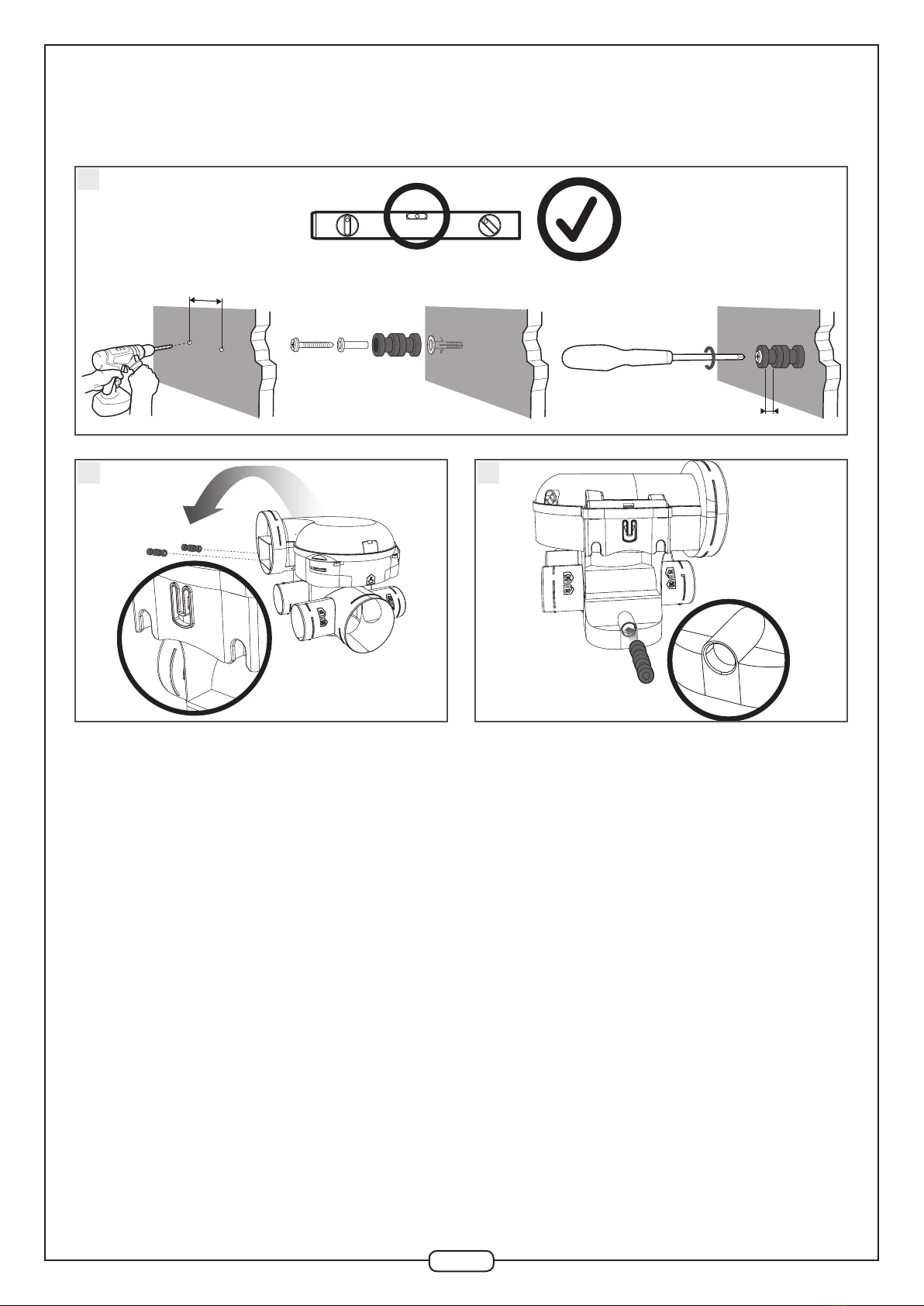

2.4. Montage vissé contre paroi (en option) • Screw attachment against wall (optional) •
Montage durch Wandverschraubung (optional) • Schroefbevestiging op muur (optioneel) •
Montaje con tornillos en pared (opción) • Montaggio avvitato a parete (opzionale)
4 mm
95 mm
1.
2. 3.
Kit de fixation mural - 11033015
8
3. ASSEMBLAGE • ASSEMBLY • ZUSAMMENBAU • MONTAGE •
ENSAMBLAJE • ASSEMBLAGGIO
...?
Ø 125 mm
Ø 80 mm Ø 80 mm
Ø 80 mm
Ø 80 mm
9

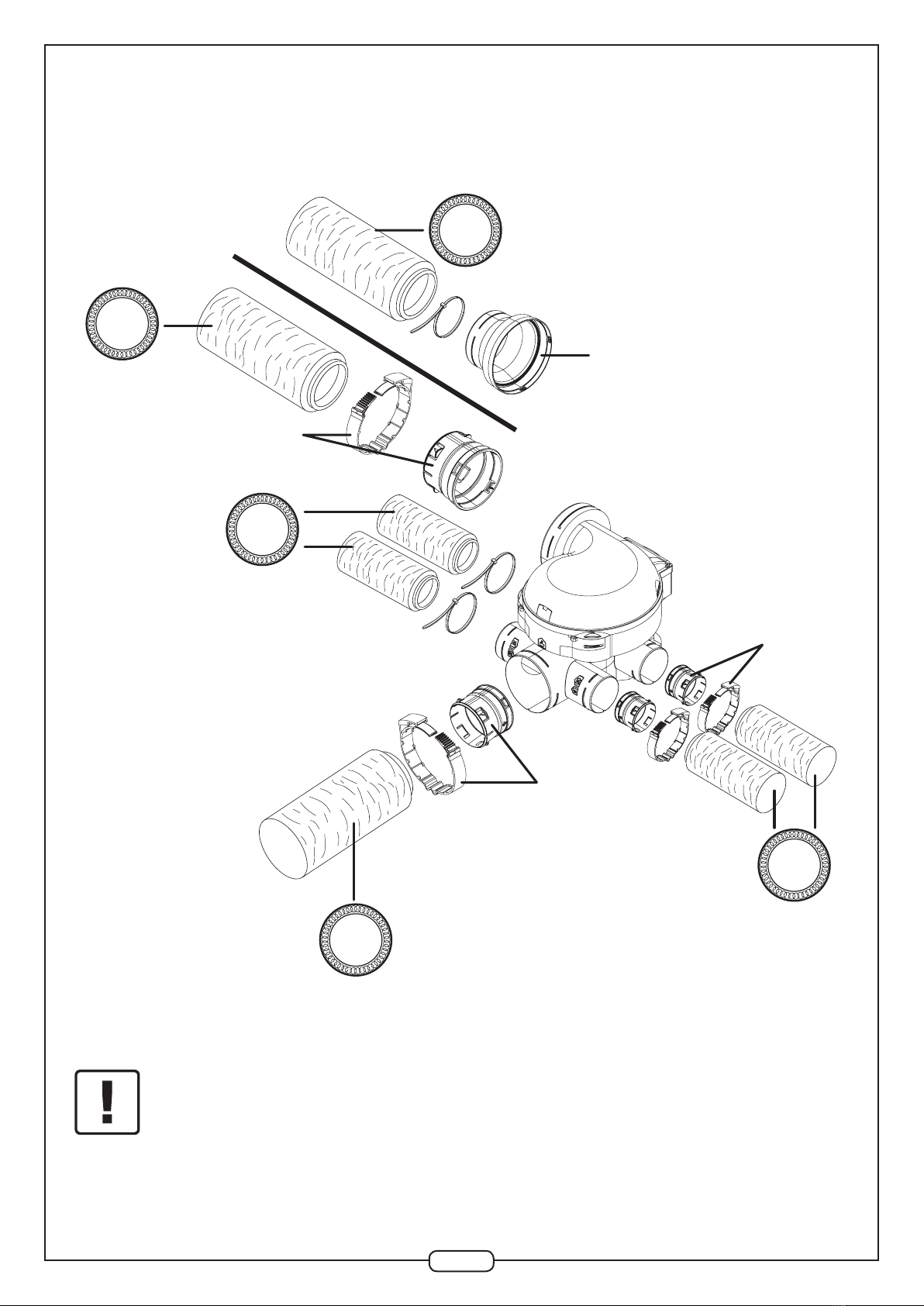

4. RACCORDEMENT DES CONDUITS • DUCT CONNECTIONS • ANSCHLUSS DER
KANÄLE • AANSLUITING VAN DE KANALEN • CONEXIONADO DE LOS TUBOS
• RACCORDO DEI CONDOTTI
Ø 160
Ø 80
Ø 125
Ø 80
Ø 125
11033011
11026025
11033016
11033010
Hors volume chauffé, isoler le réseau • Isolate the network, ex. volume heated • Das Netz mit Ausnahme des beheizten Volu-
mens isolieren • buiten verwarmde ruimte, het leidingstelsel isoleren • Fuera del volumen calentado, aislar la red • Isolare la
rete al di fuori del volume riscaldato
10
Raccordement avec EasyClip Algaine (en option) • Connection using Algaine EasyClip (optional) • Anschluss mit EasyClip Algaine (optional)
• Verbinding met EasyClip Algaine (optioneel) • Conexionado con EasyClip Algaine (opción) • Raccordo con EasyClip Algaine (opzionale)
CLIC
3.
CLIC
4.
1. 2.

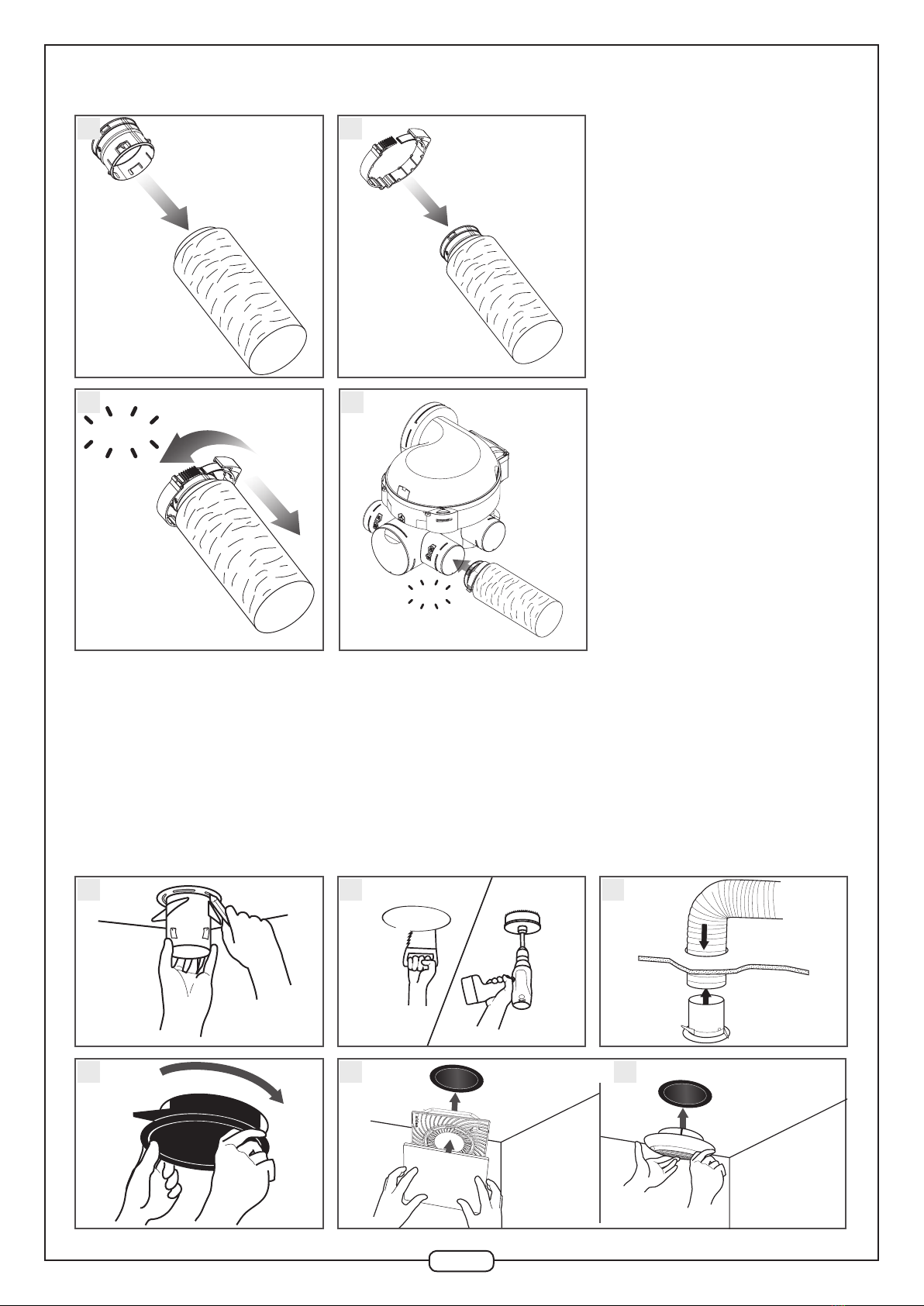

5. INSTALLATION DES GRILLES • INSTALLATION OF TERMINALS •
INSTALLATION DER GITTER • INSTALLATIE VAN DE ROOSTERS •
INSTALACIÓN DE LAS REJILLAS • INSTALLAZIONE DELLE GRIGLIE
Installation dans les pièces techniques et humides • Installation in utility rooms and humid rooms • Installation in technischen Lokalen
und Feuchträumen • Installatie in technische en natte ruimtes • Instalación en las piezas técnicas y húmedas • Installazione in locali
tecnici e umidi
1.
4.
2.
5.
3.
ou 5’.
