Power Craft PBH-1500 Technical manual

1500W ROTARY HAMMER
User Guide & Warranty
After Sales Support
Now you have purchased a Power Craft
product you can rest assured in the
knowledge that as well as your 3 year
parts and labour warranty you have
the added peace of mind of dedicated
helplines and web support.
AFTER SALES SUPPORT
UK HELPLINE NO 0905-1460005 (£ 0,06 /min.)
IRELAND HELPLINE NO 1520-932626 (E 0,15 /min.)
WEB SUPPORT www.servotool.eu
Model nuMber: PbH-1500
ArT.no: HdM6022

Contents
3 Introduction
4. Machine information
9. Safety instructions
14. Operation
16. Service & maintenance
18. Exploded view
19. Spare parts list
23. Warranty
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
2

Introduction
Congratulations on choosing to buy a Power
Craft product.
By doing so you now have the assurance and peace of mind that comes with
purchasing a product made by one of Europe’s leading manufacturers.
All products brought to you by Power Craft are manufactured to the highest
standards of performances and safety, and, as part of our philosophy for
customer service and satisfaction, are backed by our comprehensive
3 Year Warranty.
We hope you will enjoy using your purchase for many years to come.
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
3

Machine information
ROTARY HAMMER DRILL
The numbers in the following text correspond with the pictures at page 5-7.
Read this manual carefully, before using the machine. Ensure that
you know how the machine works, and how it should be operated.
Maintain the machine in accordance with the instructions, and make
certain that the machine functions correctly. Store this manual and
other enclosed documentation with the machine.
Intended use
The PBH-1500 is intended for drilling holes in masonry such as brick, concrete
and similar materials. Furthermore, the machine can be used as a demolition
hammer in combination with the SDS cold chisels provided. The machine is on
no account intended for other purposes.
Not suitable for construction site usage.
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
4

Machine information
Fig. A
Product information
Fig. A+E
1. Rotary stop selection lever
2. On-off Switch
3. Lock off button
4. Hammer stop selection lever
5. Electric cord
6. Auxiliary handle
7. Depth gauge
8. Dust cap
9. Speed control
10. Locking sleeve
11. Grease cap
12. Screw
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
5
7
6
1
11
4
9
5
3
2
10 12

Machine information
Fig. B
Fig. C
Fig. D
UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
6

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
7
Machine information
Fig. E
Technical specifications
Voltage 230 - 240 V
Frequency 50 Hz
Power rating 1500 W
Rotational speed, not loaded 0-800/min
Impact rate 0-3900/min
Max. bit diameter:
Concrete Ø 32 mm
Steel Ø 13 mm
Wood Ø 40 mm
Weight 5.7 kg
Lpa 94.2 + 3 dB(A)
Lwa 105.2 + 3 dB(A)
Vibration:
When chiseling 16.983 + 1.5 m/s
When hammering in concrete 19.189 + 1.5 m/s
Vibration level
The vibration emission level stated in this instruction manual has been measu-
red in accordance with a standardised test given in EN 60745; it may be used
to compare one tool with another and as a preliminary assessment of expo-
sure to vibration when using the tool for the applications mentioned
- using the tool for different applications, or with different or poorly
maintainted accessories, may significantly increase the exposure level

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
8
Machine information
- the times when the tool is switched off or when it is running but not
actually doing the job, may significantly reduce the exposure level
Protect yourself against the effects of vibration by maintaining the tool and
its accessories, keeping your hands warm, and organizing your work
patterns
Contents
1. Machine information
2. Safety instructions
3. Operating
4. Maintenance
Please inspect the machine and accessories for transit damage.
Contents
1 Rotary hammer drill
1 Auxiliary handle
1 Depth stop
1 Dust cover
1 Pot of grease
1 Keyed drill chuck with SDS adapter and key
1 Pointed chisel 250mm
1 Flat chisel 250mm
3 SDS drills (8/150mm, 10/150mm, 12/150mm)
1 Instructions manual
1 After sales card
1 Quick start guide

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
9
Safety instructions
Explanation of the symbols
Read the instructions carefully.
Conformity with the relevant EU safety directives.
Class II machine - double insulation - earth connection not required.
Danger of life and risk of injury as well as risk of damage to the
machine in case of non-adherence to the safety instructions in these
instructions of use..
Danger of electric shock.
Remove the plug from the mains socket.
Wear a dust mask.
Wear ear and eye protection
Faulty and/or discarded electrical or electronic apparatus have to be
collected at the appropriate recycling locations.
General Power Tool Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
10
Safety instructions
The term “power tool” in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric
shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of
electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal
injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
11
Safety instructions
c) Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from
the power tool before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tool’s operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to
be performed. Use of the power tool for operations different from those
intended could result in a hazardous situation.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
12
Safety instructions
5) Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
Specific safety instructions
- Wear ear protectors. Exposure to noise can cause hearing loss.
- Use auxiliary handles supplied with the tool. Loss of control can cause
personal injury.
- Hold power tool by insulated gripping surfaces, when performing an
operation where the cutting accessory may contact hidden wiring or its
own cord. Cutting accessory contacting a “live” wire may make exposed
metal parts of the power tool “live” and give the operator an electric
shock.
Vibration level
The vibration emission level stated in this instruction manual has been
measured in accordance with a standardised test given in EN 60745; it may be
used to compare one tool with another and as a preliminary assessment of
exposure to vibration when using the tool for the applications mentioned
- using the tool for different applications, or with different or poorly
maintainted accessories, may significantly increase the exposure level
- the times when the tool is switched off or when it is running but not
actually doing the job, may significantly reduce the exposure level
Protect yourself against the effects of vibration by maintaining the tool and
its accessories, keeping your hands warm, and organizing your work patterns.
For use of this machine/tool:
- Inspect the surface to be drilled for hidden electrical wiring, gas pipes or
other obstacles (for example using a metal detector).
Check the following points:
- Does the appliance’s voltage correspond with the mains power supply
voltage?
- Are power cords, insulation and plug in good order: sound, not loose or
damaged?
- Is there a good, firm connection at the mains socket?
- Does the drill show any sign of abnormal running, overheating or excessive

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
13
Safety instructions
sparking?
- Whenever any of the problems mentioned above appear, immediately
cease using the machine and have it repaired by an expert.
Electrical safety
When using electric machines always observe the safety regulations
applicable in your country to reduce the risk of fire, electric shock and
personal injury. Read the following safety instructions and also the enclosed
safety instructions.
Always check that the mains voltage is the same as on the type plate
of the machine.
Class II machine – Double insulation – You don’t need any earthed
plug.
Replacement of power cords or plugs
Immediately dispose of old cords and plugs once they have been replaced.
It is dangerous to plug a loose power cord into a mains power socket.
Use of extension leads
Only ever use approved extension leads that are suitable for the power rating
of the machine. The minimum core thickness is 1,5 mm2. Whenever using a
reel extension lead, always fully unroll the lead.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
14
Operation
Hammer drills require very little operator pressure. Excessive
pressure on the tool can lead to unnecessary overheating of the
motor, and burning of the driven tool.
Auxiliary handgrip
The auxiliary handgrip can be rotated 360º around the drill head, enabling
safe and comfortable operation, for both left and right-handed users.
- Loosen the handgrip by turning it anticlockwise.
- Rotate the handgrip to the desire position.
- Retighten the handgrip in the new position
Exchanging and removing drill bits

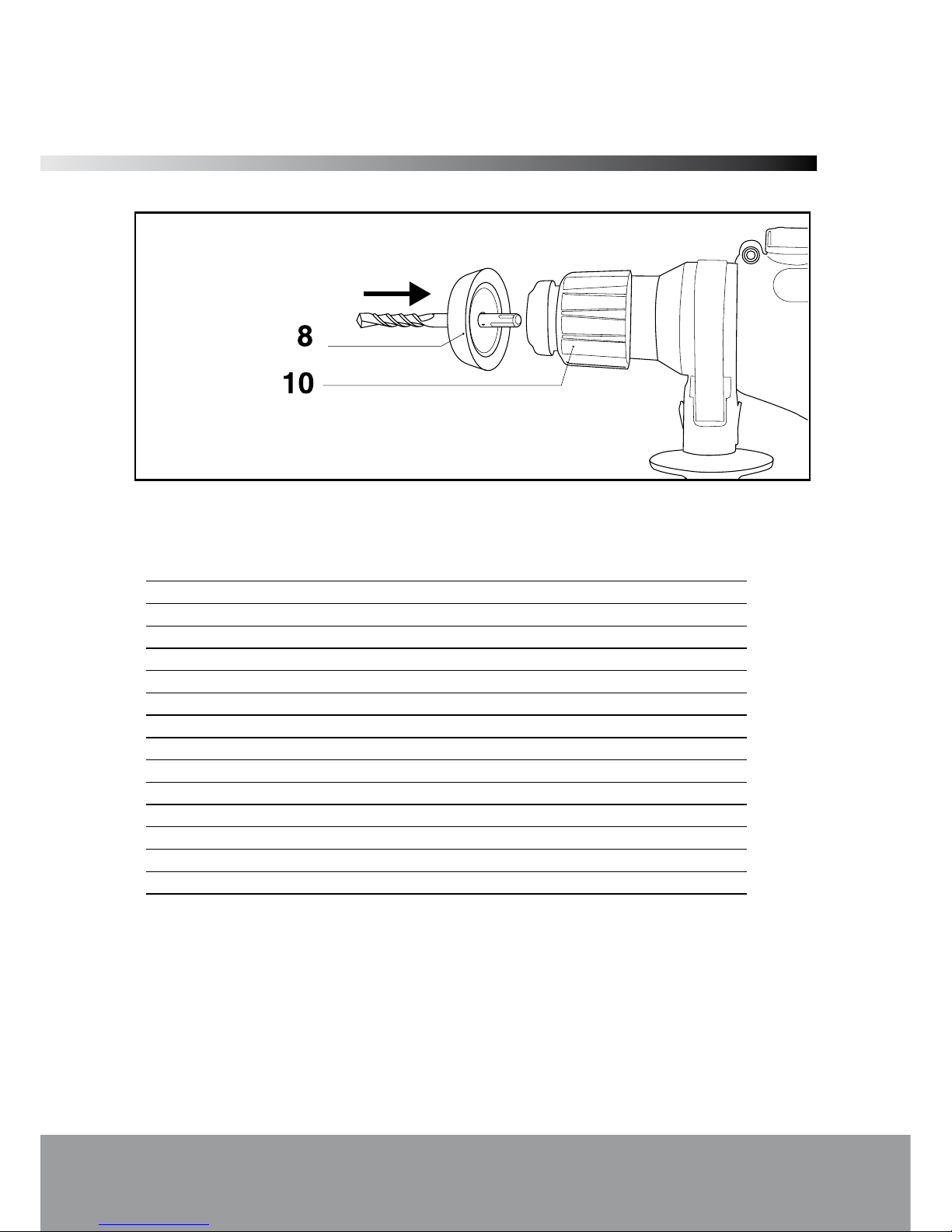

Fig. A+B
Before exchanging bits, first remove the power plug from the wall
socket.
Inspect bits regularly during use. Blunt bits should be re-sharpened
or replaced.
- Lightly oil the bit shaft before inserting it into the chuck.
- Slide the locking sleeve (10, Fig A) to the rear, and insert the bit into the
chuck opening. Ensure that the keyway in the bit is seated properly in the
chuck, by carefully turning the bit until it clicks into place. Release the
locking sleeve.
- To remove the bit, slide and hold the locking sleeve to the rear.
Keyed drillchuck + adapter
Fig. C
Use the supplied drillchuck for use with standard drills. Mount the drillchuck
as shown in the illustration.
Setting depth gauge
Fig A.
- Unscrew the screw.
- Insert the depth gauge ruler through the hole in the auxiliary handgrip.
- Slide the ruler to the desired depth.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
15
Operation
- Retighten the screw firmly.
Function selection switch
Fig. D
The correct position of the selection switch for each machine function is given
in the diagram on page 3.
1 = Demolition hammer/chisel
2 = Rotary hammer drill
3 = Drilling
Switching On/Off
This machine is equiped with a safety button. To unlock the switch, press the
safety button.
- To start the drill, press the On/Off switch.
- To stop the drill, release the On/Off switch.
Speed control.
With the turning wheel in the main handle the speed can be set. The higher
the number, the faster the speed.
CAUTION: Running the machine too long at a low speed can cause the motor
to overheat.
Installing dust catcher
Fig. E
The dust catcher prevents large amounts of drilling dust entering the
machine when drilling into ceilings.
- Remove the drill bit
- Slide the dust catcher over the shaft of the drill bit.
- Place the drill bit with catcher in the drill chuck.
- Always replace a damaged dust catcher immediately.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
16
Service & Maintenance
Take care that the machine is not connected to power whenever
maintenance work on the mechanical parts is taking place.
The machines are designed to function problem-free for a long period with a
minimum of maintenance. Through regular cleaning and correct treatment,
you help assure a long working life for your machine.
Defects
The machine should be regularly inspected for the following possible defects,
and repaired if necessary.
Damage to power cord.
Broken on/off trigger assembly.
Short circuiting.
Damaged moving parts.
Trouble shooting
1. When switched on, the motor does not turn.
- Failure in power supply.
- Check the power supply.
- Poor contact in the on/off trigger.
- Repair or replace the trigger assembly
- Mains voltage too low.
- Extension lead too long, or too light.
- Damaged motor.
- Have your machine repaired by an expert.
- Carbon brushes worn.
- Replace the carbon brushes
2. Motor generates excessive noise, and runs too slowly or not at all.
- Motor is overloaded due to excessive pressure or drilling depth.
- Reduce the pressure or drilling depth, reduce power.
- Damaged motor.
- Have your machine repaired by an expert.
- Supply voltage too low.
- Adjust the supply voltage
- Carbon brushes worn.
- Replace the carbon brushes

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
17
Service & Maintenance
3. Overheating in the transmission case.
- Overloading of machine, or blunt drill bit
- Reduce the loading, or hone the drill bit.
- Reduced voltage.
- Adjust the supply voltage.
4. Heavy sparking from the motor.
- Inspect the carbon brushes for wear
Cleaning
Clean the machine casings regularly with a soft cloth, preferably after each
use. Make sure that the ventilation openings are free of dust and dirt.
Remove very persistent dirt using a soft cloth moistened with soapsuds. Do
not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such
as these will damage the synthetic components.
Faults
Should a fault occur, e.g. after wear of a part, please contact the service
address on the warranty card. In the back of this manual you find an
exploded view showing the parts that can be ordered.
Environment
To prevent damage during transport, the appliance is delivered in a solid
packaging which consists largely of reusable material. Therefore please make
use of options for recycling the packaging.
Faulty and/or discarded electrical or electronic apparatus have to be
collected at the appropriate recycling locations.
Warranty
For the conditions of warranty, please refer to the separately provided
warranty card.

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
18
Exploded view

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
19
No. Description Position
204017 Selector front 55
204018 Selector back 63 till 72
204019 Gear 80
204020 Carbon brush set 94
204048 Switch 104
204022 Speed control 105
204023 Side handle complete S101 till S107
Spare parts list

UK Helpline 0905-1460005 • Ireland Helpline 1520-932626
Web Support: www.servotool.eu
Model Number: PBH-1500
20
