Power Craft EHT 500 User manual

Art.-No.: 34.035.27 EHT 500
Operating Instructions
Hedge Trimmer

2
1

3
5


2






3
8
9
76

4
GB
Safety instructions
Please read and follow the safety instructions
carefully.
1.1 Before the following operations are undertaken
with the hedge trimmer it is necessary to dis-
connect the plug from the mains e.g.
- Checking for Damage or replacing the cable
- Cleaning the blade
- Checking for blockages
- Cleaning and servicing
1.2 The machine can cause serious injuries! Read
the operating instructions carefully and learn
how to handle, prepare, repair, start and stop
the machine correctly. Acquaint yourself with all
the adjusting parts and with how to use the
machine properly.
1.3 Hedge trimmers must only be operated with
both hands.
1.4 When using the hedge trimmer always work
from a stable position with sturdy footware.
1.5 Do not cut hedges when wet or in the rain do
not store the apparatus outside.
If for any reason the apparatus becomes wet it
must not be used.
1.6 We recommend that you wear goggles and ear
defenders while cutting with the machine.
1.7 Wear suitable work clothing, such as rubber
gloves, anti-slip shoes and no loose clothing.
Long hair must be contained by a hair net.
1.8 Avoid abnormal working positions and make
sure you stand securely, particularly when
using ladders and steps.
1.9 Keep a sufficient distance between the appara-
tus and body while working.
1.10 Pay attention that children, animals and any
other people are outside the working area.
1.11 Carry the hedge trimmer only by the operating
handle.
1.12 Keep the cable out of the cutting area.
1.13 Check the cable for signs of damage or wear
1.14 Do not disconnect the mains plug by pulling on
the cable. Do not carry the apparatus by the
cable. Avoid all damages to the cable.
1.15 Protect the cable from heat, overflowing liquids
and damage through sharp edges. Replace a
damaged cable immediately.
1.16 Examine the cutting device regualarly for signs
of damage and if necessary have the tool repai-
red by the experts from your Customer Service
Partner or a specialized workshop.
1.17 If a blockage of the cutting device occurs, e.g.
thick branches etc., the hedge trimmer must
switched off and disconnect the plug from the
mains only then can the cause fo the blockage
be removed.
1.18 Establish a storage location which is dry, safe
and inaccessible for children.
1.19 Always cover the cutting device with its guard
during transportation and storage.
1.20 Avoid overloading the apparatus. Do not carry
out any work for which the apparatus is not
designed.
1.21 Only use cables and plug connections which
are approved for outdoor use
- Connecting cable HO7RN-F2x1.0 with an extru-
ded shaped plug.
- Extension cables HO7RN-F3G1.5 with weathe-
rproof shockproof plug and shockproof cou-
pling.
-For the operating of electric tools the use of a
current leakage protection device or a residual
current operated device is recommended.
1.22 The revalant checks and services must be done
regularly to the hedge trimmer. Replace dama-
ged knives only in pairs. A tradesman`s attenti-
on is necessary for damages occured through
falling or impact.
1.23 Maintain and service your tool carefully. Keep
your tool clean and sharp to make good and
maintenance.
1.24 According to the regulations of the agricultural
trade union only persons over the age of 17
years are allowed to operate an electric powe-
red hedge trimmer. This is permissible for per-
sons 16 years of age and under adult super-
visions.
1.25 Never use the machine with a damaged or
excessively worn cutting device.
1.26 Familiarize yourself with your surroundings and
note any possible hazards which you may not
hear due to noise from the machine.
1.27 The level of noise at the workplace may exeed
85 dB(A) in this case you will need to introduce
noise protection measures for the user. The
noise generated by this electric tool is measu-
red in accordance with IEC 59 CO 11, IEC 704,
DIN 45635 Part 21, NFS 31-031 (84/537/EEC).
1.28 Handle vibrations are measured in accordance
with ISO 5349.

5
GB
2. Items supplied (see Figure 1)
1 Cutter rail
2 Hand guard
3 Guide handle with button switch
4 Handle with button switch
5 Power cable
6 Storage case
It is prohibited to use the hedge trimmer without
the hand guard.
3. Fitting the hand guard
Slide the supplied hand guard (Figure 1 / Item 2) over
the cutter bar and use 2 screws on each side to
fasten it to the housing (Figure 2).
4. Explanation of rating plate
(see Figure 3)
Item 1+3:Important! Read the operating instructions
carefully before you use the hedge trimmer.
Item 2: Wear ear-muffs or similar protection.
Item 4: Pull out the plug immediately if the power
cable is damaged or severed.
Item 5: Never use the hedge trimmer in the rain, in
damp conditions or on wet hedges.
5. Technical data
Voltage 230 V - 240 V ~ 50 Hz
Power consumption 500 W
Cutting length 465 mm
Cutter rail length 555 mm
Tooth spacing/max. dia. to be cut 14 mm
Cuts/min 3200
Sound power level LWA 95 dB(A)
Sound pressure level LPA 82 dB(A)
Vibration aw 4.4 m/s2
6. Power supply
The hedge trimmer is designed for use only with
single-phase alternating current from a 230V 50Hz
AC supply. It is totally insulated, enabling it to be
connected also to socket-outlets without a PE con-
ductor. Before you use the hedge trimmer for the first
time, check that your mains voltage is the same as
the operating voltage specified on the machine’s
rating plate.
7. Startup and operation
Caution! This hedge trimmer is designed to cut hed-
ges, bushes and shrubs. Any other use which is not
expressly permitted in these instructions may cause
damage to the hedge trimmer and place the user at
serious risk.
Your hedge trimmer is equipped with a two-hand
safety circuit. This means that it works only when the
switch button on the guide handle (Figure 1 / Item 3)
is pressed with the one hand while the switch on the
handle (Figure 1 / Item 4) is being pressed with the
other hand.
If you let go of either switching element, the blades
will stop moving.
The blades take time to slow down to a standstill.
Please make allowance.
- Check that the blades are working properly. High
cutting performance and smooth operation are
guaranteed by the counter-rotating, dual-edge
blades.
- Use only approved extension cables for outdoor
use.
8. Practical tips
The hedge trimmer can be used to cut shrubs
and bushes as well as hedges. (max. dia. to be
cut: 14 mm)

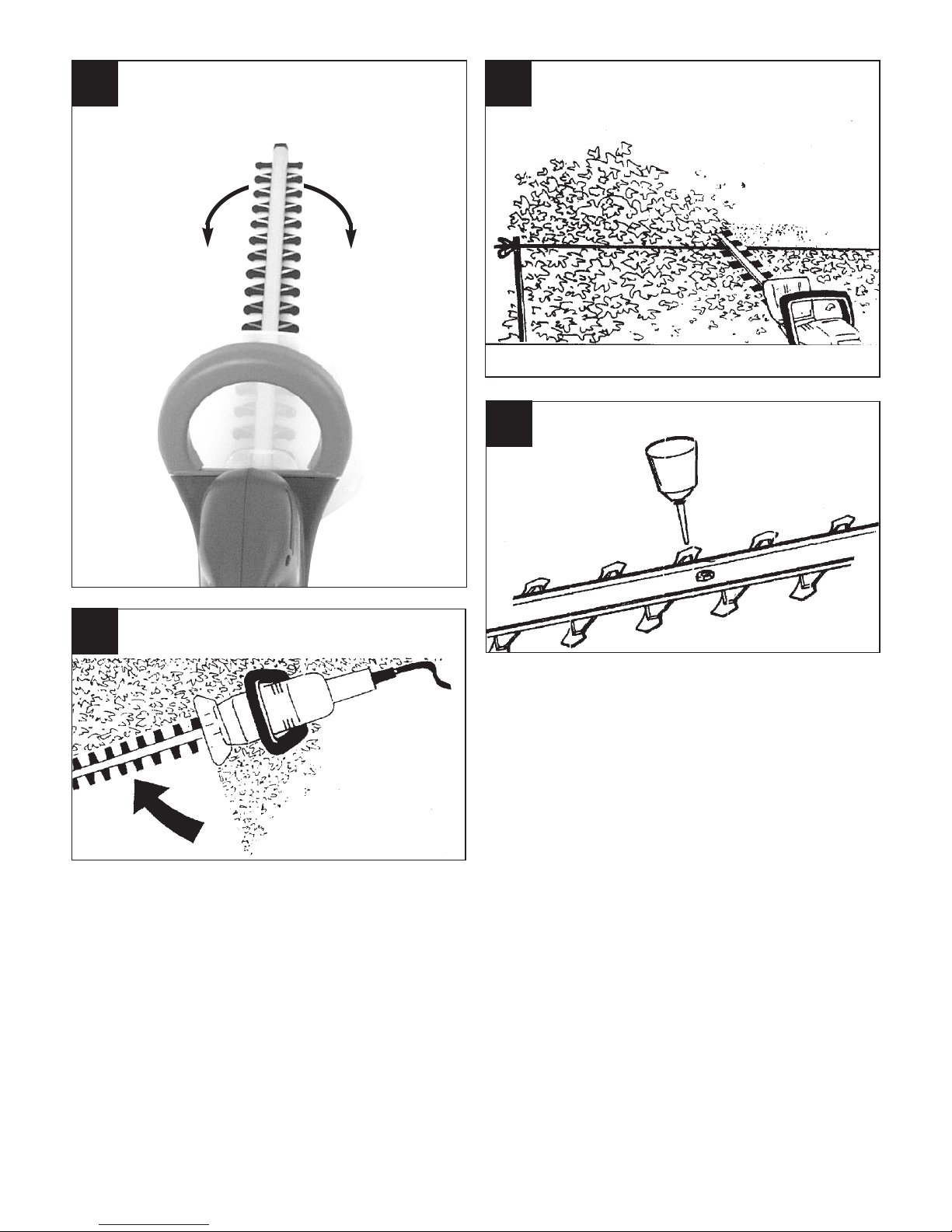

For the best performance, hold the hedge trim-
mer with its teeth at an angle of approx. 15° to
the hedge (see Figure 5).
Cutting in both directions is possible with the
counter-rotating dual-edge blades (see Figure 6).
To trim your hedge to a uniform height, run a
length of string along the hedge for guidance and
cut off the projecting branches (see Figure 7).
Cut the sides of the hedge with sweeping move-
ments from the bottom up (see Figure 8).
9. Maintenance and cleaning
Switch off the hedge trimmer and pull out its
power plug before you put it down and clean it.
For the best cutting performance at all times,
clean and lubricate the blades ate regular inter-
vals. Remove deposits with a brush and apply a
thin film of oil (see Figure 9).
Use bio-degradable oils.
Clean the plastic housing and parts with a mild
household detergent and a damp cloth. Never
use aggressive agents or solvents.

6
GB
Be particularly careful not to allow any water to
get inside the machine.
The supplied blade cover can be fastened to the
wall. This is the best place to store your hedge
trimmer.
10. Disposal
Important!
The hedge trimmer and its accessories are made of
an assortment of materials, e.g. metal and plastics.
Defective components must be disposed of as speci-
al waste. Do not throw in the household refuse
bin! Ask your dealer or local authority.

7

EG Konformitätserklärung Der Unterzeichnende erklärt im Namen der Firma
Achivierung / For archives: KCH-0766-30-414745-E
EHT 500
–Seriennummer auf
dem Produkt – der
EG Maschinenrichtlinie
98/37EG mit Änderungen
EG Niederspannungs-
richtlinie 73/23 EWG
EG Richtlinie Elektro-
magnetische Verträglichkeit 89/336 EWG mit Änderungen entspricht.
Landau/Isar, den
06.12.2000
Weichselgartner
Produkt-Management
Typ
Marke
daß die
Maschine/Produkt

EC Declaration of Conformity The Undersigned declares, on behalf of
–Serial number specified on
the product - is in accordance with the
EC Directive regarding
machinery 98/37 EEC, as amended;
EC Directive regarding
low-voltage equipment 73/23 EEC;
EC Directive regarding
electromagnetic compatibility 89/336 EEC, as amended.
Landau/Isar, (date)
06.12.2000
Weichselgartner
Produkt-Management
Landau/Isar, (date)
06.12.2000
Weichselgartner
Produkt-Management
Landau/Isar, datum
06.12.2000
Weichselgartner
Produkt-Management
Landau/Isar
06.12.2000
Weichselgartner
Produkt-Management
Landau/Isar
06.12.2000
Weichselgartner
Produkt-Management
Type
produced by:
that the
Machine / Product

Déclaration de Conformité CE Le soussigné déclare, au nom de
–no. série indiqué sur le
produit - correspond(ent) à la
Directive CE relative aux
machines 98/37 CEE avec les modifications y apportées;
Directive CE relative aux
basses tensions 73/23 CEE;
Directive CE relative à la
compatibilité électro- magnétique 89/336 CEE avec les modifications y apportées.
Type
du fabricant
que
la machine / le produit

Declaracion CE de Conformidad Por la presente, el abajo firmante declara en nombre de la empresa
–No. de serie en el producto:
satisface las disposiciones pertinentes siguientes:
Disposición de maquinaria
de la CE 98/37/CEE con modificaciones
Disposición de baja tensión
de la CE 73/23 CEE
Disposición de la
compatibilidad electro- magnética de la CE 89/336 CEE con modificaciones.
tipo
marca
que el/la
máquina/producto

Declaração de conformidade CE O abaixo assinado declara em nome da empresa
–cujo número de série
encontra-se no produto - corresponde à
Directiva da CE de
máquinas 98/37/CEE, com alterações
Directiva da CE de baixa
tensão 73/23 CEE
Directiva da CE de
compatibilidade electro- magnética 89/336 CEE, com alterações
tipo
marca
que
a máquina/o produto
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Heckenschere Hedge trimmer Taille-haie Tijeras para setos Tesoura para sebes
EN 50144-1; EN 50144-2; ISO 3744; ISO 11201; EN 55014; EN 60555-2; EN 60555-3; EN 55104

EC Overensstemmelses- erklæring Undertegnede erklærer på vegne af firmaet
–Serienummer på produktet -
opfylder
EU-maskindirektiv
98/37EØF med ændringer
EU-lavspændingsdirektiv
73/23/EØF
EU-direktiv vedr.
elektromagnetisk støj (EMC) 89/336/EØF med ændringer.
type
mærke
at
maskine/produkt
Hæksaks

8

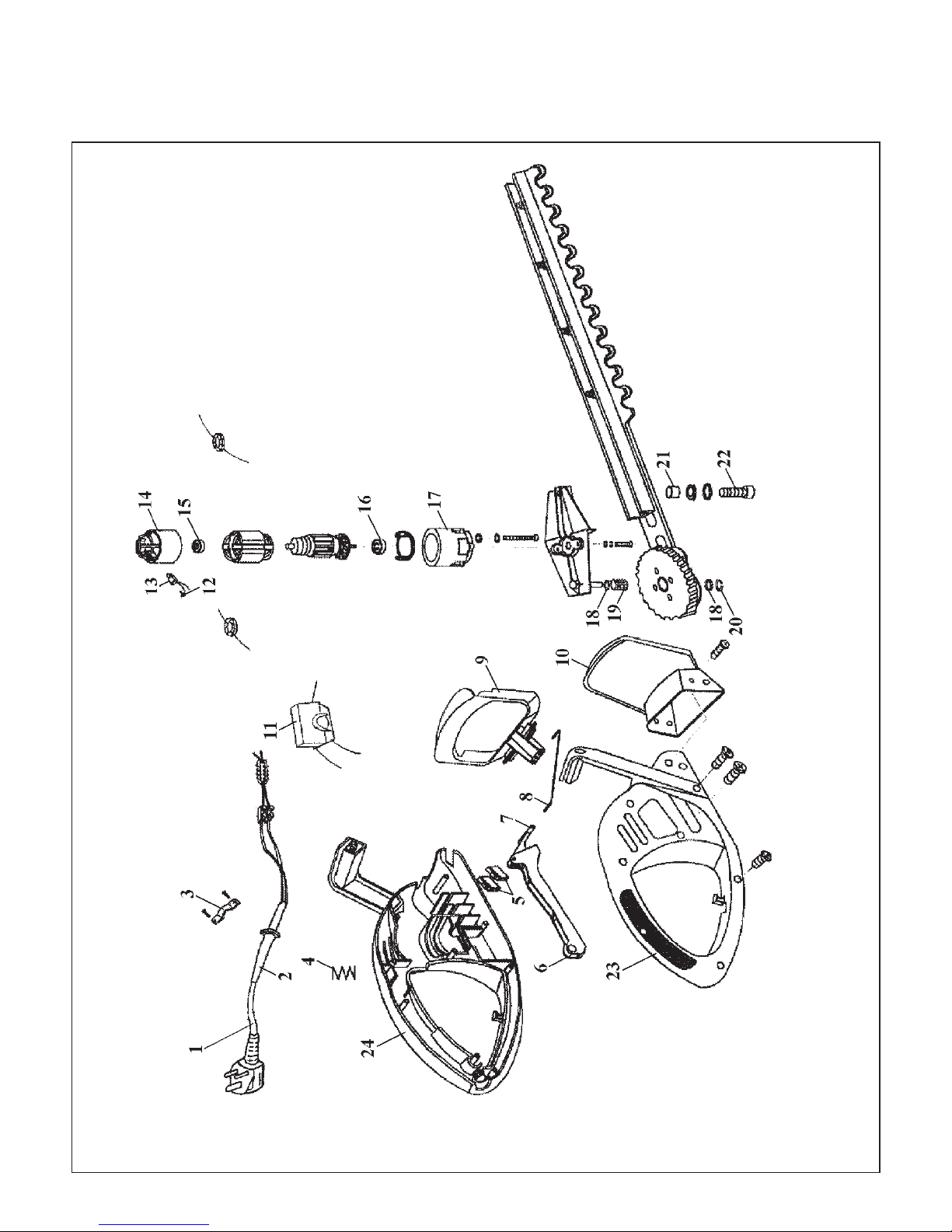

Replacement Part List EHT 500 „Power Craft“ Art.No. 34.035.27, I-No. 01011
Pos. Beschreibung Ersatzteilnr.
01 Power cable 34.035.00.12
02 Anti-kinksleave 34.034.20.01
03 Cable grip 34.034.20.02
04 Compression spring 34.034.20.03
05 Micro - switch (big) 34.035.22.01
06 Actuating lever 34.035.22.02
07 Actuating element 34.035.22.03
08 Wire clip 34.035.22.04
09 Rocker switch 34.035.22.05
10 Handguard 34.035.22.06
11 Capacitor 34.034.20.10
13 Carbon brush, complete 34.035.22.07
14 Micro - switch (small) 34.035.22.08
15 Motorhousing, right 34.035.22.09
16 Motorhousing, left 34.035.22.10
17 Blade cover 34.035.10.01
not illus. Housing cover, bottom 34.035.22.11

9
Explosion Diagram EHT 500 Art.No. 34.035.27, I-No. 01011

Technical specification subject to change
wegm. 03/01
Einhell UK Ltd
Brook House, Brookway
North Chesire Trading Estate
Prenton, Wirral, Chesire
CH 43 3DS
Tel. [phone], Fax [phone]
WARRANTY CERTIFICATE
The guarantee period begins on the sales date and
is valid for 1 year.
Responsibility is assumed for faulty construction or
material or functional defects.
Any necessary replacement parts and necessary
repair work are free of charge.
We do not assume responsibility for consequential
damage. Your statutory rights are not affected.
Your customer service partner
