1. INTRODUCTION
1.1. Description of Profibus Board
The Profibus Board for SD700 allows integrating these drives of Power
Electronics into Profibus networks easily and comfortably.
Its useful design will allow you to know the operating status of the
board all the time.

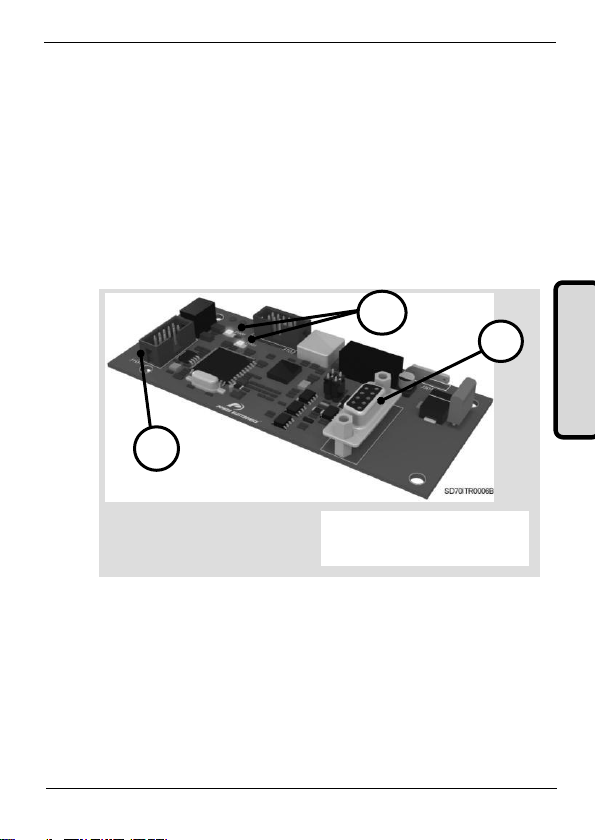

Figure 1.1 Description for Profibus Board
1
2
3
1. Profibus network connector
2. Connector for drive
3. Status leds

SD700 –PROFIBUS
POWER ELECTRONICS
14
TECHNICAL CHARACTERISTICS
2. TECHNICAL CHARACTERISTICS
2.1. General Information
2.1.1. Contents of Profibus Board Kit
The kit of the Profibus board contents:
o1 Profibus board.
o1 Technical manual.
2.1.2. Interfaces
oProfibus –DP 9 Pin D-SUB / F Connector.
2.1.3. Local Indications
Profibus board includes 2 leds (D308 and D101) that supplies
information about the power supply of the board, network detection
and communication status. To obtain more detailed information
about leds, please, see section ‘3.2.1. Description of Connectors
and Leds’.
2.1.4. Profibus-DP Interface
Profibus –DP Interface.
Transmission speed Auto-detected at 12Mb.
Diagnosis data length of 13 Bytes (maximum).
Data length of Set up of 176 Bytes (maximum).
Configuration data length of 8 Byte (maximum).
Polling length of 120 Bytes (maximum).
File GSD PWE_06DD.GSD.

POWER ELECTRONICS
SD700 –PROFIBUS
INSTALLATION AND CONNECTION
15
E
N
G
L
I
S
H
3. INSTALLATION AND CONNECTION
3.1. Installation of Profibus Board
Profibus board is directly connected to the drive of the SD700 Series
from Power Electronics (through two connectors) with the purpose of
integrating the equipment in a Profibus network. Therefore, it will be
necessary one Profibus board for any equipment which is going to be
connected to this network.
CAUTION
Motor controllers of Power Electronics operate with a high electric
energy.
Make sure the power supply has been disconnected and wait for at least
10 minutes to guarantee that DC Link voltage is discharged, before
installing the Ethernet board. Otherwise, you may get personal injuries or
an accident could occur.

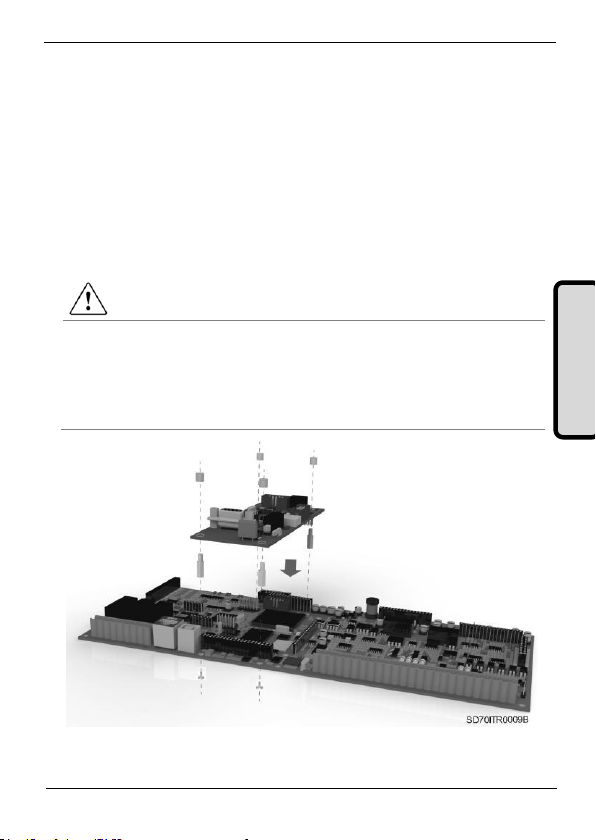

Figure 3.1 Installation of Profibus board in the drive

SD700 –PROFIBUS
POWER ELECTRONICS
16
INSTALLATION AND CONNECTION
3.2. Connections for Profibus Board
3.2.1. Description of Connectors and Leds
In the Profibus board there are two connectors used to connect the
board to the SD700 drive. The other connector (9 Pin D-SUB / F) is
used for the connection to the Profibus network. On the other hand,
the leds supply information about the input power of the board,
network detection and communication status.
Figure 3.2 Location of connectors and leds on Profibus board
TERMINALS
DESCRIPTION
J201 (PROFIBUS)
Connector SUB-D 9 pins to connect the signals of the
Profibus network.
J301 (Earth)
Connector available to provide the connection of the board
to the Earth system.
JP201, JP202 (Jumpers)
To connect the ending resistors of the network. If it is not
necessary to enable the ending resistor of the network, the
jumper will be not connected. Otherwise, the jumper will be
connected and so these resistors will be enabled.
D308 (Led)
Green. “ON” led. If it is lit indicates that the board is power
supplied.

POWER ELECTRONICS
SD700 –PROFIBUS
INSTALLATION AND CONNECTION
17
E
N
G
L
I
S
H
TERMINALS
DESCRIPTION
D101 (Led)
Red. It provides information depending on the number of
blinking.
Number of
blinks
Description
1
CAN communication error
2
Profibus Configuration error
3
VPC3 fault
4
Profibus not yet configured
5
Device in data exchange mode
3.2.2. Profibus Connections
For Profibus connection, a standard connector SUB-D 9 pins is used
according to the definition of the standard EN 50170. The wiring for
the connector of nine pins is shown in the attached figure.
If additionally, more information is required, refer to “Installation
Guide of PROFIBUS DP/FMS" of the Profibus users group, where
you can find more detailed information about the connection.
Figure 3.3 Connections of the connector SUB-D 9 pins

SD700 –PROFIBUS
POWER ELECTRONICS
18
INSTALLATION AND CONNECTION
3.3. Parameter Setting
There are some parameter groups used to configure the operation in a
communication network:
[G4 Inputs G4.1 Digital Inputs]
[G20 Communication Buses G20.0 Comms Control,
G20.2 Profibus].
3.3.1. Subgroup 4.1 –G4.1: Digital Inputs
Drive control modes need to be defined in order to cede the control
to the communication network.
Display
Name /
Description
Range
Function
Set on
RUN
1 CNTROL
MODE1=1
G4.1.1 / Main
Control Mode
0-3
It allows user to set the control mode for the drive
commands (Start/Stop, Reset, ...).
OPT.
DESCRIPTION
FUNCTION
0
NONE
Ctrl mode 1 is not
operative
1
LOCAL
Drive is controlled by
keypad.
2
REMOTE
Drive controlled through
control terminals.
3
SERIAL COMMS
Drive controlled through
communication bus.
NO
