1—Introduction
Congratulations on your purchase! Power Innovations has designed this product to ensure excellent quality and
durability. The Chameleon 4.4. comes to you ready to be installed.
1.1—Product Overview
The Chameleon™is a product family of 19-inch rack mounted transformers that provide power conversion and
distribution in a data center environment. This manual covers the 4.4 kVA auto-transformer module. Up to two 4.4 kW
modules can be installed in a 2U 19-inch rack space for a total of 8.8 kW per shelf (a separately sold accessory). When
using a shelf with only one transformer installed, an accessory Blank Plate may be purchased.
1.1.1—Key Product Features
•Power conversion from 277 VAC to 240 VAC single phase.
•Up to two 4.4 kW transformers per shelf for a total of 8.8 kW in 2U of rack space.
•Output Power Distribution with IEC 60320 C19 locking connectors.
•Full downstream power protection with secondary distribution breakers.
•Extended product life (see Warranty at the back of this manual).
1.1.2—Auto-Transformer Module Product Specification Summary
•Input Receptacles: One 277 VAC INPUT connection for each transformer module via a locking
Anderson Power Products Saf-D-Grid 3000 600V PN 2326G4-BK, Key B, Black receptacle. User
supplied INPUT cables should mate with this receptacle.
•Output Receptacles: Two 240 VAC connections per transformer module using C19 locking
mechanisms to keep cables secure. No locking mechanism required on the user supplied cables.
•Circuit Protection: Each OUTPUT receptacle has its own branch rated circuit protection.
•Captive Screws on the rear of each shelf hold the transformers in place.
•Ventilation: Each module features a fan exhaust system. A 24 VDC power supply provides power to
fan.
•Fuse Protection: A slow blow fuse protects the 24 VDC power supply. It can be easily accessed and
replaced from the rear of each module (Figure 6).
1.1.3—Product Accessories
•Shelf: the shelf is designed to hold one or two transformer modules and be placed on user-supplied
L-bracket rails.
•Blank Plate: The Blank Plate is an air dam that can be used to block air flow through the other side of
a shelf that houses only one transformer module.

Revision 3/5/21 MNL205-1.2
2 |
This page intentionally left blank.

Revision 6/29/2023 MNL205-1.3
3 |
2—Installation
2.1—Shelf Installation
2.1.1—Rail Installation
If the shelf is being installed in a rack, appropriate rails that support at least 120 lbs. should be installed prior to
mounting the shelf to the rails (section 2.1.2—Shelf Installation).
2.1.2—Shelf Installation
The Shelf is intended be installed in a 2U rack
before the auto-transformer modules are
installed. Install the Chameleon™4.4 SHELF
using standard rack mounting hardware, e.g. 10-
32 pilot screws (user provided).
2.2—Auto-Transformer Modules
The Chameleon™4.4 Shelf supports up to two auto-transformer modules (Chameleon 4.4-TRX-020P2A00).
ELECTRICAL WARNING
Always verify that the Chameleon and any OUTPUT devices are OFF before
adding/removing an OUTPUT device.
2.2.1—Installing an Auto-Transformer Module
1. Verify all the Chameleon™4.4 breakers are OFF (Open).
Figure 2—Shelf Back Showing Captive Screws
Figure 1—Chameleon™Shelf

Revision 3/5/21 MNL205-1.2
4 |
2. Push the module into the shelf until the rear of the transformer touches the two brackets on the rear of the
shelf (Figure 2).
3. Fasten the transformer module to the shelf by tightening the two captive screws per module (Figure 2).
4. Connect a user provided compatible C19 (section 1.1.2) OUTPUT cable into J1 or J2 (Figure 3) at the
back of the module. The OUTPUTs J1 and J2 correspond with their respective breakers, S1 and S2
(Figure 4).
5. Connect a user provided INPUT cable compatible with an Anderson Power Products Saf-D-Grid 3000
600 V PN 2326G4-BK, Key B, Black receptacle.
Figure 3—Chameleon™4.4 Module (Rear)
Figure 4—Chameleon™4.4 Module (Front)
Caution
ONLY use the transformer module pull handle (Figure 4) to aid in pulling the module out of
the shelf. It is not a carrying devise.
Module Pull
Handle
S1
S2
Breakers
Input
Breaker

Revision 6/29/2023 MNL205-1.3
5 |
2.2.2—Removing an Auto-Transformer Module
1. Verify all the Chameleon™4.4 breakers are OFF.
2. Disconnect all cables from the Module.
3. While at the rear of the cabinet, unscrew the captive screws at the rear of the transformer module and pull
the handle to help remove the module (Figure 4) from the shelf.
4. Remove the module from the shelf remembering to support the module from underneath.
2.2.3—Blank Plate
If a module space remains empty, a Blank Plate may be purchased from Power Innovations to act as an air dam
for the rack. Follow these instructions to install the Blank Plate:
1. Gently place the Blank Plate into position at the front of the Shelf (Figure 5).
2. Press the Blank Plate at the pressure points shown in Figure 5 into the Shelf until it snaps in place.
Figure 5—Blank Plate
Pressure
Points

Revision 3/5/21 MNL205-1.2
6 |
2.3—Connecting/Disconnecting a PDU or Output Device to the Module
2.3.1—Adding an Output Device/Load
1. Verify that all connected devices are OFF.
2. Verify that the Chameleon™4.4 secondary breakers (S1, S2) associated with the OUTPUT receptacles
(J1, J2) are OFF.
3. Plug in the device with a user supplied C19 INPUT cable.
4. Turn ON the secondary breaker (S1 or S2) for its respective receptacle (J1 or J2).
2.3.2—Removing a Connected Device
1. Verify that all connected devices are OFF.
2. Verify that the Chameleon™OUTPUT breaker associated with the OUTPUT receptacle is OFF.
3. Carefully unplug the device from the OUTPUT receptacle by pressing the red C19 disconnect button.

Revision 6/29/2023 MNL205-1.3
7 |
3—Operation
3.1—System Breakers
The Chameleon™4.4 is equipped with a 20-amp INPUT breaker and two 20-amp OUPUT breakers (S1-S2).
3.1.1—Startup
1. Turn ON the 20-amp MAIN breaker (INPUT breaker).
2. Turn ON the desired 240 VAC OUTPUT breakers.
Once the startup procedure is complete, the Chameleon™4.4 should be left ON during normal operation. An
OUTPUT device can be turned ON or OFF without using the Chameleon OUTPUT breakers.
3.2—Maintenance
The Chameleon is designed for maintenance-free operation and requires very little attention from users.
Caution
There are no user-serviceable parts inside. DO NOT remove the cover or attempt to service the
Chameleon. Unauthorized service will void the warranty laid forth in this manual.
3.2.1—User Serviceable Components
There are no user servable components in the Chameleon™4.4 auto-transformer modules except for the slow
blow fuse (section 3.2.1.1). If there is a problem, replace the transformer with a spare and call Power Innovations
for an RMA number. Then return the unit to Power Innovations noting the RMA number.
3.2.1.1—Slow Blow Fuse
If the fan’s Slow Blow Fuse (Figure 6) needs to be replaced, simply press in on the fuse and turn
counterclockwise until the fuse holder releases. Replace the blown fuse using a 1 amp, 250 VAC replacement
fuse (Figure 6).

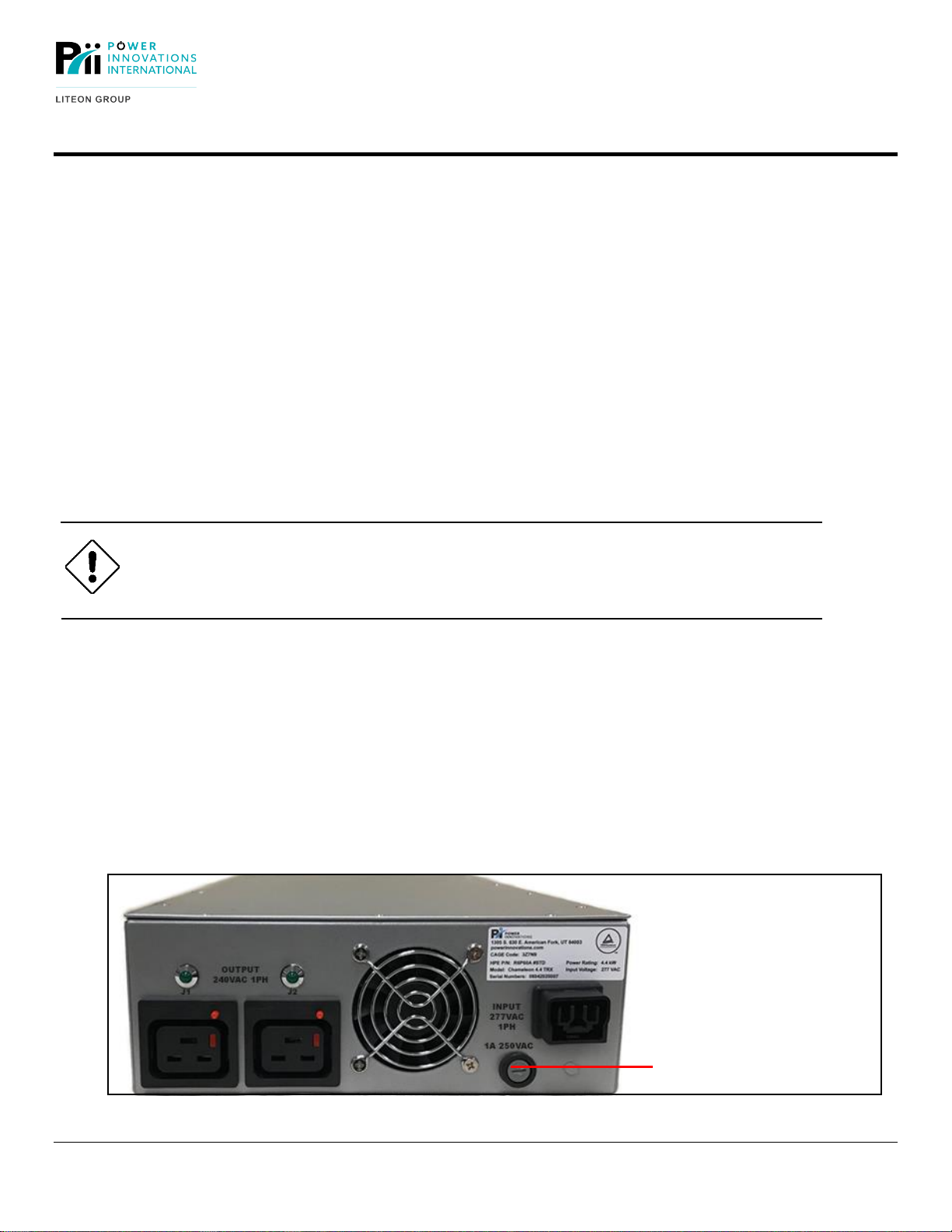

Figure 6—Slow Blow Fuse Location on Back of Chameleon 4.4
Slow Blow
Fuse Holder

Revision 3/5/21 MNL205-1.2
8 |
3.2.2—Cleaning
To ensure trouble-free operation, keep the unit clean by dusting the cover with a dry cloth. Keep vents clear of
dust and build-up.
3.3—Troubleshooting
Due to its unique design, the Chameleon must be serviced only by authorized personnel, except for the fan fuse (see
section 3.2.1.1—). If the unit fails to operate properly, contact Power Innovations customer support.
If there is a problem with the Chameleon, refer to Table 1, Troubleshooting Guide before contacting Customer Service. If
the problem cannot be resolved, contact Power Innovations Customer Service at 801-785-4123.
Table 1—Troubleshooting Guide
Symptom
Problem
Solution
No OUTPUT voltage.
INPUT breaker tripped.
Ensure the INPUT breaker is ON.
Either OUTPUT breaker (S1 or S2)
tripped.
Reset the OUTPUT breaker to ON.
Check to verify that the sum of the two
OUTPUT loads is under 23 amps.
Component failure.
No user-serviceable.
Contact Customer Service.
Cooling fan has ceased
functioning.
The fan fuse has blown.
The 24 VDC fan power supply has
failed.
Replace the fuse on the rear of the
module (Figure 6).
Call customer service for an RMA and
return the module to Power Innovations
for repair.

Revision 6/29/2023 MNL205-1.3
9 |
4—Product Specifications
Table 2—Product Specifications
Output
Capacity (kVA)
4.4 (maximum 8.8 for two auto-transformer modules)
Capacity (Watts)
4,400 W (8,800 W maximum with two auto-transformer modules)
Nominal Voltage (1 phase)
240 VAC
Frequency
60
Connection Method
Two C19 locking receptacles
Output Circuit Protection
20 amp, Rocker Style
Input
Current (amp)
20
Voltage
277
Frequency
60
Connection Method
APP Saf-D-Grid 3000 600V PN 2326G4-BK, Key B, Black
Input Circuit Protection
20 amp, Rocker style
Certifications
NRTL (TUV us)
Listed to UL 62368-1
CE
Upon Request
Environmental
Efficiency
>98%
Maximum Heat Dissipation W
<90
Maximum Heat Dissipation BTU/hr
<300
Operating Temperature Derating 7 °F (4 °C)
for every 3,281 ft (1,000 m) above sea level
-14 to 158 °F (-10 to 70 °C)
Up to 6,600 feet (2,000 m)
Humidity
0% to 90% non-condensing
Ambient Noise
40 dBA at 1 meter
Physical
Shelf Accessory W x D x H (inches)
17.72 x 20.08 x 3.39 (45 x 51 x 8.61 cm)
Shelf Accessory Weight
23 lb (10.43 kg)
Transformer Module W x D x H (inches)
8.69 x 22.08 x 3.14 (22.07 x 56.08 x 7.96 cm)
Transformer Module Weight
46 lb each (20.87 kg)

Revision 3/5/21 MNL205-1.2
10 |
4.1—Chameleon™4.4 Parts
The Chameleon™is composed of various parts. A comprehensive list of included and optional parts can be found in
Table 3 below.
Table 3—Product Ordering Information
Part
Description
Part Number
1
Transformer Module
4.4 kVA Transformer.
Chameleon 4.4-TRX-020P2A00
2
Shelf
Steel enclosure to hold the Transformer
Modules (up to two Modules per shelf).
Chameleon 4.4-SHELF
3
Blank Plate
Modesty cover for open slots (e.g. a
Shelf with only one Module).
Chameleon 4.4-BLANK
4
Slow Blow Fuse
1 Amp, 250 VAC, Slow Blow, 0.25 in x
1-0.25 in, Glass type
MDL-1-R
Below is an example list of user supplied parts (sold separately/nonorderable from Power Innovations).
a
Mounting Rail x2
Supports Shelf. The support rails are
not part of the product. The user should
supply rails that support up 120 lb.
User Supplied
b
Input Cable
Needs to mate with the input connector
(APP Saf-D-Grid 3000 600V PN 2326G4-
BK, Key B, Black)
Example: APP SDG300 A-B Jumper
Cord P/N 2352-1112-10
c
Output Cable
Any standard IEC60320 C19 Male plug
terminated cable.
User Supplied
1
3
2

Revision 6/29/2023 MNL205-1.3
11 |
5—Warranty
Limited Warranty
Power Innovations International, Inc. (hereinafter “Power Innovations”) warrants this product to be free from defects in
material and workmanship for a period of five years from the date of purchase. The warranty also includes 60-month
coverage on parts only.
Repair or Replacement
If any part or portion of the Power Innovations product fails to conform to the Warranty within the Warranty period, Power
Innovations, at its option, will furnish new or factory remanufactured products for repair or replacement of that portion or
part. Replacement parts or unit may be new or refurbished and will meet specifications of the original parts or unit.
Legal Rights and Restrictions
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. This warranty
is limited to the original end user of the product and is not transferable. This warranty covers only Power Innovations-
supplied components. Service required because of third-party components is not covered under this warranty.
Proof of Purchase
Proof of purchase will be required by Power Innovations to substantiate date of purchase. Such proof of purchase must be
an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product.
Limitation of Remedies
Power Innovations’ entire liability and the User’s exclusive remedy will be repair or replacement of the unit if all conditions
described under “Limited Warranty” have been met.
Incidental Damages
In no event will Power Innovations be liable for indirect, special, incidental, consequential, or exemplary damages of any
kind whatsoever arising out of the use of this unit, including without limitation, lost profits, business interruption, or loss of
data, whether any claim is based upon theories of contract, negligence, strict liability, tort, or otherwise.

Revision 3/5/21 MNL205-1.2
12 |
Warranty Claims
Customer Support
Questions concerning the operation, repair, or maintenance of this equipment should be directed to the Service
Department of Power Innovations International. When making such an inquiry, provide the Service Department
with the model number, serial number, and approximate date of receipt of the equipment.
Making a Claim
Within a reasonable time, but in no case to exceed thirty days, after discovery of a defect, the purchaser shall
contact Power Innovations at 801-785-4123. It is the obligation of the purchaser to have the product shipped,
freight prepaid, or delivered to the authorized reseller from whom it was purchased, or other facility authorized by
Power Innovations to render the services provided hereunder in the original package. All products returned to
Power Innovations for service MUST have prior approval, which should be obtained by calling 801-785-4123.
Claim Restrictions
The product must not have been previously altered, repaired, or serviced by anyone other than a service facility
authorized by Power Innovations to render such service, and the serial number of the product must not have been
altered or removed. To be covered by this warranty, the product will not have been subjected to accident, misuse
or abuse, or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void
this warranty.
Prior to Any Return
If it is deemed necessary to return this equipment to the factory for servicing, contact the Customer Support
Department for authorization and an RMA number.

Revision 6/29/2023 MNL205-1.3
13 |
Contacting Power Innovations
If there are any questions or comments about this product, please feel free to contact us.
Power Innovations International, Inc.
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Copyright © 2020
Power Innovations International, Inc. American Fork, UT, USA
All rights reserved.
Building a Safer and Greener Future
