Power-Pole CM2 HPU User manual

C-MONSTER Control Systems
& Hydraulics
Manual Outline
Section 1 - Electronics & Controllers
Section 2 - Hydraulics
Effective July 1, 2020

2WARRANTY
CENTER
C
E
R
T
I
F
I
E
D

3
WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
Table of Contents
Section 1: Electronics & Controllers
1.1 HPU Indicator Light Guide .....................................4
1.2 Power Draw of Hydraulic Pumps .................................5
1.3 CM1 Motor Cover Installation ..................................6
1.4 CM2 Motor Cover Installation...................................8
1.5 CM1 Circuit Board Installation ..................................8
1.6 CM2 Circuit Board Installation ..................................9
1.7 CM1 Motor Installation ......................................11
1.8 CM2 Motor Installation ......................................12
1.9 C-Monster Programming & Operation (CM1 & CM2) ............. 14-23
• Top Side Controls ........................................14
• Advanced Surface Mount Remote Control ......................16
• Remote Control Key Fob ...................................18
• Wireless Foot Switches.....................................19
• Advanced Foot Switch (CM1) ................................20
• Advanced Key Fob (CM1) ..................................22
1.10 C-Monster Controller Battery Replacement (CM1 & CM2) ............24
SECTION 1 – Electronics & Controllers
Section 1:
Electronics & Controllers

4WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
SECTION 1.1 – Electronics & Controllers
LED
PROGRAM button

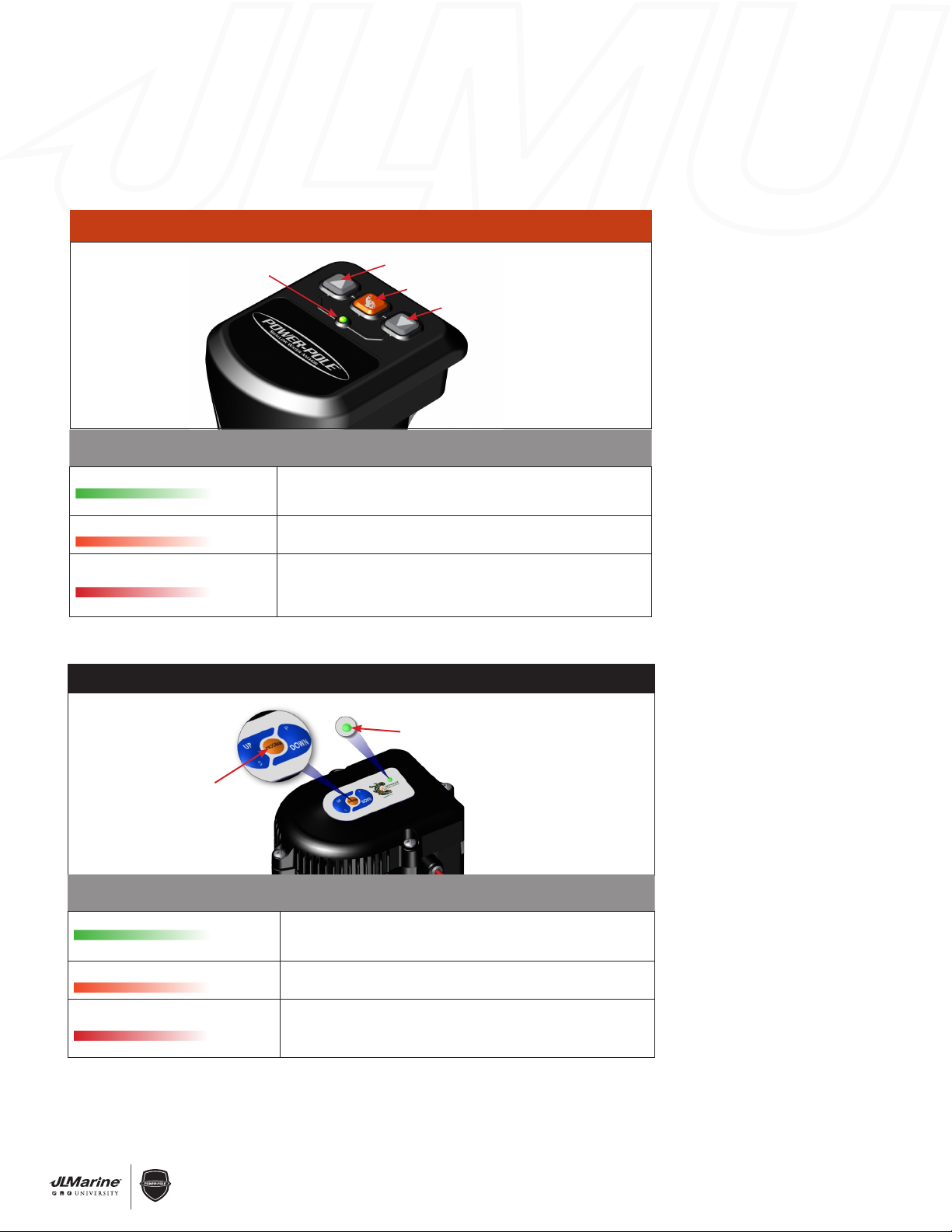

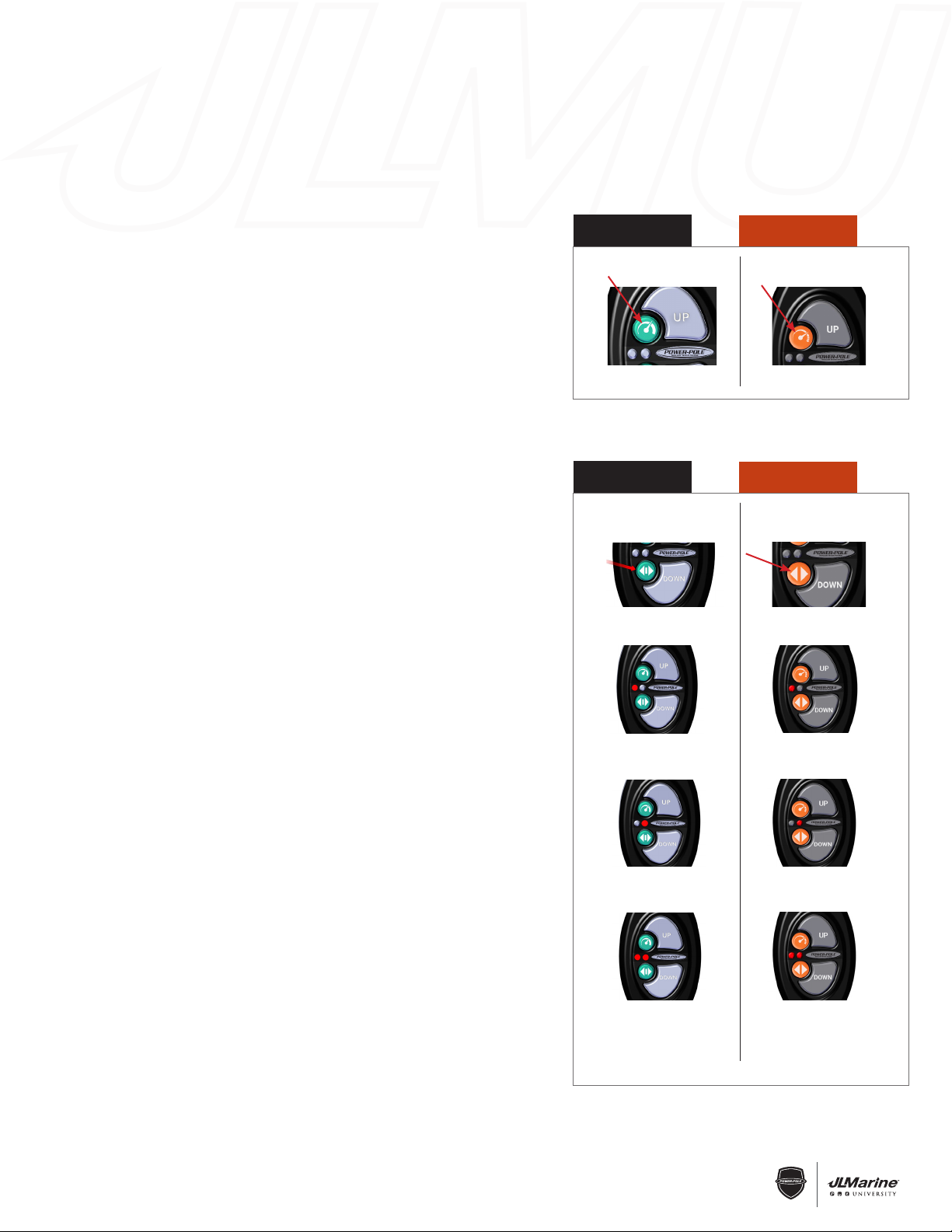

C-Monster 1.0: Indicator Light Guide
LIGHT INDICATION
Flashing GREEN Light
NORMAL: System has proper voltage (11.3V – 16.4V).
Flashing ORANGE Light LOW: System has low voltage (10.3V – 11.2V).
Flashing RED Light WARNING: System has low voltage (10.2V or less).
NOTE: When voltage is below 8.2V or above 16.5V
the unit will not operate.
C-Monster 2.0: Indicator Light Guide
LIGHT INDICATION
Flashing GREEN Light NORMAL: System has proper voltage (11.9V – 16.4V).
Flashing ORANGE Light LOW: System has low voltage (10.8V – 11.8V).
Flashing RED Light WARNING: System has low voltage (10.7V or less).
NOTE: When voltage is below 6V or above 16.5V
the unit will not operate.
LED
DOWN button
PROGRAM button
UP button
HPU (Hydraulic Pump Unit) Indicator Light Guide

5
WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
SECTION 1.2 – Electronics & Controllers
Power Draw of Hydraulic Pumps
CM1 & CM2 Units
GLOSSARY:
Amps (A): The amount of current that is flowing through the circuit at a given time
MilliAmps (mA): One thousandth of an amp, a measure for small electric currents
Hibernation: Low-Power mode HPU enters into when not used for a set period of time
NOTES:
• Current firmware for CM2 pumps set to “Never” hibernate
• Current firmware for CM1 pumps set to hibernate after 6 hours
• Hibernation settings can be changed via the C-Monster App
Startup: Initial draw of power when HPU first turns on. Amperage draw will drop after a period of time
Operation: Draw of power when HPU is running (raising or lowering anchor). Amperage draw will vary
slightly among anchor models Other variables may also effect amperage draw during operation.
Standby: HPU is on and ready to use (anchor is in stowed or anchored state)
CM2 HPU
MODE POWER DRAW LED STATUS
Hibernation ≈6 mA Not Blinking
Startup ≈80 mA (for 2 minutes) Blinking
Operation Blade ≈25 A to ≈35 A Max
Pro/SPN ≈15 A to ≈28 A Max
Blinking
Standby ≈21 mA Blinking
CM1 HPU
MODE POWER DRAW LED STATUS
Hibernation ≈40 mA Not Blinking
Startup ≈2 A (less than 5 seconds) Blinking
Operation Blade ≈25 A to ≈35 A Max
Pro/SPN ≈15 A to ≈28 A Max
Blinking
Standby ≈80 mA Blinking

6WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
Figure 1
Figure 2
Membrane Switch
Ribbon Wire
SECTION 1.3 – Electronics & Controllers

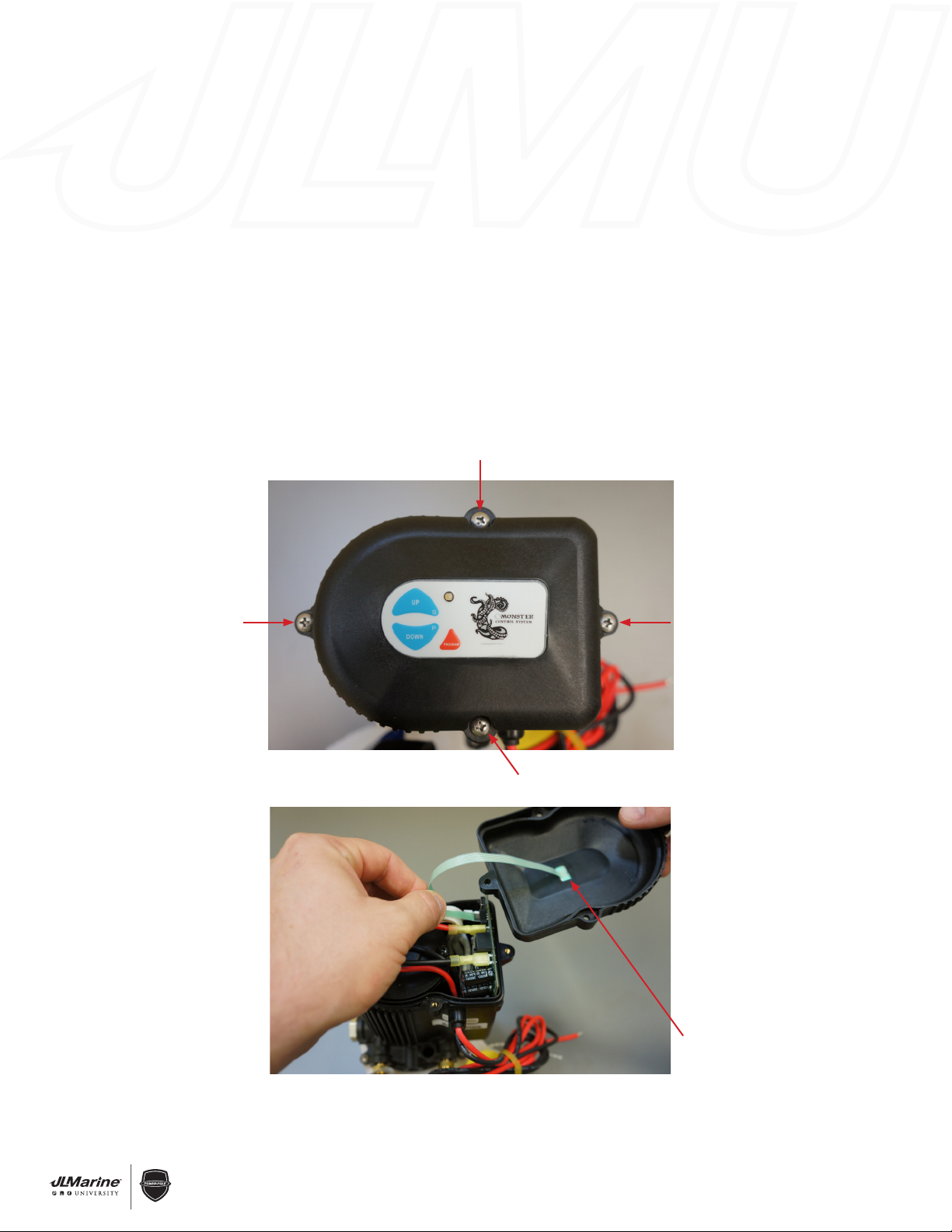

C-Monster 1.0 Motor Cover Installation
REMOVAL:
STEP 1 Disconnect the RED 12V (+) wire from the battery source, or remove the inline fuse.
STEP 2 Remove the four Phillips Head Bolts that hold the cover on the C-Monster Motor Assembly.
FIG 1
STEP 3 With the cover removed, disconnect the Membrane Switch Ribbon Wire from the Circuit Board by
gently pulling on it. FIG 2
INSTALLATION:
STEP 1 Follow REMOVAL STEPS 2 & 3 in reverse order.
STEP 2 Re-install the cover with the four Phillips Head Bolts.
STEP 3 Re-connect the RED 12V (+) wire to the battery source, or re-install the inline fuse.

7
WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
Figure 1
Figure 3
Power Cord
Motor Cover
Circuit board
Pump casing groove made
for circuit board.
Figure 2
Rubber Membrane
CLICK
Motor Cover
Motor Cover Tab
SECTION 1.4 – Electronics & Controllers

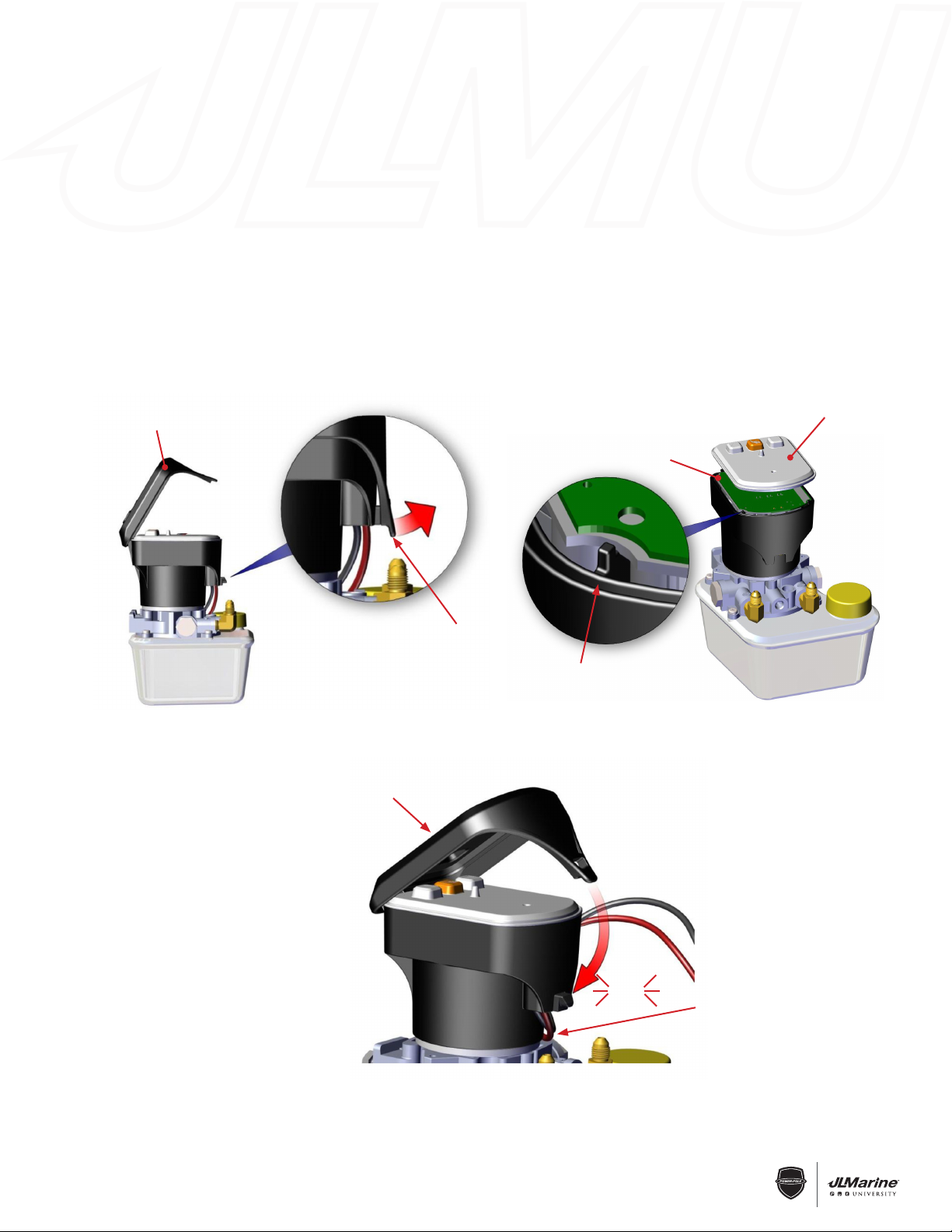

C-Monster 2.0 Motor Cover Installation
REMOVAL:
STEP 1 Pull on the Motor Cover Tab to release Pump Cap. FIG 1
INSTALLATION:
STEP 1 With the Rubber Membrane, Power Cord and Circuit Board fully seated into the Pump
Casing Groove, re-install the Motor Cover. FIG 2 & 3

8WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
SECTION 1.5 – Electronics & Controllers

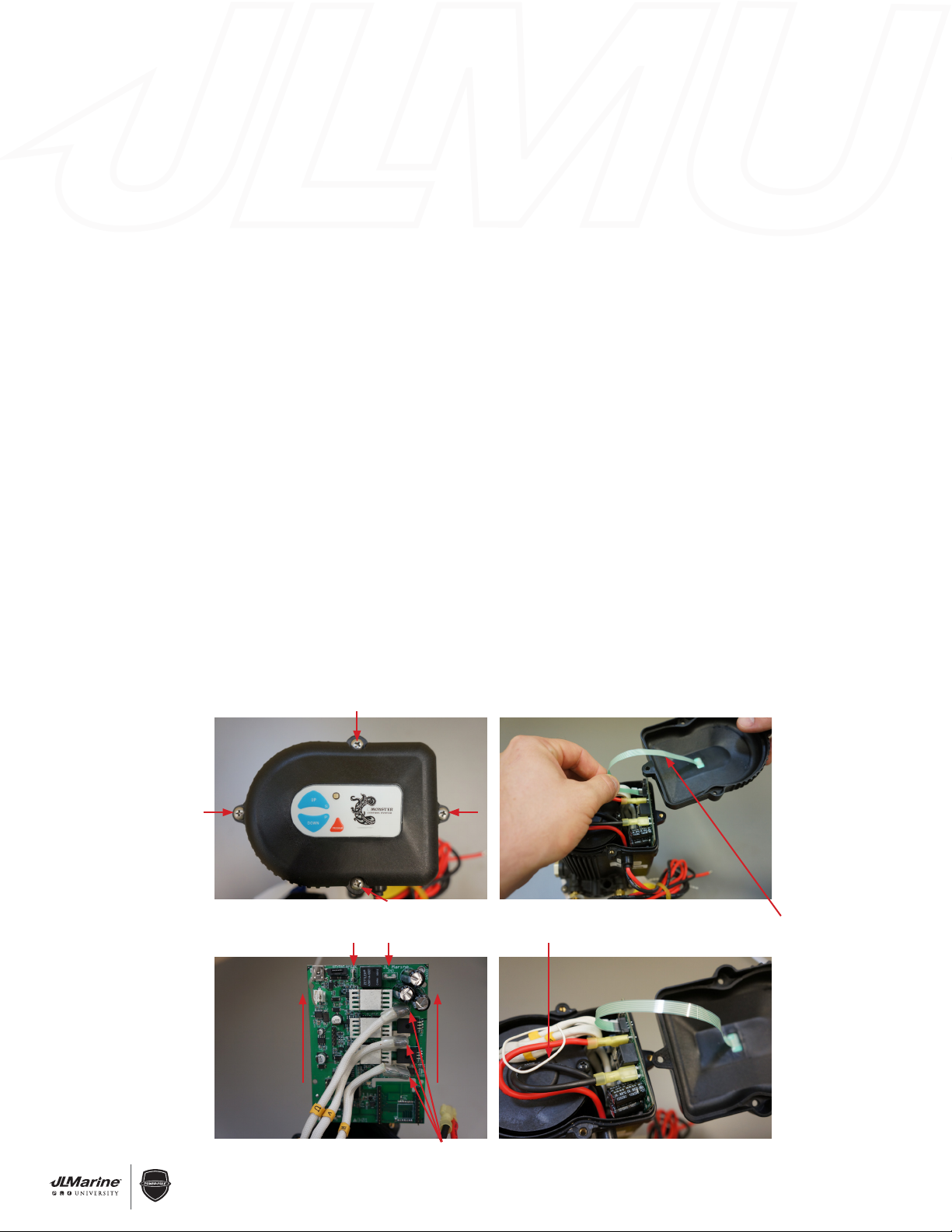

C-Monster 1.0 Circuit Board Installation
REMOVAL:
STEP 1 Disconnect the RED 12V (+) wire from the Battery Source or remove the Inline Fuse.
STEP 2 Remove the Motor Cover by unscrewing the four Phillips Head Bolts that attach the Cover to the Motor
Assembly. FIG 1
STEP 3 Gently pull the Membrane Switch Ribbon Wire to disconnect it from the Circuit Board. FIG 2
STEP 4 Disconnect the RED 12V (+) and BLACK 12V (-) wires from the Circuit Board.
STEP 5 Grab the sides of the Circuit Board and carefully slide it upward out of the Motor Assembly. FIG 3
STEP 6 Disconnect the three Brushless Motor Wires.
NOTE: The Brushless Motor Wires are labeled “U”, “V”, and “W.” These letters correspond to labels on the
Circuit Board. FIG 3
INSTALLATION:
STEP 1 Follow REMOVAL STEPS 3-6 in reverse order to reconnect wiring.
IMPORTANT! Ensure that the Brushless Motor Wires and the 12V Wires are connected to the proper terminals
on the new Circuit Board.
STEP 3 Route the white Antenna Wire as shown in FIG 4.
WARNING! Improper wiring will result in signal interference.
STEP 5 Reinstall the Cover with the four Phillips Head Bolts.
STEP 6 Reconnect the RED 12V (+) wire to the Battery Source, or re-install the Inline Fuse.
STEP 7 Program the new Circuit Board. Section 1.9 C-Monster Top Side Controls
Figure 1
Figure 3
Figure 2
Figure 4
Negative and positive terminals
Brushless Motor Wires
Antenna Wire
Membrane Switch
Ribbon Wire

9
WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
SECTION 1.6 – Electronics & Controllers
Figure 1
Figure 2
Circuit board fully seated
and flush with motor
casing at all four corners
Motor casing groove for
circuit board membrane
Circuit board membrane
Pump Cap Tab
Desi-Pak
Figure 2-a
C-Monster 2.0 Circuit Board Installation
REMOVAL:
STEP 1 Disconnect the RED 12V (+) wire from the battery source, or remove the 40 Amp inline fuse.

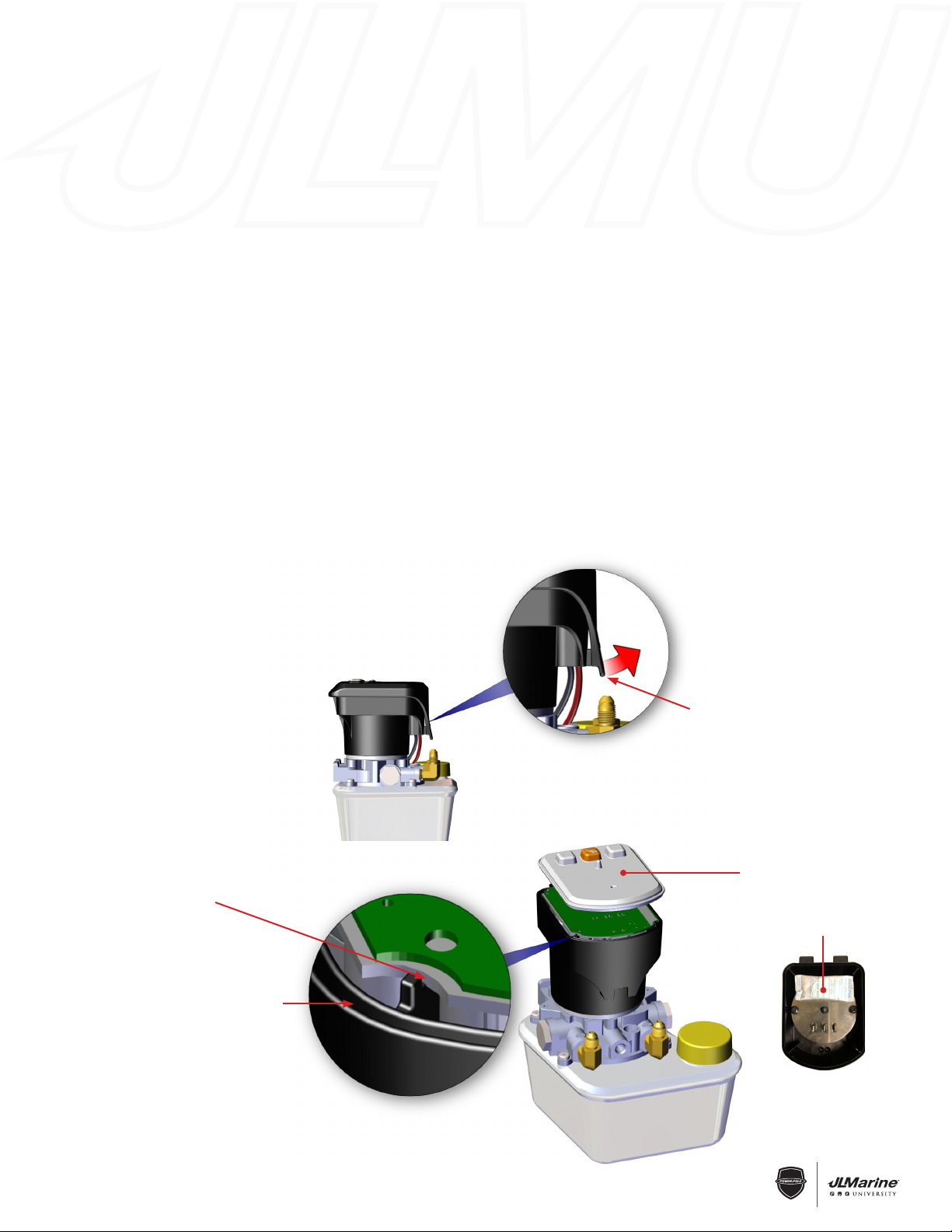

STEP 2 Remove the Pump Cap by pulling on the Tab and lifting up on the Cap. FIG 1
STEP 3 Remove the Circuit Board Membrane. FIG 2
STEP 4 Pry the front of the Circuit Board up using the Pump Cap and remove it. FIG 3 (next pg.)
IMPORTANT! Be careful not to touch the Antenna as this could damage it. FIG 4 (next pg.)
INSTALLATION:
STEP 1 Install the Circuit Board into the Motor Assembly so that it is flush with the top of Motor Assembly.
FIG 2
IMPORTANT! Make sure the DESI PAK is on the top of motor assembly before installing the new Circuit Board.
FIG 2-a
STEP 2 Install the Circuit Board Membrane so the edge is seated completely in Motor Casing Groove.
FIG 2
STEP 3 Make sure the Power Cord is fully plugged into the Pump and reinstall the Pump Cap.
STEP 4 Reconnect the RED 12V (+) wire to the battery source and make sure the 40 Amp inline fuse is installed.
NOTE: If the buttons stick and cause the Power-Pole to auto run remove the cap and reinstall circuit board
membrane.

10 WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
SECTION 1.6 – Electronics & Controllers
C-Monster 2.0 Circuit Board Installation (continued)
Figure 3
Figure 4
Circuit board antenna (DO NOT TOUCH)
- Ground terminal + Positive terminal
INSTALLATION (Continued):
STEP 5 New circuit boards must be programmed. See Section 1.9: C-Monster Top Side Controls for
programming procedure.

11
WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
SECTION 1.7 – Electronics & Controllers

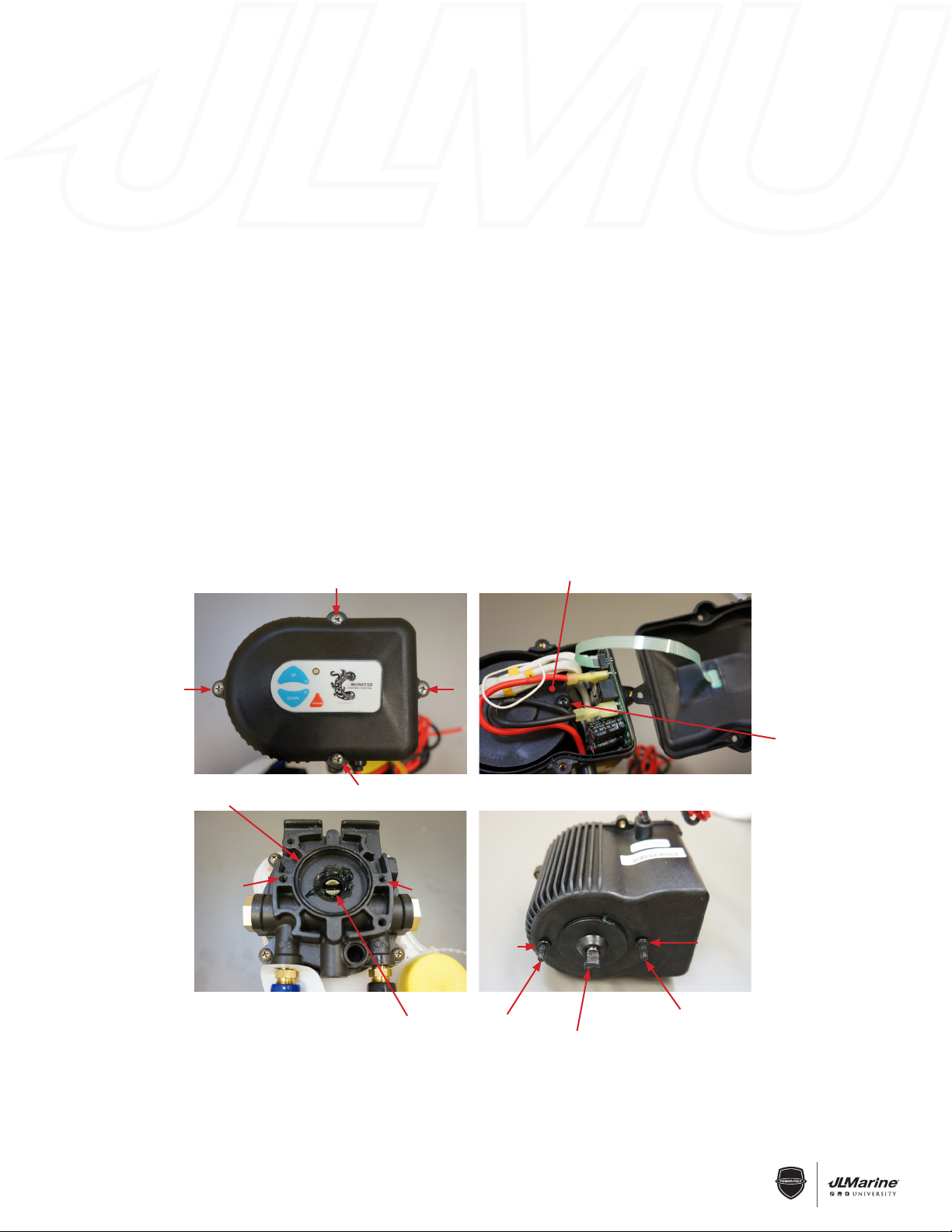

C-Monster 1.0 Motor Assembly Installation
REMOVAL:
STEP 1 Disconnect the RED 12V (+) and BLACK 12V (-) wires from the Battery Source.
STEP 2 Remove Motor Cover by unscrewing the four Phillips Head Bolts attach the Cover to the Motor Assembly.
FIG 1
STEP 3 Loosen the two Phillips Head Bolts that hold the Motor to the Pump Base approximately 5/8”. FIG 2
STEP 4 Lift the Motor Assembly off of the Pump Base.
INSTALLATION:
STEP 1 Using a flat-bladed screwdriver, line the Pump Coupler up with the two Motor Bolt Holes. FIG 3
NOTE: Ensure that the O-Ring surrounding the Pump Coupler is installed.
STEP 2 Turn the Motor Shaft by hand until it lines up with the Two Motor Bolts. FIG 4
NOTE: Ensure that the Two Motor Bolts have O-Rings installed.
STEP 3 Follow REMOVAL STEPS 3 & 4 in reverse order, ensuring that the Motor Shaft mates properly with the
Pump Coupler.
STEP 4 Re-install the Motor Cover with the four Phillips Head Bolts.
STEP 5 Re-connect the RED 12V (+) and BLACK 12V (-) wires to the Battery Source.
Figure 1 Figure 2
Phillips-Head Bolt
Figure 3
Pump Base
O-Ring
Motor Bolt
Hole
Motor Bolt
Hole
Pump
Coupler
Figure 4
Motor
Bolt
Motor
Bolt
Aligned Motor
Shaft
O-Ring
O-Ring
Motor

12 WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
SECTION 1.8 – Electronics & Controllers
C-Monster 2.0 Motor Assembly Installation
REMOVAL:
STEP 1 Disconnect the RED 12V (+) wire from the Battery Source
or remove the Inline Fuse.
STEP 2 Remove the Pump Cap by pulling on the Tab and lifting
up on the Cap. FIG 1
STEP 3 Unplug the Power Cord from the Motor Assembly by
pulling it downward.
STEP 4 Remove the Circuit Board Membrane. FIG 2
STEP 5 Pry the front of the Circuit Board up using the Pump Cap
and remove it. FIG 3
IMPORTANT! Be careful not to touch the antenna as this could
damage it. FIG. 4
STEP 6 Loosen the two Phillips Head Motor Bolts that hold the Brushless Motor to the Pump Base
approximately 5/8”. FIG 6
STEP 7 Lift the Motor Assembly off of the pump base.
NOTE: Be careful not to lose or damage the Rubber Seal. FIG 6
INSTALLATION:
STEP 1 Remove the Retaining Nuts and Spacers on the bottom of replacement Motor.
STEP 2 Using a flat-bladed screwdriver, line the Pump Coupler up with the two Motor Bolt Holes in the Pump
Base FIG. 5
STEP 3 Turn the Motor Shaft by hand until it lines up with the two Motor Bolts. FIG 6
IMPORTANT! Ensure that the Rubber Seal is installed between the Brushless Motor and Pump Base. FIG 6
STEP 4 Install the Motor Assembly onto the Pump Base and tighten the Motor Bolts snug. FIG 6
STEP 5 Place the new DESI PAK flat on the top of the Motor Assembly. FIG 7
STEP 6 Install the Circuit Board into the Motor Assembly so that it is flush with the top edge. FIG 2
STEP 7 Install the Circuit Board Membrane so the edge seated completely in the Motor Casing Groove.
FIG 2
STEP 8 Plug the Power Cord back into the Pump and reinstall the Pump Cap.
STEP 9 Reconnect the RED 12V (+) wire to the battery source and make sure the 40 Amp inline fuse is installed.
IMPORTANT: If buttons stick and cause the Power-Pole to auto run remove the cap and reinstall the circuit board
membrane.
Figure 2
Circuit board fully
seated and flush with
motor casing at all four
Motor casing groove
for circuit board
membrane
Circuit board membrane
Figure 1
Pump Cap Tab
Power Cord
(Pull Down Firmly)

13
WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
C-Monster 2.0 Motor Assembly Installation (continued)
Figure 4
Antenna (DO NOT TOUCH)
- Ground terminal + Positive terminal
Figure 5
Pump Coupler
Motor Bolt Holes
Figure 6
Motor Bolts
Rubber Seal
Motor Shaft
Figure 3
Pump Cap Tab
Circuit Board
SECTION 1.8 – Electronics & Controllers
Brushless Motor
Pump Base
Desi-Pak
Figure 7

14 WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
SECTION 1.9 – Electronics & Controllers
C-Monster Top Side Controls
FUNCTION 1: Setting As A Single, Port, or Starboard Unit
STEP 1 Press and hold the PROGRAM button for six seconds until the LED flashes RED and two chimes are
heard followed by a SINGLE BEEP.
• To set as a SINGLE HPU: Press and hold both UP and DOWN buttons simultaneously.
• To set as STARBOARD side HPU: Press and release the UP button.
• To set as PORT side HPU: Press and release the DOWN button.
STEP 2 Once you have made all desired setting changes, press and release the PROGRAM button to save
your settings and exit program mode. You will hear a series of beeps and the LED will return to flashing
GREEN.
C-Monster 2.0
C-Monster 1.0
FUNCTION 2: Key-Fob Speed Adjustment
NOTE: Default settings are set to 70% of the highest speed level. Tone increases with level (1-10).
STEP 1 Press and hold the PROGRAM button for six seconds until the LED flashes RED and two chimes are
heard followed by TWO BEEPS.
STEP 2 Press the UP button to raise the speed setting and DOWN button to lower the speed setting.
STEP 3 Once you have made all desired setting changes, press and release the PROGRAM button to save
your settings and exit program made. You will hear a series of beeps and the LED will return to flashing
GREEN.
Press UP for
higher speed
setting / higher
sensitivity
Press DOWN for
lower speed /
lower sensitivity
Highest tone level
(FASTEST)
Middle range
tone level
(MEDIUM)
Lowest tone level
(SLOWEST)
10
1
C-Monster 2.0 C-Monster 1.0
Press both to set for Single Unit
Port (for duals)
Starboard
(for duals)
Program
Button
Press both to set for Single Unit
Port
Starboard
Program
Button
Program
Button
Default
Press UP for higher speed
setting / higher sensitivity
Press DOWN for
lower speed / lower sensitivity

15
WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
FUNCTION 3:Up Sensitivity Adjustment
Controls the operation of the AUTO UP feature. If the unit continues to run once retracted, INCREASE the
sensitivity. If the unit stops running prematurely, DECREASE the sensitivity.
NOTE: Default settings are in the middle of the range. Tone increases with level (1-10).
1. Press and hold the PROGRAM button for six seconds until LED flashes RED and two chimes are heard
followed by 3 BEEPS.
2. Press the UP button to increase sensitivity and the DOWN button to decrease sensitivity.
3. Once you have made all desired setting changes, press and release the PROGRAM button to save
your settings and exit program mode. You will hear a series of beeps and the LED will return to flashing
GREEN.
FUNCTION 4:Down Sensitivity Adjustment
Controls the operation of the AUTO DOWN feature. If the unit turns off prematurely during deployment,
DECREASE the sensitivity. If the unit continues to run once anchored, INCREASE the sensitivity.
NOTE: Default settings are in the middle of the range. Tone increases with level (1-10).
1. Press and hold the PROGRAM button for six seconds until LED flashes RED and two chimes are heard
followed by 4 BEEPS.
2. Press the UP button to increase sensitivity and the DOWN button to decrease sensitivity.
3. Once you have made all desired setting changes, press and release the PROGRAM button to save your
settings and exit the program mode. You will hear a series of beeps and the LED will return to flashing
GREEN.
C-Monster Top Side Controls (continued)
SECTION 1.9 – Electronics & Controllers

16 WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
SECTION 1.9 – Electronics & Controllers
C-Monster Controller Programming & Operation
Advanced Surface Mount Remote Control
PROGRAMMING:
STEP 1 Press and hold the PROGRAM button on the top of the HPU for three seconds. The LED will turn solid
GREEN. FIG 1 or 3
NOTE: If dual anchors are installed, perform STEP 1 for BOTH HPUs.
STEP 2 Press and release any button on the remote. The GREEN LED on the HPU will turn off, beep, and then
return to flashing once per second indicating the pairing has been completed. FIG 2 or 4
STEP 3 Test functionality by following the OPERATION Instructions.
IMPORTANT: C-Monster 2.0 controllers ARE NOT compatible with previous C-Monster pumps. The first time your
remote is paired to a recently-updated pump it may perform a firmware update. When this occurs the
remote will blink for approximately 1 minute. Please do not interrupt power to either the pump or
remote during this process. When the blinking has ceased your remote has finished updating and
is ready to use.
PROGRAM button
LED
Hydraulic Pump Unit (HPU)
Figure 3
C-Monster 2.0
Hydraulic Pump Unit (HPU)
Figure 1 Figure 2
C-Monster 1.0
LED
PROGRAM button
INSTALLATION:

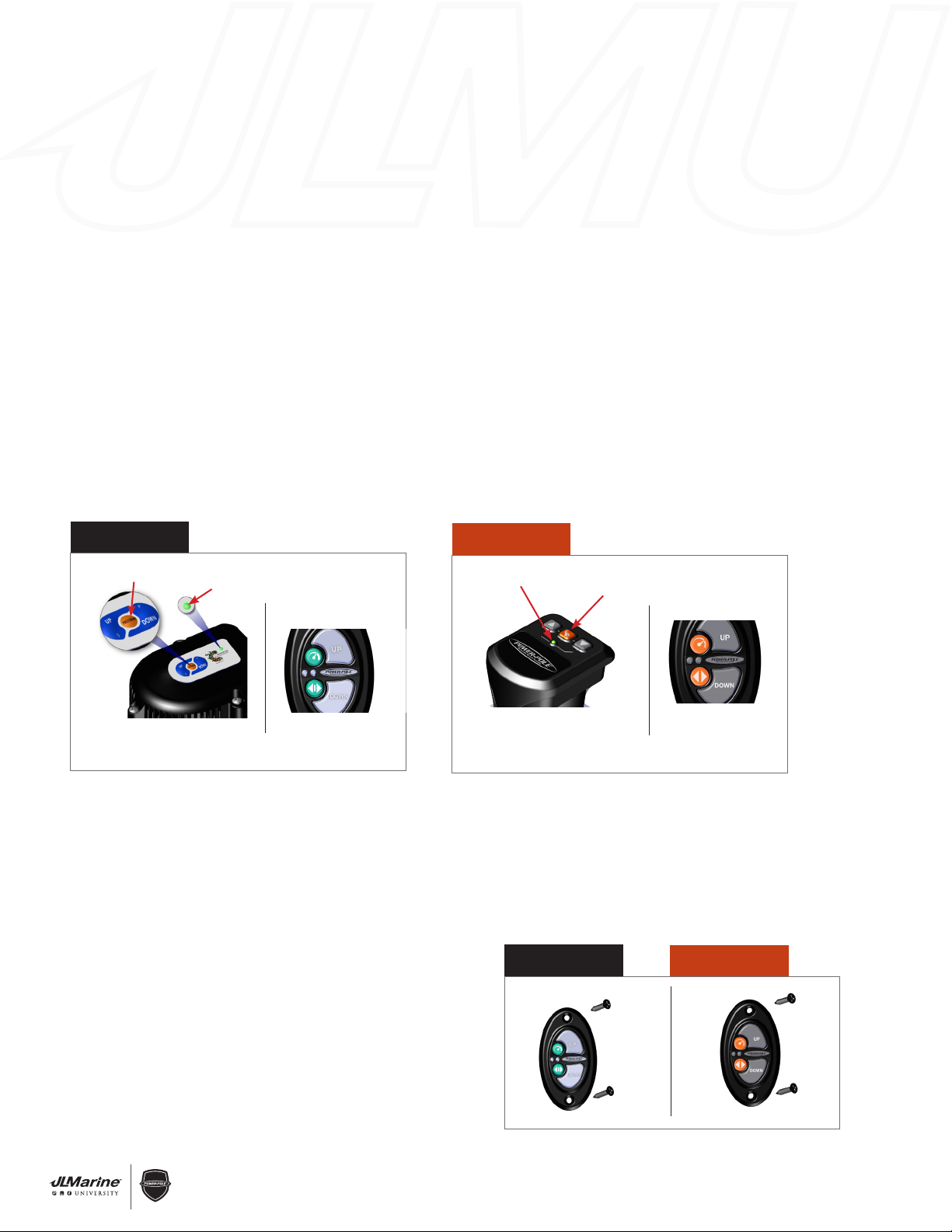

NOTE: Make sure your Dash Switch is paired with all HPUs before installation.
Either:
Option 1: Mark and drill a pilot hole with 1/8” drill bit to fasten switch using the two supplied screws.
IMPORTANT! do not over tighten screws
OR
Option 2: Use supplied adhesive strip to mount Dash Switch.
C-Monster 1.0 C-Monster 2.0
Figure 4

17
WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
C-Monster Controller Programming & Operation
Advance Surface Mount Remote Control (continued)
OPERATION:
Speed Control
• The Dash Switch has three speed settings (slow, medium,
& fast). Pressing the SPEED button on the Dash Switch
will toggle through the three settings. FIG 1
• The LED in the Power-Pole logo will flash at a speed
corresponding to either a slow, medium, or fast setting.
Dual Anchor Operation
• With dual Power-Poles installed, the Dash Switch can
be used to toggle between single or dual control of the
anchors. Pressing the DIRECTIONAL button on the
Dash Switch will toggle through the three settings (port,
starboard, or dual control).
FIG 2, 3, 4,5
• The LED will flash port side only, starboard side only, or
on both sides to indicate the current control setting.
• To raise or lower the Power-Pole, press and hold
either the UP or DOWN button on the Dash Switch. The
anchor will only continue to move while the button is
depressed.
Auto Mode
• Double tapping (depressing and releasing 2 times within
1 second) the UP or DOWN button on the Dash Switch
will cause the anchor to retract or deploy automatically.
The Power-Pole will continue to move in said direction
until it retracts completely or senses the bottom.
• Sleep Mode (CM1 ONLY):
Press both UP & DOWN buttons for three seconds, LEDs
will flash indicating the switch is now in Sleep Mode. To
reactivate, press both buttons again for 3 seconds until
LEDs flash.
Figure 1
C-Monster 1.0 C-Monster 2.0
C-Monster 1.0 C-Monster 2.0
Figure 2 Figure 2
Figure 3
Figure 4 Figure 4
Figure 5 Figure 5
Figure 3
SECTION 1.9 – Electronics & Controllers

18 WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
C-Monster 1.0 C-Monster 2.0
Hydraulic Pump Unit (HPU)
Figure 1
LED
PROGRAM button
Hydraulic Pump Unit (HPU)
Figure 3
C-Monster 1.0 Key Fob
Figure 2
C-Monster 2.0 Key Fob
Figure 4
C-Monster 2.0
PROGRAM button
LED
SECTION 1.9 – Electronics & Controllers

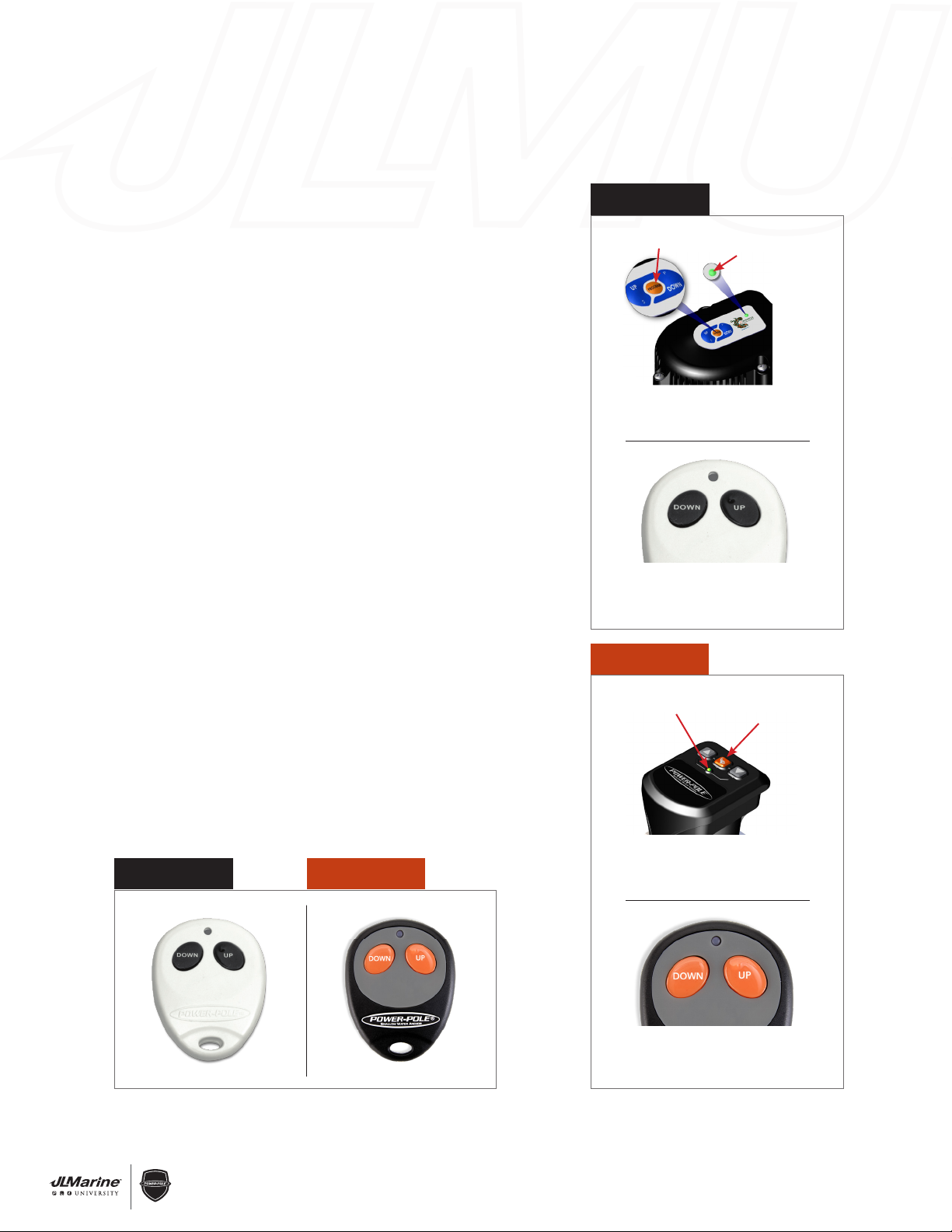

PROGRAMMING:
STEP 1 Press and hold the PROGRAM button on the top of the HPU for
three seconds. The LED will turn solid GREEN. FIG 1 or 3
STEP 2 Press and release any button on the remote. The GREEN LED on
the HPU will turn off, beep, and then return to flashing once per
second indicating the pairing has been completed. FIG 2 or 4
NOTE: If dual anchors are installed, perform STEPS 1-2 for the other
HPU.
STEP 3 Test functionality by following the OPERATION Instructions.
IMPORTANT! The first time your CM2 remote is paired to a recently up-
dated pump it may perform a firmware update. When this
occurs the remote will blink for approximately 1 minute.
Please do not interrupt power to either the pump or remote
during this process. When the blinking has ceased your
remote has finished updating and is ready to use.
OPERATION:
To raise or lower the Power-Pole, press and hold either the UP or DOWN
button on the Key Fob. The anchor will only continue to move while the
button is depressed
Auto Mode
Double tapping (depressing and releasing 2 times within 1 second)
the UP or DOWN button will cause the anchor to retract or deploy
automatically. The Power-Pole will continue to move in said direction until
it retracts completely or senses the bottom.
IMPORTANT! C-Monster 2.0 controllers ARE NOT compatible with
previous C-Monster pumps
C-Monster Controller Programming & Operation
Remote Control Key Fob
C-Monster 1.0

19
WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
Figure 2 Figure 4
PROGRAM button
LED
C-Monster 2.0
Hydraulic Pump Unit (HPU)
Figure 1
Hydraulic Pump Unit (HPU)
Figure 3
C-Monster 1.0
LED
PROGRAM button
INSTALLATION:
STEP 1 Locate an area with a flat surface to mount the UP and DOWN foot switches.
STEP 2 Mark and drill a hole with an 1/8” Drill Bit to fasten the Foot Switches using the
supplied Screws.
IMPORTANT! Do not over tighten screws.
OPERATION:
To raise or lower the Power-Pole, press and hold the UP or DOWN Foot Switch. The anchor will only continue to
move while the button is depressed.
Auto Mode
Double tapping (depressing and releasing 2 times within 1 second) the UP or DOWN Foot Switch will cause the
anchor to retract or deploy automatically. The Power-Pole will continue to move in said direction until it retracts
completely or senses the bottom.
NOTE: The wireless foot switch CM1 comes set to 100% speed and wireless foot switch CM2 comes set to
70% speed. This can be adjusted by downloading the C-Monster App and connecting to the system via
Bluetooth with green smart phone. For more information refer to Owner’s Guide.
IMPORTANT! C-Monster 2.0 controllers ARE NOT compatible with previous C-Monster pumps.
SECTION 1.9 – Electronics & Controllers
C-Monster Controller Programming & Operation
Wireless Foot Switches
PROGRAMMING:
STEP 1 Press and hold the PROGRAM button on the top of the HPU for three seconds. The LED will turn solid
GREEN.FIG 1 or 3
STEP 2 Press and release the UP Foot Switch button. The GREEN LED on the HPU will turn off, beep, and then
return to flashing once per second indicating the pairing has been completed. FIG 2 or 4
STEP 3 Repeat STEPS 1-2 for the DOWN Foot Switch.
NOTE: If dual units are installed, repeat STEPS 1-3 for the other HPU. Up to ten (10) wireless controllers can be
programmed to each unit.
STEP 4 Test functionality by following the OPERATION Instructions.
IMPORTANT! The first time your CM2 remote is paired to a recently-updated pump it may perform a firmware
update. When this occurs the remote will blink for approximately 1 minute. Please do not interrupt
power to either the pump or remote during this process. When the blinking has ceased your remote
has finished updating and is ready to use.

20 WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
PROGRAMMING:
STEP 1 Press and hold the PROGRAM button on the top of the HPU for three seconds. The LED will turn solid
GREEN. FIG 1
STEP 2 Press and release the DOWN button on the Remote. The GREEN LED on the HPU will turn off, beep,
and then return to flashing once per second indicating the pairing has been completed.
STEP 3 Test functionality by following the OPERATION Section.
NOTE: If dual units are installed, repeat STEPS 1-3 for the other HPU. Up to ten (10) wireless controllers can be
programmed to each unit.
INSTALLATION:

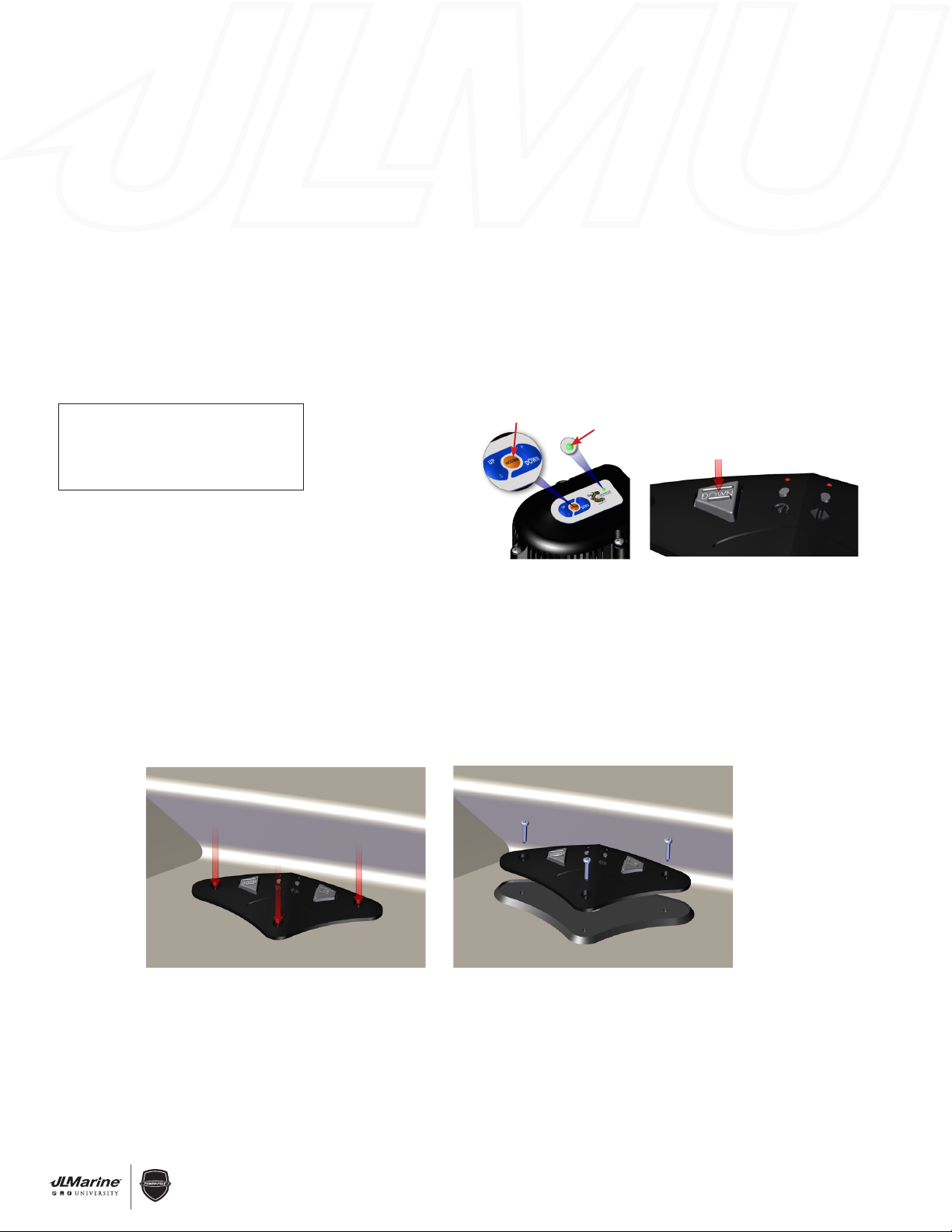

STEP 1 Locate an area with a flat surface to mount the
Foot Switch.
STEP 2 Remove the Foot Switch from its rubber pad and
hold it in the desired location. Use a fine point
marker to mark Mounting Screw locations. FIG 3
WARNING: Before drilling Pilot Holes, inspect the area beneath the mounting surface to ensure that the Drill Bit
will not cause any damage.
STEP 3 Using a 7/64” Drill Bit, drill holes in the previously marked locations.
STEP 4 Place the Foot Switch back into its rubber pad, and fasten both the Switch and pad to the vessel using a
#2 Phillips-Head Screwdriver and the three #6 x 3/4” Pan-Head Screws. FIG 4
Installation Instructions
Changing the Battery
Programming Instructions
Congratulations on your purchase of an Advanced Foot Switch featuring
state-of-the-art C-Monster Control System technology.
Installation
Step 1 Locate a suitable area with a flat surface to mount the foot switch.
Step 2 Remove the foot switch from its rubber pad, and hold it in the desired
location. Use a fine point marker to inscribe the intended mounting
screw locations. (See Figure 1)
WARNING – Before drilling pilot holes for the foot switch mounting screws,
inspect the area beneath the mounting surface in order to ensure
that the drill bit will not cause any damage.
Step 3 Using the 7/64” drill bit, carefully drill holes in the previously
inscribed location.
Step 4 Place the foot switch back into its rubber pad, and fasten both the
switch and pad to the vessel using a #2 Phillips-head screwdriver
and the (3) #6 x 3/4” pan head screws. (See Figure 2)
Changing the Battery
Step 1 Remove the (3) #6 x 3/4” pan head screws with a #2 Phillips-head
screwdriver, and remove the foot switch and its rubber base from
the vessel’s surface.
Step 2 Take the foot switch and its base
to a dry location, and separate the
foot switch and rubber base.
Step 3 Thoroughly dry the foot switch and
then remove the (7) screws on its
underside with a #1 Phillips-head
screwdriver. (See Figure 1)
Step 4 With the screws removed, life the cover off of the switch, and
carefully remove the circuit board.
Step 5 Replace the battery with any CR2032 3V Lithium Coin Battery.
Step 6 Inspect the inside of the foot switch case thoroughly for signs of
moisture as well as damage to the rubber seals. If the rubber seals
appear to be damaged, or of a substantial amount of moisture is
found, please contact a member of our technical support staff.
[[phone] option 2]
NOTE: If needed, a hair dryer may be used to dry residual moisture in
the foot switch case.
Step 7 Assemble and install the foot switch in the reverse order.
Programming
Step 1 Locate the “program” button on the top of the pump unit, depress
and hold it for 3 seconds until the LED steadily illuminates green in
color. The pump unit is now ready to be paired with a foot switch.
(See Figure 1)
NOTE: When dual Power-Pole shallow water anchors are installed,
this procedure should be performed on BOTH pump units.
Step 2 Next, depress and release either the “up” or the “down” button on
the foot switch 1 time. The green LED on the pump unit will initially
turn off, and then it will return to flashing once per second, this will
indicate that the pairing has been completed. (See Figure 2)
Step 3 The foot switch is now paired to the pump unit. Test its functionality
with both the “up” and the “down” buttons to ensure that the pairing
procedure was completed successfully.
Advanced Foot Switch
Featuring Technology
IMPORTANT!
REGISTER YOUR NEW ADVANCED FOOT SWITCH
To validate your warranty, register your new product online at www.power-pole.com
or ll out and submit this registration card.
Name ______________________________________________________________________
Address _____________________________________________________________________
City _____________________________________ State _________ Zip ______________
Email address ________________________________________________________________
Date of purchase __________________________________________ Age ______________
Place of purchase ______________________________________________________________
Type of boat ___________________________________________ Length ______________
I have read and understand the warranty of this product.
Signature ____________________________________________________________________
Figure 1 Figure 2
Figure 1
Figure 1 Figure 2
Installation Instructions
Changing the Battery
Programming Instructions
Congratulations on your purchase of an Advanced Foot Switch featuring
state-of-the-art C-Monster Control System technology.
Installation
Step 1 Locate a suitable area with a flat surface to mount the foot switch.
Step 2 Remove the foot switch from its rubber pad, and hold it in the desired
location. Use a fine point marker to inscribe the intended mounting
screw locations. (See Figure 1)
WARNING – Before drilling pilot holes for the foot switch mounting screws,
inspect the area beneath the mounting surface in order to ensure
that the drill bit will not cause any damage.
Step 3 Using the 7/64” drill bit, carefully drill holes in the previously
inscribed location.
Step 4 Place the foot switch back into its rubber pad, and fasten both the
switch and pad to the vessel using a #2 Phillips-head screwdriver
and the (3) #6 x 3/4” pan head screws. (See Figure 2)
Changing the Battery
Step 1 Remove the (3) #6 x 3/4” pan head screws with a #2 Phillips-head
screwdriver, and remove the foot switch and its rubber base from
the vessel’s surface.
Step 2 Take the foot switch and its base
to a dry location, and separate the
foot switch and rubber base.
Step 3 Thoroughly dry the foot switch and
then remove the (7) screws on its
underside with a #1 Phillips-head
screwdriver. (See Figure 1)
Step 4 With the screws removed, life the cover off of the switch, and
carefully remove the circuit board.
Step 5 Replace the battery with any CR2032 3V Lithium Coin Battery.
Step 6 Inspect the inside of the foot switch case thoroughly for signs of
moisture as well as damage to the rubber seals. If the rubber seals
appear to be damaged, or of a substantial amount of moisture is
found, please contact a member of our technical support staff.
[[phone] option 2]
NOTE: If needed, a hair dryer may be used to dry residual moisture in
the foot switch case.
Step 7 Assemble and install the foot switch in the reverse order.
Programming
Step 1 Locate the “program” button on the top of the pump unit, depress
and hold it for 3 seconds until the LED steadily illuminates green in
color. The pump unit is now ready to be paired with a foot switch.
(See Figure 1)
NOTE: When dual Power-Pole shallow water anchors are installed,
this procedure should be performed on BOTH pump units.
Step 2 Next, depress and release either the “up” or the “down” button on
the foot switch 1 time. The green LED on the pump unit will initially
turn off, and then it will return to flashing once per second, this will
indicate that the pairing has been completed. (See Figure 2)
Step 3 The foot switch is now paired to the pump unit. Test its functionality
with both the “up” and the “down” buttons to ensure that the pairing
procedure was completed successfully.
Advanced Foot Switch
Featuring Technology
IMPORTANT!
REGISTER YOUR NEW ADVANCED FOOT SWITCH
To validate your warranty, register your new product online at www.power-pole.com
or ll out and submit this registration card.
Name ______________________________________________________________________
Address _____________________________________________________________________
City _____________________________________ State _________ Zip ______________
Email address ________________________________________________________________
Date of purchase __________________________________________ Age ______________
Place of purchase ______________________________________________________________
Type of boat ___________________________________________ Length ______________
I have read and understand the warranty of this product.
Signature ____________________________________________________________________
Figure 1 Figure 2
Figure 1
Figure 1 Figure 2
Hydraulic Pump Unit (HPU)
Figure 1
LED
PROGRAM button
Installation Instructions
Changing the Battery
Programming Instructions
Congratulations on your purchase of an Advanced Foot Switch featuring
state-of-the-art C-Monster Control System technology.
Installation
Step 1 Locate a suitable area with a flat surface to mount the foot switch.
Step 2 Remove the foot switch from its rubber pad, and hold it in the desired
location. Use a fine point marker to inscribe the intended mounting
screw locations. (See Figure 1)
WARNING – Before drilling pilot holes for the foot switch mounting screws,
inspect the area beneath the mounting surface in order to ensure
that the drill bit will not cause any damage.
Step 3 Using the 7/64” drill bit, carefully drill holes in the previously
inscribed location.
Step 4 Place the foot switch back into its rubber pad, and fasten both the
switch and pad to the vessel using a #2 Phillips-head screwdriver
and the (3) #6 x 3/4” pan head screws. (See Figure 2)
Changing the Battery
Step 1 Remove the (3) #6 x 3/4” pan head screws with a #2 Phillips-head
screwdriver, and remove the foot switch and its rubber base from
the vessel’s surface.
Step 2 Take the foot switch and its base
to a dry location, and separate the
foot switch and rubber base.
Step 3 Thoroughly dry the foot switch and
then remove the (7) screws on its
underside with a #1 Phillips-head
screwdriver. (See Figure 1)
Step 4 With the screws removed, life the cover off of the switch, and
carefully remove the circuit board.
Step 5 Replace the battery with any CR2032 3V Lithium Coin Battery.
Step 6 Inspect the inside of the foot switch case thoroughly for signs of
moisture as well as damage to the rubber seals. If the rubber seals
appear to be damaged, or of a substantial amount of moisture is
found, please contact a member of our technical support staff.
[[phone] option 2]
NOTE: If needed, a hair dryer may be used to dry residual moisture in
the foot switch case.
Step 7 Assemble and install the foot switch in the reverse order.
Programming
Step 1 Locate the “program” button on the top of the pump unit, depress
and hold it for 3 seconds until the LED steadily illuminates green in
color. The pump unit is now ready to be paired with a foot switch.
(See Figure 1)
NOTE: When dual Power-Pole shallow water anchors are installed,
this procedure should be performed on BOTH pump units.
Step 2 Next, depress and release either the “up” or the “down” button on
the foot switch 1 time. The green LED on the pump unit will initially
turn off, and then it will return to flashing once per second, this will
indicate that the pairing has been completed. (See Figure 2)
Step 3 The foot switch is now paired to the pump unit. Test its functionality
with both the “up” and the “down” buttons to ensure that the pairing
procedure was completed successfully.
Advanced Foot Switch
Featuring Technology
IMPORTANT!
REGISTER YOUR NEW ADVANCED FOOT SWITCH
To validate your warranty, register your new product online at www.power-pole.com
or ll out and submit this registration card.
Name ______________________________________________________________________
Address _____________________________________________________________________
City _____________________________________ State _________ Zip ______________
Email address ________________________________________________________________
Date of purchase __________________________________________ Age ______________
Place of purchase ______________________________________________________________
Type of boat ___________________________________________ Length ______________
I have read and understand the warranty of this product.
Signature ____________________________________________________________________
Figure 1 Figure 2
Figure 1
Figure 1 Figure 2
Figure 2
Figure 3 Figure 4
SECTION 1.9 – Electronics & Controllers
C-Monster Controller Programming & Operation
Advanced Foot Switch
INSTALLATION TOOLS:
• 7/764” Drill Bit
• #2 Phillips Screw Driver
