Surface Mounted Bed Rail
Brackets
QUESTION...
1•847•780•6120
These brackets are assembled to the inside
of the bed rails, making them invisible when
viewing the bed from the outside.
CAUTION
These brackets are not recommended to
be used on bunk beds.
NOTE: Assemble these brackets to 6" or
wider bed rails. DO NOT assemble to bed
rails smaller than 5".
PACKAGING CONTENTS
4 - Sets of Brackets
2 - #1 Male Brackets to be used with
2 - Female Brackets
2 - #2 Male Brackets to be used with
2 - Female Brackets
NOTE: The male brackets are
stamped with a #1 or a #2.
16 - Flat Head Wood Screws 5/8" #8
16 - Flat Head Wood Screws 1-1/4" #8
5
1
8
"
5
8
"
11
2
"
11
2
"
11
2
"
3
8
"
1
2
"
7
8
"
11
2
"
11
2
"
11
2
"
11
2
"
5
1
8
"
11
2
"
11
2
"
11
2
"
1
2
"
7
8
"
5
1
8
"
11
2
"
SPECIFICATIONS
Female Brackets #1 Male Brackets #2 Male Brackets

ASSEMBLY
Each rail requires a #1 and a #2 set
of brackets.
The bed rail MUST be wider than 5".
1. With the number on the male bracket
facing toward you and the hooks
facing down, vertically center it to the
inside face of the bed rail. Make sure
the flats of the hooks are even with the
end of the bed rail.
2. Hold bracket in place and mark the
holes to be drilled.
3. Drill the pilot holes in the bed rail.
4. Align the male bracket with the holes
and use a wood block and hammer to
drive the prongs into the bed rail.
5. Attach the male bracket to the bed rail
end with the 5/8" #8 wood screws.
6. Locate the position for the female
bracket on the bed post. Hold the
bracket in place and mark the holes to
be drilled.
7. Drill the pilot holes in the bed post.
8. Align the female bracket with the holes
and use a wood block and hammer to
drive the prongs into the bed post. Use
the 1-1/4" #8 wood screws to secure
the bracket to the bed post.
9. Repeat for other sets of brackets.

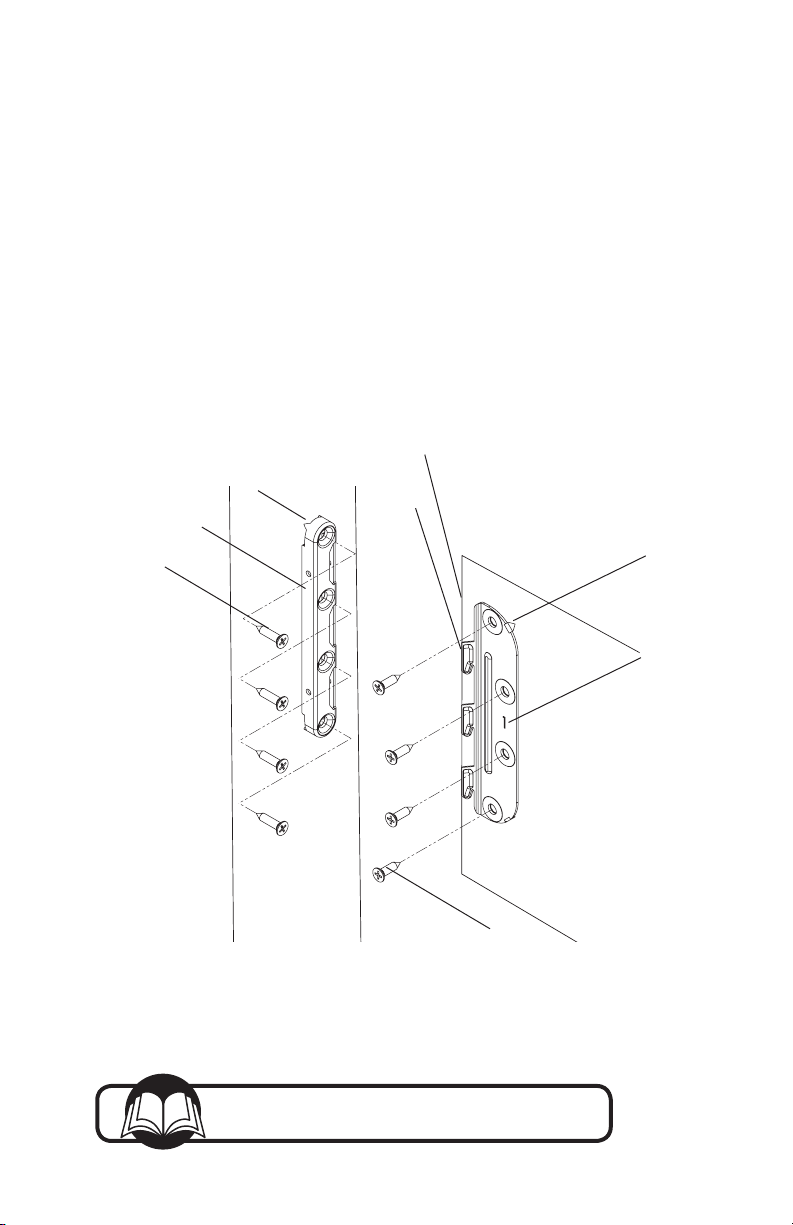

Male Bracket
(#1 shown)
Prong
Prong
Female Bracket
Bed Rail
Bed
Post
1-1/4" #8 Wood Screws
5/8" #8
Wood
Screws
End of the Bed Rail
Hook
Flats
