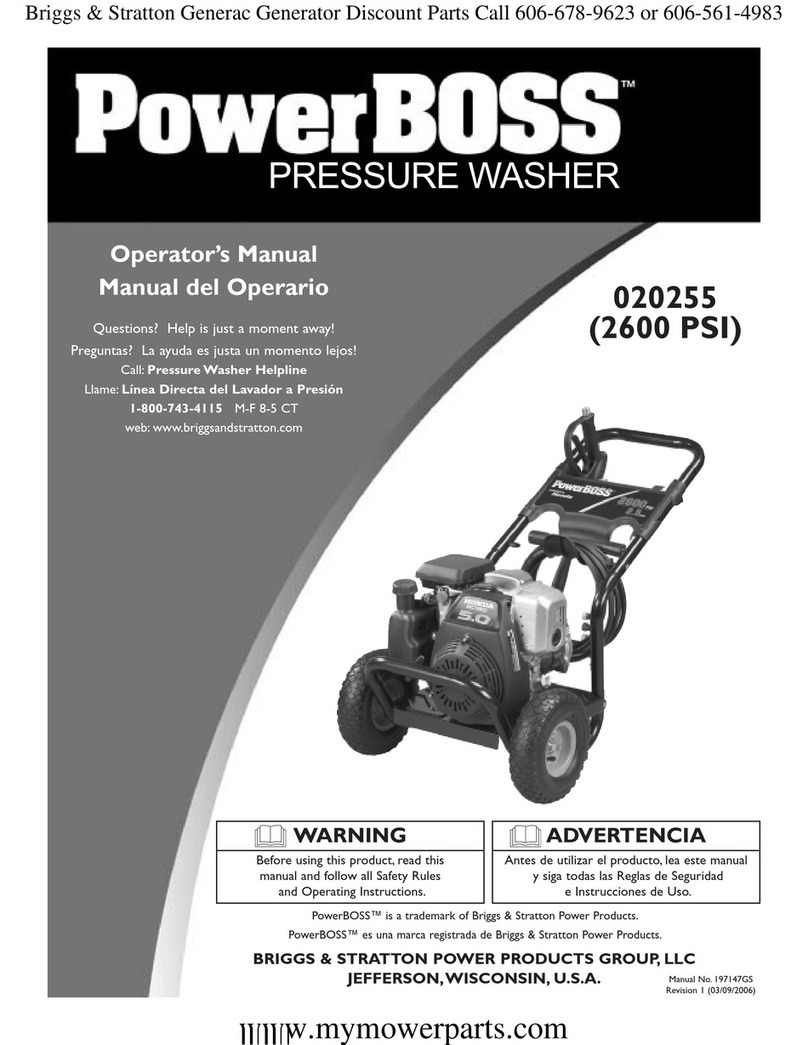

PowerBoss 20255 Setup guide

020255
(2600 PSI)
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON,WISCONSIN, U.S.A.
Manual No. 197147A Revision 1 (02/13/2006)
Illustrated Parts List
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Pressure Washer Helpline
Llame: Línea Directa del Lavador a Presión
1-800-743-4115 M-F 8-5 CT
web: www.briggsandstratton.com
PowerBOSS™ is a trademark of Briggs & Stratton Power Products.
PowerBOSS™ es una marca registrada de Briggs & Stratton Power Products.

2
PowerBOSS™ 2600 PSI Pressure Washer EXPLODED VIEWS
EXPLODED VIEW AND PARTS LIST - MAIN UNIT
Item Part # Description
1 197174GS ASSY, Base
2 B194567GS HANDLE
3 197148GS ASSY, Billboard w/ Clips
195964GS CLIPS,Tree
4 196006GS HOSE
5 192318GS KIT, Engine Mounting Hardware
6 192131GS KIT, Pump Mounting Hardware
7 B2203GS KIT, Handle Hardware
8 194298GS VALVE,Thermal Relief
9 191265GS E-RING
10 192199GS ASSY, Extension
11 199117GS GUN
12 196020GS KIT, Nozzles
195851ZZGS NOZZLE, QC, Black
195983NGS NOZZLE, QC, Red
195983PGS NOZZLE, QC,Yellow
195983RGS NOZZLE, QC,White
13 192310GS KIT,Vibration Mount
Item Part # Description
14 194509GS KIT,Wheel
15 23139DGS KEY
16 198347GS ASSY, Pump (see page 3)
900 § ENGINE
§ - Contact Engine Manufacturer
Items Not Illustrated:
197147GS MANUAL, Operator’s
191267SGS AXLE
BB3061BGS OIL BOTTLE
87815GS GOGGLES
194256GS KIT,Tag Warning
Optional Accessories Not Illustrated
100031 STABILIZER, Fuel
100516GS KIT, O-Ring
6039 PUMP SAVER
Copyright © 2006 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.

3
EXPLODED VIEWS 2600 PSI Pressure Washer PowerBOSS™
EXPLODED VIEW AND PARTS LIST - PUMP
Item Part # Description
19 190571GS CAP, Oil
28 190673GS MANIFOLD
45 190578GS PIN
62 190581GS CAP, 1/8
76 194298GS THERMAL RELIEF
A 190594GS KIT, UNLOADER
B 190670GS KIT,WATER INLET
C 190669GS KIT, BREATHER TUBE
D 193808GS KIT, HEAD BRASS
E 193806GS KIT, CHECK VALVES
F 190592GS KIT, INLET CHECK
G 190593GS KIT, CHEMICAL INJECTION
Item Part # Description
H 193807GS KIT, SEAL SET
J 189971GS KIT, CHEMICAL HOSE
K 193971GS KIT, PIPE FITTING
L 193972GS KIT, UNLOADER SEAT
Items Not Illustrated:
190585GS OIL BOTTLE
B2384GS FILTER, Inlet
186452GS FILTER, Inlet, Bag of 10
NOTE: Item letters A - L are service kits and include all
parts shown within the box.
