powercoup EC1700 User manual

Réf. NOTPW2EC1700 Indice 01
USER’S MANUAL
EC1700

Réf. NOTPW2EC1700 1 Indice 01.
Reference
Description
PW2
Universal handle for the POWERCOUP PW2 range.
THD600
Double hedge trimmer, length of the cutting bar 600 mm (23,62 inches).
THS700
Single hedge trimmer, length of the cutting bar 700 mm (27,55 inches).
TR8
Chain saw, max cutting capacity Ø150 (5,90 inches).
SC160
Reciprocating saw, max cutting capacity Ø100 (3,94 inches).
PW930
Carbon extension pole, length 930 mm (36,61 inches).
EC1700
Flower Thinner, telescopic pole 1m to 1,7m (39,37 to 66,93 inches).
EP1700
Desuckering tool, telescopic pole 1m to 1,7m (39,37 to 66,93 inches).
OT2650
Olive harvester, telescopic pole 2,25m to 3,10m (88,58 to 122,05 inches).
OF1830
Olive harvester, fixed pole 2,45m (96,46 inches).
OF1530
Olive harvester, fixed pole 2,15m (84,65 inches).

Réf. NOTPW2EC1700 2 Indice 01.
Contents
CONTENTS.....................................................................................................................................................2
SAFETY INSTRUCTIONS............................................................................................................................3
PERSONAL PROTECTIVE EQUIPMENT...................................................................................................3
ENVIRONMENTAL PROTECTION ............................................................................................................3
GENERAL OVERVIEW ...............................................................................................................................4
CHARACTERISTICS....................................................................................................................................4
VIEWS OF ACCESSORIES..........................................................................................................................4
USER’S MANUAL........................................................................................................................................5
INSTALLATION AND POWER CONNECTION...................................................................................5
USING THE MACHINE ..........................................................................................................................5
SAFETY PRECAUTIONS .......................................................................................................................8
CARE AND MAINTENANCE......................................................................................................................9
WEEKLY GREASING.............................................................................................................................9
ASSEMBLING THE BRUSH...................................................................................................................9
SAFETY INSTRUCTIONS..........................................................................................................................11
WARRANTY CONDITIONS......................................................................................................................12
RECOMMANDATIONS .............................................................................................................................13
TROUBLESHOOTING................................................................................................................................14
WARRANTY CARD...................................................................................................................................16
DÉCLARATION OF CONFORMITY CE...................................................................................................19

Réf. NOTPW2EC1700 3 Indice 01.
SAFETY INSTRUCTIONS
WARNING. Read all safety warnings and all instructions. Failure to abide by warnings and
instructions could lead to an electric shock, fire and/or serious injury.
Keep all safety warnings and instructions so that you can refer to them at a later date.
The term “tool” in the warnings refers to your electrical tool run off the main supply (with supply power cord) or
your electrical battery-operated tool (without a supply power cord).
PERSONAL PROTECTIVE EQUIPMENT
Read the user manual carefully, especially the safety instructions.
You MUST wear a helmet, eye protection and hearing protection.
Hand protection, for work gloves.
Foot protection by closed toed shoes.
Face protection, or visor.
Note: The extensions poles are made of carbon, which conducts electricity. Do not
use the extensions poles near electricity supply points or electrical wires.
Note: Do not place any part of your body close to the blade. Do not remove cut
material or hold the material you wish to cut while the blades are moving.
ENVIRONMENTAL PROTECTION
Follow the specific instructions for waste elimination in your country. Electrical
appliances should not be thrown in the garbage.
The device, accessories and packaging should be recycled.
Ask your specialist INFACO retailer for the latest information on eco-compatible waste
elimination.

Réf. NOTPW2EC1700 4 Indice 01.
GENERAL OVERVIEW
CHARACTERISTICS
Reference
EC1700
Power
1400W Max
Weight
2 kg 790
Length
1.63 to 2.26m
Blade speed
1250 r/min
VIEWS OF ACCESSORIES
PW2 handle
Power cord
Li-ion Battery
500wh (10Amp)
Running time 2/3
days
NiMH Battery
150Wh (3Amp)
Running time 6/8h
Ref: PW2
Ref: PW225S
Ref: L810B
Ref: 731B
NOT
PW2 NOT PW2 NOT L810B NOT F3010
Removable handle
Telescopic pole
Electroflor brush

Réf. NOTPW2EC1700 5 Indice 01.
USER’S MANUAL

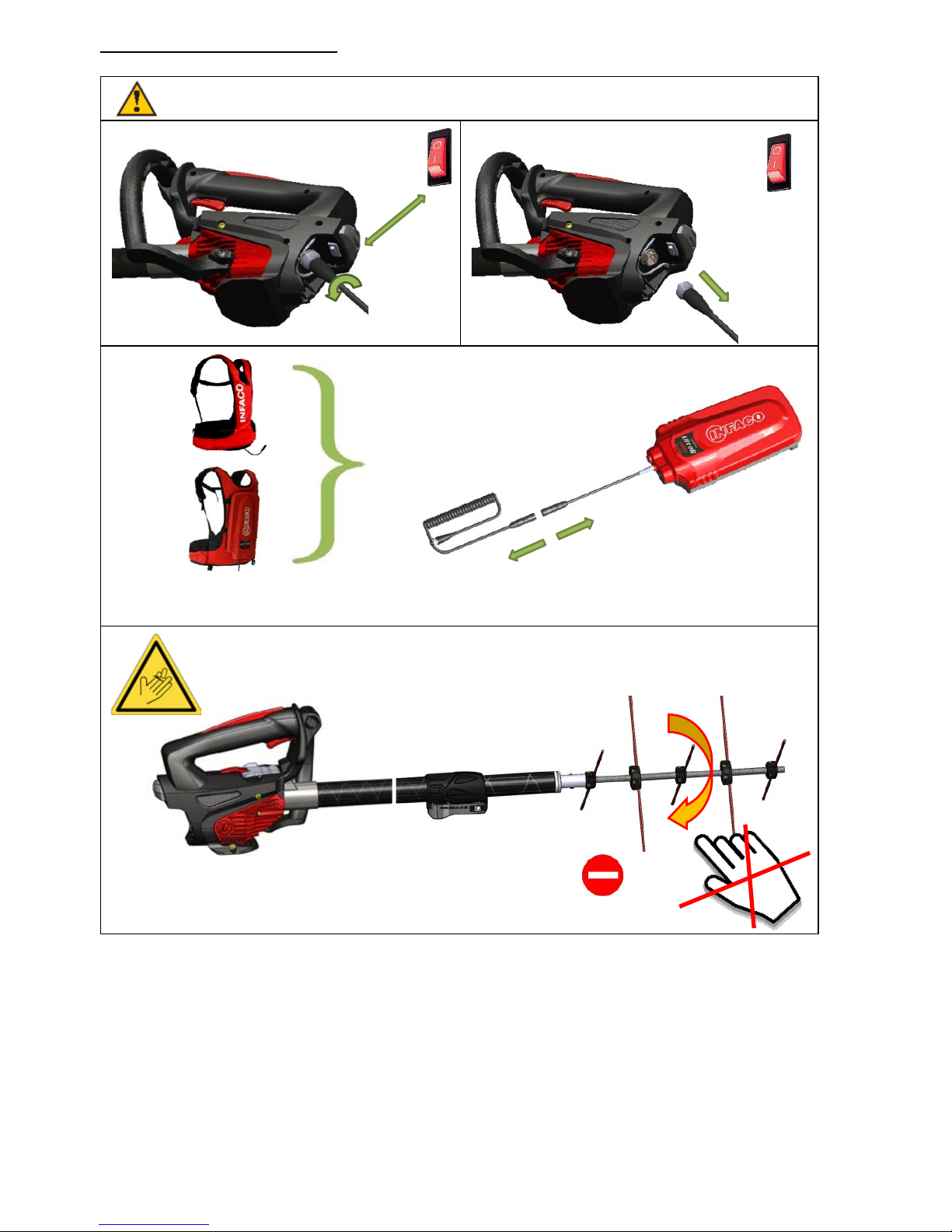

INSTALLATION AND POWER CONNECTION
Only use INFACO brand batteries with a supply voltage 48 volts.
It is imperative to read the operating instructions for the tools and
accessories before handling or connecting the tool.
If it is raining, the battery vest must be worn underneath waterproof clothing so that
the battery unit and control box remain dry.
USING THE MACHINE
a → f
a
b
c
1
2

Réf. NOTPW2EC1700 6 Indice 01.
d
e
f
g
h
i
j
k
1
2
2
1
OFF
ON
1
2

Réf. NOTPW2EC1700 7 Indice 01.
l
1 Start: 2 short pulls of the trigger = ON
Standby output: 2 short pulls of the trigger = ON
2 Normal operations:
1 long pull of the trigger = ON / Releasing the trigger = OFF
1 short pull of the trigger = ON / 1 short pull of the trigger = OFF
SETTING OF ROTATION SPEED
10 speed increments available between 200 and 1900 r/min
a/ Start the machine
b/ To enter the set-up mode, do a long pull on
the trigger.
The machine starts automatically at the first
increment on low speed.
c/
Select the requested speed with successive short pulls on the trigger. 10 speed increments
available.
Validate the requested speed and exit the set-up mode with a long pull on the trigger until
the machine stops completely.
The machine is ready to work, the speed will be locked until the next set-up.
The tool is fitted with an electronic protection system. As soon as the brush becomes blocked due to
meeting strong resistance, the electronic system causes the motor to stop. Restart the tool by carrying
out operation "l" in “Using the Tool” on page 7.
1
2 → (x3)
ON
x1 long pull
x10 short pulls

Réf. NOTPW2EC1700 8 Indice 01.
SAFETY PRECAUTIONS
For transportation, storage, maintenance, tool maintenance or any other operation
outside of using the tool, you must unplug the tool.
a
b
c
OFF
1
2
OFF

Réf. NOTPW2EC1700 9 Indice 01.
CARE AND MAINTENANCE
All maintenance operations must be performed
with the tool disconnected from all power
sources.
Maintenance of the tool depends on the
frequency of tool use.
Occasional use, space out intervals.
Intensive use, more frequent intervals.
Before starting work
At the end of work daily
Each time the battery is changed
Weekly
Monthly
Yearly
If faulty
If damaged
As required
Complete tool
Visual inspection
X
X
Cleaning
X
X
Have checked by dealer
X
X
Fixing the brush
Check
X
Wire of brush
Visual inspection
X
Change
X
X
Power cord
Visual inspection
X
X
X
Battery
Visual inspection
X
X
X
X
Vest
Visual inspection
X
X
X
Handle
Visual inspection
X
X
WEEKLY GREASING
ASSEMBLING THE BRUSH
Prepare the carbon shaft, half-shell and wires required, according to use.
1- Place a lock-nut on each half-shell (supplied with the machine. (Fig. 1A)
2- Place a lock-nut on each half-shell.
The wire must be positioned symmetrically.
3- Place the unit on the end of the carbon shaft. (Fig. 1B).
4- Pinch the wire with a second half-shell.
5- Tighten the unit with Torx T20 Allen key and the two screws supplied with the machine (Fig. 1C)
