Powercoup Pw2 User manual

Réf. : NOT PW2 Indice 02.

USER’S MANUAL

PW2

Réf. : NOT PW2 2 Indice 02.

Réf. : NOT PW2 3 Indice 02.

Contents

SAFETY INSTRUCTIONS ................................................................................................5

PERSONAL PROTECTIVE EQUIPMENT .......................................................................5

ENVIRONMENTAL PROTECTION .................................................................................5

GENERAL VIEW PRODUCT............................................................................................6

CHARACTERISTICS.........................................................................................................6

VIEWS COMPATIBLE ACCESSORIES « PW2 »............................................................7

USUER MANUAL..............................................................................................................8

USING FOR THE FIRST TIME .....................................................................................8

MOUNTING THE HANDLE .........................................................................................8

INSTALLATION AND CONNECTION........................................................................8

USING THE MACHINE.................................................................................................9

LIGHT DISPLAY / LED...............................................................................................11

SAFETY PRECAUTIONS................................................................................................12

CARE AND MAINTENANCE.........................................................................................13

SAFETY INSTRUCTIONS ..............................................................................................15

RECOMMANDATIONS ..................................................................................................17

REPAIR .............................................................................................................................18

RETURN THIS COUPON TO INFACO AS SOON AS YOU HAVE PURCHASED

THE MACHINE................................................................................................................21

EQUIPMENT MANUFACTURED IN FRANCE ............................................................23

DECLARATION OF CONFORMITY CE .......................................................................24

Réf. : NOT PW2 4 Indice 02.

Reference

Description

PW2

Universal handle for the range POWERCOUP PW2.

THD600

Double hedge trimmer, length of the cutting bar 600 mm (23,62 inches).

THS700

Single hedge trimmer, length of the cutting bar 700 mm (27,55 inches).

TR8

Chain saw, max cutting capacity Ø150 (5,90 inches).

SC160

Reciprocating saw, max cutting capacity Ø100 (3,94 inches).

PW930

Carbon extension pole, length 930 mm (36,61 inches).

EC1700

Flower Thinner, telescopic pole 1m to 1,7m (39,37 to 66,93 inches).

EP1700

Desuckering tool, telescopic pole 1m to 1,7m (39,37 to 66,93 inches).

OT2650

Olive harvester, telescopic pole 2,25m to 3,10m (88,58 to 122,05 inches).

OF1830

Olive harvester, fixed pole 2,45m (96,46 inches).

OF1530

Olive harvester, fixed pole 2,15m (84,65 inches).

Réf. : NOT PW2 5 Indice 02.

SAFETY INSTRUCTIONS

WARNING. Read all safety warnings and all instructions. Failure to abide by warnings and instructions could lead

to an electric shock, fire and/or serious injury.

Keep all safety warnings and instructions so that you can refer to them at a later date.

The term “tool” in the warnings refers to your electrical tool run off the main supply (with power cord) or your electrical battery-

operated tool (without a power cord).

PERSONAL PROTECTIVE EQUIPMENT

Read the user instructions carefully, especially the safety instructions.

You MUST wear a helmet, eye protection and hearing protection.

Note: The extensions are made of carbon, which conducts electricity. Do not use the

extensions near electricity supply points or electrical wires.

ENVIRONMENTAL PROTECTION

Follow the specific instructions for waste elimination in your country. Electrical

appliances should not be thrown in the garbage.

The device, accessories and packaging should be recycled.

Ask your specialist INFACO retailer for the latest information on eco-compatible waste

elimination.

Réf. : NOT PW2 6 Indice 02.

GENERAL OVERVIEW

CHARACTERISTICS

Reference

PW2

Voltage

48Vcc

Power

220W to 1100W

Weight

1,480 Kg (3.3 lbs)

Dimensions (L x W x h)

227 mm x 154 mm x 188 mm (8.9 in. x 6.1 in. x 7.4 in.)

Electronic detection tools

Automatic speed adaptation, torque, power and operating mode

User’s manual for PW2

Motorized handle

Spray lubricant

Retractable handle

T20 Screwdriver Torx

Bumper

ON/OFF button

Tethering ring

Power port

Safety trigger

Power trigger

Clamping lever

Lock

LED light

Clamping screw handle

Removable handle

Vent grill

Réf. : NOT PW2 7 Indice 02.

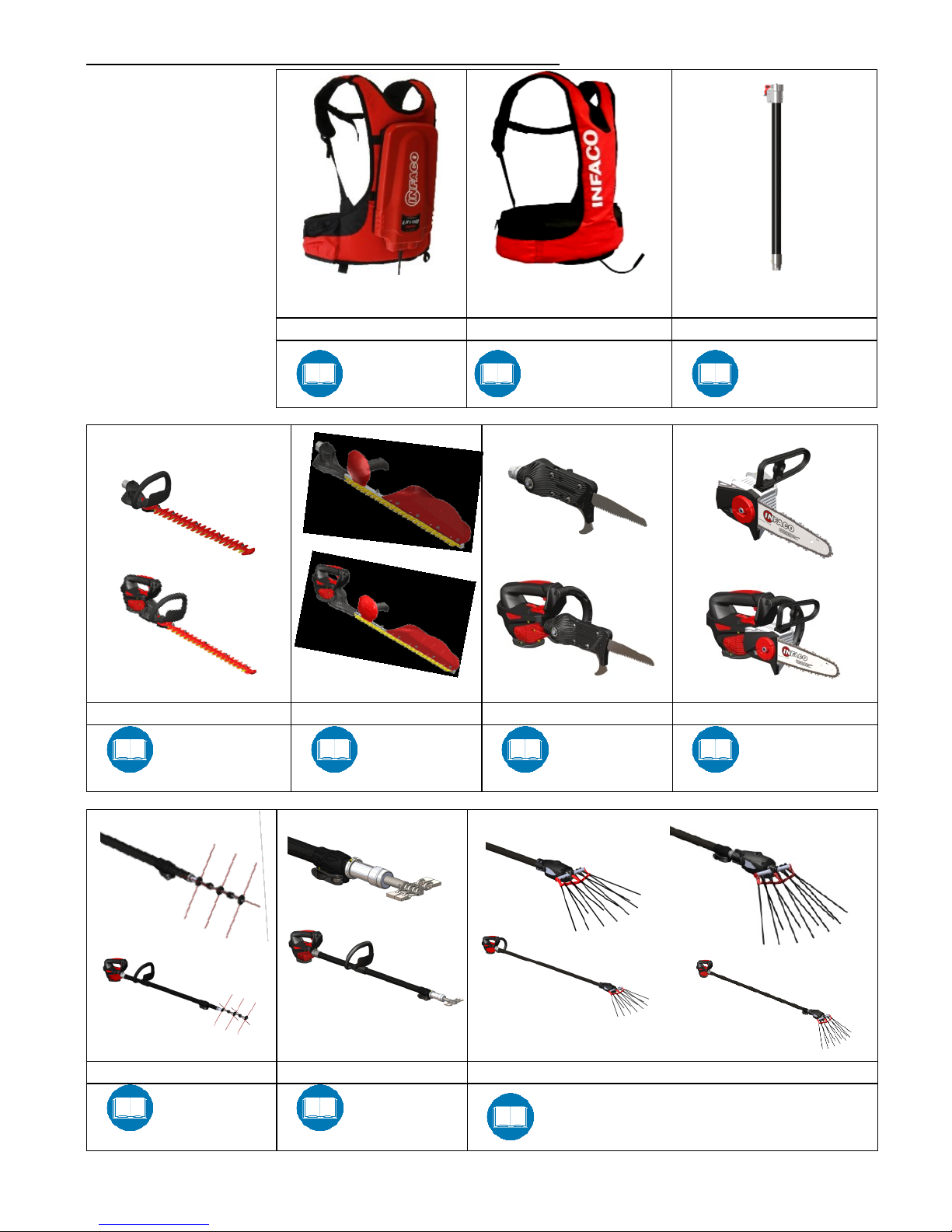

COMPATIBLE ACCESSORY VIEWS FOR THE « PW2 »

Battery 500Wh

10,4 Amp.

Battery 150Wh

3,1 Amp.

Extension

Ref : L810B

Ref : 731B

Ref : PW930

NOT

L810B

NOT

F3010

NOT

PW930

Double hedge trimmer

Single hedge trimmer

Reciprocating saw

Chain saw

Ref : THD600

Ref : THS700

Ref : SC160

Ref : TR8

User’s

manual

THD600

User’s

manual

THS700

User’s

manual

SC160

User’s

manual

TR8

Flower thinner

Desuckering tool

Olive harvester

Ref : EF1700

Ref : EP1700

Ref : OF1530 –OF1830 –OT2650

User’s

manual

EF1700

User’s

manual

EP1700

User’s manual

OF1530/OF1830/OT2650

Réf. : NOT PW2 8 Indice 02.

USER’S MANUAL

FIRST TIME USE

We strongly recommend that you ask for assistance from your retailer, who is authorized to give

you all the advice you need to use the machine properly and achieve a great results.

It is essential to read the operating instructions for the equipment and accessories before

handling or connecting the device.

MOUNTING THE HANDLE

INSTALLATION AND CONNECTION

Only use INFACO brand batteries with a supply voltage 48 volts.

Use of any battery other than INFACO batteries can cause damage. No warranty

will be granted on the motorized handle when using batteries other than those manufactured

by INFACO.

If it is raining, the battery vest must be worn underneath waterproof clothing so

that the battery unit and control box remain dry.

1

2

Réf. : NOT PW2 9 Indice 02.

USING THE TOOL

A → J

a

b

c

d

e

1

2

OFF

ON

Réf. : NOT PW2 10 Indice 02.

f

g

h

i

j

k

l

1 Start: 2 short presses of the trigger = ON

Standby output: 2 short presses of the trigger = ON

m

1 short press of the trigger = ON

1 short press of the trigger = OFF

1

2

1

2

1

2

1

2

Réf. : NOT PW2 11 Indice 02.

LIGHT DISPLAY / LED

Situation

Display

Descriptions

Battery level

Battery level between 100% and 80%.

Battery level

Battery level between 80% and 50%.

Battery level

Battery level between 50% and 20%.

Battery level

Battery level between 20% and 0%.

Sequence

when

plugged in

2 cycles for power and then displays standby

mode.

Standby

Flashing battery level slowly.

Error D01

Battery empty.

Error D02

Handle error, see chapter Troubleshooting.

Error D14

Chain saw brake error. See chapter

Troubleshooting.

Réf. : NOT PW2 12 Indice 02.

SAFETY PRECAUTIONS

The tool is fitted with an electronic protection system. As soon as the appliance becomes blocked

due to meeting strong resistance, the electronic system causes the motor to stop. Restart the machine

by carrying out operation « l » in “Using the tool” on page 10.

We also recommend keeping the tool’s protective tube, in case it needs to be returned to the

factory for after-sales service.

For transportation, storage, maintenance, tool maintenance or any other operation outside of usinf

the tool, you must unplug the tool.

a

b

c

1

2

OFF

Réf. : NOT PW2 13 Indice 02.

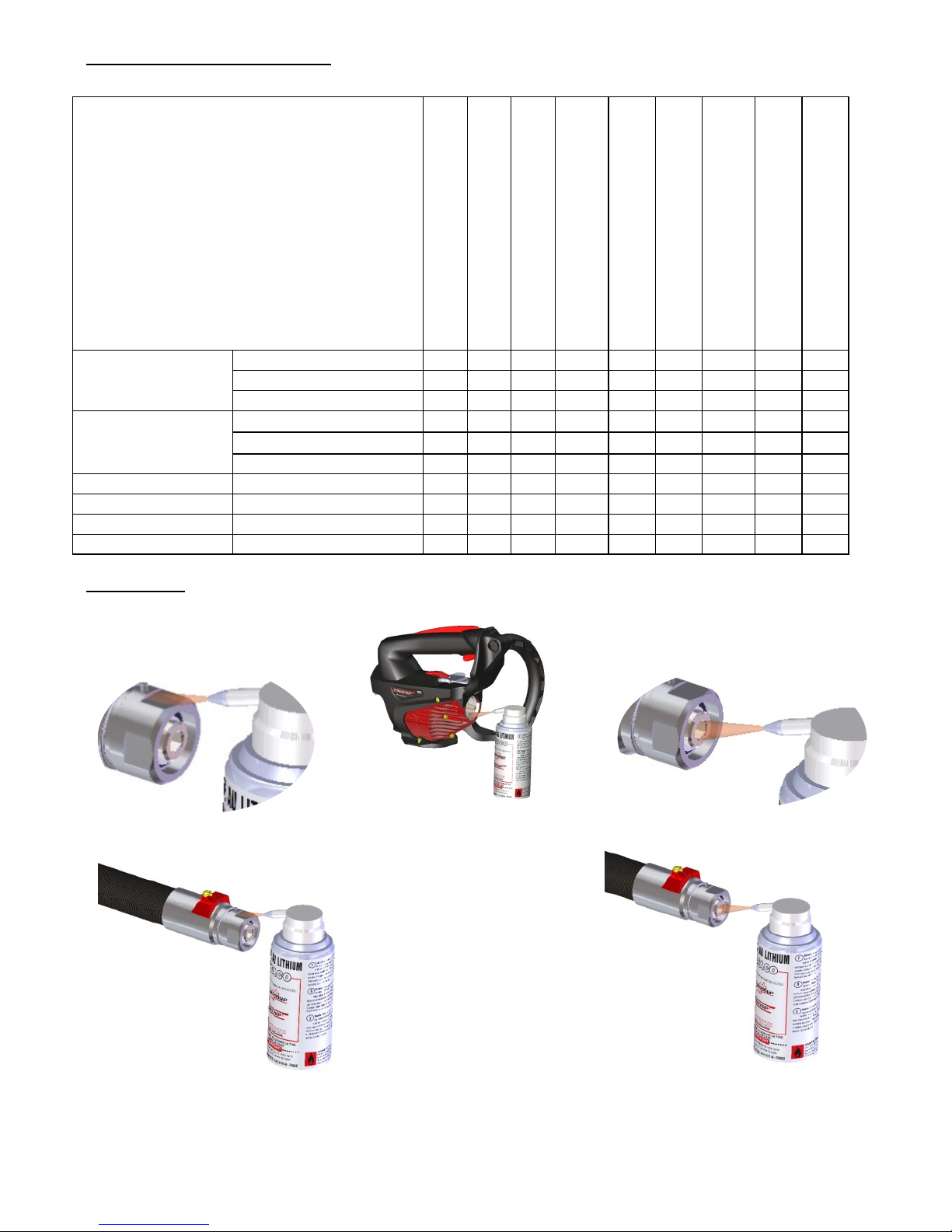

CARE AND MAINTENANCE

All maintenance operations or maintenance must

be performed after disconnecting the tool from

all power sources.

Maintenance of the tool depends on frequency of

use.

Occasional use, space out intervals.

Intensive use, more frequent intervals.

Before starting work

At the end of work daily

Each time the battery is changed

Weekly

Monthly

Yearly

If faulty

If damaged

As required

Complete tool

Visual inspection

X

Cleaning

X

Have check by dealer

X

Accessories

Cleaning and greasing

X

Check clearance

X

Setting clearance

X

Vent grill

Cleaning

X

Power cord

Visual inspection

X

Battery

Visual inspection

X

Vest

Visual inspection

X

GREASING

Grease least once per week.

Grease all accessories.

Réf. : NOT PW2 14 Indice 02.

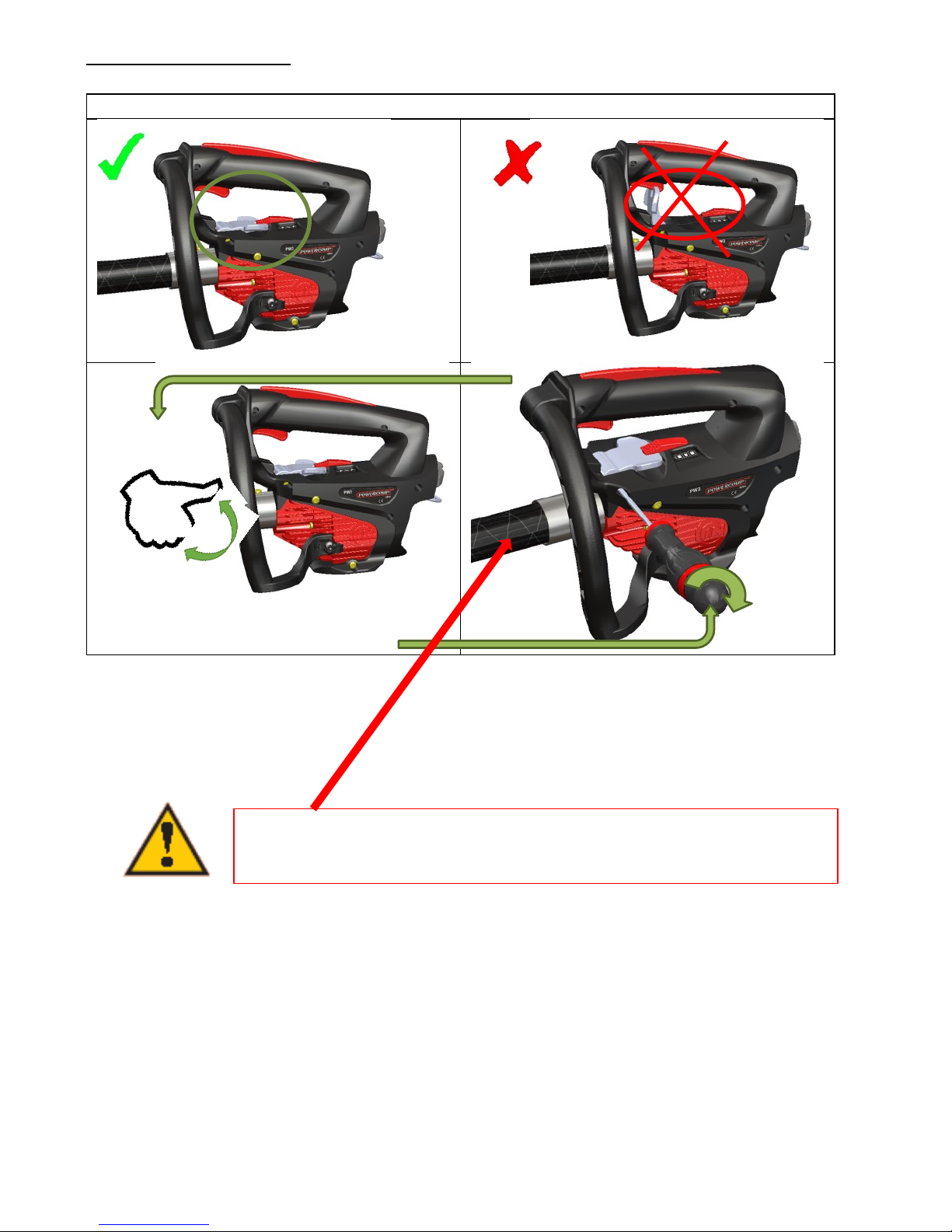

SETTING CLEARANCE

Applies to all accessories.

If no movement = clearance is OK

If movement = adjust the clearance

The setting clearance should be IMPERATIVELY

with an accessory mounted and locked on the handle.

Réf. : NOT PW2 15 Indice 02.

SAFETY INSTRUCTIONS

BEWARE! In order to reduce the risk of electrical discharge, injury and fire during the use of

electrical tools, please observe the following basic safety measures. Read and follow these

instructions before using the tool, and keep these safety instructions!

When not in operation, the POWERCOUP PW2 handle and its accessories must be disconnected

and stored in their case.

PW2 POWERCOUP handle must always be disconnected from all power sources to the

following:

- Servicing.

- Charging the battery

- Maintenance.

- Transport.

- Storage.

While the tool is in operation, always remember to keep hands away well away from the accessory

being used.

Do not use the tool if you are tired or feeling unwell.

Wear recommended safety equipment specific to each accessory.

Do not leave the tool within the reach of children or visitors.

Do not use the tool if there is any risk of fire or explosion- for example in the presence of

flammable liquids or gas.

Never carry the charger by its power cord, and so not pull on the power cord to unplug it.

Keep the power cord away from heat sources, oil or sharp edges.

Never use the tool at night or in poorly lit conditions without setting up extra lighting.

While using the tool, make sure you keep both feet on the ground and stay well-balanced.

Be careful –the extension poles and rake are made out of carbon –a conductive

material. Do not use near electrical wires or other power sources.

Réf. : NOT PW2 16 Indice 02.

WARRANTY CONDITIONS

The POWERCOUP PW2 handle is covered under warranty for a period of two years

against all manufacturing faults and defects.

This warranty corresponds to recommended use of the tool and excludes:

- Damage due to poor maintenance or a lack of maintenance,

- Damage due to inappropriate usage,

- Damage due to normal wear and tear,

- Tools which have been dismantled by unauthorized repairers,

- External forces (fire, flooding, lightning, etc.),

- Damage from tool being dropped or from other impact,

- Tools with warranty cards not returned at the time of purchase,

- Tools used with a battery or charger other than those manufactured by INFACO.

INFACO shall not remit payment for any monetary loss incurred for the time the tool is

unavailable during repairs.

All repairs made by a person other than an approved INFACO authorized service provider

(ASP) will invalidate the equipment warranty.

In case of any breakdown, we strongly recommend that users of INFACO equipment

either contact the retailer from whom they purchased the tool, or our after-sales service on

(+33) 05 63 33 91 49 (France).

Please note our after-sales service shipping policy:

- For equipment submitted to us within the scope of the warranty, you pay to send it to us

and we pay the return postage.

- For equipment which is not within its warranty period, you pay to send it to us and the

return will be made at your cost, cash on delivery. We will send you an estimate if the

cost of the repair is more than $50.

Réf. : NOT PW2 17 Indice 02.

RECOMMANDATIONS

Keep your work area tidy.

Untidiness in the work area increases the risk of accidents.

Take the work area environment into account.

Don’t expose electrical tools to the rain. Don’t use electrical tools in a humid or wet environment.

Make sure the work area is well lit. Don’t use electrical tools if there are flammable liquids or gases

in the vicinity.

Protect yourself against electrical discharge.

Avoid bodily contact with grounded surfaces, such as, for example: battery charger, multiway

electrical sockets, etc.

Keep children away!

Don’t allow other people to touch either the tool or the power cord. Keep others well away from

your work area.

Store your tools in a safe place.

Tools not in use should be stored in a dry, enclosed place, in their original packaging and out of the

reach of children.

Wear suitable working gear.

Do not wear flowing clothes or jewelry. These could get caught up by moving parts. When working

outdoors, it is recommended that you wear rubber gloves and shoes with non-slip soles. Use a

hairnet if you have long hair.

Wear protective goggles.

Use a mask as well if the work you are doing produces dust or debris.

Take care of the lead.

Never carry the charger by its power cord, and so not pull on the power cord to unplug it. Keep the

power cord away from heat sources, oil or sharp edges.

Take good care of your tools.

Regularly check the condition of the power cord and plug, and have them changed by an approved

specialist if they show any signs of damage. Keep the POWERCOUP PW2 material dry and free of

oil and grease.

Remove the tool keys.

Remove any adjustment keys before switching on the tool.

Check whether your tool is damaged.

Before using the tool, carefully check that the safety features are in perfect working order and

whether any parts have been even slightly damaged.

Have your tool repaired by a specialist.

This tool is compliant with the safety regulations in force. All repairs must be carried out by an

authorized service provider (ASP) or by INFACO and exclusively using original parts. Parts which

are not original may seriously risk the safety of the user.

Réf. : NOT PW2 18 Indice 02.

REPAIR

Problem

Cause

Solution

Tool does not start

No power Machine

Reconnect to power supply.

Error D01

Battery drained

Recharge the battery.

Error D02

Load too high

Mechanical seizing

Restart by pulling the trigger

once. If the problem persists,

contact your dealer.

Error D14

Safety brake actived

With Chain saw, check that

the chain brake is unlocked.

Wrong tool detected

Turn off the ON / OFF button.

Ensure the tool is correctly

assembled. If the problem

persists, contact your dealer.

Others

Contact your dealer.

Tool stops working

Error D01

Battery drained

Recharge the battery.

Error D02

Load too high

Change working method or

take advice from your dealer.

Restart by pulling the trigger

once.

Error D14

Safety brake actived

Upon the removal of the chain

brake, restart by pulling the

trigger twice.

Others

Contact your dealer.

Tool stays in standby

Overheating

Wait for the tool to cool down

and restart by pulling the

trigger twice.

Wrong tool detected

Turn off the ON / OFF

Ensure the tool is correctly

assembled. If the problem

persists, contact your dealer.

Réf. : NOT PW2 19 Indice 02.

Notes :

………………………………………………………………………………………………

Réf. : NOT PW2 20 Indice 02.

Notes :

………………………………………………………………………………………………

powercoup PW2 User manual

Popular Lawn And Garden Equipment manuals by other brands
