Powercoup Ep1700 User manual

USER’S MANUAL

EP1700

Réf. NOTPW2EP1700 1 Indice 01.

Référence

Descriptif

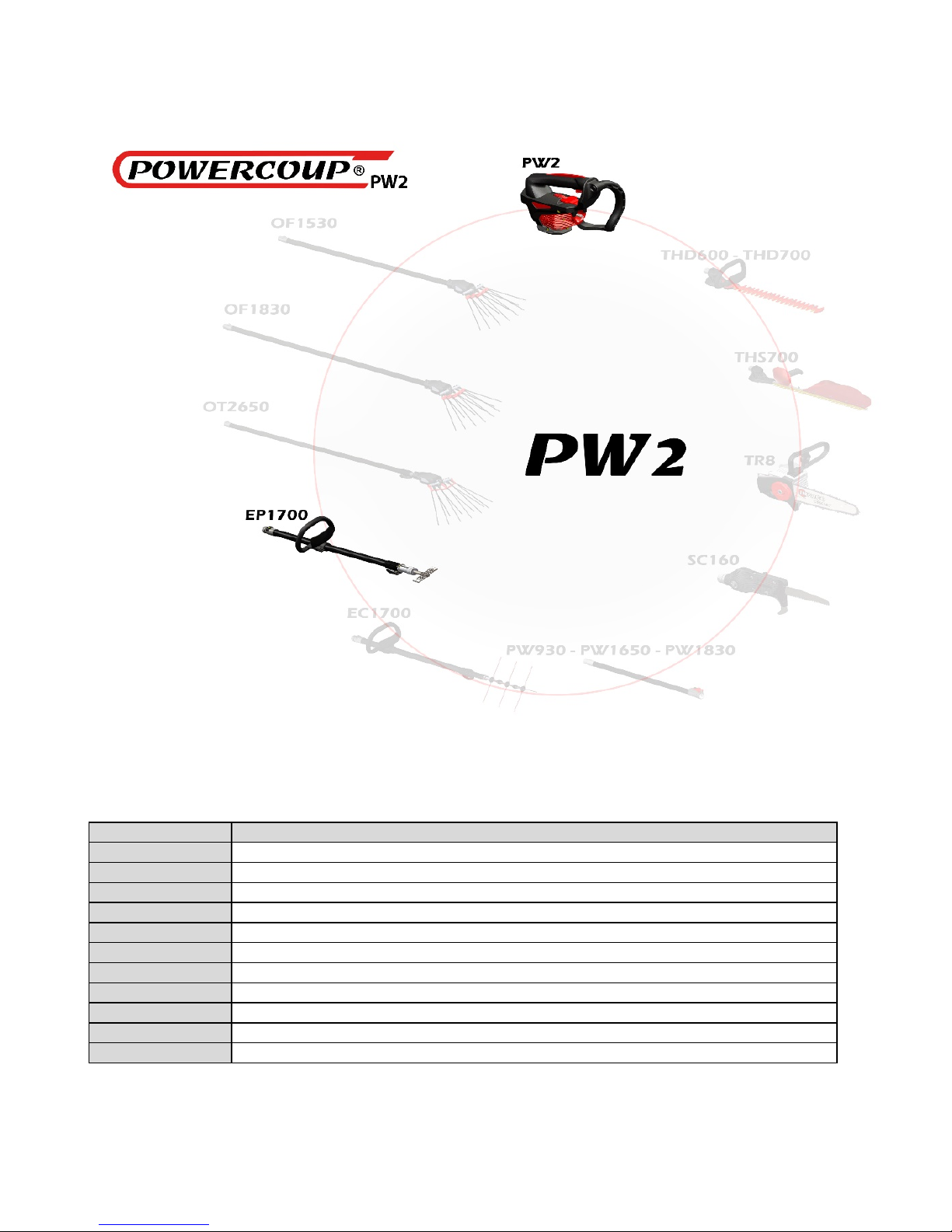

PW2

Universal handle for the range POWERCOUP PW2.

THD600

Double hedge trimmer, length of the cutting bar 600 mm (23,62 inches).

THS700

Single hedge trimmer, length of the cutting bar 700 mm (27,55 inches).

TR8

Chain saw, max cutting capacity Ø150 (5,90 inches).

SC160

Reciprocating saw, max cutting capacity Ø100 (3,94 inches).

PW930

Carbon extension pole, length 930 mm (36,61 inches).

EC1700

Flower Thinner, telescopic pole 1m to 1,7m (39,37 to 66,93 inches).

EP1700

Desuckering tool, telescopic pole 1m to 1,7m (39,37 to 66,93 inches).

OT2650

Olive harvester, telescopic pole 2,25m to 3,10m (88,58 to 122,05 inches).

OF1830

Olive harvester, fixed pole 2,45m (96,46 inches).

OF1530

Olive harvester, fixed pole 2,15m (84,65 inches).

Réf. NOTPW2EP1700 2 Indice 01.

CONTENTS

SAFETY INSTRUCTIONS............................................................................................................................3

PERSONAL PROTECTIVE EQUIPMENT...................................................................................................3

ENVIRONMENTAL PROTECTION ............................................................................................................3

GENERAL OVERVIEW ...............................................................................................................................4

CHARACTERISTICS....................................................................................................................................4

VIEWS OF ACCESSORIES..........................................................................................................................4

USER’S MANUAL........................................................................................................................................5

INSTALLATION AND POWER CONNECTION...................................................................................5

USING THE MACHINE ..........................................................................................................................5

SAFETY PRECAUTIONS .......................................................................................................................8

CARE AND MAINTENANCE......................................................................................................................9

DAILY GREASING .................................................................................................................................9

CHANGING THE ROTOR ....................................................................................................................10

CHANGING THE FLYWEIGHTS.........................................................................................................10

SAFETY INSTRUCTIONS..........................................................................................................................12

WARRANTY CONDITIONS......................................................................................................................13

RECOMMANDATIONS .............................................................................................................................14

REPAIR........................................................................................................................................................15

WARRANTY CARD...................................................................................................................................20

EQUIPMENT MANUFACTURED IN FRANCE........................................................................................22

DÉCLARATION DE CONFORMITÉ CE...................................................................................................23

Réf. NOTPW2EP1700 3 Indice 01.

SAFETY INSTRUCTIONS

WARNING. Read all safety warnings and all instructions. Failure to abide by warnings and instructions could lead

to an electric shock, fire and/or serious injury.

Keep all safety warnings and instructions so that you can refer to them at a later date.

The term “tool” in the warnings refers to your electrical tool run off the main supply (with power cord) or your electrical battery-

operated tool (without a power cord).

PERSONAL PROTECTIVE EQUIPMENT

Read the user manual carefully, especially the safety instructions.

You MUST wear a helmet, eye protection and hearing protection.

Hand protection, for work gloves.

Foot protection by closed toed shoes.

Face protection, or visor.

Note: The extensions poles are made of carbon, which conducts electricity. Do not

use the extensions poles near electricity supply points or electrical wires.

Note: Do not place any part of your body close to the blade. Do not remove cut

material or hold the material you wish to cut while the blades are moving.

ENVIRONMENTAL PROTECTION

Follow the specific instructions for waste elimination in your country. Electrical

appliances should not be thrown in the garbage.

The device, accessories and packaging should be recycled

Ask your specialist INFACO retailer for the latest information on eco-compatible waste

elimination.

Réf. NOTPW2EP1700 4 Indice 01.

GENERAL OVERVIEW

CHARACTERISTICS

Reference

EP1700

Voltage

1400W Max

Weight

3 kg

Length

1.63 à 2.26m

Speed

1900 tr/min

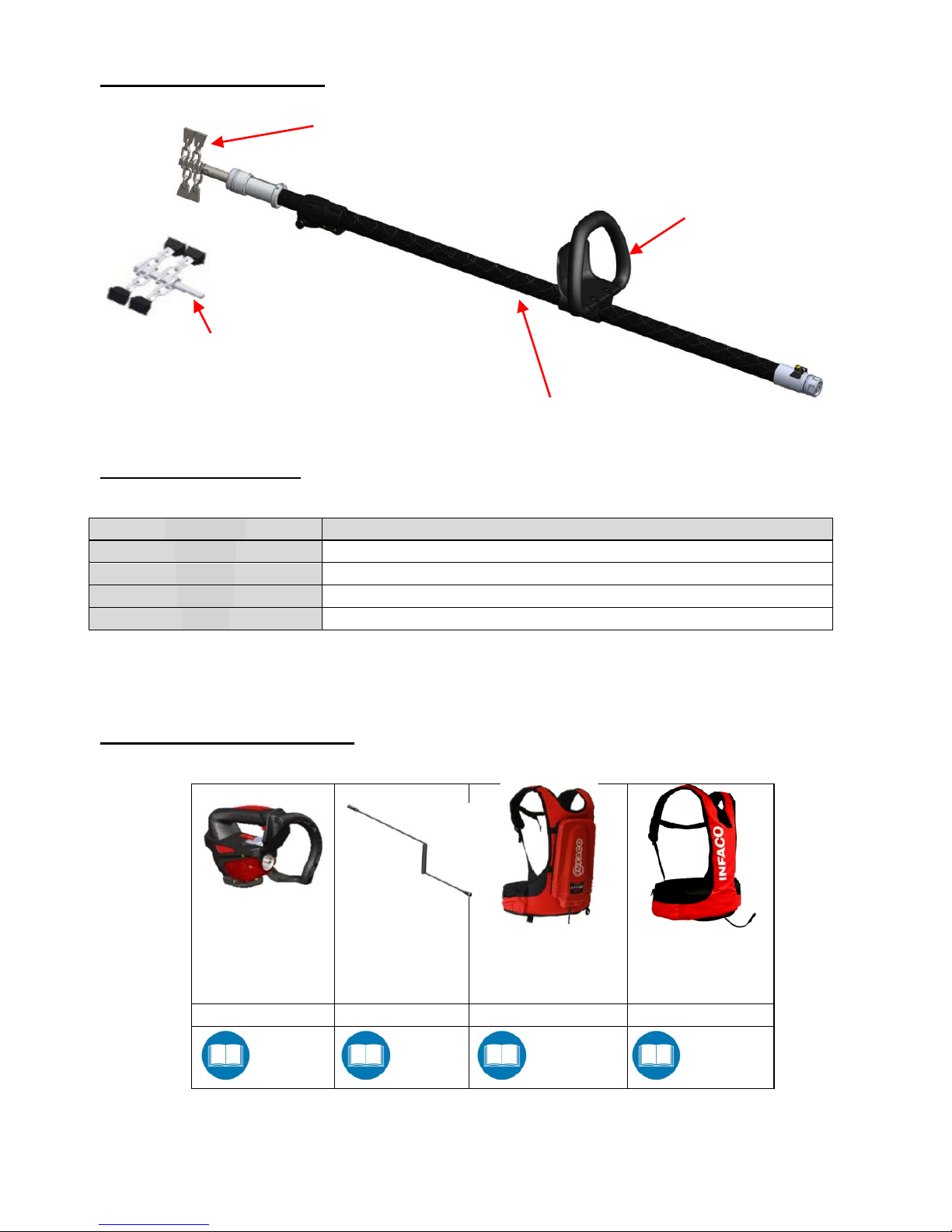

VIEWS OF ACCESSORIES

PW2 Handle

Power cord

Li-ion Battery

500wh (10Amp)

NiMH Battery

150Wh (3Amp)

Réf : PW2

Réf : PW225S

Réf : L810B

Réf : 731B

NOT

PW2 NOT

PW2

NOT

L810B NOT

F3010

Removable handle

Telescopic Pole

Rotor equipped with steel flyweights.

(Standard : Ref.EP13PC)

Rotor equipped with rubber flyweights

(Optional extra: Ref.EP13PPC)

Réf. NOTPW2EP1700 5 Indice 01.

USER’S MANUAL

INSTALLATION AND POWER CONNECTION

Only use INFACO brand batteries with a supply voltage 48 volts.

It is imperative to read the operating instructions for the tools and

accessories before handling or connecting the tool.

If it is raining, the battery vest must be worn underneath waterproof clothing so that

the battery unit and control box remain dry.

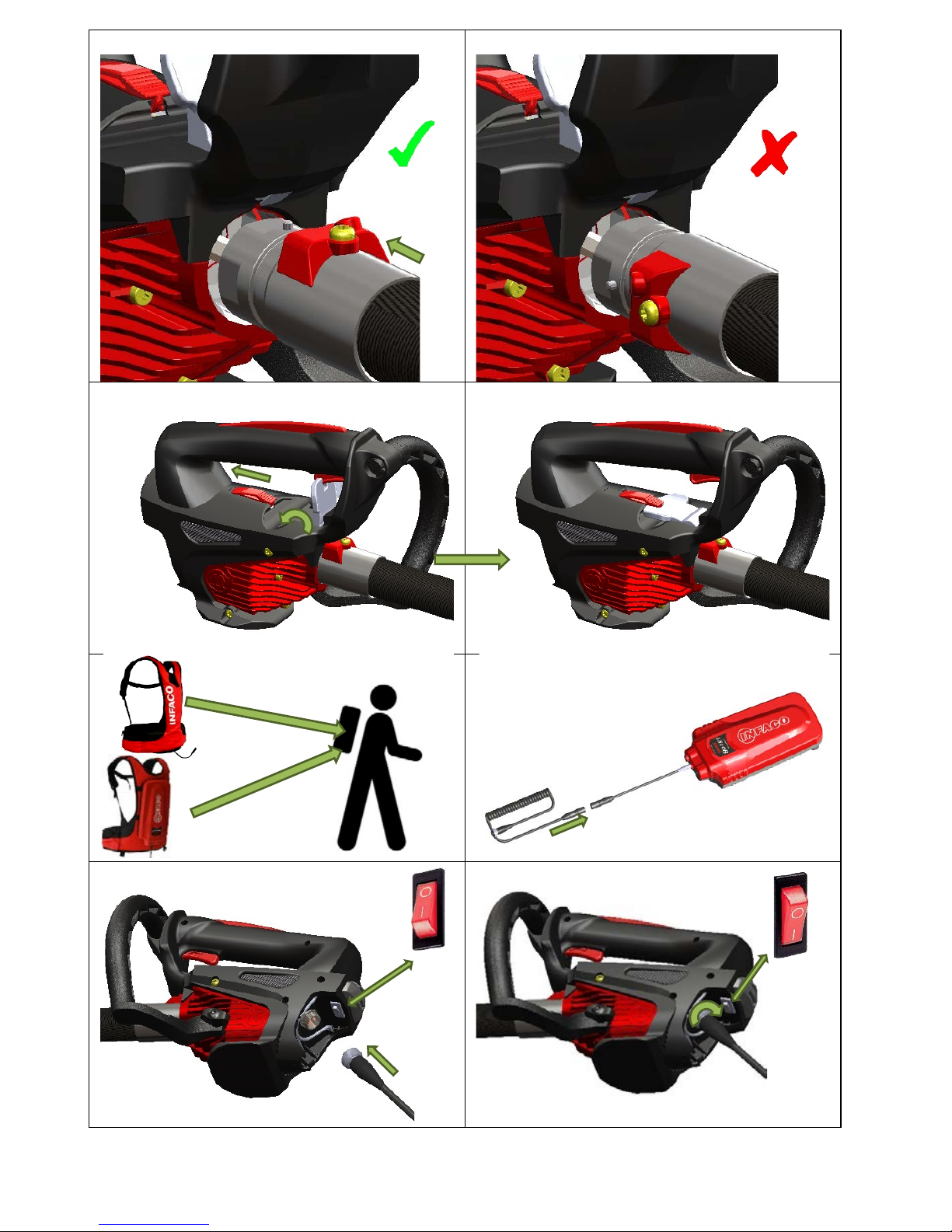

USING THE MACHINE

a → f

a

b

c

1

2

Réf. NOTPW2EP1700 6 Indice 01.

d

e

f

g

h

i

j

k

1

2

1

OFF

ON

1

2

Réf. NOTPW2EP1700 7 Indice 01.

l

1 Start : 2 short pulls of the trigger = ON

Standby output : 2 short pulls of the trigger = ON

Normal operation : 1 long pull of the trigger = ON

Releasing the trigger = OFF

m

The tool is fitted with an electronic protection system. As soon as the rotor becomes blocked due to

meeting strong resistance, the electronic system causes the motor to stop.

1

2 → (x3)

Réf. NOTPW2EP1700 8 Indice 01.

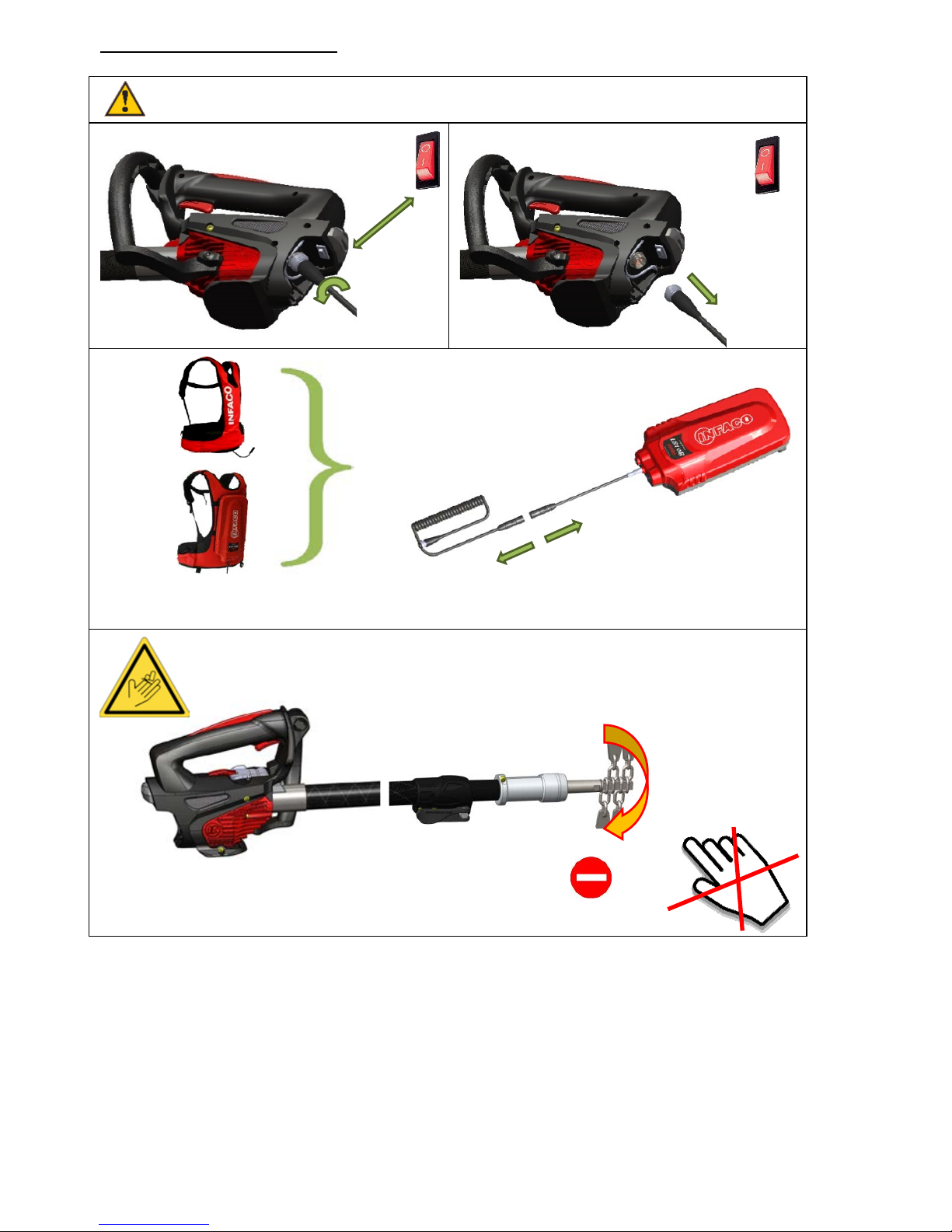

SAFETY PRECAUTIONS

For transportation, storage, maintenance, tool maintenance or any other operation

outside of using the tool, you must unplug the tool.

a

b

c

1

2

OFF

Réf. NOTPW2EP1700 9 Indice 01.

CARE AND MAINTENANCE

All maintenance operations or maintenance must

be performed after disconnecting the tool from

all power sources.

Maintenance of the tool depends on frequency of

use.

Occasional use, space out intervals.

Intensive use, more frequent intervals.

Before starting work

At the end of work daily

Each time the battery is

changed

Weekly

Monthly

Yearly

If faulty

If damaged

As required

Complete tool

Visual inspection

X

Cleaning

X

Have check by dealer

X

Rotor attachment

Inspection

X

Flyweights

Visual inspection

X

Remplace

X

Power cord

Visual inspection

X

Battery

Visual inspection

X

Vest

Visual inspection

X

Handle

Visual inspection

X

DAILY GREASING

Réf. NOTPW2EP1700 10 Indice 01.

CHANGING THE ROTOR

For transportation, storage, maintenance, tool maintenance or any other operation outside of

using the tool, you must unplug the tool.

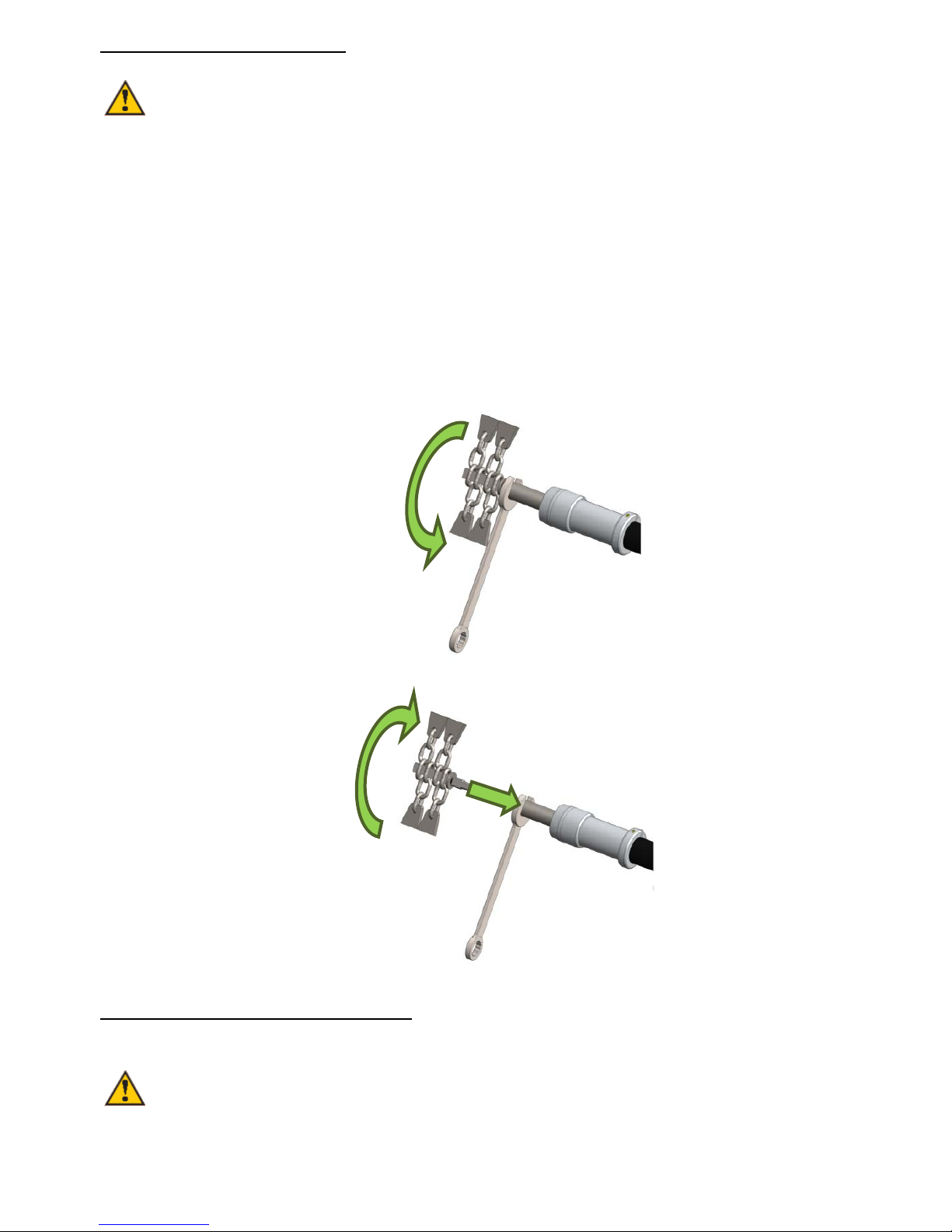

1- Using an open-ended spanner (15), block the transmission shaft of rotor

2- Release rotor turning anticlockwise by hand. If the rotor cannot be released by hand, use a

pair of pliers.

3- Attention, keep joint.

Perform the operation in reverse order to assemble the rotor on the machine

CHANGING THE FLYWEIGHTS

For transportation, storage, maintenance, tool maintenance or any other operation outside of

using the tool, you must unplug the tool.

1- Remove rotor n°6 from the desuckering head (see instructions above).

Fig. 1A

Fig. 1B

Réf. NOTPW2EP1700 11 Indice 01.

2- Remove joint, washer and then the 4 worn flyweights (Fig. 2A).

3- Replace the flyweights in the original position (Fig. 2B).

4- Put washer into position and then joint. If necessary, replace washer and joint (Fig. 2C)

5- Tighten and block the rotor on the machine

Fig. 2A

Fig. 2B

Fig. 2C

Réf. NOTPW2EP1700 12 Indice 01.

SAFETY INSTRUCTIONS

BEWARE! In order to reduce the risk of electrical discharge, injury and fire during the use of

electrical tools, please observe the following basic safety measures. Read and follow these instructions

before using the tool, and keep these safety instructions!

When not in operation, the POWERCOUP PW2 handle and its accessories must be disconnected and

stored in their case.

PW2 POWERCOUP handle must always be disconnected from all power sources to the

following:

- Servicing.

- Charging the battery

- Maintenance.

- Transport.

- Storage.

While the tool is in operation, always remember to keep hands away well away from the accessory

being used.

Do not use the tool if you are tired or feeling unwell.

Wear recommended safety equipment specific to each accessory.

Do not leave the tool within the reach of children or visitors.

Do not use the tool if there is any risk of fire or explosion- for example in the presence of

flammable liquids or gas.

Never carry the charger by its power cord, and so not pull on the power cord to unplug it.

Keep the power cord away from heat sources, oil or sharp edges.

Never use the tool at night or in poorly lit conditions without setting up extra lighting.

While using the tool, make sure you keep both feet on the ground and stay well-balanced.

Be careful – the extension poles and rake are made out of carbon – a conductive material.

Do not use near electrical wires or other power sources.

Réf. NOTPW2EP1700 13 Indice 01.

WARRANTY CONDITIONS

The POWERCOUP PW2 handle is covered under warranty for a period of two years against

all manufacturing faults and defects.

This warranty corresponds to recommended use of the tool and excludes:

- Damage due to poor maintenance or a lack of maintenance,

- Damage due to inappropriate usage,

- Damage due to normal wear and tear,

- Tools which have been dismantled by unauthorized repairers,

- External forces (fire, flooding, lightning, etc.),

- Damage from tool being dropped or from other impact,

- Tools with warranty cards not returned at the time of purchase,

- Tools used with a battery or charger other than those manufactured by INFACO.

INFACO shall not remit payment for any monetary loss incurred for the time the tool is

unavailable during repairs.

All repairs made by a person other than an approved INFACO authorized service provider

(ASP) will invalidate the equipment warranty.

In case of any breakdown, we strongly recommend that users of INFACO equipment either

contact the retailer from whom they purchased the tool, or our after-sales service on (+33)

05 63 33 91 49 (France).

Please note our after-sales service shipping policy:

- For equipment submitted to us within the scope of the warranty, you pay to send it to us

and we pay the return postage.

- For equipment which is not within its warranty period, you pay to send it to us and the

return will be made at your cost, cash on delivery. We will send you an estimate if the cost

of the repair is more than $50.

Réf. NOTPW2EP1700 14 Indice 01.

RECOMMANDATIONS

Keep your work area tidy.

Untidiness in the work area increases the risk of accidents.

Take the work area environment into account.

Don’t expose electrical tools to the rain. Don’t use electrical tools in a humid or wet environment.

Make sure the work area is well lit. Don’t use electrical tools if there are flammable liquids or gases in

the vicinity.

Protect yourself against electrical discharge.

Avoid bodily contact with grounded surfaces, such as, for example: battery charger, multiway

electrical sockets, etc.

Keep children away!

Don’t allow other people to touch either the tool or the power cord. Keep others well away from your

work area.

Store your tools in a safe place.

Tools not in use should be stored in a dry, enclosed place, in their original packaging and out of the

reach of children.

Wear suitable working gear.

Do not wear flowing clothes or jewelry. These could get caught up by moving parts. When working

outdoors, it is recommended that you wear rubber gloves and shoes with non-slip soles. Use a hairnet

if you have long hair.

Wear protective goggles.

Use a mask as well if the work you are doing produces dust or debris.

Take care of the lead.

Never carry the charger by its power cord, and so not pull on the power cord to unplug it. Keep the

power cord away from heat sources, oil or sharp edges.

Take good care of your tools.

Regularly check the condition of the power cord and plug, and have them changed by an approved

specialist if they show any signs of damage. Keep the POWERCOUP PW2 material dry and free of oil

and grease.

Remove the tool keys.

Remove any adjustment keys before switching on the tool.

Check whether your tool is damaged.

Before using the tool, carefully check that the safety features are in perfect working order and whether

any parts have been even slightly damaged.

Have your tool repaired by a specialist.

This tool is compliant with the safety regulations in force. All repairs must be carried out by an

authorized service provider (ASP) or by INFACO and exclusively using original parts. Parts which

are not original may seriously risk the safety of the user.

Réf. NOTPW2EP1700 15 Indice 01.

REPAIR

Problem

Cause

Solution

Abnormal heavy

vibrations

Bad brush clamp

Contact your dealer

Faulty Tool Detection

Contact your dealer

Flyweight breakage Wear

Change the broken

flyweight

Noise in the pole

Deteriorated pole guide

Contact your dealer

Tool does not start

Battery drained

Recharge the battery

No power Machine

Reconnect to power supply.

Others

Contact your dealer

Machine shut downs Battery drained Recharge the battery

Réf. NOTPW2EP1700 16 Indice 01.

Notes :

………………………………………………………………………………………………………………………………

……………...……………………………………………………………………………………………………………..

Réf. NOTPW2EP1700 17 Indice 01.

Notes :

………………………………………………………………………………………………………………………………

………………………………………………….……………………………………………………………………………

………………………………………………………………………………………………………………………………

Réf. NOTPW2EP1700 18 Indice 01.

………………………………………………………………………………………………………………………….….

Notes :

………………………………………………………………………………………………………………………………

Réf. NOTPW2EP1700 19 Indice 01.

………………………………………………………………………………………………………………………………

……………...……………………………………………………………………………………………………………..

Notes :

………………………………………………………………………………………………………………………………

……………………………….………………………………………………………………………………………………

………………………………………………………………………………………………………………………………

………………………………………………….……………………………………………………………………………

powercoup EP1700 User manual

Popular Lawn And Garden Equipment manuals by other brands
