PowerDsine 3001 User manual

Safety Information
Important Safety Information
♦Installation and removal of the PoE Midspan must be
carried out by qualified personnel only.
♦AC Power Cord Set:
The power cord must have regulatory agency
approval for the specific country in which it is
used (i.e., UL, CSA, VDE, etc.).
The power cord must be a three-conductor type
(two current carrying conductors; one ground
conductor) terminated on one end by an IEC
60320 appliance coupler (for connection to the
PoE Midspan), and on the other end by a plug
containing a ground (earthing) contact.
The power cord must be rated for a minimum of
250Vac RMS operation, with a minimum rated
current capacity of 5 amps (or a minimum wire
gauge of 18 AWG (0.75mm2)). Note: PoE
Midspan units installed in Australia require power
cords with a minimum wire gauge of 16 AWG
(1.0 mm2).
♦The AC wall socket-outlet must be near the PoE
Midspan and easily accessible. You can remove AC
power from the PoE Midspan by disconnecting the
AC power cord from either the wall socket-outlet or
the PoE Midspan appliance coupler.
The PoE Midspan data and data / power interfaces are
qualified as SELV (Safety Extra-Low Voltage) circuits
according to IEC 60950. These interfaces can only be
connected to SELV interfaces on other equipment.
WARNINGS!
•Read the installation instructions before connecting the
PoE Midspan to its power source.
•Follow basic electricity safety measures whenever
connecting the PoE Midspan to its power source.
•This product relies on the building installation for short-
circuit (over current) protection. Ensure that a fuse or
circuit breaker no larger than 120 VAC, 3A. U.S. (240
VAC, 1.5A international) is used on the phase conductor.
•A voltage mismatch can cause equipment damage and
may pose a fire hazard. If the voltage indicated on the
label is different from the power outlet voltage, do not
connect the PoE Midspan to this power outlet.
The PoE Midspan "Data In" and "Data & Power Out" ports are
shielded RJ-45 data sockets. They cannot be used as Plain
Old Telephone Service (POTS) telephone sockets. Only RJ-45
data connectors may be connected to these sockets.
2004 PowerDsine
All Rights Reserved.
Ordering No.: PD-3001
Document P/N 06-6050-056
Rev. A1
1
11
1-
--
-Port
PortPort
Port
Power over
Power over Power over
Power over Ethern
EthernEthern
Ethernet
et et
et
Midspan
MidspanMidspan
Midspan
User Guide
User GuideUser Guide
User Guide
Product Name: PowerDsine 3001
Notice
It is PowerDsine’s policy to improve its products as new
technology, components, software, and firmware
become available. PowerDsine, therefore, reserves the
right to change specifications without prior notice.
Trademarks
The product described in this guide is a licensed product
of PowerDsine.
Technical Support
If you encounter problems when installing or using this
product, please consult the PowerDsine website at:
http://www.powerdsine.com
If these resources don’t provide the help you need,
please contact your local authorized PowerDsine
reseller for additional technical support.




Functions and Features
The device is design to meet the IEEE802.3af standard. The
Power over Ethernet (PoE) Midspan adds 48VDC to unused
(non-data) wires in standard Category 5 Ethernet cable. As a
result, the PoE Midspan delivers both data and power to the
terminal.
EMC Compliance: Category 5 foiled twisted-pair cables must
be used to ensure compliance with requirements of FCC
Part 15, subpart B, Class B. The use of unshielded cables
(Category 5 for 10BASE-T ports or for 100BASE-Tx ports)
complies with Class A requirements.
Preliminary Steps
•Ensure AC power is applied to the PoE Midspan, using an
operational AC cable with an appropriate ground connection.
•Ensure that output Ethernet cable is connected to the
Data & Power Out port.
•Verify that power ready Ethernet compatible device is
connected.
Do not use cross over cable between the PoE Midspan
output port and the load device!
Installation
The PoE Midspan may be or wall/bench mounted using the
rear side holes.
NOTES: Before mounting the PoE Midspan to a fixed location:
•Do not to cover the PoE Midspan or block the airflow to the
PoE with any foreign objects. Keep the PoE Midspan away
from excessive heat and humidity, and free from vibration
and dust.
•Ensure that the cable length from the Ethernet network
source to the terminal does not exceed 100 meters (333
Feet). The PoE is not a repeater and does not amplify the
Ethernet data signal.
•Use a splitter if desired; ensure that the splitter is connected
close to the terminal and not on the Midspan!
•No “on-off” switch exists; Simply plug the PoE Midspan into
an AC power source.
Installing the Unit
•Connect the PoE Midspan to an AC outlet (100-240 VAC),
using a standard power cord.
•Connect the unit Data In jack (input) to the remote Ethernet
network switch Patch panel and the Data & Power Out jack
(output) to the terminal.

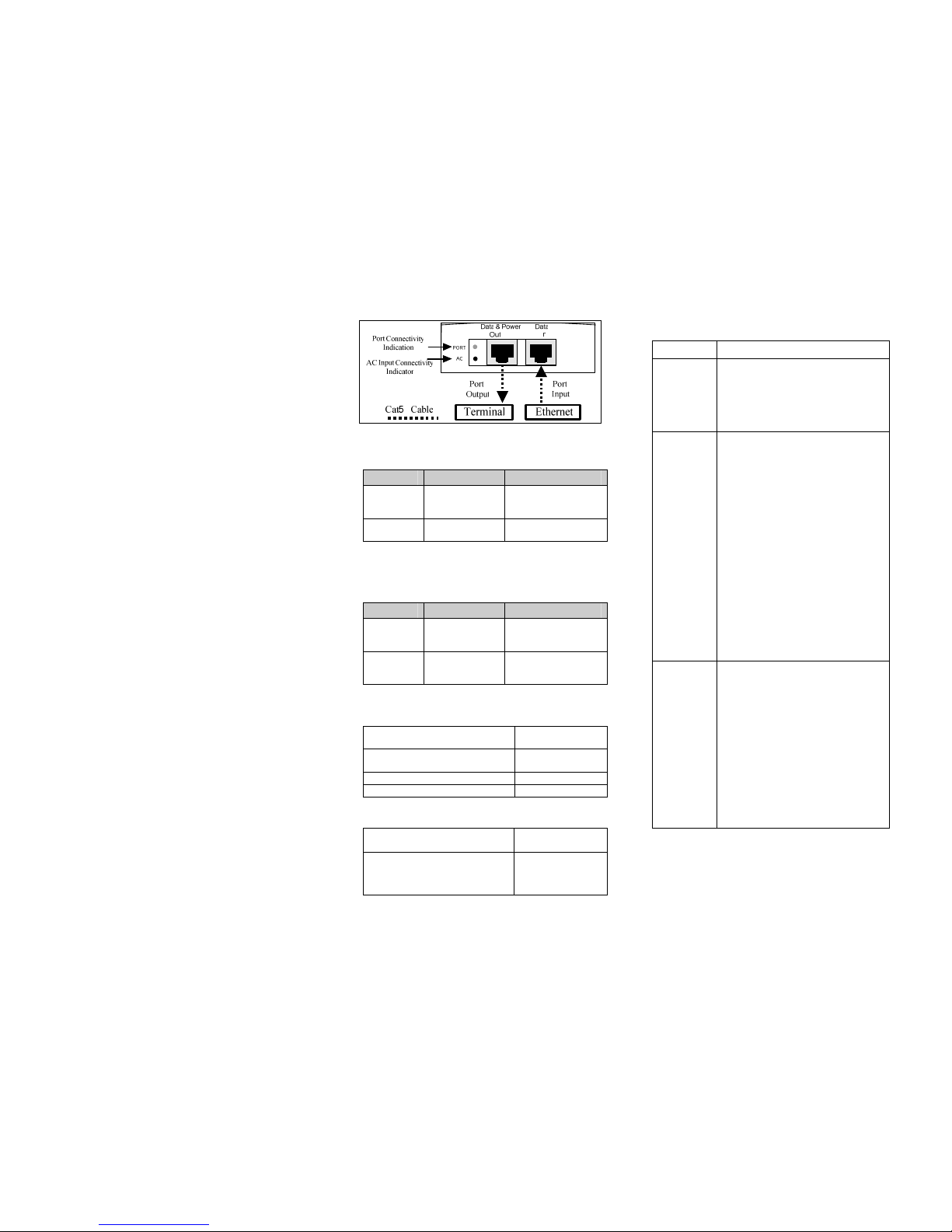

Figure 1: connecting the PoE Midspan
Indicators
LED AC (Main) Port
Green Indicates that the
power is on
(Power is active)
indicates that a
remote terminal is
connected
Green
Blinking
Output voltage is
out of range
Overload or short
circuit
Specifications
Environmental Specifications
Mode Temperature Humidity
Operating 0 to 40 °C
32 to 104°F
10 to 90%
(no condensation
allowed)
Storage -20 to 70 °C
-4 to 158°F
10 to 90%
(no condensation
allowed)
Electrical Specifications
Input Voltage 90 to 264 VAC
(47-63 Hz)
Input Current (110 - 220VAC) 0.5 ampere (max)
Minimum Available Output Power 15.4 Watts
Nominal Output Voltage 45 to 56 VDC
Ethernet Interface
Input (Data In):
Ethernet 10/100Base-T
RJ 45 female
socket
Output (Data & Power Out):
Ethernet 10/100Base-T, plus
48 VDC
RJ 45 female
socket, with DC
voltage on wire
pairs 7-8 and 4-5.
Troubleshooting
Symptom Corrective Steps
Midspan
does not
power up
1. Verify that a known-good power
cord is used.
2. Verify that the voltage at the power
inlet is between 100 and 240 Vac.
3. Remove and re-apply power to the
device and check the indicators
during power up sequence.
A port
indicator is
not lit and
the PD does
not operate
1. The Midspan did not detect a PD
and therefore the port is not
enabled.
2. Verify that the PD is designed for
PoE operation.
3. Verify that you are using a standard
Category 5/5e/6, straight-wired
cable, with four pairs.
4. If an external power splitter is in
use, replace it with a known-good
splitter.
5. Ensure input Ethernet cable is
connected to the Data In port.
6. Verify that the PD is connected to
the Data & Power port.
7. Try to reconnect the same PD into a
different Midspan. If it works, there
is probably a faulty port or RJ-45
connection.
8. Verify that there is no short over any
of the twisted pair cables or over the
RJ45 connectors.
The end
device
operates,
but there is
no data link
1. Verify that the port indicator on the
front panel is continuously lit.
2. If an external power splitter is in use,
replace it with a known-good splitter.
3. Verify that for this link, you are using
standard UTP/FTP Category 5
straight (non-crossover) cabling,
with all four pairs.
4. Verify that the Ethernet cable length
is less than 100 meters from the
Ethernet source to the load/remote
terminal.
5. Try to reconnect the same PD into a
different Midspan. If it works, there
is probably a faulty port or RJ-45
connection.
