POWERMOON POCKETMOON User manual

Operating instructions POWERMOON® - POCKETMOON®
Rev. 1001_EN 1/18
POWERMOON GmbH
Ginsterstr. 5
47495 Rheinberg
Telefon: +49 2843 / 16699
Telefax: +49 2843 / 96516
E-Mail: [email protected]
Internet: www.POWERMOON.de
www.pocketmoon.de
POWERMOON GmbH
Ginsterstr. 5
47495 Rheinberg
Operating instructions
Type
POWERMOON®POCKETMOON®
Operating instructions
Type
POWERMOON®POCKETMOON®

Operating instructions POWERMOON® - POCKETMOON®
2/18 Rev. 1001_EN
Introduction
Thank you for choosing a product from POWERMOON®. Please read through this manual
carefully before using the Pocketmoon®, and store it in a safe place so that you can refer to it later
if necessary.
Please read this first
- There may be changes to the content of these operating instructions and the included
reference material made at no notice.
- The content of these operating instructions has been checked at all stages of the
manufacturing process. However, if you should notice anything that appears questionable
or incorrect, please issue an appropriate notification.
- Duplication of the content of these operating instructions (in whole or in part) is forbidden.
Any use of the content of these operating instructions for purposes other than private use
(unless POWERMOON®has consented to it) is protected by copyright.
- POWERMOON® accepts no responsibility for any damages or lost profits suffered by you
or third parties as a result of use of this product or any defect with it.
- POWERMOON®accepts no responsibility for any damages or lost profits as a result of
malfunctions, repairs or other causes.
- Please note that the examples and illustrations shown in these operating instructions may
differ from the actual configurations of your POWERMOON®product.

Operating instructions POWERMOON® - POCKETMOON®
Rev. 1001_EN 3/18
Contents
Introduction....................................................................................................................2
Please read this first......................................................................................................2
1.0 Identification ............................................................................................................4
1.1 Product name and type designation .......................................................................4
1.2 Product version.......................................................................................................4
1.3 Name and address of the manufacturer .................................................................4
2.0 Product description.................................................................................................5
2.1 General functions and scope of use .......................................................................5
2.2 Dimensions and weight...........................................................................................5
2.3 Power supply..........................................................................................................5
2.4 Energy consumption, energy provisions.................................................................6
2.5 IP-Code...................................................................................................................6
2.6 Environmental provisions........................................................................................6
2.7 Security information, summary ...............................................................................7
3.0 Definitions................................................................................................................8
3.1 Safety information in these operating instructions ..................................................8
3.2 Operational safety...................................................................................................9
3.3 Service safety.......................................................................................................10
4.0 Operational instructions .......................................................................................11
4.1 Transportation and storage...................................................................................11
4.2 Security measures prior to use.............................................................................11
4.3 Unpacking.............................................................................................................11
4.4 Safe disposal of the packaging material ...............................................................12
4.5 Preparatory work prior to installation ....................................................................12

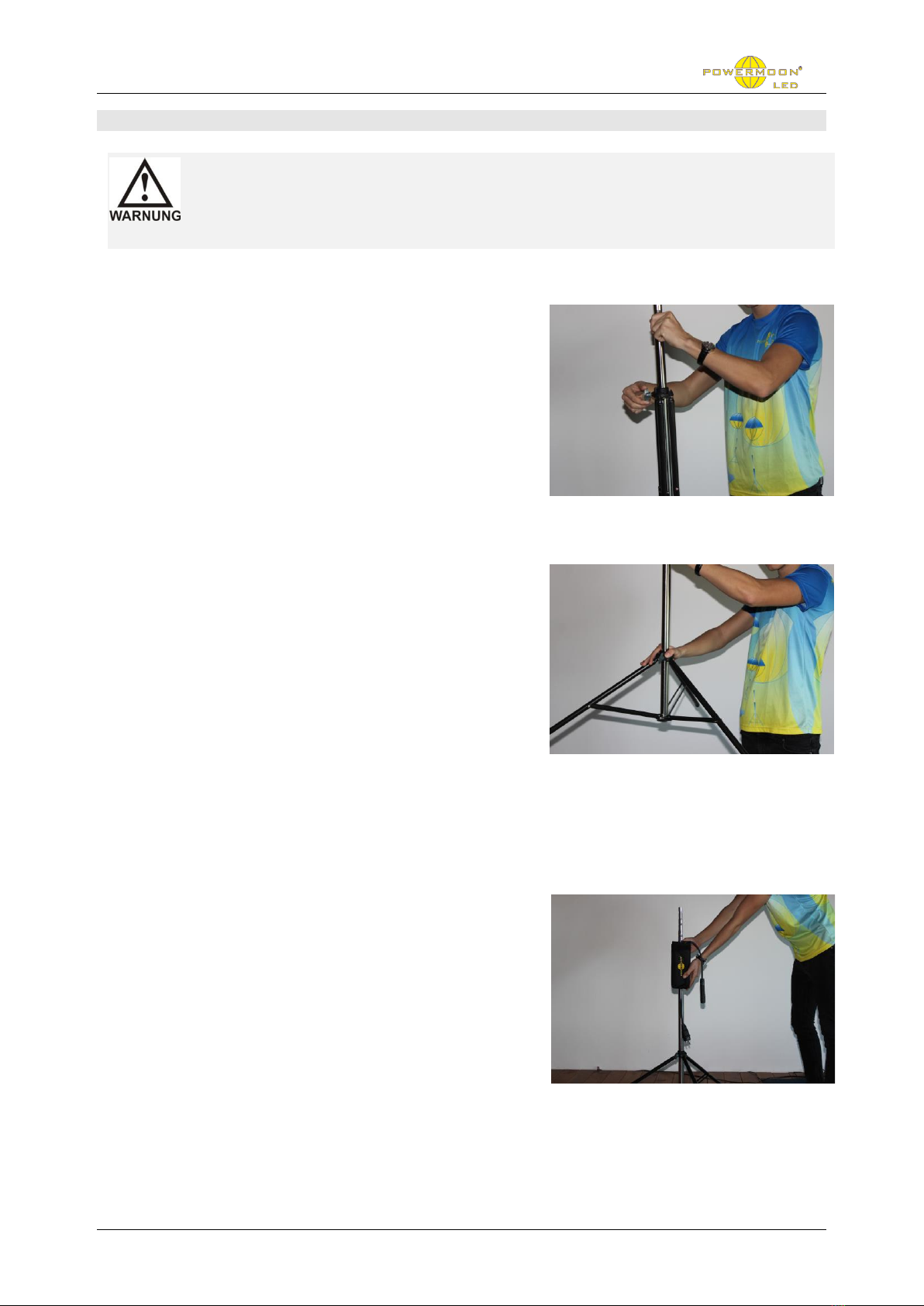

4.6 Tripod set up.........................................................................................................13

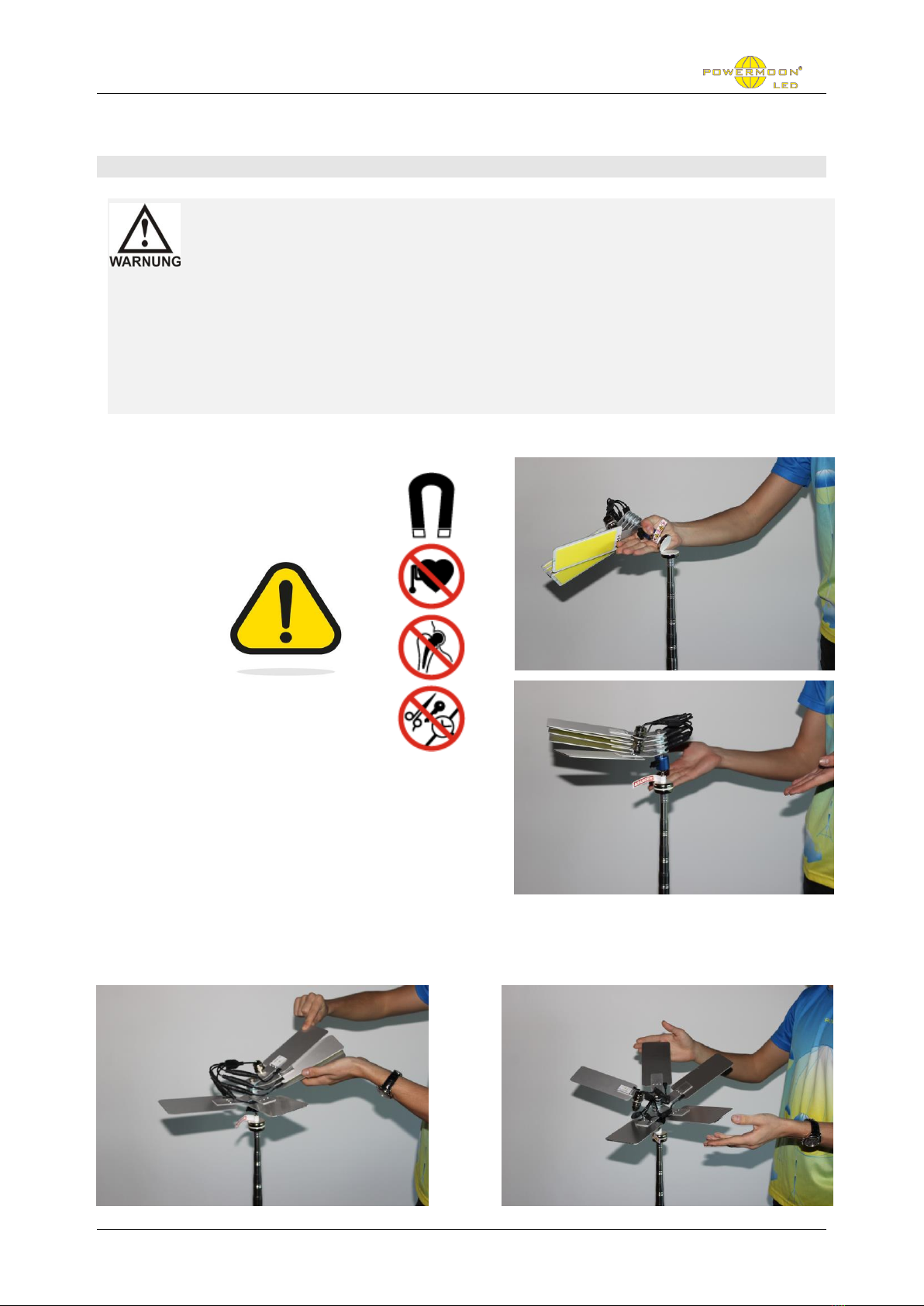

4.7 Attach light on tripod (if appropriate).....................................................................14
4.8 Connecting the lamp.............................................................................................15
4.9 Adjust the height of the tripod...............................................................................16
4.10 Storage and protection during interruption of normal use...................................17
4.11 Using and charging of the Lithium Ion Battery....................................................17
5.0 Maintenance and cleaning....................................................................................18
5.1 Maintenance and cleaning by the user.................................................................18
5.2 Maintenance and cleaning by qualified staff.........................................................18

Operating instructions POWERMOON® - POCKETMOON®
4/18 Rev. 1001_EN
1.0 Identification
1.1 Product name and type designation
Product name: POWERMOON®- POCKETMOON®
1.2 Product version
Version 1.0
1.3 Name and address of the manufacturer
POWERMOON GmbH
Ginsterstr. 5
47495 Rheinberg
Telefon: +49 2843 / 16699
Telefax: +49 2843 / 96516
E-Mail: [email protected]
Internet: www.POWERMOON.de / www.pocketmoon.de

Operating instructions POWERMOON® - POCKETMOON®
Rev. 1001_EN 5/18
2.0 Product description
2.1 General functions and scope of use
The POWERMOON®is always an ideal solution wherever a lot of good light is temporarily
needed –whether it’s road or railway construction, search and rescue operations, event lighting
or temporary lighting of a car park. The POWERMOON light is for indoor and outdoor use.
The special thing about POWERMOON®is its virtually glare-free and reduced-shadow light (no
harsh shadows). This allows for a high light output with daylight-like lighting conditions, all
without distracting glare such as you get with e.g. conventional headlights. The high-
performance LED lights allow for maximum luminosity at low terminal value. As such the
POWERMOON®allows for optimal teamwork and it minimises the chance of road accidents, for
drivers of passing automobiles will not be disturbed by blinding floodlights.
2.2 Dimensions and weight
POWERMOON®POCKETMOON®
Dimensions: Diameter 420mm, Height 85mm
Weight: 500g
Transportbag
Dimensions Bag: Length 1000mm, Width 360mm, Height 100mm
2.3 Power supply
POWERMOON®POCKETMOON®
230V, 50Hz, 4,7A
Operation with power supply:
90V - 305V Input
Operation with lithium ion akku:
12V / 10Amp
Operation 12V car battery:
Attention!
Before using the car adapter, please take the time to take our short
instructions in point 4.9.2 in the user manual.

Operating instructions POWERMOON® - POCKETMOON®
6/18 Rev. 1001_EN
2.4 Energy consumption, energy provisions
2.5 IP-Code
Protection type IP68 (suitable for outside use in rain and snow)
6
(1st digit) protection type against contact and foreign bodies
- Dust tide
8
(2nd digit) protection type water protection
- Waterproof
2.6 Environmental provisions
Environmental protection
Light from POWERMOON®devices and sound (from generators) harm the environment. Please
observe regional environmental regulations during operation, as well as regulations concerning
residence and animals (wild animals, insects and birds) in woods and fields.
Safety distances
It is necessary to keep a safety distance of at least 1 metre from combustible materials e.g. dry
wood, plastics etc. (such as wood ceilings, building walls, plastic insulation, room dividers...).
The POWERMOON®device may not be used in the vicinity of flammable materials (e.g. petrol
and gas). The POWERMOON device is not suitable for use in EX zones.
When you are transporting or passing high voltage power lines with a vehicle on which a
POWERMOON device is installed, it is essential to observe the prescribed safety distances: 50
metres distance from overhead power lines, at least 2.5 metres distance from power lines over
tracks.
Get informed of the respective on-site guidelines. These can differ in some regions. This also
applies to guidelines in airports, harbours and oil refineries.
Steps must be taken to make sure that the POWERMOON®power supply won’t be damaged or
interrupted by passing traffic or drafts. Pedestrians and moving traffic cannot be hindered by
cables which could lead to accidents or injuries.
Regarding lighting within tanks, closed containers, chimneys or floating objects:
The POWERMOON®must be operated with a separate transformer if you intend to use it in tanks,
closed containers or chimneys or on floating metal pontoons or boats. An electrician should check
whether or not safe use is possible prior to commissioning. Tanks: the tanks must be located in a
non-flammable atmosphere free of flammable gases and hydrocarbons. Consistency with
standards with electrical devices on ships must be verified by an electrician prior to
commissioning; ditto for proper connection and grounding (consider separation and equalisation).
NB: Withregard to floating bodies,there applies additional, regional(offshore, inland coastal area)
safety requirements for electrical devices; these should be inquired about with the responsible
personnel prior to the commissioning of a POWERMOON®.

Operating instructions POWERMOON® - POCKETMOON®
Rev. 1001_EN 7/18
2.7 Security information, summary
ATTENTION! Shock and surge problems. If a POWERMOON® is operated in a common phase
on a weak and unstable voltage network together with other power-consuming devices (e.g. with
generators whose performance range is borderline or with poorly connected mains connections),
the POWERMOON may, as the power-consuming device with the highest output, cause damage
to the other devices on the same supply circuit when it is switched on and off i.e. the power surges
and phase shifts that take place during the switching process. Due to the large capacitive load
(similar to large pumps or electrical motors), we recommend that no sensitive electronic, digital
or electric devices be operated in the same network. The POWERMOON devices themselves
have built-in surge protection system, which buffers a voltage fluctuation of max. 20 %. (Example:
with 230 V network voltage, short-term peaks in the power supply which are caused by connection
or disconnection of high-consumption devices e.g. generator supplying power at a value of max.
+50 V (and therefore 280 V) will be absorbed over a period of 30-40 seconds). If the LED lights
are burdened with any higher excess voltage or for any longer period, this can result in the LEDs
being damaged.
Disclaimer: failure to observe this recommendation will excuse the manufacturer from liability
and recourse claims; these shall not be the responsibility of POWERMOON GmbH.
.

Operating instructions POWERMOON® - POCKETMOON®
8/18 Rev. 1001_EN
3.0 Definitions
3.1 Safety information in these operating instructions
This manual contains security guidelines which fall under the categories DANGER,
WARNING, CAUTION, ATTENTION and COMMENT. These should be followed to
reduce risk of injury, equipment damage or improper service.
This is a security warning symbol warning against possible risk of injury. All security
guidelines with this warning symbol should be complied with, to prevent any injuries
(or death).
DANGER indicates a dangerous situation –non-compliance with this warning can
lead to serious injury or death.
WARNING indicates a dangerous situation –non-compliance with this warning can
lead to serious injury or death.
CAUTION indicates a dangerous situation –non-observation of this information can
lead to low-level to intermediate injuries.
WARNING: if this information appears (without a security warning symbol),
WARNING indicates a situation where non-compliance can result in property
damage.
Comments: contains additional important information on a work process.

Operating instructions POWERMOON® - POCKETMOON®
Rev. 1001_EN 9/18
3.2 Operational safety
Appropriate training and familiarity with the POWERMOON device are necessary for
safe operation. A POWERMOON device which is operated incorrectly or by untrained
personnel can pose a risk. Read through the operating instructions in this manual
and become familiar with how to use it properly. Inexperienced operators should be
trained by a person who is familiar with the POWERMOON before using the
POWERMOON.
3.2.1
The immediate environment of the POWERMOON®should be kept clean and tidy
and free of dust.
3.2.2
ALWAYS ensure that the POWERMOON®is used on an even surface, where it won’t
tilt, roll, slip or fall.
3.2.3
NEVER use a POWERMOON which is in need of repair. A POWERMOON is in need
of repair if:
- The electric cable is damaged
- The plug is not securely screwed or overheated
- The light casing has large cracks or holes
- Other obvious mechanical damage is recognisable
3.2.4
Ensure that the area above the light is free and open, and that there are no power
lines or obstacles present. Overhead power lines should be a linear distance of at
least 50 m away from the tripod. Above-ground power lines and railway lines with
overhead lines should be a distance of at least 2.5 m from the balloon.
3.2.5
NEVER, raise, lower or turn the tripod while the light is operational!
3.2.6
NEVER use the luminous light if there are any insulation cracks in the power cable or
it appears worn.
3.2.7
ALWAYS replace electrical components with spare parts which have the same
nominal values and which are designed to have the same output as the original part.
3.2.8
ALWAYS keep aminimum distance of 1 m between the light andflammablematerials
e.g. wood or plastic.
3.2.9
NEVER use the POWERMOON®in areas where there could be leaks of flammable
substances e.g. petrol, solvents or natural gas.
3.2.10
Regarding the lighting of traffic routes, the construction and bracing must be such
that it is ensuredthat the POWERMOON®cannot tilt in the direction of traffic and that
traffic and pedestrians will not be obstructed or endangered by the guylines.
3.2.11
If the lighting device is used in areas with many people, ALWAYS secure and block
off the area around the tripod (e.g. with barrier tape), in the radius where the tripod
could fall (the height of the tripod).
3.2.12
ALWAYS mark the lashings clearly, so that they pose no risk to pedestrians or traffic.
3.2.13
Ensure that the POWERMOON®doesn’t conceal any signs or light signals e.g. traffic
lights, stop signs, information signs or similar. In the event of regional proximity to
signaling systems, it must be ensured that those driving automobiles won’t confuse
the light with signals / traffic lights. Local guidelines for special transport areas (e.g.
the railway sector and road area) must be complied with and checked by qualified
personnel prior to installation.
3.2.14
At events, escape and rescue routes may not be adjusted or blocked with the light
system!

Operating instructions POWERMOON® - POCKETMOON®
10/18 Rev. 1001_EN
3.3 Service safety
HIGH VOLTAGE! This device uses high voltage circuits, which can cause serious
injury or death. Only qualified electricians may do troubleshooting or conduct repairs
with electrical problems with this device.
3.3.1
After repairs / maintenance work, ALWAYS replace the protection devices.
3.3.2
Ensure that NO water collects around the console of the POWERMOON®. If there is
any water there, move the POWERMOON®away and let it dry before undertaking
maintenance efforts.
3.3.3
DO NOT undertake maintenance efforts with the POWERMOON®wearing wet
clothing or with wet hands.
3.3.4
ALWAYS keep the POWERMOON®clean and ensure that the labels are legible.
Replace all defective labels and those which are hard to read. These labels contain
important operating instructions and they serve as a warning of dangers.
3.3.5
Prior to removing the LED body, ALWAYS separate the POWERMOON®from its
power source.

Operating instructions POWERMOON® - POCKETMOON®
Rev. 1001_EN 11/18
4.0 Operational instructions
4.1 Transportation and storage
4.1.1
The POWERMOON®should ALWAYS be stored in the transportation bag if it is not
being used.
4.1.2
During transportation, the POWERMOON®should ALWAYS be well protected. If this
rule is not observed, the POWERMOON®may end up damaged.
4.1.3
The POWERMOON®may be stored either horizontally or vertically.
4.1.4
If the POWERMOON®should become wet when it is being used, then it absolutely
must be completely dry before it is stored; otherwise corrosion and mold can form in
the transportation cylinder.
4.2 Security measures prior to use
4.2.1
Check the light and cable for damage.
4.3 Unpacking
The packaging includes the following (depending on the configuration):
- 1 x POWERMOON®POCKETMOON®
- 1 x Power supply with cable
- 1 x Transportbag
- 1 x Stainless steel tripod with magnetic connector
- 1 x Alligator clips for car battery
- 1 x Car adapter

Operating instructions POWERMOON® - POCKETMOON®
12/18 Rev. 1001_EN
4.4 Safe disposal of the packaging material
The client can dispose of the cardboard.
Recommended disposal:
- Old paper recycling (cardboard)
4.5 Preparatory work prior to installation
The installation location should meet the following criteria:
- Single storey with a surface area of at least 5 x 5 metres
- No tips objects on the floor
- No high-voltage line within 50 m
- It is recommended that a clean, non-slip surface be used.

Operating instructions POWERMOON® - POCKETMOON®
Rev. 1001_EN 13/18
4.6 Tripod set up
Risk of electric shock. An electric shock can cause serious injury or death. You must
always only connect and switch on the POWERMOON®at the power supply, after it
has been fully unpacked and assembled.
4.6.1
The tripod must be safely constructed prior to the installation of the POWERMOON®.
4.6.2
Loosen the screw at the tripod leg segments.
4.6.3
Open the tripod legs and tighten the screw to fix the tripod.
4.6.4
First, the magnetic connection must be unscrewed.
Place the power supply over the top of the tripod and push it to the bottom of the pole.
4.6.6
Screw the magnetic connection on top of the tripod and place the Pocketmoon®LED
light panels on top of it.

Operating instructions POWERMOON® - POCKETMOON®
14/18 Rev. 1001_EN
4.7 Attach light on tripod (if appropriate)
Risk of electric shock. Electric shocks can result in serious injury or death. Under all
circumstances, the POWERMOON®should only be plugged in and switched on after
it has been fully unpacked and assembled.
WARNING - Take this step with extreme care so that you don’t leave your
fingers between the magnets. Also keep all electronics(phones, watches etc.)
away from the magnets. Do not handle the magnets if you are using a
cardioverter-defibrillator or another medical device that might be endangered
by magnets.
4.7.1
Placing the LED Panel:
4.7.2
Turn the LED panels so that they all stay separated from each other evenly

Operating instructions POWERMOON® - POCKETMOON®
Rev. 1001_EN 15/18
4.7.3
Loosen the screw on the ball joint
swivel head and adjust the angle for the
light to your needs and tighten the
screw to fix it.
4.8 Connecting the lamp
4.8.1
4.8.2
Insert one end of the cable in the hole under the LED panels. Check, that while
inserting the cable that the edges on the cable match the edges of the hole and once
inserted, turn the cable counterclockwise to lock it. To remove the cable, turn the
cable clockwise to unlock it and only then pull it back out.
Insert the other end of the extension cable to
the hole on the power supply. Check, that
while inserting the cable the edges on the
cable match the edges of the hole. Once
inserted, turn the cable counterclockwise to
lock it. To remove the cable, turn the cable
clockwise to unlock it and only then pull it
back out.
Risk of electric shock and tripping. Do not allow pedestrians or vehicles to cross the
power lines. The cables may become damaged or severed, or people may trip over
them.

Operating instructions POWERMOON® - POCKETMOON®
16/18 Rev. 1001_EN
4.9 Adjust the height of the tripod
4.9.1
4.9.2
Adjust the height of the tripod by your needs by turning the extension points on the
tripod counterclockwise, then lifting the extension and locking it by turning clockwise.
Always start with the extension on the top extension and then move on to the next
one under it until you reach your desired height
Use in a vehicle:
Check the fuse rating of the cigarette lighter socket before you start
using the Pocketmoon! If you use the complete 5 LED panels all
together, the car socket must be at least 10 Amps. (Larger trucks
and vans such as an F150 or RAM 1500 or larger have that. Small
passenger cars such as VW Golf or Toyota Corolla have only 5 Amps)
If you have only 5 Amp fused cigarette
socket, please disconnect a two of the
5 LED Panels.
Turn counterclockwise and push up.
Rotating clockwise fixes the selected
height.

Operating instructions POWERMOON® - POCKETMOON®
Rev. 1001_EN 17/18
4.10 Storage and protection during interruption of normal use
4.10.1
When the POWERMOON®is not in use, it does not need to be completely
dismantled. The light remains stable in the wind even when it is switched off. The
following additional points regarding operational safety (3.2) must also be observed:
-Disconnect the POWERMOON®from the mains
-Lower the tripod to the lowest possible height
4.11 Using and charging of the Lithium Ion Battery
4.11.1
Inside the lithium ion battery set there is a 12 inch loading cable included
The loading cable should be used only for charging the Lithium Ion battery.
Do not connect the loading cable to the light.
4.11.2
4.11.3
The bayonet socket is fit on one side in the AC/DC Power supply. The other side
connects with the lithium ion battery pack. Loading time for the battery is about 4
hours. Using and running time is between 3 to 4 hours with all 5 LED panels. In
case of a situation where a longer running time is needed, please remove some of
the LED panels.(The more LED panels you remove, the longer is the running time.
Example: You need some safety light in a cave for as long as possible. Use only
one single LED panel and it will run for 15 hours.)
If you carry or ship Lithium Ion Batteries in aircrafts, please make sure that it’s
allowed by the airfreight regulations on shipping lithium ion batteries.(IATA) In
case you are not sure about the regulations, please contact your shipping
company or airline before.
Technical data: 10Amp, 12 Volt, Weight 1,2kg

Operating instructions POWERMOON® - POCKETMOON®
18/18 Rev. 1001_EN
5.0 Maintenance and cleaning
5.1 Maintenance and cleaning by the user
5.1.1
The POWERMOON®cases may be cleaned by wiping them with a damp cloth. Never
use abrasive cleaners like benzine, thinner or other products which can make the
material deteriorate.
5.2 Maintenance and cleaning by qualified staff
5.2.1
Testing of electrical equipment as per BGV-A3
Inspections of electrical equipment as per BGV A3 / DINVDE 0702 may be performed
only by specially trained people who undergo continuous education and training. In
addition, only tested and calibrated measuring devices authorised for such
inspections may be used. Inspections of portable apparatus as per BGV-A3 are in
the interest of personal protection first and foremost.
Generally, portable equipment should be tested every 2 years.
