Powersmart PS76140A User manual

INSTRUCTION MANUAL
20V Cordless Jig Saw
Model # PS76140A
Item#97802
Have product questions or need technical support? Please feel free to contact us!
Website: www.Amerisuninc.com
www.powersmartusa.com
Toll free: 1-800-791-9458 M-F 9-5 EST
Email: support@amerisuninc.com

2

3
CONTENTS
Technical data …...……………………………………………………… 3
Introduction …...………………………………………………………... 4
Safety information …...………………………………………………… 4
General safety rules…….………………………………………….…… 5
Special safety rules for cordless jig saw………………………………… 6
Symbols …...………………………………………………………......... 8
Knowing your cordless jig saw.……………….….………………………. 9
Assembly instruction…………………………………………….………. 10
Operating instruction…………………………………………………....... 12
Maintenance……………………………………………………...………. 15
Trouble shooting…………………………………………………………. 16

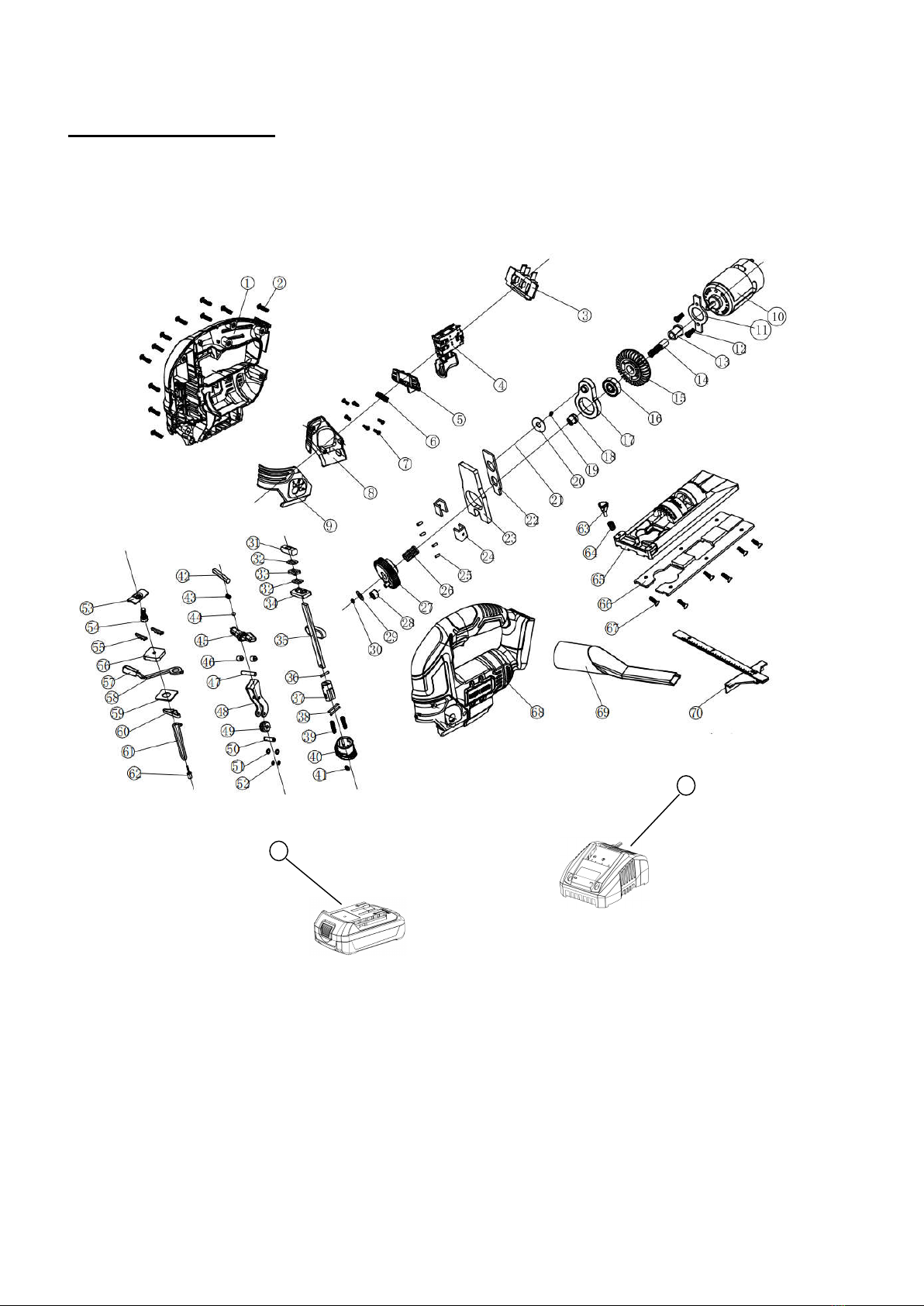

Exploded view…………………………………………………………… 17
Parts list…………………………………………………………………... 18
Warranty…………………………………………………………………. 19
TECHNICAL DATA
Cordless Jig Saw Model # PS76140A
Rated Voltage: 20 V
No Load Speed: 0~2300 spm
Stroke Length: 22mm
Cutting Capacity: 90mm(Wood) /6mm(Mild steel)
Battery type: 20V Lithium-ion, 1.5 Ah
Battery model: PS76018B
Charge time: 1 hour
Charger model: PS76018C
Charger rating: Input: 120VAC,60Hz, 0.54A; Output: 20V DC,1.5A
Package dimensions (L x W x H): 14.8 x4.5 x8.5 inches
Weight: 8.8 lb.

4
INTRODUCTION
Thank You for Purchasing a PowerSmart®Product. This manual provides information regarding the safe
operation and maintenance of this product. Every effort has been made to ensure the accuracy of the
information in this manual. PowerSmart®reserves the right to change this product and specifications at
any time without prior notice.
Please keep this manual available to all users during the entire life of the power tool.
This manual contains special messages to bring attention to potential safety concerns, power
tool damage as well as helpful operating and servicing information. Please read all the
information carefully to avoid injury and machine damage.
QUESTIONS? PROBLEMS?
Please contact our Customer Service Dept. with any questions and/or comments, either by Email:
support@amerisuninc.com, or Toll Free at (800)791-9458. We are available Mon-Fri 9am-5pm EST to
help solve any issues that you might encounter.
SAFETY INFORMATION
Before operating this power tool, read and observe all warnings, cautions, and instructions on the power
tool and in this Owner’s Manual.
NOTE: The following safety information is not meant to cover all possible conditions and situations that
may occur. Read the entire Owner’s Manual for safety and operating instructions. Failure to follow
instructions and safety information could result in serious injury or death.
This safety alert symbol is used to identify safety information about hazards that can result in personal
injury.
A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to
indicate the likelihood and the potential severity of injury. In addition, a hazard symbol may
be used to represent the type of hazard.
DANGER Indicates a hazard, which, if not avoided, will result in death or serious injury.
WARNING Indicates a hazard, which, if not avoided, could result in death or serious injury.
CAUTION Indicates a hazard, which, if not avoided, might result in minor or moderate injury.
CAUTION Without the alert symbol, indicates a situation that could result in damage.

5
GENERAL SAFETY RULES
Safety is a combination of common sense, staying alert, and knowing how your power tool works.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING: Do not operate this unit until you read this instruction manual for safety,
operation and maintenance instructions. Failure to follow all instructions listed below may
result in electric shock, fire, and/or serious personal injury.
WORK AREA SAFETY
Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases, or dust. Power tools create sparks which may ignite the dust or fumes.
Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause
you to lose control.
ELECTRICAL SATETY
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk
of electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a ground fault circuit.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use
a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or
hearing protection must be used for appropriate conditions.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing,
and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving
parts.
Avoid accidental starting. Be sure switch is off before connecting to power source and/ or battery
pack, pick up or carrying the tool. Carrying power tools with your finger on the switch or energizing
power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable
better control of the power tool in unexpected situations.
If devices are provided for the connection of dust extraction and collection facilities, ensure theses
are connected and properly used. Use of dust collection can reduce dust-related hazards.

6
POWER TOOL USE AND CARE
Do not force power tool. Use the correct power tool for your application. The correct power tool will
do the job better and safer at the rate for which it is designed.
Do not use the power tool if switch does not turn it on or off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source before making any adjustments, changing accessories, or
storing the power tool. Such preventive safety measures reduce the risk of starting the power tool
accidentally.
Store idle power tools out of reach of children and other untrained persons. Power tools are
dangerous in the hands of untrained users.
Maintain power tools with care. Keep cutting tools sharp and clean. Properly maintained power tools,
with sharp cutting edges are less likely to bind and are easier to control.
Check for misalignment or binding of moving parts, breakage of parts, and any other condition that
may affect the power tools operation. If damaged, have the power tool serviced before using.
Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
Save these instructions. Refer to them frequently and use them to instruct others who may use this
tool. If you lend this tool to someone else, also lend them these instructions.
BATTERY TOOL USE AND CARE
Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with another battery pack.
Use power tools only with specifically designated battery packs. Use of any another battery packs my
create a risk of injury and fire. Use only POWERSMART battery (Model#PS76018B)
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact
with your skin, wash immediately with soap and water, then neutralize with lemon juice or vinegar. If
liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate
medical attention. Following this rule will reduce the risk of serious personal injury.
SERVICE
Tool service must be performed only by qualified repair personnel. Service or maintenance
performed by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance
section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may
create a risk of electric shock or injury.

7
SPECIFIC SAFETY RULES FOR CORDLESS JIG SAW
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give the operator an electric shock.
Use clamps or another practical way to secure and support the workpiece to a stable platform.
Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
Know your power tool. Read operator’s manual carefully. Learn its applications and limitations, as
well as the specific potential hazards related to this power tool. Following this rule will reduce the
risk of electric shock, fire, or serious injury.
Always wear eye protection with side shields marked to comply with ANSI Z87.1. Following this
rule will reduce the risk of serious personal injury.
Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce
the risk of serious personal injury.
Protect your hearing. Wear hearing protection during extended periods of operation. Following this
rule will reduce the risk of serious personal injury.
Save these instructions. Refer to them frequently and use them to instruct others who may use this tool.
If you loan someone this tool, loan them these instructions also to prevent misuse of the product and
possible injury.

8
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL
NAME
DESIGNATION/EXPLANATION
V Volts Voltage
A
Amperes
Current
Hz
Hertz
Frequency (cycles per second)
W
Watts
Power
MIN
Minutes
Time
Safety Alert Precautions that involve your safety.
Li-ion RBRC seal Designates Li-ion battery recycling program
Read the user’s
manual
To reduce the risk of injury, user must read and understand user’s
manual before using this product.
Eye protection Wear eye protection when operating this equipment.
Hearing protection Use proper hearing protection when operating this equipment.
Respiratory
protection
Use proper respiratory protection when operating this equipment.
Wet conditions
alert
Do not expose to rain or use in damp locations.
No Hands Symbol Failure to keep your hands away from the blade will result in
serious personal injury.
Electric shock alert Beware of electric shock hazard.

9
KNOWING YOUR CORDLESS JIG SAW
Unpacking
Unpack the power tool and all its parts, and compare against the list below. Do not discard the carton or
any packaging materials. Please call 1-800-791-9458 or E-mail us at support@amerisuninc.com if any
parts are damaged or missing.
Including: Cordless jig saw/ Saw blade / Rip guide / Dust port / Battery and Charger / User manual
1
Switch
2
Lock-off button
3
5
7
9
11
13
Quick saw blade system
Saw blade
Four cutting action
Dust port (37.7mm 1-1/5)
Battery
LED light
4
6
8
10
12
Rip guide clamping screw
Rip guide
Base plate
Optimized ventilating system
Cutting angle adjustor
Fig.1
1
2
11
10
9
8
7
12
6
5
4
13
3

10
ASSEMBLY INSTRUCTION
WARNING:
Do not use this product if any parts on the packing list are already assembled to your product
when you unpack it. Parts on this list are not assembled to the product by the manufacturer
and require customer installation. Use of a product that may have been improperly assembled
could result in serious personal injury.
WARNING:
If any parts are damaged or missing do not operate this product until the parts are replaced.
Use of this product with damaged or missing parts could result in serious personal injury.
WARNING:
Do not attempt to modify this product or create accessories not recommended for use with
this product. Any such alteration or modification is misuse and could result in a hazardous
condition leading to possible serious personal injury.
WARNING:
Do not connect to power supply until assembly is complete. Failure to comply could result in
accidental starting and possible serious personal injury.
INSTALLING THE AUXILIARY GUIDE
Loosen the 2 screw and insert the auxiliary guide(1 )to the base
plate(3).Finally, install the screw again. If you want to cut the wood
that is 3mm wide, release the screw on the base plate and from left
side
insert the rip guide that number is 3 (See fig.2)
INSTALLING/ REMOVING THE BLADE
Installing the blade
1.Check if the saw blade faces forward, and press the tool opener to its original position.
2.Install the saw blade into its original position (See fig.3 and fig.4).
3.Make sure that the blade is securely held in place by trying to pull it out.
WARNING: Do not open the tool opener excessively, or it may cause tool
damage.
Fig.2
Fig.3 Fig.4

11
Removing the blade
To remove the blade, press the tool opener to the position shown in the figure. Pull the saw
blade out toward the base.
INSTALLING DUST EXTRACTION
To attach the nozzle on the tool, insert the hook of dust
nozzle into the hole on the base. Another is connected to
vacuum cleaner (See fig.5).
CONNECTING AND REMOVING BATTERY
IMPORTANT!
The battery pack is not charged when it is purchased. Before using the power tool for the first time, place
the battery pack in the battery charger and charge. Make sure to read all safety precautions, and follow the
instructions in the battery charger section.
To install the battery pack
To install the battery pack into the bottom of the handle, align the rails of the battery pack with the rails in
the handle and push the battery into the handle. To connect the battery, slide the battery pack fully
forward. Until the latch locks into place.
To remove the battery pack
Press the battery release button ,Slide the battery pack backward, and then pull or lift the battery out of
the tool .
WARNING:
Follow these instructions in order to avoid injury and to reduce the risk of electric shock or
fire:
• Replace the battery pack or the charger immediately if the battery case or charger cord is damaged.
• Verify that the battery pack is removed before inspecting, adjusting, or performing maintenance on
any part of the power tool.
• Read, understand, and follow the instructions.
Fig.5

12
OPERATING INSTRUCTION
Turn the tool on without the blade making any contact and wait until the blade attains full speed. Then
rest the base flat on the workpiece and gently move the tool forward along the previously marked cutting
line.
SWITCH ON AND OFF
To start the tool, depress the lock-off button from and pull the switch trigger.
WARNING:
Before inserting the battery into the tool, always check to see that the
switch trigger actuates properly and returns to the "OFF" position when
released.
When not operating the tool, depress the lock-off button lock the switch
trigger in the OFF position. Tool speed is increased by increasing pressure
on the switch trigger. Release the switch trigger to stop.
NOTE: If the tool is operated continuously until the battery has discharged, allow the tool to rest for 15
minutes (best in ventilated place) before proceeding with a full battery.
ADJUSTING THE CUTTING ACTION
WARNING: Before any work on the power tool, remove
the battery and wear your gloves.
Changing lever
This tool can be operated with an orbital or a straight line (up and
down) cutting action. The orbital cutting action thrusts the blade
forward on the cutting stroke and greatly increases cutting speed.
To change the cutting action, just turn the cutting action changing
lever to the desired cutting action position. Refer to the table to select the appropriate cutting action.
Position Cutting action Applications
1 Straight line cutting action For cutting mild steel, stainless steel and plastics. For
clean cuts in wood and plywood.
2 Small orbit cutting action For cutting mild steel, aluminum and hard wood.
3 Medium orbit cutting action
For cutting wood and plywood.
For fast cutting in aluminum and mild steel.
4 Large orbit cutting action For fast cutting in wood and plywood.
Fig.6
Fig.7

13
NOTE: If you want to cut a straight line, keep a cut in a slow speed. The thicker wood you cut, the slower
speed you should keep.
NOTE: Always ensure the light is aimed at a sturdy workpiece without reflective surfaces. I.e. wood or
rough coated surfaces are acceptable. Bright shiny reflective sheet steel or the like is not suitable for
light use as the reflective surface could direct the beam back at the operator.
The LED light works when the switch is slightly or completely pressed, and allows the cutting area to be
illuminated.
CUTTING METHODS
Bevel cutting
CAUTION: Always be sure that the tool is switched
off and the battery is removed before tilting the base.
To adjust the cutting angle, pull the switch to "unlock" position,
and then pull the base plate back. Finally, pull the button to
"lock"
position.
With the base tilted, you can make bevel cuts at any angle
between
0° and 45° (left or right).
Boring a starting hole
For internal cutouts without a lead-in cut from an edge, pre-drill a
starting hole 12 mm (1/2") or more in diameter. Insert the blade
into this hole to start your cut.
You need not bore a starting hole or make a lead-in cut if you
carefully do as follows.
Metal cutting
Always use a suitable coolant (cutting oil) when cutting metal. Failure to do so will cause significant
blade wear. The under side of the work piece can be greased instead of using a coolant.
Straight cuts
When repeatedly cutting widths of 90 mm (3-1/2")(90mm,160mm) or less, use of the rip fence will assure
fast, clean, straight cuts.
Fig.8
Fig.9

14
TEMPERATURE CONTROL /OVERLOAD PROTECTION
When the temperature of battery is too high and the machine switches off automatically.
• Switch the power tool off.
• Allow the battery to cool down before continuing to work.
When the power tool is blocked and switches off automatically.
• Remove the power tool from the workpiece.
• As soon as the blockage is corrected, the power tool will continue to work at the set stroke rate.
IMPORTANT CHARGING NOTES
WARNING: Battery packs are shipped in a low charge condition to prevent possible
problems.
Therefore, you should charge them before first use.
• Use only POWERSMART battery charger (Model#PS76018C)
• Charge time is approximately 1hour, and is dependent upon the type of battery pack.
• Make sure the power supply is normal household voltage, 120V, AC only, 60Hz.
• Attach the battery pack to the charger by aligning the raised ribs on the battery pack with the grooves
in the charger, then slide the battery pack onto the charger.
• Press down on the battery pack to be sure contacts on the battery pack engage properly with contacts
in the charger. Latches should snap into ensure charger is correctly connected.
• Do not place the charger in an area of extreme heat or cold. It will work best at normal room
temperature.
• The battery pack may become slightly warm to the touch while charging. This is normal and does not
indicate a problem.
• The red LEDs will remain on while charging.
• When the green LEDs is light, this indicates the battery is fully charged.
• To remove the battery pack from the charger, depress latches and pull up on the battery pack.
• When the battery pack is fully charged, remove it from the charger.

15
MAINTENANCE
WARNING: In order to avoid personal injury and the risk of fire and electric shock,
remove the battery pack before adjusting, inspecting, or cleaning the power tool.
WARNING: When servicing, use only identical replacement parts. Use of any other parts
could create a hazard or cause product damage.
TRANSPORT
Be alert for battery packs that are nearing their end of life. If you notice decreased tool performance or
significantly shorter running time between charges then it is time to replace the battery pack. Failure
to do so can cause the tool to operate improperly or damage the charger.
Clean the saw blade holder preferably with compressed air or a soft brush. Remove the saw blade
from the power tool for this. Ensure proper operation of the saw blade holder by applying a suitable
lubricant.
Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not attempt
to clean by inserting pointed objects through opening.
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use. Use clean clothes to remove
dirt, oil, grease, etc.

16
TROUBLE SHOOTING
WARNING: Read instruction manual first! Remove battery pack from the tool before
making adjustments or assembling accessories.
Problem Possible Cause Possible Solution
Unit will not start
Battery pack not installed
properly Check battery pack installation.
Battery pack not charged. Check battery pack charging
requirements.
Battery pack will not charge.
Battery pack not inserted into
charger.
Insert battery pack into charger
until LED appears
Charger not plugged in
Plug charger into a working
outlet. Refer notes “for more
details.
Surrounding air temperature
too hot or too cold
Move charger and battery to a
surrounding air temperature of
above 40 degrees F(4.5°C)
or below 105 degrees
F(+40.5°C)
Unit shuts off abruptly
Battery pack has reached its
maximum thermal limit.
Allow battery pack to cool
down
Out of charge. (To maximize
the life of the battery pack, it is
designed to shutoff abruptly
when the charger is depleted
Place on charger and allow to
charge

17
EXPLODED VIEW
71
72

18
PARTS LIST
Item Stock# Description Qty. Item Stock# Description Qty.
1PS76140A-001 right housing 1 37 PS76140A-037 Saw blade clip body 1
2PS76140A-002 screw st4*14 11 38 PS76140A-038 saw blade pin 2
3PS76140A-003 connector bracket 1 39 PS76140A-039 spring 2
4PS76140A-004 switch 1 40 PS76140A-040 sliding sleeve 1
5PS76140A-005 safty button 1 41 PS76140A-041 sealing cover 1
6PS76140A-006 safty button spring 1 42 PS76140A-042 pin 1
7PS76140A-007 screw st3*7 6 43 PS76140A-043 spring 1
8PS76140A-008 right decorative
covers
144 PS76140A-044 bearing φ5.0 1
9PS76140A-009 Left decorative
covers
145 PS76140A-045 button 1
10 PS76140A-010 motor 1 46 PS76140A-046 bearing sleeve 2
11 PS76140A-011 batter board 1 47 PS76140A-047 tool lifter pin 1
12 PS76140A-012 screw M4*8 2 48 PS76140A-048 tool lifter frame 1
13 PS76140A-013 连接轴 149 PS76140A-049 guide wheel 1
14 PS76140A-014 small gear 1 50 PS76140A-050 guide wheel shaft 1
15 PS76140A-015 fan blade 1 51 PS76140A-051 washer φ4 2
16 PS76140A-016 bearing 608 1 52 PS76140A-052 battfle Φ3 2
17 PS76140A-017 bearing seat 1 53 PS76140A-053 flange 1
18 PS76140A-018 bearing sleeve 1 54 PS76140A-054 screw M5*16 1
19 PS76140A-019 battfle Φ4 1 55 PS76140A-055 Angle of the fork 2
20 PS76140A-020 washer 1 56 PS76140A-056 upper pressure plate 1
21 PS76140A-021 spindle 1 57 PS76140A-057 quick release button 1
22 PS76140A-022 Drive piece 1 58 PS76140A-058 quick release spanner 1
23 PS76140A-023 balance block 1 59 PS76140A-059 lower pressure plate 1
24 PS76140A-024 Guide the slider 2 60 PS76140A-060 spring 1
25 PS76140A-025 draw point 4 61 PS76140A-061 protect knife wire 1
26 PS76140A-026 bearing seat 1 62 PS76140A-062 led light assy 1
27 PS76140A-027 big gear 1 63 PS76140A-063 button M4 1
28 PS76140A-028 bush 1 64 PS76140A-064 button&spring 1
29 PS76140A-029 washer 1 65 PS76140A-065 base 1
30 PS76140A-030 circlip for shaft 8 1 66 PS76140A-066 base cover 1
31 PS76140A-031 upper guide pad 1 67 PS76140A-067 screw M4*8 6
32 PS76140A-032 Oil seal gasket 2 68 PS76140A-068 left housing 1
33 PS76140A-033 rubber oil seal 1 69 PS76140A-069 dust port 1
34 PS76140A-034 lower guide pad 1 70 PS76140A-070 rules guide 1
35 PS76140A-035 recip lever 1 71 PS76018B Battery pack 1
36 PS76140A-036 rod pin 1 72 PS76018C Charger 1

19
TWO (2) YEARS LIMITED WARRANTY
PowerSmart®is committed to building tools that are dependable for years. Our warranties are consistent with our
commitment and dedication to quality.
TWO (2) YEARS LIMITED WARRANTY OF POWERSMART PRODUCTS FOR HOME USE.
PowerSmart (“Seller") warrants to the original purchaser only, that all PowerSmart consumer power tools will be
free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety (90) days
for all PowerSmart Products, if the tool is used for professional or commercial use.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Two (2) Years Limited
Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or
replacement of parts, without charge, which are defective in material or workmanship and which have not been
misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Center. To make a
claim under this Limited Warranty, you must return the entire power tool product; transportation prepaid, to
PowerSmart Include a legible copy of the original receipt, which lists the date of purchase (month and year) and the
name of the company purchased from.
THIS LIMITED WARRANTY DOES NOT APPLY TO ANY ACCESSORY ITEMS INCLUDED WITH THE
TOOL SUCH AS CIRCULAR SAW BLADES OTHER RELATED ITEMS OR TO ANY REPLACEMENT
PARTS LISTED UNDER MAINTENANCE.
ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO TWO (2) YEARS FROM DATE OF
PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
(INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE
OR USE OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN
CANADA AND FROM COUNTRY TO COUNTRY.
For questions / comments, technical assistance or repair parts –
Please call toll free at: 1-800-791-9458 (M-F 9am – 5pm EST)
Email: [email protected]
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
This manual suits for next models
1
Table of contents
Other Powersmart Cordless Saw manuals
Popular Cordless Saw manuals by other brands

SHARKS
SHARKS SH 685 Instruction for operation and maintenance

EINHELL
EINHELL GE-LC 18 Li T Original operating instructions

Makita
Makita UC120D instruction manual

Craftsman
Craftsman 973.113080 owner's manual

Parkside
Parkside PHKSA 20-Li A1 Translation of the original instructions

HIKOKI
HIKOKI CR 18DA Handling instructions
