Thank you for purchasing the minigorilla.

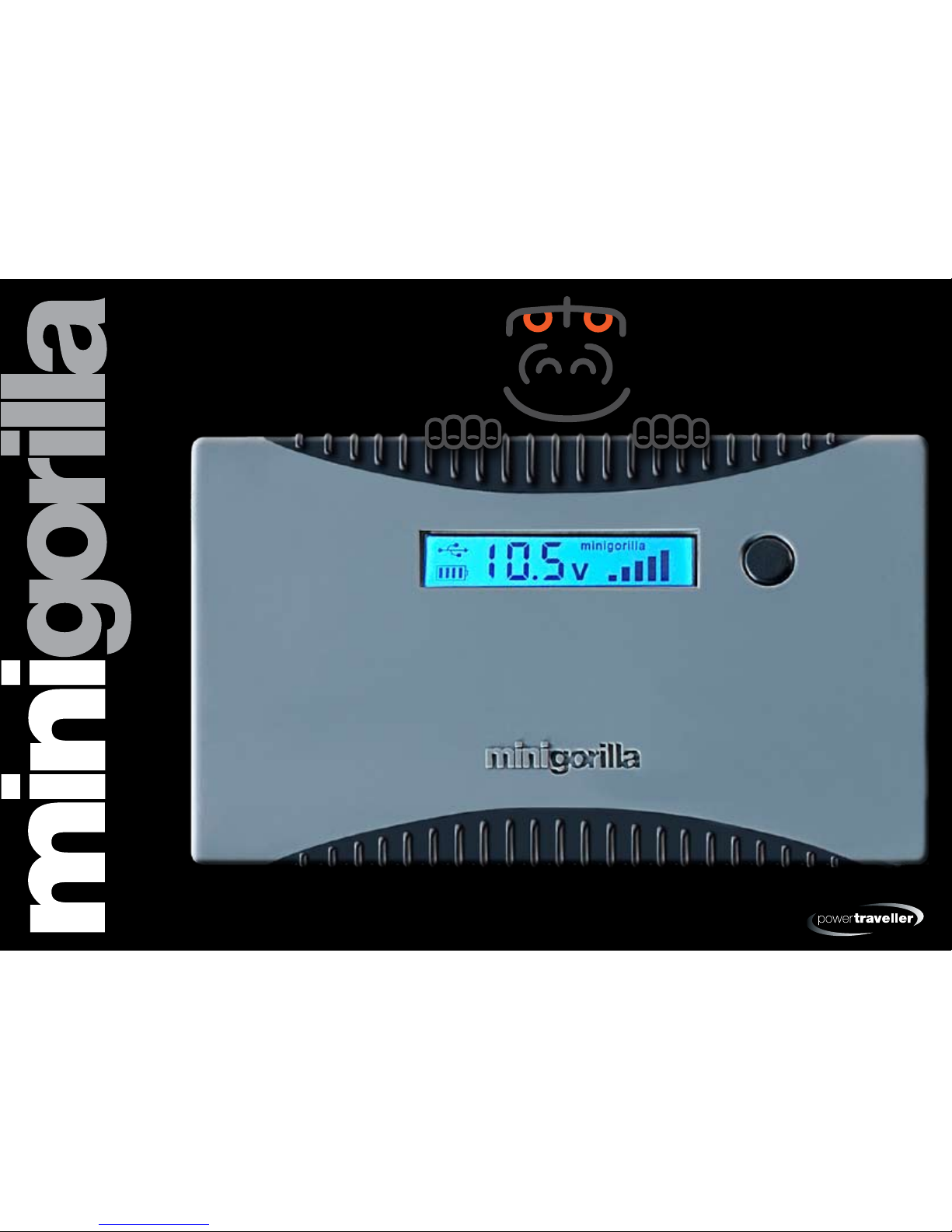

The minigorilla is the portable charger to keep your
Netbook powered for hours and hours.
Robust and rechargeable, your minigorilla has been
specifically designed to work with the latest Netbooks
but will also charge many other digital devices too.
Slimline, lightweight and compact, it is the ideal travel
companion to keep you fully powered at all times.
Roam wild…
With pocket power for your Netbook
www.powertraveller.com
• Technicalterms
• Productcontents
• minigorillaproductcompatibility
• Usingminigorilla
  Setup
  TurningON/OFF
  SelectingthecorrectvoltagetopoweryourNetbook
  Chargingotherdigitaldevices
  Checkingthechargelevels
  Rechargingtheminigorilla
• minigorillatips
  Tippack1andTippack2
  HowdoIchoosethecorrecttipformydevice?
  HowdoIconnecttheconnectiontiptothepowercable?
• Compabilitychart
• Specications
• Approvalcertications
• Productdisposalinstructions
• Troubleshooting
• Importantgeneralinformation
• Importantsafetyprecautions
• Small&compact
Weighing only 265g the minigorilla is light to carry with no
need to carry extra batteries.
• Convenience
Power up whenever, wherever. The minigorilla will give you
up to an extra 6 hours power depending on your device.
• Compatibility
The minigorilla is compatible with many devices making it a
truly universal power solution.
• Variablevoltage
With one-touch button operation your minigorilla is
compatible with many devices and Netbooks.
• Compact&stylishdesign
Sleek rubberised plastic casing with shock resistant rubber
protection strips.
• Safety
minigorilla’s many safety features include Voltage limitation,
Current limitation, Short circuit, Anti over-discharge, Over
charging and Over-heat protection.
Introducing minigorilla minigorilla features Index
4
6
7
8
12
13
14
15
15
16
17
17

4
5
minigorilla
Hi-DensityLithiumPolymerBattery
‘GorillaNuts’–TipPackOne
‘MonkeyNuts’–TipPackTwo
IN
OUT
mAh
V/volt
USB
AppleMagSafeAirlineAdaptor
NB: Please note the MagSafe adaptor is not
supplied in the minigorilla pack and can be
purchased from
Portable rechargeable battery pack
The high energy rechargeable battery inside the minigorilla unit
Powertraveller’s brand name for the connector tips for Netbooks
Powertraveller’s brand name for the connector tips for all other devices
Direct current – powering a device via the transformer
Direct current – power coming from a device i.e. when the minigorilla is
charging a device i.e. mobile / cell phone it is ‘taking’ power
A milliampere hour is a unit of electrical charge per hour
Measurement of power needed to power a device e.g. a Netbook may
require 12volts or 19volts
Universal Serial Bus. For many devices the USB has become the standard
connection method. USB uses standard 5 volts output
Apple’s magnetic tip connector specifically designed / used for all the MacBook/
MacBook Pro/MacBook Air. The magsafe is magnetically held in place, as a result
if tugged or tripped over it comes out of the socket safely avoiding damage.
www.apple.com
Output
Input
MP3/MP4player
iPod
iPod is a trademark of Apple Inc.,
registered in the US and other countries
Currentlimitationprotection
Shortcircuitprotection
Anti-dischargingprotection
Voltagelimitationprotection
Over-heatprotection
Term denoting power leaving a device
Term denoting power entering a device
Device used for storing digital audio (MP3) and digital video (MP4)
Brand of portable media players designed and marketed by Apple
When the minigorilla is fully charged it will automatically switch off
If earth / leakage is detected and a possible short is detected the
minigorilla will auto shut down
When the minigorilla is connected to a device it will not allow the
device to discharge power in a reverse direction
A design to automatically maintain a constant voltage level
A design feature to prevent the minigorilla over heating
Technical terms

6
7
Listed below are the contents of the minigorilla pack.
Please check and familiarise yourself with the corresponding
list and diagrams before using the minigorilla.
•1 x minigorilla rechargeable battery pack (1).
•1 x black neoprene zip case with internal cable
storage pocket (2).
•1 x AC transformer (9v) with 4 interchangeable country
specific connector head for UK, US/Japan/China,
Australia and Europe (3).
•Tip Pack One for Netbooks – also called ‘Gorilla Nuts’ (4)
Includes 11 tips: each suitable for different Netbooks.
Each tip is named and can connect to the 80cm
connection cable included.
(Please see compatibility chart on page 13).
•Tip pack Two for mobile / cell phones – also called
‘Monkey Nuts’ (5).
Includes 8 tips: each suitable for different mobile/cell
phones and other digital devices. Each tip is labelled on
the pack. Also included a USB retractable cable with
DC3.5 tip.
•Quick start guide and DSWF (David Shepherd Wildlife
foundation www.davidshepherd.org) information fact
sheet on Gorillas and their conservation.
•User manual.
•Warranty card.
•Product disposal instructions.
• The following devices are all compatible with
the minigorilla.
 Netbook/AppleMacBookAir*
 *viaMagsafecablenotsuppliedintheminigorillapack
 Somedigitalcamerasandcamcorders
 Satnavs/GPS/Radioreceivers
 AppleiPodseries(notrewireversion),iPhone
 (usingthesynccablesuppliedwithyourAppledevice)
 SonyPSP
 MP3/MP4
 Mobiles/Cellphones
 Powertraveller’smovietraveller/portableDVDplayers
• If you use minigorilla with other devices not mentioned
above – please tell us! We welcome customer’s feedback
on further compatibility.
Product contents minigorilla product compatibility
1
2
3
4
5

8
9
Fig A
DC IN
DC OUT
ATTACH APPROPRIATE
PLUG ADAPTOR
1
2
3
4
5
UK US EU AU
Fig B
minigorill a
minigorilla
12
Unpack all contents of box and familiarise yourself with
each item - refer to the Product contents section on page 6.
It is important that you read steps 1 to 6 before using
the minigorilla.
Step1TurningON/OFF(FigA)
• Press the black ON/OFF button on the minigorilla for
5 seconds to activate.
• Once activated the blue LCD screen will illuminate.
• If not in use, after approximately 10 seconds the back light
turns itself off. The minigorilla will shut down after 1
minute if not in use or device is fully charged.
• Hold the ON / OFF button to reactivate.
• To turn the minigorilla off press the ON / OFF button for
5 seconds.
Step2Setup(FigB)
• Connect the AC/mains adaptor (1) to the correct
interchangeable mains head (2) for the appropriate
AC/mains socket e.g. UK head for UK AC/mains socket
• Plug into mains socket and the IN (3) on the minigorilla.
• Remove connection cable from Tip Pack One and select
the tip that is compatible with your Netbook. (Please refer
to the Compatibility chart on page 13).
Step3.SelectingthecorrectvoltagetopoweryourNetbook
Before plugging in your Netbook to the minigorilla please check
the voltage it requires.
This can be found on the transformer of the AC adaptor supplied
with your Netbook or in your Netbook’s user guide.
Look for O/P: DC 16V –
voltage required is 16V
• Turn the minigorilla on.
• Lightly press the same button again to cycle through the
voltage options to match your devices requirements.
• The choices are 8.4v, 9.5v, 10.5v, 12v or 19v.
• The minigorilla will auto save your chosen voltage ready for
next time.
• Connect the connection cable to the appropriate tip and insert
into your device as shown (4).
• Insert the other end of cable into the OUT of the
minigorilla (5).
IMPORTANT: Only use Powertraveller’s approved AC adaptor for minigorilla
and never use minigorilla’s AC adaptor on any Netbook.
Always disconnect AC/Mains charger when minigorilla is fully charged or not
in use.
Note: Some Netbook LCD screens may flicker while the minigorilla is
connected. This is because the power rating for the minigorilla is lower
than the Netbook. You may need to change the brightness settings on your
Netbook or turn the Netbook off. This will enable the minigorilla to charge
the Netbook.
Using minigorilla

10
11
Step4 Chargingotherdigitaldevices(FigC)
The minigorilla will also power your iPod, PDA, MP3/MP4’s,
hand held gaming devices, sat nav’s, mobile / cell phones and
many other devices using the USB port.
• Turn unit on via the ON/OFF black button (1).
• Select the retractable USB tip (2) from Tip Pack Two.
• Insert the USB into the USB port (3) of the minigorilla.
• Select and connect the appropriate tip from Tip Pack Two
for your device (4).
• Apple iPod series, including Nano, iPod Classic, iPhone,
iPod Touch – charge by using the white sync cable
supplied with your Apple device (not firewire version).
• The minigorilla will stop charging when the device if fully
charged.
•You can charge the minigorilla and devices via the 5v USB
port simultaneously.
NOTE: The USB port does not have a switchable voltage – therefore
you don’t need to select the correct voltage as the minigorilla will
automatically recognize the standard USB 5 volt.
Step5 Checkingthechargelevels
• The level of charge remaining in your minigorilla is clearly
shown by the 6 vertical bars in the right hand corner of the
blue LCD screen.
• When the 6 vertical bar is down to 1, the battery symbol in the
bottom left corner flashes, this indicates charging is required.
Step6Rechargingtheminigorilla
You can recharge the minigorilla via two sources: Only use the
AC/Mains supplied with the minigorilla or the solar power.
AC/mains(FigB)
• Use the AC charger supplied to recharge the minigorilla.
• Plug the AC charger into the IN socket of the minigorilla.
• The minigorilla charges fully in approximately 5 - 6 hours.
• The minigorilla will auto turn off when fully charged.
SolarPower
• The minigorilla will also be able to be charged via the sun
using the solargorilla (not included).
• Select L52D tip for the minigorilla and connect it to the
solar panel with the 2m charging cable supplied with
the solargorilla.
• For further information on the solargorilla please visit
www.powertraveller.com
solargorilla charging minigorilla
Fig C
12
3
4

12
13
Tippack1–‘GorillaNuts’forNetbook
Tip Specication CompatibleNetbooks
L01D 4.75 x 1.7mm ASUS, Compaq, HP,
ASUS EeePC
L51D 5.5 x 1.7mm Acer, Winbook
L52D 5.5 x 2.1mm ASUS, Compaq, HP
L53D 5.5 x 2.5mm ASUS, Compaq, HP, Gateway,
IBM, LENOVO, Fujitsu, NEC,
Olivetti, Toshiba,
BENQ JOYbook LITE U101
L54D 6.5 x 4.5mm Fujitsu, Panasonic,
Samsung, SONY
L55D 6.3 x 3.0mm Toshiba
L61D 7.4 x 0.65mm DELL (power only)
L72D 4.0 x 1.7mm HP
L73D 5.5 x 3.3mm SONY VGN series, Samsung
L74D 3.5 x 1.35mm (red) HP mini, GPS Navigator
L75D 5.5 x 1.9mm ASUS, Lenovo, BENQ,
Acer One
Magsafe – Can be MacBook Air
purchased from
www.apple.com
Step1
Tip pack 1 Tip pack 2
• The minigorilla connector tips are connectors to make
different devices compatible with minigorilla.
• There are two packs included with your minigorilla: Tip
pack 1 & Tip pack 2.
• You need to select the correct connector tip for the
appropriate device.
• All connector tips are clearly marked.
Tippack1(‘’GorillaNuts’’)
• The tips for Netbooks are in Tip Pack One and are named
on the tip. This pack includes 11 tips.
• These tips are only to be inserted into the power IN socket
on your Netbook.
Tippack2(“MonkeyNuts’’)
• The tips for all other devices such as mobile/cell phones
and some digital cameras are in Tip Pack Two and named
on the pack.
• All tips in this pack must be connected to the retractable
USB cable (also in the same pack) and inserted into the
USB port of the minigorilla.
Step2HowdoIchoosethecorrecttipformydevice?
• Please refer to the list on the opposite page to choose the
corresponding connector tip. Alternatively, please refer to
the compatibility chart found on www.powertraveller.com
Step3 HowdoIconnecttheconnectiontiptothe
  powercable?
• Connect the correct connection tip to the universal power
adaptor output cable as shown in the image below.
minigorilla tips Compatibility chart
IMPORTANT: Please confirm voltage selection by referring to
your Netbook user manual.
Tippack2–‘MonkeyNuts’formobilephonesand
otherdigitaldevices
LabelledName Compatibility
DC2.0 Nokia series
PSP (DC4.0) Sony PSP and some
digital cameras
LG LG Chocolate
Mini USB Motorola Razr V series,
Blackberrys & Bluetooth
headsets
DS Lite Nintendo DS Lite
G600 Samsung
K750i Sony Ericsson wide connector
Micro USB Latest Motorola & Nokia series
Retractable USB cable
(DC3.5 x 1.1) USB port (not labelled)
NOTE: The most popular connector tips are included in the minigorilla
pack. To purchase more connector tips or for help to find the right tips
– please visit www.powertraveller.com

14
15
Specifications
Parameters
Weight
Material
Dimensions
Output
Operatingtemperatures
Colour
Protections
Chargingoptions
Description
265g
Laser-etched rubber coated housing with shock resistant rubber protection strips
150mm x 83mm x 14mm
8.4v, 9.5v, 10.5v, 12v, 19v & USB 5v
Between 0ºC - 40ºC
Graphite grey
Voltage Limitation, Current limitation, Short Circuit, Anti over-discharge,
Over charging, Over-heat protection
minigorilla’s AC/mains or solargorilla (not included)
Compliancewith :
EN60950-1:2006
EN60950-1/A11:2004
EN60950-1:2005
EN60065/A1:2006
EN55022:2006
EN55022/A2:2003
UL60950-1
EN61000-3-2:2006
EN61000-3-3:1995+A1+A2
EN55024:1998+A1+A2
FCC Part 15:2007
ICES-003:2004
AS/NZS60950.1:2003
The symbol shown here and on the product means that the
product is classed as Electrical or Electronic Equipment and
should not be disposed with other household or commercial
waste at the end of its working life.
The Waste of Electrical and Electronic Equipment (WEEE)
Directive (2002/96/EC) has been put in place to recycle
products using best available recovery and recycling
techniques to minimise the impact on the environment, treat
any hazardous substances and avoid the increasing landfill.
Product disposal instructions for residential users
When you have no further use for it, please remove any
batteries and dispose of them and the product as per your
local authority’s recycling processes. For more information,
please contact your local authority or the retailer where the
product was purchased.
Product disposal instructions for business users
Business users should contact their suppliers and check the
terms and conditions of the purchase contract and ensure
that this product is not mixed with other commercial waste
for disposal.
Product disposal instructions
Outputcapacity&current
OutputCapacity:Amountoftimesthe
minigorillawillchargeadevice
6,000 mAh in 5v mode
4,000 mAh in 8.4v mode
3,500 mAh in 9.5v mode
3,200 mAh in 10.5v mode
2,800 mAh in 12v mode
2000mAh in 19v mode
OutputCurrent:Amountoftimetakento
fullychargeadevice
5v = 700mAh output current
8.4v = 3A max output current
9.5v = 3A max output current
10.5v = 3A max output current
12v = 3A max output current
19v = 1.5A max output current
Approval certifications

16
17
Q. Can I use the minigorilla straight away without charging?
A. Yes, the minigorilla comes 60% pre charged so is ‘ready to use
out of the box’.
Q. What are connector tips?
A. Connector tips are attachments to make the minigorilla
compatible with various devices.
Q. What if I can’t find the right tip?
A. Please refer to www.powertraveller.com
Q. Why does the minigorilla auto shut down?
A. This can be for various reasons:
1. Device is fully charged or minigorilla not in use.
2. The minigorilla has run out of power and needs recharging.
3. The minigorilla has detected one of the safety features.
Q. I have a Mac laptop/notebook. Is it compatible with
the minigorilla?
A: Yes, providing you have a MagSafe connector.
Q. I have a MacBook Air. Is it compatible with the minigorilla?
A. Yes, providing you have a MagSafe Airline Adaptor. (Select 19v)
Q. Where can I buy a MagSafe Airline Adaptor?
A. www.apple.com
Q: I have a MacBook Air. Is it compatible with the minigorilla?
A: Yes, providing you have a Magsafe Airline Adaptor. Select 16v
on the minigorilla – if the LCD screen flickers on the minigorilla,
please switch off and reselect 19v.
Q. Can I use my device while charging the minigorilla?
A The AC charger supplied with the minigorilla is 9v. You can
simultaneously charge the minigorilla and your device from the
mains as long as your device will accept 9v. minigorilla may shut
down if it detects voltage incompatibility. However, charging the
minigorilla and other devices via the 5v USB port – mobile, iPod,
MP3/MP4 etc – is possible.
Q. How much extra time will the minigorilla give me on my netbook?
A. minigorilla can add up to 6 hours of power to your netbook
(depending on netbook specification)
Q. How long does it take to charge the minigorilla?
A. Between 5 – 6 hours.
Q. Can I charge the minigorilla via the USB?
A. No, the USB uses a standard 5v which is not sufficient to power or
charge the minigorilla.
Q. What do the symbols on the LCD screen mean?
A.
Q. Does the minigorilla automatically recognise the voltage my device
requires?
A. No, you have to select the correct voltage before connecting and
turning your netbook on. The minigorilla will remember the voltage
that was last selected though.
Q. How do I know what voltage my device requires to make it
compatible with the minigorilla?
A. This can be found on the transformer of the AC adaptor supplied
with your netbook or in your netbook/device’s user guide.
Q. What happens if I select the incorrect voltage?
A. The minigorilla will not work to its optimum performance and the
device may be damaged.
Q. I have heard of the solargorilla. What is the solargorilla?
A. The solargorilla is a powerful solar panel capable of charging the
minigorilla and other devices. Perfect for life on the go! For further
information and to purchase please refer to www.powertravaller.com
If you have any further queries that are not covered in this manual,
please email us at:[e-mail]
Troubleshooting (Questions and Answers)
WARNINGS:This manual contains important safety and operating
instructions for your minigorilla. Please read this section carefully to
reduce the risk of personal injury and pay attention to the following:
1. Please follow the procedures from the User Manual when setting
up the device.
2. The minigorilla is suitable for Netbooks, some digital cameras,
iPods, MP3/MP4’s, hand held gaming devices, mobile/cell phones,
PDA’s, satellite navigators and other digital devices. Please refer
to www.powertraveller.com for an updated list of devices.
3. Only use the minigorilla authentic tips provided in the pack.
Using other manufactures accessories may result in the risk of
fire or damage to the unit or associated products. To purchase
connector tips, should you loose / damage the ones provided
please visit www.powertraveller.com
4. The tips are uniquely designed. If a tip does not fit in the
appropriate socket, then this indicates that a mismatch has
occurred. Please refer to the User Manual.
Do not force the tip into the Netbook as it may damage both the
power adaptor and Netbook.
5. Do not open the device or make any attempt to disassemble or
modify the device, as this will invalidate the warranty / guarantee.
This may also result in the risk of fire, personal injury, or damage to
personal property.
Although the product incorporates a multiple-protection circuit, to be
absolutely certain of its safe use, please note the following:
1. Avoid placing product in direct sunlight. Avoid operating in
an environment exceeding 40º to prevent activation of the
temperature shut down protection circuit.
2. Avoid operating in temperatures below 0º to prevent the power
supply efficiency from declining.
3. Avoid operating in wet / high moisture conditions.
4. The minigorilla has been designed to lift the underbody 1mm
from the surface and drop the top 1mm to assist with temperature
control. For optimal temperature regulation and for personal safety
do not cover or smother the minigorilla.
5. Fully remove from the neoprene zip case before using.
6. Do not operate this power adaptor with damaged input or output
cords or plugs.
7. Do not open the device or make any attempt to disassemble
or modify the device as this will invalidate the warranty. This
may also result in the risk of fire, personal injury or damage
to personal property. Please refer to the user guide for full
operating instructions.
8. The warranty will be invalidated if the product is damaged due to
water / liquid, fire or hard impact.
9. Keep out of the reach of children at all times. Small parts can
cause choking if swallowed.
10. Please complete the enclosed warranty form and return to
Powertraveller. We cannot accept any responsibility for warranty’s
not returned.
11. The information contained in this user manual is, to the best of
our knowledge, true and accurate at the time of publication and is
provided for information purposes only. Powertraveller accepts no
liability for any loss or damage arising as a result of use or reliance
on this information.
Important general information Important safety precautions
USB
Only selected voltage of charge
is displayed
Bars indicator shows remaining
charge in minigorilla
Battery indicator flashes,
indicating that minigorilla
requires charging

18
Powertraveller Limited
8 Delta Park, Wilsom Road
Alton, Hampshire
GU34 2RQ, UK
t [phone]
[e-mail]
www.powertraveller.com
minigorillaTM is the trademark of Powertraveller Limited registered in the UK and Europe
Designed by MindWorks Marketing T: 0870 777 3 771 TP/ 21320
