Powerware 3110 User manual

POWERWARE®3110
300–700 VA
User’s Guide
Käyttöohje
Guide de l’utilisateur
Benutzerhandbuch
Manuale utente
Instrukcja u¿ytkownika
Руководство пользователя
Guía del usuario
Bruksanvisning
www.powerware.com

Powerware is a registered trademark of Powerware Corporation.
Powerware on Powerware Corporation rekisteröimä tavaramerkki.
Powerware est une marque déposée de Powerware Corporation.
Powerware ist ein eingetragenes Warenzeichen der Powerware Corporation.
Powerware è un marchio registrato di Powerware Corporation.
Powerware jest zarejestrowanym znakiem towarowym Powerware Corporation.
Powerware является зарегистрированной торговой маркой Powerware.
Powerware es una marca registrada de Powerware Corporation.
Powerware är ett inregistrerat varumärke som tillhör Powerware Corporation.
.
Copyright 2001-2002 Powerware Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be
reproduced in any way without the express written approval of Powerware Corporation.
.
Copyright 2001-2002 Powerware Corporation, Raleigh, NC, USA. Kaikki oikeudet pidätetään. Tämän asiakirjan mitään
osaa ei saa jäljentää millään tavalla ilman nimenomaista kirjallista lupaa Powerware Corporation.
.
Copyright 2001-2002 Powerware Corporation, Raleigh, NC, USA. Tous droits réservés. Aucune partie de ce document
ne peut être reproduite d’une quelconque manière sans l’accord écrit explicite de Powerware Corporation.
.
Copyright 2001-2002 Powerware Corporation, Raleigh, NC, USA. Alle Rechte vorbehalten. Kein Teil dieser
Druckschrift darf ohne ausdrückliche schriftliche Genehmigung von Powerware Corporation auf irgendeine Weise
vervielfältigt werden.
.
Copyright 2001-2002 Powerware Corporation, Raleigh, NC, USA. Tutti i diritti riservati. Nessuna parte del presente
documento può essere riprodotta in alcun modo senza l’esplicita autorizzazione scritta di Powerware Corporation.
. Copyright 2001
-2002
Powerware Corporation, Raleigh, NC, USA. Wszystkie prawa zastrze¿one. Nie wolno
reprodukowaæ ¿adnej czê ci tego dokumentu w jakikolwiek sposób bez pisemnego zezwolenia Powerware
Corporation.
.
Copyright 2001-2002 Powerware Corporation, Raleigh, NC, USA. Все права охраняются. Ни одна из частей этого
документа не может воспроизводиться в какой-либо форме без явного письменного разрешения Powerware
Corporation.
.
Copyright 2001-2002 Powerware Corporation, Raleigh, NC, USA. Todos los derechos reservados. Queda prohibida la
reproducción total o parcial de este documento sin el expreso consentimiento por escrito de Powerware Corporation.
.
Copyright 2001-2002 Powerware Corporation, Raleigh, NC, USA. Med ensamrätt. Inga delar av detta dokument får
reproduceras på något sätt utan uttryckligt skriftligt medgivande från Powerware Corporation.

i
Powerware®3110 User’s Guide :Rev A www.powerware.com
TABLE OF CONTENTS
1 Installation 1..................................................
Inspecting the Equipment 1.....................................................
Safety Precautions 1..........................................................
Quick Startup 2.............................................................

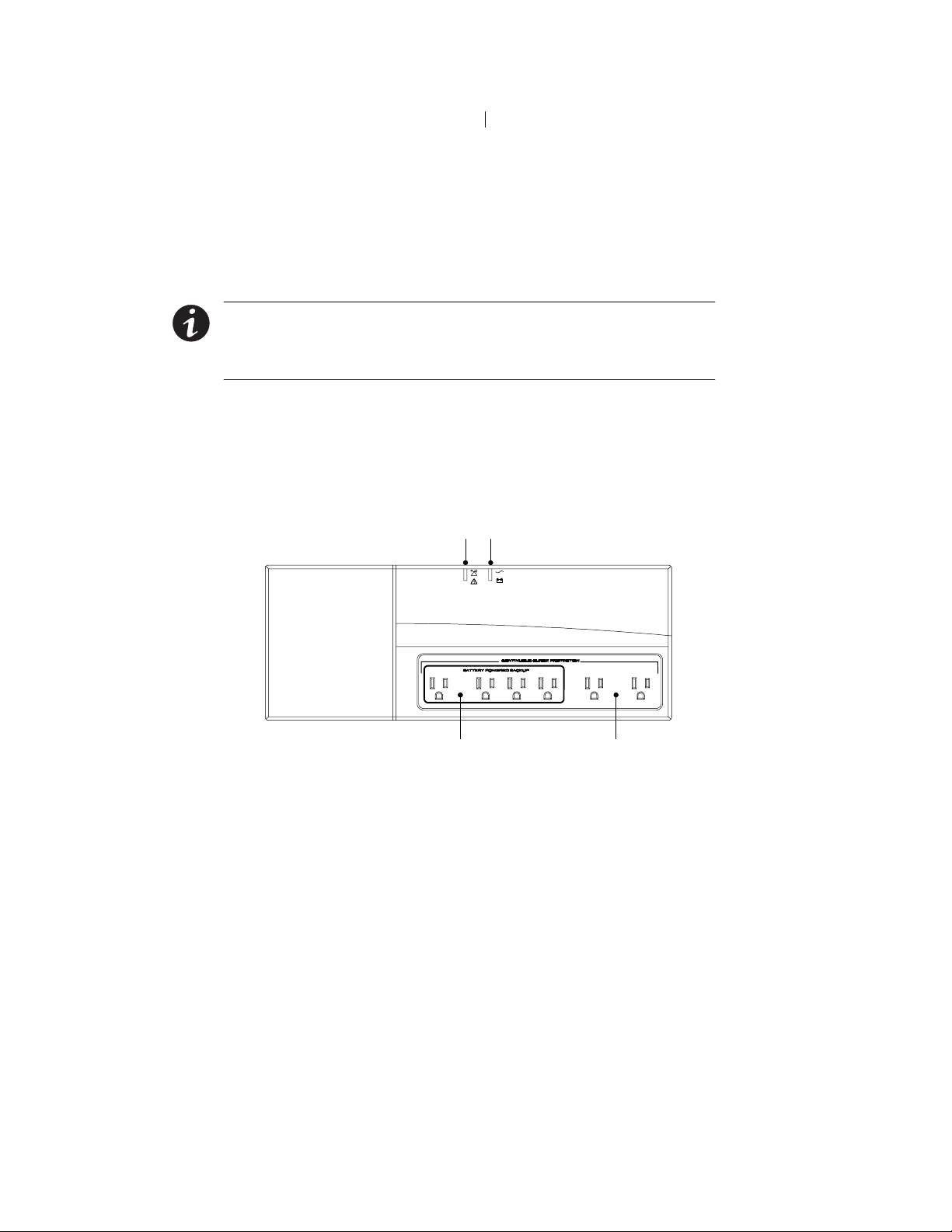

UPS Top and Side Panels 3.....................................................
2 Features 5.....................................................
Communication Port 5.........................................................
Pinouts 5...............................................................
Battery Start Feature 6........................................................
RJ-11 or RJ-45 Surge Protectors 6................................................
3 UPS Maintenance 7.............................................
UPS and Battery Care 7........................................................
Storing the UPS 7.........................................................

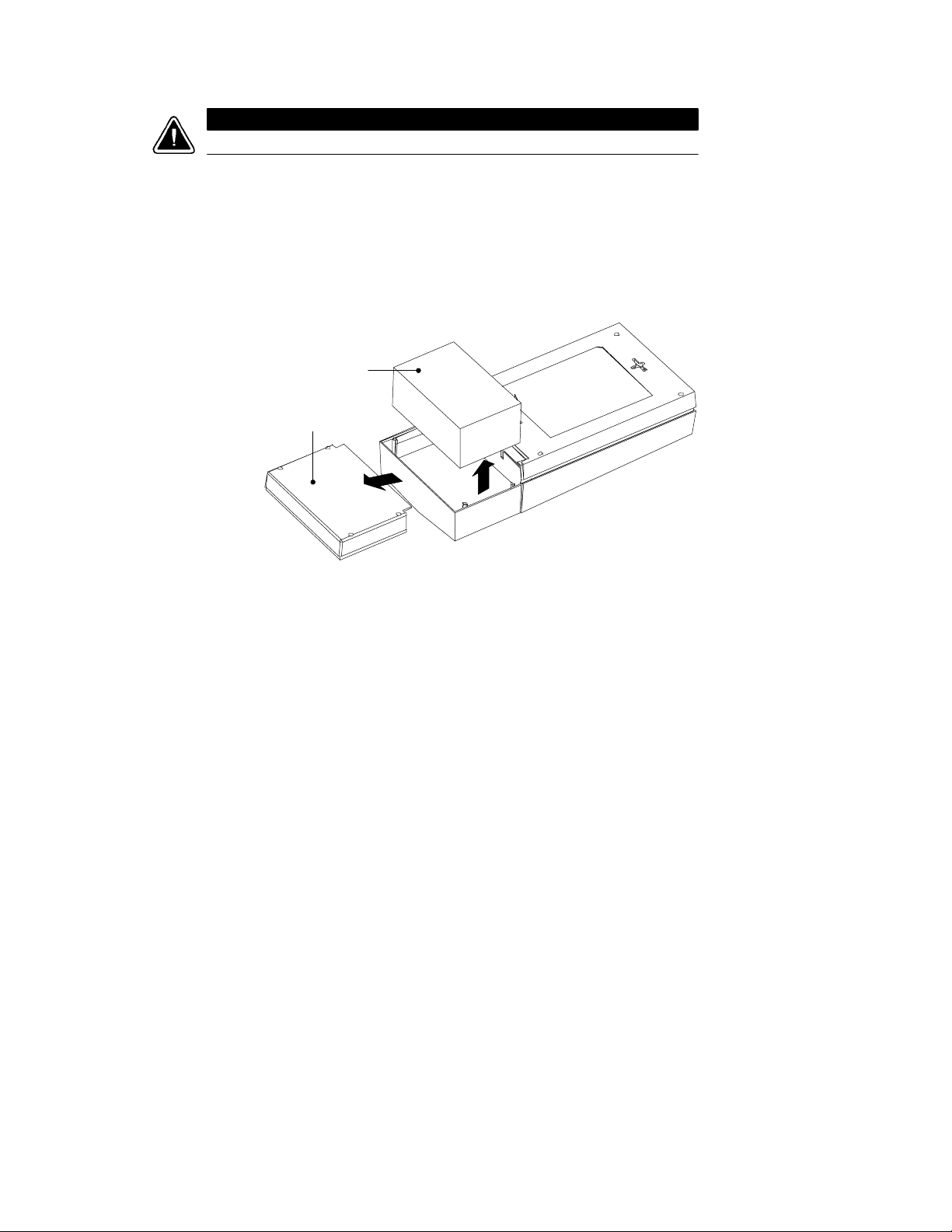

Replacing Batteries 7.........................................................
Recycling the Used Battery 9....................................................
4 Specifications 11................................................
5 Troubleshooting 13..............................................
Service and Support 14.........................................................
SISÄLLYSLUETTELO
1 Asennus 17.....................................................
Laitteiden tarkastus 17.........................................................
Turvaohjeet 17...............................................................
Nopea käynnistys 18..........................................................
UPSin ylä- ja sivupaneelit 19.....................................................
2 Ominaisuudet 21................................................
COM-portti 21...............................................................
Nastajärjestys 21..........................................................
Akkukäynnistystoiminto 22......................................................
RJ-11-ylijännitesuoja 22........................................................

Table of Contents
ii Powerware®3110 User’s Guide :Rev A www.powerware.com
3 UPSin huolto 23.................................................
UPSinjaakkujenhoito 23.......................................................
UPSin varastointi 23........................................................
Käytettyjen akkujen kierrätys 23..................................................
4 Tekniset tiedot 25................................................
5 Vianmääritys 27.................................................
Huolto ja tukipalvelut 28........................................................
TABLE DES MATIÈRES
1 Installation 29..................................................
Inspection de l’équipement 29....................................................
Mesures de sécurité 29........................................................
Mise en route rapide 30........................................................
Panneaux latéral et supérieur de l’onduleur UPS 31.....................................
2 Fonctions 33....................................................
Port de communication 33.......................................................
Brochages 33.............................................................
Fonction de mise en route de la batterie 34...........................................
Connecteur anti-surtensions RJ-11 34..............................................
3 Entretiendel’onduleur UPS 35.....................................
Entretien de l’onduleur UPS et des batteries 35........................................
Rangement de l’onduleur UPS 35...............................................
Recyclage d’une batterie usagée 36................................................
4Spécifications 37................................................
5 Dépannage 39..................................................
Service après-vente et assistance technique 40........................................

Table of Contents
iii
Powerware®3110 User’s Guide :Rev A www.powerware.com
INHALTSVERZEICHNIS
1 Installation 41..................................................
Inspizieren des Geräts 41.......................................................
Sicherheitsmaßnahmen 41......................................................
Schnelle Inbetriebnahme 42.....................................................
Abdeck- und Seitenplatten der USV 43..............................................
2 Merkmale 45...................................................
Datenübertragungsanschluß 45...................................................
Stiftbelegung 45...........................................................
Batteriestart-Funktion 46.......................................................
Überspannungsschutz RJ-11 46...................................................
3 Wartung der USV 47..............................................
Pflege der USV und Batterien 47..................................................
Lagern der USV 47..........................................................
Recycling der gebrauchten Batterie 48..............................................
4 Technische Daten 49.............................................
5 Fehlersuche 51..................................................
Kundendienst und Unterstützung 52................................................
SOMMARIO
1 Installazione 53.................................................
Controllo del dispositivo 53......................................................
Precauzioni per la sicurezza 53....................................................
Avvio rapido 54..............................................................
Pannelli superiore e laterali dell’UPS 55.............................................
2 Caratteristiche 57................................................
Porta di comunicazione 57.......................................................
Disposizione terminali 57.....................................................
Caratteristica di avvio batteria 58..................................................
Protezione da sovratensione RJ-11 58..............................................

Table of Contents
iv Powerware®3110 User’s Guide :Rev A www.powerware.com
3 Manutenzione UPS 59............................................
Manutenzione di UPS e batterie 59................................................
Conservazione della UPS 59...................................................
Riciclare la batteria usata 60.....................................................
4 Specifiche 61...................................................
5 Individuazione e soluzione dei problemi 63...........................
Assistenza e supporto 65.......................................................

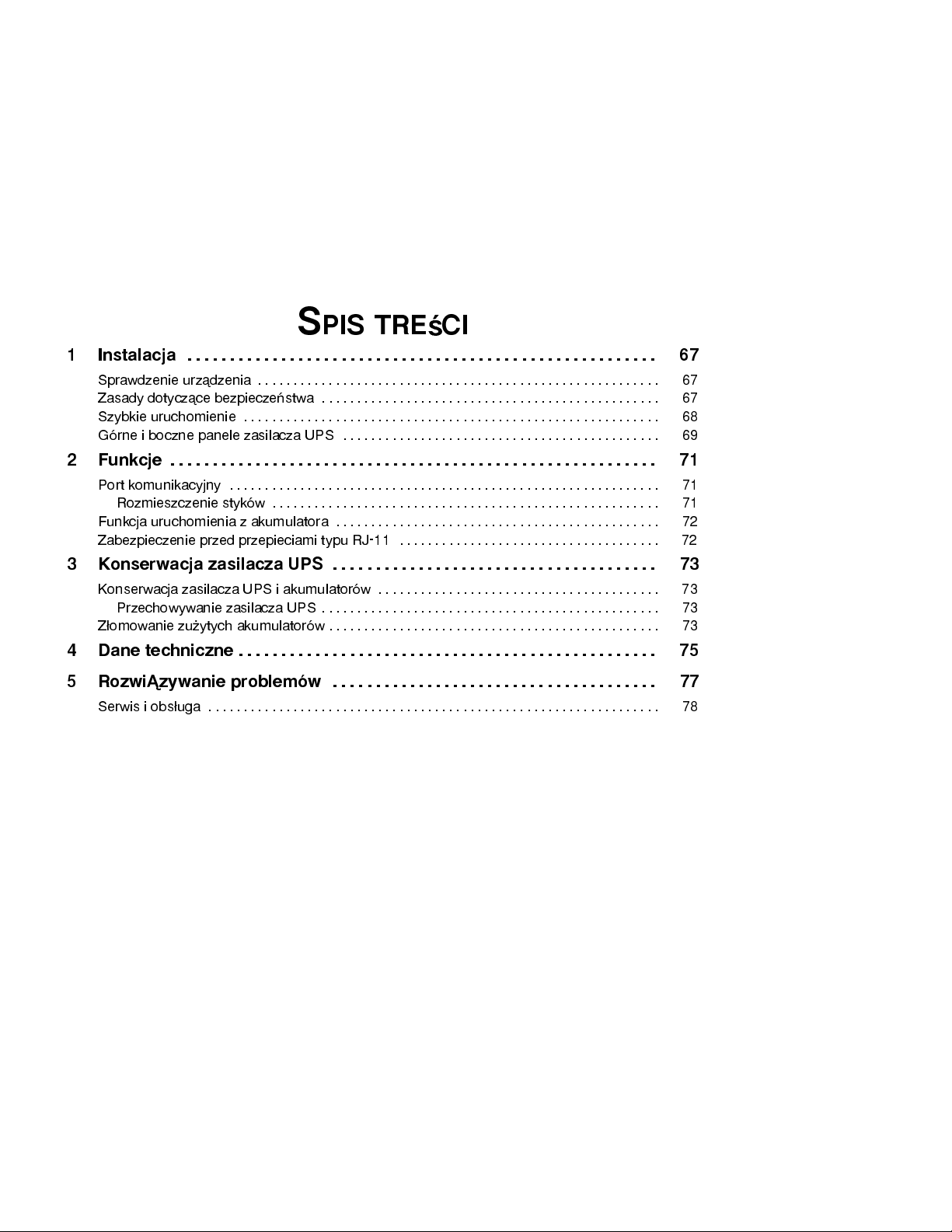

S PIS TRE CI
1 Instalacja 67.......................................................
Sprawdzenie urz¹dzenia 67.........................................................
Zasady dotycz¹ce bezpieczeñstwa 67................................................
Szybkie uruchomienie 68...........................................................
Górne i boczne panele zasilacza UPS 69.............................................
2 Funkcje 71.........................................................
Port komunikacyjny 71.............................................................
Rozmieszczenie styków 71.......................................................
Funkcja uruchomienia z akumulatora 72..............................................
Zabezpieczenie przed przepieciami typu RJ-11 72.....................................
3 Konserwacja zasilacza UPS 73......................................
Konserwacja zasilacza UPS i akumulatorów 73........................................
Przechowywanie zasilacza UPS 73................................................
Z³omowanie zu¿ytych akumulatorów 73...............................................
4 Dane techniczne 75.................................................
5 Rozwi¥zywanie problemów 77......................................
Serwis i obs³uga 78................................................................

Table of Contents
v
Powerware®3110 User’s Guide :Rev A www.powerware.com
СОДЕРЖАНИЕ
1Установка 79......................................................
Осмотр оборудования 79..........................................................
Меры предосторожности 79.......................................................
Быстрый запуск 80...............................................................
Верхняя и боковая панели ИБП 81.................................................
2Функции 83........................................................
Коммуникационный порт 83.......................................................
Штыревые контакты 83........................................................
Функция включения аккумулятора 84..............................................
Устройство защиты от бросков напряжения RJ-11 84...............................
3Обслуживание ИБП 85............................................
ИБП и уход за аккумуляторами 85.................................................
Хранение ИБП 85..............................................................
Утилизация использованных аккумуляторов 86.....................................
4Технические характеристики 87...................................
5Устранение неисправностей 89....................................
Обслуживание и поддержка 90....................................................
CONTENIDO
1 Instalación 91...................................................
Inspección del equipo 91........................................................
Precauciones de seguridad 91....................................................
Arranque rápido 92............................................................
Panel superior y lateral del SAI 93.................................................
2 Características técnicas 95........................................
Puerto de comunicaciones 95....................................................
Patillas de conexión 95......................................................
Característica Arranque de batería 96...............................................
Protector contra sobrevoltaje RJ-11 96..............................................

Table of Contents
vi Powerware®3110 User’s Guide :Rev A www.powerware.com
3 Mantenimiento del SAI 97.........................................
Cuidados del SAI y de las baterías 97...............................................
Almacenamiento del SAI 97...................................................
Reciclado de la batería usada 98..................................................
4 Especificaciones 99..............................................
5 Resolución de problemas 101.......................................
Servicio técnico y de mantenimiento 102.............................................
INNEHÅLL
1 Installation 103..................................................
Granskning av apparaturen 103....................................................
Säkerhetsföreskrifter 103........................................................
Snabb uppstartning 104.........................................................
UPS över- och sidpanelerna 105...................................................
2 Egenskaper 107..................................................
COM port 107................................................................
Anslutningens stift 107.......................................................
Batteriuppstartningsegenskap 108..................................................
RJ-11 överspänningsskydd 108....................................................
3 UPS-enhetens service 109..........................................
Skötsel av UPS och batterierna 109.................................................
Lagring av UPS-enheten 109....................................................
Återvinning av använda batterier 110................................................
4 Tekniska Specifikationer 111.......................................
5 Felsökning 113...................................................
Service och stöd 114...........................................................

1
Powerware®3110 User’s Guide :Rev A www.powerware.com
CHAPTER 1
INSTALLATION
This section explains:
:Equipment inspection
:Safety precautions
:UPS installation
:UPS top and side panels
Inspecting the Equipment
If any equipment has been damaged during shipment, keep the shipping
cartons and packing materials for the carrier or place of purchase and
file a claim for shipping damage. If you discover damage after
acceptance, file a claim for concealed damage.
To file a claim for shipping damage or concealed damage: 1) File with
the carrier within 15 days of receipt of the equipment; 2) Send a copy of
the damage claim within 15 days to your service representative.
Safety Precautions
Read the following precautions before you install the UPS.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS. This manual contains important instructions that you
should follow during installation and maintenance of the UPS and batteries. Please
read all instructions before operating the equipment and save this manual for future
reference.
WARNING
:This UPS contains its own energy source (batteries). The output receptacles may
carry live voltage even when the UPS is not connected to an AC supply.
:Do not remove or unplug the input cord when the UPS is turned on. This removes
the safety ground from the UPS and the equipment connected to the UPS.

Installation
2Powerware®3110 User’s Guide :Rev A www.powerware.com
:To reduce the risk of fire or electric shock, install this UPS in a temperature and
humidity controlled, indoor environment, free of conductive contaminants. Ambient
temperature must not exceed 40°C (104°F). Do not operate near water or
excessive humidity (95% max).
:With the exception of the user-replaceable battery, all servicing of this equipment
must be performed by qualified service personnel.
:Before maintenance or repair, all connections must be removed. Before
maintenance, repair, or shipment, the unit must be completely switched off and
unplugged or disconnected.
CAUTION
:Important Notice The UPS ground (earth) conductor carries leakage current from
the loads in addition to any leakage current generated by the UPS. This UPS
generates no more than 0.5 mA of current (120V model), or 1 mA of current (230V
model).
:To limit the total leakage current to 3.5 mA, the load leakage must be limited to
3 mA on the 120V model and 2.5 mA on the 230V model.
:If you do not know the load leakage current, replace the UPS power cord (230V
model only) with a power cord that uses a locking plug with a minimum rating of
10A (such as IEC 309).
:If you do not have a matching receptacle, consult an electrician to install the
proper receptacle.
:The three-wire receptacle that you plug the UPS into must have a good
(low-impedance) ground (protective earth) connection to provide a safe path for
leakage current.
Quick Startup
The Powerware
9
3110 provides protection against many power
problems, including power outages. It also provides spike suppression
and line noise filtering to protect your equipment.
1. On 230V models, plug the UPS power cord into the input
connector on the UPS side panel.
2. Plug the equipment to be protected into the UPS output
receptacles.
DO NOT protect laser printers with the UPS because of the
exceptionally high power requirements of the heating elements.

Installation
3
Powerware®3110 User’s Guide :Rev A www.powerware.com
3. Start the UPS by pressing the switch as shown in Figure 2
or Figure 4 on page 4. The indicator illuminates indicating
that power is available from the UPS output receptacles.
The unit beeps and the front panel LEDs illuminate several
times. The indicator remains on, indicating normal
operation.
If the unit continues to beep, or if the indicator is off even
though input power is available from the wall outlet, see
“Troubleshooting” on page 13.
NOTE Let the unit charge the battery for at least 3 hours. You may use the unit while
the battery charges, but the battery backup runtime will be reduced until the battery is
fully charged. This will take up to 8 hours after a full discharge while the UPS is fully
loaded.
UPS Top and Side Panels
Figure 1 and Figure 2 identify features of the 120V (USA) models, with
attached input line cord. Figure 3 and Figure 4 identify features of the
230V (European) models, which have a connector for the input line
cord as well as IEC output receptacles.
Fault Indicator
Output Receptacles
(Battery and Surge Protection) Output Receptacles (Surge Protection Only)
Power Indicator
Figure 1. 120V Model Top Panel

Installation
4Powerware®3110 User’s Guide :Rev A www.powerware.com
Circuit Breaker Power Cord
RJ-11 or RJ-45 Surge Protectors Communication Port
On/Standby Switch
Figure 2. 120V Model Side Panel
Fault Indicator
Output Receptacles
(Battery and Surge Protection) Output Receptacles (Surge Protection Only)
Power Indicator
Figure 3. 230V Model Top Panel
Circuit Breaker Input Connector
RJ-11 Surge Protectors Communication Port
On/Standby Switch
Figure 4. 230V Model Side Panel

5
Powerware®3110 User’s Guide :Rev A www.powerware.com
CHAPTER 2
FEATURES
This section covers:
:Using the communication port
:Starting the UPS on battery
Communication Port
Powerware Corporation offers an accessory interface kit that allows you
to connect many types of computer systems to the UPS communication
port. For specific information on Powerware Corporation interface kits,
call your service representative.
Pinouts
Contacts consist of open collector circuits capable of switching up to
+30 Vdc, 6 mA resistive load.
Table 1. Communication Port Pin Assignment
Pin Signal Type Function
1RS-232 Level Shutdown +12 Vdc signal held for 5 seconds on this pin shuts the UPS down
120 seconds later. The UPS restarts after 15 seconds when utility
power returns.
2 Not Used Not Used
3Normally Open On-Battery Contact A normally open contact that closes 15 seconds (pulls to
Common) after the UPS switches to battery power.
4Common The signal ground for all signal pins.
5Normally Open Low-Battery-Alarm Contact A normally open contact that closes (pulls to Common) during a
Low Battery Alarm.
6Normally Closed Low-Battery-Alarm Contact A normally closed contact that opens (releases from Common)
during a Low Battery Alarm. This tells some shutdown software
when to start a computer shutdown.
7 Not Used Not Used
8Normally Closed On-Battery Contact A normally closed contact that opens 15 seconds (releases from
Common) after the UPS switches to battery power.
9 Not Used Not Used

Features
6Powerware®3110 User’s Guide :Rev A www.powerware.com
Battery Start Feature
The Battery Start feature allows you to turn on the UPS when utility
power is not available. The battery-start range is up to about 40% of
nominal input; otherwise, the UPS displays an input voltage fault and
the alarm beeps.
RJ-11 or RJ-45 Surge Protectors
The RJ-11 or RJ-45 surge protectors are located on the side panel and
are labeled IN and OUT. This feature accommodates an RJ-11 connector
that provides protection for modems, fax machines, or other
telecommunications equipment. As with most modem equipment, it is
not advisable to use this jack in digital PBX (Private Branch Exchange)
environments.
Low voltage models can also accommodate a single RJ-45 (10BaseT)
network connector.
NOTE DO NOT connect any network equipment to the 230V models; only telephone or
fax/modem protection is available for 230V models.
1. Connect the input connector of the equipment you are
protecting to the jack labeled IN.
2. Connect the output connector to the jack labeled OUT.

7
Powerware®3110 User’s Guide :Rev A www.powerware.com
CHAPTER 3
UPS MAINTENANCE
This section explains how to:
:Care for the UPS and batteries
:Replace the batteries
:Recycle used batteries
UPS and Battery Care
For the best preventive maintenance, keep the area around the UPS
clean and dust-free. If the atmosphere is very dusty, clean the outside of
the system with a vacuum cleaner.
For full battery life, keep the UPS at an ambient temperature of
25°C(77°F).
Storing the UPS
If you store the UPS for a long period, recharge the battery every
6 months by plugging the UPS into a power outlet.
Replacing Batteries
Before replacing the battery, make sure that you read the safety
information below.
WARNING
:Batteries can present a risk of electrical shock or burn from high short circuit
current. The following precautions should be observed: 1) Remove watches, rings,
or other metal objects; 2) Use tools with insulated handles; 3) Do not lay tools or
metal parts on top of batteries.
:ELECTRIC ENERGY HAZARD. Do not attempt to alter any battery wiring or
connectors. Attempting to alter wiring can cause injury.
:Replace batteries with the same number and type of batteries as originally
installed in the UPS.
:DO NOT DISCONNECT the batteries while the UPS is in Battery mode.

UPS Maintenance
8Powerware®3110 User’s Guide :Rev A www.powerware.com
CAUTION
The 230V models require replacement by qualified service personnel.
1. Contact your service representative to order a replacement
battery. It must be the same type and rating as the original
battery (see Table 3 on page 12).
2. Switch off and unplug the protected equipment from the UPS.
3. Turn off the UPS and disconnect the power cord.
4. Turn the UPS upside down.
Battery Cover
Battery
Figure 5. Removing the Battery Cover and Battery
5. Remove the battery cover:
Models 550 and 700 – Use a screwdriver to remove the four screws
securing the battery cover and lift the battery cover off.
Model 300 – Press down on the battery cover tabs and slide the
battery cover off.
6. Lift the battery up and out of the case.
7. Disconnect the red and black cables from the used battery.
8. Replace the battery. See “Recycling the Used Battery” for proper
disposal.
9. Reconnect the cables to the new battery; red to positive (+),
black to negative (–), and slide the battery back into the case.

UPS Maintenance
9
Powerware®3110 User’s Guide :Rev A www.powerware.com
10. Replace the battery cover by pushing the cover until it snaps
into place securely. Replace any battery cover screws that were
removed to access the battery.
11. Turn the UPS right side up. Reconnect the UPS power cord and
turn the unit on.
12. Reconnect the equipment. Switch on the protected equipment
one piece at a time.
Recycling the Used Battery
Contact your local recycling or hazardous waste center for information
on proper disposal of the used battery.
WARNING
:Do not dispose of the battery or batteries in a fire. Batteries may explode. Proper
disposal of batteries is required. Refer to your local codes for disposal
requirements.
:Do not open or mutilate the battery or batteries. Released electrolyte is harmful to
the skin and eyes. It may be toxic.
CAUTION
Do not discard the UPS or the UPS batteries in the trash. This product contains sealed,
lead-acid batteries and must be disposed of properly. For more information, contact
your local recycling or hazardous waste center.

UPS Maintenance
10 Powerware®3110 User’s Guide :Rev A www.powerware.com

11
Powerware®3110 User’s Guide :Rev A www.powerware.com
CHAPTER 4
SPECIFICATIONS
Powerware Corporation reserves the right to change specifications
without prior notice.
Table 2. Electrical
120V Model 230V Model
Nominal Voltage 120V 230V
Power Factor 0.6
Voltage Range Online: 90–152V
On Battery: 0–100V and 152–160V
Online: 176–272V
On Battery: 0–192V and 272–290V
Nominal Frequency 50/60 Hz auto-sensing
57–63 Hz (60 Hz)
47–53 Hz (50 Hz)
Efficiency
(Normal mode) > 95%
Noise Filtering Full-time EMI/RFI filtering
Overcurrent Protection Resettable circuit breaker
Connections Attached 5-15P power cord IEC 320-C14 input connector
Input fault current: 15A maximum
Power Levels
(rated at nominal
inputs)
PW3110 300: 300 VA, 180W
PW3110 550: 550 VA, 330W
PW3110 700: 700 VA, 420W
PW3110 300i: 300 VA, 180W
PW3110 550i: 550 VA, 330W
PW3110 700i: 700 VA, 420W
Total Output Current 10A maximum
Load Compatibility Switch-mode power supply or resistive load
Output Frequency
(Battery mode) 50/60 Hz ±1 Hz of nominal frequency
Connections (4) 5-15 receptacles with UPS
and surge protection
(2) 5-15 receptacles with surge
protection only
(4) IEC 320-C13 receptacles with UPS
and surge protection
(2) IEC 320-C13 receptacles with surge
protection only

Specifications
12 Powerware®3110 User’s Guide :Rev A www.powerware.com
Table 3. Battery
Configuration 300 VA: (1) 12V, 4.2 Ah or (2) 6V, 4.0 Ah internal battery(s)
550 VA: (1) 12V, 7.0 or 7.2 Ah internal battery
700 VA: (1) 12V, 9 Ah internal battery
Voltage 12 Vdc
Type Sealed, maintenance-free, valve-regulated, lead-acid
Charging 8 hours to 95% capacity with output fully loaded
Monitoring Advanced monitoring for earlier failure detection and warning
Backup Time 300–550 VA: 3 minutes at full load; 5 minutes typical load
700 VA: 2.5 minutes at full load; 5 minutes typical load
Transfer Time 4mstypical
Table 4. Weights and Dimensions
UPS Dimensions
(HxWxD) 300 VA: 5.9 x 39.3 x 15.0 cm (2.32x 15.52x5.92)
550–700 VA: 7.9 x 37.6 x 17.2 cm (3.12x 14.82x6.82)
UPS Weight 300 VA: 3.0 kg (6.6 lb)
550 VA: 4.2 kg (9.2 lb)
700 VA: 4.3 kg (9.4 lb)
Table 5. Environmental and Safety
120V Model 230V Model
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -15°C to 50°C (-5°F to 122°F)
If the UPS is stored, the batteries should be recharged every 6 months.
If stored above 25°C (77°F), battery life is reduced and should be recharged more often.
Ventilation Air around the unit must be free of dust, chemicals, or other materials
that corrode or contaminate.
Relative Humidity 5–95% RH noncondensing
Audible Noise Online: Less than 40 dBA typical at one meter
On Battery: Less than 45 dBA typical at one meter
Surge Energy Rating 450 joules
Surge Suppression ANSI C62.41 Category A (formerly IEEE 587) IEC 61000-4-5, Level 3
Safety Conformance UL 1778; UL 497A;
CAN/CSA C22.2, No. 107.1 EN 50091-1-1 and EN 60950
Safety Markings UL, cUL NEMKO, CE
EMC (Class B) FCC Part 15, ICES-003 EN 50091-2
