Powerware 5115 RM User manual

Powerware®5115 RM
User’s Guide
500–1500 VA
www.powerware.com

US Patent 6,462,961
Class B EMC Statements
FCC Part 15
NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
: Reorient or relocate the receiving antenna.
: Increase the separation between the equipment and the receiver.
: Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
: Consult the dealer or an experienced radio/TV technician for help.
ICES-003
This Class B Interference Causing Equipment meets all requirements of the Canadian Interference Causing Equipment
Regulations ICES-003.
Cet appareil numérique de la classe B respecte toutes les exigences du Reglement sur le matériel brouilleur du Canada.
Requesting a Declaration of Conformity
Units that are labeled with a CE mark comply with the following harmonized standards and EU directives:
: Harmonized Standards: EN 50091-1-1 and EN 50091-2; IEC 950 Second Edition, Amendments A1, A2, A3, and A4
: EU Directives: 73/23/EEC, Council Directive on equipment designed for use within certain voltage limits
93/68/EEC, Amending Directive 73/23/EEC
89/336/EEC, Council Directive relating to electromagnetic compatibility
92/31/EEC, Amending Directive 89/336/EEC relating to EMC
The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC
Declaration of Conformity, contact:
Powerware Corporation
Koskelontie 13
FIN-02920 Espoo
Finland
Phone: [phone]
Fax: [phone]
Powerware and ABM are registered trademarks and X-Slot and ConnectUPS are trademarks of Powerware Corporation.
. Copyright 2002-2003 Powerware Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be
reproduced in any way without the express written approval of Powerware Corporation.

Special Symbols
The following are examples of symbols used on the UPS to alert you to important information:
Risk of Electric Shock
Do Not Open Cover
CAUTION
CAUTION To reduce the risk of electric shock,
Do not remove cover (or back)
No user-serviceable parts inside
Refer servicing to the factory
RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is present and the
associated warning should be observed.
CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual for
additional information, such as important operating and maintenance
instructions.
SAFETY EARTHING TERMINAL - Indicates the primary safety ground.
LOAD ON/OFF - Press the button with this symbol to energize the output
receptacles (indicator illuminates) or to de-energize the output receptacles
(indicator is off).
RJ-45 RECEPTACLE - For 230V models only: this receptacle provides network
interface connections. Do not plug telephone or telecommunications equipment
into this receptacle.
This symbol indicates that you should not discard the UPS or the UPS batteries
in the trash. The UPS may contain sealed, lead-acid batteries. Batteries must be
recycled.

i
Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
TABLE OF CONTENTS
1 Powerware 5115 RM – One of the Best! 1..............................
2 Safety Warnings 3.................................................
3 Installation 19.....................................................
Inspecting the Equipment 19........................................................
UPS Setup 19..................................................................
Mounting the UPS in a 19” Rack 20................................................
Mounting the UPS in a 23” Rack 23................................................
Zero-U Mounting 25...........................................................
Wall-Mount Setup 26..........................................................
Installing the UPS 27.............................................................
4 Operation 29......................................................
Turning the UPS On 29............................................................
Starting the UPS on Battery 29....................................................
Turning the UPS Off 29...........................................................
Standby Mode 30...............................................................
UPS Front Panel 30..............................................................
Initiating the Self-Test 30..........................................................
5 Additional UPS Features 31..........................................
Voltage Configuration 31..........................................................
Network Transient Protector 32.....................................................
Load Segments 33...............................................................
6 Communication 35.................................................
USB Port 35...................................................................
Communication Port 36...........................................................
X-Slot Cards 37.................................................................
7 UPS Maintenance 39...............................................
UPS and Battery Care 39..........................................................
Storing the UPS and Batteries 39..................................................
Replacing Batteries 40............................................................

Table of Contents
ii Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
Testing New Batteries 42..........................................................
Recycling the Used Battery 42......................................................
8 Specifications 43..................................................
9 Troubleshooting 47.................................................
Audible Alarms and UPS Conditions 47................................................
Silencing an Audible Alarm 48....................................................
Site Wiring Fault (120V Models Only) 48.............................................
Service and Support 51...........................................................

1
Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
CHAPTER 1
POWERWARE 5115 RM – ONE OF THE BEST!
The Powerware
9
5115 Rack-Mount (RM) uninterruptible power system
(UPS)isahigh-densitypowerprotection solution ideal for servers,
storage systems, network equipment, and other critical devices.

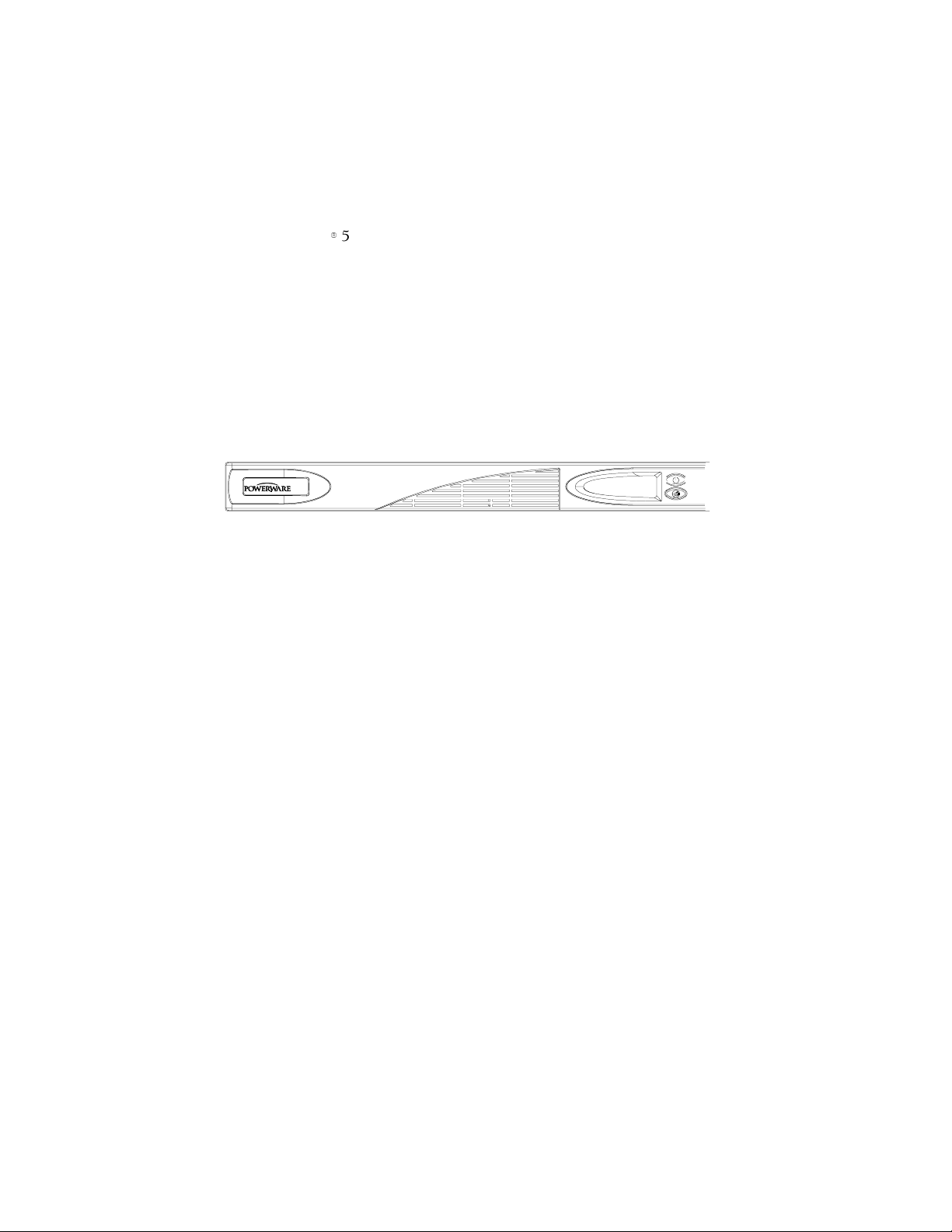

The slim design and wide range of installation possibilities make the
Powerware 5115 RM the most versatile UPS available. With only 1U
(1.75”) of rack-height, the UPS can be installed in rack-mount,
wall-mount, side-mount (zero U), and bench-top applications.
Providing a true sine wave output, the UPS delivers smooth, continuous
power during normal and battery operation. In addition, the UPS
corrects incoming voltage fluctuations to further protect the connected
equipment from power problems such as power sags and surges.

Powerware 5115 RM – ONE OF THE BEST!
2Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
:Network Transient Protector guards your network communications
equipment from surges. Low voltage models can also protect
modems, fax machines, or other telecommunications equipment.
:Optional X-SlotZmodules provide enhanced communication
capabilities for increased power protection and control.
:The Powerware 5115 RM is backed by worldwide agency approvals.

3
Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
CHAPTER 2
SAFETY WARNINGS
Read the following precautions before you install the UPS.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions that you should follow during installation
and maintenance of the UPS and batteries. Please read all instructions before
operating the equipment and save this manual for future reference.
DANGER
This UPS contains LETHAL VOLTAGES. All repairs and service should be performed
by AUTHORIZED SERVICE PERSONNEL ONLY. There are NO USER
SERVICEABLE PARTS inside the UPS.
WARNING
:This UPS contains its own energy source (batteries). The output receptacles may
carry live voltage even when the UPS is not connected to an AC supply.
:For 200–240V models, the output receptacles may remain electrically live. If the
input power source in your application is wired line-to-neutral (as in most
European applications), the voltage to the output receptacles is 0V. With
line-to-line input wiring, the voltage to the output receptacles is 100–120V
(measured from line-to-ground or line-to-neutral, depending on the UPS wiring).
:Do not remove or unplug the input cord when the UPS is turned on. This removes
the safety ground from the UPS and the equipment connected to the UPS.
:To reduce the risk of fire or electric shock, install this UPS in a temperature and
humidity controlled, indoor environment, free of conductive contaminants. Ambient
temperature must not exceed 40C (104F). Do not operate near water or
excessive humidity (95% max).
:To comply with international standards and wiring regulations, the total equipment
connected to the output of this UPS must not have an earth leakage current
greater than 3.5 milliamperes.

Safety Warnings
4Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
CAUTION
:The wall outlet must be within 2 meters of the equipment and accessible to the
operator.
:Batteries can present a risk of electrical shock or burn from high short-circuit
current. The following precautions should be observed: 1) Remove watches, rings,
or other metal objects; 2) Use tools with insulated handles; 3) Do not lay tools or
metal parts on top of batteries; 4) Disconnect charging source prior to connecting
or disconnecting battery terminals.
:Proper disposal of batteries is required. Refer to your local codes for disposal
requirements.
:Never dispose of batteries in a fire. Batteries may explode when exposed to flame.
:Never open or mutilate batteries. Released electrolyte is harmful to the skin and
eyes, and may be extremely toxic.
:Replace batteries with the same number and type of batteries as originally
installed in the UPS.
Sikkerhedsanvisninger
VIGTIGE SIKKERHEDSANVISNINGER
GEM DISSE ANVISNINGER
DENNE BRUGERVEJLEDNING INDEHOLDER VIGTIGE
SIKKERHEDSANVISNINGER
FARE
Denne UPS indeholder LIVSFARLIG HØJSPÆNDING. Alle reparationer og
vedligeholdelse bør kun udføres af en AUTORISERET SERVICETEKNIKER. Ingen af
UPS’ens indvendige dele kan repareres af brugeren.
ADVARSEL!
:Denne UPS indeholder egen energiforsyning (batterier). Udgangsnetstikkene kan
lede strøm, selv når UPS’en ikke er tilsat en AC-energikilde.
:Netledningen må ikke fjernes og stikket må ikke trækkes ud, mens UPS’en er
tændt. Dette fjerner sikkerhedsjorden fra UPS’en og fra det udstyr, der er sat til.
:Installér denne UPS i et temperatur- og fugtighedskontrolleret indendørsmiljø, frit
for ledende forureningsstoffer for at formindske risikoen for brand og elektrisk
stød. Rumtemperaturen må ikke overstige 40C. UPS’en bør ikke betjenes nær
vand eller høj fugtighed (maksimalt 95%).

Safety Warnings
5
Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
:I overensstemmelse med internationale normer og bestemmelser for el-installation
må det udstyr, der er forbundet til udgangen af denne UPS, tilsammen ikke
overskride en jordafdelingsspænding på mere end 3,5 milliampere.
ADVARSEL
:Stikkontakten skal være højest 2 meter fra udstyret og skal være tilgængeligt til
operatøren.
:Batterier kan udgøre en fare for elektrisk stød eller forbrændinger forårsaget af høj
kortslutningsspænding. De korrekte forholdsregler bør overholdes.
:Korrekt bortskaffelse af batterier er påkrævet. Overhold gældende lokale regler for
bortskaffelsesprocedurer.
:Skaf dig aldrig af med batterierne ved at brænde dem. Batterierne kan eksplodere
ved åben ild.
:Batterierne bør aldrig åbnes eller skilles ad. Udløst elektrolyt er skadeligt for hud
og øjne og kan være yderst giftigt.
Belangrijke Veiligheidsinstructies
BELANGRIJKE VEILIGHEIDSINSTRUCTIES
BEWAAR DEZE INSTRUCTIES
DEZE HANDLEIDING BEVAT BELANGRIJKE
VEILIGHEIDSINSTRUCTIES
GEVAAR
Deze UPS bevat LEVENSGEVAARLIJKE ELEKTRISCHE SPANNING. Alle reparaties en
onderhoud dienen UITSLUITEND DOOR ERKEND SERVICEPERSONEEL te worden
uitgevoerd. Er bevinden zich GEEN ONDERDELEN in de UPS die DOOR DE GEBRUIKER
kunnen worden GEREPAREERD.
WAARSCHUWING
:Deze UPS bevat zijn eigen energiebron (batterijen). De uitgangsaansluitingen
kunnen onder spanning staan wanneer de UPS niet op een wisselstroom voeding is
aangesloten.
:Verwijder de ingangsnoer niet of haal de stekker van de ingangsnoer er niet uit
terwijl de UPS aan staat. Hierdoor zou de UPS en uw aangesloten apparatuur geen
aardebeveiliging meer hebben.

Safety Warnings
6Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
:Teneinde de kans op brand of elektrische schok te verminderen dient deze UPS in
een gebouw met temperatuur- en vochtigheidregeling te worden geïnstalleerd,
waar geen geleidende verontreinigingen aanwezig zijn. De omgevingstemperatuur
mag 40C niet overschrijden. Niet gebruiken in de buurt van water of bij zeer hoge
vochtigheid (max. 95%).
:Om aan de internationale normen en bedradingsvoorschriften te voldoen mag de
gehele apparatuur die op de uitgang van deze UPS is aangesloten, geen
aardlekstroom van meer dan 3,5 milliampère hebben.
OPGELET
:De hoofdvoedingcontactdoos moet zich op minder dan 2 meter vande apparatuur
bevinden en makkelijk bereikbaar zijn voor de gebruiker.
:Batterijen kunnen gevaar voor elektrische schok of brandwonden veroorzaken als
gevolg van un hoge kortsluitstroom. Volg de desbetreffende aanwijzingen op.
:De batterijen moeten op de juiste wijze worden opgeruimd. Raadpleeg hiervoor uw
plaatselijke voorschriften.
:Nooit batterijen in het vuur gooien. De batterijen kunnen ontploffen.
:Nooit batterijen openen of verminken. Vrijkomend elektrolyt is schadelijk voor de
huid en ogen, en kan uiterst giftig zijn.
Tarkeita Turvaohjeita
TÄRKEITÄ TURVAOHJEITA - SUOMI
SÄILYTÄ NÄMÄ OHJEET
TÄMÄ OPAS SISÄLTÄÄ TÄRKEITÄ TURVAOHJEITA
VAARA
Tämä UPS sisältää HENGENVAARALLISIA JÄNNITTEITÄ. Kaikki korjaukset ja huollot
on jätettävä VAIN VALTUUTETUN HUOLTOHENKILÖN TOIMEKSI. UPS ei sisällä
MITÄÄN KÄYTTÄJÄN HUOLLETTAVIA OSIA.
VAROITUS
:Tämä UPS sisältää oman energialähteen (akuston). Ulostuloliittimissä voi olla
jännite, kun UPS ei ole liitettynä verkkojännitteeseen.
:Älä poista tai irrota sisääntulojohtoa, kun UPS on kytkettynä. Tämä poistaa
turvamaadoituksen UPS-laitteesta ja siihen liitetystä laitteistosta.

Safety Warnings
7
Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
:Vähentääksesi tulipalon ja sähköiskun vaaraa asenna tämä UPS sisätiloihin,
joissa lämpötila ja kosteus on säädettävissä ja joissa ei ole virtaa johtavia
epäpuhtauksia. Ympäristön lämpötila ei saa ylittää 40 C. Älä käytä lähellä vettä
ja vältä kosteita tiloja (95 % maksimi).
:Kansainväliset normit ja johdotusmääräykset vaativat, että kaikkien tämän
UPS-laitteen ulostulokytkentöjen yhteinen maavuotovirta ei ylitä
3,5 milliampeeria (mA).
VARO
:Päävirtapistokkeen täytyy olla 2 m:n säteellä laitteistosta ja käyttäjän saatavilla.
UPS-laitteen virtakytkin ei eristä sisäosia virran saannilta.
:Akusto saattaa aiheuttaa sähköiskun tai syttyä tuleen, jos akusto kytketään
oikosulkuun. Noudata asianmukaisia ohjeita.
:Akusto täytyy hävittää säädösten mukaisella tavalla. Noudata paikallisia
määräyksiä.
:Älä koskaan heitä akkuja tuleen. Ne voivat räjähtää.
:Älä avaa tai riko akkua. Paljastunut elektrolyytti on vahingollinen iholle ja silmille
ja voi olla erittäin myrkyllistä.
Consignes de sécurité
CONSIGNES DE SÉCURITÉ IMPORTANTES
CONSERVER CES INSTRUCTIONS
CE MANUEL CONTIENT DES CONSIGNES DE SÉCURITÉ
IMPORTANTES
DANGER!
Cet onduleur contient des TENSIONS MORTELLES. Toute opération d’entretien et de
réparation doit être EXCLUSIVEMENT CONFIÉE A UN PERSONNEL QUALIFIÉ AGRÉÉ.
AUCUNE PIÈCE RÉPARABLE PAR L’UTILISATEUR ne se trouve dans l’onduleur.
AVERTISSEMENT!
:Cet onduleur renferme sa propre source d’énergie (batteries). Les prises de sortie
peuvent être sous tension même lorsque l’onduleur n’est pas branché sur le
secteur.
:Ne pas retirer le cordon d’alimentation lorsque l’onduleur est sous tension sous
peine de supprimer la mise à la terre de l’onduleur et du matériel connecté.

Safety Warnings
8Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
:Pour réduire les risques d’incendie et de décharge électrique, installer l’onduleur
uniquement à l’intérieur, dans un lieu dépourvu de matériaux conducteurs, où la
température et l’humidité ambiantes sont contrôlées. La température ambiante ne
doit pas dépasser 40 C. Ne pas utiliser à proximité d’eau ou dans une atmosphère
excessivement humide (95 % maximum).
:Afin d’être conforme aux normes et règlements internationaux de câblage, le
courant de fuite à la terre de la totalité du matériel branché sur la sortie de
l’onduleur ne doit pas dépasser 3,5 mA.
ATTENTION!
:La prise principale secteur doit se trouver à moins de 2 mètres du matériel et être
accessible à l’utilisateur.
:Les batteries peuvent présenter un risque de décharge électrique ou de brûlure par
des courts-circuits de haute intensité. Prendre les précautions nécessaires.
:Une mise au rebut réglementaire des batteries est obligatoire. Consulter les
règlements en vigueur dans votre localité.
:Ne jamais jeter les batteries au feu. L’exposition aux flammes risque de les faire
exploser.
:Ne jamais ouvrir ou mutiler des batteries. L’électrolyte qui s’en échappe est
nuisible à la peau et aux yeux et peut s’avérer extrêmement toxique.
Sicherheitswarnungen
WICHTIGE SICHERHEITSANWEISUNGEN AUFBEWAHREN.
DIESES HANDBUCH ENTHÄLT WICHTIGE
SICHERHEITSANWEISUNGEN.
WARNUNG
Die USV führt lebensgefährliche Spannungen. Alle Reparatur- und Wartungsarbeiten
sollten nur von Kundendienstfachleuten durchgeführt werden. Die USV enthält keine
vom Benutzer zu wartenden Komponente
ACHTUNG
:Diese USV ist mit einer eigenen Energiequelle (Batterie) ausgestattet. An den
Ausgangssteckdosen kann auch dann Spannung anliegen, wenn die USV nicht an
einer Wechselspannungsquelle angeschlossen ist.

Safety Warnings
9
Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
:Das Eingangskabel nicht entfernen oder abziehen, während die USV eingeschaltet
ist, weil hierdurch die Sicherheitserdung von der USV und den daran
angeschlossenen Geräten entfernt wird.
:Um die Brand- oder Elektroschockgefahr zu verringern, diese USV nur in Gebäuden
mit kontrollierter Temperatur und Luftfeuchtigkeit installieren, in denen keine
leitenden Schmutzstoffen vorhanden sind. Die Umgebungstemperatur darf 40C
nicht übersteigen. Die USV nicht in der Nähe von Wasser oder in extrem hoher
Luftfeuchtigkeit (max. 95 %) betreiben.
:Um internationale Normen und Verdrahtungsvorschriften zu erfüllen, dürfen die an
den Ausgang dieser USV angeschlossenen Geräte zusammen einen
Erdschlußstrom von insgesamt 3,5 Milliampere nicht überschreiten.
VORSICHT!
:Batterien können aufgrund des hohen Kurzschlußstroms Elektroschocks oder
Verbrennungen verursachen. Folgende Vorkehrungen sollten getroffen werden,
wenn Sie mit der Battery arbeiten: 1) Entfernen Sie Uhren, Ring und andere
metallische Objekte; 2) Verwenden Sie Werkzeug mit isolierten Griffen.
:Die Batterien müssen ordnungsgemäß entsorgt werden. Hierbei sind die örtlichen
Bestimmungen zu beachten.
:Batterien niemals verbrennen, da sie explodieren können.
:Öffnen oder beschädigen Sie nicht die Batterien, ausfließendes Elektrolyt ist
schädlich für Haut und Augen.
:Falls Sie die Batterien austauschen, verwenden Sie bitte ausschließlich die gleiche
Anzahl und die Batterietypen.

Safety Warnings
10 Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com

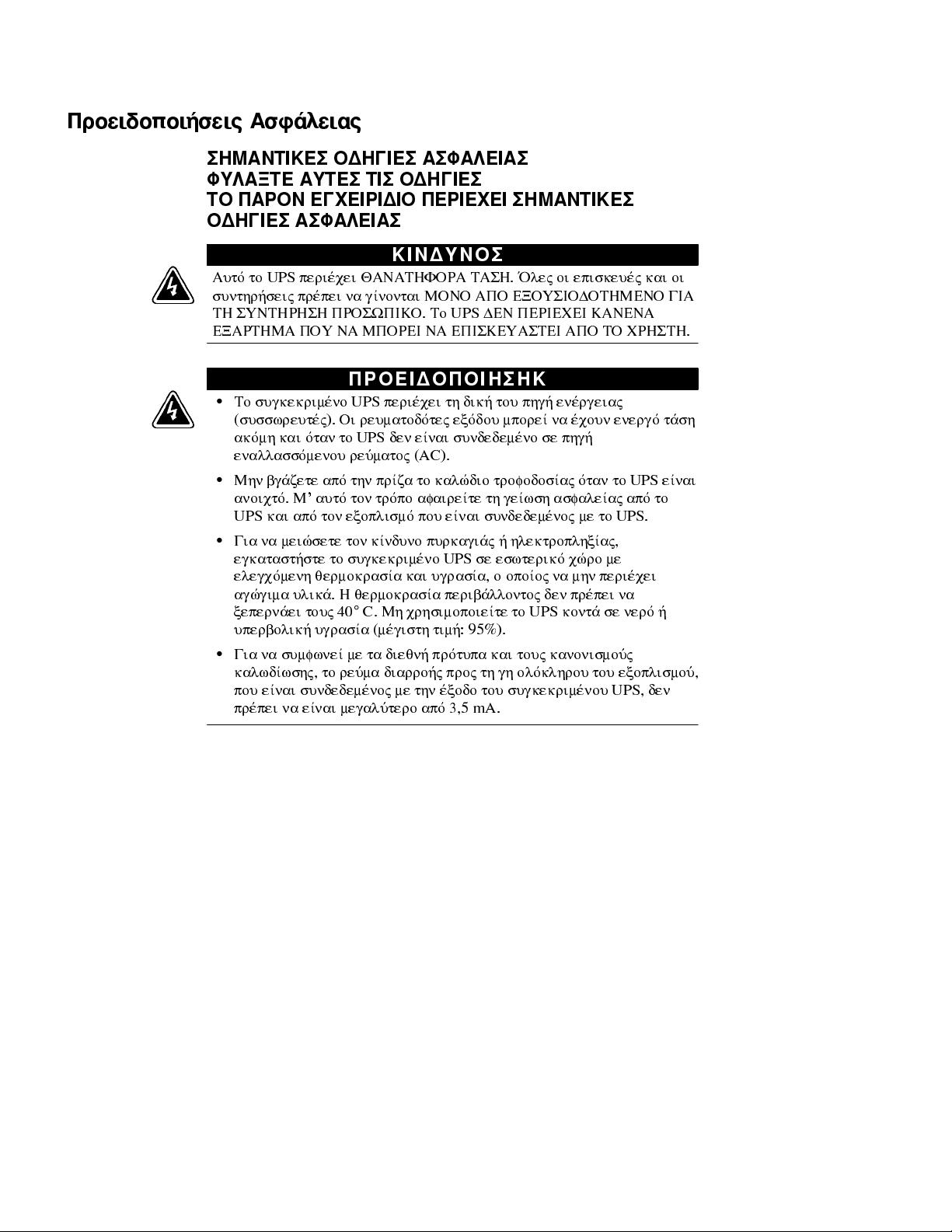

ÐñïåéäïðïéÞóåéò ÁóöÜëåéáò
ÓÇÌÁÍÔÉÊÅÓ ÏÄÇÃÉÅÓ ÁÓÖÁËÅÉÁÓ
ÖÕËÁÎÔÅ ÁÕÔÅÓ ÔÉÓ ÏÄÇÃÉÅÓ
ÔÏ ÐÁÑÏÍ ÅÃ×ÅÉÑÉÄÉÏ ÐÅÑÉÅ×ÅÉ ÓÇÌÁÍÔÉÊÅÓ
ÏÄÇÃÉÅÓ ÁÓÖÁËÅÉÁÓ
ÊÉÍÄÕÍÏÓ
Áõôü ôï UPS ðåñéÝ÷åé ÈÁÍÁÔÇÖÏÑÁ ÔÁÓÇ. ¼ëåò ïé åðéóêåõÝò êáé ïé
óõíôçñÞóåéò ðñÝðåé íá ßíïíôáé ÌÏÍÏ ÁÐÏ ÅÎÏÕÓÉÏÄÏÔÇÌÅÍÏ ÃÉÁ
ÔÇ ÓÕÍÔÇÑÇÓÇ ÐÑÏÓÙÐÉÊÏ. Ôï UPS ÄÅÍ ÐÅÑÉÅ×ÅÉ ÊÁÍÅÍÁ
ÅÎÁÑÔÇÌÁ ÐÏÕ ÍÁ ÌÐÏÑÅÉ ÍÁ ÅÐÉÓÊÅÕÁÓÔÅÉ ÁÐÏ ÔÏ ×ÑÇÓÔÇ.
ÐÑÏÅÉÄÏÐÏÉÇÓÇÊ
: Ôï óõ êåêñéìÝíï UPS ðåñéÝ÷åé ôç äéêÞ ôïõ ðç Þ åíÝñ åéáò
(óõóóùñåõôÝò). Ïé ñåõìáôïäüôåò åîüäïõ ìðïñåß íá Ý÷ïõí åíåñ ü ôÜóç
áêüìç êáé üôáí ôï UPS äåí åßíáé óõíäåäåìÝíï óå ðç Þ
åíáëëáóóüìåíïõ ñåýìáôïò (AC).
: Ìçí â Üæåôå áðü ôçí ðñßæá ôï êáëþäéï ôñïöïäïóßáò üôáí ôï UPS åßíáé
áíïé÷ôü. Ì áõôü ôïí ôñüðï áöáéñåßôå ôç åßùóç áóöáëåßáò áðü ôï
UPS êáé áðü ôïí åîïðëéóìü ðïõ åßíáé óõíäåäåìÝíïò ìå ôï UPS.
: Ãéá íá ìåéþóåôå ôïí êßíäõíï ðõñêá éÜò Þ çëåêôñïðëçîßáò,
å êáôáóôÞóôå ôï óõ êåêñéìÝíï UPS óå åóùôåñéêü ÷þñï ìå
åëå ÷üìåíç èåñìïêñáóßá êáé õ ñáóßá, ï ïðïßïò íá ìçí ðåñéÝ÷åé
á þ éìá õëéêÜ. Ç èåñìïêñáóßá ðåñéâÜëëïíôïò äåí ðñÝðåé íá
îåðåñíÜåé ôïõò 40
 C. Ìç ÷ñçóéìïðïéåßôå ôï UPS êïíôÜ óå íåñü Þ
õðåñâïëéêÞ õ ñáóßá (ìÝ éóôç ôéìÞ: 95%).
: Ãéá íá óõìöùíåß ìå ôá äéåèíÞ ðñüôõðá êáé ôïõò êáíïíéóìïýò
êáëùäßùóçò, ôï ñåýìá äéáññïÞò ðñïò ôç ç ïëüêëçñïõ ôïõ åîïðëéóìïý,
ðïõ åßíáé óõíäåäåìÝíïò ìå ôçí Ýîïäï ôïõ óõ êåêñéìÝíïõ UPS, äåí
ðñÝðåé íá åßíáé ìå áëýôåñï áðü 3,5 mA.

Safety Warnings
11
Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
ÐÑÏÓÏ×Ç
: Ïé óõóóùñåõôÝò ìðïñåß íá ðñïêáëÝóïõí çëåêôñïðëçîßá Þ Ý êáõìá
áðü õøçëü ñåýìá âñá÷õêõêëþìáôïò. ËáìâÜíåôå ôéò êáôÜëëçëåò
ðñïöõëÜîåéò.
: Áðáéôåßôáé óùóôÞ äéÜèåóç ôùí óõóóùñåõôþí. Äåßôå ôïõò ôïðéêïýò
êáíïíéóìïýò ðïõ áöïñïýí ôéò áðáéôÞóåéò äéÜèåóÞò ôïõò.
: ÐïôÝ ìçí ðåôÜôå ôïõò óõóóùñåõôÝò óôç öùôéÜ, éáôß ìðïñåß íá
åêñá ïýí.
Avvisi di sicurezza
IMPORTANTI ISTRUZIONI DI SICUREZZA
CONSERVARE QUESTE ISTRUZIONI
QUESTO MANUALE CONTIENE IMPORTANTI ISTRUZIONI DI
SICUREZZA
PERICOLO
la TENSIONE contenuta in questo gruppo statico di continuità è LETALE. Tutte le
operazioni di riparazione e di manutenzione devono essere effettuate
ESCLUSIVAMENTE DA PERSONALE TECNICO AUTORIZZATO. All’interno del gruppo
statico di continuità NON vi sono PARTI RIPARABILI DALL’UTENTE.
AVVERTENZA
:Questo gruppo statico di continuità contiene una fonte di energia autonoma (le
batterie). Le prese di uscita possono condurre tensione energizzata quando il
gruppo statico di continuità non è collegato con una fonte di alimentazione a
corrente alternata.
:Non rimuovere nè scollegare il cavo di ingresso quando il gruppo statico di
continuità è acceso poichè in tal modo si disattiverebbe il collegamento a terra di
sicurezza del gruppo statico di continuità e dell’apparecchiatura ad esso collegata.
:Per ridurre il rischio di incendio o di scossa elettrica, installare il gruppo statico di
continuità in un ambiente interno a temperatura ed umidità controllata, privo di
agenti contaminanti conduttivi. La temperatura ambiente non deve superare i
40C. Non utilizzare l’unità in prossimità di acqua o in presenza di umidità
eccessiva (95% max).

Safety Warnings
12 Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
:Per conformità con gli standard internazionali e con le norme in merito al
cablaggio, tutta l’apparecchiatura collegata con l’uscita del gruppo statico di
continuità non deve avere una corrente di dispersione di terra superiore a
3,5 milliampere.
ATTENZIONE
:La presa di alimentazione principale non deve trovarsi a oltre 2 metri
dall’apparecchiatura e deve essere accessibile all’operatore.
:Le batterie possono presentare rischio di scossa elettrica o di ustioni provocate da
alta corrente dovuta a corto circuito. Osservare le apposite istruzioni.
:Le batterie devono essere smaltite in modo corretto. Per i requisiti di smaltimento
fare riferimento alle disposizioni locali.
:Non gettare mai le batterie nel fuoco poichè potrebbero esplodere se esposte alle
fiamme.
:Mai aprire nè mutilare le batterie poichè l’elettrolita da esse rilasciato è nocivo
alla cute e agli occhi e può essere altamente tossico.
Viktig Sikkerhetsinformasion
FARLIG
Denne UPS’en inneholder LIVSFARLIGE SPENNINGER. All reparasjon og service må
kun utføres av AUTORISERT SERVICEPERSONALE. BRUKERE KAN IKKE UTFØRE
SERVICE PÅ NOEN AV DELENE i UPS’en.
FARLIG
:Denne UPS’en har en egen energikilde (batterier). Stikkontaktene kan være
strømførende selv om UPS’en ikke er tilsluttet en vekselstrømforsyning.
:Strømforsyningskabelen må ikke fjernes eller trekkes ut når UPS’en er på, slik at
ikke sikkerhetsjordingen fjernes fra UPS’en og det utstyret som er forbundet
med den.
:For å redusere fare for brann eller elektriske støt, bør denne UPS’en installeres i et
innendørs miljø med kontrollert temperatur og luftfuktighet som er fritt for
ledende, forurensende stoffer. Romtemperaturen må ikke overskride 40C. Den må
ikke brukes i nærheten av vann eller ved meget høy luftfuktighet (95% maks.).

Safety Warnings
13
Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
:Alt utstyr som er forbundet med utgangen av denne UPS’en må ikke ha en sterkere
total lekkasjestrøm enn 3,5 milliampere for å være i overensstemmelse med
internasjonale standarder og forkablingsbestemmelser.
FORSIKTIG
:Stikkontakten må befinne seg innen 2 m fra utstyret og må være tilgjengelig for
operatøren.
:Batterier kan forårsake elektriske støt eller forbrenning på grunn av høy
kortslutningsstrøm. Følg instruksene.
:Batterier må fjernes på korrekt måte. Se lokale forskrifter vedrørende krav om
fjerning av batterier.
:Kast aldri batterier i flammer, da de kan eksplodere, hvis de utsettes for åpen ild.
:Batterier må aldri åpnes eller ødelegges. Frigjorte elektrolytter er skadelige for hud
og øyne og kan være ekstremt giftige.
Regulamentos de Segurança
INSTRUÇÕES DE SEGURANÇA IMPORTANTES
GUARDE ESTAS INSTRUÇÕES
ESTE MANUAL CONTÉM INSTRUÇÕES DE SEGURANÇA
IMPORTANTES
CUIDADO
A UPS contém VOLTAGEM MORTAL. Todos os reparos e assistência técnica devem ser
executados SOMENTE POR PESSOAL DA ASSISTÊNCIA TÉCNICA AUTORIZADO. Não
há nenhuma PEÇA QUE POSSA SER REPARADA PELO USUÁRIO dentro da UPS.
ADVERTÊNCIA
:Esta UPS contém sua própria fonte de energia (baterias). Os receptáculos de saída
podem conter voltagem ativa quando a UPS não se encontra conectada a uma
fonte de alimentação de corrente alternada.
:Não remova ou desconecte o cabo de entrada quando a UPS estiver ligada. Isto
removerá o aterramento de segurança da UPS e do equipamento conectado.
:Para reduzir o risco de incêndios ou choques elétricos, instale a UPS em ambiente
interno com temperatura e umidade controladas e livres de contaminadores
condutíveis. A temperatura ambiente não deve exceder 40C. Não opere próximo a
água ou em umidade excessiva (máx: 95%).

Safety Warnings
14 Powerware®5115 Rack-Mount User’s Guide :164201449 Rev A www.powerware.com
:Para estar de acordo com os padrões internacionais e os regulamentos de fiação, o
equipamento total conectado à saída desta UPS não deve ter uma corrente de fuga
à terra maior que 3,5 miliampères.
PERIGO
:O soquete de alimentação principal deve estar à no máximo dois metros do
equipamento e acessível ao operador.
:As baterias podem apresentar o risco de choque elétrico, ou queimaduras
provenientes de alta corrente de curto-circuito. Observe as instruções adequadas.
:Siga as instruções apropriadas ao desfazer-se das baterias. Consulte os códigos do
local para maiores informações sobre os regulamentos de descarte de produtos.
:Nunca jogue as baterias no fogo, porque há risco de explosão.
:Nunca abra ou danifique as baterias. O eletrólito liberado é prejudicial à pele e
aos olhos e pode ser extremamente tóxico.
Предупреждения по мерам безопасности
ВАЖНЫЕ УКАЗАНИЯ ПО МЕРАМ ЕЗОПАСНОСТИ
СОХРАНИТЕ ЭТИ УКАЗАНИЯ
ДАННОЕ РУКОВОДСТВО СОДЕРЖИТ ВАЖНЫЕ
УКАЗАНИЯ ПО МЕРАМ ЕЗОПАСНОСТИ
ОПАСНО
В данном ИБП имеются СМЕРТЕЛЬНО ОПАСНЫЕ НАПРЯЖЕНИЯ.
Все работы о ремонту и обслуживанию должны вы олняться ТОЛЬКО
УПОЛНОМОЧЕННЫМ ОБСЛУЖИВАЮЩИМ ПЕРСОНАЛОМ.
Внутри ИБП нет узлов, ОБСЛУЖИВАЕМЫХ ПОЛЬЗОВАТЕЛЕМ.
ПРЕДУПРЕЖДЕНИЕ
:Данный ИБП содержит собственные источники энергии
(аккумуляторы). На выходных розетках может иметься на ряжение,
даже когда ИБП не одключен к сети еременного тока.
:Не отсоединяйте сетевой шнур и не извлекайте его вилку из розетки
ри включенном ИБП. При этом защитное заземление отключается
от ИБП и от оборудования, одключенного к ИПБ.
