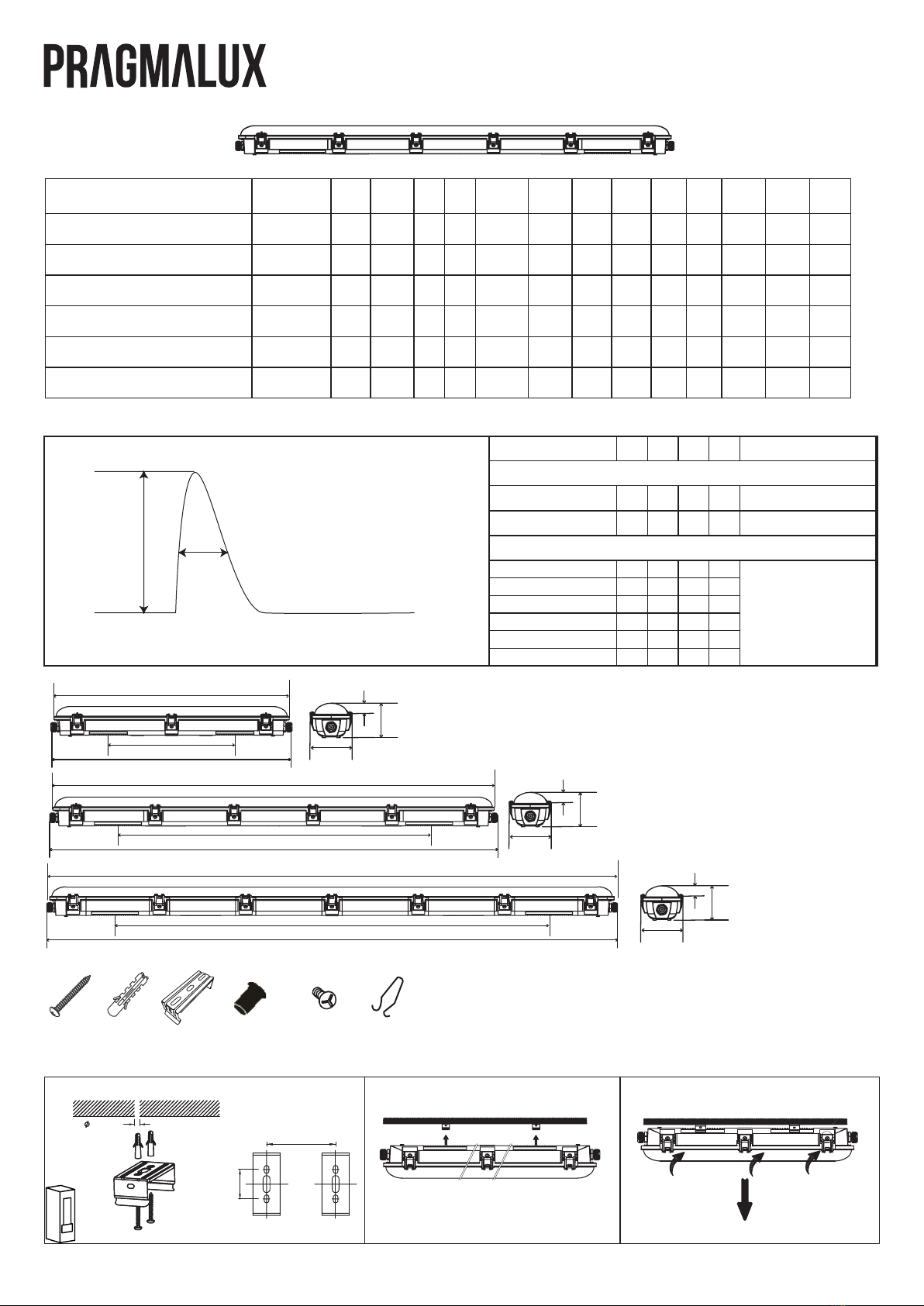

Pragmalux Led Waterproof zeus User manual

Led Waterproof zeus
Item Description EAN Power
(W)
CCT
(K)
IP IK Ta (°C) Vac Hz PF CRI
(Ra)
KG L
(mm)
L1
(mm)
L2
(mm)
LED Waterproof Zeus IP66 20W 600 4000K
Incl. 5x2.5mm TW
8720094600727 20 4000 IP66 IK08 -25 ~+40 220-240 50/60 ≥0.9 ≥80 0.95 660 350 680
LED Waterproof Zeus IP66 20W 1200 4000K
Incl. 5x2.5mm TW
8720094600710 20 4000 IP66 IK08 -25 ~+40 220-240 50/60 ≥0.9 ≥80 1.55 1220 860 1240
LED Waterproof Zeus IP66 35W 1200 4000K
Incl. 5x2.5mm TW
8720094600703 35 4000 IP66 IK08 -25 ~+40 220-240 50/60 ≥0.9 ≥80 1.55 1220 860 1240
LED Waterproof Zeus IP66 35W 1500 4000K
Incl. 5x2.5mm TW
8720094600697 35 4000 IP66 IK08 -25 ~+40 220-240 50/60 ≥0.9 ≥80 2 1560 1200 1580
LED Waterproof Zeus IP66 52W 1500 4000K
Incl. 5x2.5mm TW
8720094600680 52 4000 IP66 IK08 -25 ~+40 220-240 50/60 ≥0.9 ≥80 2 1560 1200 1580
LED Waterproof Zeus IP66 62W 1500 4000K
Incl. 5x2.5mm TW
8720094600673 62 4000 IP66 IK08 -25 ~+40 -25 ~+40 50/60 ≥0.9 ≥80 2 1560 1200 1580
Installation
Page 1 of 2© 2019 Pragmalux -PDL Lighting Group B.V.- All rights reserved
OFF
123
Click!
Click!
Click!
x4 x4 x2 x1 x4
L
L
L
L1
L1
L1
L2
L2
L2
30mm
100mm
30mm
100mm
30mm
100mm
L1
6mm
26mm
83mm
83mm
83mm
Driver 20W 35W 52W 62W
Electrical Characteristics
Inrush Current I peak(A) 5.3 8 8 7.1 Input voltage 230V
Inrush Current Twidth(μs) 70 60 60 52 Input voltage 230V,
measured at 50% Ipeak
Max. Number of Driver on MCB
Type B 10A 15 15 15 17
Type B 13A 19 19 19 22
Type B 16A 24 24 24 28
Type C 10A 24 24 24 29
Type C 13A 32 32 32 37
Type C 16A 40 40 40 47
Inrush current
Ipeak
Twidth
x2

Led Waterproof zeus
Warning
• Only qualified electrician is allowed to do installation, maintenance and inspection for safety concern. It is dangerous for non-professional operators.
• Power should be cut off before installation, maintenance or inspection.
• Please install and use the product strictly according to the instruction.
• Do not disassemble or remold the product at will to avoid accident of electric shock or light falling.
• Working out of temperature range of -25 ~ +40 will shorten the lifetime of the product.
© 2019 Pragmalux - PDL Lighting Group B.V.- All rights reserved. Pragmalux-PDL Lighting Group B.V.- retains the right to modify product specications without any
prior notice or obligation and does not assume any liability for any consequences of using this document. Subject to errors and printing errors.
Version: October 2019 Page 2 of 2
Item Max Connected
(pcs)
8720094600727 60
8720094600710 60
8720094600703 33
8720094600697 33
8720094600680 22
8720094600673 18
7 8 9 10
11 12 13
14
4 5 6
Click!
Click!
Click!
IK08
5x2.5mm²
x2PCS
x2PCS
ip66
Through Wiring
ON
