Precision Consumer Products FL 7SQ 345CCT BZ 120V User manual

7"/10" Color Changing LED
Flood Lights User's Guide
Caution: Before attempting to clean, service or troubleshoot the fixture, disconnect
the power to the fixture by turning the breaker off or removing the fuse from the fuse
box.
This LED light fixture is made from quality materials that will last many years with minimum
care and maintenance. You may want to clean the fixture with a soft cloth periodically.
To maintain the best appearance of the fixture, do not use cleaners with chemicals,
solvents or harsh abrasives. Do not use liquid cleaner on the LEDs, LED driver, or wiring
inside the light fixture.
CARE AND MAINTENANCE
Read All Instructions. SAVE THESE INSTRUCTIONS
PROBLEM
Light will not come
on.
A. Fixture not properly
connected.
B. Fixture not receiving
power.
A. Check wires to ensure proper connections.
B. Check to make sure breaker is on and test
another working electrical device to make
sure it is receiving power.
POSSIBLE CAUSE SOLUTION
*FCC WARNING:
WARNING: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user authority to operate the equipment.
NOTES: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
TROUBLE SHOOTING
Precision Consumer
Products Group, LLC.
11024 Balboa Boulevard • Suite 1710 Granada Hills CA 91344
1-866-237-9983
www.precisioncpg.com
Model:
FL 7SQ 345CCT BZ 120V
FL 10SQ 345CCT BZ 120V
Over

GENERAL INFORMATION
SAFETY INFORMATION
PRE-INSTALLATION
Please read and understand this entire manual before
attempting to assemble, operate or install this product.
WARNING
•Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by
removing fuse or switching off circuit breaker.
CAUTION
•All electrical connections must be in agreement with local codes, ordinances or the National Electric
Code (NEC). Contact your municipal building department to learn about your local codes, permits and/or
inspections.
•Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified
electrician before installation.
•Do not connect this fixture to an electrical system that does not provide a means for equipment
grounding. Never use a fixture in a two-wire system that is not grounded. If you are not sure your lighting
system has a grounding means, do not attempt to install this fixture. Contact a qualified, licensed
electrician for information with regards to proper grounding methods as required by the local electrical
code in your area.
•
•
Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires
to contact any surface having a sharp edge. To do so may damage or cut the wire insulation, which could
cause serious injury or death from electric shock.
LED electronics can be damaged by electro static discharge (ESD) shock. Before installation, discharge
yourself by touching a grounded bare metal surface to remove this hazard. To avoid damage, do not touch
the LED module/components.
●
●
Before beginning assembly, installation or operation of this product, make sure all parts are present.
Compare parts with package contents list and diagram on this page. If any parts are missing or damaged,
do not attempt to assemble, install or operate the product. Contact Customer Service for replacement
parts. (1-866-237-9983)
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape,
Wire Cutters, Safety Glasses, Ladder, Wire Stripper.
●
●
Non-replaceable LEDs.
If you are not familiar with state and local electrical codes, it is recommended that you consult with
a qualified electrician.
●Suitable for use in wet locations.
•Caution: LEDs emit bright light. Avoid looking directly into the light source for prolonged periods to
avoid eye damage.
●Turn fixture on/off with wall switch or automatic timer.
●For use in 120V applications only.
INSTALLATION
HARDWARE
1) Thread knuckle through the cover plate (sold separately) and tighten the provided Hex Nut.
If installing to an In-Ground Fixture Mount (sold separately) follow the installation instructions
included with that product.
2) After making wiring connections (Illustration 1 below), attach the cover plate to the junction box.
3) To adjust Flood position, loosen Hex Nut and rotate fixture to desired position. Re-tighten Hex Nut
to secure.
4) To adjust Flood angle up or down, loosen the Arm Knuckle Screw. Position the fixture to the
desired position. Re-tighten Arm Knuckle Screw to secure.
5) Caulk around the Junction box cover plate and Threaded Knuckle, Arm Knuckle Joint and all
exposed fastener openings with a suitable RTV silicone caulking compound.
6) This fixture is equipped with a One Touch Light Color Selector located on the lower front
face of the fixture. To activate the color select feature, restore power to the fixture and
rapidly toggle the wall switch (or the breaker switch if no wall switch is being used) on and off
for approximately 7-10 seconds and then touch the once touch color selector button to select
desired color temperature.
*PLEASE NOTE: Selected color ,will be memory locked after 30 minutes. To reset, simply
repeat step 6.
Wiring:
Caution: Ensure that line voltage is compatible with fixture. (120V only)
1) Connect the black fixture lead to line voltage.
2) Connect the white fixture lead to common.
3) Connect the supply ground to the junction box grounding
screw or appropriate ground wire per applicable code.

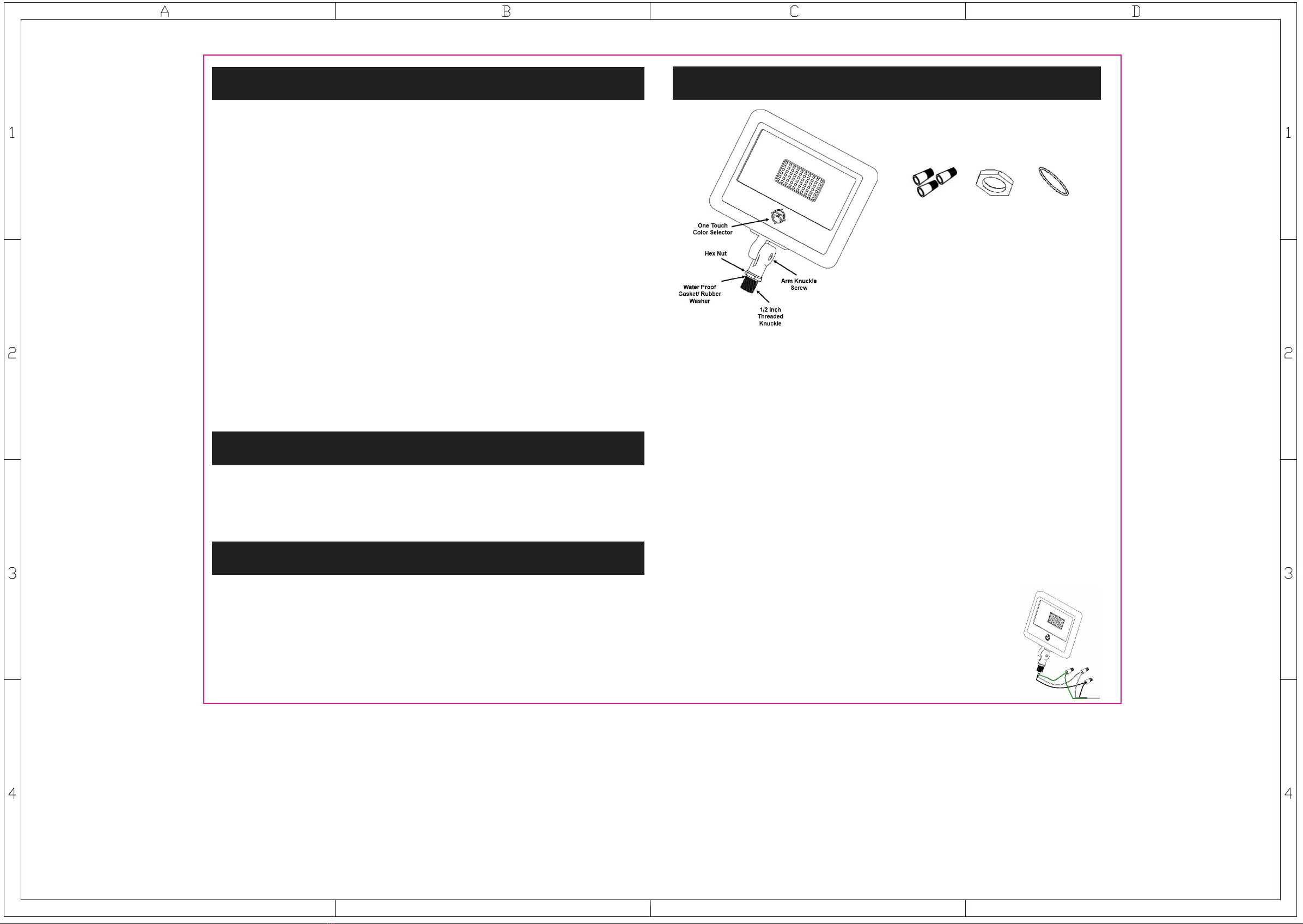

Illustration 1
Wire Nuts
(3)
Hex Nut
(1)
(1)
Water Proof gasket /
Rubber Washer
WARNING: Turn off the power at circuit box or remove fuse
LOCATION: This product should be mounted to a threaded Junction Box Cover Plate
or a properly installed In-Ground Fixture Mount in accordance with local codes, ordinances or
the National Electric Code (NEC). Fixture to be permanently mounted.
MOUNTING:
(Note: Ensure Hex Nut is threaded onto Threaded Knuckle followed by Water Proof Gasket
prior performing Step 1)
●
