INSTALLATION MANUAL
CTM-MS4
Premier Mounts
3130 E. Miraloma Avenue
Anaheim, CA 92806
Phone: [phone] Fax: [phone]
[email protected] www.mounts.com

CTM-MS4
Installation Manual Page - 2 -
Table of Contents
Warning Statements ........................................................................................................................................- 3 -
Parts List ...........................................................................................................................................................- 4 -
Installation Tools ..............................................................................................................................................- 4 -
Mounting Bracket Installation .......................................................................................................................- 8 -
CTM-MS4 Installation ..................................................................................................................................- 11 -
Installing the Flat Panel Display (CTM-MS4) ............................................................................................- 14 -
Technical Specifications ................................................................................................................................- 17 -
Warranty ........................................................................................................................................................- 18 -
Contact Premier Mounts ...............................................................................................................................- 18 -
Notes ................................................................................................................................................................- 18 -

CTM-MS4
Page - 3 - Installation Manual
Warning Statements
WARNING: PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE
USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE
FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED
ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY
DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF
WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER
RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.
WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING 300 LBS. IF NOT, THE
WALL STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE
BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION
INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN
SERIOUS PERSONAL INJURY, OR EVEN DEATH.
WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE
INSTALLATION OF THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR
THE INSTALLATION PROCEDURE TO PREVENT PERSONAL INJURY.
WARNING: PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION
INSTRUCTIONS SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE
INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY
AND PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN
EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.
Indicates that the power plug is to be
disconnected from the power outlet.
Contact Premier Mounts with any
questions - [phone]
Safety precautions must be taken at all
times.
Warning and Caution statements.
Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do
so could result in damage to the flat panel display and/or damage to the mounting surface.
Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct heat
energy. Failure to do so may result in damage to the flat panel display and could increase the risk of
fire.
At least two qualified people should perform the installation procedure. Injury and/or damage can
result from dropping or mishandling the flat panel display.

CTM-MS4
Installation Manual Page - 4 -

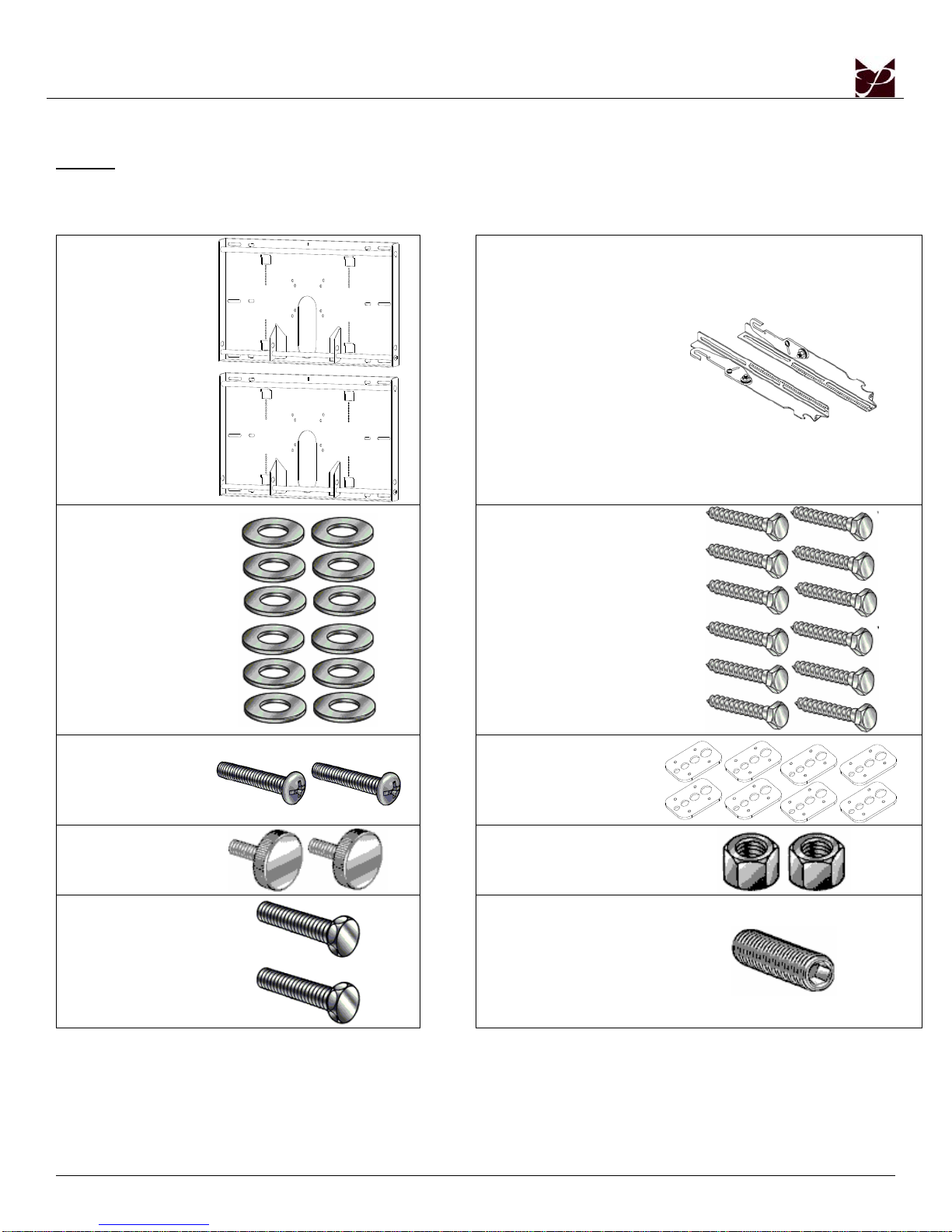

Parts List
NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that
none of these parts are missing and/or damaged before beginning installation. If there are parts
missing and/or damaged, please stop the installation and contact Premier Mounts
(800-368-9700).
Wall Plate
(Qty 2)
Mounting Brackets
(Qty 2)
5/16” Flat
Washers
(Qty 12)
5/16” x 3” Lag Bolts
(wooden studs only)
(Qty 12)
M6 x 30mm
Lateral Shift
Locking
Screws (Qty 2) Griplate™ (Qty 8)
M6 x 12mm
Safety Knobs
(Qty 2)
M8 Hex Nut
(Qty 2)
M8 x 16mm
Hex Head
Bolt (Qty 2)
5/16” x 1-1/4”
Mounting Rod
Set Screw (Qty 1)
Installation Tools
Phillips Head Screw Driver Soft Material/ Blanket ½ ” Socket and Wrench
Pencil Tape Measure Drill Gun
Level (Supplied) Thread Depth Indicator (Supplied)

CTM-MS4
Page - 5 - Installation Manual
M5 x 25 (Qty 8) M6 x 35 (Qty 8)
M5 x 30 (Qty 8) M8 x 20 (Qty 8)
M6 x 20 (Qty 8) M8 x 25 (Qty 8)
M6 x 25 (Qty 8) M8 x 30 (Qty 8)
M6 x 30 (Qty 8) M8 x 35 (Qty 8)
M8 x 70 (Qty 4)
Nylon spacers and flat washers’ actual size
NOTE: The nylon spacers may be stacked to achieve proper spacing.
¼” Nylon
Spacers
(Qty 8) ¼” Nylon
Spacers
(Qty 8)
½” Nylon
Spacers
(Qty
12) 9/16” Nylon Spacers
(Qty 8)
5/16” Flat
Washers
(Qty 8) Nylon Sleeves
(Qty 8)
1” Nylon Spacers
(Qty 8)

CTM-MS4
Installation Manual Page - 6 -
How to Determine the Correct Spacer
1. The following illustration shows a display
mounting surface that will not need the use of a
spacer.
2. The illustration shows a display mounting surface
that will need a spacer to correctly install the
mounting plate.
3. Anytime a display has a recessed mounting point,
a spacer must be used.
4. Select the spacer(s) that will create a flush and
level mounting surface for the mounting plate.
5. The following illustration shows how a thread
depth indicator should be used to determine which
spacer should be used.
6. The following illustration shows how a correctly
installed spacer and mounting screw will sit in a
recessed mounting point.

CTM-MS4
Installation Manual Page - 7 -
Thread Depth Indicator

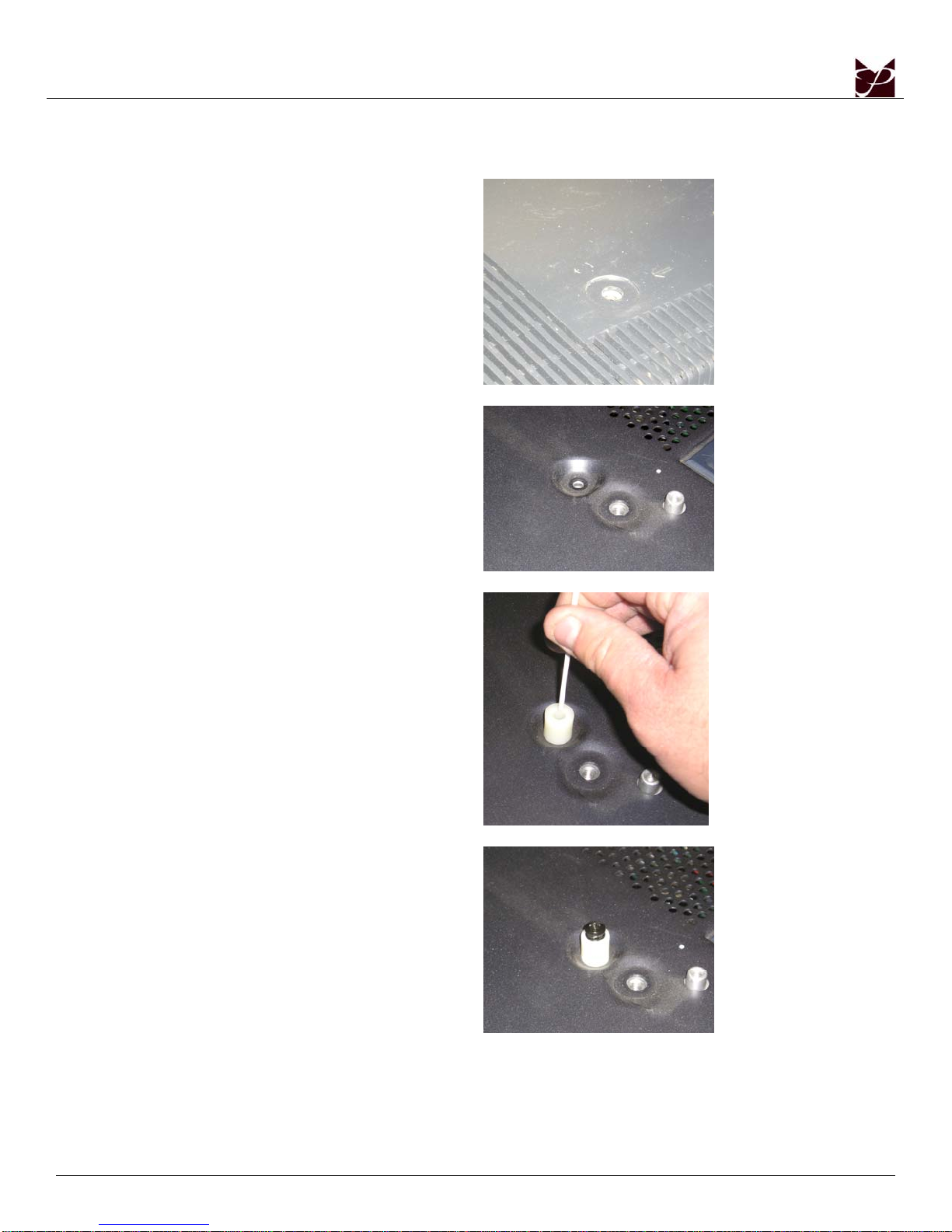

1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to
make sure the inserts measure the same full depth and mark it (Figure 1).
2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).
3. If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.
4. The screw length must not bypass the marking. Select another screw size (Figure 2 and 3), until you find
one that comes closest to your mark without going past the mark on the Thread Depth Indicator.
Figure 1
Figure 2 Figure 3
Marking the depth
Thread depth
indicator
Thread insert
Inverted flat panel
display
Screw
Marking
Thread depth
indicato
r
Screw Thread depth
indicator
Marking

CTM-MS4
Page - 8 - Installation Manual
Mounting Bracket Installation
NOTE: Proper installation procedure by qualified personnel as outlined in the installation instructions must be
adhered to. Failure to do so could result in serious personal injury and possible damage to the flat
panel.
WARNING: INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT
DAMAGE TO THE FLAT PANEL. USE A BLANKET, FOAM, ETC. FAILURE TO DO SO
WILL RESULT IN DAMAGING THE FLAT PANEL. DO NOT LAY THE FLAT PANEL ON
THE FLOOR WITHOUT ANY PROTECTION TO THE GLASS. THE FLAT PANEL IS
HEAVY AND FRAGILE. AT LEAST TWO QUALIFIED PERSONNEL ARE STRONGLY
RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO
COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT
PANEL.

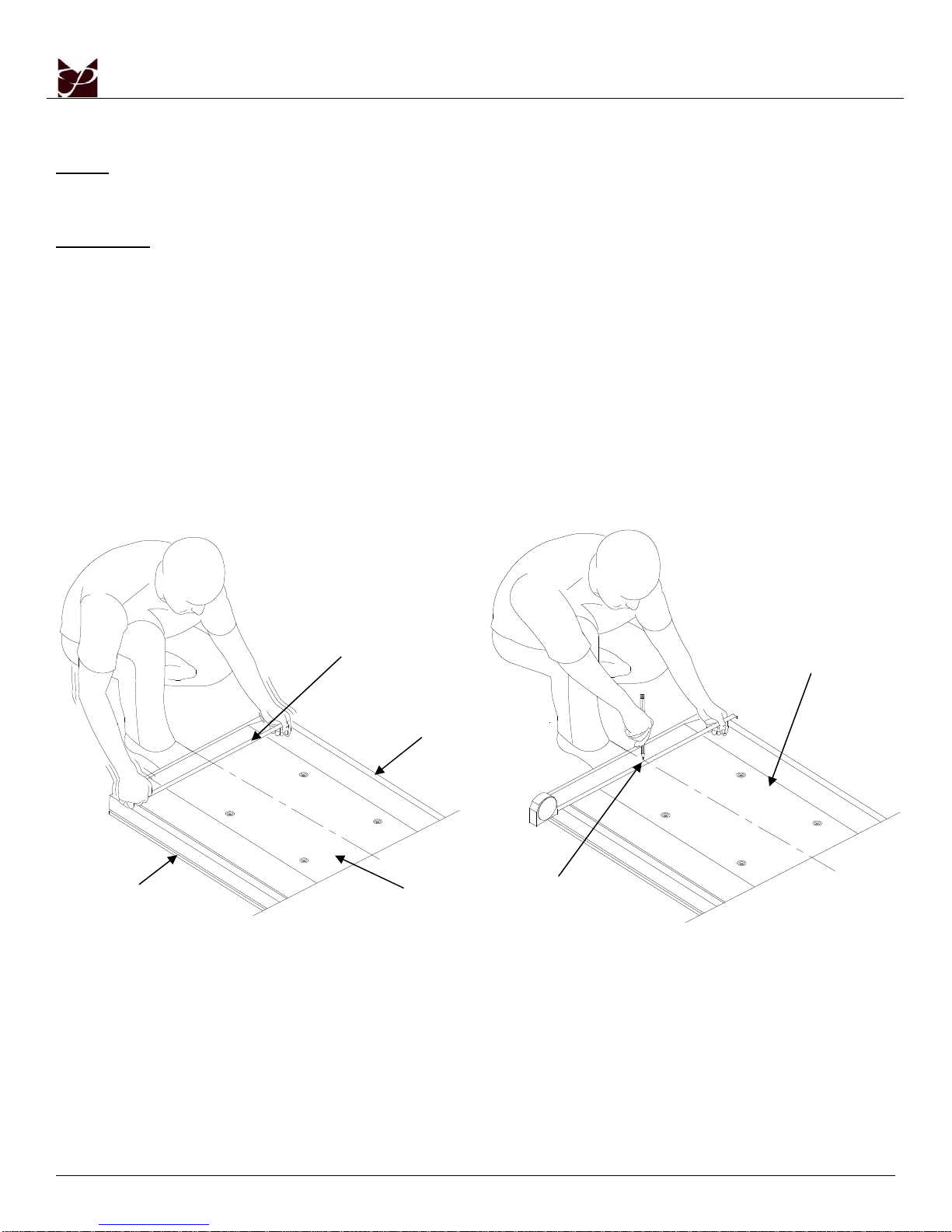

1. Once the flat panel is inverted, use a measuring tape to find the center of your flat panel measuring from
outside to outside of the flat panel (Figure 4).
2. Using a pencil lightly mark the center of your flat panel (Figure 5).
C
L
L
C
Figure 4 Figure 5
Top of flat panel
Measuring tape
Inverted flat panelBottom of flat panel
Inverted flat panel
Mark the center
of the flat
p
anel

CTM-MS4
Installation Manual Page - 9 -

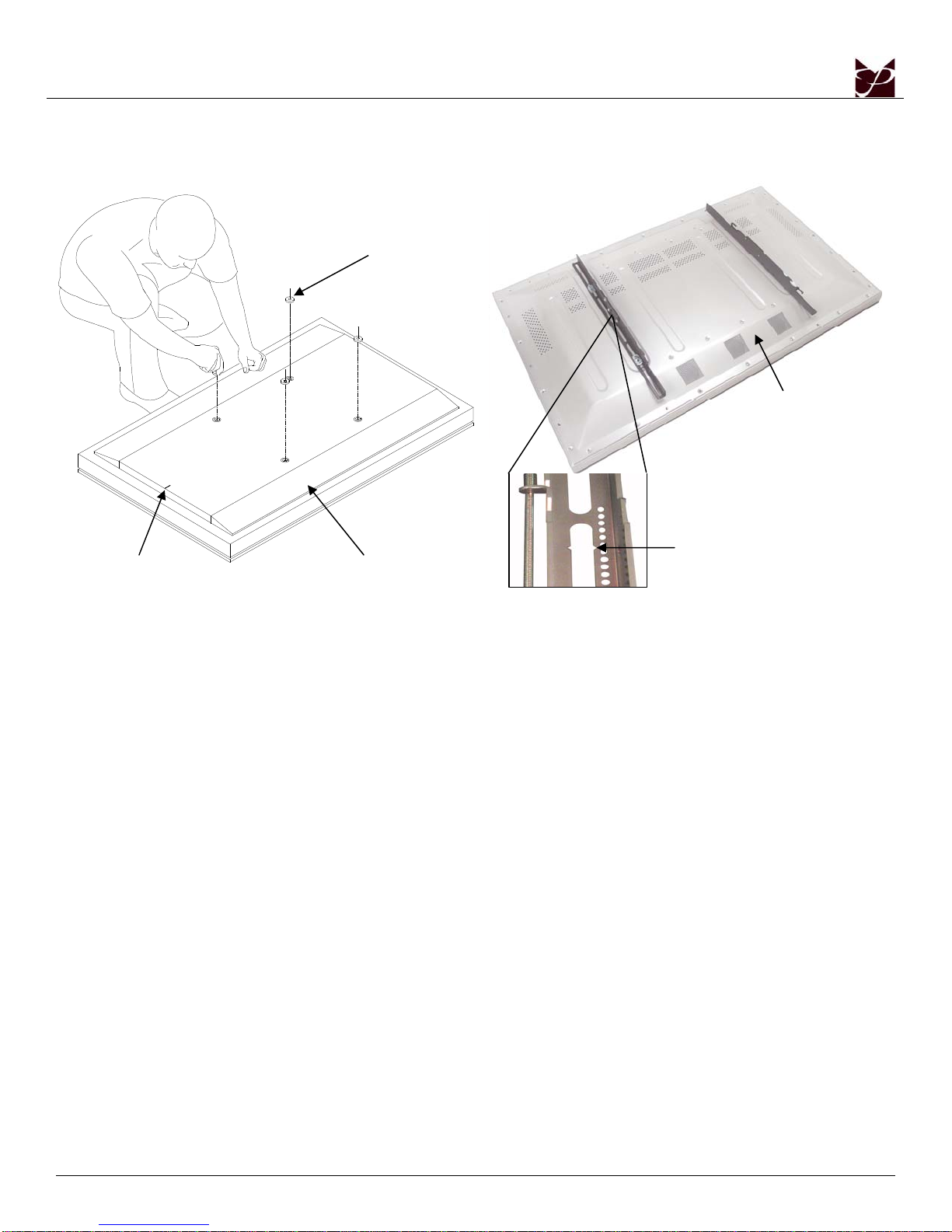

3. Install the nylon spacers (if needed) to the mounting points on the flat panel (Figure 6).
4. Lay the mounting brackets (stamped arrows facing out) - (Figure 7).
Figure 6
Figure 7
5. Match the center of viewing guide with the centerline you marked in Step 1 (Figure 8).
6. The mounting brackets are designed with a center of viewing guide on the outside (Figure 9).
Nylon Spacers, If Applicable
Inverted Flat Panel
Center Mark
Arrows Facing Out
Bottom of Flat Panel
Notched Cut Outs

CTM-MS4
Page - 10 - Installation Manual

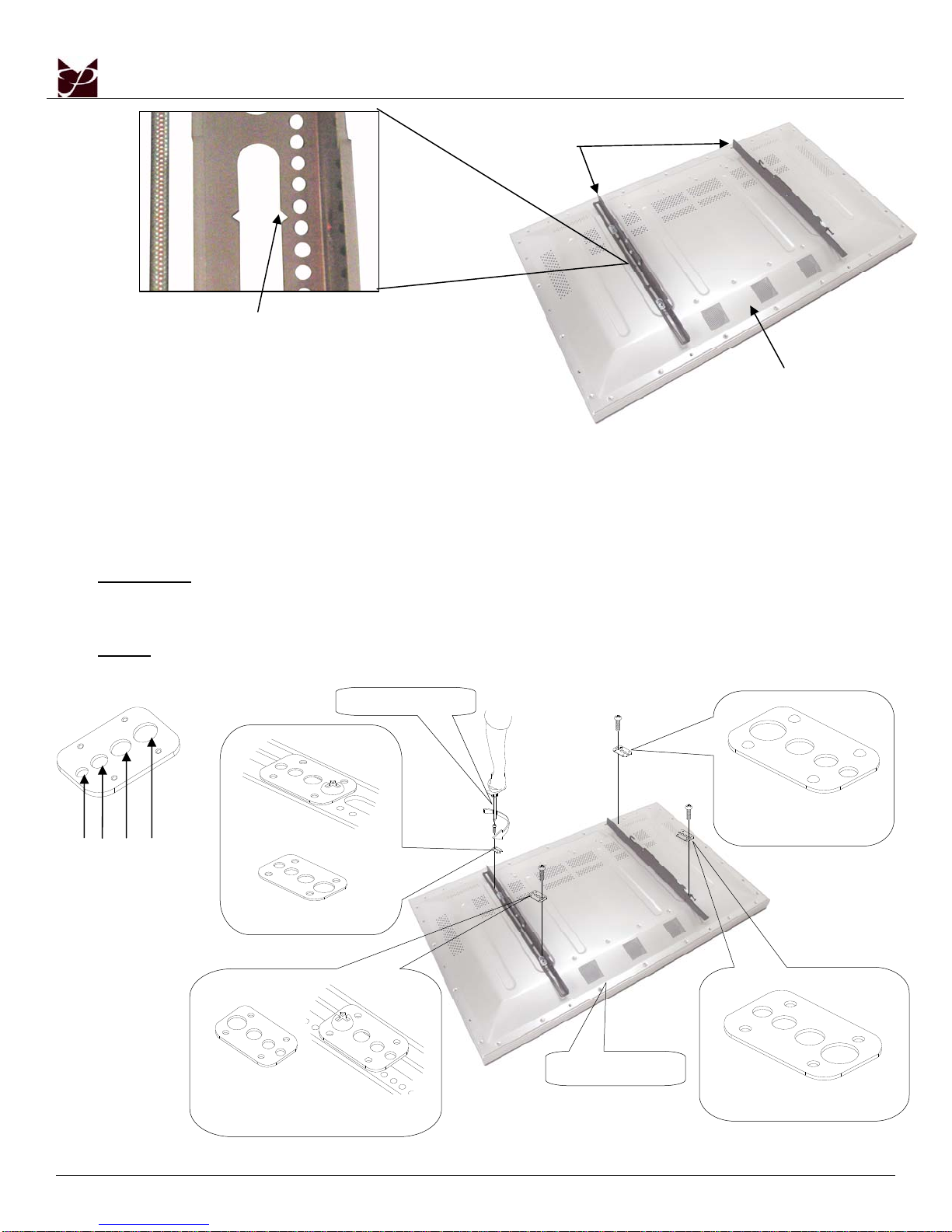

7. The Griplate™ has M4, M5 M6 and M8 hole patterns to fit the hardware that your flat panel requires.
EXAMPLE: If your plasma uses M8 x 20 Phillip screws, use the M8 mounting points (Figure 10).
8. Once the mounting brackets are aligned, secure the Griplate™ to the flat panel. Use (1) Griplate™ per
mounting point (Figure 11).
NOTE: The dimples of the top Griplate™ have to be facing up and the bottom Griplate™ dimples must
be facing down.
Dimples Facing Up
Dimples Facing Down
Inverted Flat Panel
Dimples Facing Down
Dimples Facing Up
Phillips Screw Driver
Figure 11
Figure 10
M4 M5 M6 M8
Bottom of the
Flat Panel
Mounting Bracket
Notched Cut Out
Figure 8
Figure 9

CTM-MS4
Installation Manual Page - 11 -
CTM-MS4 Installation

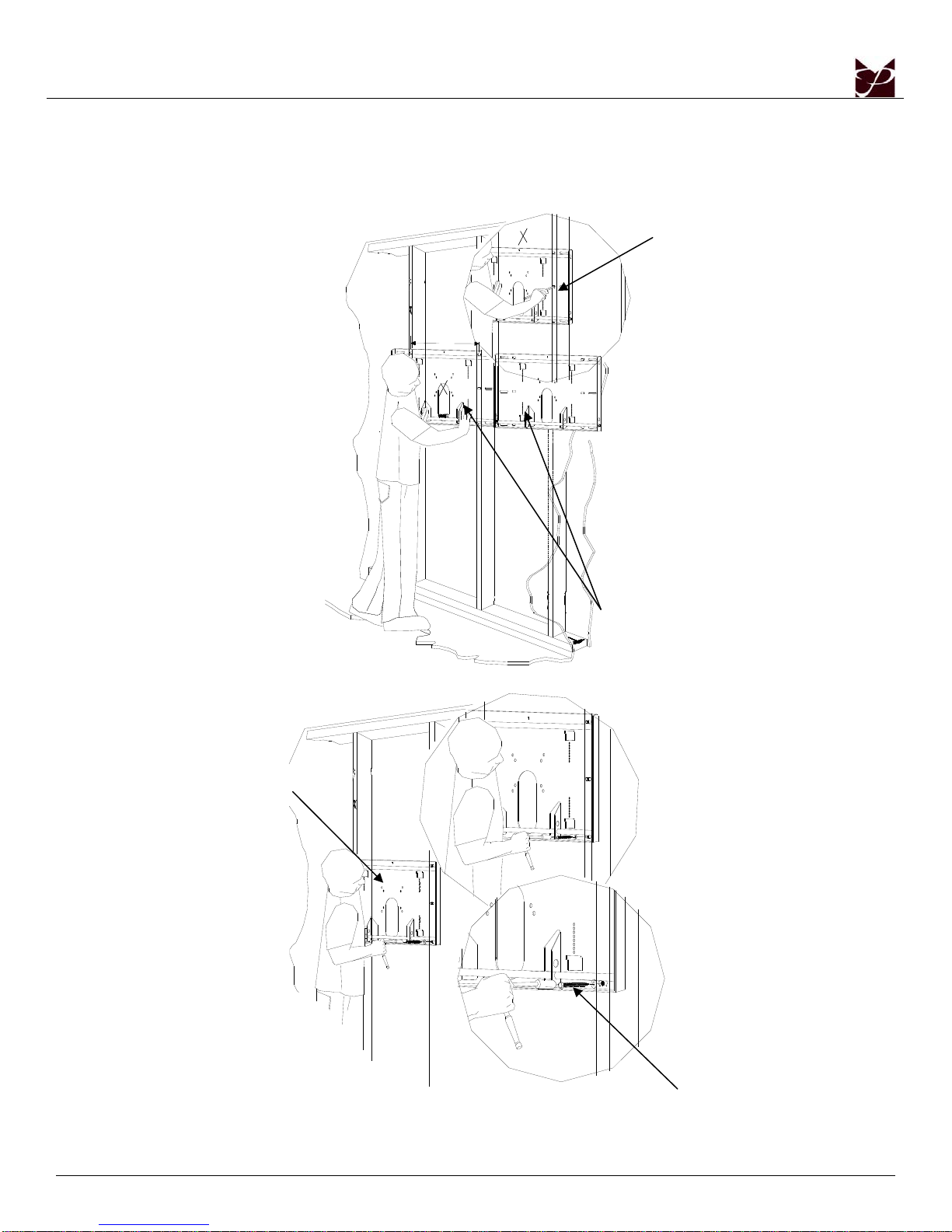

1. Using a (commercially available) wood stud finder, locate the 16" or 24" stud centers behind the wall
(Figure 12).
2. Once found, make a pencil marking on the center of the wood studs (Figure 13).
3. Place the wall plate to the reference line and mark the lag bolt mounting points through the wall plate slots
on the wall (see NOTE below).
16"
16"
Figure 12 Figure 13
NOTE: Three studs that are 24” apart will need nine (9) lag bolts. Four studs that are 16” apart will need
twelve (12) lag bolts.
Wood studs
behind the
wall
structure.
Wood Stud Finder
(
Commerciall
y
available
)
Measure and
mark the
viewing height
desired on the
wall.
Mark the wall
and the center
of the wood
studs.

CTM-MS4
Page - 12 - Installation Manual
4. To connect the two wall plates, lie them on a flat surface, end to end. Make sure that the holes line up
(Figure 14).
5. Insert the hex head bolts through the two holes and secure with M8 Hex nuts (Figure 14).
6. Thread the provided set screw into one end of the support rod and mount. Once the lower rod is mounted,
thread in the remaining mounting rod onto the end of the set screw and twist until tight (Figure 14).
Figure 14
M8 Hex Head
Nu
t
M8 x 16mm Hex
Head Bolt
Mounting Rod
Set Screw

CTM-MS4
Installation Manual Page - 13 -
6. Level the wall plate with the reference arrow pointing up to the ceiling (Figure 15).
7. Drill ¼" pilot holes to the marked wall.
8. Secure the plate using the 5/16" lag bolts and flat washers (Figure 16).
16"
Figure 15
Figure 16. Wood Installation
Wall Plates
Mark the mounting slot
openings
Wall Plate
5/16” x 3” Lag
Bolts

CTM-MS4
Page - 14 - Installation Manual
Installing the Flat Panel Display (CTM-MS4)
WARNING: AT LEAST TWO QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR
INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN
SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL.
1. Raise the flat panel with the mounting brackets secured to the flat panel and insert the top hooks over the
upper rod. The lower hooks should rest on the lower rod (Figure 17).
Figure 17
Top
Wall Plate
Bottom

CTM-MS4
Installation Manual Page - 15 -
2. Make any lateral shift adjustment and lock it by tightening the screws found on the bottom of the
mounting brackets.
CAUTION: Do not over tighten the screws to the rods (Figure 18).
NOTE: To remove the display from the wall simply loosen the screws using a Phillips screwdriver and
lift the unit of the wall carefully.
Figure 18
W
all Plate
Lateral Shift

CTM-MS4
Page 16 Installation Manual Page
3. Tilt the flat panel and secure the safety knobs to each of the mounting brackets (Figure 19).
NOTE: To remove the display from the wall simply extend the display to its maximum tilt range, remove the
safety knobs, push the flat panel back to it’s flat position, loosen or remove the lateral shift screws
and lift the unit off the wall.
Figure 19

CTM-MS4
Installation Manual Page 17

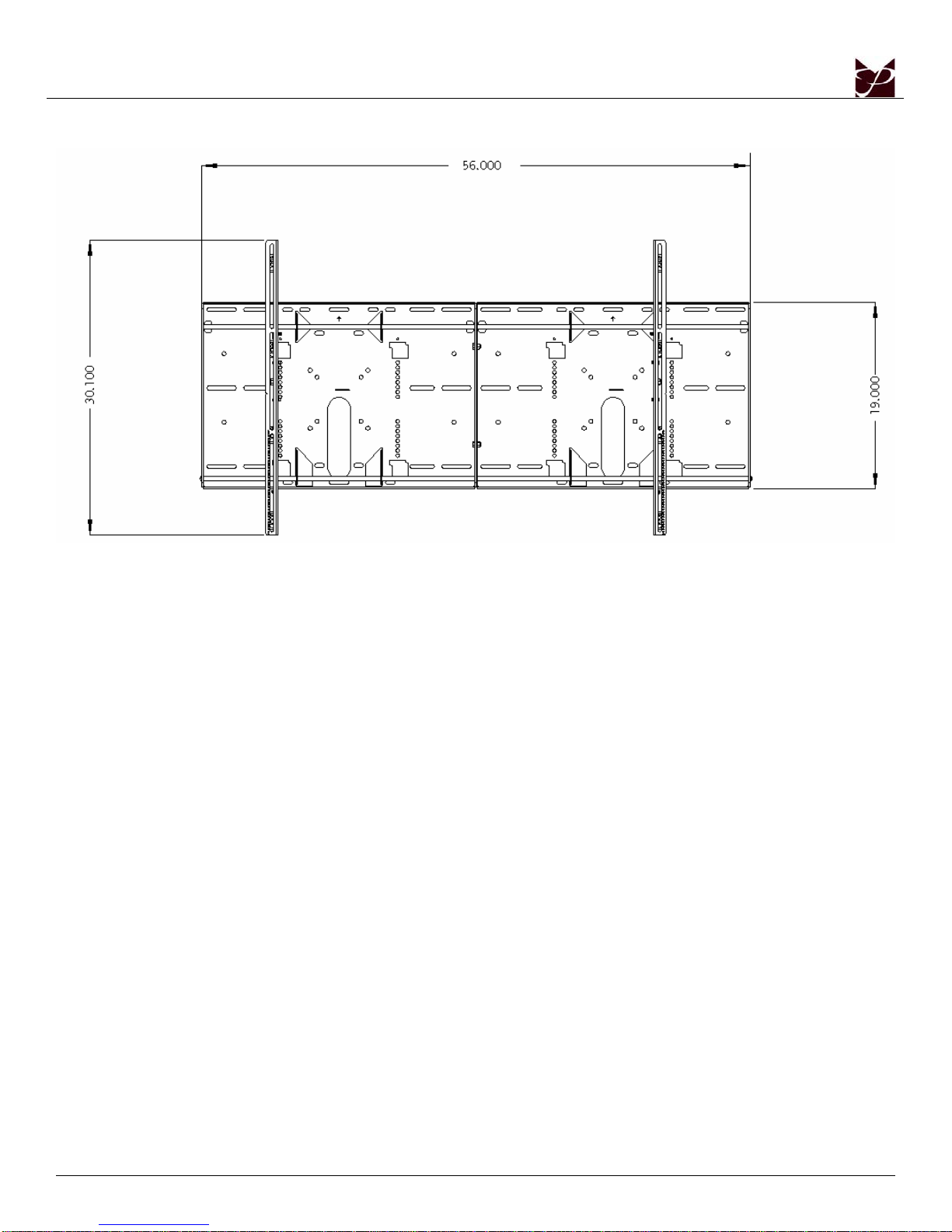

Technical Specifications
Figure 20

CTM-MS4
Page 18 Installation Manual
9531-000-331-06
Warranty
Limited Lifetime Warranty
All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and
workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts, adapters,
display equipment or personal injury.
DISCLAIMER OF WARRANTY.
THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Contact Premier Mounts
In the event of missing and/or damage equipment, or technical questions, the following information can help in
the completion of the installation.
Customer Service – [phone]
Technical Support – [email protected]
Notes
NORTH AMERICA EUROPE AUSTRALIA, NEWZEALAND,
OCEANIA (DISTRIBUTOR)
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada –
Phone: [phone]
Fax: [phone]
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: [phone]
Fax: [phone]
P.O. Box 295
Mordialloc Victoria 3195
Australia
Phone: [phone]
www.premiermounts.com.au
Other Locations – Phone: [phone]; Fax: [phone]
©Premier Mounts 2007
