Premier Solar IntelliShock SIS 100 User manual

Solar IntelliShock SIS 100 ( 15W / 12Ah )
Voltage at no load:
max. 14000v
Voltage at 500 Ω
(animal contact):
max. 5000v
made in Germany
by horizont group gmbh
Animal Care
85545A 09/2023
Item 113400
OPERATING INSTRUCTION
Electric Fence Energizer
Requirements:
The energizer complies with the International
Safety Standard IEC 60335-2-76 +
EN 60335-2-76.
Read full instructions before use!
Solar IntelliShock® 100
Direct connection of the 110v Battery Recharger/
Power Supply in the DC2.1 socket of the front of
the top case

2
SPARE PARTS
Transformer:
607581
Battery Holder
87103
Black Ground
Terminal Knob:
88128
Red Fence
Terminal Knob:
88128RT
Bottom Case
of energizer:
87100
SIS100:
18" Ground Rod
151220
PCB: Solar IntelliShock SIS 100 60876
Solar Panel knob 91820
Middle case plate
SIS100: 87102MV
On/Off
Button:
84793
Solar Module with Bra-
ckets and Solar Leads:
SIS100: 60859
Bracket Screws 94581
Right Solar Bracket 87099
Left Solar Bracket 87098
Soft Grip
SIS100: 84678MV
DC2.1 socket 606853
84793
Top Case 87101BLDC
SIS100:
Ground U-Spike
14498U
335501
GroundLink

3
Solar Panel
battery
12V
Solar IntelliShock SIS100
12V/12Ah
121600
Solar
Panel knob:
91820

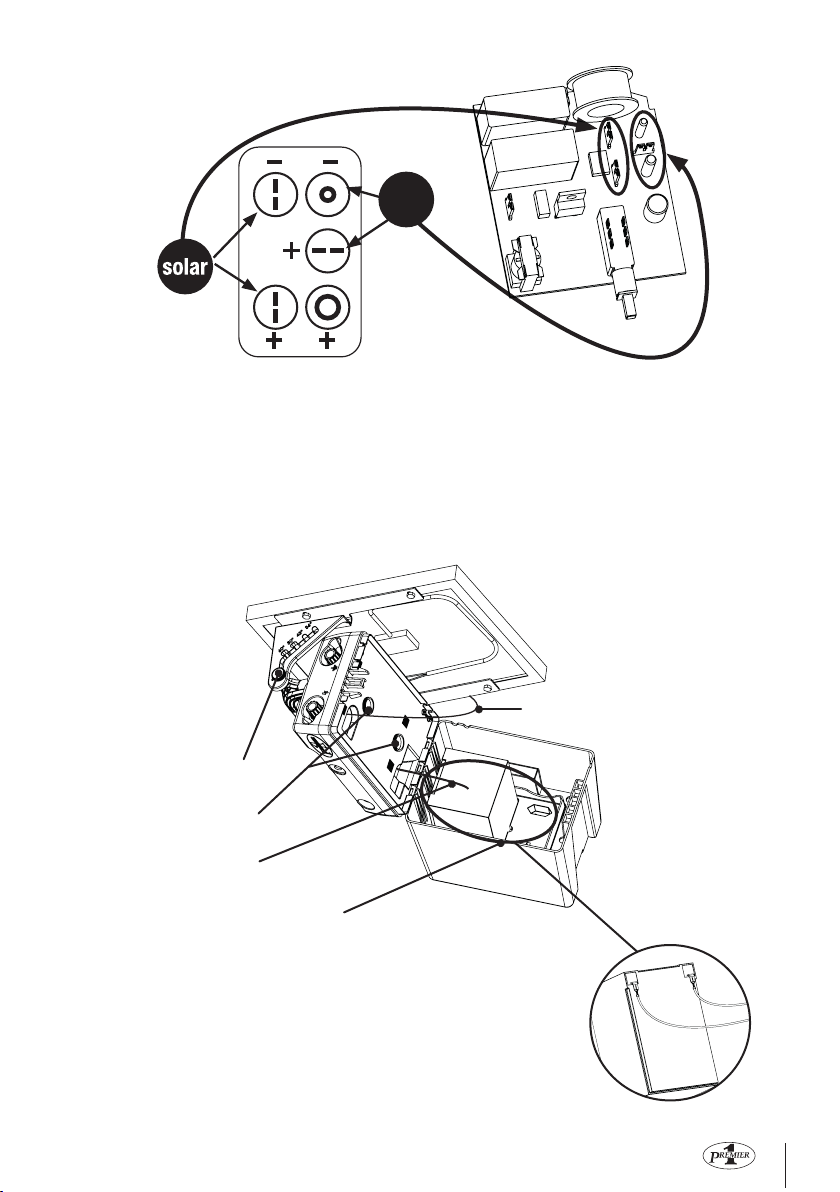

Battery Connection Leads:
60818
Battery Leads:
60809
Rubber Buffer:
81051
Solar Leads:
60812

4
110v Battery Recharger / Power Supply Adapter :
1132007
Wiring Harness
130800
Right Solar Bracket 87099
Bracket Screws 94581
Left Solar Bracket 87098
Connecting sheets 87393
87394
Solar Module with Brackets and Solar Leads
SIS 100 / 15W 60859
Solar Panel knob 91820
Ground Link
335501

5
For recharging 12v battery only
Attach the 110v Battery Recharger/Power Supply Adapter to the energizer (indoors without
fence and earth connection) in the DC2.1 socket in the front of the top case.
To use energizer connected to 110v
1. Attach 110v Battery Recharger/Power Supply Adapter.
2. Operate energizer from a 110v outlet instead of with the solar panel/battery or use it for recharging
the battery..
DC 2.1 socket in the
front of the top case
Fig. 1
Important:
INDOOR DRY LOCATIONS ONLY!
For 110v operation the energizer should be and the 110v adapter must be installed in a room pro-
tected from moisture.
> 33 ft SIS 100 > 30"
insulated
underground cable
Only use the 110v Recharger/Power Supply Adapter supplied with your electric fencer or a genuine
IntelliShock replacement part number 1132007 .
Insulated electric fence wire should be used to go from the energizer to the fence if needed.
Do not use a 110v Power Supply if it has gotten wet.

6
INSTALLATION AND CONNECTION
12
34
1. Rotate solar panel angle according to
diagrams page 8.
2. Secure panel knobs to tighten on both
sides.
3. When moving the energizer, rotate the
solar panel back to 90°.
Fig. 2
Attach negative
battery lead to
battery. Make
sure all other
connections are
tight.
IntelliShock SIS100 only:
Remove ground
U-Spike.
12V/12Ah
121600
-+

7
Solar Intellishock SIS100 for soft soils (5a + 6a for hard soils)
5 + 5a: Included (step-in) U-Spike Ground Stake (combination Ground Rod and support
stand).
6 + 6a: Slide energizer onto the U-Spike and position the energizer so that the solar panel
faces due south. Rotate panel as shown page 6. Insert the T-Ground Rod into the ground.
7: Attach Wiring Harness page 7 step 7. Connect the GroundLink (335501) from the U-
Spike to the T-Ground Rod.
INSTALLATION AND CONNECTION
8. Check the voltage to ensure the fence is properly electrified before introducing animals:
minimum of 3000v @ end of fence.
5
7
Fence
Earth
6
6a
5a
Insert
U-Spike
into ground.
Slide
energizer
onto spike.
And insert
T-Ground
Rod
(151220)
into the
ground
Attach Wiring
Harness
Connect the
Ground Link
(335501) from
the U-Spike
to the T-
Ground Rod.

8
Correct placement of the energizer and solar panel is critical to the best operation of the unit.
1. POSITION THE ENERGIZER SO THAT THE SOLAR PANEL FACES DUE SOUTH. This will allow
the panel to receive the maximum amount of sunlight possible even during the low-light days of winter.
Consider the sun’s movement throughout the day and avoid placing the unit where it may be covered
by shadows from trees, bushes or tall grass. The unit needs full, uninterrupted sunlight to operate well.
2. DETERMINE THE CORRECT TILT ANGLE FOR THE SOLAR PANEL. The sun’s position above
the horizon will change from season to season. As a general recommendation, an angle of 50° is op-
timal for the longest use in most areas of the continental USA. However, the ability of the solar panel
to recharge the battery can be maximized by making angle adjustments each season as shown in the
illustrations below.
In the far northern USA from November until February, there may not be enough hours of sunlight to
fully recharge the battery. Charge the battery externally when the battery indicator light flashes green/
red or red. (See FIG. 1)
3. REGULARLY REMOVE ALL DEBRIS FROM THE SOLAR PANEL. This includes grass clippings,
dust (especially on gravel roads), leaves and snow as this will reduce the solar panel’s ability to rechar-
ge the battery.
WARRANTY
3-year warranty for energizers and solar panels cover lightning damage and defective parts or work-
manship. Should an energizer fail, we will replace the unit, bill you for the cost to do so, then reimburse
you for warranted expenses after we have examined the failed unit. Misuse and flood damage are not
covered.
30-day warranty for all batteries.
OPTIMAL SOLAR ORIENTATION AND PLACEMENT
ON / OFF
1
Fig. 3
Allow solar panel to fully charge battery
before use. Battery may have discharged
during storage and transport. Battery
should test 12.6 volts or higher.
Make sure panel always faces due south.
See diagram below for proper angle.
Warning: Do not let the energizer sit in the
sun for an extended period when it is turned
OFF. Why? This could damage the battery.
= good battery
= charge the battery
= very low battery:
charge immediately
Power & Control Button

9
A. OPERATING INSTRUCTION FOR ELECTRIC FENCE ENERGIZER:
Solar IntelliShock 100
WORKING PRINCIPLE:
The solar panel produces electric current when exposed to usable sunlight.The fence energizer requires a constant
current, day and night. Thus the panel current is stored in the battery which delivers the energizer current. The solar
panel might not always be capable of recharging the battery—especially in dark, grey and foggy months
(i.e. October-February)
Tip: Recharge the battery externally as needed. (FIG. 1)
STORAGE, RECHARGE, MOUNTING AND CONNECTIONS:
When not in use, ensure the battery stays charged. You can charge the battery in the sun or with the included 110V
charging unit. Stop charging when the battery indicator light flashes GREEN (Fig. 3). Do not overcharge the battery.
When the energizer is not being used, store the unit indoors at room temperature and out of the sun. Batteries don’t
work well when they’re left discharged, or at a low charge, for long periods of time. Periodically recharge the battery
so that it does not discharge below 60%.
WARNING: Do not let the energizer sit in the sun for an extended period when it is turned OFF. Why? This could
damage the battery.
BATTERY CONNECTION
Attach negative battery lead to battery. Make sure all other connections are tight.
ENERGIZER CONNECTION (using the enclosed wiring harness).
HOW TO USE (FIG. 2)
Open the energizer lid and connect the wires to the battery as indicated on the enclosed sticker. Remove the
U-Spike IntelliShock 100 from inside the battery compartment. Step in the ground U-Spike. Then slide the energizer
onto top of U-Spike.
Use the wiring harness to connect the energizer to the ground stake and fence. (Inside top of shipping box.)
1. Unscrew the red terminal knob.
2. Secure the bare end of the wire with the orange clip into the hole behind the red terminal knob.
3. Replace the red terminal knob and tighten.
4. Repeat steps #1-3 for the black ground terminal.
5. Connect the black clip to the ground stake.
6. Connect the orange clip to the fence.
7. Turn energizer on. (When switching on, make sure the power & control button is pressed all the way in.) (FIG. 3)
8. Check the voltage to ensure the fence is properly electrified before introducing animals: minimum
of 3000v @ end of fence.
Buttons: Start energizer
using on/off button
(FIG. 3). After a few
seconds a LED control
flashes to indicate
battery voltage (FIG. 4).
If there is no flashing,
either the battery is
depleted or there is a
fault in the energizer.
To test the battery:
First disconnect all
wires from the battery.
Use a 12 volt tester to
determine the available
voltage.

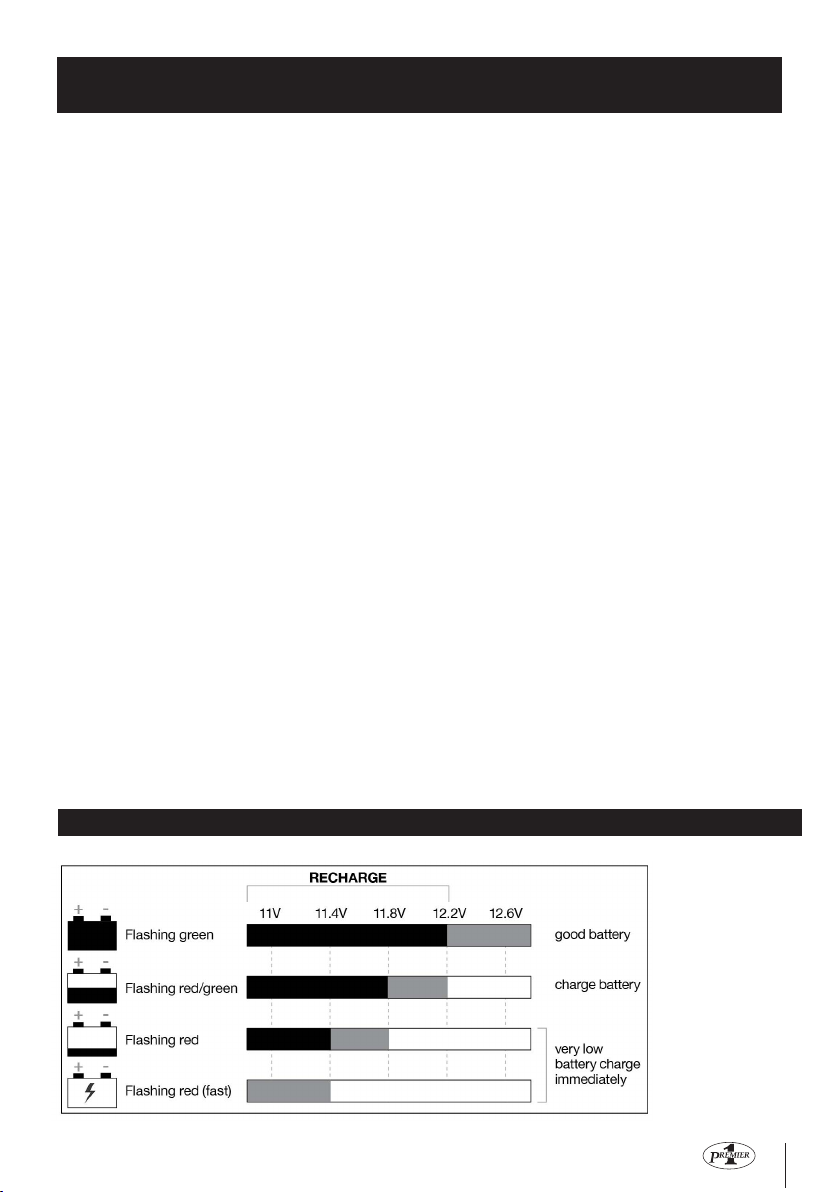

Fig. 4 BATTERY VOLTAGE

10
BATTERY INDICATION (FIG. 3 +4):
Test battery only at daybreak. If the battery test light is flashing red/green, recharge the battery. The battery should
never fall below a 20% charge (continuous red light). If this happens, permanent damage may occur to the battery.
Please note, that these values can vary due to the dependence of the battery itself, the age of the battery, the
temperature (capacity) and mesuring deviation (tension).
GROUNDING (FIG. 2):
For a faultless operation and to obtain the optimal output, good grounding is essential. Therefore grounding must
be made in a moist location. An additional or deeper ground rod may improve grounding. The distance between
the system earth (grounding) and other earth systems (e.g. telephone, mains power, anti-lightning or other earth
systems of another energizers) should be at least 30ft.
CAUTION:
The energizer should only be opened or repaired by qualified personnel, to reduce the risk of electric shock!
DUTY TO THE PUBLIC:
Safe electric fence construction - read and respect in conjunction with B. SAFETY HINTS ELECTRICAL ANIMAL
FENCES. Electric fence can be hazardous when there is a risk of entrapment or entanglement, or other hazards
exist. Serious injury or death may result. Take all steps to avoid the risk of entrapment or entanglement. Fasten
warning signs to electric fence posts or wires at frequent intervals along any public roads or pathways. Incorporate
a non-electrified gate or stile where an electric animal fence crosses a public pathway and fasten warning signs to
fence posts or wires adjacent to the crossing.

11
B. SAFETY GUIDELINES ELECTRIC ANIMAL FENCES
PART 1: PRINCIPLES AND LIMITATIONS OF ELECTRIC FENCING FOR ANIMALS
An electric fence consists of an energizer and a connected fence where the energizer feeds electric
impulses into the fence. The electric animal fence represents a “psychological barrier” for the animals;
it keeps animals inside or outside a certain area, it can also be used to train a certain behaviour (e.g.
cow trainer in the stable). The electric security fence is used for security purposes that comprise an
electric fence and a physical barrier electrically isolated from the electric fence.
No electric or mechanical fence can guarantee a 100% effective solution in protecting or containing
your animals. The effectiveness of an electric fence may vary upon the unique local conditions within
which the fence is installed. A suitable combination of products together with competent installation
will ensure the best results. On occasion a determined animal may overcome the most rigid of me-
chanical fences or the most comprehensive electric fence system. For this reason the seller gives
no assurance that the fence system is 100% safe against outbreak. A well installed electric fence
can offer a high level of security when compared to a mechanical fence, as the psychological barrier
an electric shock can represent will deter the animal from finding a way to circumnavigate the fence.
Electric fences will also offer far greater level of flexibility.
PART 2: WARNING
SAFE ELECTRIC ANIMAL FENCES
Read before using – WARNING:
• This appliance is not intended for use by persons (including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• Never touch an electric fence wire with your head, mouth, neck or torso. Never allow anyone else
to do so. Instruct all visitors and children to never do so. Do not climb over, through or under a
multi-wire electric fence. Use a gate or a specially designed crossing point.
• To avoid any risks with head, mouth, neck or torso contacts do use only smaller energizers or the
lower output of a stronger energizer on fences near children and untrained adults. With high joule
energizers reduce the available energy on wires near children or untrained adults with a 500 ohm
resistor. To do so, change the fence design or management to reduce the weed to wire contact, if
necessary.
• Keep a distance of at least 2,5 m (8,3 ft) with the electric fence to all metallic parts i.e. to water-
pipes and troughs especially if persons can be in the vicinity.
• Do not connect simultaneously to a fence and to any other device such as a cattle trainer or a
poultry trainer. Otherwise, lightning striking your fence will be conducted to all other devices - Risk
of Electric Shock.
• Do not place combustible materials near the fence or Energizer connections. In times of extreme
fire risk, disconnect Energizer.
• If there is a danger of over-flooding, the energizer must be turned off.
• Help to avoid any misuse of the energizer by:
- Observing the printing
- Secure the energizer against un-allowed access
(e.g. anti-theft or anti-children equipment) if the location make this necessary
• Check your local ordinance for specific regulations
• Read Annex BB.1 of the International Safety Standard IEC 60335-2-76 + EN 60335-2-76 (s. page 10)

12
Read Annex BB.1 of the International Safety Standard IEC 60335-2-76 + EN 60335-2-76 (s. page 10)
ANNEX BB.1:
Electric animal fences and their ancillary equipment shall be installed, operated and maintained in a
manner that minimises danger to persons, animals or their surroundings.
WARNING: Do not touch the fence with the head, mouth, neck or torso. Do not climb over, through or
under a multi-wire electric fence. Use a gate or a specially designed crossing point.
Electric animal fence constructions that are likely to lead to the entanglement of animals or persons
shall be avoided.
An electric animal fence shall not be supplied from two separate energizers or from independent
fence circuits of the same energizer.
For any two separate electric animal fences, each supplied from a separate energizer independently
timed, the distance between the wires of the two electric animal fences shall be at least 2,5 m (8,3 ft).
If this gap is to be closed, this shall be effected by means of electrically non conductive material or an
isolated metal barrier. Barbed wire or razor wire shall not be electrified by an energizer.
A non-electrified fence incorporating barbed wire or razor wire may be used to support one or more
off-set electrified wires of an electric animal fence. The supporting devices for the electrified wires
shall be constructed so as to ensure that these wires are positioned at a minimum distance of 150 mm
from the vertical plane of the non-electrified wires. The barbed wire and razor wire shall be earthed at
regular intervals.
Follow the energizer manufacturer’s recommendations regarding earthing.
A distance of at least 10 m (33ft) shall be maintained between the energizer earth electrode and any
other with the earthing system connected parts such as the power supply system protective earth or
the telecommunication system earth.
Connecting leads that are run inside buildings shall be effectively insulated from the earthed structural
parts of the building. This may be achieved by using insulated high voltage cable. Use this lead-out
cable in buildings and where soil could corrode exposed galvanised wire. Never use household electri-
cal cable: it is made for a maximum of 600 volts and will leak electricity.
Connecting leads that are run underground shall be run in conduit of insulating material or else insu-
lated high voltage cable shall be used. Care must be taken to avoid damage to the connecting leads
due to the effects of animal hooves or tractor wheels sinking into the ground.
Connecting leads shall not be installed in the same conduit as the mains supply wiring, communica-
tion cables or data cables.
Connecting leads and electric animal fence wires shall not cross above overhead power or commu-
nication lines.
Crossings with overhead power lines shall be avoided wherever possible. If such a crossing cannot
be avoided it shall be made underneath the power line and as nearly as possible at right angles to it.
If connecting leads and electric animal fence wires are installed near an overhead power line, the
clearances shall not be less than those shown in Table BB1.
Table BB 1 - Minimum clearances from power lines for electrical animal fences
Power line voltage ( V ) Clearance ( m )
≤ 1000 3 (10 ft)
> 1000 and ≤ 33000 4 (13 ft)
> 33000 8 (27 ft)
If connecting leads and electric animal fence wires are installed near an overhead power line, their
height above the ground shall not exceed 2m (6ft)
This height applies to either side of the orthogonal projection of the outermost conductors of the
power line on the ground surface, for a distance of
– 2 m for power lines operating at a nominal voltage not exceeding 1000 V;
– 15 m for power lines operating at a nominal voltage exceeding 1000 V

13
Electric animal fences intended for deterring birds household pet containment or training animals
such as cows need only be supplied from low output energizers to obtain satisfactory and safe per-
formance.
In electrical animal fences intended for deterring birds from roosting on buildings no fence wire shall
be grounded if the fence wires are not connected to metal parts. If one wire is connected with a metal
part (i.e. a gutter) or a metal structure of the building these metal parts must be grounded.
A warning sign shall be fitted to every point where persons may gain ready access to the conductors.
Where an electric animal fence crosses a public pathway, a non-electrified gate shall be incorporated
in the electric animal fence at that point or a crossing by means of stiles shall be provided. At any
such crossing, the adjacent electrified wires shall carry warning signs. In areas of public access, use an
electric fence warning sign (G6020) every 10m (33ft) to identify the electrified wire(s).
Any part of an electric animal fence that is installed along a public road or pathway shall be identified
at frequent intervals by warning signs securely fastened to the fence posts or firmly clamped to the
fence wires.
The size of the warning sign shall be at least 100 mm × 200 mm (4 inch x 8 inch).
The background colour of both sides of the warning sign shall be yellow. The inscription on the sign
shall be black and shall be either
– the symbol of Figure BB1, or
– the substance of CAUTION: Electric fence.
The inscription shall be indelible, inscribed on both sides of the warning sign and have a height of at
least 25 mm (10 inch).
Ensure that all mains-operated, ancillary equipment connected to the electric animal fence circuit pro-
vides a degree of isolation between the fence circuit and the supply mains equivalent to that provided
by the energizer.
NOTE 1 Ancillary equipment that complies with the requirements relating to isolation between the fence
circuit and the supply mains in Clauses 14, 16 and 29 of the standard for the electric fence energizer
is considered to provide an adequate level of isolation.
Protection from the weather shall be provided for the ancillary equipment unless this equipment is cer-
tified by the manufacturer as being suitable for use outdoors, and is of a type with a minimum degree
of protection IPX4.
Read for special applications
• Of electric fences in pastures: Train livestock to Power Fencing prior to entry into pastures. Allow
livestock to approach a Power Fence for the first time without stress.
• of electric fences in zoos and game reserves: The mounting of such installations may only be
carried out by trained specialist, a mechanical barrier must be provided which separates the electric
fence from visitors.
• of Game Fencing: Power Fencing has been used widely throughout the world for game animals,
deer, bears, elk and elephant. Power Fences are a psychological barrier and should not be consi-
dered a complete physical barrier fence. With any Power Fence occasional animal penetration may
occur (as with any other type of fence). It is important for game fencing to have power on the fence
the same day as the fence is constructed. Animals investigating the new obstruction will be shocked
and will relate the shock to the new obstruction. If no power is on the fence and animals learn to
walk through the fencing system with no electric shock, this causes major problems later on since
they will not relate the electric shock to the fence after the power is turned on. A Power Fence is not
recommended for animals under hunting pressure. For specific questions on game fencing contact
your dealer.
• of Bird Determent: Where the Energizer is used to supply a system of conductors used for deterring
birds from roosting on buildings, no conductor should be connected to earth. A switch should be
installed to provide means of isolating the Energizer from all poles of the supply and clear warning
signs should be fitted at every point where persons may have ready access to the conductors. The
notice should bear the words “LIVE WIRES“ in block letters not less than 13mm (½“ high). The let-
ters should be red on a white background. Each notice should be at least 62mm x 50mm (2½“ x 2“).

14
SAFETY GUIDELINES ELECTRIC ANIMAL FENCES
- To Reduce Risk and Liability ...
REMEMBER:
Never touch an electric fence wire with your head or upper
torso (see photo at right).
Never allow anyone else to do so. Instruct all visitors and
children to never do so.
Risk and Liability Reduction Methods
1. For reasons not fully understood, contact with the spi-
nal & head area is much worse than contact with hands,
arms or legs.
2. Most experts agree that smaller energizers are safer
than large ones (as long as animaI control is not put at
risk). So use smaller energizers on fences near children
and untrained adults. To do so, change the fence design
or management to reduce the weed to wire contact.
3. Never connect two energizers to one wire at the same
time.
4. Never energize barbed wire.
5. With high joule energizers reduce the available energy
on wires near children or untrained adults with a 500
ohm resistor. (Not illustrated here.)
6. Hang warning signs on the fence at critical areas where
children or untrained adults will encounter them (inset at
right).
7. Where practical do not energize wires less than 12 in.
above the soil. Why? To allow humans that might con-
tact a wire enough space to fall (by gravity) away from
any energized wires.
8. Ensure that all energized wires are on the inside of
your boundary fence (ensuring that anyone who tou-
ches them without your permission is a trespasser). For
boundary fences achieve this with internal energized
offset wires.
9. The shock from electric fences can panic animals who
may in turn crash into fences (or people) resulting in in-
jury to one or both. Horses have been known to rear and
throw their rider-resulting in injuries to both.
To reduce this risk:
a. Build only non-electric fences along horse trails, around
livestock corrals and surrounding lots.
b. Reduce the available volts and joules on fences that
enclose very small areas (e.g. night enclosures) thus re-
ducing panic and stress.
not

15
Solar
IntelliShock
SIS100
24 - 92
mA/hr
1,0
joules
max.
14000 v ~ 12100 v ~ 5000 v ~6400 v ~ 3400 v
TECHNICAL DATA
SUBJECT TO TECHNICAL ALTERATIONS !
5km
5 k Ω
5km
500 Ω
0 m 250 m
1 M Ω
250m
500 Ω
MAX. FENCE LINE LENGTH
Solar IntelliShock 100 ≥ 30 ’'
12v DC
draw Output
Solar IntelliShock SIS 100 = 5-8 Rolls Solar IntelliShock SIS100 = 1,5 mile
Required
Ground
RED Fence
Terminal
Orange Clip
to fence.
Output

16
assembled in US and Europe
horizont group gmbh
Animal Care
