Premier WM-4855 User manual
LED/LCD TV BRACKET (17”-37”)
INSTRUCTION MANUAL
LCD TV BRACKET
WM-4855
DEAR CUSTOMER
In order to achieve the best performance of your product, please read this instruction manual carefully
before using, and keep it for future reference.
If you need extra support, please write to info@premiermundo.com
WWW.PREMIERMUNDO.COM
P-1
NOTE: Read the entire instruction manual before you start installation and assembly.
WARNING
• Do not begin the installation until you have read and understood the instructions
and warnings contained in this installation sheet. If you have any question
regarding any of the instruction or warning, please contact your local distributor.
• This mounting bracket was designed to be installed and utilized ONLY as
specified in this manual. Improper installation of this product may cause damage
or serious injury.
• This product should only be installed by someone of good mechanical ability,
with basic building experience and fully understanding of this manual.
• Make sure that the supporting surface will safely support the combined load of
the equipment and all attached hardware and components.
• If mounting to wood wall studs, make sure that mounting screws are anchored
into the center of the studs. The use of a stud finder is highly recommended.
• Always use assistant or mechanical lifting equipment to safely lift and position
equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can damage the
items, greatly reducing their holding power.
• This product is intended for indoor use only. Using this product outdoors could
lead to product failure and personal injury.
• Max load: 30kg/66lbs
Component Checklist
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installing. If
any parts are missing or faulty, telephone your local distributor for a replacement.
Package M
Package W
ST6.3x55 (x4)
W-A
concrete anchor (x4)
W-B
D6 washer (x4)
W-C
4mm Allen key (x1)
B
D8 washer (x4)
M-F
D5 washer (x4)
M-E
small spacer (x8)
M-G
M5x14 (x4)
M-B
M6x14 (x4)
M-C
M8x20 (x4)
M-D
M4x14 (x4)
M-A
wall mount (x1)
A
WWW.PREMIERMUNDO.COM
WWW.PREMIERMUNDO.COM
P-3P-2
NOTE: Read the entire instruction manual before you start installation and assembly.
WARNING
• Do not begin the installation until you have read and understood the instructions
and warnings contained in this installation sheet. If you have any question
regarding any of the instruction or warning, please contact your local distributor.
• This mounting bracket was designed to be installed and utilized ONLY as
specified in this manual. Improper installation of this product may cause damage
or serious injury.
• This product should only be installed by someone of good mechanical ability,
with basic building experience and fully understanding of this manual.
• Make sure that the supporting surface will safely support the combined load of
the equipment and all attached hardware and components.
• If mounting to wood wall studs, make sure that mounting screws are anchored
into the center of the studs. The use of a stud finder is highly recommended.
• Always use assistant or mechanical lifting equipment to safely lift and position
equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can damage the
items, greatly reducing their holding power.
• This product is intended for indoor use only. Using this product outdoors could
lead to product failure and personal injury.
• Max load: 30kg/66lbs
Component Checklist
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installing. If
any parts are missing or faulty, telephone your local distributor for a replacement.
Package M
Package W
ST6.3x55 (x4)
W-A
concrete anchor (x4)
W-B
D6 washer (x4)
W-C
4mm Allen key (x1)
B
D8 washer (x4)
M-F
D5 washer (x4)
M-E
small spacer (x8)
M-G
M5x14 (x4)
M-B
M6x14 (x4)
M-C
M8x20 (x4)
M-D
M4x14 (x4)
M-A
wall mount (x1)
A
WWW.PREMIERMUNDO.COM
WWW.PREMIERMUNDO.COM
P-3P-2
WARNING
• Make sure that mounting screws are anchored into the center of the studs. The use of a stud
finder is highly recommended.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify that the supporting surface will safely support the combined load of the
equipment and all attached hardware and components.
Drill pilot holes
2
13
Screw the wall
mount onto
the wall
X X
√
1. Separate VESA Plate from Wall Mount
Remove VESA plate.
ø 4.5mm
(ø 3/16")
55mm
(2.2")
55mm
2.2"( )
55mm
(2.2")
2a. Mount on Wood Stud Wall
X X
√
• When installing wall mounts on cinder block, verify the actual concrete thickness is at least
1-3/8" (35mm) for using the concrete anchors. Do not drill into mortar joints! Be sure to
mount in a solid part of the block, generally 1" (25mm) minimum from the side of the block.
It is suggested electric drill on slow setting be used to drill the hole instead of a hammer drill
to avoid breaking out the back of the hole when entering a void or cavity.
• Installers must verify that the supporting surface will safely support the combined load of the
equipment and all attached hardware and components.
WARNING
2b. Mount on Solid Brick and Concrete Block
Drill pilot holes
1
2
Screw the wall
mount onto
the wall
W-B
W-A
60mm
(2.4")
60mm
2.4"( )
60mm
(2.4")
ø 10mm
(ø 3/8")
W-C
W-A
W-C
Find and mark the
exact location of
mounting holes
Mark the
exact location of
mounting holes
· Loosen the upper nut.
· Remove the lower flat nut.
WWW.PREMIERMUNDO.COM
WWW.PREMIERMUNDO.COM
P-5P-4
WARNING
• Make sure that mounting screws are anchored into the center of the studs. The use of a stud
finder is highly recommended.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify that the supporting surface will safely support the combined load of the
equipment and all attached hardware and components.
Drill pilot holes
2
13
Screw the wall
mount onto
the wall
X X
√
1. Separate VESA Plate from Wall Mount
Remove VESA plate.
ø 4.5mm
(ø 3/16")
55mm
(2.2")
55mm
2.2"( )
55mm
(2.2")
2a. Mount on Wood Stud Wall
X X
√
• When installing wall mounts on cinder block, verify the actual concrete thickness is at least
1-3/8" (35mm) for using the concrete anchors. Do not drill into mortar joints! Be sure to
mount in a solid part of the block, generally 1" (25mm) minimum from the side of the block.
It is suggested electric drill on slow setting be used to drill the hole instead of a hammer drill
to avoid breaking out the back of the hole when entering a void or cavity.
• Installers must verify that the supporting surface will safely support the combined load of the
equipment and all attached hardware and components.
WARNING
2b. Mount on Solid Brick and Concrete Block
Drill pilot holes
1
2
Screw the wall
mount onto
the wall
W-B
W-A
60mm
(2.4")
60mm
2.4"( )
60mm
(2.4")
ø 10mm
(ø 3/8")
W-C
W-A
W-C
Find and mark the
exact location of
mounting holes
Mark the
exact location of
mounting holes
· Loosen the upper nut.
· Remove the lower flat nut.
WWW.PREMIERMUNDO.COM
WWW.PREMIERMUNDO.COM
P-5P-4

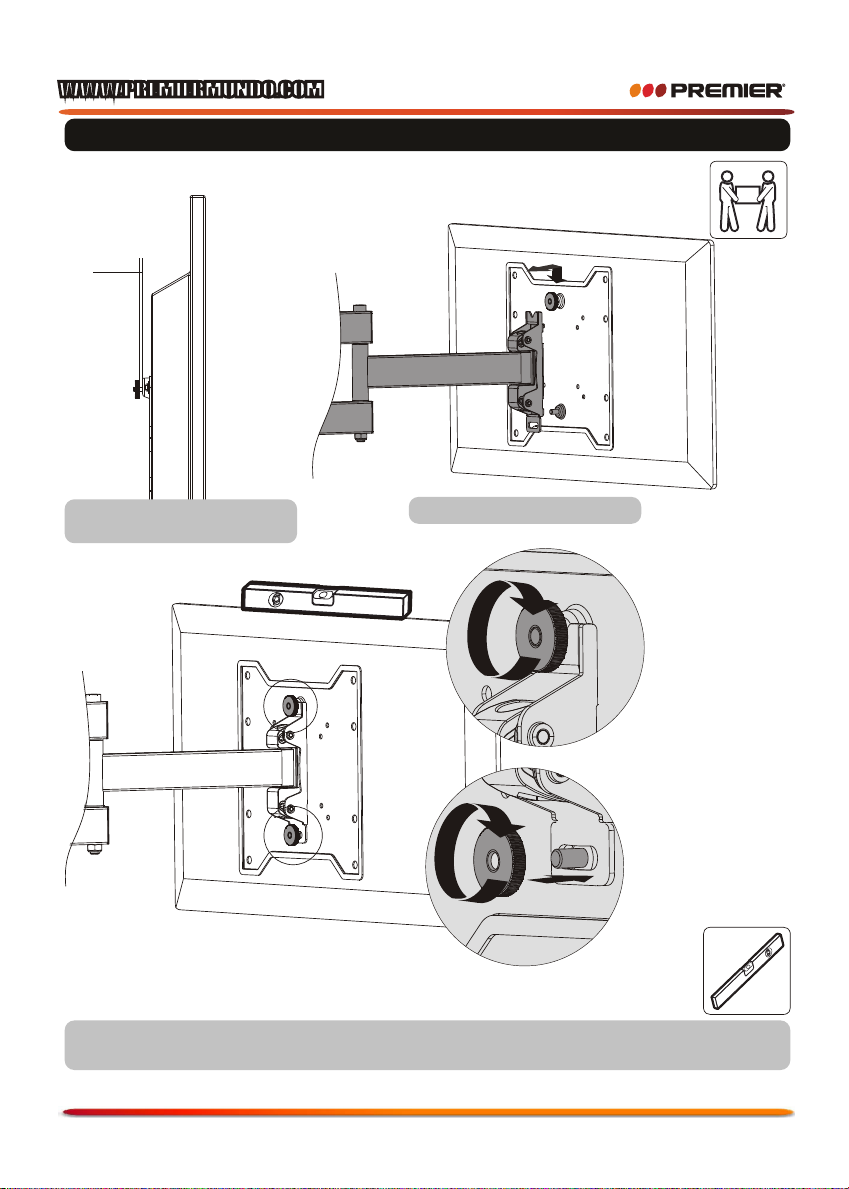

3. Install VESA Plate
Top of TV
or
4. Hook the TV onto the Wall Mount
· Level the TV.
· Place the lower flat nut and tighten both nuts.
Hook the TV onto the wall mount
3mm
Loosen the upper nut spacing
3mm to VESA plate.
M-E/M-F
M-A/M-B/M-C/M-DM-A/M-B/M-C/M-D
Tighten all screws but do not over tighten.
Note: Choose appropriate screws, washers and spacers (if necessary) according to the type of screen.
Screw VESA plate onto the TV.
TV
TV
TV
TV
M-D
M-F
M-G
M-D
M-F
M-G
M-G
WWW.PREMIERMUNDO.COM
WWW.PREMIERMUNDO.COM
P-7P-6
3. Install VESA Plate
Top of TV
or
4. Hook the TV onto the Wall Mount
· Level the TV.
· Place the lower flat nut and tighten both nuts.
Hook the TV onto the wall mount
3mm
Loosen the upper nut spacing
3mm to VESA plate.
M-E/M-F
M-A/M-B/M-C/M-DM-A/M-B/M-C/M-D
Tighten all screws but do not over tighten.
Note: Choose appropriate screws, washers and spacers (if necessary) according to the type of screen.
Screw VESA plate onto the TV.
TV
TV
TV
TV
M-D
M-F
M-G
M-D
M-F
M-G
M-G
WWW.PREMIERMUNDO.COM
WWW.PREMIERMUNDO.COM
P-7P-6
Maintenance
• Check that the bracket is secure and safe to use at regular intervals(at least every three months).
• Please contact your dealer if you have any questions.
5. Cable Management
Adjust to the desired location or tilt.
6. Adjustment
Tighten screws till the display angle can be fixed.
+3° -3°
+12°
-12°
180°
180°
Connect cables to your TV and route through cable clip.
Note: Leave slack in cable for cantilever arm movement.
B
WWW.PREMIERMUNDO.COM
P-8
