Premio RCO-6000-CML User manual

USER’S
MANUAL
RCO-6000-CML
Industrial AI Edge Inference Computer

RCO-6000-CML l User’s Manual
Table of Contents
2
Prefaces …………………………………………………….…………………………………………….04
Revision …………………………………………………………………………………………..……………….………..04
Disclaimer ………………………………………………………..…….…….………………………….………………..04
Copyright Notice …………………………………….…………………….…………………………………………… 04
Trademarks Acknowledgment …………..………………………………………………………................... 04
Environmental Protection Announcement …………………………….………………….……………….. 04
Safety Precautions ………………………………………….……………………………….…………….………….. 05
Technical Support and Assistance …………………………………….…………….…………….…………….06
Conventions Used in this Manual ………………………………………………………………….….………..06
Package Contents …………………………………………………………………………………………….…………07
Ordering Information …………………………………….……………………………………….……….………… 07
Optional Accessory …………...……………………………………..................................................... 10
Chapter 1 Product Introductions ………………………………………………………..…11
1.1 Overview ……………………….………………………………..………….…………………………..12
1.1.1 Key Feature ………….……………………………………….……….…..……………....... 14
1.2 Hardware Specification ….………………………….....…………….…………..………..…… 15
1.3 System I/O ……………………………..……………………..…………………………………………19
1.3.1 RCO-6000-CML …………………………………………………………….…………………. 19
1.3.2 RCO-6000-CML-2C ………………………………………………………………………….. 21
1.3.3 RCO-6000-CML-2C-4B7M ……………………………………………………………….. 23
1.3.4 RCO-6000-CML-2C-2B15M ……………………………………………………………... 25
1.3.5 RCO-6000-CML-2C-2PWR ……..………………………………………………………... 27
1.3.6 RCO-6000-CML-20-2060S ……..………………………………………………………... 29
1.3.7 RCO-6000-CML-4NH ……..………………………………………………………………... 31
1.3.8 RCO-6000-CML-4NS ……..………………………………………………………………... 33
1.3.9 RCO-6000-CML-8NS ……..………………………………………………………………... 35
1.3.10 RCO-6000-CML-2N-2060S ……..…………………………………………………..... 37
1.3.11 RCO-6000-CML-4N-2060S ……..…………………………………………….….…... 39
1.3.12 Universal I/O Bracket (Available Module) ……..……………………………... 41
1.4 Mechanical Dimension …………………………..…………………………..………….………. 42
1.4.1 RCO-6000-CML ………………………………………………………………………………. 42
1.4.2 RCO-6000-CML-2C ……………………………………………………………..………….. 43
1.4.3 RCO-6000-CML-2C-4B7M …………………………………………………..………….. 44
1.4.4 RCO-6000-CML-2C-2B15M ………………………………………………..…………... 45
1.4.5 RCO-6000-CML-2C-2PWR …………………………………………………..………….. 46
1.4.6 RCO-6000-CML-20-2060S …………………………………………………..………….. 47
1.4.7 RCO-6000-CML-4NH …………………………………………………..…........……….. 48
1.4.8 RCO-6000-CML-4NS …………………………………………………..…….........…….. 49
1.4.9 RCO-6000-CML-8NS …………………………………………………..…….........…….. 50
1.4.10 RCO-6000-CML-2N-2060S …………………………………………………..……..... 51
1.4.11 RCO-6000-CML-4N-2060S …………………………………………………..….….... 52
Chapter 2 Mechanical Specifications………………………………………………….….53
2.1 Switch and connector Locations ………………………………………..…….……..…….... 54
2.1.1 Top View ………………………………………………………………………..……..……… 54
2.1.2 Bottom View ………………………………………………………………………….…….. 55
2.2 Connector / Switch Definition ……………………………….……….…….………............ 56
2.3 I/O Interface Descriptions ……………………………….……….…….……………............ 57

RCO-6000-CML l User’s Manual
3
4.3.4 SATA and RST Configuration ………………………….............………….......…... 139
4.3.5 RST (UEFI RAID) Configuration ……………..………………….………….….………. 140
4.3.6 Trusted Computing …………...……………………………………….…………………… 142
4.3.7 ACPI Settings ..………………………………..…….………………………………………… 143
4.3.8 Super IO Configuration …………………………………………….…..…..………….... 144
4.3.9 Hardware Monitor …………………………................……………………………..… 153
4.3.10 Serial Port Console Redirection ……………………….…..................….…… 155
4.3.11 USB Configuration ……………....…………………….........................……….. 156
4.3.12 Network Stack Configuration ……………....….......................…………….. 157
4.3.13 CSM Configuration ……………....……………………………………............…….. 158
4.4 Chipset …………...……….………………….…..….…..………………………………………..….. 159
4.4.1 System Agent (SA) Configuration ………………………………..…………………. 159
4.4.2 PCH-IO Configuration ………….………………………….………..……………………. 163
4.5 Security …………...……….………………….…..….…..………………………………..…………..168
4.6 Boot …………...……….….………………….…..…………………………..…………..…………….. 171
4.7 Save & Exit …...……….….………………….…..….…..……………………………..………….... 172
Appendix WDT & GPIO …………………………………………………………………………… 173
WDT Sample Code …….……………….………….…….……………………..….…….…….…………... 174
GPIO Sample Code ………………………………..…………………………………………………………. 175
Chapter 4 BIOS Setup ……………………………………………………………………………132
4.1 BIOS Introduction …….……….……………………………………..….…….…..….…………...133
4.2 Main Setup ……..……….………………….…………………………..…….….………………......134
4.3 Advanced Setup ………………………………………………………..…………………………….. 135
4.3.1 Connectivity Configuration ………………….…..………...........................…… 136
4.3.2 CPU Configuration …………………………….………..…………………..….............. 137
4.3.3 PCH-FW Configuration ……………………………………..……………………..….….. 138
3.9 Installing WiFi Module …………………..….………………..……………..………..……...... 102
3.10 Installing Mini PCIe card / 4G LTE …………………..………..……………………..…...... 105
3.11 Installing Antenna …………………..………..………………………………………………....... 106
3.12 Installing HDD on removable HDDbay (for RCO-6000-CML-2C-4B7M) ....... 108
3.13 Installing HDD on removable HDD bay (for RCO-6000-CML-2C-2B15M) …. 110
3.14 Installing HDD on removable HDD bay (for RCO-6000-CML-8NS) …………... 113
3.15 Installing PCIe/PCI expansion Card (for RCO-6000-CML-2X)....................... 115
3.16 Installing PCIe/PCI expansion Card (for RCO-6000-CML-8NS)..................... 117
3.17 Installing graphic Card (RCO-6000-CML-2C-2PWR) ……............................... 120
3.18 Installing graphic Card (RCO-6000-CML-2C-4N-2060S) ……......................... 124
3.19 Installing wall mount kit …………………..……………….……..………....................... 128
3.20 AC Adapter with 3P terminal block …………………………….............................. 130
3.21 AC Adapterwith 4P terminal block ……………………………............................... 131
Chapter 3 System Setup …………………………..……………………………………………88
3.1 Set torque force to 3.5 kgf-cm to execute all the screwing and
unscrewing .…………………………………………………………………………………..…..…... 89
3.2 Disconnecting expansion module from computing module …………....……... 89
3.3 Removing chassis top cover ……….…………….…………………………………………….. 91
3.4 Install HDD/SSD on the internal SATA bay ……….…...................………………… 92
3.5 Installing HDD on removable SATA HDD/SSD bay ..…….………….….………….... 94
3.6 Installing SODIMM …………….……..….………………………………….......................... 95
3.7 Installing CPU …………………………………………………………………….……..………….... 96
3.8 Installing Mini PCIe card ………………..…………………………………………............... 101

RCO-6000-CML l User’s Manual
4
Revision
Disclaimer
All specifications and information in this User’s Manual are believed to be accurate and up to date. Premio
Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The
information in this document is subject to change without notice and does not represent a commitment on
the part of Premio Inc.
Premio Inc. disclaims all warranties, express or implied, including, without limitation, those of
merchantability, fitness for a particular purpose with respect to contents of this User’s Manual. Users must
take full responsibility for the application of the product.
Copyright Notice
All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying, recording, or information storage and retrieval systems,
without the prior written permission of Premio Inc. Copyright © Premio Inc.
Trademarks Acknowledgment
Intel®, Celeron® and Pentium® are trademarks of Intel Corporation.
Windows® is registered trademark of Microsoft Corporation.
AMI is trademark of American Megatrend Inc.
IBM, XT, AT, PS/2 and Personal System/2 are trademarks of International Business Machines Corporation
All other products and trademarks mentioned in this manual are trademarks of their respective owners.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. Please recycle to minimize pollution
and ensure environment protection.
Prefaces
Revision Description Date
1.0 Manual Released 2022/04/01

RCO-6000-CML l User’s Manual
5
Safety Precautions
Before installing and using the equipment, please read the following precautions:
⚫Put this equipment on a reliable surface during installation. Dropping it or letting it fall could
cause damage.
⚫The power outlet shall be installed near the equipment and shall be easily accessible.
⚫Turn off the system power and disconnect the power cord from its source before making any
installation. Be sure both the system and the external devices are turned OFF. Sudden surge
⚫of power could ruin sensitive components. Make sure the equipment is properly grounded.
⚫When the power is connected, never open the equipment. The equipment should be opened
only by qualified service personnel.
⚫Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
⚫Disconnect this equipment from the power before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.
⚫Avoid the dusty, humidity and temperature extremes.
⚫Do not place heavy objects on the equipment.
⚫If the equipment is not used for long time, disconnect it from the power to avoid being
damaged by transient over-voltage.
⚫The storage temperature shall be above -30°C and below 85°C.
⚫The computer is provided with a battery-powered real-time clock circuit. There is a danger of
explosion if incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer.
⚫If one of the following situation arises, get the equipment checked be service personnel:
•The power cord or plug is damaged.
•Liquid has penetrated into the equipment.
•The equipment has been exposed to moisture.
•The equipment does not work well or it cannot work according the user’s manual.
•The equipment has been dropped and damaged.
•The equipment has obvious signs of breakage.
Preface

RCO-6000-CML l User’s Manual
6
Technical Support and Assistance
1. Visit the Premio Inc website at www.premioinc.comwhere you can find the latest information about
the product.
2. Contact your distributor, our technical support team or sales representative for technical support if
you need additional assistance. Please have following information ready before you call:
⚫Model name and serial number
⚫Description of your peripheral attachments
⚫Description of your software (operating system, version, application software, etc.)
⚫A complete description of the problem
⚫The exact wording of any error messages
Conventions Used in this Manual
Preface
This indication alerts operators to an operation that, if not strictly observed,
may result in severe injury.
WARNING
This indication alerts operators to an operation that, if not strictly observed,
may result in safety hazards to personnel or damage to equipment.
CAUTION
This indication provides additional information to complete a task easily.
NOTE

RCO-6000-CML l User’s Manual
7
Package Contents
Before installation, please ensure all the items listed in the following table are included in the package.
Item Description Q’ty
1
Choosing one ：
•RCO-6000-CML Superior Fanless Embedded System
•RCO-6000-CML-2C Superior Fanless Embedded System
•RCO-6000-CML-2C-4B7M Flash Storage Computi ng System
•RCO-6000-CML-2C-2B15M Flash Storage Computing Sys tem
•RCO-6000-CML-2C-2PWR GPU Computing System
•RCO-6000-CML-20-2060S GPU Computing System
•RCO-6000-CML-4NH AI Edge Inference Computer
•RCO-6000-CML-4NS AI Edge Inference Computer
•RCO-6000-CML-8NS AI Edge Inference Computer
•RCO-6000-CML-2N-2060S GPU Computing System
•RCO-6000-CML-4N-2060S GPU Computing System
1
2 Wall Mount Kit 1
3 Accessory Kit 1
4 DVI to VGA Adapter 1
Preface
Ordering Information
Model No. Product Description
RCO-6000-CML Superior Fanless Embedded System w/ LGA 1200 for Intel® 10th Gen CPU
or Optional Intel XEON-W Processors & W480E PCH, 2x LAN
Available Module：
•4L：4x LAN Ports
•4P：4x LAN PoE Ports
•8L：8x LAN Ports
•8P：8x LAN PoE Ports
•D10G：2x 10Gb Ports
•4U3：4x USB 3.2 Gen 1 Ports
•8U3：8x USB 3.2 Gen 1 Ports
•5G：2x 5G SIM Slots
RCO-6000-CML-2C Superior Fanless Embedded System w/ LGA 1200 for Intel® 10th Gen CPU
or Optional Intel XEON-W Processors & W480E PCH, 2x LAN, 1x PCIe x16,
1x PCI
Available Expansion：
•2C：1x PCI and 1x PCIe x16
•2I：2x PCI
•2E：2x PCIe x16 (8-lane)
Available Module：
•4L：4x LAN Ports
•4P：4x LAN PoE Ports
•8L：8x LAN Ports
•8P：8x LAN PoE Ports
•D10G：2x 10Gb Ports
•4U3：4x USB 3.2 Gen 1 Ports
•8U3：8x USB 3.2 Gen 1 Ports
•5G：2x 5G SIM Slots
•4LM12：4x M12 LAN Ports
•4PM12：4x M12 LAN PoE Ports
•8LM12：8x M12 LAN Ports
•8PM12：8x M12 LAN PoE Ports
•4LM12：4x M12 LAN Ports
•4PM12：4x M12 LAN PoE Ports
•8LM12：8x M12 LAN Ports
•8PM12：8x M12 LAN PoE Ports

RCO-6000-CML l User’s Manual
8
Preface
Model No. Product Description
RCO-6000-CML-2C-2PWR GPU Computing System w/ LGA 1200 for Intel 10th Gen Processor or
Optional Intel XEON-W Processors and W480E PCH, 1x PCIe x16, 1x PCI,
2x Power input
Available Expansion：
2C：1x PCI and 1x PCIe x16
2I：2x PCI
2E：2x PCIe x16 (8-lane)
Available Module：
•4L：4x LAN Ports
•4P：4x LAN PoE Ports
•8L：8x LAN Ports
•8P：8x LAN PoE Ports
•D10G：2x 10Gb Ports
•4U3：4x USB 3.2 Gen 1 Ports
•8U3：8x USB 3.2 Gen 1 Ports
•5G：2x 5G SIM Slots
RCO-6000-CML-2C-4B7M,
Model optional：
RCO-6000-CML-2C-2B15M
Flash Storage Computing System W/ LGA 1200 for Intel 10th Gen CPU or
Optional Intel XEON-W Processors & W480E PCH, 2x LAN, 1x PCIe x16, 1x
PCI, 4 Bay 7mm
Available Storage Expansion：
•4B7M：4x 7mm Hot-swappabl e 2.5" SATA HDD/SSD Bay
•2B15M：2x 15mm Hot-swappable 2.5" SATA HDD/SSD Bay
Available Expansion：
•2C：1x PCI and 1x PCIe x16
•2I：2x PCI
•2E：2x PCIe x16 (8-lane)
Available Module：
•4L：4x LAN Ports
•4P：4x LAN PoE Ports
•8L：8x LAN Ports
•8P：8x LAN PoE Ports
•D10G：2x 10Gb Ports
•4U3：4x USB 3.2 Gen 1 Ports
•8U3：8x USB 3.2 Gen 1 Ports
•5G：2x 5G SIM Slots
RCO-6000-CML-20-2060S GPU Computing System w/ LGA 1200 for Intel 10th Gen Processor or
Optional Intel XEON-W Processors and W480E PCH, RTX 2060 Super
integrated
Available Module：
•4L：4x LAN Ports
•4P：4x LAN PoE Ports
•8L：8x LAN Ports
•8P：8x LAN PoE Ports
•D10G：2x 10Gb Ports
•4U3：4x USB 3.2 Gen 1 Ports
•8U3：8x USB 3.2 Gen 1 Ports
•5G：2x 5G SIM Slots
•4LM12：4x M12 LAN Ports
•4PM12：4x M12 LAN PoE Ports
•8LM12：8x M12 LAN Ports
•8PM12：8x M12 LAN PoE Ports
•4LM12：4x M12 LAN Ports
•4PM12：4x M12 LAN PoE Ports
•8LM12：8x M12 LAN Ports
•8PM12：8x M12 LAN PoE Ports
•4LM12：4x M12 LAN Ports
•4PM12：4x M12 LAN PoE Ports
•8LM12：8x M12 LAN Ports
•8PM12：8x M12 LAN PoE Ports

RCO-6000-CML l User’s Manual
9
Preface
Model No. Product Description
RCO-6000-CML-4NS AI Edge Inference ComputerWith LGA 1200 for Intel 10th Gen Processor
or Optional Intel XEON-W Processors and W480E PCH, 4x U.2 15mm
NVMe, Software RAID
Available Module：
•4L：4x LAN Ports
•4P：4x LAN PoE Ports
•8L：8x LAN Ports
•8P：8x LAN PoE Ports
•D10G：2x 10Gb Ports
•4U3：4x USB 3.2 Gen 1 Ports
•8U3：8x USB 3.2 Gen 1 Ports
•5G：2x 5G SIM Slots
RCO-6000-CML-4NH AI Edge Inference Computer With LGA 1200 for Intel 10th Gen Processor or
Optional Intel XEON-W Processors and W480E PCH, 4x U.2 15mm NVMe,
Hardware RAID
Available Module：
•4L：4x LAN Ports
•4P：4x LAN PoE Ports
•8L：8x LAN Ports
•8P：8x LAN PoE Ports
•D10G：2x 10Gb Ports
•4U3：4x USB 3.2 Gen 1 Ports
•8U3：8x USB 3.2 Gen 1 Ports
•5G：2x 5G SIM Slots
RCO-6000-CML-8NS AI Edge Inference ComputerWith LGA 1200 for Intel 10th Gen Processor
or Optional Intel XEON-W Processors and W480E PCH, Flash Storage 8x
U.2 NVMe Bay, 1x PCIe X4 (1-Lane) Expansion
Available Module：
•4L：4x LAN Ports
•4P：4x LAN PoE Ports
•8L：8x LAN Ports
•8P：8x LAN PoE Ports
•D10G：2x 10Gb Ports
•4U3：4x USB 3.2 Gen 1 Ports
•8U3：8x USB 3.2 Gen 1 Ports
•5G：2x 5G SIM Slots
RCO-6000-CML-2N-2060S AI Edge Inference Computer With LGA 1200 for Intel 10th Gen Processor
or Optional Intel XEON-W Processors and W480E PCH, 2 Bay U.2 15mm,
RTX 2060S Integrated
Available Module：
•4L：4x LAN Ports
•4P：4x LAN PoE Ports
•8L：8x LAN Ports
•8P：8x LAN PoE Ports
•D10G：2x 10Gb Ports
•4U3：4x USB 3.2 Gen 1 Ports
•8U3：8x USB 3.2 Gen 1 Ports
•5G：2x 5G SIM Slots
•4LM12：4x M12 LAN Ports
•4PM12：4x M12 LAN PoE Ports
•8LM12：8x M12 LAN Ports
•8PM12：8x M12 LAN PoE Ports
•4LM12：4x M12 LAN Ports
•4PM12：4x M12 LAN PoE Ports
•8LM12：8x M12 LAN Ports
•8PM12：8x M12 LAN PoE Ports
•4LM12：4x M12 LAN Ports
•4PM12：4x M12 LAN PoE Ports
•8LM12：8x M12 LAN Ports
•8PM12：8x M12 LAN PoE Ports
•4LM12：4x M12 LAN Ports
•4PM12：4x M12 LAN PoE Ports
•8LM12：8x M12 LAN Ports
•8PM12：8x M12 LAN PoE Ports

RCO-6000-CML l User’s Manual
10
Preface
Optional Accessories
Model No. Product Description
1-E09A12002 Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch
1-E09A22102 Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch
1-E09A22801 Adapter AC/DC 24V/11.67A 280W with 3pin Terminal Block Plug 5.0mm Pitch
999930 Power Cord, 3-pin US Type, 180cm
1-TPCD00002 Power Cord, European Type, 180cm
1-TPCD00001 Power Cord, 3-pin UK Type, 180cm
Model No. Product Description
RCO-6000-CML-4N-2060S AI Edge Inference Computer With LGA 1200 for Intel 10th Gen Processor
or Optional Intel XEON-W Processors and W480E PCH, 4x U.2 7mm, RTX
2060S Integrated
Available Module：
•4L：4x LAN Ports
•4P：4x LAN PoE Ports
•8L：8x LAN Ports
•8P：8x LAN PoE Ports
•D10G：2x 10Gb Ports
•4U3：4x USB 3.2 Gen 1 Ports
•8U3：8x USB 3.2 Gen 1 Ports
•5G：2x 5G SIM Slots
•4LM12：4x M12 LAN Ports
•4PM12：4x M12 LAN PoE Ports
•8LM12：8x M12 LAN Ports
•8PM12：8x M12 LAN PoE Ports

Chapter 1
Product Introductions

RCO-6000-CML l User’s Manual
1.1 Overview
The Superior Embedded Systems RCO-6000-CML series are designed with rich I/O, high flexibility and
easy expansion capabilities which are ideal for diverse industrial applications.Support 10th Gen. Intel®
Xeon® W-1290TE (4.5GHz, 10 Cores) / Intel® Xeon® W-1270TE (4.4GHz, 8 Cores) / Intel® Xeon® W-
1250TE (3.8GHz, 6 Cores) or Intel® Core™i9-10900E (4.7GHz, 10 Cores) / i9-10900TE (4.5GHz, 10
Cores) or i7-10700E (4.5GHz, 8 Cores) / i7-10700TE (4.4GHz, 8 Cores) or i5-10500T (4.2GHz, 6 Cores) /
i5-10500TE (3.7GHz, 6 Cores) or i3-10100T (3.8GHz, 4 Cores) / i3-10100TE (3.6GHz, 4 Cores) Desktop
processor, RCO-6000-CML Series is an extreme features integration, outstanding system performance,
versatile I/O connections, and rugged reliability fanless embedded systems. It offers dramatically
enhanced CPU and graphics performance, wide power and feature advanced features, rich connectivity
interfaces, wide range power input, and high reliability even operating in temperature extremes.
12
Chapter 1: Product Introductions

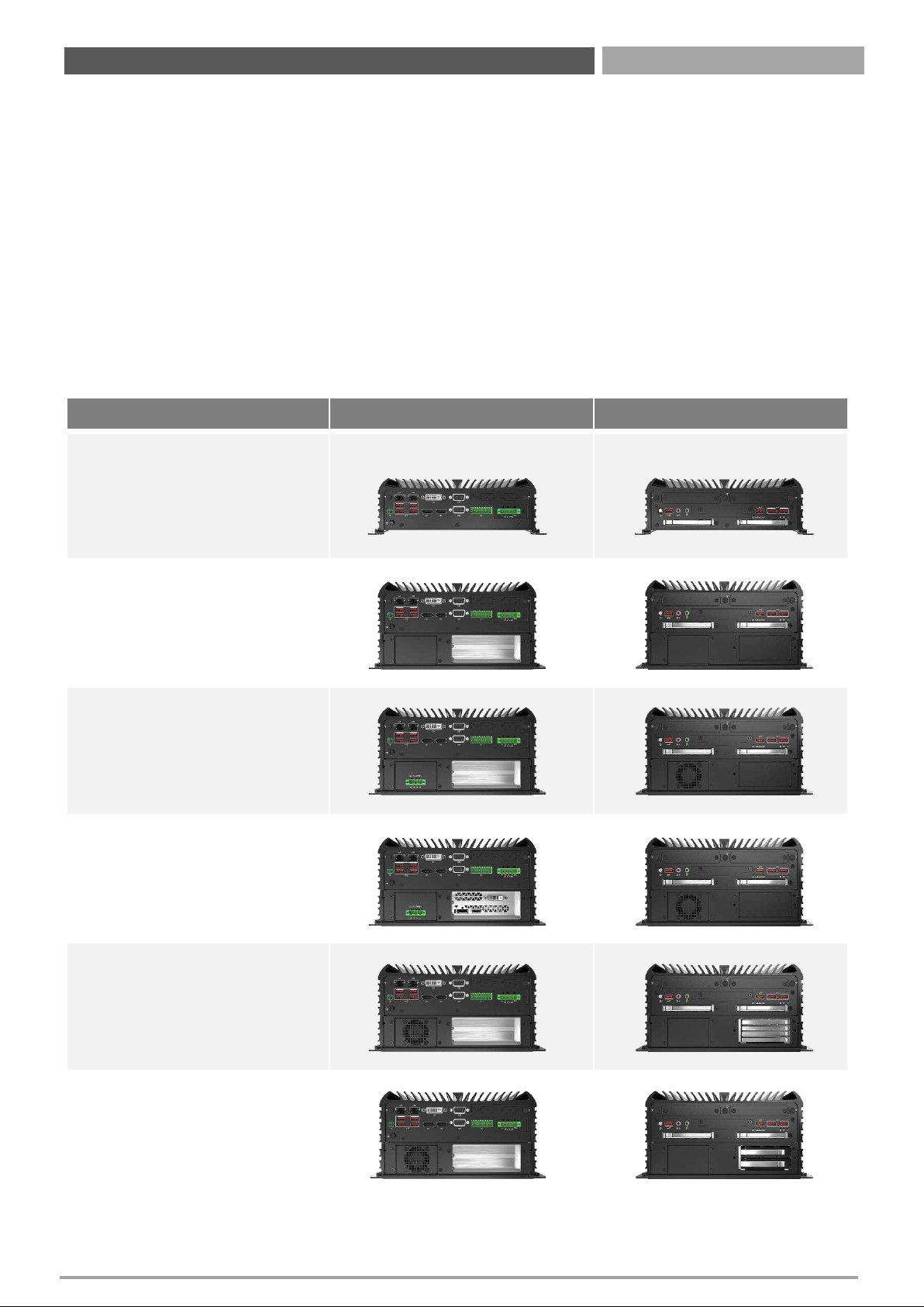

Model No. Rear Panel Front Panel
RCO-6000-CML
RCO-6000-CML-2C
(1x PCIe x16, 1x PCI)
RCO-6000-CML-2C-2PWR
(1x PCIe x16, 1x PCI, 2x Power input)
RCO-6000-CML-20-2060S
(RTX 2060 Super i ntegrated)
RCO-6000-CML-2C-4B7M
(1x PCIe x16, 1x PCI, 4 Bay 7mm)
RCO-6000-CML-2C-2B15M
(1x PCIe x16, 1x PCI, 2 Ba y 15mm)

RCO-6000-CML l User’s Manual
13
Chapter 1: Product Introductions

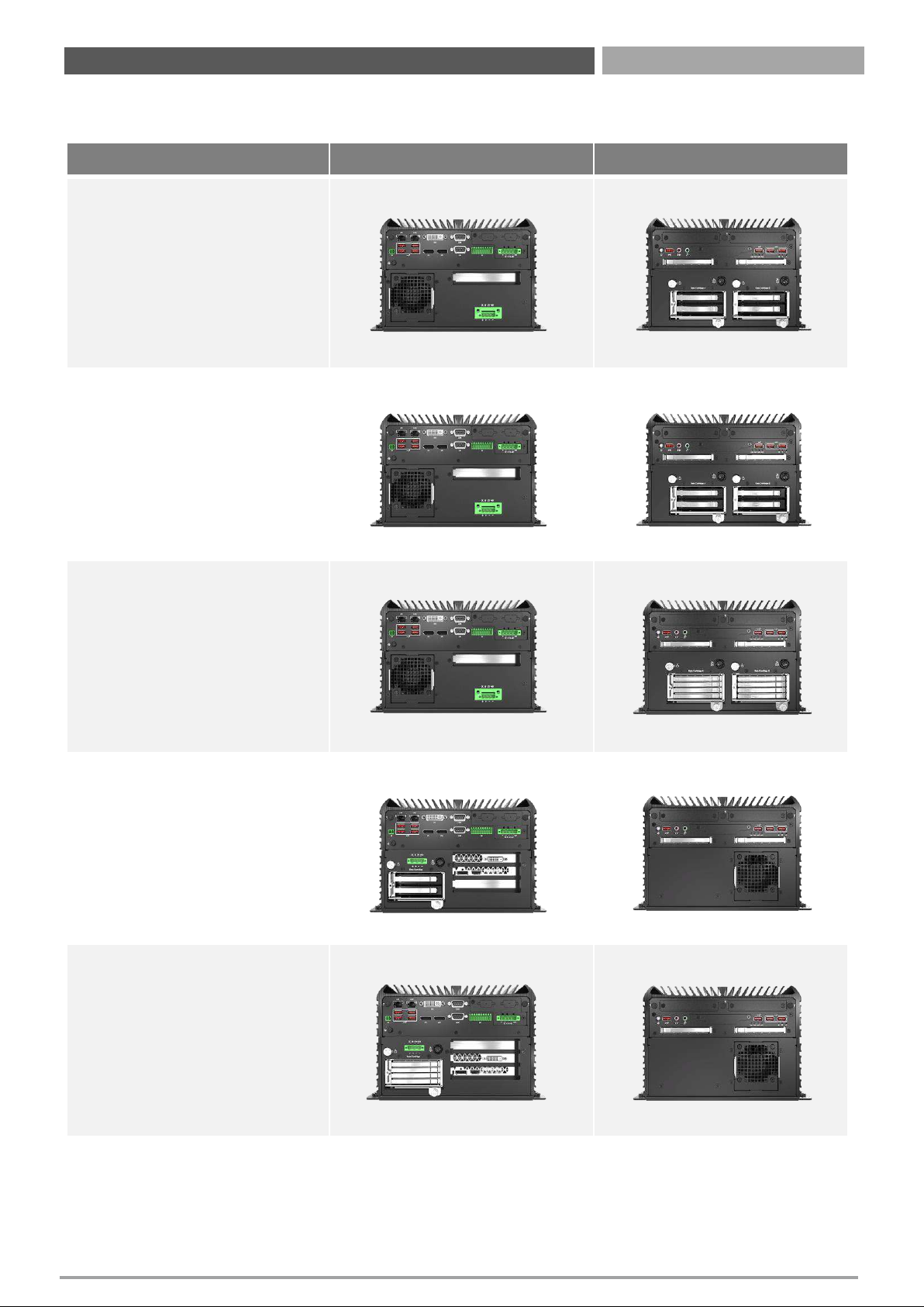

Model No. Rear Panel Front Panel
RCO-6000-CML-4NS
(4x U.2 15mm NVMe, Software RAID)
RCO-6000-CML-4NH
(4x U.2 15mm NVMe, Hardware RAID)
RCO-6000-CML-8NS
(8x U.2 NVMe Bay)
RCO-6000-CML-2N-2060S
(RTX 2060 Super integrated)
RCO-6000-CML-4N-2060S
(1x PCIe x16, 1x PCI, 4 Bay 7mm)

RCO-6000-CML l User’s Manual
14
1.1.1 Key Features
⚫LGA 1200 socket for 10th Gen. Intel® CML S Processor or Optional Intel XEON-W Processors
(65W/35W TDP)
⚫Intel® W480E chipset
⚫2x DDR4 2666/2933MHz SODIMM. Max. up to 64GB
⚫Triple Independent Display by 1x DVI-I and 2x DisplayPort
⚫2x Intel® GbE supporting Wake-on-LAN and PXE
⚫2x Full-size Mini PCIe for communication or expansion modules, 2x SIM socket
⚫3x 2.5” SATA HDD Bay (1x Internal) and with RAID 0, 1, 5 support
⚫1x M.2 (E Key, PCIe x1, USB 2.0, 2230, Support CNVi)
⚫8x RS-232/422/485 (6x internal), 6x USB 3.2 Gen 2, 3x USB 3.2 Gen 1 (1x internal)
⚫8x DI + 8x DO with isolation
⚫9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
⚫Wide Operating Temperature -25°C to 70°C (35W/65W CPU)
2060S Series：-25°C to 60°C (35W/65W CPU)
⚫TPM 2.0 Supported
Chapter 1: Product Introductions
Features Model No.
1x PCIe x16 and 1x PCI Expansion
•RCO-6000-CML-2C
•RCO-6000-CML-2C-2PWR
•RCO-6000-CML-2C-4B7M
•RCO-6000-CML-2C-2B15M
2x Power input •RCO-6000-CML-2C-2PWR
Storage Expansion:
4x 7mm Hot-swappabl e 2.5" SATA HDD/SSD Bay
Support RAID 0, 1, 5, 10
•RCO-6000-CML-2C-4B7M
Storage Expansion:
2x 15mm Hot-swappable 2.5" SATA HDD/SSD Bay
Support RAID 0, 1, 5, 10
•RCO-6000-CML-2C-2B15M
Storage Expansion:
2x Removable 2 Bay NVMe SSD Module (15mm)
with RAID 0, 1, 5, 10 support
•RCO-6000-CML-4NS
Storage Expansion:
2x Removable 2 Bay NVMe SSD Module (15mm)
with Hardware RAID 0, 1, 5, 6, 10 support
•RCO-6000-CML-4NH
Storage Expansion:
2x Removable 4 Bay NVMe SSD Module (7mm)
with RAID 0, 1, 5, 10 support
•RCO-6000-CML-8NS
RTX 2060 Super
•RCO-6000-CML-20-2060S
•RCO-6000-CML-2N-2060S
•RCO-6000-CML-4N-2060S

RCO-6000-CML l User’s Manual
15
1.2 Hardware Specification
Chapter 1: Product Introductions
System
Processor
Support 10th Gen Intel® CML S Processor (LGA 1200, 65W/35W TDP)
•Intel® Xeon® W-1290TE, 10 Cores , 20MB Cache, up to 4.5 GHz
•Intel® Xeon® W-1270TE, 8 Cores , 16MB Cache, up to 4.4 GHz
•Intel® Xeon® W-1250TE, 6 Cores , 12MB Cache, up to 3.8 GHz
•Intel® Core™i9-10900E, 10 Cores , 20MB Cache, up to 4.7 GHz
•Intel® Core™i9-10900TE, 10 Cores, 20MB Cache, up to 4.5 GHz
•Intel® Core™i7-10700E, 8 Core, 16MB Cache, up to 4.5 GHz
•Intel® Core™i7-10700TE, 8 Cores, 116MB ca che, up to 4.4 GHz
•Intel® Core™i5-10500T, 6 Cores, 12MB Cache, up to 4.2 GHz
•Intel® Core™i5-10500TE, 6 Core, 12MB Cache, 3.7 GHz
•Intel® Core™i3-10100T, 4 Cores, 6MB cache, up to 3.8 GHz
•Intel® Core™i3-10100TE, 4 Cores, 9MB Cache, up to 3.6 GHz
Sys tem
Chi pset
Intel® W480E Chipset
LAN Chipset GbE1: Intel I219 (Support Wake-on-LAN and
PXE)
GbE2: Intel I210 (Support Wake-on-LAN and
PXE)
Audi o Codec Realtek ALC888S
Sys tem
Memory
2x 260-Pin DDR4 2666 /2933MHz SODIMM.
Max. up to 64GB (ECC and Non-ECC)
Graphics Intel® UHD Graphics 630
BIOS AMI 256Mbi t SPI BIOS
Wa tchdog
Software Programmable Supports 1~255sec.
Sys tem Reset
TPM TPM 2.0
Display
Dis playPort 2x Di s playPort, support resolution 4096 x 2304,
DP++
DVI 1x DVI-I, support resolution 1920 x 1200
Multiple Display Triple Display
VGA Yes (by optional split ca ble)
Storage M.2 SIM Socket SSD/HDD
RCO-6000-CML
1x M.2 (E Key, PCIe
x1, USB 2.0, 2230,
Support CNVi)
2x External SIM s ocket (Mini
PCIE a ttached)
1x Internal 2.5" SATA/SSD HDD Bay (s upport
H=9mm),
2x Removable 2.5" SATA HDD Bay (support
H=7mm,
Hot-swappable),
Support RAID 0, 1, 5
RCO-6000-CML-2C
RCO-6000-CML-2C-2PWR
RCO-6000-CML-2C-4B7M 6x 7mm Hot-s wappable 2.5" SATA HDD/SSD
Bay, Support RAID 0, 1, 5, 10
RCO-6000-CML-2C-2B15M
2x 7mm, 2x 15mm Hot-swappable 2.5" SATA
HDD/SSD Bay
Support RAID 0, 1, 5, 10
RCO-6000-CML-2C-20-2060S
1x Internal 2.5" SATA/SSD HDD Bay (s upport
H=9mm),
2x Removable 2.5" SATA HDD Bay (support
H=7mm,
Hot-swappable),
Support RAID 0, 1, 5
Display (2060S Series Only)
Dis playPort 3x Dis playPort
DVI 1x DVI-I, 1x DVI-D
HDMI 1x HDMI
Multiple Display 6 Display i nterfaces

RCO-6000-CML l User’s Manual
16
Chapter 1: Product Introductions
Storage NVMe
RCO-6000-CML-4NS 2x Removable 2 Bay NVMe SSD Module (15mm) with RAID 0, 1, 5, 10 support
RCO-6000-CML-4NH 2x Removable 2 Bay NVMe SSD Module (15mm) with Hardware RAID 0, 1, 5, 6, 10 s upport
RCO-6000-CML-8NS 2x Removable 4 Bay NVMe SSD Module (7mm) with RAID 0, 1, 5, 10 support
RCO-6000-CML-2N-2060S 1x Removable Module with 2.5“ 2 Ba y U.2 NVMe SSD (15mm)
RCO-6000-CML-4N-2060S 1x Removable Module with 2.5“ 4 Ba y U.2 NVMe SSD (7mm)
Storage M.2 SIM Socket SSD/HDD
RCO-6000-CML-4NS
1x M.2 (E Key, PCIe
x1, USB 2.0, 2230,
Support CNVi)
2x External SIM s ocket (Mini
PCIE a tta ched)
1x Internal 2.5" SATA/SSD HDD Bay (s upport
H=9mm)
2x Removable 2.5" SATA HDD Bay (support
H=7mm, Hot-swappable)
RCO-6000-CML-4NH
RCO-6000-CML-8NS
RCO-6000-CML-2N-2060S
RCO-6000-CML-4N-2060S
Expansion
Mini PCIe 2x Full-size Mini PCIe
PCI & PCIe
•1x PCI a nd 1x PCIe x16：
Model No：RCO-6000-CML-2C Series
•2x PCI：
Model No：RCO-6000-CML-2I Series
•2x PCIe x16 (8-l a ne) ：
Model No：RCO-6000-CML-2E Series
Expansion Modules
Occupi ed One Universal I/O Slot:
•LAN/PoE orM12 LAN/PoE Modul e：
4-port GbE module with Intel® I350 Chipset, RJ-45 or M12 connector (PoE optional)
•D10G Modul e：
2-Port RJ45 10GbE with Intel X710 Chi pset
•USB Module：
4-Port USB wi th Renesas uPD720201K8 host controller (share PCIe Gen2 x1 bandwidth)
•5G Module：
1x M.2 for 5G (B Key, PCIe x1, USB 3.0, 3042/3052), Including 2x SIM socket,
1x SIM switch (1x UniversalSlot Only)

RCO-6000-CML l User’s Manual
17
Chapter 1: Product Introductions
Operating System
Wi ndows Windows 10
Linux Linux kernel
Power
Power Adapter
Opti onal AC/DC 24V/5A, 120W
Opti onal AC/DC 24V/9.2A, 220W
RCO-6000-CML-2PWR and RCO-6000-CML-20-2060S：
Opti onal AC/DC 24V/5A, 120W
Opti onal AC/DC 24V/9.2A, 220W
Opti onal AC/DC 24V/11.67A, 280W (For GPU/Card Expansion)
Power Mode AT, ATX
Power Ignition Sensing Power Ignition Management
Power Supply Voltage
RCO-6000-CML / RCO-6000-CML-2C / RCO-6000-CML-2C-4B7M：9~48VDC
RCO-6000-CML-2PWR / RCO-6000-CML-20-2060S / RCO-6000-CML-4NS / RCO-6000-CML-4NH / RCO-6000-
CML-8NS / RCO-6000-CML-2N-2060S / RCO-6000-CML-4N-2060S：
2x Power Input
•9~48VDC
•12~48VDC
Power Connector
RCO-6000-CML / RCO-6000-CML-2C / RCO-6000-CML-2C-4B7M：
5-pin Terminal Block
RCO-6000-CML-2C-2PWR / RCO-6000-CML-20-2060S：
5-pin Terminal Block and 4-pin Terminal Block for GPU Expansion
RCO-6000-CML-4NS / RCO-6000-CML-4NH / RCO-6000-CML-8NS：
5-pin Terminal Block and 4-pin Terminal Block for NVMe EDGEBoost Node (12V requires 4-pin terminal block)
RCO-6000-CML-2N-2060S / RCO-6000-CML-4N-2060S：
5-pin Terminal Block and 4-pin Terminal Block for GPU and NVMe EDGEBoost Node (12V requires 4-pin
termi nal block)
Power Protection
OVP (Over Voltage Protection);
OCP (Over Current Protection)
Reserve Protection
I/O
Audi o 1x Mic-i n, 1x Line-out
CAN 2x CAN 2.0 A/B 2-pin Internal header
COM 2x RS-232/422/485 ; 6x RS-232/422/485 (internal)
DIO 8 i n / 8 out (Isolated)
LAN 2x RJ45
Universal I/O Bracket 2x UniversalI/O Bracket (By mi ni PCIe interface)
USB 6x USB 3.2 Gen 2 (10 Gbps)
3x USB 3.2 Gen 1 (5 Gbps, 1x Internal)
2x USB 2.0 header (internal)
Others 5x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch,
1x Remote Power On/Off, 1x PC/Car Mode Switch,
1x Delay Time Switch, 1x Removable CMOS Battery
4x 4-Pin Power Connector, 1x 4-PIN FAN Connector

RCO-6000-CML l User’s Manual
18
Chapter 1: Product Introductions
Environment
Operating Temp. -25°C to 70°C (35W/65W CPU)
RCO-6000-CML-2C-20-2060S / RCO-6000-CML-2N-2060S / RCO-6000-CML-4N-2060S：
-25°C to 60°C (35W/65W CPU)
Storage Temp. -30°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Standards / Certification CE, FCC Class A
Vibration With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
RCO-6000-CML-20-2060S & RCO-6000-CML-2C-2PWR / RCO-6000-CML-2N-2060S / RCO-
6000-CML-4N-2060S / RCO-6000-CML-4NS / RCO-6000-CML-4NH / RCO-6000-CML-8NS：
With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 50G, half sine, 11ms
RCO-6000-CML-20-2060S & RCO-6000-CML-2C-2PWR / RCO-6000-CML-2N-2060S / RCO-
6000-CML-4N-2060S / RCO-6000-CML-4NS / RCO-6000-CML-4NH / RCO-6000-CML-8NS：
With SSD: 20G, half sine, 11ms
Physical
Construction Extruded Aluminum with Heavy Duty Metal
Dimension •RCO-6000-CML：
240 (W) x 261 (D) x 79.2 (H) mm
•RCO-6000-CML-2C, RCO-6000-CML-2C-4B7M, RCO-6000-CML-2C-2PWR, RCO-6000-CML-20-
2060S：
240 (W) x 261 (D) x 127.3 (H) mm
•RCO-6000-CML-2N-2060S / RCO-6000-CML-4N-2060S / RCO-6000-CML-4NS / RCO-6000-CML-
4NH / RCO-6000-CML-8NS：
240 (W) x 261 (D) x 167.4 (H) mm
Weight •RCO-6000-CML：3.1~3.5 kg
•RCO-6000-CML-2C：5.6 kg
•RCO-6000-CML-2C-2PWR：5.6 kg
•RCO-6000-CML-2C-4B7M：3.1~3.5 kg
•RCO-6000-CML-2C-20-2060S：6.2 kg
•RCO-6000-CML-2N-2060S：11.1 kg
•RCO-6000-CML-4N-2060S：11.1 kg
•RCO-6000-CML-4NH：10.2 kg
•RCO-6000-CML-4NS：10.2 kg
•RCO-6000-CML-8NS：10.1 kg
Mounting Wall Mounting
* For 10th Gen Intel CPUs configured to run a t 65W, operating temperatures will be limited to 60°C ~ 70°C.
** 65W CPUS may experience thermal throttling depending on extreme application workloads; thisi s also due to anincrease i n the physical
CPU cores fromthe Intel silicon (up to 10 cores). Please note, this does not indicate systemmalfunction or problems in the fanless design.
Please consult our embedded engineers for the best configuration to match your application requirements.
*** All s pecifications and photos are subject to change without notice.

RCO-6000-CML l User’s Manual
19
1.3 System I/O
1.3.1 RCO-6000-CML
Chapter 1: Product Introductions
ATX power on/off switch
Press to power-on or power-off the system
Power LED
Indicates the power status of the system
HDD LED
Indicates the status of the hard drive
Antenna hole
Used to connect an antenna for optional Mini-
PCIe WiFi module
USB 3.2 Gen 2 port (10 Gbps)
Used to connect USB 3.2 device
USB 3.2 Gen 1 port (5 Gbps)
Used to connect USB 3.2 device
Removable HDD
Removable 2.5" SATA HDD Bay
(support H=7mm, hot-swappable)
Support RAID 0, 1, 5
AT/ATX mode select switch
Used to select AT or ATX power mode
Clear CMOS
Used to clear CMOS
SIM card
Used to insert SIM card
Line-out
Used to connect a speaker
Mic-in
Used to connect a microphone
Remote Power on/off Terminal Block
Used to plug a remote power on/off terminal
block
Car Mode Delay time select switch
Used to select car mode PC turn off delay time
PC/Car mode select switch
Used to select PC or Car mode
Universal I/O bracket (optional)
Used to customized I/O output
•5G Module: 2x 5G SIM Slot
(Support 1x Universal Slot Only)
•D10G Module: 2x 10Gb Ports
•LAN/PoE Module: 4x RJ45 LAN/PoE Ports
•M12 Module: 4x M12 LAN/PoE Ports
•USB Module: 4x USB 3.2 Gen 1 Ports
Front Panel

RCO-6000-CML l User’s Manual
20
Chapter 1: Product Introductions
DVI-I port
Used to connect a DVI monitor or connect
optional split cable for dual display mode
Digital I/O Terminal Block
The Digital I/O terminal block supports 8 digital
input and 8 digital output
DisplayPort
Used to connect a DisplayPort monitor
COM port
COM1 ~ COM2 support RS232/422/485 serial
device
USB 3.2 Gen 2 port (10 Gbps)
Used to connect USB 3.2 device
LAN port
Used to connect the system to a local area
network
Antenna hole
Used to connect an antenna for optional Mini-
PCIe WiFi module
DC IN
Used to plug a DC power input with terminal
block
Rear Panel
RCO-6000-CML
