Welcome to the world of the new generation of CB
radios. The new PRESIDENT range gives you access to
topperformanceCBequipment.Withthe useof up-to-
date technology, which guarantees unprecedented
quality, your PRESIDENT BILL II FCC is a new step in
personal communication and is the surest choice for
the most demanding of professional CB radio users.
To ensure that you make the most of all its capacities,
we advise you to read carefully this manual before
installing and using your PRESIDENT BILL II FCC.
A) INSTALLATION
1) WHERE AND HOW TO MOUNT YOUR MOBILE CB
RADIO
a) You should choose the most appropriate setting from a
simple and practical point of view.
b) Your CB radio should not interfere with the driver or the
passengers.
c) Remember to provide for the passing and protection of
different wires (e.g. power, antenna, accessory cabling)
so that they do not in any way interfere with the driving
of the vehicle.
Mounting with the cradle (diagram 1)
d) To install your equipment, use the cradle (1) and the
self-tapping screws [2] provided (drilling diameter 3.2
mm). Take care not to damage the vehicle’s electrical
system while drilling the dash board.
e) Do not forget to insert the rubber joints (3) between the
CB and its support as these have a shock-absorbing
effect which permits gentle orientation and tightening
of the set.
f) Choose where to place the microphone support and
remember that the microphone cord must stretch to the
driver without interfering with the controls of the vehicle.
Diagram 1
English
Mounting diagram

6
Mounting with the quick fixation clip (diagram 2)
d) To install your equipment,
use the quick fixation clip
(1) and the self-tapping
screws[2]provided(drilling
diameter 3.2 mm). Take
care not to damage the
vehicle’s electrical system
while drilling the dash
board.
e) Choose where to place
the microphone support
and remember that the
microphone cord must
stretchtothedriverwithout
interferingwith the controls
of the vehicle.
f) Slide the unit into the slide
of the support and fix it by
clipping the side tabs into
the notches of the CB (3).
- Note: As the transceiver
has a frontal microphone
socket, it can be set into
the dash board. In this case, you will need to add an
external loud speaker to improve the sound quality of
communications(connector EXT.SPsituated ontheback
panel: C). Ask your dealer for advice on mounting your
CB radio.
2) ANTENNA INSTALLATION
a) Choosing your antenna
- ForCBradios, thelongerthe antenna, thebetterits results.
Your dealer will be able to help you with your choice of
antenna.
b) Mobile antenna
- Must be fixed to the vehicle where there is a maximum of
metallic surface (ground plane), away from windscreen
mountings.
- Ifyou alreadyhave aradio-telephoneantenna installed,
the CB antenna should be higher than this.
- There are two types of antenna: pre-regulated which
should be used on a good ground plane (e.g. car roof
or lid of the boot), and adjustable which offer a much
larger range and can be used on a smaller ground plane
(see § ADJUSTMENT OF SWR page 7).
- For an antenna which must be fixed by drilling, you will
need a good contact between the antenna and the
ground plane. To obtain this, you should lightly scratch
the surface where the screw and tightening star are to
be placed.
- Be careful not to pinch or flatten the coaxial cable (as
this runs the risk of break down and/or short-circuiting).
- Connect the antenna (B).
Output radius pattern
Diagram 2
English

7
c) Fixed antenna
- A fixed antenna should be installed in a clear space as
possible. If it is fixed to a mast, it will perhaps be neces-
sary to stay it, according to the laws in force (you should
seek professional advice). All PRESIDENT antennas and
accessories are designed to give maximum efficiency
to each CB radio within the range.
3) POWER CONNECTION
Your PRESIDENTBILLIIFCCisprotectedagainst aninversion
of polarities. However, before switching it on, you are
advised to check all the connections. Your equipment
must be supplied with a continued current of 12 volts (A).
Today, most cars and trucks are negative ground. You
can check this by making sure that the negative terminal
(-) of the battery is connected either to the engine block
or to the chassis. If this is not the case, you should consult
your dealer.
WARNING: Trucks generally have two batteries and an
electrical installation of 24 volts, in which case it will
be necessary to insert a 24/12 volt converter (type CV
24/12 PRESIDENT) into the electrical circuit. The following
connection steps should be carried out with the power
cable disconnected from the set.

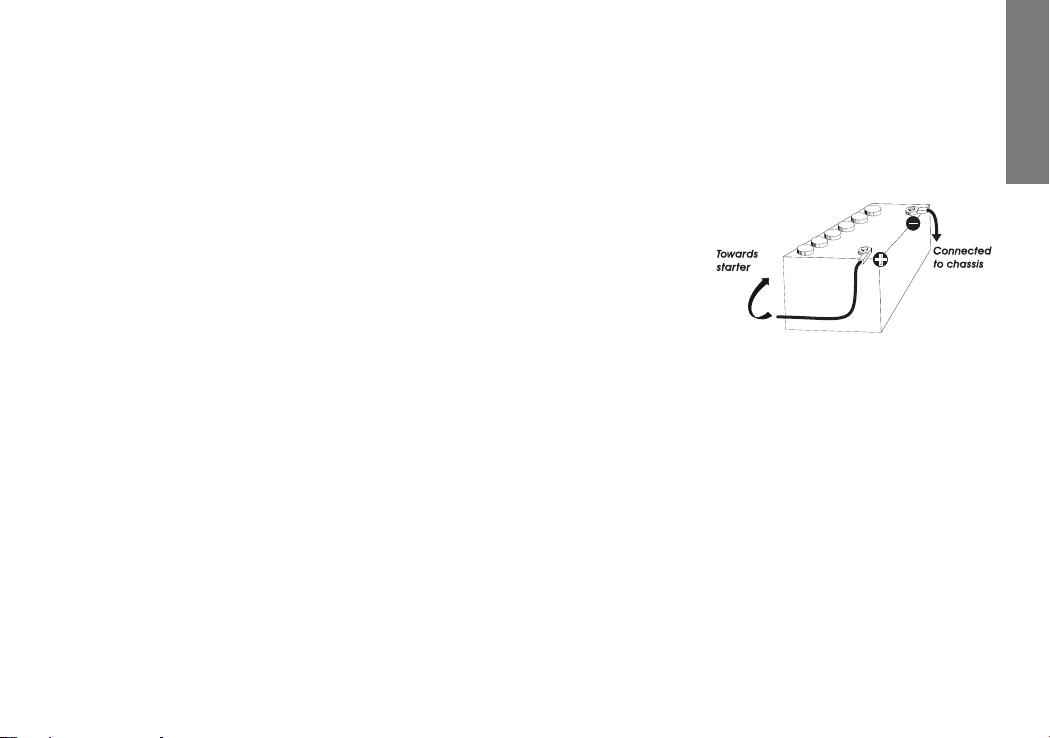

a) Check that the battery is of 12 volts.
b) Locatethe positiveandnegative terminals of thebattery
(+isred and-is black).Should itbe necessary tolengthen
the power cable, you should use the same or a superior
type of cable.
c) Itis necessarytoconnect your CBtoa permanent (+)and
(-). We advise you to connect the power cable directly
to the battery (as the connection of the CB cable to
the wiring of the car-radio or other parts of the electrical
circuit may, in some cases, increase the likelihood of
interference).
d) Connect the red wire (+) to the positive terminal of the
battery and the black (-) wire to the negative terminal
of the battery.
e) Connect the
power cable to
your CB radio.
WARNING: Never
replace the orig-
inal fuse by one
of a different
value.
4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE
USING YOUR SET FOR THE FIRST TIME (without trans-
mitting and without using the «push-to-talk» switch
on the microphone)
a) Connect the microphone,
b) Check the antenna connections,
c) Turn the set on by turning the volume knob VOL (1)
clockwise,
d) Turn the squelch SQ knob (2) to minimum (Mposition),
e) Adjust the volume to a comfortable level,
f) Go to channel 20 using either s/tkeys (3) on the unit
or the UP/DN keys (3) on the microphone.
5) ADJUSTMENT OF SWR (Standing wave ratio)
WARNING: This must be carried out when you use your
English

8
CB radio for the first time (and whenever you re-position
your antenna). The adjustment must be carried out in an
obstacle-free area.
* Adjustment with external SWR-meter (e.g. TOS-1 PRESI-
DENT)
a) To connect the SWR meter
- Connect the SWR meter between the CB radio and the
antenna as close as possible to the CB (use a maximum
of 15.75” / 40 cm cable, type President CA-2C).
b) To adjust the SWR meter
- Set the CB on channel 20.
- Put the switch on the SWR-meter to position FWD (cali-
bration).
- Press the «push-to-talk» switch on the microphone (11)
to transmit.
- Bring the index needle to tby using the calibration key.
- Change the switch to position REF (reading of the SWR
level). The reading on the Meter should be as near as
possible to 1. If this is not the case, re-adjust your antenna
to obtain a reading as close as possible to 1. (An SWR
reading between 1 and 1.8 is acceptable).
- It will be necessary to re-calibrate the SWR meter after
each adjustment of the antenna.
WARNING: In order to avoid any losses and attenuations
in cables used for connection between the radio and
its accessories, PRESIDENT recommends to use a cable
with a length less than 118.11” / 3 m.
Your CB is now ready for use.
B) HOW TO USE YOUR CB
1) ON/OFF - VOLUME
a) To turn the set on, turn the VOL knob (1) clockwise.
If the KEY BEEP function is activated, 4 tones sound when
you turn the CB radio on.
Note: On power up, in order to inform the user, the pro-
grammed microphone type is displayed for 2 seconds
(consult the menu MIC TYPE page 14).
See FUNCTIONS TURNING ON THE UNIT on page 12.
b) To increase the sound level, turn the same knob further
clockwise.
2) ASC (Automatic Squelch Control) / SQUELCH
Suppresses undesirable background noises when there
is no communication. Squelch does not affect neither
sound nor transmission power, but allows a considerable
improvement in listening comfort.
a) ASC: AUTOMATIC SQUELCH CONTROL
Worldwide patent, a PRESIDENT exclusivity
Turn the SQ knob (2) anti-clockwise into ASC position. «AS
appearson thedisplay.No repetitive manualadjustment
and a permanent improvement between the sensitivity
andthelistening comfortwhenASCis active.Thisfunction
can be disconnected by turning the switch clockwise.
In this case the squelch adjustment becomes manual
again. SC» disappears on the display.
b) MANUAL SQUELCH
Turn the SQ knob (2) clockwise to the exact point where
English

9
all background noises disappear. This adjustment should
be done with precision as, if set to maximum (fully clock-
wise), only the strongest signals will be received.
3) CHANNEL SELECTOR ~ SCAN
CHANNEL SELECTOR: s/tkeys on the unit and
UP/DN keys on the microphone (short press)
The LCD display rotates on a horizontal axis. Press the
upper display sor the UP (3) key on the microphone to
increase a channel. Press the lower display tor the DN
(3) key on the microphone to decrease a channel.
A beep sounds each time the channel changes if the
KEY BEEP function is activated. See KEY BEEP function
page 13.
SCAN (very long press)
To activate the SCAN function, press until a beep sounds
(see KEY BEEP function page 13) or “SCAN” appears
on the display. Press the skey (3) on the LCD display or
the UP key (3) on the microphone to scan in increasing
order. Press the t(3) key on the LCD display or the DN
key (3) on the microphone to scan in decreasing order.
Thescanning stopsas soonasthere isa busychannel.The
scanning automatically starts 5 seconds after the end of
the transmission and no key is activated during 5 s. The
scan also restarts in increasing order with the s/UP (3)
keys, or in decreasing order with the t/ DN (3) keys.
When the SCAN function is activated, “SCAN” blinks on
the display.
See the § SKIP page 11.
CB channel scan
In CB mode (see § CB/WEATHER CHANNEL page 10),
the 40 CB channels are scanned.
Press the PTT switch (11) to deactivate the CB SCAN
function. “SCAN” disappears on the display.
Weather channel scan
In WX mode (see § CB/WEATHER CHANNEL page 10),
the 7 WX channels are scanned.
Press the EMG key (8) for 1 second to deactivate the WX
SCAN function. “SCAN” disappears on the display.
Note: The weather channel SCAN can run in the back-
ground while using the CB.

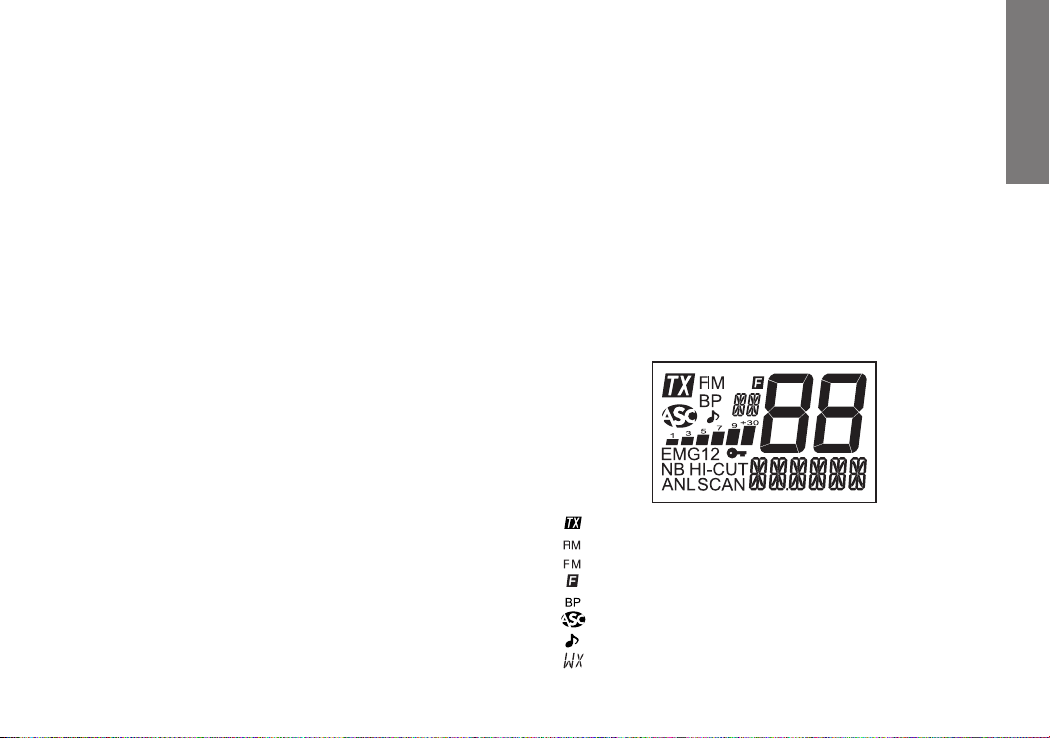

4) DISPLAY
It shows all functions:
Indicates transmission
AM mode selected
FM mode selected
MENU mode activated
KEY BEEP function activated
Automatic Squelch Control activated
ROGER BEEP function activated
Weather channel mode is activated
English
} messages part

10
The channel is stored on the memory scan skip
Indicatesthereception levelandtheoutput power
level
Emergency channel 1 (customizable) is activated
Emergency channel 2 (customizable) is activated
KEY LOCK function is activated
NB filter is activated
HI-CUT filter is activated
ANL filter is activated
SCAN function is activated
Indicates the frequency, the current menu, for
Alert or the messages
Indicates current channel
5) CB/WX (WEATHER CHANNEL) ~ ALERT
CB/WX (WEATHER CHANNEL) (short press)
CB functions are not allowed in WX mode. If user presses
a not allowed key and KEY BEEP function is activated,
the radio sounds error tone.
Press the CB/WX key (5) to alternate between CB and
WX mode. When WX mode is activated, “”appears
on the display.
The WX mode allows to hear weather information. When
the mode is activated, use the s/tkeys (3) on the unit
or the UP/DN keys on the microphone to move through
the 7 weather channels to find the active channel in your
local area (see WEATHER FREQUENCY TABLE page 71).
The display shows the selected weather channel and if
the unit receives a signal, “ ” and “ ” icons blink.
ALERT (long press)
TheSIREN toneonly sounds inCB mode. Itdoes notsound
in WX mode.
Long press the ALERT key (7), in order to activate/deac-
tivate the ALERT function. When the function is activat-
ed, is displayed. If a tone is detected at the selected
weather channel, then the unit sounds SIREN tone. The
unit cancel CB mode and go to WX mode.
During a SIREN tone sound, press PTT key (11) to stop the
sound.
6) ANL/NB ~ HI-CUT ~ SKIP
ANL/NB (short press)
A short press on the ANL/NB key (6) allows you to activate
the following settings: no filter (default) / ANL activated
/ ANL and NB activated.
The icon of the active filter appears on the display.
NB: Noise Blanker / ANL: Automatic Noise Limiter. These
filters allow reducing back ground noises and some
reception interferences.
Warning: ANL filter works only in AM mode
HI-CUT (long press)
Long press the HI-CUT key (6) to activate/deactivate the
HI-CUT filter. When the filter is activated “HI-CUT”appears
on the display.
HI-CUT:Cutsoutthehigh frequency interferencesandhas
to be used in accordance with the reception conditions.
When active, the filter is displayed on display.
English

11
SKIP (long press only if the SCAN function is activated)
This function allows you to skip a channel found by the
SCAN function. When the scan stops on an unwanted
channel, press and hold the ANL/NB key (6) for 1 second
to store this channel in the SCAN SKIP memory. A beep
sounds. The channel will no longer be scanned. See the
§ SCAN page 9.
Consult the SCAN SKIP menu page 15.
7) AM/FM ~ VOX SET
AM/FM (short press)
This key allows you to select the modulation mode (AM
or FM). Your modulation mode has to correspond to
the one of your correspondent. Corresponding mode
appears on the display.
- Amplitude Modulation / AM: communication on a field
with relief and obstacles at middle distance (the most
used).
- Frequency Modulation / FM: for nearby communications
on a flat open field.
VOX SET (long press)
Three parameters allow to adjust the VOX function:
Sensitivity: / Anti-vox level: / Vox delay time:
.
Long press the VOX key (7) to enter in the VOX Adjustment
function. The message show the current parameter : ,
or .
1. Press then VOX key (7) to select the next parameter or...
2. Press the UP/DN key on the microphone or the s/tkey
(3) on the unit to change the value of the parameter.
3. Once the settings done, press the PTT switch (11) to save
and exit the VOX Adjustment mode. If no adjustment
is made for 5 seconds, the unit automatically exits the
mode without saving.
- Sensitivity “” : allows the adjustment of the microphone
(original one or optional vox) for an optimum transmission quality.
Adjustable level from1(high level) to 9(low level).Default value:
2.
- Anti-Vox “”: allows disabling the transmission generated
by the surrounding noise. The level is adjustable. OF (according
the squelch level) and from 0(without anti-vox) to 9(low level).
Default value: Of.
- Delay time “”: allows avoiding the sudden cut of the trans-
mission by adding a delay at the end of speaking. The level is
adjustable from 1 (short delay) to 9 (long delay). Default value:
1.
The Vox Adjustment does not automatically active the
VOX function.
See the § VOX on page 12 to activate/deactivate the
VOX function.
8) EMG (short press)
An emergency channel is selected by pressing the EMG
Key (8).The unit returns to CB mode (see § CB/WX page
10). First short press to call the first emergency custo-
misable channel (or the default channel 9 AM). “ ”
appears on the display. Second short press to call the
secondemergencycustomisablechannel(or thedefault
channel 19 AM). “ ” appears on the display. Third
English

12
short press to go back to the current channel. “EMG...”
disappears on the display.
Consult the menu EMG SETTING on page 14
7 + 8) KEY LOCK (simultaneous short press)
Press and hold simultaneously the VOX key (7) and the
EMG (8) key (5) to lock/unlock then unit. “ ” appears
on the display when the function is on.
Note: The PTT switch (11) remains enable while the unit is
locked.
9) USB CHARGING SOCKET
The USB socket (9) can be used to charge a smartphone,
tablet or other rechargeable device with 5 V - 2.1 A.
10)6 PIN MICROPHONE PLUG
The plug is located on the front panel of the transceiver
and makes the setting of the equipment into the dash-
board easier. The BILL II FCC accepts electret or dynamic
microphone (consult the menu MIC TYPE page 14).
See cabling diagram page 72.
11)PTT (Push To Talk)
Transmission key, press PTT switch to transmit a message,
is displayed and release to listen to an incoming
communication.
TOT (Time Out Timer)
Ifthe PTT switch(11)key ispressedfor morethan3minutes,
the display starts blinking and the transmission ends.
A beep will sound until the PTT switch (11) key is released.
C) FUNCTION WITH THE PTT SWITCH
1) VOX
Press and hold then PTT switch (11) and then press the
VOX key (7) to activate/deactivate the VOX function.
“VOX” appears on the display when the function is on.
See the § VOX SET page 11.
D) FUNCTION TURNING ON THE UNIT
1) ENTER MENU
The order of the 8 menu, , , , ,
, , and is as described in this
manual. However, the menu displayed by entering the
MENU will be the last menu modified by user.
The procedure is the same whatever the function is.
1. Turn off the unit.
2. Turn on the radio while pressing the AM/FM key (7). is
displayed.
3. Use s/tkey (3) on the unit or UP/DN buttons on the
microphone (3) to select the menu.
4. Press the AM/FM key (7) to validate the selected menu.
If the function have more than 1 parameter press the
AM/FM (7) key to select the next parameter...
5. Use s/tkey (3) on the unit or UP/DN key (3) on the
microphone to change the value of the parameter.
6. Press the AM/FM key (7) to confirm and select another
menu or press the PTT switch (11) to confirm and exit
menu.
7. The unit automatically exits the menu after 10 seconds.
English

13
When the function is activated, “ ” is displayed.
6. Press the AM/FM key (7) to confirm and select another
menu or press the PTT switch (11) to confirm and exit.
7. The unit automatically exits the menu after 10 seconds.
The default key beep value is ON.
3) ROGER BEEP (short press)
The ROGER BEEP sounds when the PTT switch (11) of the
microphoneisreleased inordertolet yourcorrespondent
speak. Historically as CB is a “simplex” communication
mode, it is not possible to speak and listen at the same
time (as it is the case with a telephone). “Once the con-
versation was over, “Roger” was said in order to indicate
“received” or “message understood”. The word “Roger”
has been replaced by a significant beep. That is where
the words “Roger beep” comes from.
1. Turn off the unit.
2. Turn on the radio while pressing the AM/FM key (7). is
displayed.
3. Use s/tkey (3) on the unit or UP/DN buttons on the
microphone (3) to select the menu.
4. Press the AM/FM key (7) to validate.
5. Use s/tkey (3) on the unit or UP/DN key (3) on the
microphone to activate (1 to 6*) / Deactivate (OF) the
function.Whenthe functionisactivated,“ ”is displayed.
6. Press the AM/FM key (7) to confirm and select another
menu or press the PTT switch (11) to confirm and exit.
7. The unit automatically exits the menu after 10 seconds.
*6 tones are available for the ROGER BEEP function.
The default roger beep value is OF.
E) MENU

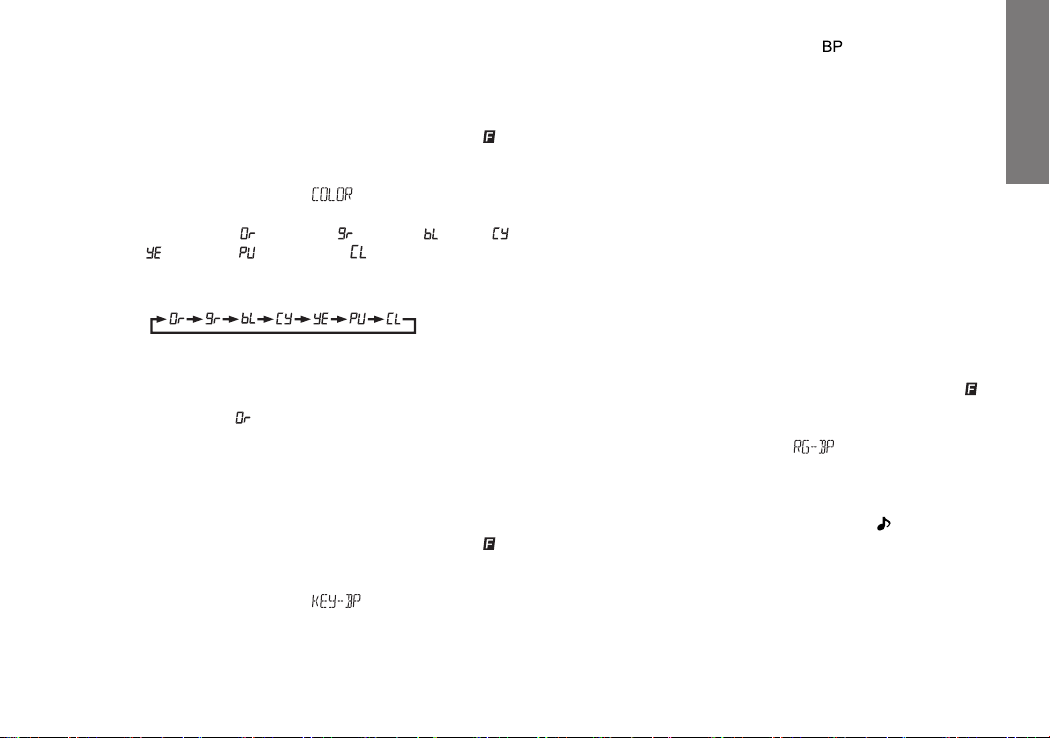

1) COLOR
1. Turn off the unit.
2. Turn on the radio while pressing the AM/FM key (7). is
displayed.
3. Use s/tkey (3) on the unit or UP/DN buttons on the
microphone (3) to select the menu.
4. Press then AM/FM key (7) to validate. The current color
symbol is displayed: (orange), (green), (blue),
(cyan), (yellow), (purple), or (cyan light).
5. Use s/tkey (3) on the unit or UP/DN key (3) on the
microphone to change the color.
6. Press the AM/FM key (7) to confirm and select another
menu or press the PTT switch (11) to confirm and exit.
7. The unit automatically exits the menu after 10 seconds.
The default color is .
2) KEY BEEP
Some operations such as changing channels, pressure
on keys etc. are confirmed by a beep tone.
1. Turn off the unit.
2. Turn on the radio while pressing the AM/FM key (7). is
displayed.
3. Use s/tkey (3) on the unit or UP/DN buttons on the
microphone (3) to select the menu.
4. Press the AM/FM key (7) to validate.
5. Use s/tkey (3) on the unit or UP/DN key (3) on the mi-
crophoneto activate(On) /Deactivate (OF)the function.
English

14
4) EMG SETTING
Priority channels can be assigned to any channel. To
define new emergency channel:
1. Turn off the unit.
2. Turn on the radio while pressing the AM/FM key (7). is
displayed.
3. Use s/tkey (3) on the unit or UP/DN buttons on the
microphone (3) to select the menu. is dis-
played (the “1” blinks).
4a. Press the AM/FM key (7) to validate (the channel blinks)
or...
4b. Use s/tkey (3) on the unit or UP/DN buttons on the
microphone (3) to select (the “2” blinks).
5. Press the AM/FM key (7) to validate or . The
channel blinks on the display.
6. Use s/tkey (3) on the unit or UP/DN key (3) on the
microphone to select the channel.
7. Press the AM/FM key (7) to validate the channel. The
modulation mode (AM or FM) blinks on the display.
8. Use s/tkey (3) on the unit or UP/DN key (3) on the
microphone to select the modulation mode.
9. Press the AM/FM key (7) to confirm and select another
menu or press the PTT switch (11) to confirm and exit.
10. The unit automatically exits the menu after 10 seconds.
The default priority channels are channel 9AM ( )
and channel 19 AM ( ).
See the § EMG page 11.
5) MIC TYPE
The BILL II FCC accepts 6-pin PRESIDENT electret or dy-
namic microphone.
1. Turn off the unit.
2. Turn on the radio while pressing the AM/FM key (7). is
displayed.
3. Use s/tkey (3) on the unit or UP/DN buttons on the
microphone (3) to select the menu.
4. Press the AM/FM key (7) to validate.
5. Use s/tkey (3) on the unit or UP/DN key (3) on the
microphone to alternate between EL (electret) or dY
(Dynamic).
6. Press the AM/FM key (7) to confirm and select another
menu or press the PTT switch (11) to confirm and exit.
7. The unit automatically exits the menu after 10 seconds.
Note: On power up, in order to inform the user, the pro-
grammed microphone type is displayed for 2 seconds
(see § ON/OFF page 8).
The default type of microphone is EL.
6) ACCESSORY VOLUME
This function allows you to control the volume of the unit
and an accessory plugged on the 6-pin plug (accessory
available soon).
1. Turn off the unit.
2. Turn on the radio while pressing the AM/FM key (7). is
displayed.
3. Use s/tkey (3) on the unit or UP/DN buttons on the
microphone (3) to select the menu.
4. Press the AM/FM key (7) to validate.
5. Use s/tkey (3) on the unit or UP/DN key (3) on the
microphone to select 0, 1or 2.
6. Press the AM/FM key (7) to confirm and select another
menu or press the PTT switch (11) to confirm and exit.
English

15
7. The unit automatically exits the menu after 10 seconds.
0- the volume knob (1) affects the internal speaker volume.
1- the volume knob (1) affect the accessory volume
2- the volume knob (1) affects both the internal speaker
and accessory volume.
Default accessory volume is 0.
7) SCAN SKIP
This function allows to memorize/erase a channel form
the SCAN SKIP memory.
First Select then channel to be set.
1. Turn off the unit.
2. Turn on the radio while pressing the AM/FM key (7). is
displayed.
3. Use s/tkey (3) on the unit or UP/DN buttons on the
microphone (3) to select the menu.
4. Press the AM/FM key (7) to validate the menu.
5. Use s/tkey (3) on the unit or UP/DN key (3) on the
microphone to alternate between On and OF.
6. Press the AM/FM key (7) to confirm and select another
menu or press the PTT switch (11) to confirm and exit.
7. The unit automatically exits the menu after 10 seconds.
On memorize the current channel into the SCAN SKIP
memory. When a channel is stored in the memory,
appears on the display close to the channel number.
OF erasethecurrentchannelfrom theSCANSKIPmemory,
disappears from the display. See the § SKIP on page
11.
Consult the RESET menu.
English
8) RESET
Erase the scan skip memory or restore all factory settings.
1. Turn off the unit.
2. Turn on the radio while pressing the AM/FM key (7). is
displayed.
3. Use s/tkey (3) on the unit or UP/DN buttons on the
microphone (3) to select the menu .
4. Press the AM/FM key (7) to validate.
5. Use s/tkey (3) on the unit or UP/DN key (3) on the
microphone to Select SC or AL.
6. Press the AM/FM key (7) to confirm and select another
menu or press the PTT switch (11) to confirm and exit.
7. The unit automatically exits the menu after 10 seconds.
SC eraseallthechannelsstoredontheSCANSKIPmemory.
They are now enabled to be scanned (see the § SKIP
page 11).
AL restore all the factory parameters.
A) DC-POWER TERMINAL (13,8 V)
B) ANTENNA CONNECTOR (SO-239)
C) EXTERNAL SPEAKER JACK (8 Ω, Ø 3,5 mm)
F) TECHNICAL CHARACTERISTICS
1) GENERAL
- Channels : 40
- Modulation mode : AM / FM
- Frequency ranges : from26.965MHzto 27.405MHz
- Weather channels : 162,400 MHz to 162,550 MHz
- Antenna impedance : 50 ohms

16
- Power supply : 13.8 V
- Dimensions inches : 4.02 (W) x 3.94 (D) x 0.98 (H)
millimeters : 102 (W) x 100 (D) x 25 (H)
- Weight : ± 0.705 lbs / ± 0.320 kg
- Accessories supplied : Electret microphone with
support, mounting cradle,
quick fixation clip, screws.
2) TRANSMISSION
- Frequency allowance : +/- 200 Hz
- Carrier power : 4 W AM / 4 W FM
- Transmission interference : inferior to 4 nW (- 54 dBm)
- Audio response : 300 Hz to 3 KHz
- Emitted power in the adj.
channel : inferior to 20 µW
- Microphone sensitivity : 5.5 mV (elec.) / 2.2 mV (dyn.)
- Maximum drain : 2 A
- Modul. signal distortion : 2 %
3) RECEPTION
- Maxi. sensitivity at 20
dB sinad : 0.5 µV - 113 dBm - AM
: 0.3 µV - 116 dBm - FM
- Frequency response : 300 Hz to 3 kHz
- Adjacent chan. selectivity : 60 dB
- Maximum audio power : 2.5 W
- Squelch sensitivity : minimum 0.2 µV - 120 dBm
maximum 1 mV - 47 dBm
- Frequency image
rejection rate : 60 dB
- Intermediate frequency
rejection rate : 70 dB
- Drain : 150 ~ 700 mA
G) TROUBLE SHOOTING
1) YOUR CB RADIO WILL NOT TRANSMIT OR YOUR
TRANSMISSION IS OF POOR QUALITY
- Check that the antenna is correctly connected and that
the SWR is properly adjusted.
- Check that the microphone is properly plugged in.
- You are using the same modulation mode as your cor-
respondent AM or FM.
2) YOUR CB RADIO WILL NOT RECEIVE OR RECEP-
TION IS POOR
- Check that the squelch level is properly adjusted.
- Check that the volume is set to a comfortable listening
level.
- Check that the antenna is correctly connected and that
the SWR is properly adjusted.
- You are using the same modulation mode as your cor-
respondent AM or FM.
3) YOUR CB WILL NOT LIGHT UP
- Check the power supply.
- Check the connection wiring.
- Check the fuse.
H) HOW TO TRANSMIT OR RECEIVE A MESSAGE
Nowthat youhaveread themanual,make surethatyour
CB Radio is ready for use (i.e. check that your antenna
is connected).
Pressthe«push-to-talk» PTT switch(11)andannounce your
English

17
message «Attention stations, transmission testing» which
will allow you to check the clearness and the power of
your signal. Release the switch and wait for a reply. You
should receive a reply like, «Strong and clear».
Ifyouuse acallingchannel(19) andyouhaveestablished
communication with someone, it is common practice to
choose another available channel so as not to block the
calling channel.
I) GLOSSARY
Below you will find some of the most frequently used CB
radio expressions. Remember these are used for exam-
ple purposes and that you are by no means obliged to
use them. In an emergency, you should be as clear as
possible.
INTERNATIONAL PHONETIC ALPHABET
AAlpha HHotel OOscar VVictor
BBravo IIndia PPapa WWhiskey
CCharlie JJuliet QQuebec XX-ray
DDelta KKilo RRomeo YYankee
EEcho LLima SSierra ZZulu
FFoxtrot MMike TTango
GGolf NNovember UUniform
TECHNICAL VOCABULARY
AM : Amplitude Modulation
CB : Citizen’s Band
CH : Channel
CW : Continuous Wave
DX : Long Distance Liaison
DW : Dual Watch
FM : Frequency Modulation
GMT : Greenwich Meantime
HF : High Frequency
LF : Low Frequency
LSB : Lower Side Band
RX : Receiver
SSB : Single Side Band
SWR : Standing Wave Ratio
SWL : Short Wave Listening
SW : Short Wave
TX : CB Transceiver
UHF : Ultra High Frequency
USB : Upper Side Band
VHF : Very High Frequency
CB LANGUAGE
Advertising : Flashing lights of police car
Back off : Slow down
Basement : Channel 1
Base station : A CB set in fixed location
Bear : Policeman
Bear bite : Speeding fine
Bear cage : Police station
Big slab : Motorway
Big 10-4 : Absolutely
Bleeding : Signalfroman adjacentchan-
nel interfering with the trans-
mission
Blocking the channel : Pressing the PTT switch without
talking
Blue boys : Police
Break : Used to ask permission to join
a conversation
English

18
Breaker : ACBerwishingtojoinachannel
Clean and green : Clear of police
Cleaner channel : Channelwith lessinterference
Coming in loud and proud : Good reception
Doughnut : Tire
Down and gone : Turning CB off
Down one : Go to a lower channel
Do you copy? : Understand?
DX : Long distance
Eighty eights : Love and kisses
Eye ball : CBers meeting together
Good buddy : Fellow CBer
Hammer : Accelerator
Handle : CBer’s nickname
Harvey wall banger : Dangerous driver
How am I hitting you? : How are you receiving me?
Keying the mike : Pressing the PTT switch without
talking
Kojac with a kodak : Police radar
Land line : Telephone
Lunch box : CB set
Man with a gun : Police radar
Mayday : SOS
Meat wagon : Ambulance
Midnight shopper : Thief
Modulation : Conversation
Negative copy : No reply
Over your shoulder : Right behind you
Part your hair : Behaveyourself-policeahead
Pull your hammer back : Slow down
Rat race : Congested traffic
Rubberbander : New CBer
Sail boat fuel : Wind
Smokey dozing : Parked police car
English
Smokey with a camera : Police radar
Spaghetti bowl : Interchange
Stinger : Antenna
Turkey : Dumb CBer
Up one : Go up one channel
Wall to wall : All over/everywhere
What am I putting to you? : Please give me an S-meter
reading

19
GENERAL WARRANTY CONDITIONS
Warranty Registration
This device is guaranteed 2 years parts and labor in its country of purchase against
any manufacturing defects validated by our technical department. PRESIDENTAfter
Sales Service department reserves the right not to apply the warranty in the event
a breakdown is caused by an antenna other than those distributed by PRESIDENT.
An extension of 3 years warranty is proposed systematically for the simultaneous
purchase of a device and a PRESIDENT antenna, bringing the total duration of the
warranty to 5 years. In order to be valid, the warranty registration must be completed
and submitted within a period of 30 days after the purchase date to PRESIDENT
ELECTRONICS online at www.president-electronics.us/warranty-registra-
tion . You can also access this warranty registration page by using your smartphone
to read (application must be available) the QR code. You will receive a confirmation
email if the registration is successfully completed. Please keep a copy of this email
for your records.
Any repair under warranty will be without charge and the return delivery costs will
be covered by PRESIDENT. A proof of purchase sales receipt must be included with
the device to be repaired. The dates listed on the warranty registration and proof of
purchase must match. In case the device is not under warranty, the repair and return
of the device will be the purchaser’s responsibility.
No spare parts will be sent nor exchanged by PRESIDENT under warranty. Do not
proceed with the installation of the device without reading the user manual.
The warranty is only valid in the country of purchase.
Exclusions (not covered by Warranty):
• Damages caused by accident, shock or inadequate packaging.
• Power transistors, microphones, lights, fuses and the disrespect of the installation
and use of specifications (including but not limited to antenna used with too high
power, final output power transistors (SWR), inversion of polarities, bad connec-
tions, over voltage…).
• The warranty cannot be extended due to the non-availability of the device while it
is being serviced at PRESIDENT After Sales Service department, nor by a change
of one or more components or spare parts.
• Transceivers which have been modified. The warranty application is excluded in
case of modification or poor maintenance done by a third party not approved by
PRESIDENT ELECTRONICS.
If you note a malfunction:
• Check the power supply of your device and the quality of the fuse.
• Check that the antenna, the microphone are correctly connected.
• Check that the squelch level is properly adjusted; the programmed configuration is
the correct one.
• In the event of a real malfunction, please contact your dealer first. He will decide
what action should be taken.
In case of an intervention not covered by warranty, an estimate will be established
before any repair.
Thank you for your confidence in the PRESIDENT quality and experience. We
recommend that you read this manual carefully so that you are completely satisfied
with your purchase.
Technical Manager
and
Quality Manager
English

20
La garantía de este artículo sólo es válida en el país de compra.
¡ ATENCIÓN !
Antes de la utilización tengan cuidado de
nuncaemitirsin haberpreviamenteconec-
tado la antena (conector "B"situado en la
parte trasera de su equipo) y ajustada la
ROE (Relación de Ondas Estacionarias)!
Sino, se expone a dañar el amplificador
de potencia, no cubierto por la garantía.
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
AVERTISSEMENT : Ce produit peut vous exposer à des agents chimiques, y compris le plomb, identifiés par l’État de Californie comme pouvant causer
le cancer et des malformations congénitales ou autres effets nocifs sur la reproduction. Pour de plus amples informations, prière de consulter le site www.
P65Warnings.ca.gov.
Español
