PRESONUS CDL10P User manual

CDL12P / CDL10P
Constant Directivity Loudspeakers
Owner’s Manual
www.presonus.com
®
English

Table of Contents
1 Overview — 1
1.1 Introduction — 1
1.2 What is in the Box — 2
1.3 Rigging Accessories (Sold Separately) — 2
2 Hookup — 3
2.1 Rear-Panel Connections and Controls — 3
2.2 Onboard Performance Monitoring — 3
2.3 Onboard Tuning Features — 3
2.4 Power — 4
2.4.1 Connecting Loop-Thru Power — 4
3 Application and Deployment — 5
3.1 Getting Started — 5
3.2 Cooling — 5
3.3 Important Safety Instructions — 6

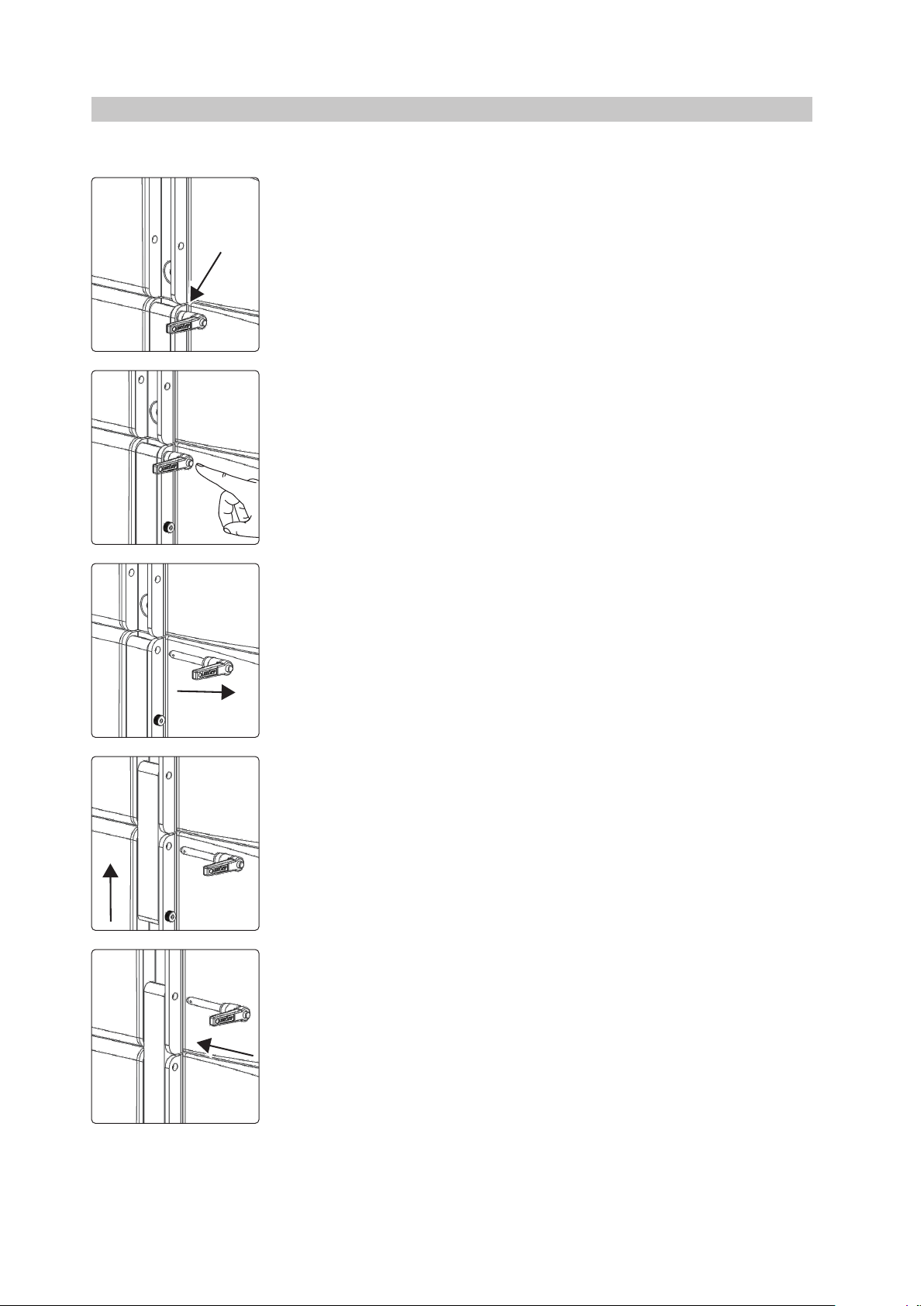

3.4 Rigging Instructions — 7
3.5 CDL Rigging Extension Bar Installation
Instructions — 8
3.6 Suspending the CDL Array — 9
3.7 Supported Congurations — 9
3.7.1 Rigging a CDL Loudspeaker to Another CDL
Loudspeaker — 9
3.7.2 Rigging a CDL Loudspeaker to a CDL
Rigging Grid — 10
3.7.3 Using the CDL Rigging Sling with the CDL
Rigging Grid — 10
3.8 Pole Mounting Options — 10
3.8.1 Important Pole Mounting Safety
Instructions — 11
3.8.2 Pole Mounting Instructions — 11
4 Technical Information — 12
4.1 Specications — 12

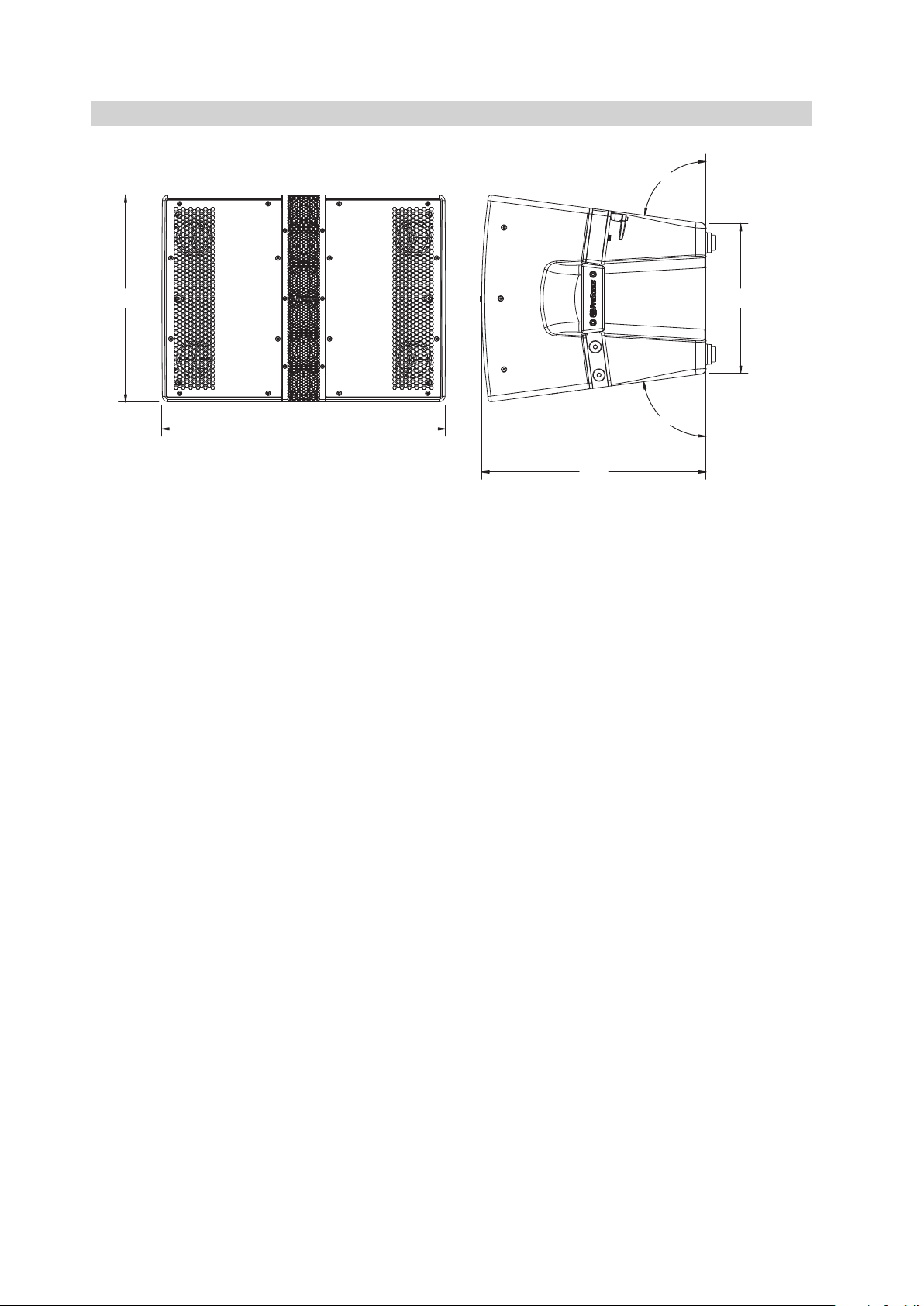

4.2 Mechanical Drawings — 12
4.2.1 CDL 12P — 12
4.2.2 CDL 10P — 13

1 Overview
1.1 Introduction
CDL12P / CDL 10P
Owner’s Manual
1
1Overview
1.1 Introduction
Thank you for purchasing a CDL-series loudspeaker. CDL full-range
speakers employ a patent-pending Constant Directivity design that
provides consistent SPL and frequency response coverage.
CDL-series loudspeakers utiliize a 15˚constant curvature vertical array of 2-inch
high-frequency drivers centered in front of a single, larger low-frequency
driver. This allows them to radiate sound in a focused directional pattern with
up to 90˚ of vertical coverage when using 6 CDL loudspeakers in an array.
The result is a true hybrid of point-source and line-array technology that
combines the benefits of each into the best listening experience possible.
We encourage you to register your CDL loudspeaker(s) at My.PreSonus.com
and to contact us through the MyPreSonus support portal with any questions or
comments regarding this product. PreSonus Audio Electronics is committed to
constant product improvement and we highly value your feedback. We appreciate
the support you have shown us through the purchase of this product.

1 Overview
1.2 What is in the Box
CDL12P / CDL 10P
Owner’s Manual
2
1.2 What is in the Box
In addition to this manual, your CDL loudspeaker package contains the following:
• (1) CDL 12P or CDL 10P Loudspeaker
• (1) AC locking 3 conductor14AWG cord
• PreSonus Health and Safety Guide
1.3 Rigging Accessories (Sold Separately)
• CDL12P or CDL10P Rigging Grid
• CDL Rigging Extension Bar
• CDL12P or CDL10P Rigging Sling

2 Hookup
2.1 Rear-Panel Connections and Controls
CDL12P / CDL 10P
Owner’s Manual
3
2Hookup
2.1 Rear-Panel Connections and Controls
Line Input. This is a balanced XLR connection for line-level input. Use the Line input
to connect the loudspeaker to a StudioLive digital mixer or another mixing console,
either directly or through the Line out connector on another CDL loudspeaker.
Direct Out. This is the Direct Out for the line input. Use this to connect to another
CDL loudspeakers.
Master Vol. This knob determines the master output level (volume) of the CDL
subwoofer power amplifier. It has no effect on the signal level from the direct
output. Push this control to access all the DSP functions in your CDL loudspeaker.
Power User Tip: A subwoofer can significantly change the frequency response of a
full-range system. A 3-way system with a subwoofer will be 6 to 18 dB hotter below 80 to
100 Hz. Set the appropriate level for your subwoofer before adjusting your system EQ.
2.2 Onboard Performance Monitoring
Master Performance Monitoring. These 4 LEDs display
the performance status of the internal amplifier:
• SIG. This LED illuminates when the input signal exceeds -50 dB.
• -3 dB. When this LED illuminates, the input signal has exceeded -3 dB.
• LIM. The protection limiter has been engaged when this indicator illuminates.
• CLIP. The clip LED illuminates when the input signal has
exceeded 0.5 dBFS, and the ADC is clipping, or when the amplifier
exceeds the maximum upper limit (load dependent).
Power User Tip: Never run your input levels higher than the channel
inputs can handle. If you overdrive the A/D converters, it will cause
digital distortion (digital clipping), which sounds terrible.
2.3 Onboard Tuning Features
The CDL loudspeaker make it easy to customize the loudspeaker’s performance
for your application. To access the controls, simply press the Master level
encoder and turn it to scroll through the menu options. Press the encoder
again to select a parameter and adjust it. Press again to continue scrolling.
Mode. This selects a preset optimized for configurations. Select the configuration
preset for the number of CDL loudspeakers arrayed together (1 box to 6 boxes).
HPF. Engages/disengages the onboard 90 Hz High Pass Filter.
Sub Mode. Adjusts the crossover frequency and the delay for the companion
PreSonus subwoofer being used (CDL Sub18, CDL18s, ULT18, or AIR18s).
When using the CDL loudspeaker without a subwoofers, select “Off.”
(push)

2 Hookup
2.4 Power
CDL12P / CDL 10P
Owner’s Manual
4
Brightness. Adjusts the brightness of the display.
Contrast. Adjusts the contrast of the display.
System Reset. Resets the system settings to factory default.
System Info. Opens the System Information screen.
Exit. Select to return to the Level screen. You will be given the option to
save any changes you’ve made to the DSP settings before exiting.

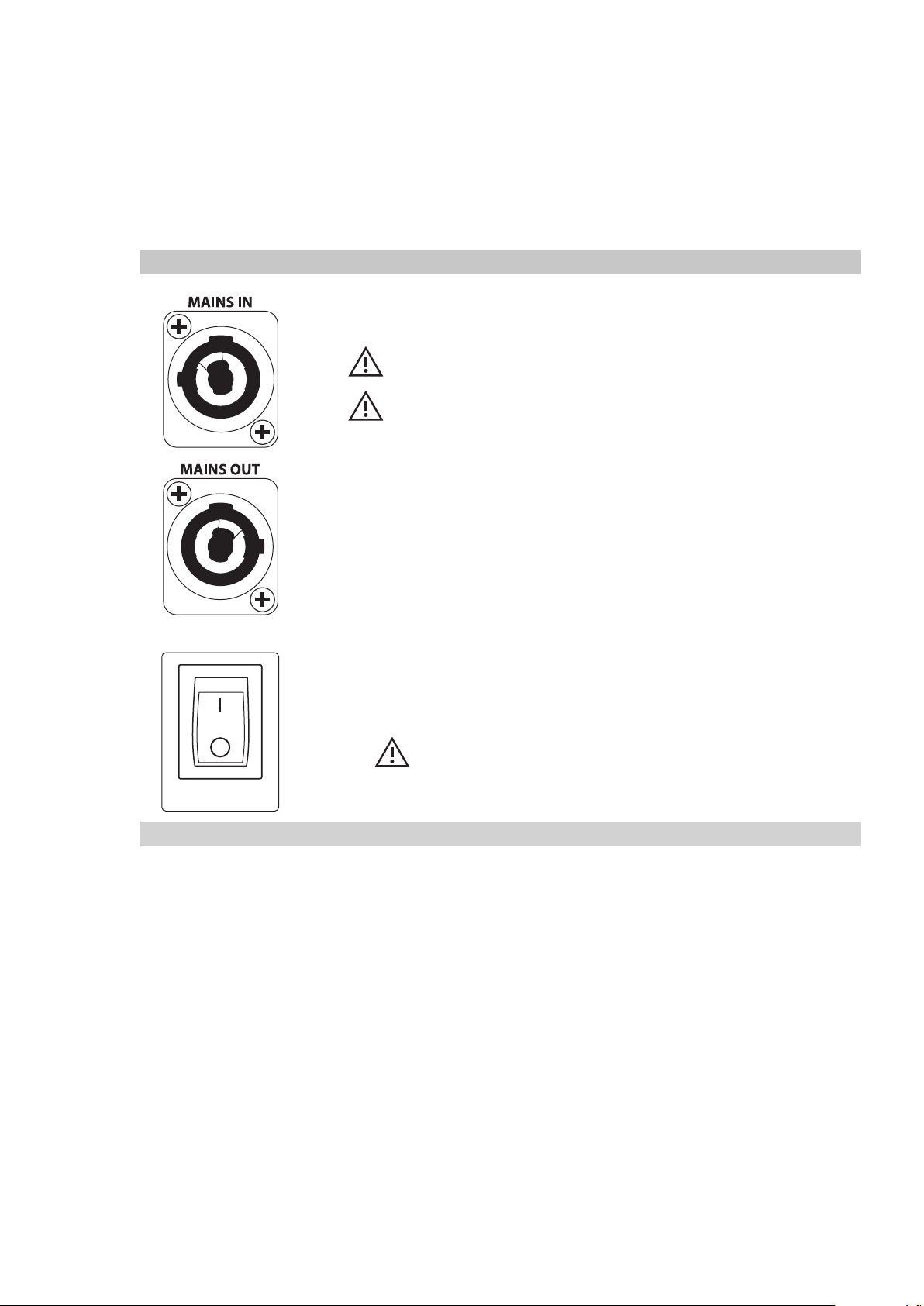

2.4 Power
AC Line Connection. CDL loudspeakers have voltage ranges of 100-120VAC, or
220-240VAC, 50-60Hz. Each loudspeaker is supplied with a locking 3-conductor AC
power cord appropriate for the country of sale.
WARNING Do not remove the center grounding prong or
use a ground-lift adapter, as this could result in electric shock.
WARNING Connect the power cord to the AC In connection on the
amplifier before connecting the IEC connection to the AC mains power
source.
Power Thru. CDL loudspeakers provide loop-thru power. Using locking 3
conductor Loop-thru cables, you can power up to six CDL loudspeakers.
Loop-thru cable connectors are color coded as follows:
•Blue. AC In.
•White. AC Out.
Power Switch. This is the On/Off switch.
Power User Tip: If connecting multiple loudspeakers to the same
electrical circuit, make sure that adequate line current is available.
Maximum current draw for each CDL loudspeaker is 5.45 Amps.
WARNING The power switch does not cut AC mains
power from the loop-thru cables. If AC mains power
is connected to one CDL loudspeaker, electrical power
will be present on all connected loop-thru cables.
2.4.1 Connecting Loop-Thru Power
1. Begin by inserting the white connector on the loop-thru cable
into the white AC Out connection on the power amplifier.
2. Once the cable is fully seated, twist the connector
clockwise to lock it into place.
3. Insert the blue connector into the blue AC In
connection on the other CDL power amplifier.
4. Once the cable is fully seated, twist the connector
clockwise to lock it into place.
Repeat Steps 1-4 for the other loudspeakers you’d like to power.
POWER

3 Application and Deployment
3.1 Getting Started
CDL12P / CDL 10P
Owner’s Manual
5
3Application and Deployment

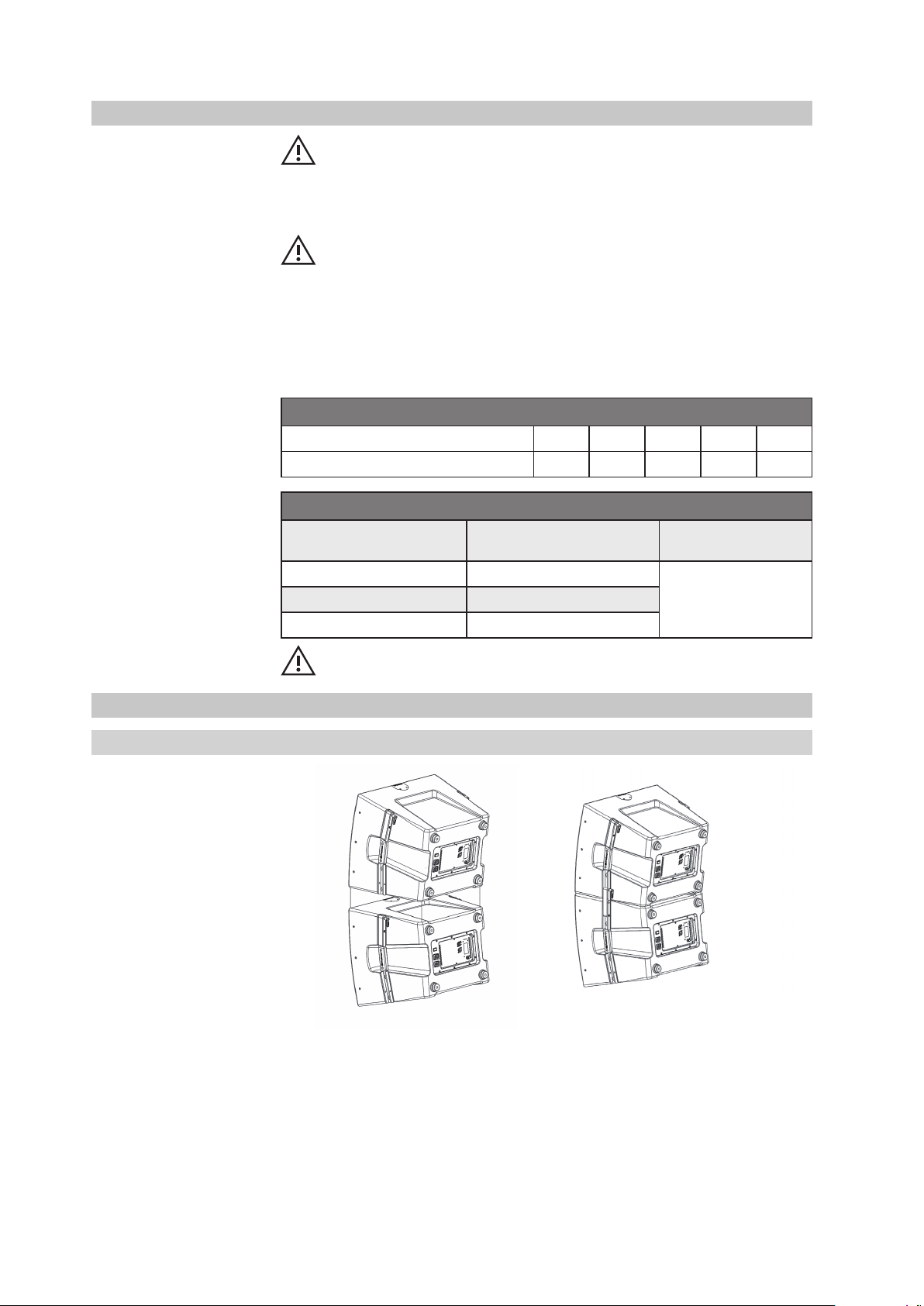

CDL loudspeakers can be configured as an individual point-source loudspeaker or in
a vertical array with other CDL loudspeakers of the same model. Integrated rigging
makes easy and secure box-to-box deployment. When suspending two or more
arrayed loudspeakers, PreSonus requires the CDL Rigging Grid engineered for your
loudspeaker model. This separately sold rigging grid allows the suspension up to
(6) CDL loudspeakers. For all supported configurations, see the chart in Section3.6.
Up to two CDL loudspeakers may be used on a tripod or on a sub pole over
a CDL subwoofer. A single CDL loudspeaker may also be mounted atop a
ULT18, or AIR18 subwoofer (See Section 3.7 for restrictions and guidelines).
The CDL loudspeakers are equipped with a two-position pole-mount to
provide more flexible coverage when pole-mounted (0˚ or 7.5˚ downward).
IMPORTANT: In all cases, when rigging loudspeakers together, attach the
bottommost unit to the loudspeaker directly above it, moving up the grid
to the topmost unit, ending with the model specific Rigging Grid.
WARNING: The CD L12P weighs 63 lbs. (28.6 kg). The CDL 10P
weighs 55.1 lbs (25 kg) .Use proper lifting techniques to avoid serious
injury. Please see Section 2.6 for Maximum Suspended Load.
WARNING: When assembling or disassembling arrayed
loudspeakers, make sure that all components are properly
supported throughout the entire process to avoid damage or injury.
WARNING: To ensure secure latching, verify that the loudspeakers are
properly aligned for box-to-box vertical arraying. If loudspeakers are not
properly aligned, physical damage, and personal injury may occur. The top of each
loudspeaker should be parallel to the bottom of the unit above it. For suspension, the
topmost unit must be securely attached to the CDL12P or CDL10P Rigging Grid.
3.1 Getting Started
Before you begin, here are a few general rules of thumb:
• Always make sure your loudspeakers are powered off when making connections.
• Do not allow your inputs to clip. Watch the Clip LED on the back of your
loudspeaker. When this LED illuminates, it indicates that the analog-
to-digital converters are in danger of being overdriven. Overdriving
the converters causes digital distortion, which sounds terrible.
Your PA and attached equipment should be powered on in the following order:
1. Sound sources (keyboards, D.I. boxes, etc.) connected to your mixer
2. Mixer
3. CDL Loudspeakers
When it’s time to power down, your system should be turned off in the reverse order.
3.2 Cooling
CDL loudspeakers are internally-powered. As such, they utilize a power amplifier
that produces heat. Allow a minimum of 6” (152.4 mm) clearance at the rear of the
enclosure for cooling. Do not restrict airflow to the rear of the speaker enclosure.
CAUTION: To avoid overheating, do not install enclosures with the amplifier
panels exposed to direct sunlight. This can heat the amplifier module and
reduce performance. Install sunshades to avoid direct exposure. The maximum
ambient temperature for full performance should not exceed 104˚ F (40˚ C).
CAUTION: Do not install enclosures where they will be exposed to rain
or other moisture. CDL loudspeakers are not weatherproof. Protection
from the elements must be provided in outdoor installations.

3 Application and Deployment
3.3 Important Safety Instructions
CDL12P / CDL 10P
Owner’s Manual
6
3.3 Important Safety Instructions
WARNING: Failure to observe the following safety precautions may
result in severe injury or death. Installations such as described in this
guide should only be attempted by a trained professional.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Before installing or suspending any CDL loudspeaker, inspect all
hardware, the enclosure, and associated equipment for damage. Missing,
corroded, or deformed components, or components without correct
load ratings, could significantly reduce the strength of the installation
or placement and should immediately be repaired or replaced.
• Always make sure that the structure the loudspeaker is to be suspended
from has been approved by the building or structural engineer
and will support the weight of all the components of the speaker
system including speakers, speaker cable, wire rope, etc.
• Consult a licensed professional structural engineer
regarding physical equipment installation.
• Do not suspend loudspeakers directly over people.
• Use only hardware that is rated for the load conditions of the installation
and that allows for a possible short-term, unexpected overload.
Never exceed the rating of the hardware or equipment.
• PreSonus strongly recommends that the system be inspected at
least once a year and logged. If any sign of weakness or damage
is detected, remedial action should be taken immediately.
• All installation crew members must be trained for loudspeaker rigging and mounting.
• Make sure that all relevant health and safety regulations are known, are
followed by the installation crew, and are in compliance with applicable
local laws. Local government offices can help with this information.
• Suspended installations must be completed or supervised by a certified rigger.
• The system should be designed so that it is a static suspension.
There should be no dynamic or shock loading.
• Personal protective equipment (hard hats, steel-toed footwear, safety
glasses, etc.) should be worn at all times by the installation crew.
• If called for in the design, make sure all installation personnel are trained to
work at height and have certifications for scissor lifts, theatrical hoists, etc.
• Make sure all lifting equipment (slings, span-sets, deck chain, scaffolding, etc.)
is in good working order. Thoroughly inspect all components prior to use.
• Inspect all the components associated with the project for damage before
assembly. Any parts with damage or suspected damage should not be used.
Contact the component manufacturer for replacement parts if necessary.
• Keep a tidy workplace. Do not leave tools, rigging items, etc., on top of
loudspeakers during installation. Loose items can fall and cause injury.
• Never leave the system unattended during the installation process. Make
sure that the workspace is isolated from public access. No one should
be allowed to pass beneath the loudspeakers during installation.
• Do not suspend any other components or loudspeakers from PreSonus CDL
loudspeakers other than the supported configurations described in this manual.
• If secondary steel safeties are required, they should be installed once the
entire system is at operating height and before public access is allowed.

3 Application and Deployment
3.4 Rigging Instructions
CDL12P / CDL 10P
Owner’s Manual
7
3.4 Rigging Instructions
CDL loudspeakers feature integrated rigging pins. The integrated rigging pins
function the same whether you are attaching CDL or the CDL Rigging Grid.
1. Rotate the pin to the forward 90˚.
2. Press the release button to unlock the pin.
3. Pull out the pin.
4. Slide the rigging clasp up to attach to the speaker above.
5. Insert the pin into the upper hole of the rigging clasp until it locks, and
rotate it up to lock the handle in place.

3 Application and Deployment
3.5 CDL Rigging Extension Bar Installation Instructions
CDL12P / CDL 10P
Owner’s Manual
8

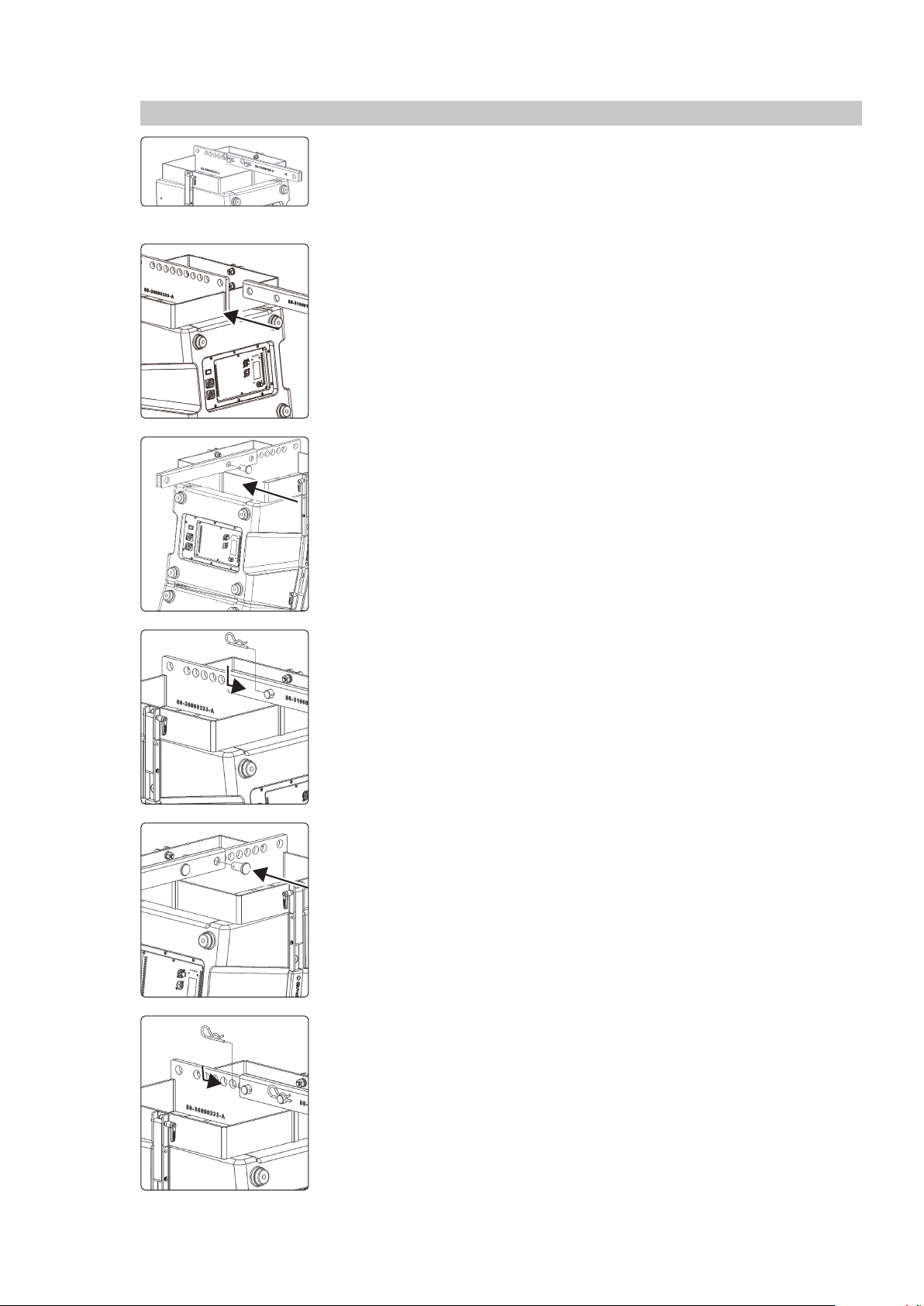

3.5 CDL Rigging Extension Bar Installation Instructions
The CDL Rigging Extension Bar is an optional accessory for the
Rigging Grid that provides upward or downward tilt control
for any suspended installation that requires it.
IIMPORTANT: Use only the rigging grid labeled for your
model of CDL loudspeakers (CDL12P or CDL10P).
1. Align the CDL Rigging Extension Bar with the center support of the
CDL Rigging Grid. For downward tilt, the bar should be mounted at the rear
of the loudspeaker array. For upward tilt, the bar should be mounted at the
front of the array. The illustrations in this section show the downward tilt
configuration only.
2. Insert the first clevis pin into the outermost through-hole.
3. Lock the clevis pin in place using a cotter pin.
4. Insert the second clevis pin into the inner through-hole.
5. Insert a cotter pin into second clevis pin to lock it into place.

3 Application and Deployment
3.6 Suspending the CDL Array
CDL12P / CDL 10P
Owner’s Manual
9
3.6 Suspending the CDL Array
WARNING: Consult a professional mechanical or structural engineer, licensed
in the jurisdiction of the sound system installation, to review, verify, and
approve all attachments to the building or structure. Employ the services of a certified,
professional rigger for hoisting, positioning, and rigging the equipment to the
supporting structure. Improper suspension can lead to serious damage, injury, or death.
WARNING: Review all safety instructions in Section 3.3.
The table below shows the maximum suspended loudspeaker load configurations.
Deploying loudspeakers that exceed the supported configurations below can
lead to serious damage, injury, or death. PreSonus has tested the configurations
below for safety. Please note that the structure from which you are suspending
any CDL loudspeaker array must be able to support that total weight.
DO NOT SUSPEND LOUDSPEAKERS DIRECTLY ABOVE THE AUDIENCE
Supported Suspended Loudspeaker Configurations
Maximum Number of CDL12P Loudspeakers 23456
Maximum Number of CDL10P Loudspeakers 23456
Individual Component Weight
CDL12P CDL12P Rigging Grid CDL Rigging Grid
Extension Bar
63 lbs (28.6 kg) 24 lbs (10.9 kg)
5.8 lbs (2.6 kg)CDL10P CDL10P Rigging Grid
46.8 lbs (21.2 kg) 20.6 lbs (9.3 kg)
WARNING: All PreSonus CDL rigging and rigging accessories are rated
for a 10:1 load. Structural suspension supports must also be rated for a 10:1 load.
3.7 Supported Configurations
3.7.1 Rigging a CDL Loudspeaker to Another CDL Loudspeaker
IMPORTANT: CDL12P loudspeakers cannot be arrayed with CDL10P loudspeakers.
All CDL-series loudspeakers in a single rigged array must be of the same model.

3 Application and Deployment
3.8 Pole Mounting Options
CDL12P / CDL 10P
Owner’s Manual
10
3.7.2 Rigging a CDL Loudspeaker to a CDL Rigging Grid
IMPORTANT: Use only the rigging grid labeled for your
model of CDL loudspeakers (CDL12P or CDL10P).
3.7.3 Using the CDL Rigging Sling with the CDL Rigging Grid
WARNING: Use only the rigging sling labeled for your model of CDL loudspeakers
(CDL12P or CDL10P). The CDL Rigging Sling is required on all installations that
include 4 or more CDL loudspeakers in a vertical array. Additionally, in installations
using the CDL Rigging Extension Bar deployed with an upward or downward tilt of
12˚ or greater, the CDL Rigging Sling must be utilized. All of the CDL loudspeakers in
the sling must be the same model, and use the Rigging Grid specified for that model
3.8 Pole Mounting Options
You can mount up to two CDL loudspeakers on a loudspeaker pole either using a
tripod stand that supports the total weight up to 130 lbs / 58.9 kg or atop a CDL
Subwoofer. A single CDL loudspeaker may also be mounted atop a ULT18, or AIR18.
When mounting atop a supported PreSonus subwoofer, utilize a sub pole that
supports the total weight of the CDL full-range loudspeaker(s). If mounting atop
a subwoofer, the elevation height cannot exceed the following guidelines:
Maximum Sub Pole Height
(1) CDL12P or CDL 10P +
(1) CDL Sub18,
CDL 18s, ULT18,
or AIR18s
(2) CDL12P or CDL 10P +
(1) CDL Sub18 or CDL18s
(1) CDL12P or CDL 10P +
(2) CDL18s
40” 33.5” 17”
Do not attempt to pole mount loudspeakers atop
ground-stacked CDL Sub18s.

3 Application and Deployment
3.8 Pole Mounting Options
CDL12P / CDL 10P
Owner’s Manual
11
3.8.1 Important Pole Mounting Safety Instructions
• Always check the stand or pole specification to verify that it is
designed to support the weight of the CDL loudspeaker(s).
• Always observe all safety precautions specified by any 3rd party
manufacturer of devices used with the CDL loudspeakers.
• Always verify that the stand or subwoofer and subwoofer
pole is resting on a level, flat, and stable surface.
• Tripod legs should be fully extended for maximum stability and positioned
in a low-traffic area so that the legs do not create a tripping hazard.
• Route cables so that no one will trip over them as this could topple
the speaker and cause serious injury, damage, or death.
• Stands, poles, and associated hardware should be inspected prior to each
use. Do not use equipment with worn, damaged, or missing parts.
• For some applications, it may be necessary to place additional weights,
such as sandbags, on the base of the stand to for maximum stability.
• Do not attach banners to the stand as these could function like a sail
to topple the system, causing serious injury, damage or death.
3.8.2 Pole Mounting Instructions
1. Select the pole socket angle for your application (0˚ or 7.5˚).
Note: When mounting (2) CDL loudspeakers, the 7.5˚ tilt mount must be utilized.
2. Carefully place one CDL loudspeaker on the loudspeaker pole
by inserting the pole completely into the pole socket.
3. If mounting (2) CDL loudspeakers on one pole, place the lower loudspeaker on
the pole first, then rig the top one to it following the instructions in Section 3.7.1.
Important: Use proper lifting techniques to avoid injury.
It is highly recommended that you team lift CDL loudspeakers
onto their pole mount for maximum safety and to avoid injury.
The following pole mounting options are supported:
• (1) CDL loudspeaker on Tripod Stand
• (2) CDL loudspeaker on Tripod Stand
WARNING The (2) CDL loudspeakers must be rigged to one another.
See Section 3.7.1 for instructions.
• (1) CDL loudspeaker atop either (1) CDL Sub18,
(1) CDL18s, (1) ULT18, or (1) AIR18s
WARNING Maximum pole height from the top of the CDL Sub18 or
CDL18s to the bottom of the CDL loudspeaker cannot exceed
40”. PreSonus recommends the K&M 21339.000.55 Crank Stand.
• (1) CDL loudspeaker atop (2) CDL18s
WARNING Other stacked subwoofer configurations are not supported.
Maximum pole height from the top of the upper CDL Sub18
or CDL18s to the bottom of the CDL loudspeaker array cannot exceed
17”. PreSonus recommends the K&M 21334.050.55 Distance Rod.
The (2) subwoofers must be rigged to one another.
See CDL Sub18 Owners Manual for instructions.
• (2) CDL loudspeakers atop (1) CDL Sub18 or CDL18s
WARNING PreSonus only supported pole mounting (2) rigged
CDL loudspeakers atop a PreSonus CDL Sub18 or CDL18s subwoofer. No
other subwoofers are supported for this application. The maximum pole height
from the top of the CDL subwoofer to the bottom of the CDL loudspeaker cannot
exceed 33.5”. PreSonus recommends the K&M 21339.000.55 Crank Stand.
The (2) CDL loudspeakers must be rigged to one
another. See Section 3.7.1 for instructions.

4 Technical Information
4.1 Specications
CDL12P / CDL 10P
Owner’s Manual
12
4Technical Information
4.1 Specifications
CDL 12P CDL 10P
Type Active 2-way Active 2-way
LF Driver 12”(2.5”Voice Coil) 10”(2.5”Voice Coil)
HF Driver 8x 2”(1”Voice Coil) 6 x 2”(1”Voice Coil)
Amplier Type Class D Class D
Total System Power 2000W Peak, 1000W Program (500W RMS) 2000W Peak, 1000W Program (500W RMS)
LF Driver Power 1000W Peak, 500W Program (250W RMS) 1000W Peak, 500W Program (250W RMS)
HF Driver Power 1000W Peak, 500W Program (250W RMS) 1000W Peak, 500WProgram (250W RMS)
Frequency Range (+/- 3dB) 48 Hz – 18 kHz 48 Hz – 18 khz
Crossover Frequency 420 Hz 420 Hz
Maximum Peak SPL 130 dB 130 dB
Horizontal Coverage 120˚ 120˚
Vertical Coverage 15˚ per enclosure 15˚ per enclosure
Input Line (XLR) Line (XLR)
Output Direct Line Out (XLR) Direct Line Out (XLR)
Mains Connection Locking 3 conductor AC connector In and Out Locking 3 conductor AC connector In and Out
DSP Functions HPF On/O, No. arrayed boxes, PreSonus
subwoofer conguration preset HPF On/O, No. arrayed boxes, PreSonus subwoofer conguration preset
Indicators Signal, -3 dB, Limiter, Clip Signal, -3 dB, Limiter, Clip
Enclosure 15 mm Polypropylene 15 mm Polypropylene
Mounting Dual-position pole mount (0˚ and 7.5˚),
Integrated Rigging (10:1 load) Dual-position pole mount (0˚ and 7.5˚), Integrated Rigging (10:1 load)
Dimensions (H x W x D) 18.7”x 20.7”x 17.5”(475 mm x 525 mm x
445 mm) 14.4”x 19.7”x 15.6”(365 mm x 500 mm x 395 mm)
Weight 63 lbs (28.6 kg) 46.8 lbs (21.2 kg)
Optional Accessories CDL12P-Tote Tote Bag CDL10P-Tote Tote Bag
4.2 Mechanical Drawings
4.2.1 CDL 12P
82.50°
82.50°
475 mm
[18.7 in]
525 mm
[20.7 in]
445 mm
[17.5 in]
362 mm
[14.25 in]
CDL 12P
82.50°
82.50°
264 mm
[10.4 in]
395 mm
[15.6 in]
500 mm
[19.7 in]
365 mm
[14.4 in]
CDL 10P

4 Technical Information
4.2 Mechanical Drawings
CDL12P / CDL 10P
Owner’s Manual
13
4.2.2 CDL 10P
82.50°
82.50°
475 mm
[18.7 in]
525 mm
[20.7 in]
445 mm
[17.5 in]
362 mm
[14.25 in]
CDL 12P
82.50°
82.50°
264 mm
[10.4 in]
395 mm
[15.6 in]
500 mm
[19.7 in]
365 mm
[14.4 in]
CDL 10P

4 Technical Information
4.2 Mechanical Drawings
CDL12P / CDL 10P
Owner’s Manual
14

© 2023 PreSonus Audio Electronics, Inc. All Rights Reserved. PreSonus and WorxAudio are trademarks or registered trademarks of PreSonus Audio Electronics, Inc. Other product
names mentioned herein may be trademarks of their respective companies. All specications subject to change without notice...except the recipe, which is a classic.
Dinner is Served
Added bonus: PreSonus’previously Top Secret recipe for…
Redsh Couvillion
Ingredients:
•¼ C Vegetable oil
•¼ C flour
•1 onion diced
•1 clove garlic minced
•1 green pepper diced
•3 celery stalks diced
•1 14oz can diced tomatoes
•1 bottle light beer
•2 bay leaves
•1 tsp thyme
•2 lbs Redfish fillets
Cooking Instructions:
1. In a heavy saucepan or large skillet, heat oil on medium high and slowly add flour a tablespoon at a time to create a roux.
Continue cooking the roux until it begins to brown, creating a dark blond roux.
2. Add garlic, onions, green pepper, and celery to roux.
3. Sauté vegetables for 3-5 minutes until they start to soften.
4. Add tomatoes, bay leaves, thyme, and redfish. Cook for several minutes.
5. Slowly add beer and bring to a low boil.
6. Reduce heat and simmer uncovered for 30-45 minutes until redfish and vegetables are completely cooked, stirring
occasionally. Break up redfish into bite size chunks and stir in. Add pepper or hot sauce to taste. Do not cover.
7. Serve over rice
Serves 6-8
While not one of Southeast Louisiana’s more famous dishes, Redfish Couvillion is a favorite way to serve our
favorite Gulf fish. Also known as Reds or Red Drum, Redfish is not only fun to catch, it’s also delicious!

Part# 70-32000149-D
®
Baton Rouge • USA
www.presonus.com
Register your CDL Loudspeaker. Visit my.presonus.com and create or log
into your MyPreSonus user account to manage all your PreSonus hardware
and software registrations, connect with Tech Support, and more. You
can also register using the MyPreSonus app on your mobile device.
Registra tu CDL Altavoz. Visita my.presonus.com y crea o entra en
tu cuenta de usuario MyPreSonus para gestionar todos tus registros
de hardware y software de PreSonus, conectar con el servicio de asistencia técnica y mucho
más. También puedes registrarte con la aplicación MyPreSonus en tu dispositivo móvil.
Registrieren Sie Ihren CDL Lautsprecher. Melden Sie sich unter my.presonus.com mit einem
vorhandenen (oder neuen) MyPreSonus-Konto an, um alle Ihre registrierten PreSonus-Geräte und
-Softwareprodukte zu verwalten, den technischen Support zu kontaktieren und vieles mehr. Alternativ
können Sie die Registrierung mit der MyPreSonus-App auf Ihrem Mobilgerät durchführen.
Enregistrez votre CDL enceinte à directivité constante. Visitez my.presonus.com et créez votre
compte utilisateur MyPreSonus ou connectez-vous-y pour gérer tous vos enregistrements de
matériel et de logiciels PreSonus, prendre contact avec l’assistance technique, etc. Vous pouvez
également vous inscrire en utilisant l’appli MyPreSonus sur votre appareil mobile.
place serial number here
CDL12P / CDL10P
Constant Directivity Loudspeakers
Owner’s Manual
