Prestel 4K-F4U3 User manual

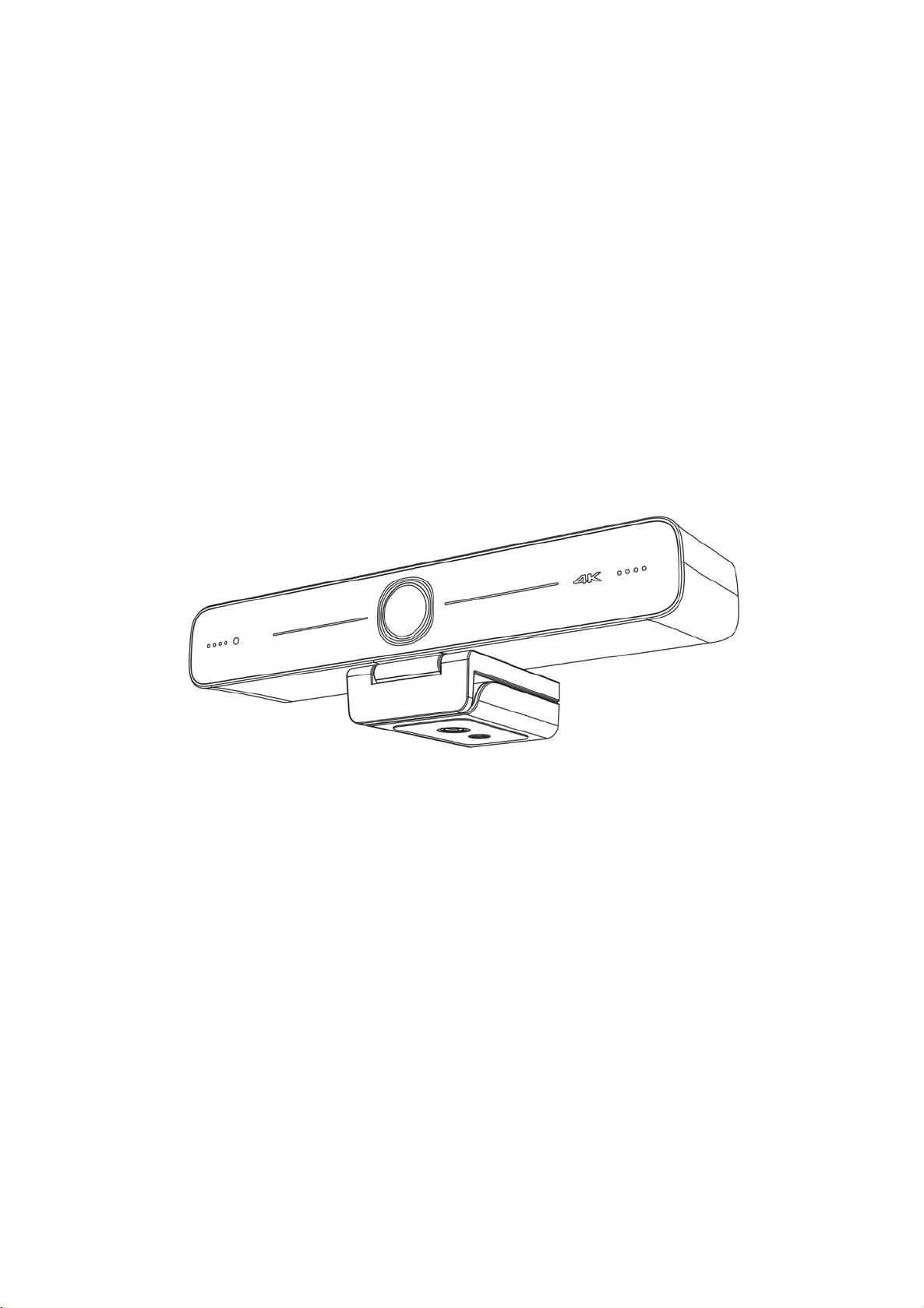

Auto Framing 4K EPTZ Camera
Prestel 4K-F4U3
User Manual
（V1.0）

1
Attentions
This manual introduces functions, installations and operations for this camera in details. Please read this
manual carefully before installation and use.
1. Cautions
1.1 Avoid damage to product caused by heavy pressure, strong vibration or immersion during transportation,
storage and installation.
1.2 Housing of this product is made of organic materials. Do not expose it to any liquid, gas or solids which may
corrode the shell.
1.3 Do not expose the product to rain or moisture.
1.4 To prevent the risk of electric shock, do not open the case. Installation and maintenance should only be
carried out by qualified technicians.
1.5 Do not use the product beyond the specified temperature, humidity or power supply specifications.
1.6 Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed.
Do not use strong or corrosive detergents to avoid scratching the lens and affecting the image.
1.7 This product contains no parts which can be maintained by users themselves. Any damage caused by
dismantling the product by user without permission is not covered by warranty.
2. Electrical Safety
Installation and use of this product must strictly comply with local electrical safety standards.
3. Install
3.1 Do not rotate the camera head violently, otherwise it may cause mechanical failure;
3.2 This product should be placed on a stable desktop or other horizontal surface. Do not install the product
obliquely, otherwise it may display inclined image.
3.3 Ensure there are no obstacles within rotation range of the holder.
3.4 Do not power on before completely installation.
4. Magnetic Interference
Electromagnetic fields at specific frequencies may affect the video image. This product is Class A. It may cause
radio interference in household application. Appropriate measure is required.

2
Content
1.Camera Installation.................................................................................................................................................. 3
1.1 Camera Interfaces............................................................................................................................................. 3
1.2 Camera Operation............................................................................................................................................. 3
2.Product Overview .................................................................................................................................................... 3
2.1 Product Introduction ........................................................................................................................................ 3
2.1.1 Model......................................................................................................................................................... 3
2.1.2 Dimension.................................................................................................................................................. 3
2.1.3 Accessory ................................................................................................................................................... 4
2.2 Main Features................................................................................................................................................... 4
2.3 Technical Parameter.......................................................................................................................................... 5
2.4 Interfaces Instruction........................................................................................................................................ 6
2.4.1 External Interface....................................................................................................................................... 6
3.Application Instruction ............................................................................................................................................ 7
3.1 Remote Control................................................................................................................................................. 7
3.1.1 Keys Introduction....................................................................................................................................... 7
3.1.2 Applications ............................................................................................................................................... 7
3.2 Menu Introduction............................................................................................................................................ 9
3.2.1 Main Menu ................................................................................................................................................ 9
4. Maintenance and Troubleshooting....................................................................................................................... 14
4.1 Camera Maintenance...................................................................................................................................... 14
4.2 Troubleshooting.............................................................................................................................................. 14
5. Copyright Statement............................................................................................................................................. 14

3
1.Camera Installation
1.1 Camera Interfaces
Figure 1.1 Product Interfaces
1.Camera Lens
4.Tripod fixing hole
7.USB3.0 interface
2.Indicator light
5.Positioning hole
3.Built-in MIC
6.Bracket
1.2 Camera Operation
1) Product Installation: Fix the device on LCD screen, top of computer; directly put it on desk or on tripod mounting.
2) Connect camera via USB cable to computer, video conference terminal or other USB input device, log in the video
conference software and select a video device to have image output.
2.Product Overview
2.1 Product Introduction
2.1.1 Model
Model No.-- XX
83°Fixed Lens
Figure 2.1 Product Model
2.1.2 Dimension

4
Figure 2.2 Product Dimension
2.1.3 Accessory
Please check below standard and optional accessories when unpacking the box.
2.2 Main Features
4K-F4U3 is a 4K ultra-high-definition ePTZ camera with a new design. With AI intelligence, it can frames
according to the number of people in the scene, and the characters are in the middle. It has perfect functions and
superior performance, which employs advanced ISP processing algorithms so as to provide vivid images with
evenly clear brightness, strong color layering, high resolution, and fantastic color rendition. Easy and convenient
to install and maintain, stable and reliable.
Ultra HD 4K Resolution: 1/2.8 inch high quality CMOS sensor. Resolution is up to 4K with frame rate up to
30fps (MJPG) or 30fps (H.264); compatible with 1080P and 720P.
ePTZ: ePTZ and 10X digital Zoom;
Built-in MIC: Built-in two omni-directional MIC pickups; with unique noise suppression algorithm, effective
pickup distance up to 6 meters.
Standard Accessory
IR Remote Control
USB3.0 Cable
User Manual

5
Auto Framing: Employing superior face detection algorithm to intelligently and automatically frames
according to the number of people in the scene, and the characters are in the middle.
Wide FOV: 83° wide angle and small distortion lens options.
Video output interface: Video output interface USB 3.0;
Multiple Audio/Video Compression Standard: Supports H.264, MJPG, YUY2, NV12 video compression, to
made video play smoothly.
Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Even in the case of
ultra-low illumination, the picture remains clean and clear.
Multiple Installations: Standard equipped with mold clamp. Easy to install on any devices, such as LCD
screen, laptop, table and tripod.
Easy to Use: No need to download driver; USB 3.0 Plug and play;
Wide Applications: Personal video conferencing, enterprise video conferencing, collaboration meeting, etc.
2.3 Technical Parameter
Model
Camera Parameter
Sensor
1/2.8 inch high quality 4K CMOS sensor
Effective Pixels
8.28MP,16
：
9
Video Interface
1 Channel USB 3.0 output, Type B; Support audio signal output
Audio input
2*Built-in MIC pickup
Video Format
MJPG
：
3840*2160@30 /2560*1440@30 /1920*1080@30 /1600*896@30 /1280*720@30
/1024*576@30 /960*540@30 /800*600@30 /800*448@30 /720*576@30/
720*480@30 /640*480@30 /640*360@30 /480*270@30 /352*288@30 /320*240@30
H264
：
3840*2160@30 /2560*1440@30 /1920*1080@30 /1600*896@30 /1280*720@30
/1024*576@30 /960*540@30 /800*600@30 /800*448@30 /720*576@30/
720*480@30 /640*480@30 /640*360@30 /480*270@30 /352*288@30 /320*240@30
YUY2
：
1920*1080@30 /1280*720@30 /1024*576@30 /800*600@30 /800*448@30 /640*480@30
/640*360@30 /480*270@30 /320*180@30
NV12
：
1920*1080@15 /1280*720@30 /1024*576@30 /800*600@30 /800*448@30 /640*480@30
/640*360@30 /480*270@30 /320*180@30
View Angle
91°
（
D
）
/83°(H)/54°(V)
Focal Length
f=3.24mm
Aperture
F2.1
Digital Zoom 10X
Minimum
Illumination
0.1Lux(F1.8, AGC ON)
White Balance
Auto / Manual
Focus
Manual
Exposure
Auto / Manual/
BLC
On/Off
SNR
≥50dB
USB Feature
Operation Systems
Windows 7(1080p or lower), Windows 8.1, Windows 10 ; macOS™ 10.10 or higher; Android
；
Linux
(UVC support)
Video
Compression
Format
YUY2,NV12,MJPG,H264
USB Audio
Support
USB
Communication
Protocol
UVC,UAC
PTZ Control
Support EPTZ

6
Hardware
Requirement
2.4 GHz Intel@ Core 2 Duo or higher,2GB or higher, USB 3.0 port (USB 3.0 for 4K)
Other Parameter
Input Voltage
5V
Input Current
1A(max)
Power
Consumption
5W(max)
Stored Temperature
-10℃
～
+60℃
Stored Humidity
20%
～
90%
Working
Temperature
-10℃
～
+50℃
Working Humidity
20%
～
80%
Dimension
180mm×42.5mm×46.3mm
Weight
Around 0.3kg
Working
Environment
Indoor
Accessory
User Manual, USB 3.0 cable
2.4 Interfaces Instruction
2.4.1 External Interface

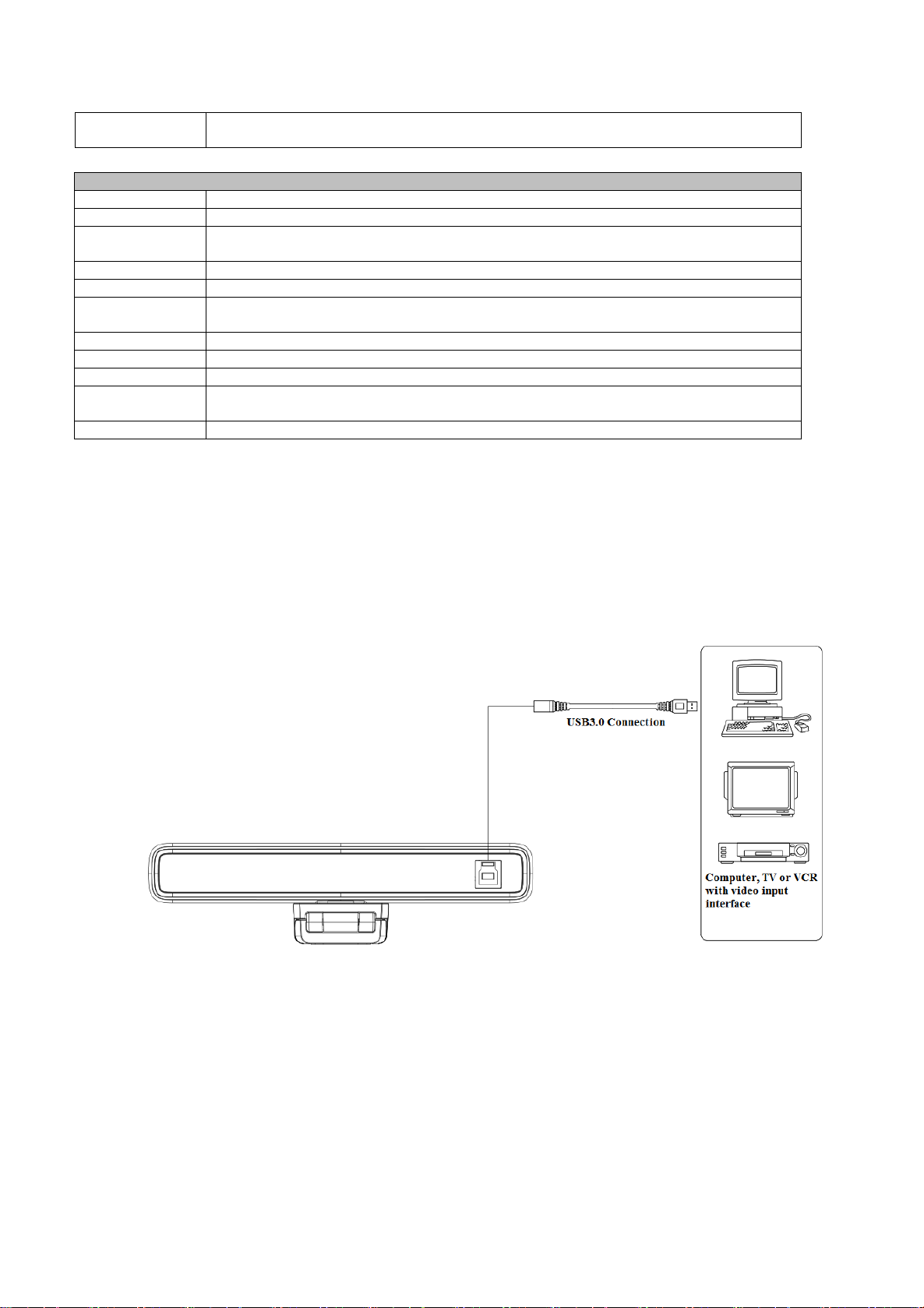

Figure 2.4 Wiring Diagram

7
3.Application Instruction
3.1 Remote Control

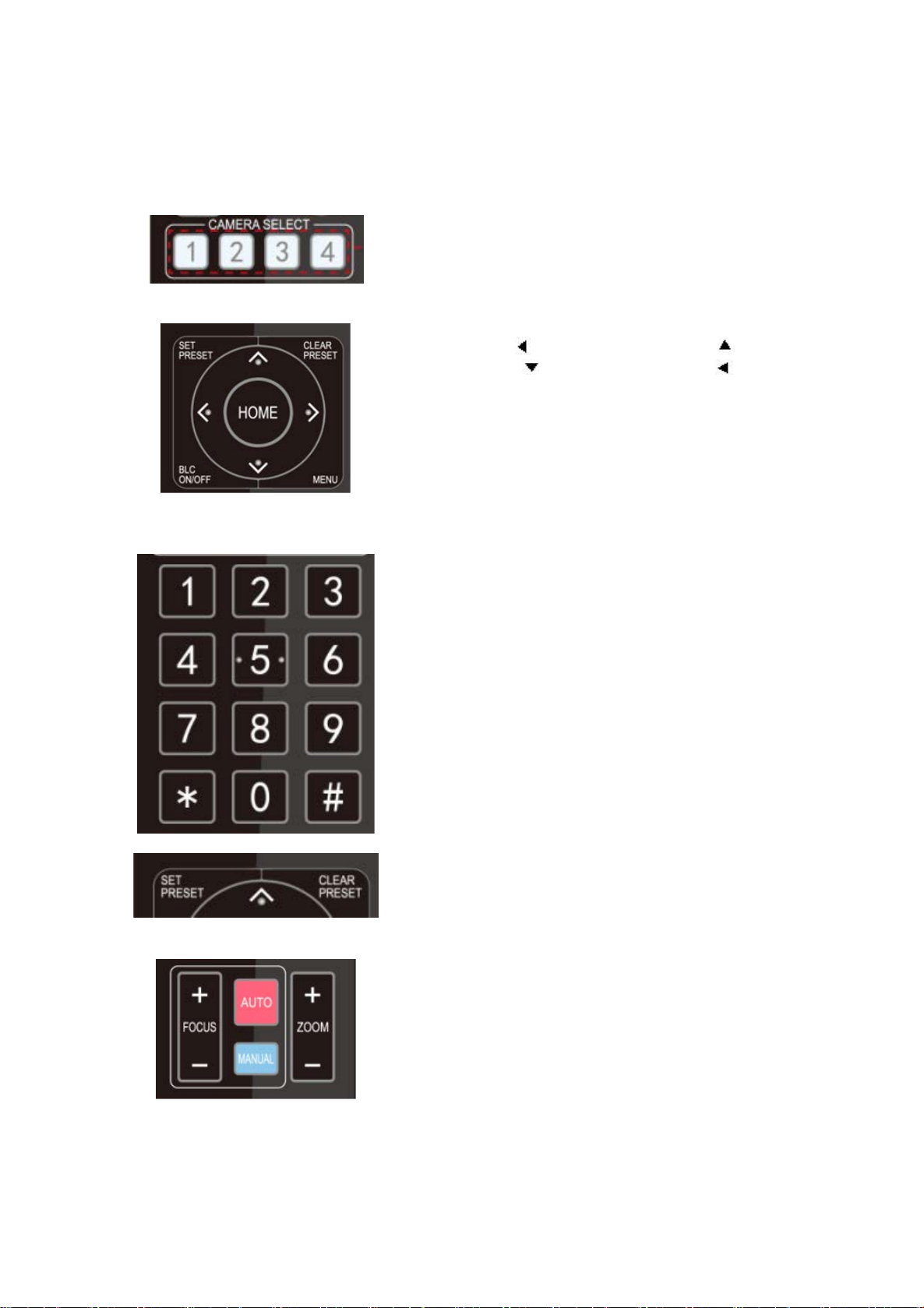

3.1.1 Keys Introduction
1.Standby Key
The device enters standby mode after pressing it once, and the device re-displays the picture after pressing it
again.
2.Camera Selection
Select the camera address to control.
3. Number key
Set or call 0-9 presets
4. 【*】,【#】key
5.Focus Control
【Auto】: None 【Manual】: None
Note: The camera is a fixed focus lens
6.Zoom Control
ZOOM +: press【ZOOM +】key to zoom in
ZOOM - : press 【ZOOM -】key to zoom out
7.Set and Clear Presets
Set Preset: press 【SET PRESET】button, and then press the number key 0-9 to set preset
positions.
Clear Preset: press 【CLEAR PRESET】button, and then press the number key 0-9 to clear
preset positions.
8.Pan/Tilt Control
Up: press Down: press
Left: press Right: press
Press and hold the up/down/left/right key, the pan/tilt movements will keep running.
【HOME】：Camera lens back to the middle position; Enter next menu
9.【BLC ON/OFF】：Turn on or off the back light compensation
10.Menu Setting：Enter/exit the OSD menu or return to the previous menu.
11.Camera Remote Control Address Setting
【*】+【＃】+【F1】：Camera Address No.1
【*】+【＃】+【F2】：Camera Address No.2
【*】+【＃】+【F3】：Camera Address No.3
【*】+【＃】+【F4】：Camera Address No.4
12.Key Combination
3.1.2 Applications
1) In this manual, “press the key” means a click rather than a long-press, and a special note will be given if a
long-press for more than one second is required.
1
）【
#
】
+
【
#
】
+
【
#
】：
Clear all presets
2
）【
*
】
+
【
#
】
+
【
6
】：
Restore factory defaults
3
）【
*
】
+
【
#
】
+
【
9
】：
Flip switch
4
）【
*
】
+
【
#
】
+
【
4
】：
Menu set to English
5
）【
*
】
+
【
#
】
+
【
3
】：
Menu set to Chinese

8
2) When a key-combination is required, do it in sequence. For example,“ 【*】+【#】+【F1】”means press“【*】”first
and then press“【#】” and last press“【F1】”.
1）Camera Selection
Select the camera address to control.
2）Pan/Tilt Control
Up: press Down: press
Left: press Right: press
Back to middle position: press“【HOME】”
Press and hold the up/down/left/right key, the pan/tilt
movements will keep running, from slow to fast, until it
runs to the endpoint; stop as soon as the key is released.
3）Set and Clear Presets
Save Preset: press 【SET PRESET】button, and then press
the number key 0-9 to set preset positions.
Note: 10 presets via remote control.
Call Preset: Press a number key 0-
9 directly to call a
preset position.
Note: If the number key is not preset, it is invalid.
Clear Preset: press 【CLEAR PRESET】button, and then
press the number key 0-9 to clear preset positions.
Note: press the
【
#
】
key three times continually to clear
all presets.
4）Zoom Control
ZOOM +: press【ZOOM +】key to zoom in
ZOOM -: press 【ZOOM -】key to zoom out
Press and hold the keys, the action of fo
cus will keep
continue and stop as soon as the key is released.
5）Focus Control

9
Focus + (near):Press
【
FOCUS +
】
None
Focus - (far): Press【FOCUS -】None
Auto focus: not supported
Manual focus: not supported
6) Camera Remote Control Address Setting
【
*
】
+
【＃】
+
【
F1
】
:Camera Address No.1
【*】+【＃】+【F2】:Camera Address No.2
【*】+【＃】+【F3】:Camera Address No.3
【*】+【＃】+【F4】:Camera Address No.4
3.2 Menu Introduction
3.2.1 Main Menu
Press 【MENU】key under MJPG, YUY2, NV12 or H264 compression encoding format output to display the
menu, using scroll arrow to point at or highlight the selected items.
1) Language
1. Language Setting：press 【← →】key to select Language
MENU
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
Language
English
（
Setup
）
（
Exposure
）
（
Color
）
（
）
（
Noise Reduction
）
（
Version
）
（
Restore Default
）
[
↑↓
]Select [
←
→
]Change Value
