Prestige PIC 20.0 User manual

Dear Customer,
Congratulations! Thank You for buying Prestige Induction Cook-top. With its modern designs and stylish looks Prestige
induction cook-tops are sure to add a lot of class to your kitchen.
Prestige Induction Cook-top is a modern gadget for healthy and safe cooking. It’s special Anti Magnetic wall ensures that
you cook with highest eciency and ease. Prestige Induction Cook-tops are carefully manufactured tested and packed so
as to give you trouble-free performance. After all, it is from Prestige, a trusted name in kitchen appliances for generations
in India with customers countrywide.
We are sure that Prestige Induction Cook-top will help you to reduce the time you spend in kitchen, still providing healthy
food for your family.
Your Prestige Induction Cook-top comes with a one year warranty. Please ensure that you post/mail your Customer
Response Card within 7 days from the date of purchase to enable us to register your purchase.
Please read the instruction manual carefully, before use.

2
User’s ManualInduction cook-top - PIC 20.0
CONTENTS
Important Safeguards 3
Unique feature of Prestige Induction Cook-top 6
Benets of Prestige Induction Cook-top 7
Know your Prestige Induction Cook-top 9
How to use your Prestige Induction Cook-top 10
Selection of vessels 14
Maintenance & Cleaning 15
Trouble Shooting 16
Error Codes 17
Technical Specications 17
Warranty Card (Customer’s Copy) 18
Warranty 19
Contents Page No.

3
User’s ManualInduction cook-top - PIC 20.0
IMPORTANT SAFEGUARDS
While using the Prestige Induction Cook-top, the following basic precautions should always be followed:
1. Read all instructions.
2. Before using the Induction Cook-top, please check that the mains voltage corresponds to the one shown on the
appliance’s specication sticker.
3. Do not use the Induction Cook-top and other large-power electric appliances at the same time from the same power
source.
4. To protect against re, electric shock and injury to persons do not immerse Cook-top, cord, plug in water or other
liquid.
5. Please keep the Induction Cook-top away from children. Close supervision is necessary when
the appliance is being used with children around.
6. Do not leave the appliance in operation unattended.
7. Do not use the Cook-top in high temperature environment.
8. The water retaining at the bottom of the vessel must be removed before using. Else the boiled water drops may splash
and scald the user when the bottom of the vessel is heated.
9. Please ensure proper ventilation while the appliance is in operation.
10. The induction cook-top is provided with Extended Cooling System for the safety of the components. So, please DO
NOT switch o the induction cook-top from the mains till the fan is completely switched o.

4
User’s ManualInduction cook-top - PIC 20.0

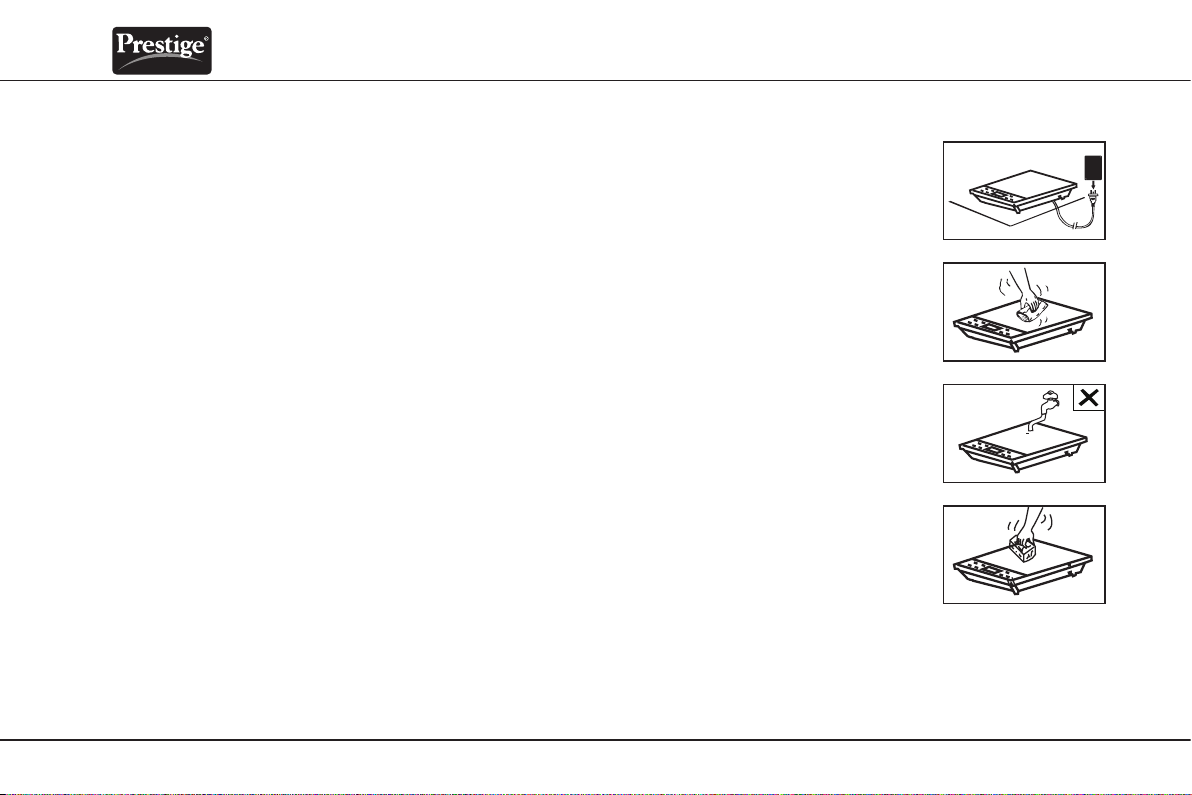

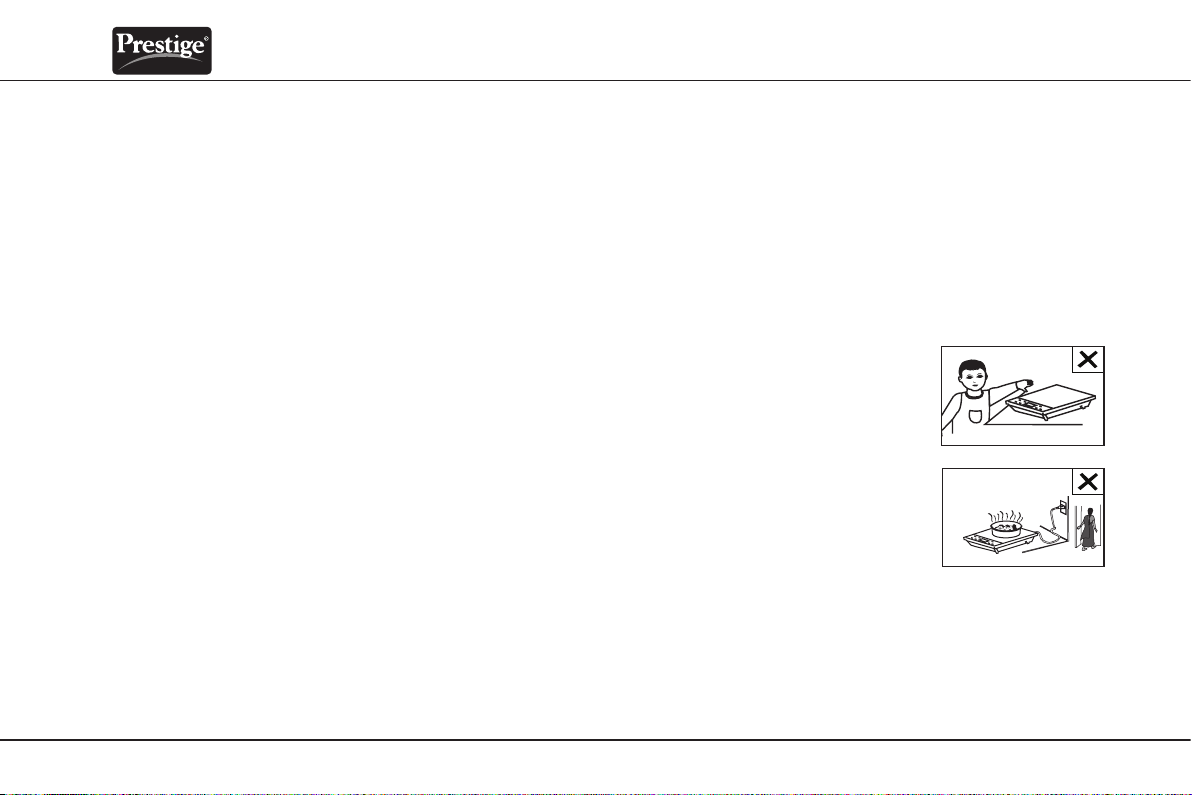

11. Do not place paper or cloth etc. between the Cook-top and the vessel to prevent the risk of
ame.
12. Do not keep the Induction Cook-top on paper or cloth etc., as this may block the air vent and the unit will malfunction.
The Induction cook top should be kept on a plain surface only.
13. Remove plug from the mains before cleaning and when not in use. Once cooking is completed, allow the appliance
to cool down completely before moving it or before cleaning.
14. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or
damaged in any manner. Return the appliance to the nearest Regional Service Centre or Authorised Service Centre for
examination, repair or adjustment.
15. Place the appliance on a at surface. Do not let the power cord hang over the edge of table or counter or touch any
hot surface.
16. Do not place the appliance on any hot surface or near re or another electrical appliance or near a hot gas stove.
17. To disconnect, remove plug from wall outlet. Always hold the plug. Never pull the cord.

5
User’s ManualInduction cook-top - PIC 20.0

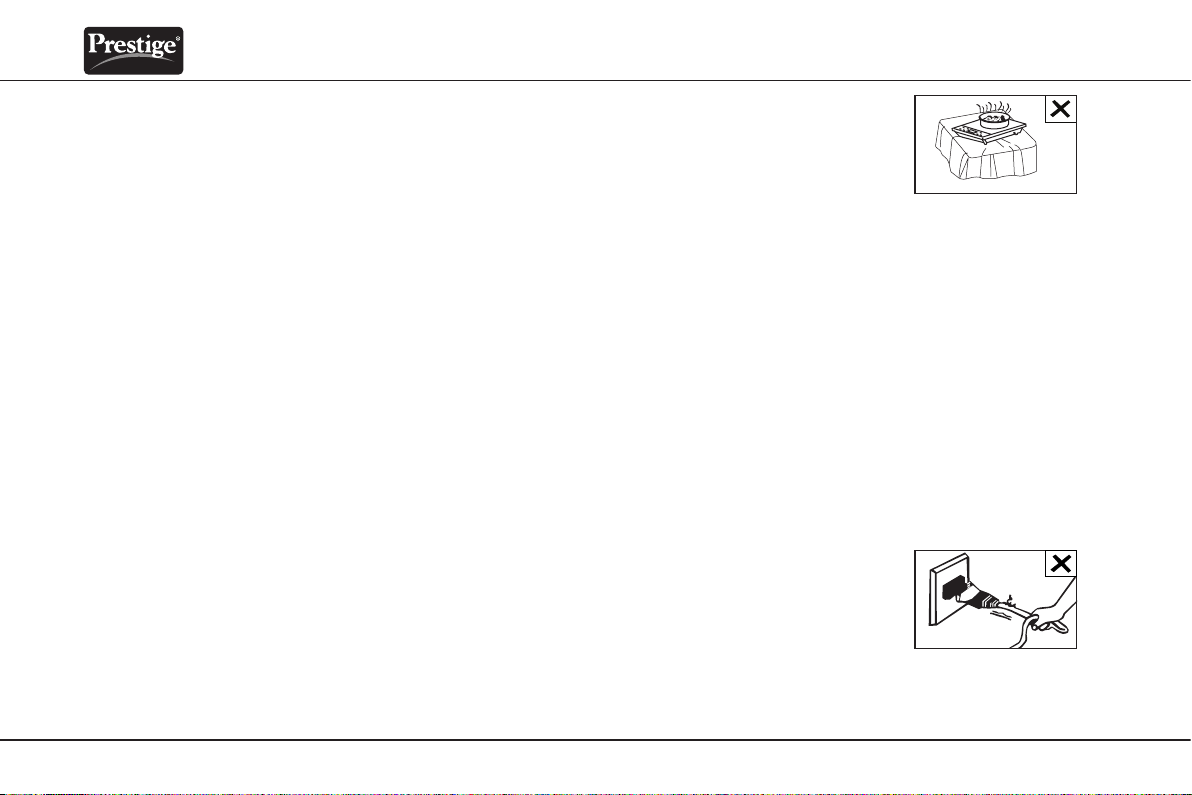

18. Do not heat empty vessel. If the cooked food is burnt, do not remove the vessel immediately. Switch o the power,
allow the vessel to cool and then remove it.
19. Do not move the Induction Cook-top with vessel on top of it.
20. If the black glass panel is broken, do not use the appliance. Take it to your nearest our Regional service centre or
Authorised service centre immediately.
21. Please do not try to open or repair the Induction Cook-top by yourself. In case of any problem, contact our Regional
Service Centre or Authorised Service Centre immediately.
22. If the appliance malfunctions, do not operate the appliance. Contact the our Regional Service Centre or Authorised
Service Centre immediately.
23. Do not clean the appliance with water immediately after cooking, as the Cook-top will be hot and the glass panel may
break.
24. This Induction Cook-top is for domestic use only.
SAVE THESE INSTRUCTIONS

6
User’s ManualInduction cook-top - PIC 20.0
Panel
Line of
magnetic force is
generated by the top
Vortex
Induction Cook-tops work on the principle of heating magnetic eld induction vortex.
Magnetic eld will be generated when the current passes through the loop. When the line
of magnetic force goes through the bottom of iron vessels, numerous small vortexes will be
generated, making the vessel heat quickly by itself to attain the objective of cooking food.
UNIQUE FEATURE OF PRESTIGE INDUCTION COOK-TOP (ANTI-MAGNETIC WALL)
Prestige Anti -magnetic Wall Induction Cook-top is able to eectively block o the surplus magnetic energy dissipated
in the course or transition from magnetic energy to heat energy, and can reect back partial usable magnetic energy
and re-change it into heat energy, which may sharply reduce magnetic radiation’s inuence on the surrounding.
Diagram of working principle of
antimagnetic wall
Prestige Antimagnetic wall
Induction Cook-top
Ordinary Induction Cook-top
Energy
gathering area
Antimagnetic
wall area

7
User’s ManualInduction cook-top - PIC 20.0
BENEFITS OF PRESTIGE INDUCTION COOK-TOP
HEALTH
The product is
designed to block
surplus energy so as
to obtain a healthy
meal without any
magnetic or radiation
hazards.
INTELLIGENT
Full procedure
computer control;
automatic power
and temperature
adjustment for
dierent foods.
EASY
MAINTENANCE
The cooking surface
is at and smooth
hence cleaning is
quick and hassle
free. The cook- top is
movable and can be
placed according to
convenience.
ECO-FRIENDLY
Heating is ame free
hence; cooking is
very safe without
any environmental
hazards
ENERGY SAVING
The wastage of energy
or heat is minimal as
the product oers
direct heating.

8
User’s ManualInduction cook-top - PIC 20.0
The Prestige Induction Cook-top oers quick and consistent heating at the highest eciency. It has been thoughtfully designed with
Indian menu options like Idli, Dosa, Chapati, Pressure Cook etc., to suit your cooking methods. Now making your favourite Indian dishes
has become a lot simpler. Add to this it’s anti-magnetic wall, soft touch buttons, durability, safety and elegance; making your cooking
experience more pleasing and enjoyable. The elegant stainless steel body adds a lot of class to your kitchen.
1. Antimagnetic wall : Ensures that the black glass panel heats only in the centre while keeping the remaining surface cool.
2. Concealed/Feather touch buttons : Prevents entry of water inside the appliance.
3. High/Low Voltage protection : The appliance will cease to function under low and high voltages.
4. Power saver technology: The unique power saver technology of the Induction Cook-top dynamically monitors the temperature
of the vessel and adjusts the power level based on the size (base diameter) of the vessel. The dual heat sensor provided in the
Induction Cook-top automatically senses the temperature of the vessel and prevent over heating there by saving power.
5. Extended cooling system : The extended cooling system allows the fan to work after the appliance is switched “OFF” thereby
enabling the appliance to cool down quickly. For this operation, do not switch o the Induction Cook-top from the mains upto 5-10
minutes after usage.
6. Automatic Switch O : The appliance will automatically switch o if it is left ‘ON’ without attention for a long time.
UNIQUE FEATURES OF PRESTIGE INDUCTION COOK-TOP

9
User’s ManualInduction cook-top - PIC 20.0
KNOW YOUR PRESTIGE INDUCTION COOK-TOP

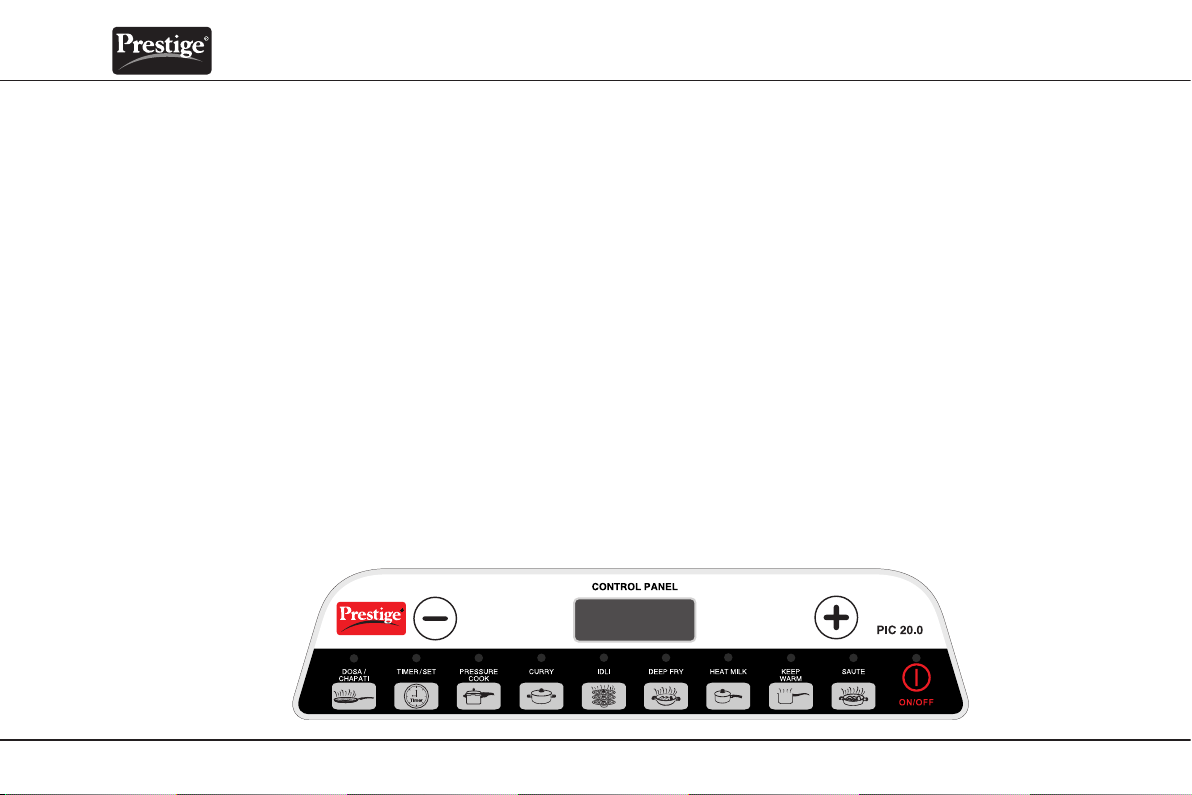

CONTROL PANEL

10
User’s ManualInduction cook-top - PIC 20.0
HOW TO USE YOUR PRESTIGE INDUCTION COOK-TOP
1) Please place the Cook-top in a well ventilated area on a at platform. Do not place the Induction Cook-top on any
metal surface or near a heat or re source.
2) Insert the plug into the socket.
3) Once the mains switch is switched on, a beep sound is heard and“ ” appears on the display.
4) Now press the ON/OFF ( ) button, the induction cook-top will start in ‘Pressure Cook’ mode.
5) Place the vessel at the centre of the glass panel.
6) Select the function button as per cooking requirement. If you hear any noise while using, slightly move the vessel so
that it lies in the centre of the glass panel.
Functions and operating instructions
“ON/OFF” button ( )
a) Press “ON/OFF” button to switch on or switch o the Induction Cook-top.
b) The Induction Cook-top will switch o automatically upon reaching the mentioned time limit.
c) The Induction Cook-top will switch o automatically if not in use for a longer time.
Temperature/Power adjustment )
a) Upon selecting a work function, you can adjust the power by pressing the and button .
b) Pressing the button will reduce the Temperature/Power.
c) Pressing the button will increase the Temperature/Power.
b) The temperature function is available only for deep fry preset cooking function.
c) In the course of heating, the intelligent heating function will automatically control the temperature based on need.

11
User’s ManualInduction cook-top - PIC 20.0
“TIMER/ SET” Button ( )
Timer:
a) When the timing function is not set, the Induction Cook-top will heat continously.
b) When you need to adjust the timer, press the“TIMER/SET” button. Once you hear a beep sound, press the button
to increase the timing. Each press of the button will increase 1 minute of time. Press and hold the button and the
timer will increase 10 minutes of time. Press the button to decrease the time. Each press of the button will
decrease the time by 1 minute. Press and hold the button and the timer will decrease 10 minutes of time.
c) Once the Induction Cook-top works for the time mentioned, it will stop heating and will switch o automatically.
d) The maximum time possible is 3 hours.
e) This function will work in all options.
Set :
The Set function can be used for the delayed start of the induction cook top at the time required by you. This function is
available only in“Idli” and ‘Heat Milk” options.
a) Plug the Induction Cook-top into the mains socket.
b) Press “ TIMER/SET ” button.
c) After you hear a beep sound, press the button to set the minutes and button to set the hour.
d) After the timing is set and the display stabilizes, press the desired function.
e) Keep the vessel on top of the cook station.
f) After the countdown time is elapsed, the induction cook top will start in the set function.

12
User’s ManualInduction cook-top - PIC 20.0
Cooking Modes:-
a) Pressure Cook mode ( ): :This function can be used for all your pressure cooking needs. It will start default at
1100 watts . The heating power/timer is adjustable in this mode, while the appliance is in operation. This mode can
also be used for all other kinds of cooking. You can increase or decrease the power by using the or buttons as
per your requirement. If the vessel is dried out during operation, the Induction Cook-top will switch o automatically.
b) Saute mode( ): This mode is suitable for all kinds of sauteing. In this mode you can increase or decrease the power
by using the or buttons according to the food and your desired style of cooking. It will start default at 1200
watts. Timer function can be used in this mode.
c) Curry mode ( ): This fu nction is suitable for making curries. You can increase or decrease the power by using the
or buttons as per your requirement. It will start default at 800 watts. Timer function can be used in this mode.
d) Deep Fry mode ( ): Applicable for high-temperature cooking, like frying and deep frying. The heating power/timer
is adjustable in this mode, while the appliance is in operation. It will start at a default temperature of 200° centigrade.
Timer function can be used in this mode.
e) Dosa/Chapati mode: ( )
This mode is specially designed to make dosa, chapati and other similar items. The power / timer cannot be varied
in this mode. It is recommended to use only this mode while using tawa for making dosa, chapati and other similar
items.
f) Heat Milk mode( ): This mode is recommended only for heating milk since the Induction Cook- top will warm the
milk with small heat power. The power will remain constant at 500 watts. constantly. It will work for 20 minutes. Time
can be set for 0:01 minute to 3 hour duration.
g) Idli mode( ): This mode is suited for making idlis and other similar items. The default time set is 10 minutes, however
you can increase the timer by pressing the “PRESET/TIMER” button. Preset timer can be set for 0:01 minute to 3 hour
duration.

13
User’s ManualInduction cook-top - PIC 20.0
h) Keep Warm mode ( ): This mode lets you keep the food warm till you need to serve the cooked food, since the
Induction Cook- top will warm the food with small heat power, The temparature will remain constant at 60° C. Hence
the food will remain fresh for a long time. The default time set is 120 minutes which is adjustable.

14
User’s ManualInduction cook-top - PIC 20.0
SELECTION OF VESSELS
The product has the function of automatic vessel detection.In general condition,iron or stainless steel products with
magnetic base and diameter between 12 cm and 26 cm and atbase vessels will have best cooking eect.
Prestige recommends using Prestige Omega Deluxe and Omega Die-cast Plus non-stick induction base cookware.
The Prestige range of Deluxe Plus Aluminium, Deluxe Plus stainless steel and Nakshatra Plus cookers with induction base
will work eciently with Prestige Induction Cook-tops.
The other suitable vessels are:
Stainless steel water jugs Cast Iron pots Color pots Grilling iron plate
Stainless Steel pots Stainless steel rice cookers Cast iron frying pots Oil boiling pots
Base diameter
less than 12cm
Pot feet higher
than 5mm
Concave pot base Convex pot base Aluminum, copper
compound base pots
Pots or vessels not applicable
Pots or vessels made of ceramic, aluminum, copper or heat-resistant glass; compound base pots mainly made of aluminum
copper (e.g. aluminum compound base pots) as well as those with base diameter less than 12cm or over 26cm

15
User’s ManualInduction cook-top - PIC 20.0
MAINTENANCE & CLEANING
1. Please switch o the power and remove the plug from wall outlet.
2. Before cleaning, make sure that the appliance is cool. Do not clean the appliance when it is hot.
Clean the Cook-top and the control panel with damp cloth.
3. Do not wash the Induction Cook-top in running water. Do not immerse the Induction cook -top
in water.
4. To clean the black glass panel, rst wipe it with a of wet cloth. Then wipe it with sponge using
mild detergent and nally wipe it to dry with soft cloth.

16
User’s ManualInduction cook-top - PIC 20.0
TROUBLE SHOOTING
Symptom Reason Action
No Beep Sound when the power is
switched on.
No display at the display panel.
The power cord is not plugged properly.
Plug the power cord into the mains
properly. If the appliance is still not
working, contact the authorised
service facility for repair.
Induction Cook-top stops working
after consecutive short beep
sounds.
The vessel is not suitable.
Ensure the vessel placed is one
with induction base and has a base
diameter of larger than 11 cm.
Vessel is not placed in the center of the
glass panel.
Place the vessel properly in the centre
circle of the glass panel.
The heating stops abruptly when
working.
Temperature around the appliance is
very high.
Please ensure that there is sucient air
ventilation in the room.
Set temperature is reached. Once the set
temperature is reached, the protection
device will switch o the power.
If the food is not cooked, reset the
temperature and start again.
Vessel is not getting heated up to
required temperature/setting.
The bottom of the vessel is concave/
convex and not at. Use only at bottom vessel.

17
User’s ManualInduction cook-top - PIC 20.0
TECHNICAL SPECIFICATIONS
Model Power Voltage Warranty
PIC 20.0 1200 watts 230 V AC, 50 Hz 1 Year
ERROR CODES
Code Description Action
E0 There is no vessel on the cook-top or the
vessel is not suitable
Ensure the vessel is placed on the cook-top and is one with induction base and
has a base diameter of larger than 12 cm.
E6 IGBT Over heat protection.
• Please allow the induction cooktop to cool down and then restart the
operation.
• Please remove paper / cloth if any, kept beneath the cooktop as this will
block the air vents thereby producing more heat.
• Iftheproblemstillpersists,pleasebringittotheservicecentre.
E3 Protection against High Voltage. When the voltage is back to normal, the unit will restore its operation. For this
please press the “ON”button when the voltage stabilizes.
E5 Protection against dry heat of the vessel.
Press the “OFF” button and allow the cooktop to cool down. Ensure that the
vessel had totally cooled down before removing the vessel. After the unit is
cooled down totally, then you can resume the operation.
E2 Temperature sensor failure. Please take it to nearest Authorised Service Centre for repair / adjustment.
E7 IGBT sensor failure.

18
User’s ManualInduction cook-top - PIC 20.0
WARRANTY CARD (CUSTOMER’S COPY)
This page has to be treated as a full edged warranty card and is required to be maintained by you. You will require
to produce this card while claiming the service within the warranty period. In the unlikely event that a defect should
develop in the Induction Cook- top during the period of this warranty, the product should be delivered at your cost to
the Regional Service Centre or Authorised Service Centre along with this warranty card.
Date of Purchase:
Model : PRESTIGE INDUCTION COOK-TOP PIC 20.0
Serial No :
Customer’s Name :
Address :
Dealer’s Stamp & Address

19
User’s ManualInduction cook-top - PIC 20.0
WARRANTY
Prestige (hereinafter referred to as the Company) warrants to the purchaser of “Prestige Induction Cook-top (PIC 20.0)”,
{hereinafter referred to as Induction Cook-top} that the said Induction Cook-top is free from all defects in material and
workmanship.
This warranty for the product is valid for a period of one year (1 year) against manufacturing defects from the date of
original purchase, subject to the following terms and conditions:-
1. The warranty card is to be completed, signed by the dealer immediately on purchase.
2. The Induction Cook-top is only to be serviced by the Company Regional Service Centre or by its Authorised Service
Centre (addresses listed in this manual).
3. The customer shall carry the Induction Cook-top to the nearest Company Regional Service Centre / Authorised Service
Centre at his/her own cost and risk.
4. The company shall make all endeavours/attempts to carry out the Service/Replacement under this warranty at the
earliest, but shall not be liable to do so within any specied time.
5. The warranty will continue and remain in force only for the unexpired period of the original warranty, in regard to the
Repair/ Replacement of parts of the Induction Cook-top.
6. The Prestige Induction Cook-top shall be used strictly for domestic purposes in accordance with the user’s manual.
7. The Company shall not be held liable for any accident, loss or damage (direct or indirect) to person or property caused
by reason of:
a) Repairs/service attended by unauthorised service person.
b) Overloading/misuse/abuse or/and negligence on the part of the person.
c) Defects caused by improper/reckless use.

20
User’s ManualInduction cook-top - PIC 20.0
d) Use of spurious spares/old, non-genuine spares.
e) Failure to comply with any safety precaution or maintenance tip suggested by the Company.
f ) Original serial number is deleted/defaced or altered or tamperproof seal is damaged.
8. The warranty does not cover damages due to negligence, mishandling, breakage of glass panel and cracks in the
body.
9. The Company shall not be responsible for any special consequential damages or loss arising directly or indirectly for
any delay in the performance of this warranty.
10. The Company reserves the right to retain any part or component at the Regional Service Centre/branches or Authorised
Service Centre or at its workshop and shall eect Repairs/Replacement or parts or components at its sole discretion.
11. All repairs within the 1 year product warranty (arising out of manufacturing defects) will be done free of charge. Our
service centres will not charge you for those specic components and labour.
12. This Warranty shall not in any case extend towards payment or any monetary consideration whatsoever, and shall be
only limited to the product replacement.
13. Any complain/disputes shall be within the jurisdiction of the Courts of Bangalore.
14. Electrical appliances, wire points need regular check up by an authorised service person.
15. Electrical appliances are prone to voltage uctuation risks, therefore precaution should be taken before use. Company
shall not be responsible for any damage to electrical parts, viz. coil, motor etc.arising out of this problem.
17. The decision of the company is nal in all cases of complaints.
