Prevention Ds-400 User manual

This manual is intended to assist the user in the safe and efficient operation of the Model DS-400 Digital Blood Pressure Monitor.The product must be used in accordance with the procedures contained

in this manual and must not be used for purposes other than those described herein. It is important to read and understand the entire manual. In particular,please read carefully and become familiar with

the section entitled TIPS ON TAKING YOUR BLOOD PRESSURE.

The user is cautioned that the system may fail to yield specified measurement accuracy if operated or stored in temperature or humidity conditions outside the limits stated in the specifications section of

this manual. Also,an inaccurate reading may result if this instrument is used on a child's arm. Consult your physician if you wish to take a child's blood pressure.

Indications for Use

The DS-400 system is intended for the non-invasive measurement of systolic and diastolic blood pressure and determination of heart rate in adult patients,i.e.,age 15 and above.The product is recommended

for use by patients with labile blood pressure or known hypertension in a home care environment as an adjunct to medical management. The cuff will accommodate an upper arm circumference range of

approximately 8.7 to 12.6 inches (22 to 32 centimeters). Pressure is measured over a range of 0 to 300 mmHg and heart rate over a range of 40 to 160 beats/minute.

Method of Measurement

This product employs the oscillometric method for measurement of blood pressure and heart rate. The cuff is connected to the main unit and wrapped around the arm. Circuits within the monitor sense the

small oscillations in pressure against the cuff produced by the expansion and contraction of the arteries in the arm in response to each heart beat. The amplitude of each pressure wave is measured,

converted to millimeters of mercury,and displayed on the LCD as a digital value.Memorycircuit stores the 30 most recent measurement results for comparison.

Accuracy was evaluated during clinical studies in which results with the DS-400 system were compared with simultaneous auscultatory measurements obtained with a standard sphygmomanometer.In these

studies,the onset of the fourth (or fifth) Korotkoff sound was taken as the diastolic pressure for the purpose of determining overall efficacy.A copy of this study is available from the manufacturer on request.

To insure that accuracy is maintained, compare readings obtained with the DS-400 system with values measured by a trained observer using a manual sphygmomanometer at least every 6 months.

Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff stethoscope auscultation method, within the limits prescribed by the

American National Standard, for Electronic or Automated Sphygmomanometers.

The DS-400 system has the ability to function according to its specifications in the presence of common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation.

CAUTION! Do not use cuffs other than those manufactured for this product.

Do not use this instrument without consultation with your doctor if you are under dialysis therapy or on anticoagulants, antiplatelets or

steroids. Use of this instrument under such conditions could cause internal bleeding.

To avoid any possibility of accidental strangulation, keep this unit awayfrom children and do not drape AIR HOSE around your neck.

For specific information on your blood pressure, contact your physician. Never makeany judgment on measurement results on your own.

Use of this device in areas near portable phones, microwave ovens or other devices with strong electromagnetic field may cause malfunctions.

Model :DS-400

Operating Principle :Oscillometric method

Indicator :11 digits LCD display

Pressure indicating Range :0to300 mmHg (Cuff pressure)

Measuring Range :50 to 250 mmHg (systolic)

40 to 180 mmHg (diastolic)

40 to 160 bpm (pulse rate)

Accuracy :±3 mmHg (Cuff pressure)

±5% of reading (pulse rate)

Inflation :Squeeze bulb

Deflation :Constant air release valve

Exhaust :Manual rapid exhaust valve

Power Supply :1.5 volt "AA" (R6P/LR6) type battery

Power Consumption :0.06W (max.)

Memory:30 measurement results,computation of the average of

stored Data

Operating environment :+50ûF to+104ûF

,15 to 90% relative humidity

Storage environment :-4ûF to+122ûF

,15 to 95% relative humidity

Cuff : Coverage arm circumference ; 8.7 to 12.6 in. [22 to 32 cm]

Main Unit :Weight ; Approx. XX oz. [XXX g] (without batteries)

Size ; XX x XX x XX in [XXX x XXX x XXX mm] (W x D x H)

Specifications are subject to change without notice due to improvements in performance.

SPECIFICATIONS

BASIC PRODUCT INFORMATION

PRECAUTIONS FOR USE

Digital Blood Pressure Monitor DS-400

CONTENTS Page

BASIC PRODUCT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

PRECAUTIONS FOR USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

TIPS ON TAKING YOUR BLOOD PRESSURE . . . . . . . . . . . . . . . . . . . . . . 2

BATTERY INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

CORRECT MEASURING POSTURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

WRAPPING THE CUFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Page

MEASUREMENT PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

MEMORYFUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ERROR DISPLAYSAND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . 4

BLOOD PRESSURE RECORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

INSTRUCTIONS

NGLISH

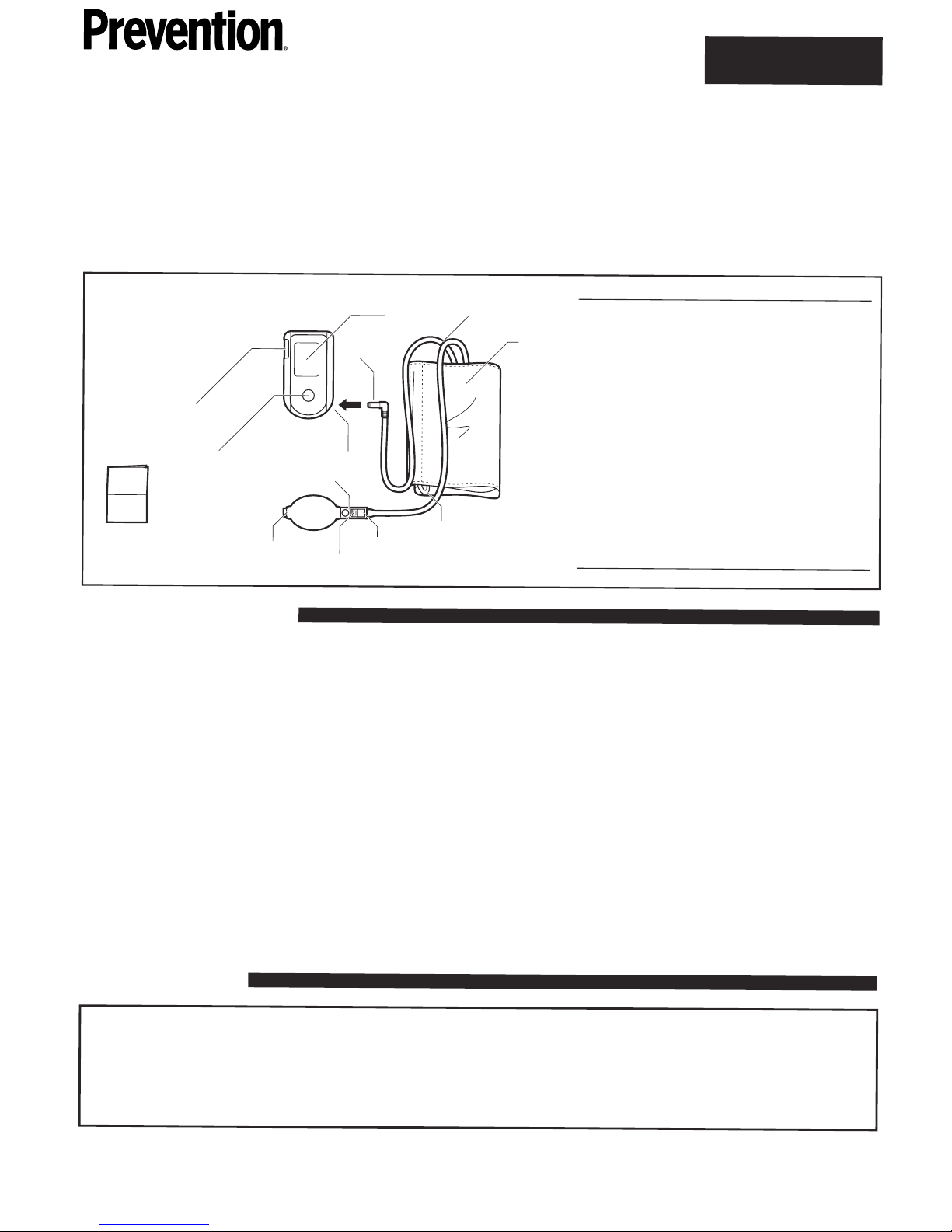

PARTS NAMES AND PRODUCT COMPONENTS

POWER BUTTON

DISPLAY

CUFF

AIR HOSE

MEMORY BUTTON AIR CONNECTOR

AIR PLUG

INFLATION BULB

INSTRUCTION MANUAL CONSTANT AIR RELEASE SIDE

CUFF RING

RAPID EXHAUST SIDE

AIR CONTROL VALVE

Prevention® is a registered trademark of

RODALE INC.

Produced under license by Mark of Fitness,Inc.

1 inch

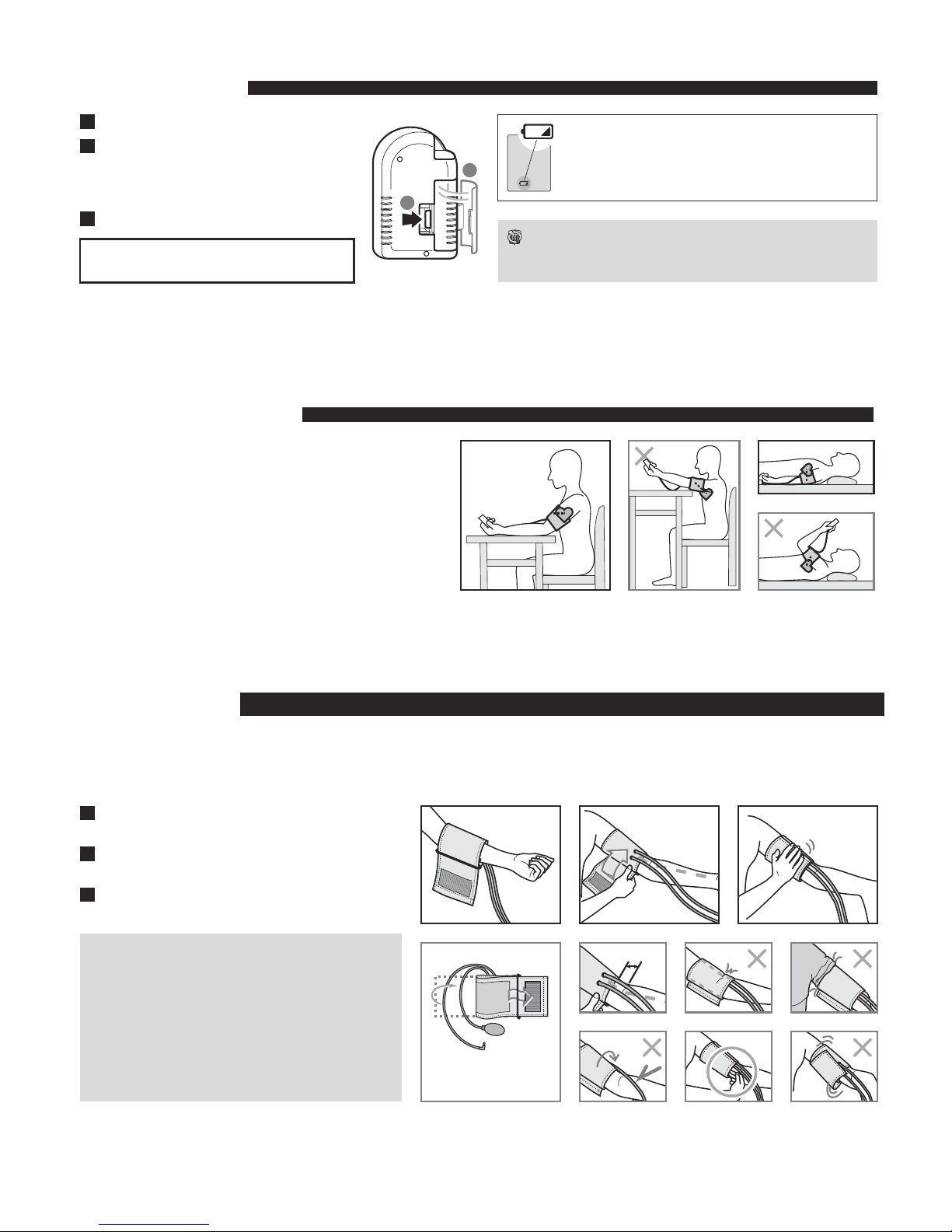

BATTERY INSTALLATION

CORRECT MEASURING POSTURE

WRAPPING THE CUFF

Sit at the table and let the table support your arm as you take the blood pressure

measurement.

Make sure that the measurement location on the upper arm is at approximately

the same height as the heart, and that the forearm is extended naturally on the

table and does not move.

You may lie on your back and take the measurement. Look at the ceiling, stay

calm, and do not move your neck or body during the measurement. Again, make

sure that the measurement location on the arm is at approximately the same

height as the heart.

With the tube of the cuff positioned in the direction of

the fingertips, place the cuff on your left arm.

Wrap the cuff around the arm with the edge of the cuff

approximately 1 inch (2.5 cm) above the elbow.

Press the surface of the cuff to make sure that it is

attached securely.

When wrapping the cuff, wrap it loosely enough

around the arm so that two fingers can be placed

between the cuff and the arm. If the cuff is wrapped

more tightly or loosely than this, inaccurate blood

pressure readings may result.

If you are wearing a shirt that might restrict circulation

in your upper arm or you roll your sleeve up over the

upper arm, the blood flow will be restricted, preventing

accurate measurement.

Open the battery cover.

Install an “AA” type battery into the

compartment. Make sure that the polarities

correspond to the (+) and (-) marks indicated

inside of the comartment.

Close the battery compartment cover.

CAUTION!

Do not use rechargeable batteries.

battery replacement indication

Replace the battery when the battery replacement indication appears on the

display or nothing is displayed even if POWER BUTTON is depressed.

Use alkaline battery to increase battery life. Use of regular Carbon-Zinc battery

will necessitate more frequent replacement.

Since neither the device or batteries are household waste, follow your

national/local recycling rules and dispose of them at appropriate

collection sites.

Take deep breaths and relax.

Do not move, chat or strain your

arm or hand during measurement.

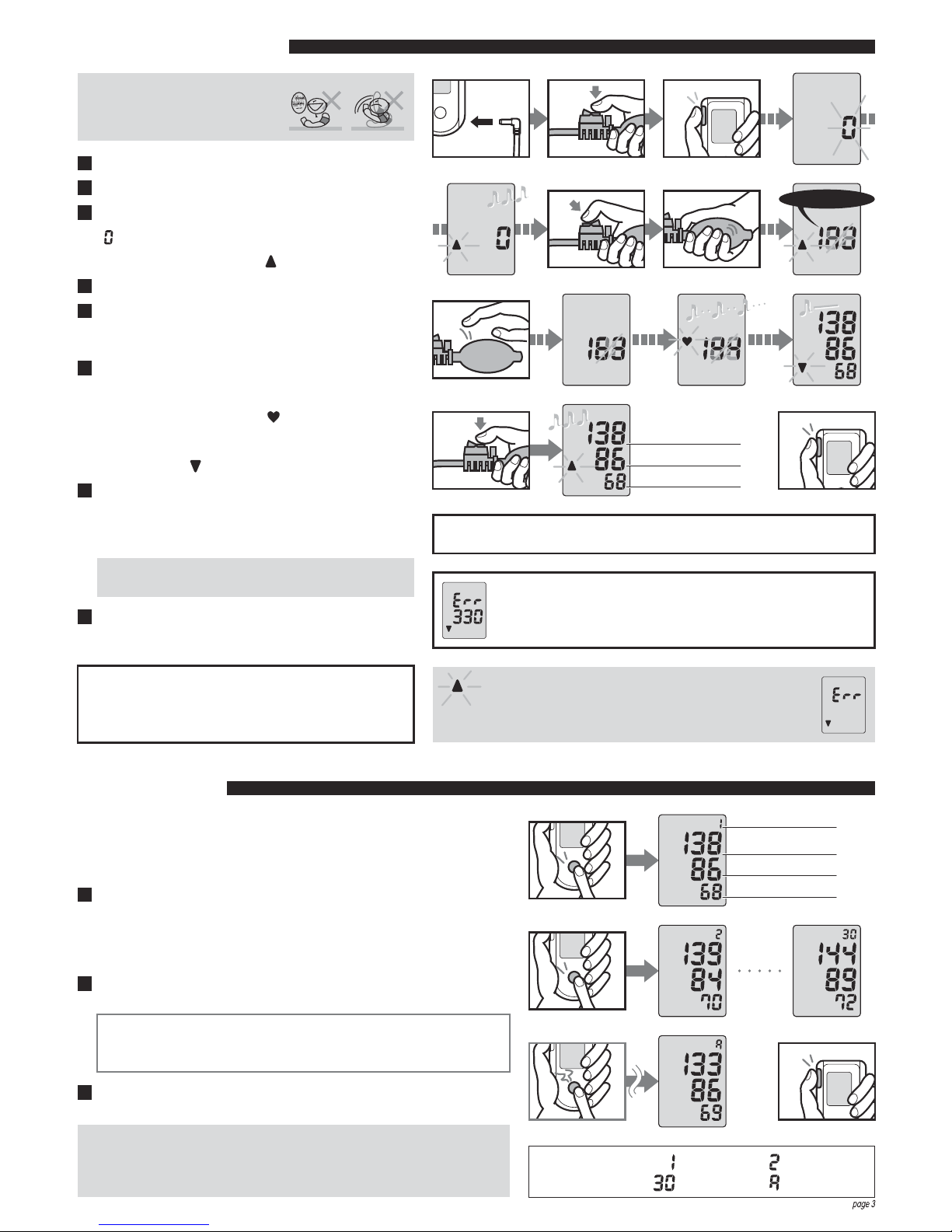

Insert TUBE PLUG into AIR CONNECTOR.

Depress back of rocker switch to release air from the cuff.

Press POWER BUTTON.

"" flashes after the initial display.

Beep sounds and the inflation mark " " starts to flash.

Depress forward end of rocker valve.

Rapidly squeeze INFLATION BULB to inflate the cuff to

30-40 mmHg above your systolic pressure or if not

known to approximately 180 mmHg.

Gently place INFLATION BULB on the table.

The displayed value (pressure) decreases.

The pulse is indicated by heart mark " ".

Long beep sounds as the measurement completes.

The deflation mark " " flashes.

Depress backside of rocker switch to release the air

from the cuff.

Maximum and minimum blood pressures and pulse rate

are displayed.

The measured data will automatically be stored in the memory.

When a measurement resulted in an error, it will not be stored.

Press POWER BUTTON to turn off the power.

If you forget to turn off the unit, it will be automatically turned off after

3 minutes.

Do not take repeated measurements. blood can be forced

into tissues beyond the cuff, which would result in

incorrect measurements. Let your arm rest for at least

5 minutes.

MEMORY FUNCTIONS

MEASUREMENT PROCEDURES

The memory can store up to 30 measurements and their average. When the number of

measurements exceeds 30, the oldest data will be replaced by the newest data.

Recalling measured data

Press MEMORY BUTTON to see stored data.

When no measurements are stored, nothing will be displayed.

The memory data is displayed for approximately 5 seconds. Approximately 5 seconds after

MEMORY BUTTON is released, the apparatus will turn off or return to the current measurement

display.

Press MEMORY BUTTON to move to next stored data.

Every depression of the key switches among the memory data.

While MEMORY BUTTON is held down for approximately 2 seconds, the memory data

numbers will be fast-forwarded to the average of total stored data unless the button is

released; the number stops at release of the button.

Press POWER BUTTON and turn off the unit.

Storage cannot be cancelled.

The stored data will be retained even after the power is turned off.

The stored data will be lost after battery replacement.

Stopping Measurement

Depress backside of the rocker switch.

OVER-PRESSURIZATION

Depress backside of the rocker switch and release air from the

cuff.

If the inflation mark flashes again during the measurement,

start squeezing INFLATION BULB to inflate again to a level about 30 mmHg higher

in 4 sec., or the "Err" appears on the display.

SYSTOLIC mmHg

DIASTOLIC mmHg

PULSE bpm

SYSTOLIC mmHg

DIASTOLIC mmHg

PULSE bpm

MEMORY NUMBER

MEMORY NUMBER : latest data : 2nd latest data

: oldest data : average

SYS+30~40mmHg

Make sure that the cuff is wrapped properly and repeat

"MEASUREMENT PROCEDURES" steps.

Remain still and quiet during measurement.

Do not inflate the cuff over 300 mmHg.

Press POWER BUTTON to turn off the power once and press it

again to start a measurement.

Reinsert the battery in the correct position.

Replace the battery.

Clean the battery terminals with a dry cloth.

Nothing is displayed when there is no measured data stored.

The stored data will be lost after battery replacement.

Replace the battery.

Use an alkaline battery to increase battery life.

Replace.

Measure with the correct posture.

See TIPS ON TAKING YOUR BLOOD PRESSURE.

Remain still during the measurement.

Measure again after resting for more than 5 minutes.

This does not indicate a problem. The instrument automatically

turns off 3 minutes after a measurement or 5 seconds after

memory display.

TUBE PLUG is not correctly inserted or the cuff is not properly

wrapped.

Measurement could not be made because of moving or talking

during measurement.

The cuff was inflated to the maximum pressure.

POWER BUTTON was accidentally pressed during battery

replacement.

Has the battery been positioned incorrectly?

Has the battery run down?

Are the battery terminals clean?

Is there any measured result stored in the memory?

Has the battery run down?

Are you using an alkaline battery?

Has the battery run down?

Are you measuring with correct posture?

Blood pressure readings constantly vary with time of measurement

and nervous condition.

Did you move during the measurement?

Did you measure right after exercise?

Have you left the instrument untouched after the measurement?

IRREGULAR DEFLATION

SPEED

OVER-PRESSURIZATION

IMPROPER OPERATION

No display when POWER BUTTON is

pressed.

No display when MEMORY BUTTON is

pressed.

Cannot make great number of measurements.

Cannot complete the measurement.

Blood pressure is different

with each reading.

The reading is extremely low (or high).

Pulse rate is too low (or too high).

The power is automatically turned off.

ERROR DISPLAYS AND TROUBLESHOOTING

CARE AND MAINTENANCE

Because the unit includes precision parts, care should be taken to avoid extreme temperature variations, humidity, shock, dust, and direct sunlight. Do not drop or strike the unit. Make sure not to expose

the unit to moisture. This unit is not water resistant.

Use only a soft, dry cloth to clean the unit. Do not use gasoline, paint thinner, or other strong solvents on the unit. Since the cuff may absorb perspiration and other fluids, inspect it for stain and discoloration

after each use. When cleaning the cuff, do not machine wash or scrub it. Use a synthetic detergent and gently rub the surface. Make sure fluid never gets in AIR HOSE. Air dry throughly.

When storing the unit, do not place heavy objects on it and do not coil AIR HOSE too tightly. When the unit has been stored at a temperature below the freezing point, keep it for at least 1 hour in a warm

place before using it. Remove the batteries if the instrument is to be stored for an extended period of time. Keep the batteries out of reach of children.

We suggest that you have your blood pressure monitor checked every 2 years. This operation may only be performed by the manufacturer or by firms authorized by the manufacturer.

Do not inflate the cuff when it is not wrapped around your arm.

Do not disassemble or modify the unit.

CAUSE / CHECK POINTERROR SYMOL / SYMPTOM REMEDY

If you cannot get correct measurement with the methods above, do not tamper with the internal mechanism. Contact your dealer. If the unit malfunctions, please return it to the dealer or an authorized service

representative for ser
