Olympian Autolift www.pridemobility.com 2
S A F E T Y G U I D L I N E S
WARNING! An authorized Pride Provider or qualified technician must perform the initial setup of this lift and
must follow all of the instructions in this manual.
The symbols below are used throughout this owner's manual and on the product to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated procedures
can cause either personal injury, component damage, or malfunction. On the product, this icon is
represented as a black symbol on a yellow triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform mandatory actions can
cause personal injury and/or equipment damage. On the product, this icon is represented as a white symbol
on a blue dot with a white border.
PROHIBITED! These actions are prohibited. These actions should not be performed at any time or in any
circumstances. Performing a prohibited action can cause personal injury and/or equipment damage. On the
product, this icon is represented as a black symbol with a red circle and red slash.
Please fill out the following information for quick reference:
Pride Provider:_____________________________________________________________________
Address:___________________________________________________________________________
Phone Number:_______________________
Purchase Date:_______________________ Serial Number:_________________________________
NOTE: This owner’s manual is compiled from the latest specifications and product information
available at the time of publication. We reserve the right to make changes as they become necessary.
Any changes to our products may cause slight variations between the illustrations and explanations in
this manual and the product you have purchased. The latest/current version of this manual is available
on our website.
NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.
Manufactured By:
Distributed By:
Autochair Ltd
Pride Mobility Product, Corp.
Wood Street North
182 Susquehanna Avenue
Copyright © 2013
Meadowlane Ind. Est.
Exeter
Autochair Ltd.
Alfreton
PA 18643-2694
1225265/Rev A/October 2013
Derbyshire, DE55 7JR
USA
UK

Olympian Autolift www.pridemobility.com 3
C O N T E N T S
I. INTRODUCTION ......................................................................................................................4
II. SAFETY .......................................................................................................................................5
III. TECHNICAL …............................................................................................................................8
IV. OPERATION ............................................................................................................................. 9
V. INSTALLING & REMOVING ...............................................................................................15
VI. TROUBLESHOOTING ............................................................................................................17
VII. CARE AND MAINTENANCE ...............................................................................................18
VIII. WARRANTY .............................................................................................................................19

Olympian Autolift www.pridemobility.com 4
I. I N T R O D U C T I O N
Welcome to Pride Mobility Products. Congratulations on the purchase of your new lift system. The lift
system design combines the most advanced state-of-the-art components with modern, attractive styling.
At Pride, your safety is important to us. Please read and follow all instructions in this manual before
operating your lift system for the first time. These instructions were produced for your benefit. Your
understanding of these instructions is essential for the safe operation of your new lift system.
Pride is not liable for damage to property or personal injury arising out of the unsafe use of a lift system.
Pride is also not liable for any property damage or personal injury arising out of the failure of any person
and/or user to follow the instructions and recommendations set forth in this manual or any other
instructions or recommendations contained in other lift system related literature issued by Pride or
contained on the lift system itself.
INTERNET AND PRIVATE PURCHASES
If you purchased your product over the Internet or from a previous owner and you have any questions
about the safe use and/or maintenance of the product, please visit the Pride web page at
www.pridemobility.com or contact your authorized Pride Provider.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or
remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail,
refuse, or neglect to install any retrofit kits from time to time provided by Pride to enhance or preserve the
safe use of this product.
SHIPPING AND DELIVERY
Before using your lift, make sure your delivery is complete as some components may be individually
packaged. If you do not receive a complete delivery, please contact your Pride Provider immediately.
Where damage has occurred during transport, either to the packaging or content, please contact the delivery
company responsible.
INFORMATION EXCHANGE
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear
about the safety and reliability of your new lift system, and about the service you received from your
authorized Pride Provider.
Please notify us of any change of address, so we can keep you apprised of important information about
safety, new products, and new options that could improve your ability to use and enjoy your lift system.
Please feel free to contact us at the address below:
USA:
Canada:
Pride Mobility Products Corporation
Pride Mobility Products Company
182 Susquehanna Ave.
5096 South Service Road
Exeter, PA 18643-2694
Beamsville, Ontario L0R 1B3
NOTE: If you ever loseor misplaceyour copyof thismanual,contactus and we will be glad to send you a
new one immediately.

Olympian Autolift www.pridemobility.com 5
I I . S A F E T Y
PRODUCT SAFETY SYMBOLS
The symbols below are used on the lift system to identify warnings and mandatory or prohibited
actions. It is very important for you to read and understand them completely.
Read and follow the information in the owner’s manual.
Maximum lifting capacity.
Do not sit on mobility product while operating the lift system or during
transport.
Pinch/Crush points created during assembly and/or operation. Keep hands/
fingers away from moving components during operation.
Battery posts, terminals and related accessories contain lead and lead
compounds. Wear goggle and gloves when handling batteries and wash
hands after handling.
Disposal and recycling. Contact your authorized Pride Provider for
information on proper disposal of your Pride product and its packaging.

Olympian Autolift www.pridemobility.com 6
I I . S A F E T Y
LIFTING CAPABILITIES
The lift system is designed to lift a maximum weight of 260 lbs. (120 kg) or 440 lbs. (200kg) depending on
the model purchased. Check this by referring to labels on the lift arm. Under no circumstances should the
lift system be made to exceed this weight limit. Subjecting the lift system to the strain of lifting more than
it is designed to may cause it to fail, resulting in damage to the mobility product and/or injury to the lift
operator. Refer to the mobility product specifications for information on the overall weight of the
mobility product before lifting with the lift system.
WARNING! Exceeding the maximum lifting capacity of 260lbs or 440lbs may cause the lift
system to fail, resulting in damage to the mobility product and/or injury to the lift operator.
MANDATORY! Adding accessories, oversized batteries, or a different seat will increase the
weight of your mobility device. Verify with your authorized Pride Provider that the total
weight of your mobility device, including additions, DOES NOT exceed 260 lbs or 440 lbs.
(120/200 kg).
INSTALLATION
The Olympian Autolift is intended for installation in the rear luggage compartment of a vehicle. Read and
fully understand the installation instructions provided with the hoist and the related fitting kit instructions
before installing the lift system.
WARNING! The Olympian Autolift is only intended to be installed by an authorized Pride
installer or qualified technician. Separate installation instructions are provided with the
hoist and the installation kit. Read and fully understand both manuals prior to installation.
LIFTING NON-PRIDE PRODUCTS
The lift system is an extremely versatile device, which users may employ to lift items other than Pride
products. Pride has no control over such use, nor can Pride anticipate every possible use to which a lift
system may be put. Operating the lift system outside of the safe limits as discussed in this manual or using
the lift system to lift any item deemed by Pride to be incompatible with the lift system is done at the
operator’s own risk, and Pride accepts no liability for damage or injury resulting from such use.
PRE-LIFT INSPECTION
There should be no sharp edges on the Olympian Autolift, the fitting kit or the scooter brackets. If you
find any sharp edges, please contact your supplier before use. Make sure that you are completely happy
with the operation of your Olympian Autolift before operating it yourself. Misuse of the product could
result in injury. Inspect the lifting straps before every use for twisting, fraying or signs of wear. If signs of
wear become evident, have them replaced by your authorized Pride Provider.
WARNING! A frayed or worn strap can snap, resulting in injury to the person being lifted
and/or the operator.
OPERATOR POSITIONING
Keep hands clear of the lift arm while the lift system is lifting/lowering or loading in/out a mobility
product. The operator of the lift should stand a safe distance from the unit being lifted/lowered to ensure
that his/her feet are never positioned under a raised mobility product.

Olympian Autolift www.pridemobility.com 7
I I . S A F E T Y
TRANSPORT VEHICLE POSITIONING
Be sure your vehicle is parked on flat, level ground and the emergency brake is engaged before attempting
to lift a mobility product.
WARNING! Attempting to lift a mobility product when a vehicle is not on level ground will
cause the mobility product to swing toward or away from the vehicle, making it difficult
to get the mobility product into the vehicle.
KEY SAFETY POINTS
WARNING! All models of Olympian Autolifts are very powerful in both the UP (lifting) and
DOWN (lowering) as well as the IN (into vehicle) and OUT (out of vehicle) operation. Care
should be taken that the Olympian Autolift boom and the mobility product that is being lifted
are free to move. Olympian Autolifts have the power to break trim and cause harm if not
operated correctly.
WARNING! The Olympian Autolift must never be operated by a child or any person not
deemed appropriate to operate the equipment by the technician who installed it.
WARNING! The safety Pin must be fitted into the top pin in the A-Frame prior to use.
WARNING! Note the position of all pinch point warning labels stating “Keep Clear”. Never
place your hands in these locations when the Olympian Autolift is moving.
WARNING! The Olympian Autolift must never be used to lift items other than the mobility
product it was originally installed and set-up to lift.
WARNING! Never use a system that has signs of damage.
WARNING! Do not exceed maximum lifting capacity.
WARNING! Misuse of the Olympian Autolift may result in serious injury.
Before lifting the mobility product for the first time, operate the Olympian Autolift without a load
until the controls are familiar.
Any adjustment to the Olympian Autolift settings must only be carried out by an authorized Pride
Provider.
Your Olympian Autolift should be inspected at least every year by a qualified person.
If in doubt about any aspect of your Olympian AutoLift, contact an authorized Pride Provider.

Olympian Autolift www.pridemobility.com 8
I I I . T E C H N I C A L
PRODUCT SPECIFICATION
Model / SWL
440 lbs (200kg)
260 lbs (120kg)
Weight of the lifting arm:
30.8lbs (14kg)
24.2lbs (11kg)
Maximum lifting capacity, SWL:
440lbs (200kg)
260lbs (120kg)
Power supply:
12V dc
Maximum current draw:
22 Amps
Product Materials:
Aluminum and Mild/Stainless Steels
Material Finish:
Powder Coated –Black, Red or Blue
COMPONENT DESCRIPTION
1
2
3
4
5
6
BOOM
‘A’ FRAME
IN / OUT ACTUATOR
IN / OUT ACTUATOR FIXING PLATE
ACTUATOR PIN
RETAINING PIN
7
8
9
10
11
SPREADER BAR
CONTROL BOX
HANDSET
PIVOT POST
UP/DOWN ACTUATOR

Olympian Autolift www.pridemobility.com 9
I V . O P E R A T I O N
LOADING SCOOTER/CHAIR

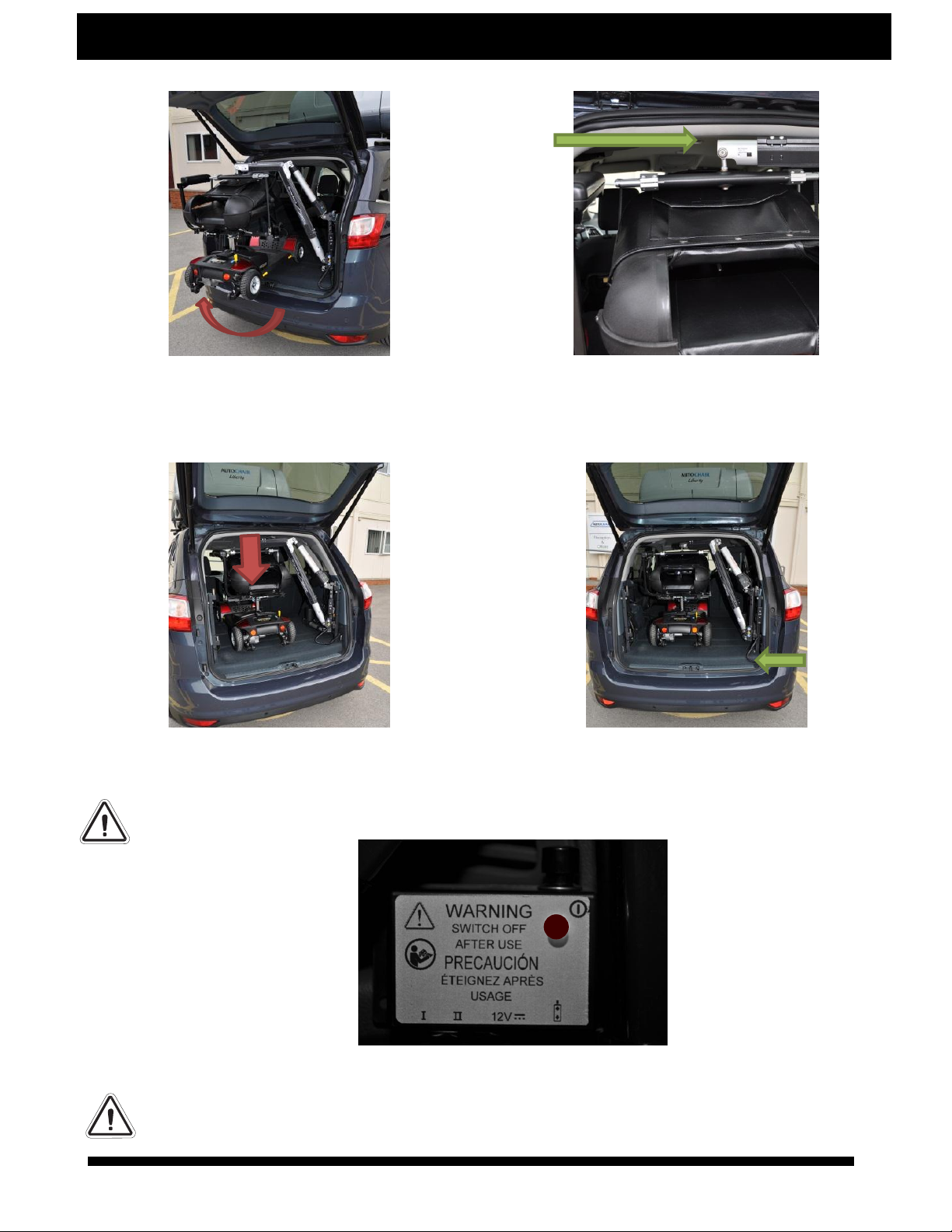

1. Locate the power control box
2. Press the power button (a red light indicates the system is powered ON)
3. Remove the handset from its docked position
4. Check the red led light on the handset is illuminated
5. While retaining the handset move clear of the Hoist and its path of operation
6. Press and hold the left or right button (depending on side of installation) to swing the hoist
outwards


Olympian Autolift www.pridemobility.com 10
I V . O P E R A T I O N
7. Release button when the boom is at its outmost position.
8. Position the scooter under the hoist so the lifting bracket is vertically below the spreader bar
9. Fold the scooter
10. Press and hold the down button to lower the boom
11. Engage the keyhole plates securely to the lifting bracket. (This bracket will vary depending on
what is being lifted)
12. Press and hold up button to raise the scooter/chair up to the upmost position then release button
steady the scooter during operation and ensure it does no contact the vehicle.


Olympian Autolift www.pridemobility.com 11
I V . O P E R A T I O N
WARNING! Never leave the system with power on when not in use.
13. Press and hold the left or right button (depending on side of installation) to move the hoist inwards -
steady the scooter/chair during operation and guide it smoothly towards the vehicle.
14. Carefully guide the scooter fully into the car - Ensure there is clearance for the boom to swing fully in
to position
15. Press and hold the down button until the scooter/chair is firmly placed on to the vehicle floor.
16. If you ordered a restraint system, this should now be employed.
17. Return the handset back into its docked position –ensure the cable is clear of trapping hazards.
WARNING! Do not continue to hold the down button after the scooter/chair is grounded
18. Press the power button (the indicator red light should no longer be illuminated indicating power OFF)



Olympian Autolift www.pridemobility.com 12
I V . O P E R A T I O N
UNLOADING SCOOTER/CHAIR
1. If you have a restraint system fitted, this should now be disengaged.
2. Locate the power control box
3. Press the power button (a red light indication the system is powered ON)
4. Remove the handset from its docked position
5. Check the red led light on the handset is illuminated
6. While retaining the handset move clear of the Hoist and its path of operation
7. Press and hold the up button to raise the scooter/chair from the vehicle floor

a

Olympian Autolift www.pridemobility.com 13
I V . O P E R A T I O N
8. Press and hold the left or right button (depending on side of installation) to move the hoist
outwards, steady the scooter/chair during operation and guide it smoothly out of the vehicle.
9. Ensure there is clearance for the hoist to swing fully outwards
10. Press and hold the down button until the scooter/chair is grounded and there is some slack on the
lifting straps.
WARNING! Do not continue to hold the down button after the scooter/chair is grounded.
11. Release the key hole plates


Olympian Autolift www.pridemobility.com 14
I V . O P E R A T I O N
12. Ensure the scooter/chair is free from Hoist. Press the up button to raise the boom fully upwards
13. Press and hold the left or right button (depending on side of installation) to move the hoist inwards
14. Return the handset back into its docked position –ensure the cable is clear of trapping hazards.
15. Press the power button (the indicator red light should no longer be illuminated indicating power
OFF)
WARNING! Never leave the system with power on when not in use.


Olympian Autolift www.pridemobility.com 15
V I . I N S T A L L I N G A N D R E M O V I N G

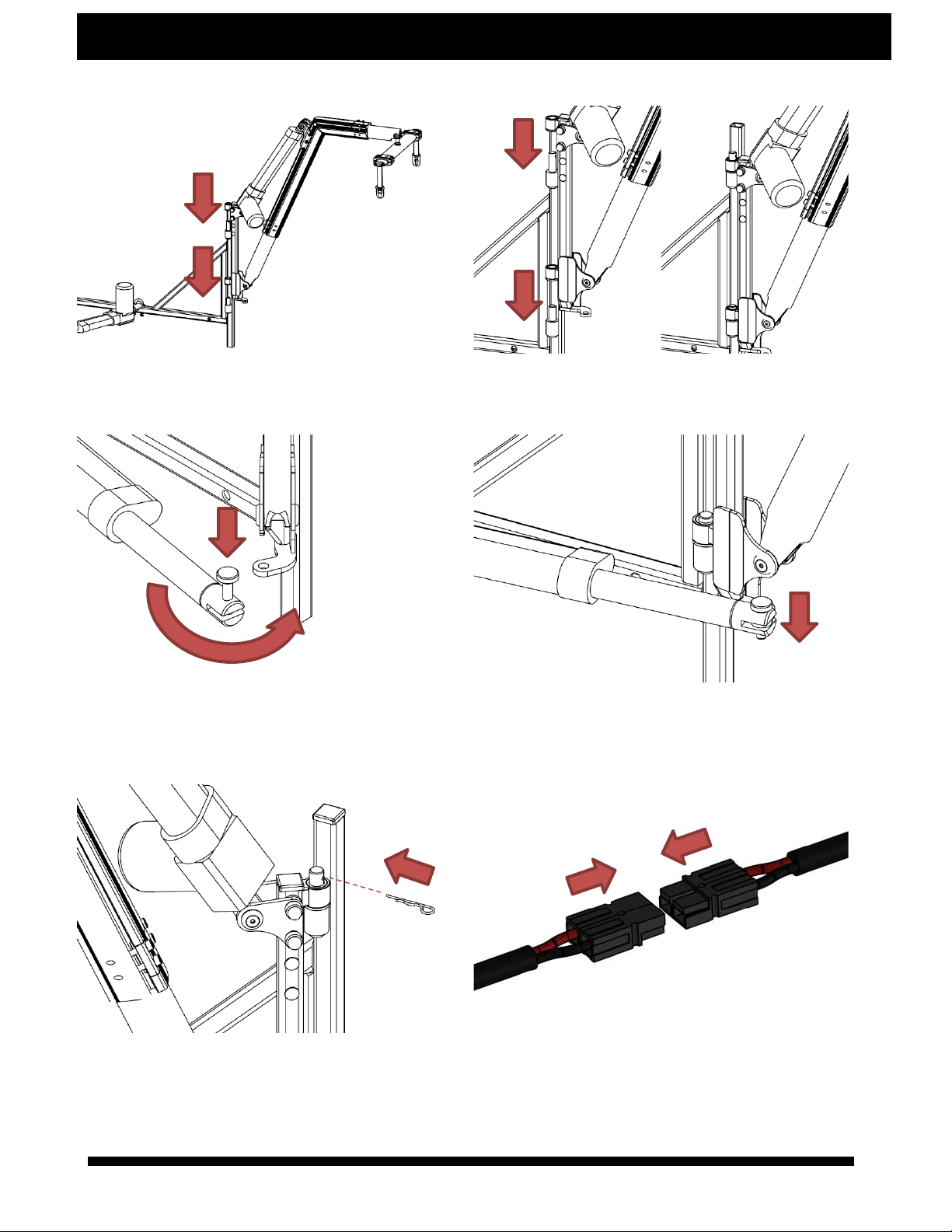

INSTALLING
1. Rest the upper mounting lug onto the longer upper pin before aligning the lower pin. The hoist
should slide smoothly down into place.
2. Half engage actuator pin
3. Rotate the hoist and align with it actuator
4. Fasten together with the actuator pin –Ensure the pin is fully engaged
5. Fully insert the Retaining Clip into the top pin
6. Clip the power connectors securely together

Olympian Autolift www.pridemobility.com 16
V I . I N S T A L L I N G A N D R E M O V I N G

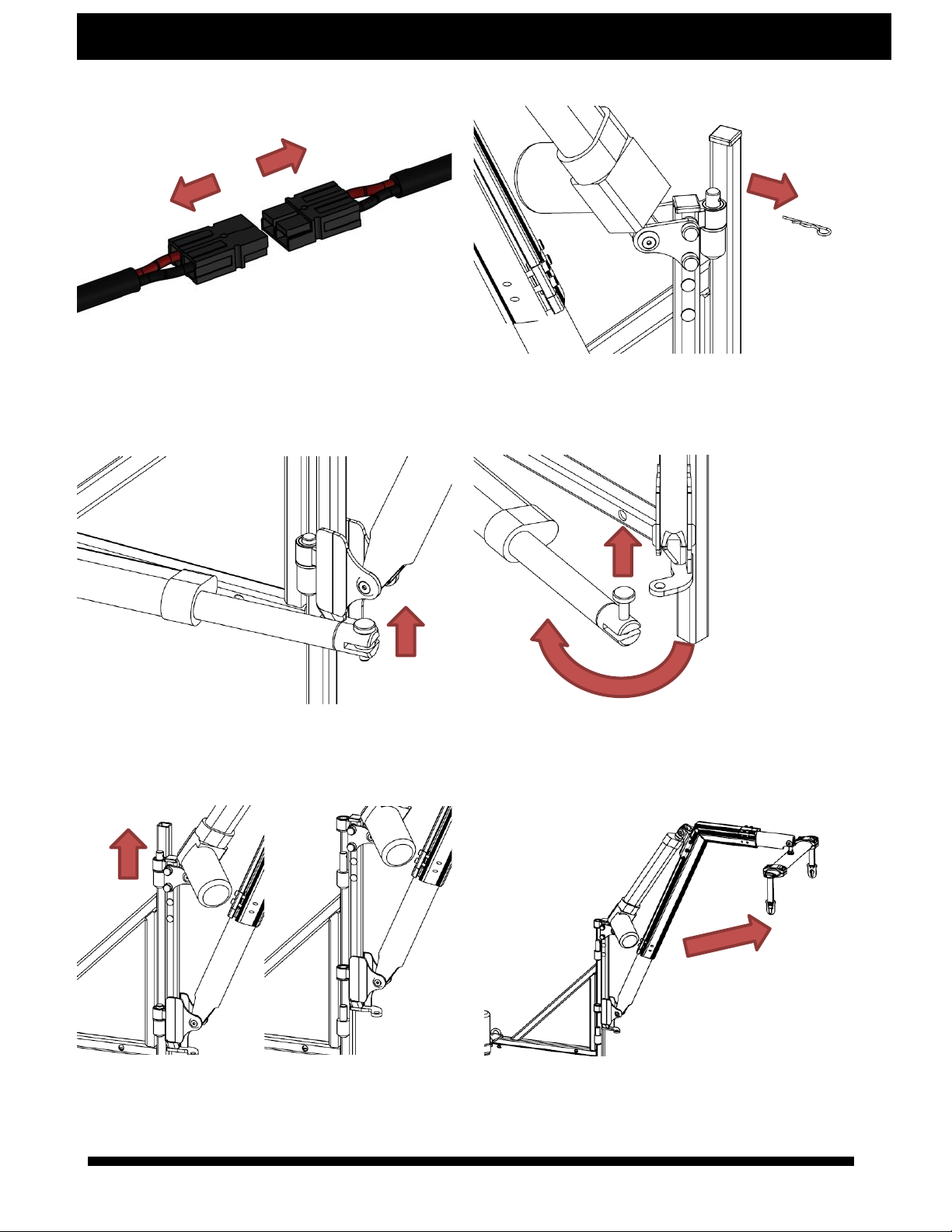

REMOVING
1. Ensure the system power is OFF
2. Unclip the power connectors
3. Remove retaining clip
4. Partially remove the actuator pin
5. Rotate the actuator away from the hoist
6. Remove actuator pin
7. Slide hoist upwards to remove
8. Store the hoist in a safe location

Olympian Autolift www.pridemobility.com 17
V I . T R O U B L E S H O O T I N G
G
TROUBLESHOOTING & FREQUENTLY ASKED QUESTIONS
PROBLEM
SUGGESTIONS
Nothing works
Make sure that the Olympian Autolift is switched on.
Turn the hoist off and back on again and retry.
Check the fuse. This is next to the car’s battery, a spare fuse is always
supplied.
Try operating via the emergency buttons, if applicable.
Does the car have a flat battery (try to start it)
Handset doesn’t work
Try the emergency buttons. If these work, then change the battery in the
handset
If this still does not work the handset may have been accidentally
reprogrammed, see page 6 for Radio Pairing.
Turns on but won’t lift
Has the actuator become disconnected from the power supply?
Check the electrical plugs between ‘UP/DOWN actuator and power
supply, reconnect if they have come apart
Turns on but won’t power in
Has the actuator become disconnected from the power supply?
Check the electrical plugs between ‘IN/OUT’actuator and power
supply, reconnect if they have come apart
Stops during lifting
Is the scooter/wheelchaircaught on the vehicle?
The Olympian Autolift are all protected by safety cut outs in the
programming, if a load of more than the hoist’s capacity is lifted, the
hoist will automatically cut out. Please check this weight with your
supplier.
The actuator makes a loud
clicking noise
The stronger actuator required for 200kg lifts uses a clutch for overload
protection. If the noise only occurs at the top or bottom of the lift, this
is perfectly normal. If it occurs part way through the lift the unit is
overloaded. Check the scooter/chair is not caught against anything.
Hoist is lifting very slowly
Is the scooter too heavy for the lift?
440lbs (200kg) is the maximum safe working load. (See page 8)
If the Olympian Autolift is extended refer to the technical section to
check the lift capacity for the setting.
Is the vehicle’s battery charged?
What about servicing?
We recommend yearly service to ensure safety, reliability and
performance of your Olympian Autolift.
What if we have an accident?
If you think that your Olympian Autolift has been damaged for any
reason, please call your authorized Pride Provider for inspection and
testing before use.

Olympian Autolift www.pridemobility.com 18
V I I . C A R E & M A I N T E N A N C E
G
The following routine maintenance should be performed at the indicated intervals. Failure to perform the
maintenance procedures at the required intervals may void Pride’s product warranty.
Perform prior to daily use:
Inspect buckles and straps and replace if necessary.
Inspect lift for damage and replace if necessary.
Check electrical cords and connections for signs of damage.
Perform at least every 6 months:
Inspect all mounting hardware and lift pivots for defects and a secure fit. Any hardware found to be
loose should be tightened or replaced if necessary. If in doubt contact your authorized Pride Provider.
Perform every 12 months:
It is recommended that the Olympian Autolift is serviced every year by your authorized Pride Provider.
Cleaning:
If required the Olympian Autolift can be cleaned with a damp cloth and detergent. Ensure the unit is
disconnected before cleaning.
Do not immerse in water, do not allow water to run into the electrical connectors or control box and
allow to dry before use.

Olympian Autolift www.pridemobility.com 19
V I I I . W A R R A N T Y
G
The warranty period for the Olympian Autolift is 12 months from the date of delivery.
This warranty will cover any defects of workmanship or function.
The warranty does not cover any incorrectly installed Olympian Autolift or one with damaged mechanical
or electrical components due to incorrect use or damage.
The warranty does not cover consequential loss, unless regional law requires it.
The warranty is invalidated if the seal on either the actuator or control box is broken. These contain no user
replaceable components. No alteration should be made to the Olympian Autolift by anyone other than a
qualified person, as defined by an authorized Pride Provider.
In the event of damage or defects in the actuator, the Olympian Autolift should be returned to your
authorized Pride Provider for evaluation.
No wires must be cut as they are fitted with connectors that must be correctly removed before repair.
In the event of any malfunction of the electrical circuit box or handset which require replacement, they
should be removed and returned as a set.
Please keep a note of the following:
Serial Number: ________________________
Date Supplied: ________________________
Details of the Supplier (Stamp): __________
Zip Code: ____________________________
Tel: _________________________________
Set up details
A
B
C
D
E
Scooter/Chair Weight: _____________________ Signed: ____________________
If this changes, please check with your authorized Pride Provider
Model:
260lb:………………
440lb:………………

Olympian Autolift www.pridemobility.com 20
V I I I . W A R R A N T Y
G
