Pride LL460 User manual

®
*INFMANU4078*
®
MANUAL RECLINE
LL460 CHAIR
Pride Mobility Products Europe B.V.
Castricummer Werf 26
1901 RW Castricum
The Netherlands
www.pridemobility.com

The symbols below are used throughout this owner's manual and on the product to identify warnings and
important information. It is very important for you to read them and understand them completely.
WARNING! Indicates a potentially hazardous condition/situation. Failure to follow
designated procedures can cause either personal injury, component damage, or
malfunction. On the product, this icon is represented as a black symbol on a yellow
triangle with a black border.
MANDATORY! These actions should be performed as specified. Failure to perform
mandatory actions can cause personal injury and/or equipment damage. On the
product, this icon is represented as a white symbol on a blue dot with a white
border.
PROHIBITED! These actions are prohibited. These actions should not be performed
at any time or in any circumstances. Performing a prohibited action can cause
personal injury and/or equipment damage. On the product, this icon is represented
as a black symbol with a red circle and red slash.
SAFETY GUIDELINES
MANUAL RECLINE
NOTE: This owner’s manual is compiled from the latest specifications and product information
available at the time of publication. We reserve the right to make changes as they become nec-
essary. Any changes to our products may cause slight variations between the illustrations and
explanations in this manual and the product you have purchased. The latest/current version of
this manual is available on our website.
Copyright © 2010
Pride Mobility Products Europe B.V.
INFCOVR1001/Rev A/September 2010
INFMANU4078/Rev A/September 2010
Please fill out the following information for quick reference:
Pride Provider:
Address:
Phone Number:
Purchase Date: Serial Number:
088 609 661

INFBODY1001/RevA/September 2010 3
MANUAL RECLINE
LABEL INFORMATION
PRODUCT SAFETY SYMBOLS
The symbols below represent labels used on the product to identify warnings, mandatory actions, and pro-
hibited actions. It is very important for you to read and understand these symbols completely. Do not remove
these labels from your product. Please note that not all of the symbols may be used on your chair model.
Pinch/Crush Points Hazard! Do not place objects or appendages in the path
of moving parts.
Read and follow the information in the owner’s manual.
Maximum weight capacity
Do not place objects under the footrest when chair is in fully reclined
position. Make sure area is clear of obstructions, including pets and small
children during operation.
Indoor Use Only. Avoid exposure to rain, snow, ice, salt, or standing water.
Maintain and store in a clean and dry environment.

4 INFBODY1001/RevA/September 2010
MANUAL RECLINE TABLE OF CONTENTS
SAFETY GUIDELINES .......................................................................................... 2
LABEL INFORMATION ......................................................................................... 3
I. INTRODUCTION................................................................................................ 5
SAFETY ........................................................................................................................................................................5
PURCHASER’S AGREEMENT ....................................................................................................................................5
INFORMATION EXCHANGE........................................................................................................................................5
II. GENERAL GUIDELINES ................................................................................... 6
MODIFICATIONS .........................................................................................................................................................6
WEIGHT LIMITATIONS ................................................................................................................................................6
PINCH/CRUSH HAZARDS...........................................................................................................................................6
SHIPPING AND DELIVERY .........................................................................................................................................6
MOTOR VEHICLE TRANSPORT .................................................................................................................................6
CHAIR PLACEMENT....................................................................................................................................................6
III. SETUP AND OPERATION ............................................................................... 7
SETUP ..........................................................................................................................................................................7
CHAIR OPERATION.....................................................................................................................................................9
OPERATION PRECAUTIONS....................................................................................................................................10
IV. CARE AND MAINTENANCE .......................................................................... 11
FABRIC CARE............................................................................................................................................................11
DISPOSAL AND RECYCLING ...................................................................................................................................11
V. WARRANTY ................................................................................................... 12

INFBODY1001/RevA/September 2010 5
MANUAL RECLINE
SAFETY
The product you have purchased combines state-of-the-art components with safety, comfort, and styling in
mind. We are confident the design features will provide you with the conveniences you expect during your
daily activities. Understanding how to safely use and care for this product should bring you years of trouble-
free operation and service.
Read and follow all instructions, warnings, and notes in this manual and all other accompanying literature
before attempting to use this product for the first time.
If there is any information in this manual which you do not understand, or if you require additional assistance
for setup or use, please contact your authorized provider. Failure to follow the instructions, warnings, and
notes in this manual and those located on your product can result in personal injury or product dam-
age and will void product warranty.
PURCHASER’S AGREEMENT
By accepting delivery of this product, you promise that you will not change, alter, or modify this product or
remove or render inoperable or unsafe any guards, shields, or other safety features of this product; fail,
refuse, or neglect to install any retrofit kits from time to time provided to enhance or preserve the safe use of
this product.
INFORMATION EXCHANGE
We want to hear your questions, comments, and suggestions about this manual. We would also like to hear
about the safety and reliability of your new chair, and about the service you received from your authorized
provider. Please notify us of any change of address, so we can keep you apprised of important information
about safety, new products, and new options that can increase your ability to use and enjoy your chair.
NOTE: If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.
I. INTRODUCTION

6 INFBODY1001/RevA/September 2010
MANUAL RECLINE
Below are some precautions, tips, and other safety considerations that will help you become accustomed to
operating your product in a safe manner.
MANDATORY! Read and follow the information provided in this owner’s manual
before attempting to use your chair for the first time.
MODIFICATIONS
Your chair has been designed and engineered to provide maximum comfort and utility. However, to prevent
personal injury and/or damage to your chair, you should not modify, add, remove, or disable any feature, part,
or function of your chair. Unauthorized modifications may also void your product’s warranty.
WEIGHT LIMITATIONS
Your chair is rated for a maximum weight capacity of 275 lbs. (113 kg).
MANDATORY! Stay within the specified weight capacity of your chair. The
manufacturer and/or provider will not be held responsible for injuries and/or product
damage resulting from failure to observe weight limitations.
PINCH/CRUSH HAZARDS
The scissor mechanism is labeled as apinch/crush point hazardon your chair. Keep clear of these areas and
make sure the path of motion is unobstructed.
WARNING! Do not place objects or appendages in the path of moving parts.
SHIPPING AND DELIVERY
Before using your chair, make sure your delivery is complete as some components may be individually pack-
aged. If you do not receive a complete delivery, please contact your authorized provider immediately. Where
damage has occurred during transport, either to the packaging or content, please contact the delivery com-
pany responsible.
MOTOR VEHICLE TRANSPORT
If you will be transporting your chair in a motor vehicle, individual components should be secured against
slipping. The chair itself must also be secured against slipping (a possible hazard during vehicle braking).
CHAIR PLACEMENT
Place the back of the chair 30in. (76 cm) from the nearest obstruction while the chair is in the seated position.
II. GENERAL GUIDELINES

INFBODY1001/RevA/September 2010 7
MANUAL RECLINE
III. SETUP AND OPERATION
SETUP

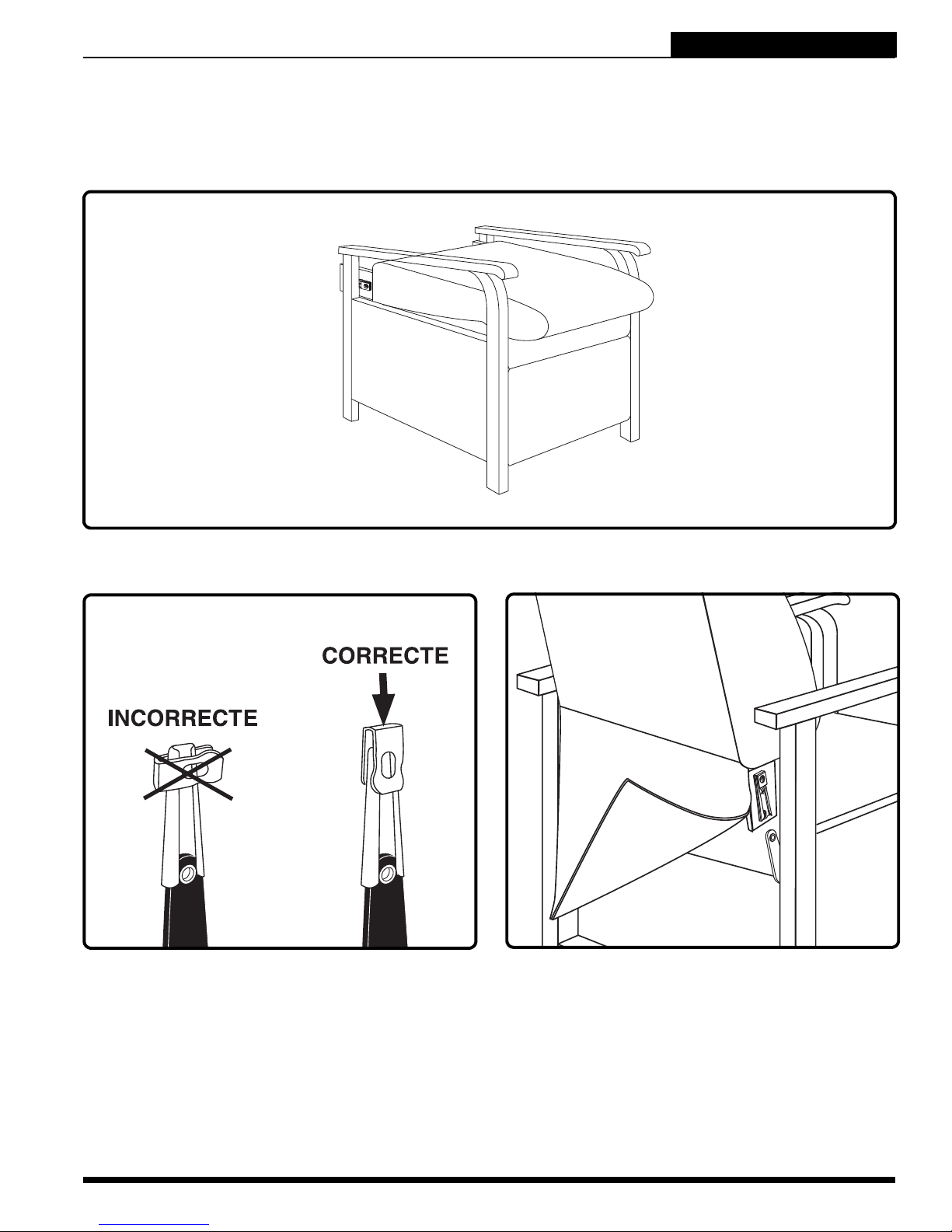

Your chair will arrive in the knock-down (KD) position (Fig. 3.1) and will require some assembly before initial
use. It may also require disassembly to make servicing more convenient. Refer to the following instructions
and contact your authorized provider with any questions.
Figure 3.1 Knock-Down (KD) Position
3.1.2 Slide the left and right KD sleeves of the
chair-back onto the KD connections on the
arms and seat of the chair.
3.1.1 Remove the packaging from the back portion
of the chair and check that the locking clip is in
the vertical position. Reposition if necessary.

8 INFBODY1001/RevA/September 2010
MANUAL RECLINE
3.1.3 Push firmly onthe top of the chair-back to lock
into position. Listen for a click on each side to
ensure the chair-back is locked in properly.
“CLICK”

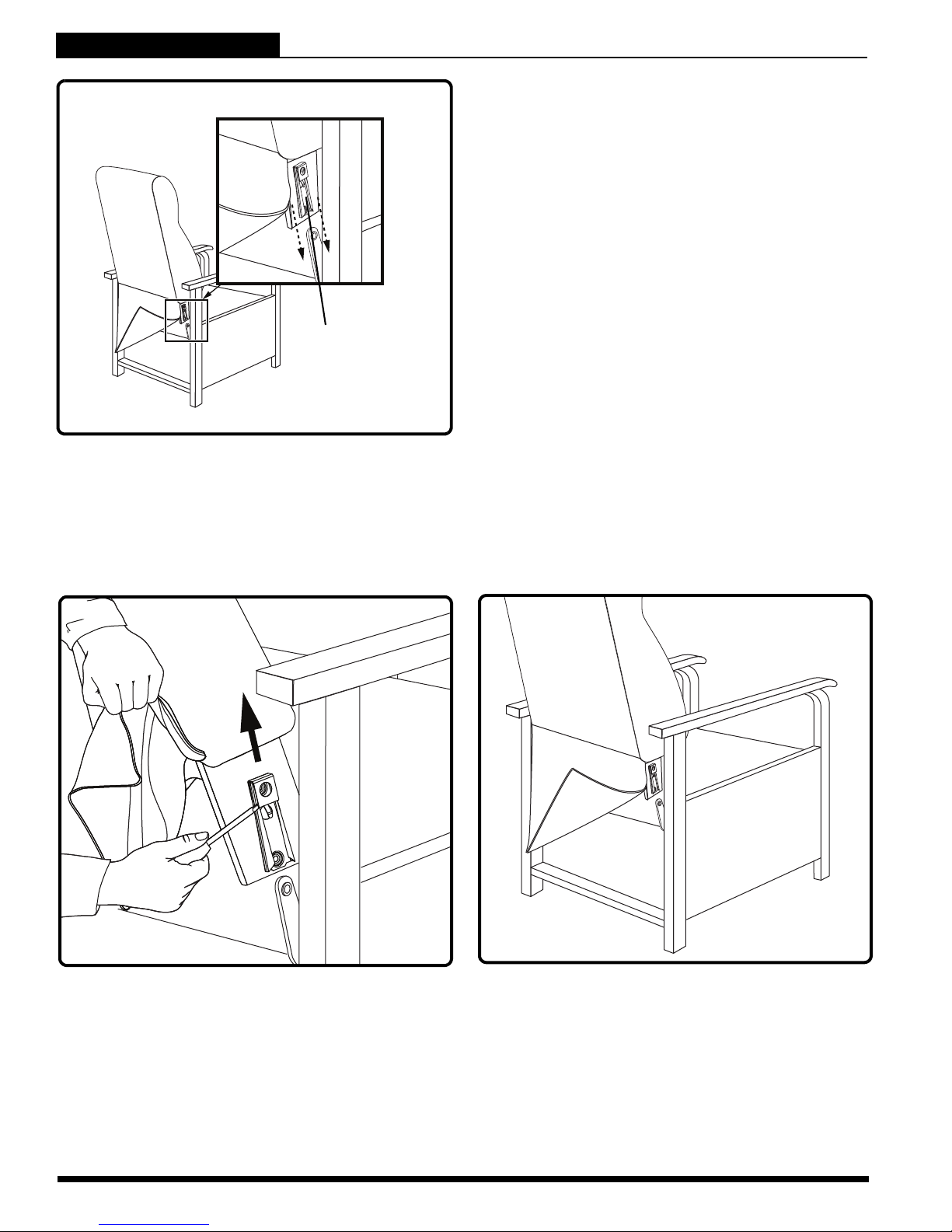

Follow these steps to disassemble the chair:
3.1.5 Lift the chair-back up and away from the
chair base.
3.1.4 Using a large flat-head screwdriver, lift the
left and right locking clips on the chair-back
one side at a time to raise the back from the
connections on the chair base. As you lift
each locking clip, pull up on the chair-back to
lift that side over the lock.
III. SETUP AND OPERATION
NOTE: Pull up on the chair-back to ensure that it
is locked in place. If the back can be pulled off,
then repeat steps 3.1.1 and 3.1.3. You must hear
a click from each side of the chair.

INFBODY1001/RevA/September 2010 9
MANUAL RECLINE
SCISSOR MECHANISM
(PINCH POINT)
FOOTREST
CHAIR-BACK
ARMRESTS
CHAIR OPERATION
Scissor Mechanisms: Extend or retract to take the chair through the various stages of movement.
WARNING! Pinch/Crush Points Hazard! Be aware that the scissor mechanisms are
a pinch point on the chair. Keep the following items and similar objects clear of
these points when operating the chair:
appendages
small children
pets
wires
oxygen tubes
 loose items, including but not limited to clothing and blankets
electrical power cords
III. SETUP AND OPERATION

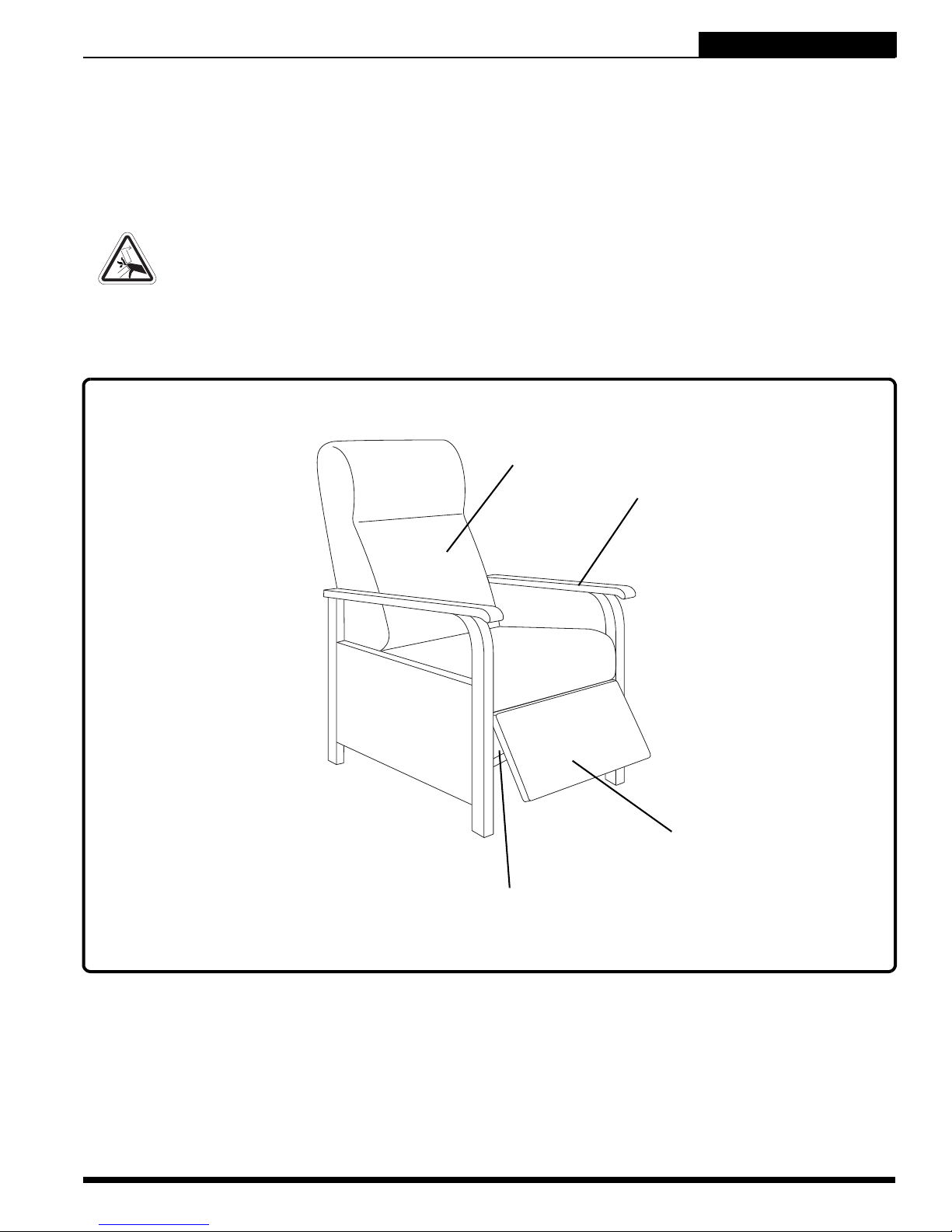

Figure 3.2 Body Components

10 INFBODY1001/RevA/September 2010
MANUAL RECLINE III. SETUP AND OPERATION
Follow these steps to recline your chair from the seated position:
1. Back into the chair and sit in the center of the seat, using the armrests for support if needed.
2. Grip the armrests firmly and lean backward until the chair reaches a comfortably reclined position.
Follow these steps to bring your chair from the recline position to the seated position:
1. Grip the armrests firmly and move your torso forward while using your legs to apply pressure to the
footrest until the chair reaches the seated position.
OPERATION PRECAUTIONS
There are certain precautions that should be taken during the operation of your chair. Read and follow these
precautions carefully in order to ensure safe chair operation and to prevent injury and/or product damage.
Keep children and pets away from all moving parts while operating the chair.
Do not allow children to play on or operate the chair. Only the intended user should operate the chair.
Avoid pinch points, such as the scissor mechanisms. Keep hands and feet clear of these areas.
Always leave the chair in an upright and closed position when not in use.
Do not sit or stand on the footrest.
Do not “drop” into the chair when sitting in it.
WARNING! Do not place objects under the chair. Make sure area is clear of
obstructions, including pets and small children during operation.
