Priorit PRIODOOR RTH User instructions

Assembly and operating manual
RTH
Inspection opening closure
Last updated: 06/2023
EP.A.10951EN-8

Dear customer,
hank you for purchasing a high-quality PRIORI product.
o ensure we can guarantee that the entire system will function free from errors, please carefully
observe the following operating manual.
Failure to observe this manual will void any warranty guarantees.
We expressly reserve the right to make technical changes for the purpose of improving our product, or
as required by changes to the law – including without any separate notification.
his operating / assembly manual may not be reprinted or duplicated in whole or in part without the
written approval of PRIORI AG.
PRIORIT AG
63457 Hanau
el.: 06181 3640-0, Fax: [phone],
E-mail : [e-mail] , www.priorit.de

Contents
3
Contents
Contents .................................................................................................................................................. 3
Important notes ........................................................................................................................................ 4
Permitted installation ............................................................................................................................... 5
Information in this manual ....................................................................................................................... 5
ransportation ......................................................................................................................................... 5
General information ................................................................................................................................. 5
General safety information ...................................................................................................................... 6
Intended use ............................................................................................................................................ 6
Functional test, safety check, care and maintenance ............................................................................. 6
Building material/Surface ......................................................................................................................... 7
Warranty, transfer declaration ................................................................................................................. 7
Intellectual property rights ....................................................................................................................... 7
Assembly / scope of delivery – General information ............................................................................... 8
Assembly manual .................................................................................................................................... 9
Assembly of the frame ............................................................................................................................. 9
Installation of the frame ......................................................................................................................... 11
Assembly with steel angle ..................................................................................................................... 12
Installation details in different wall types ............................................................................................... 13
Installation and removal of the door leaf ............................................................................................... 14
Removal and installation of the profile cylinder ..................................................................................... 15
Flush mounting R H .............................................................................................................................. 16
Non-flush mounting R H ....................................................................................................................... 17
Mounting R H clad steel component .................................................................................................... 20
Mounting door closer with slide rail ....................................................................................................... 21
Mounting door closer with standard arm ............................................................................................... 22
Mounting door closer ............................................................................................................................. 22
Declaration of conformity R H30 .......................................................................................................... 23
............................................................................................................................................................... 23
Declaration of conformity R H90 .......................................................................................................... 24
............................................................................................................................................................... 24
Notes ..................................................................................................................................................... 25

Important notes
4
Important notes
The produ t must be installed and fitted flush and level!
When storing the produ t, do not put loads on the orners and
over the storage area with soft material beforehand, e.g. with
a pa king blanket!
Open door leaf 90° as a maximum!

Permitted installation
5
Permitted installation
 See proof of usability
Information in this manual
 his manual is not a manufacturer's declaration, nor is it considered a usability certificate
under building approval regulations.
 he information in this manual applies to a wide range of different products.
 Binding technical information, and information related to technical certifications, is only
provided on the proof of usability under building approval law, the manufacturers’ declarations
submitted by the constructing company, and our order confirmation, which is considered part
of the purchasing agreement upon signing by our contractual partner.
ransportation
 If the packaging is damaged then the freight carrier must be notified of this in writing on the
delivery slip – a “simple acknowledgement” provided to the delivering freight company will
exclude recognition of damage in transit. he same applies if any packages are missing
according to the delivery slip.
 he pallet must always be picked up from the narrow side with forks inserted fully to the end of
the pallet.
 Attention: Per sqm of surface are incl. frame approx. 70 kg.
 Attention: Risk of injury!
 Attention: When opening the packaging, the product may be damaged if pointed or sharp
objects such as knives are used.
General information
 his assembly manual is no substitute for a basic level of knowledge and skills with regard to
the installation of doors in general and of inspection opening closures in particular.
 o ensure correct shoring and the required level of quality of the installation, the inspection
opening closures should only be installed by qualified specialists.
 Do not install damaged components – this will immediately void the warranty and usability
certificate.
 Unless they are installed fully and appropriately, the products do not bear the required
usability certificate under building approval regulations.
 Always observe building law regulations and guidelines, as well as instructions from the
responsible building authority and the responsible commissioned fire protection expert.
 As the installing technician, you should only issue an unrestricted manufacturer's declaration
of compliance with the building approval if installation was completed in a compliant manner,
and if all necessary fittings have been installed. Note any necessary deviations on the
declaration, if these are significant in scope.

General safety information
6
General safety information
 his operating / assembly manual must always be stored at the location where the product will
be used.
 Legally required safety information must be posted in an area visible to users.
 All safety and hazard notices and the type plate must be kept in legible condition.
 Only use the product in proper working order.
 Observe the technical information in our catalogue or data sheet for the respective product.
 Improper installation may impair the protective function.
 Observe all instructions in these operating and maintenance instructions.
 It would go beyond the scope of this document to list all valid regulations and directives.
herefore, always check whether your installation complies with the applicable regulations.
Intended use
 he product described in these operating/assembly instructions is manufactured in
accordance with the state of the art and the recognised safety regulations.
 hey may only be:
o used as intended and
o used when they are safe and in good working order.
 Any other use is not deemed proper use. PRIORI is not liable for the resulting damage and
consequential damage.
Functional test, safety check, care and maintenance
 Commonly available, mild household cleaners can be used for external cleaning of the
product.
 he product must be protected against water, moisture penetration, or water spray.
 If safety-relevant damage is detected, they must be repaired with original parts before further
use.
 Service the product at least once a year and check for proper functioning. We recommend that
you complete a functional check and visual inspection every month. he safety check can only
be carried out with the necessary level of care and attention by a qualified employee, as
sufficient experience and a comprehensive level of knowledge are indispensable for this.

Building material/Surface
7
Building material/Surface
 Building material incl. surface coating A2-s1, d0: not flammable
 Building material incl. surface with high chemical resistance, mechanical strength and stability.
Warranty, transfer declaration
In order to ensure the optimal function of our products, the assembly instructions must always be
observed.
PRIORI 's warranty applies to the delivered products.
Any modifications or changes to the design are permitted only following prior consultation with
PRIORI ; otherwise the approva;/warranty will be null and void.
he installer/setup technician must provide a guarantee for all assembly work.
Any warranty or liability claims for personal injury or property damage are excluded if they were
caused by one or more of the following:
 he product is not used according to its intended purpose.
 Improper assembly, commissioning, operation, and maintenance.
 Failure to observe the instructions on transportation, storage, operation, and assembly.
 Unauthorised structural modifications to the product.
 Improper repairs.
 Catastrophes caused by third parties or force majeure.
Intellectual property rights
In order to protect innovations and the design, utility model specifications have been submitted to the
German Patent Office.

Assembly / scope of delivery – General information
8
Assembly / scope of delivery – General information
 Our inspection opening closures can be implemented in many solution and installation forms.
Fastening sets must be ordered separately or put together individually in accordance with the
appendix to this operating manual.
 Our doors are supplied with profile half cylinders as standard.
 Observe the accident prevention guidelines and the workplace directive.
 For the assessment of fire protection and structural engineering aspects, the respective LBO
must be observed.
 Only use products that are in proper working order.
 We cannot accept any liability for damage and malfunctions that occur due to improper
transport or installation.
 he swivel or closing range of the doors must be kept clear at all times.
 Improper installation may impair the protective function.
 Screw connections to the structure may only be made with approved, suitable screws/dowels.
 he suitability of the screws/dowels must be checked depending on the building and in
advance.
 Required fastening material must be coordinated with the building structure and the
corresponding load and, if necessary, supplemented. Any fastening material supplied only
meets part of the requirements.
Maximum door opening angle
he maximum door opening angle is 90° as a maximum!

Assembly manual
9
Assembly manual
The produ t must be installed and fitted flush and level!
Assembly of the frame
1. No assembly is required for a 1-piece frame.
2. he following steps are required for a 4-part frame:
 he assembly of the frame should while it is lying down!
 Components are: 2 upright and 2 transverse frame parts, on which the false edges
are already pre-assembled. Pull the already pressed-in silicone seals out of the
groove and put them aside so that they do not interfere during assembly.
 Screw the upright to the transverse frame parts using the enclosed screws. he holes
and bores required for this are already in the frame parts.
 2 screws are used per corner joint.
 After all corner joints have been screwed, the stop plates can be screwed on the
closing side of the frame.
 Screw the stop plates through the hole provided for this purpose in the false edge at
the top and bottom by means of the enclosed countersunk screws 4.5x35 mm.
 Press the silicone seals back into the groove provided - the upright seals run through
to the lower and upper corners here. he transverse seals are placed in between.
 Stick the enclosed intumescent on the outside of the frame all around the centre.

Assembly of the frame
10
S rew onne tion
Frame
Stop plate s rew onne tion
Screw 6x120 mm
Countersunk screw 4.5x35 mm
Stick intumescent on
circumferentially!

Installation of the frame
11
Installation of the frame
 Align the frame flush and level.
 Make sure that the frame is not subjected to any loads during or after installation due to
incorrect installation or over-tightened screws without a counter bearing (warping of the
frame). here is a risk of breakage here!
 Fasten the frame with the appropriate fastening material for the supporting structure.
 Be sure to arrange underlay material beneath the upright frame parts!
 Always install flush and level!
Underlay material! Non-flammable!
For the installation of the product, we recommend our underlay blocks made of non-combustible
PRIODEK H. Available in our range under article number “UK-60.6.5.4.3.2”. Or in a handy plastic case
- available under article number "UK-K-6.5.4.3.2".
All four orners of the frame must be fixed with blo ks!
Fix with blocks / underlay the
frame at all 4 corner points
with non
-
flammable material!

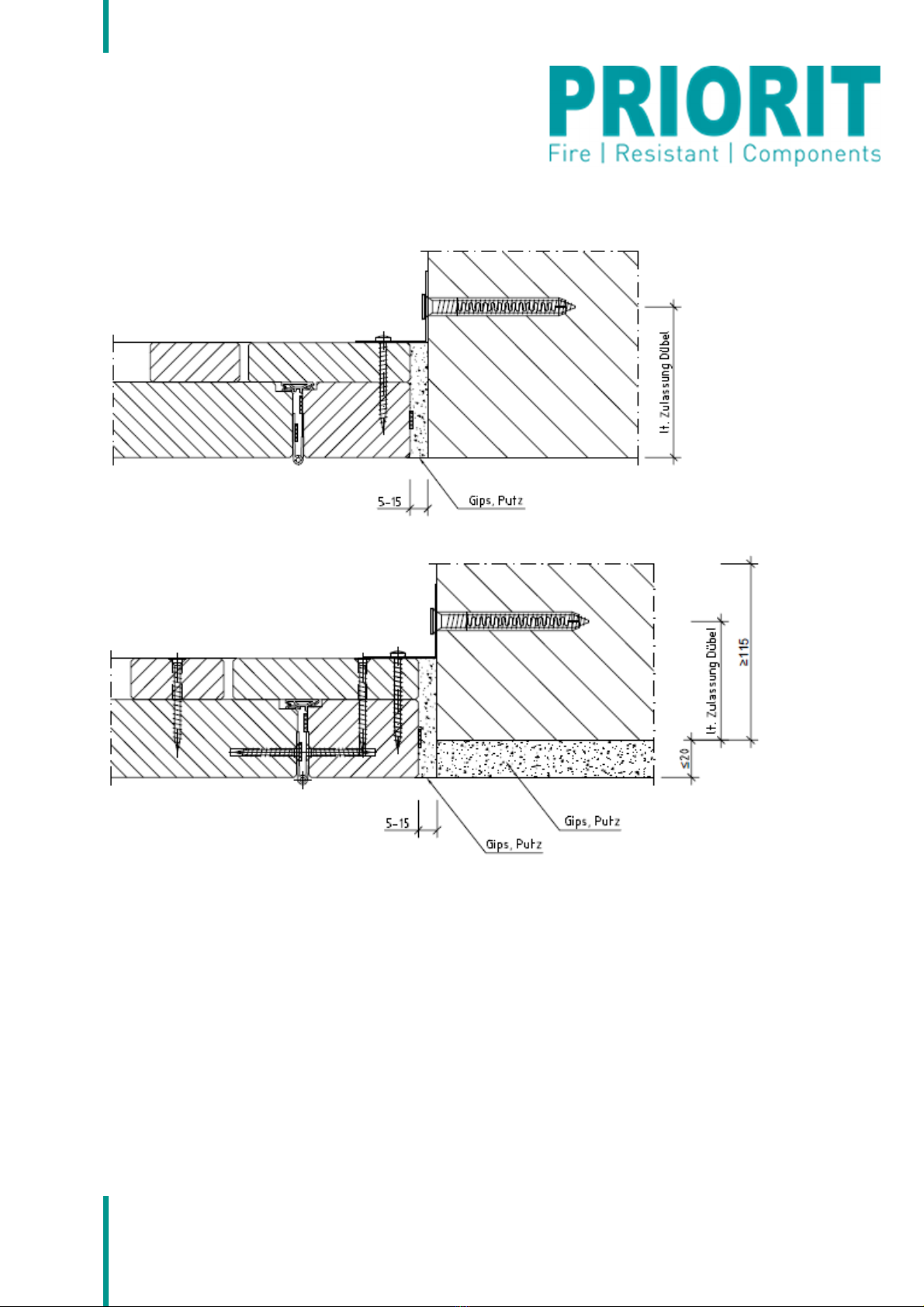

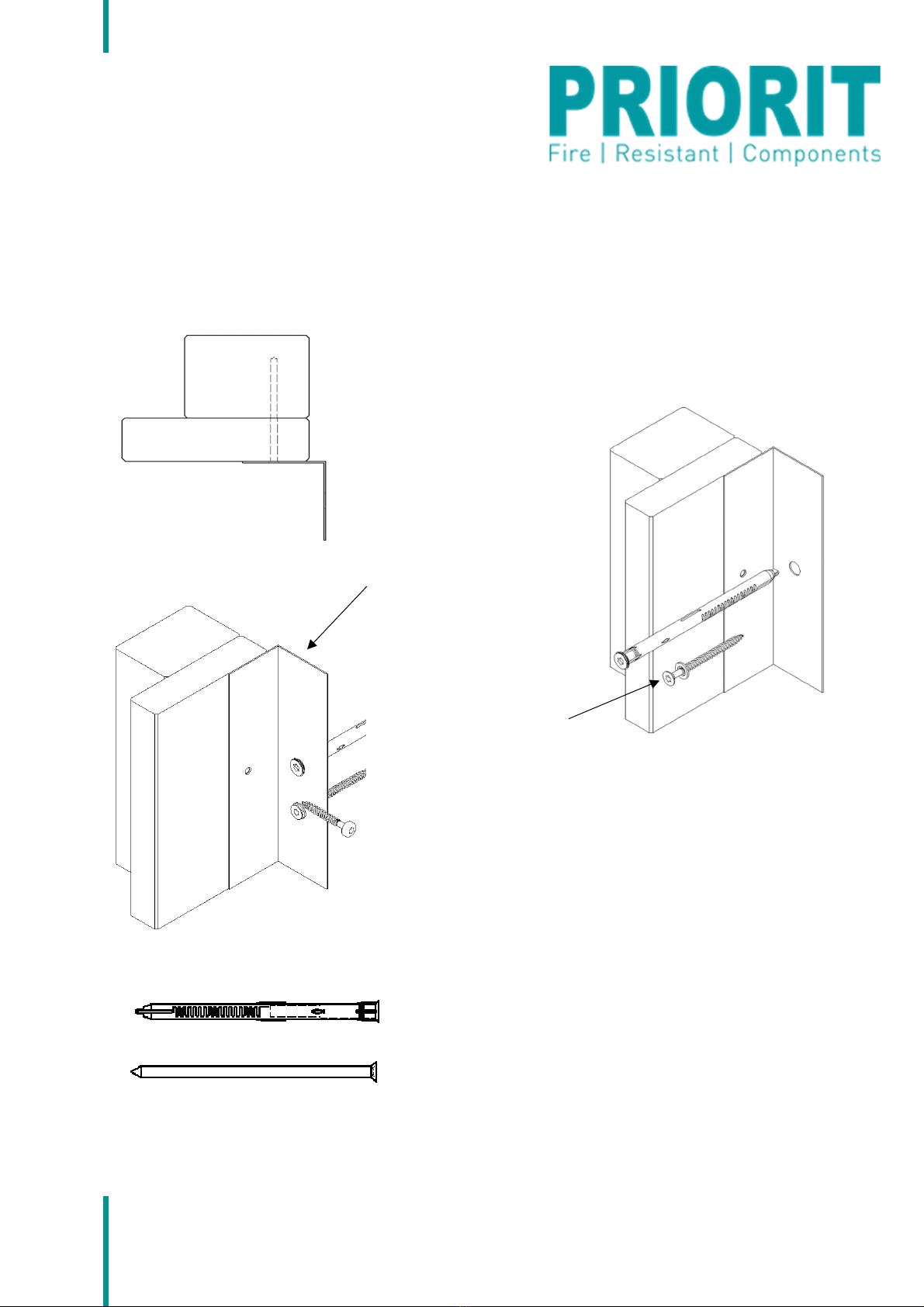

Assembly with steel angle
12
Assembly with steel angle
he steel angle is screwed to the frame using panhead screws 4.5 x 50mm.
Holes with Ø 3.5mm must be pre-drilled! Depth of pilot hole 2 mm deeper than screw-in depth of
screw!
Solid wall fastening
Countersunk screw + dowel
he figures show optional accessories!
Washer!
Mount the steel angle in
the soffit circumferentially!

Installation details in different wall types
13
Installation details in different wall types
Installation in solid wall (flush)
Screwing by means of dowels according to approval!
Use non-flammable underlay material, not included in
delivery on site.
Installation in solid wall (in the centre of the soffit)
Screwing by means of dowels according to approval!
Use non-flammable underlay material, not included in
delivery on site.
Always install flush and level!

Installation and removal of the door leaf
14
Installation and removal of the door leaf
Door hinge
 Inserting the door leaf
Use all pre-drilled screw
connection points!
Screwing by means of countersunk
screws 4.5x35mm
o insert the door leaf, substructure the door leaf, ideally the substructure should be adjustable,
e.g. with adjustable feet, mounting pads or wedges. Open the door leaf so far that the screw
connections of the hinge band are easily accessible. Start screwing in the screws from top to
bottom. Avoid overtightening the screws! Consider the heavy weight of the door leaf! Carry out this
work with at least two people.
 Removal of the door leaf
he door leaf is removed in the same way as the door leaf is
inserted, in reverse order.

Removal and installation of the profile cylinder
15
Removal and installation of the profile cylinder
Necessary tools:
Screwdriver and key for the profile cylinder
If a key is no longer available, the cylinder must be drilled out
1. Removing the profile cylinder
he profile cylinder is held in place by a forend screw which is located in the forend of the lock at the
height of the profile cylinder. Loosen the forend screw with a screwdriver and pull it out.
Insert the key into the profile cylinder and turn it to the right or left. Pull the key slightly while doing so.
If the locking lug of the cylinder is in the correct position, the profile cylinder can be pulled out.
If the profile cylinder is stuck, loosen it by gently jiggling the profile cylinder.
If the profile cylinder is stuck, in most cases it is jammed on the lock: loosen (do not remove) the
fastening screws of the forend and take out the profile cylinder.
2. Installing the profile cylinder
Insert the profile cylinder, turning the key to the left or right until the locking lug is in the correct
position. hen tighten with the forend screw.
If the profile cylinder cannot be inserted, try to find the position of the opening in the lock by gently
jiggling the profile cylinder.
If it still cannot be inserted, loosen (but do not remove) the forend fixing screws and insert the profile
cylinder. hen retighten the fixing screws of the forend.

Flush mounting R H
16
Flush mounting R H
In solid wall
In solid wall

Non-flush mounting R H
17
Non-flush mounting R H
In solid wall
In solid wall

Non-flush mounting R H installation shaft
18
Non-flush mounting R H installation shaft
Execution in installation shafts of fire resistance class I 90 according to DIN 4102-4 made of walls of
gypsum boards according to DIN 4102-4 of fire resistance class F 90-A as a minimum.
Execution in installation shafts of fire resistance class I 90 according to DIN 4102-4 made of walls with
planking on one side according to the general building inspection test certificate.

Mounting R H installation shaft PRIOWALL
19
Mounting R H installation shaft PRIOWALL

Mounting R H clad steel component
20
Mounting R H clad steel component
