Prism Sound MDIO-Dante Assembly instructions

Prism Sound MDIO-Dante Module Fitting Guide Revision 1.00
Prism Sound MDIO-Dante Fitting Guide
A Guide to fitting your Atlas or Titan with an MDIO-Dante Module..
1. If this is an existing Atlas or Titan unit, it’s VERY important that BEFORE you fit the MDIO-Dante
module you should update the unit in preparation.
Both software and firmware updates are required (a firmware update is a special process, and
involves more than just running an installer) and it must be done in the correct order –software first,
firmware second. If the software is not updated first, it will not be possible to update the firmware.
a) Update the computer software (Driver and Control Panel) to the latest version –this is available
from our website download pages.
http://www.prismsound.com/music_recording/products_subs/titan/titan_downloads.php
or http://www.prismsound.com/music_recording/products_subs/atlas/atlas_downloads.php
b) Connect your Atlas or Titan to the computer via USB (if you have several units, you must connect
them and update them one unit at a time).
c) Update the firmware in your Atlas or Titan.
i) A firmware update resets all settings, so you may wish to save them and reload them
afterwards. If you use the Volume control, headphone bus, and any special routings, take
care that it’s set up before playing any audio after the update..
ii) Pull the power cable at the rear, leave the USB connected.
iii) Run the Prism Sound Control Panel (it will appear but ‘blank’).
iv) On the Atlas unit itself, press and hold the Volume knob and the Standby button (front panel
right side).
v) Now put the power cable back in (there will be no lit LEDs on the front panel of the unit –
this is normal).

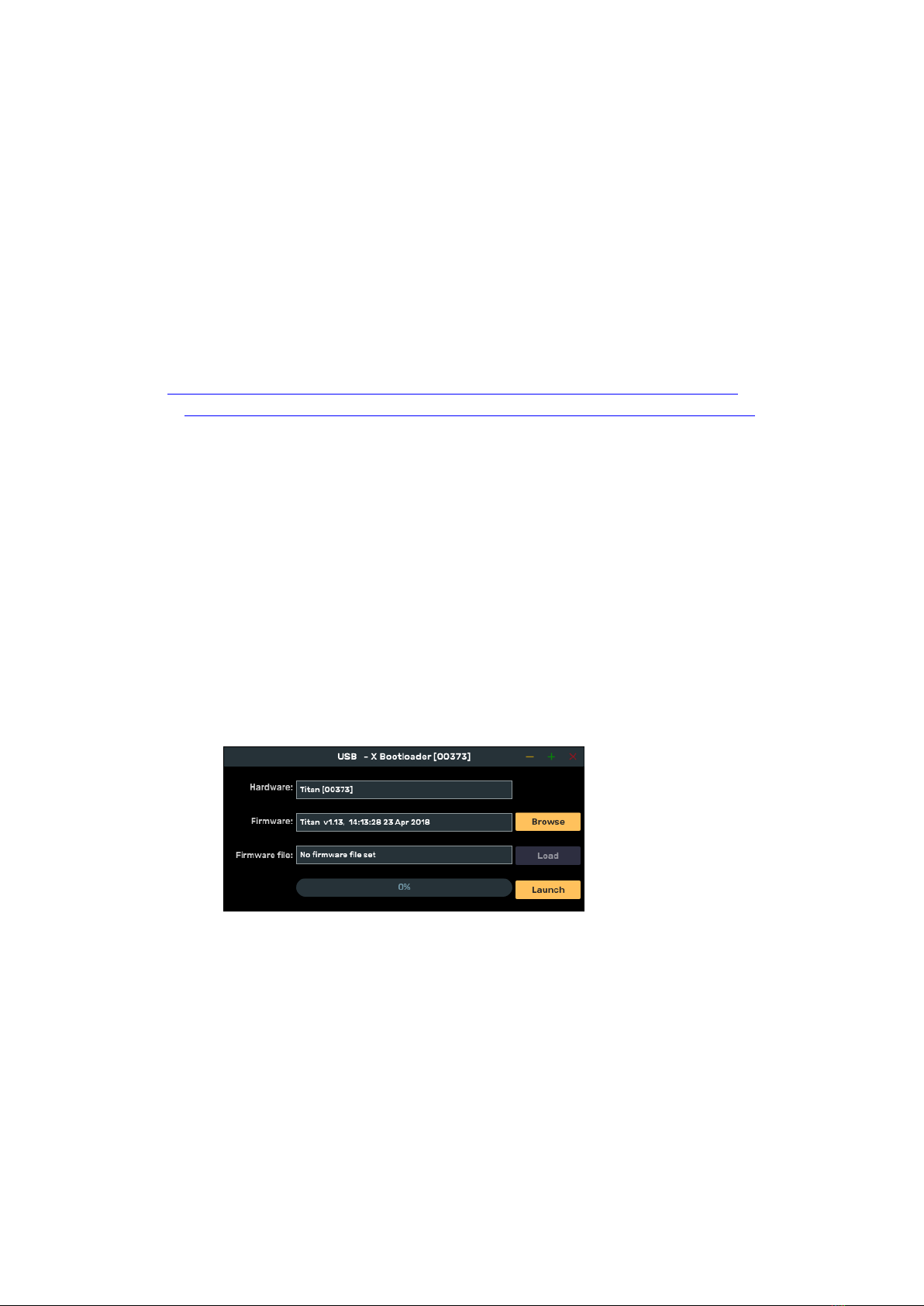

vi) The ‘X-Bootloader’ window will now appear.
vii) Press the ‘Browse’ button and point to the new firmware file.
viii) Press Load, then watch the progress bar increase until it reaches 100% and the Launch
button appears again.
Press Launch and the Atlas unit will restart.
d) Power down the unit. Only now should you follow the instructions for fitting the MDIO module
below.

Prism Sound MDIO-Dante Module Fitting Guide Revision 1.00
Installing the MDIO-PTHDX module
WARNING!
TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Fitting the MDIO-PTHDX module to a suitable Prism Sound Interface requires the lid to be
removed. There are dangerous voltages inside, and installation must be referred to qualified
personnel. Anyone fitting the MDIO-PTHDX module must ensure that the mains supply is
disconnected from the unit before removing the cover and is not re-connected until the
cover is refitted.
Disconnect any other connections from the rear and front of the unit.
Now you are ready to fit the Dante module.
You will need to remove the lid of the unit, and a little dexterity is required in fitting the module. If you are in
doubt about fitting an MDIO module to an existing Prism Sound Atlas or Titan unit, we recommend that you
speak to your dealer who will be able to arrange to fit it.
You will need some tools –a standard No1 posi-drive cross-head screwdriver, and a 2mm hex head
screwdriver (a suitable Allen key is provided with the MDIO kit).
Hardware Installation
1. Remove the lid of the unit. Prism Sound Atlas has six hex-head screws on each side; Titan has five on
each side; both units have another three screws along the top front edge and three along the lip of
the lid at the rear. Keep those screws safe while you fit the module.
2. Also remove the MDIO blanking cover plate which uses another four hex-head screws.

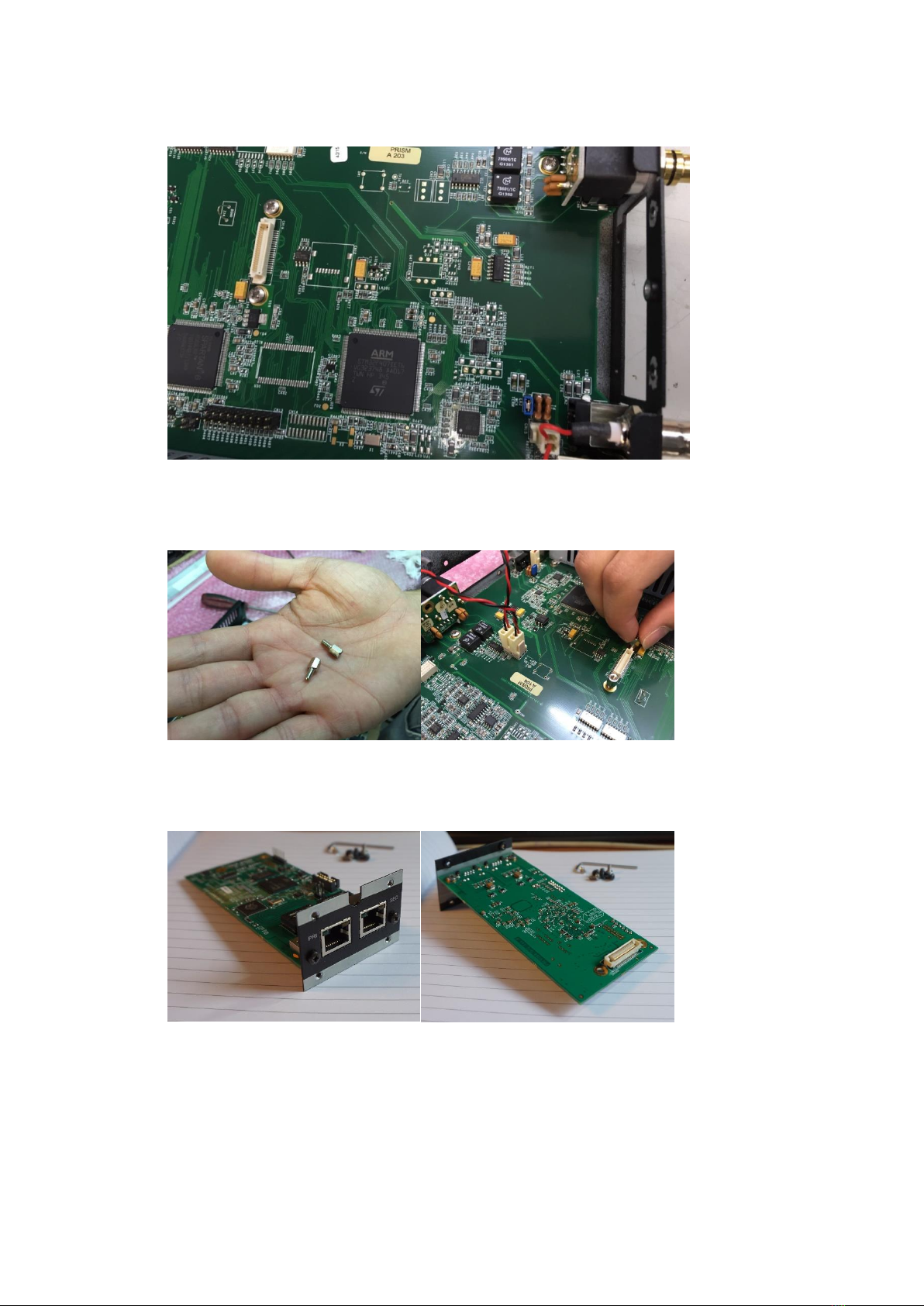

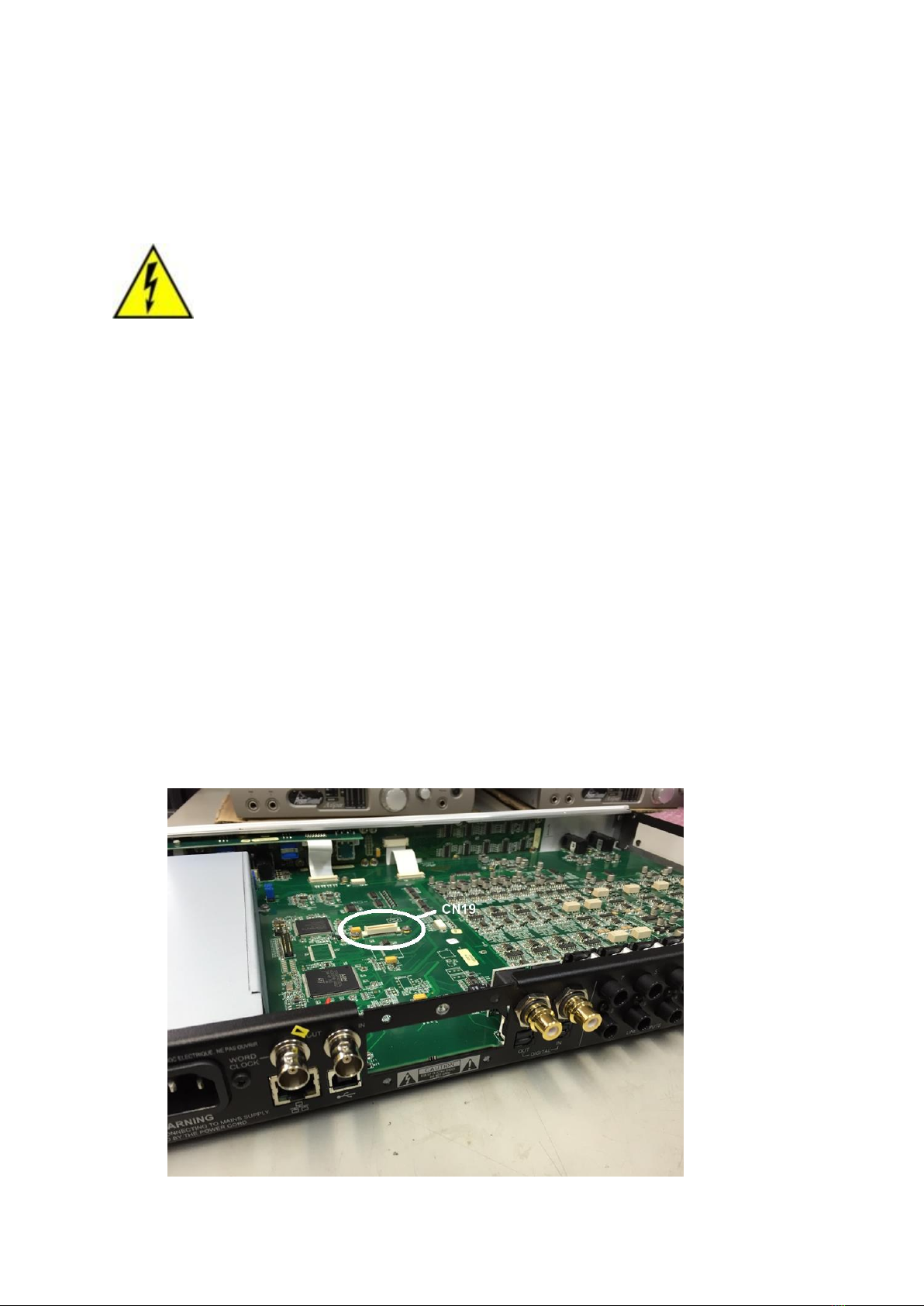

3. Approximately half way back from the MDIO slot there is a white multi-pin connector labelled ‘CN19’,

Prism Sound MDIO-Dante Module Fitting Guide Revision 1.00
and either side are two cross-head screws. Unscrew the two cross head screws.
(Some units may be supplied with Hex spacers already fitted in place of the cross-head screws; in this
case, you can skip step 4).
4. Two M3 x 6mm threaded Hex spacers are provided.
Insert these in place of the cross head screws you have just removed. These can be screwed down
finger-tight. If using a tool, such as pliers, or (the correct tool) a 5mm nut-spinner, make sure not to
over-tighten these.
5. Taking anti-static precautions, remove the MDIO-Dante module from its anti-static bag.

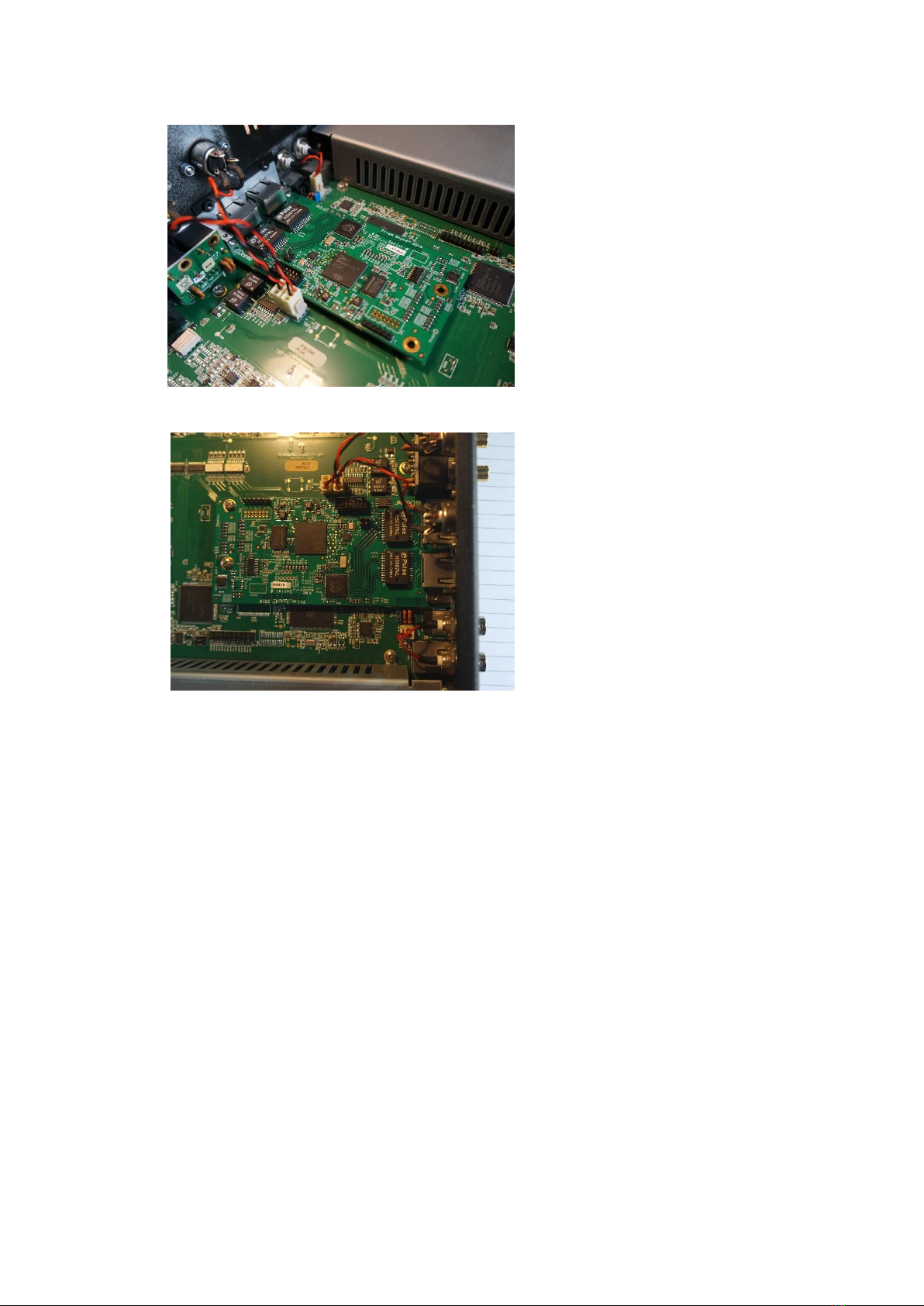

6. Offer up the MDIO-Dante module to its connector. If this is an Atlas rather than Titan, be careful of
the wires connecting the MIDI ports on the rear –you’ll need to avoid pulling these as you place the
Dante module. Position the face plate end against the rear panel first –it should be flush against the
inside of the Prism Sound Atlas/ Titan rear panel. Then lay the Dante PCB so that the screws line up
with the screw holes. It should not require much force to mate the connectors –when it’s in the
correct position the board should gently push down. Don’t force anything if it does not seem to fit –
adjust the positioning until the connector lines up easily.

Prism Sound MDIO-Dante Module Fitting Guide Revision 1.00
7. Once in position, you can screw the two 6mm x M3 screws through the MDIO module into the hex
spacers.
8. Some new hex head M3 screws are provided to fix the rear plate of the MDIO-PTHDX module to the
rear panel of Prism Sound Atlas/Titan. The short pair should be used for the lower pair of holes
closest to the bottom of the box.
9. Refit the lid and replace the screws.
Note :- removal of an MDIO module (i.e. in order to fit a different one) is the exact reverse process. It is not
recommended to swap MDIO modules on a regular basis –this will reduce the life of the Atlas or Titan unit and
the MDIO modules.
Please now follow the MDIO Dante Quick Start Guide and proceed to connect the Prism Sound Atlas or Titan
units to your Dante network and set up their connections.
