Prizelawn BG 1 User manual

OWNER’S MANUAL
MODEL BGl
Prizelawn® BGl
COMMERCIAL PORTABLE SPREADER

SAFETY INSTRUCTIONS
Training
• Read the owner’s manual carefully. Become familiar with the controls and know how to operate your
spreader.
• Do not allow children to use your spreader. Never allow adults to use the spreader without proper
instructions.
• Do not bend at the waist. Bend only at the knees and support yourself as required to ensure
personal safety.
• Keep the treatment area clear of people and pets, especially small children.
• Use spreader only as described in this manual.
• Do not operate spreader if it has been dropped or damaged in any manner. Always have damage
repaired before use.
• Do not use accessory attachments that are not recommended by the manufacturer. Use of such
attachments may be hazardous.
Preparation and Safety
• Always wear safety glasses or eye shields when using your spreader.
• Dress properly. Wear only closed toe shoes with good traction. Do not operate spreader when
barefoot or wearing sandals.
• Wear long-sleeved clothes that are snug fitting. Avoid wearing loose clothing.
• Wear either tightly cuffed or cuffless pants.
• Wear non-slip gloves during operation. Wear a respirator if appropriate for the type of material being
spread.
• Long hair should be tied back and kept away from the spreader.
• Make direction adjustments before using spreader.
• Use only in daylight or good artificial light.
• Read all instructions of the chemical manufacturer.
Caution
• Keep your eyes and mind on the job at hand. Do not become distracted.
• Always be sure of footing. Use extra caution in wet or slippery areas. WALK - DON’T RUN!
• WARNING: Chemicals or materials which can be harmful to individuals or the environment should be
avoided. Follow all warnings of the chemical manufacturer.
Maintenance and Storage
• Check all fasteners at frequent intervals for proper tightness to be sure the spreader is in safe
working condition.
• Keep all safety devices in place and working.
Customer Responsibilities
• Read and observe the Safety Rules
• Follow a regular schedule in maintaining, caring for and using your spreader.
• Follow the instructions under the Maintenance and Storage sections of this manual..
1

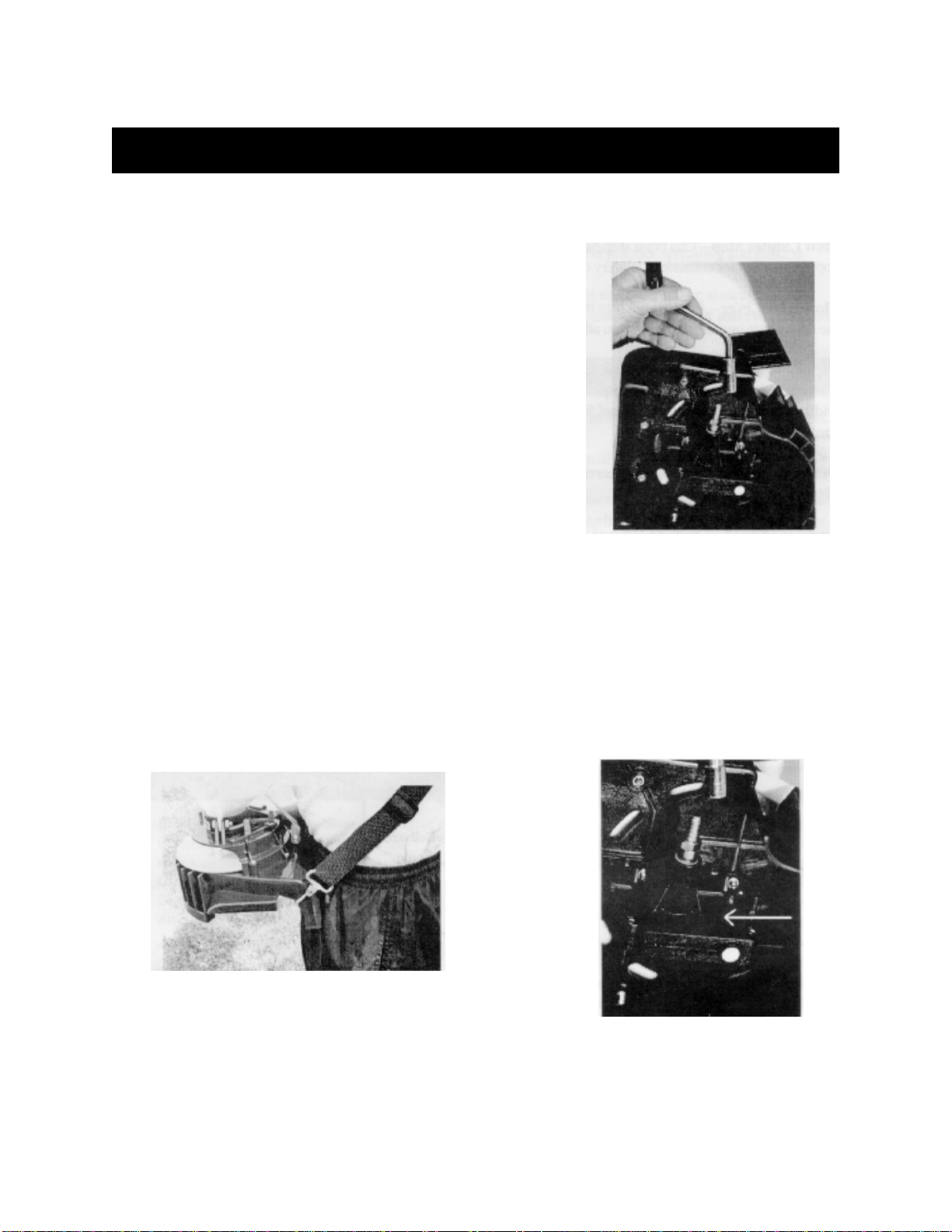

ASSEMBLY
The Prizelawn®BGl carry strap and crank handle are the only items the user attaches before operation.
Remove the hopper lid. The crank handle and carry strap are located inside.
Mounting the Crank Handle
• Place the spreader on its left side as viewed from the
operator’s position. See Figure A.
• Find the threaded crankshaft and affix the crank handle
in a clockwise motion. Tighten the jamnut against the
crank handle.
Carry Strap
• Stand the spreader upright at about waist level on a table,
bench or stand.
• Adjust the strap to its longest reach.
• Attach the strap hook to the top right eye on the hopper
as viewed from the operator’s position.
• With the back of the spreader facing your chest, slip the strap
over your right shoulder and across your back.
• Set strap hook under spreader housing. See Figure B.
• With the spreader fitted. crank the handle and determine if the spreader is set at a comfortable
height. Remove the spreader, adjust the strap and try again until you are comfortable with the fit and
function.
Lubrication Point
• With the spreader on its right side (crank handle side up), observe the small oil hole in the gearcase.
• Add a few drops of light oil every four hours of operation. See Figure C.
Figure B
Figure C
Figure A
2

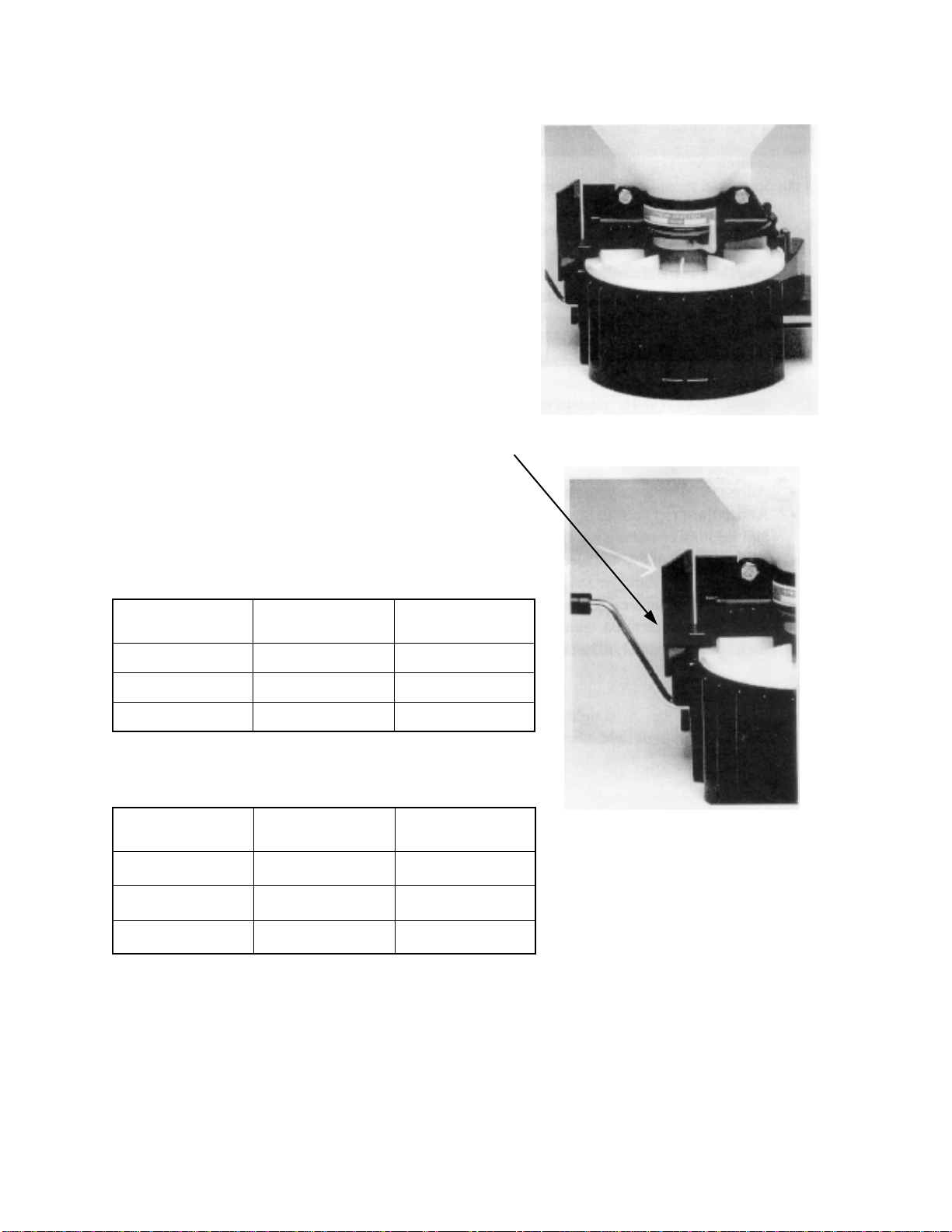

Adjusting the Spreader
You spreader is adjustable for both volume and direction.
Four factors determine the volume and direction. They are:
Flow Limiter Stop (Rate Adjustment) & Flow Rate Lever
This brass stop nut allows you to limit the hopper opening for
consistent delivery of material to the impeller. Look down into
the hopper to observe how the drop chute opening varies as
you adjust the flow rate lever against the flow
limiter stop.
Directional Lever - This control adjusts the point where the
material is to be deposited on the impeller and consequently,
the width of spread. The lever can be set for center, left or
right spreading. See Figure D.
Deflector Shield - Increases or decreases the width of
spread. See Figure E.
Cranking Speed - Cranking faster or slower affects volume
and coverage.
Spread Rate Table
Flow Rate Adjuster setting #3 (middle)
Flow Rate Adjuster setting #6 (full open)
Cranking RPM Pellitized
Fertilizer Pounds Delivered per Minute
55 - 60 Brand “O” 4.4
55 - 60 Brand “V” 3.75
55 - 60 Grass Seed 0.7
Cranking RPM Pellitized
Fertilizer Pounds Delivered per Minute
55 - 60 Brand “O” 7.44
55 - 60 Brand “V” 10.0
55 - 60 Grass Seed 2.0
Pelleted fertilizer is usually thrown about 10 - 12 feet in front of the operator and about 5 - 7 feet on each
side at 55 - 60 rpm. Grass seed usually carries 5 - 6 feet forward and 4 - 5 feet to the side. A walking
speed of 2.5 to 3.0 feet per second is suggested.
Please test the product you are spreading to achieve the manufacturer’s recommended coverage.
3
Figure D
Figure E

FILLING THE HOPPER
• Move flow rate lever to zero position.
• Set spreader on a flat surface.
• Remove hopper lid.
• Fill Hopper. For the initial use it is wise to partly fill the hopper and practice spreading and making
adjustments.
• Replace hopper lid. The lid prevents spillage and helps keep dust and other material away from the
operator. When spreading chemicals be sure to wear protective clothing, respirator and eye
protection.
• Do not load hopper while carrying spreader.
OPERATING INSTRUCTIONS
• Set spreader on a surface to safely and conveniently fit the carry strap as outlined in the assembly
section.
• Set deflector to the desired position.
• Adjust spreading direction lever to the desired position. Directional changes can also be made simply
by walking in the desired direction.,
• While turning the crank handle with your right hand, move the flow rate lever with the left hand to
adjust flow rate. Flow limiter stop will control flow rate. CAUTION: Keep hands away from the
rotating impeller.
• After use, turn the flow rate lever to the closed (zero) position. Crank the handle several times to
make sure no material residue is attached to impeller. Clean the whole unit thoroughly using soap
and water.
OTHER OPERATING SUGGESTIONS
• Walking speed should be 2.5 - 3.0 feet per second.
• Crank handle speed 55 - 65 rpm.
• Each complete revolution of the crank handle causes the impeller to rotate 7½ turns.
• Experiment to find the best setting.
• In windy conditions, plan your work so the wind is behind you if possible.
STORAGE
• Empty hopper of contents. Store or dispose of contents properly and in accordance with the
chemical manufacturer’s instructions.
• Check all fasteners for proper tightness.
• Clean unit with soap and water.
• Dry.
• Store in a safe place.
4

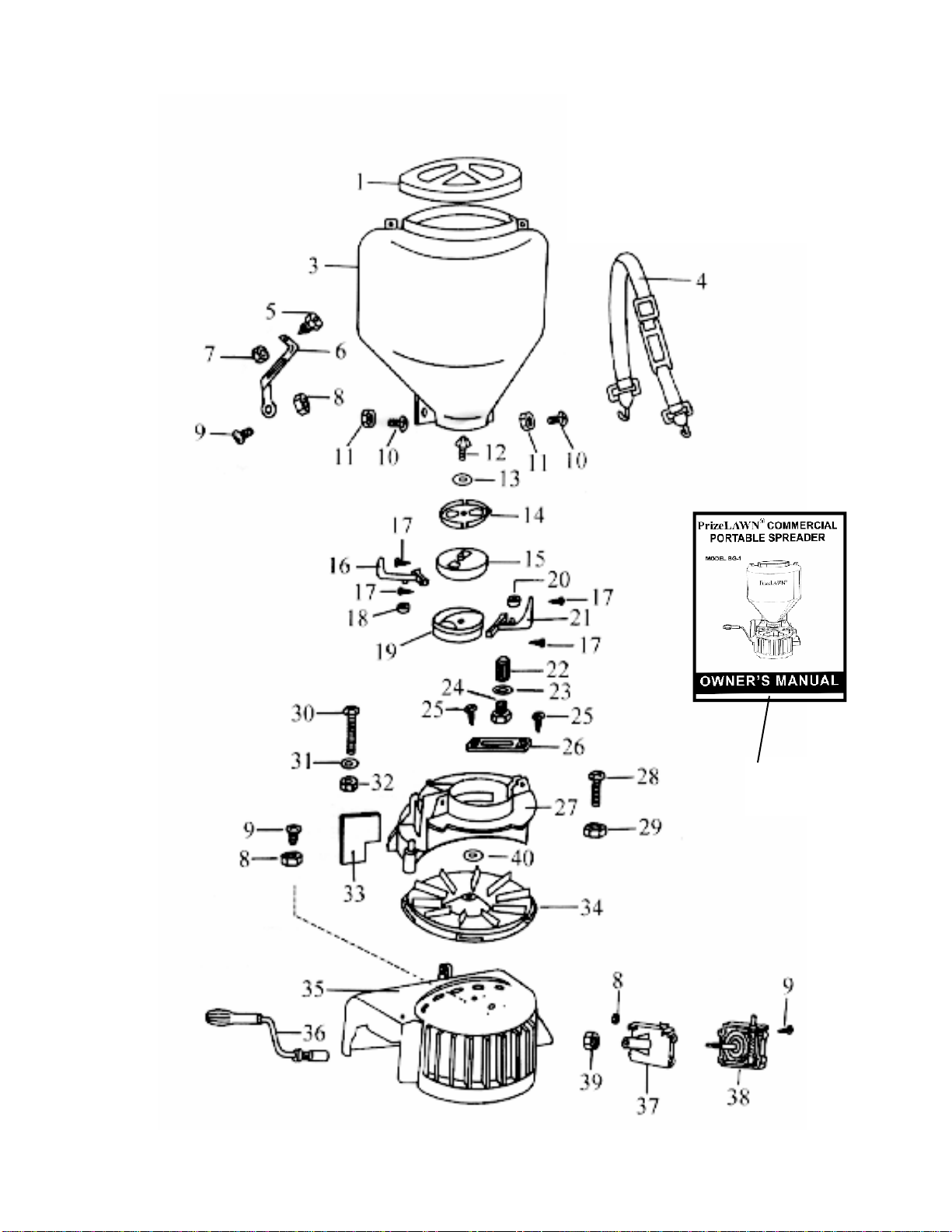

PARTS LIST FOR MODEL BGl
ITEM # PART # DESCRIPTION REQ. ITEM # PART # DESCRIPTION REQ.
18411 Hopper Lid 121 84121 Directional Lever 1
215220 Owner’s Manual 122 84122 Flow Limiter Stop Nut 1
38413 Hopper 123 84123 Gasket 1
48414 Carry Strap 124 84124 Bolt 1
58415 Bolt 125 84125 Screw 2
68416 Support Bracket 126 84126 Adjuster Plate 1
78417 Nut 127 84127 Lid 1
88418 Nut 12 28 84128 Bolt 1
98419 Bolt 12 29 84129 Nut 1
10 84110 Bolt 230 84130 Bolt 1
11 84111 Nut 231 84131 Washer 1
12 84112 Agitator Knob (LH Thread) 132 84132 Nut 1
13 84113 Gasket 133 84133 Deflector Shield 1
14 84114 Volume Control Plate (A) 134 84134 Impeller 1
15 84115 Volume Control Plate (B) 135 84135 Base 1
16 84116 Flow Rate Lever 136 84136 Crank Handle 1
17 84117 Screw 437 84137 Gear Case 1
18 84118 Gasket 138 84138 Threaded Crankshaft 1
19 84119 Direction Controller 139 84139 Jamnut 1
20 84120 Gasket 140 84140 Washer 1
PART OF OUR SERVICE IS PROVIDING REPLACEMENT PARTS,
Parts may be obtained through your local distributor. Be sure to give the:
1. SPREADER MODEL NUMBER
2. SPREADER NAME
3. PART NUMBER
4. NAME OF PART AS SHOWN
IF YOUR LOCAL
DISTRIBUTOR
CANNOT SUPPLY
PARTS, CONTACT:
PSB Company
555 West Goodale Street
P.O. Box 1089
Columbus, Ohio 43216-1089
[phone] EXT. 2655
