Pro Dunk Hoops Goal Light LED User manual

Patten Pending #62458721 1
Pro Dunk® Goal Light LED
Lighting System
Thank you for purchasing our Goal Light. We try hard to ensure that our products
are of high quality and free of manufacturing defects and of missing parts. How-
ever, if you have any problems with your Goal Light, such as a manufacturing
defect or a missing part please contact us at the following:
Toll Free: 1.888.600.8545 Pro Dunk® Hoops
Web: www.produnkhoops.com 22047 Lutheran Church Rd.
FAX: [phone] Tomball, TX 77377
Support: www.produnkhoops.com/support
Read this manual all the way through before starting
assembly of your Goal Light. Then read each step
completely before beginning installation.
OWNER’S MANUAL

Patten Pending #62458721 2
Ref. Qty. Description
A 1 Bracket A (Connects to Backboard)
B 1 Bracket B (45 Degree Bracket)
C 1 Bracket C (Light Mount Bracket)
D 2 LED Lamps (With Wire)
E Assortment of Zip Ties
F 4 8mm x 3.5cm Hex Bolts (Bolt LED Lamps to Bracket C)
G 4 8mm x 4.5cm Hex Bolts (Bolt Bracket A to Backboard)
H 2 8mm x 6cm Hex Bolts (Bolt Bracket C to Bracket B)
I 1 10mm x 2cm Hex Bolt (Bolt Bracket A to Bracket B)
J 20 8mm Flat Washer
K 4 8mm Lock Washer
L 10 8mm Hex Nut
Bill Of Materials

Patten Pending #62458721 3
Safety Instructions
 All tools used to assemble this product
should be used in compliance with manu-
facturer’s guidelines.
 Installation of this product will require
heavy lifting and bending. Any person that
is not capable of such activity should not
participate in the installation of this product.
 If using a ladder during assemble, use ex-
treme caution and refer to the warnings
and cautions on the ladder.
 Due to the size and weight of this product,
we recommend at least (2) capable adults
are present.
 Make sure there are no overhead power
lines within a 35 foot radius of the basket-
ball system.
 All parts and components necessary to
complete proper installation are included
within this product. Do not use parts not
included with our system. Failure to follow
this requirement could cause product mal-
function and will void warranty of this prod-
uct.
 Keep all organic materials away from parts
and components to avoid corrosion.
 Never use your Goal Light during rain or
snow
 Make sure your lamps are completely dry
before plugging in your Goal Light.
 Only use a power source that is 110-120v
that can supply 250 WATTS of continuous
power.
IMPORTANT
It is the responsibility of purchaser to ensure that
all installers and players fully comply with the de-
tailed instructions set forth in this product installa-
tion manual. Product assembly should be carried
out exactly as instructed and owner supervision
of use and installation is required to prevent risk
of product malfunction or risk injury.
Pro Dunk® Hoops retains the right to
modify this document at any time without
notice or obligation.
Keep this installation manual as a refer-
ence for your safety and the safety of
those playing on the basketball system.
Additional copies of these safety instruc-
tions are available by calling customer
service at 1-888.600.8545 or at
www.produnkhoops.com/support
 Check the Goal Light System on a regular ba-
sis to ensure that there are no signs of dete-
rioration or corrosion, loose hardware, or
damaged parts. If you see any signs of dam-
age contact Pro Dunk® Hoops for replace-
ment parts or assistance.
 For maintenance repairs please contact a pro-
fessional. produnkhoops.com/installers
 Failure to follow these safety instructions
could result in product malfunction, seri-
ous injury, or even death.

Patten Pending #62458721 4

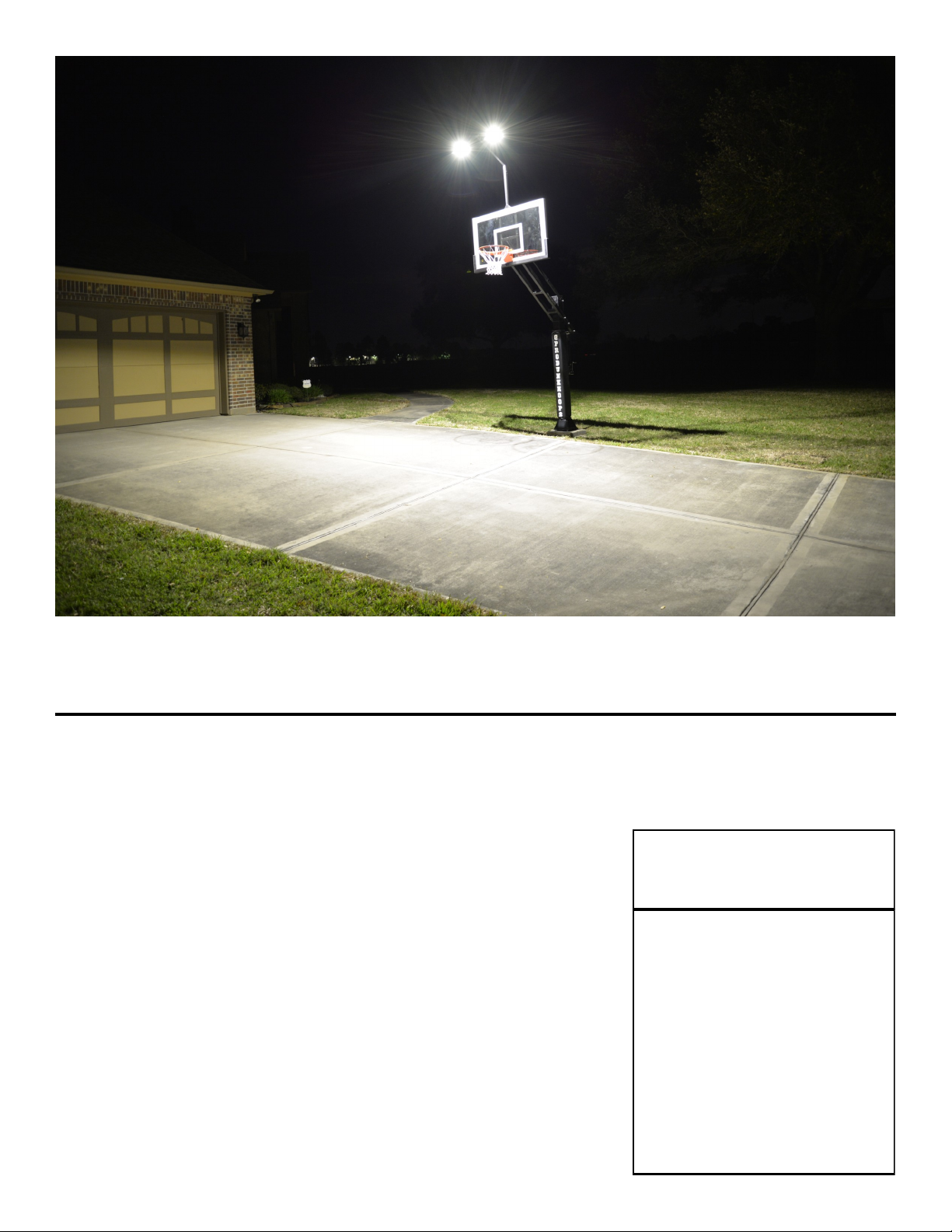

Installation Overview
In order to have safe fun and a long use of your Goal Light, please note and
heed the following:
1) Prior to Goal Light assembly, check for power lines within 35 feet
of your basketball system. If power lines are within 35 feet of
your basketball system do not install the Goal Light System.
2) Immediately unpack all components and cross check against bill
of materials. Report any shortages to Pro Dunk® Hoops cus-
tomer service at 1.888.600.8545.
3) For safety measures, have at least 2 capable persons to assist
you in assembly of your Pro Dunk® Goal Light.
4) Parts can be ordered at www.produnkhoops.com/parts

Patten Pending #62458721 5
Required Tools
 (2) Crescent Wrenches
 (2) 8ft ladders
 Scissors (To Cut Zip Ties)
 14mm
 13mm
 17mm
Socket/Wrench Sizes
Recommended

Patten Pending #62458721 6
Assembly
1) Assemble Bracket

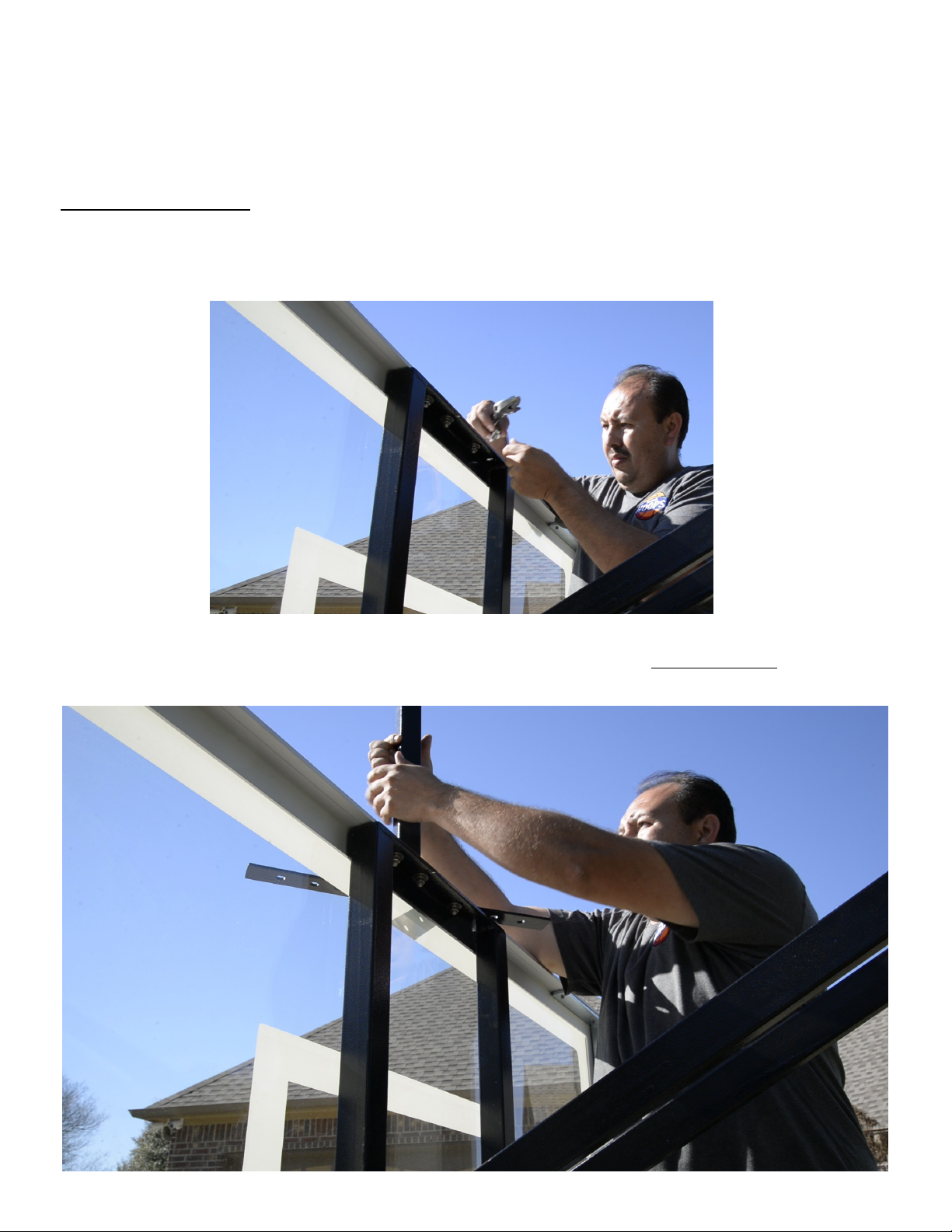

Start by removing 1 H-bracket bolt from either far side of the top of your backboard as seen
below:
Now install one bolt for your Bracket (A) using [1] 8mm x 4.5cm hex bolts (G), [2] 8mm Flat
Washers (J), [1] 8mm Lock Washer (K), and [1] 8mm Hex Nut (L). Do not tighten all the way
down just yet.

Patten Pending #62458721 7
Continue to remove the other 3 H-Bracket bolts and slide the Bracket (A) to line up with the
three holes in the backboard. Using [3] 8mm x 4.5cm hex bolts (G), [6] 8mm Flat Washers (J),
[3] 8mm Lock Washers (K), and [3] 8mm Hex Nuts (L) secure the bracket to the backboard.
Once all 4 bolts are in place tighten down securely.
2) Assemble LED Lamps, Bracket (C), and Bracket (B)
Mount both LED Lamps (D) to the Bracket (C) using [4] 8mm x 3.5cm hex bolts (F), [8] 8mm
Flat Washers (J), and [4] 8mm Hex Nuts (L). Make sure to tight bolts and nuts.
Connect the Bracket (C) to the Bracket (B) using [2] 8mm x 6cm hex bolts (H), [4] 8mm Flat
Washers (J), and [2] 8mm Hex Nuts (L). Make sure to tight bolts and nuts.

Patten Pending #62458721 8
3) Assemble Bracket (B) to Bracket (A)
Slide the Bracket (B) into the top of the Bracket (A) and use [1] 10mm x 2cm Hex Bolt (I) to
secure them together.
Using the provided Zip Ties (E) secure the electrical wire to the Bracket (C) and Bracket (B).
4) Secure Electrical Wire
Using the provided Zip Ties (E) secure the electrical wire to the Bracket (A) and continue
down the H-Bracket and extension arm to the main pole. Then feed the electrical wire
down the pole between the main pole and main pole padding by un velcroing the pole
padding.

Patten Pending #62458721 9
5) Check Lights
WARNING—Be very carful not to touch the light housing with your hands. It will get
very hot!
Double check to make sure your LED Lamps (D) are working properly. Using an outdoor
rated extension cord plug your Goal Light into a power source. Ensure that the LED Lamps
(D) light up.
After letting the LED Lamps (D) cool down for 1 hour you can adjust the lights to point to
your preference.
6) Tighten All Bolts
Once everything is lined up and assembled tighten all bolts and nuts on the Goal Light.
Enjoy your new Pro Dunk Goal Light!

Patten Pending #62458721 10
7) Maintenance
Like any piece of hardware, proper maintenance is required. Several factors such as
the environment, organic materials, herbicides, pesticides, excessive use or misuse
can eventually cause the Goal Light to require maintenance. Failure to do so could
result in system failure, property damage, or even personal injury.
1) All organic materials should be kept away from the Goal Light system at all times.
This will alleviate any chance of rust penetrating the powder coated finish and
causing structural damage.
Examples: grass clippings, moisture, garbage, dirt, etc.
2) If you see any signs of rust on the Goal Light system remove the loose paint, sand
the area with a medium grit sandpaper and apply outdoor enamel to the affected area.
Suggested Touchup Paint: Rustoleum Semi-Gloss Black Enamel
3) Never leave the Goal Light plugged in when not in use. This could result in
damage to the Light and can be a fire hazard. When the Goal Light is no longer in
use unplug the light and store your extension cord inside.
4) Never use your Goal Light during or after precipitation.
8) Routine System Inspection
Before each use inspect the entire system for any signs of loose nuts and bolts, any
excessive wear and tear, any signs of rust or corrosion.
If replacement parts are needed you can contact Pro Dunk® Hoops directly or navi-
gate to www.produnkhoops.com/parts to purchase parts for your Goal Light. Only
parts provided by Pro Dunk® Hoops should be used for repair. Not doing so could
cause the system to fail resulting in injury or death and voids the limited warranty.
3-3-2017

Patten Pending #62458721 11
Hoops Inc. Goal Light Limited 90 Day Warranty
Hoops Goal Light LED basketball light systems are warranted to the original purchaser to be free from defects in ma-
terial or workmanship for 90 days of ownership by the original retail purchaser. The word “defects” is defined as imper-
fections that impair the use of the product.
Warranty Fulfillment
Merchandise must be shipped prepaid with a copy of proof of purchase to Hoops Inc. for examination to see whether it
needs to be repaired or replaced. Any labor costs, travel expenses and any other changes involved in the removal,
installation or replacement of the defective/repaired parts from/to your Hoops Goal Light system will be your (the pur-
chaser's) responsibility. Shipping charges for replaced or warranted merchandise being sent back to the customer
must be prepaid by the customer in advance. If not, the replacement shipment will be sent out collect. Hoops Inc. re-
serves the right to examine photographs or physical evidence of merchandise claimed to be defective, and to recover
said merchandise, prior to authorization of warranty claims.
What is not covered by this warranty
This warranty does not cover defects or damage due to improper installation, shipping, handling, alteration, accidents,
vandalism, weather conditions (rusting), exposure to corrosives, negligence, misuse (anything other than a type of
basketball activity or related contact with the unit), scratching, scuffing or any event beyond the control of the Hoops
Inc.. If unit is not maintained as stated in the user manual the warranty will be void.
Liability
Hoops Inc. shall not be liable for indirect, special, or consequential damages arising out of or in connection with the
use or performance of the products or other damages with respect to any economical loss, loss of property, loss of
enjoyment of use, costs of removal, installation or other consequential damages for breach of any expressed or im-
plied warranty on these products.
Guidelines
Keep your proof of purchase (original retail purchaser). Without it, we will not be able to proceed with any warranty
service.
Call
1-888-600-8545 / Warranty Dept.
Write
Hoops Inc.
Attn: Warranty Dept
22047 Lutheran Church Rd.
Tomball TX 77377
Email
[e-mail]
For the most up to date warranty information please navigate to www.produnkhoops.com.
